  1. Aggregated Circulant Matrix Based LDPC Codes Yuming Zhu and Chaitali Chakrabarti Department of Electrical Engineering Arizona State University, Tempe

  2. Outline • Introduction to LDPC codes • Iterative decoding of LDPC codes • Aggregated Circulant Matrix (ACM) based LDPC codes • Construction algorithm • BER performance • Decoder architecture • Concluding remarks

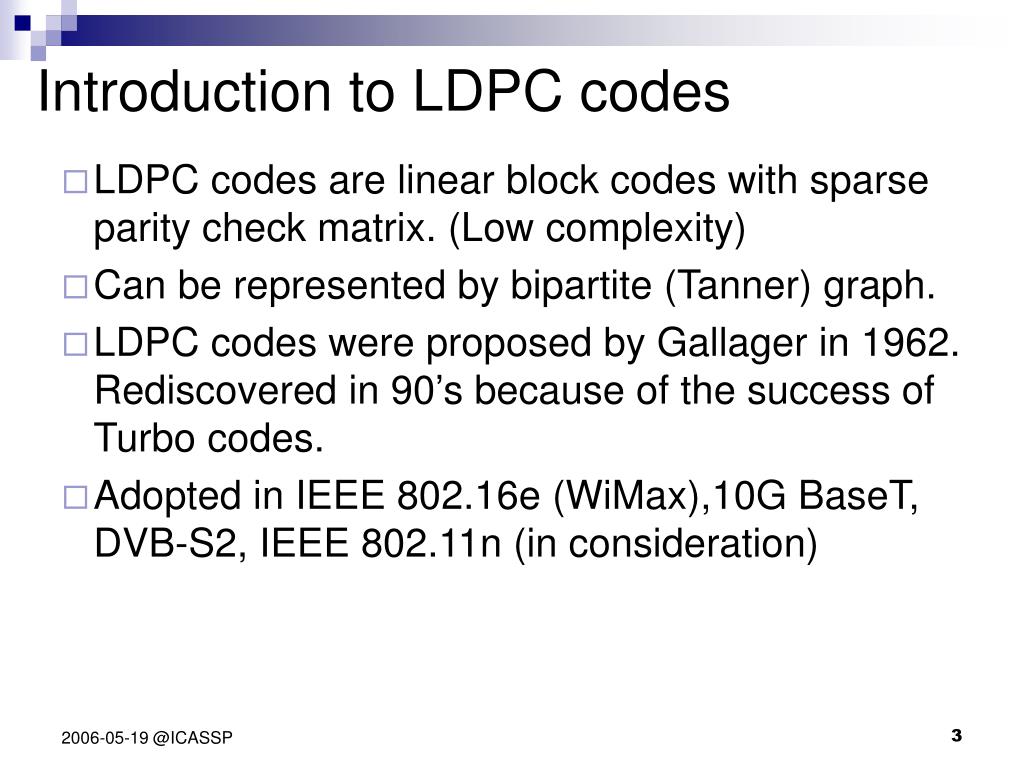

  3. Introduction to LDPC codes • LDPC codes are linear block codes with sparse parity check matrix. (Low complexity) • Can be represented by bipartite (Tanner) graph. • LDPC codes were proposed by Gallager in 1962. Rediscovered in 90’s because of the success of Turbo codes. • Adopted in IEEE 802.16e (WiMax),10G BaseT, DVB-S2, IEEE 802.11n (in consideration)

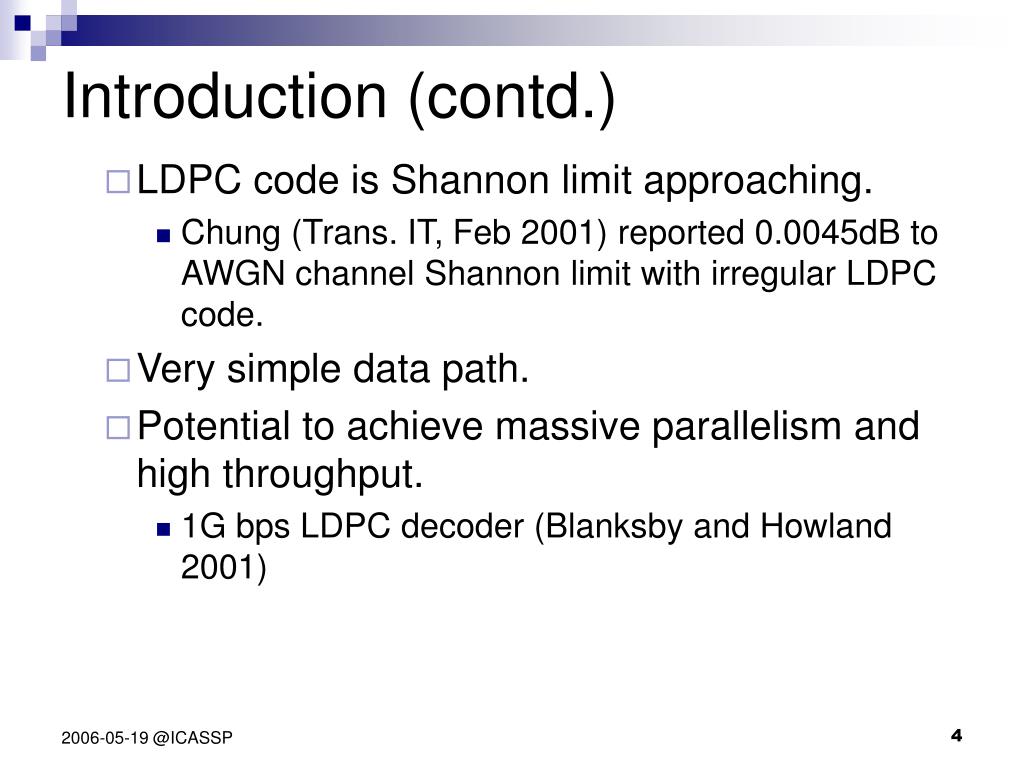

  4. Introduction (contd.) • LDPC code is Shannon limit approaching. • Chung (Trans. IT, Feb 2001) reported 0.0045dB to AWGN channel Shannon limit with irregular LDPC code. • Very simple data path. • Potential to achieve massive parallelism and high throughput. • 1G bps LDPC decoder (Blanksby and Howland 2001)

  5. Related Work • High speed LDPC decoder architectures • C. Howland 2001(Fully Parallel) • T. Zhang 2001 (Partially Parallel) • M.M. Mansour 2003 (Partially Parallel) • D.E. Hocevar 2004 (Partially Parallel) • Partially Parallel decoding for sub-matrix with multiple shifted identity matrices • Z. Wang 2005 (With restriction on the shift values; for geometrical LDPC codes)

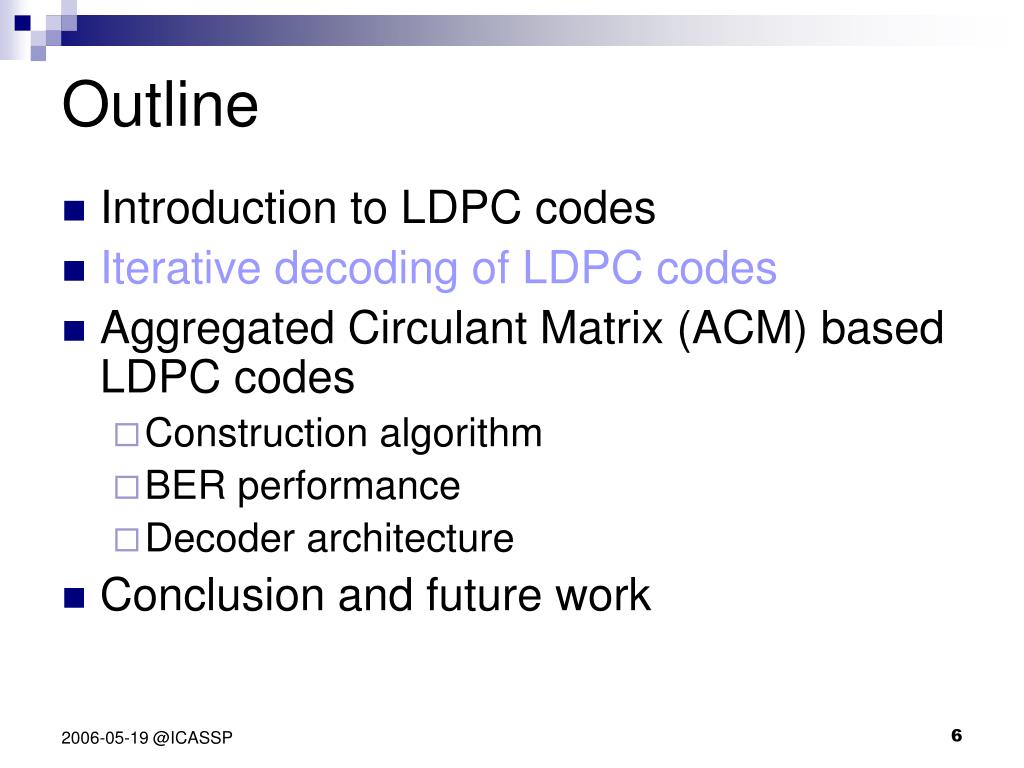

  6. Outline • Introduction to LDPC codes • Iterative decoding of LDPC codes • Aggregated Circulant Matrix (ACM) based LDPC codes • Construction algorithm • BER performance • Decoder architecture • Conclusion and future work

  7. Bit to check Check to bit + + + + Code graph and decoding • Iterative decoding • Belief Propagation (BP) • Bit nodes send their belief information (likelihood ratio, usually in LOG domain) • Check nodes gather the information and update the corresponding bit nodes. An example of (2,3) regular LDPC

  8. Iterative decoding algorithm BP: Min-Sum: λ-Min:

  9. Circulant matrix based LDPC code • Partial parallel implementation with ordered sub-matrix in H matrix. • Scheduling of the belief information update. • Check node based • Variable node based Each element in the Hb matrix is a circulant shifted version of identity matrix. (Tanner 2004)

  10. Layered BP algorithm • Layered BP algorithm schedules in row order. • The rows in one block row can be processed in parallel. • Pipelining is a common technique to increase the throughput. • However, the throughput increased by pipelining is limited if there are data dependencies.

  11. Outline • Introduction to LDPC codes • Iterative decoding of LDPC codes • Aggregated Circulant Matrix (ACM) based LDPC codes • Construction algorithm • BER performance • Decoder architecture • Conclusion and future work

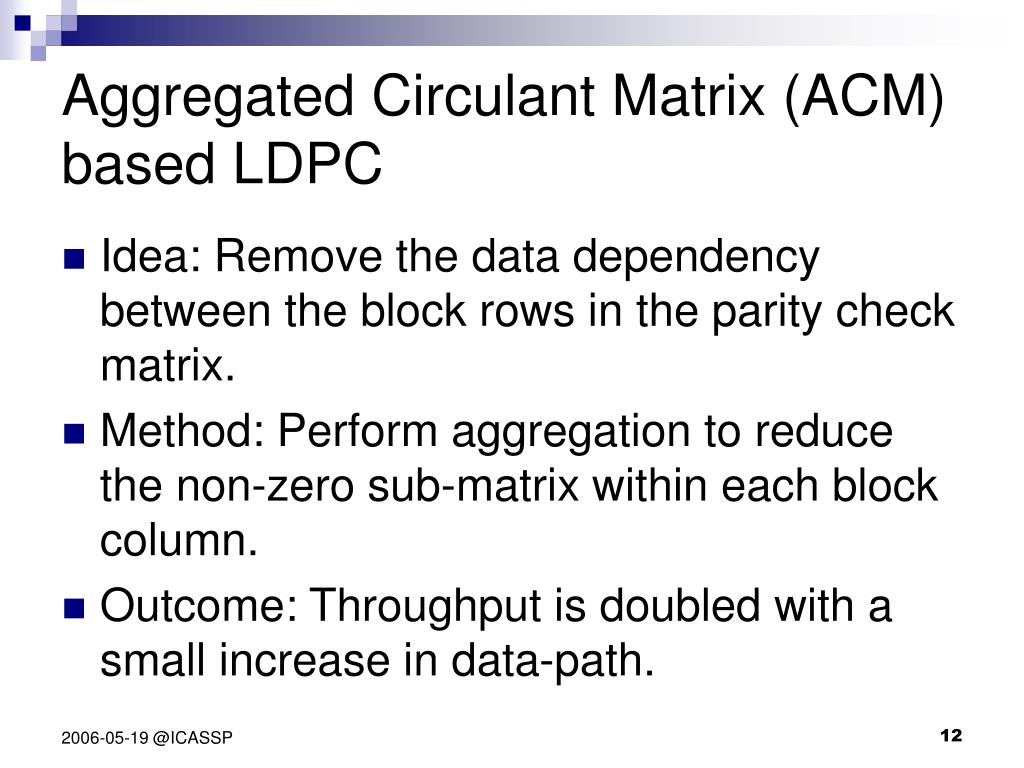

  12. Aggregated Circulant Matrix (ACM) based LDPC • Idea: Remove the data dependency between the block rows in the parity check matrix. • Method: Perform aggregation to reduce the non-zero sub-matrix within each block column. • Outcome: Throughput is doubled with a small increase in data-path.

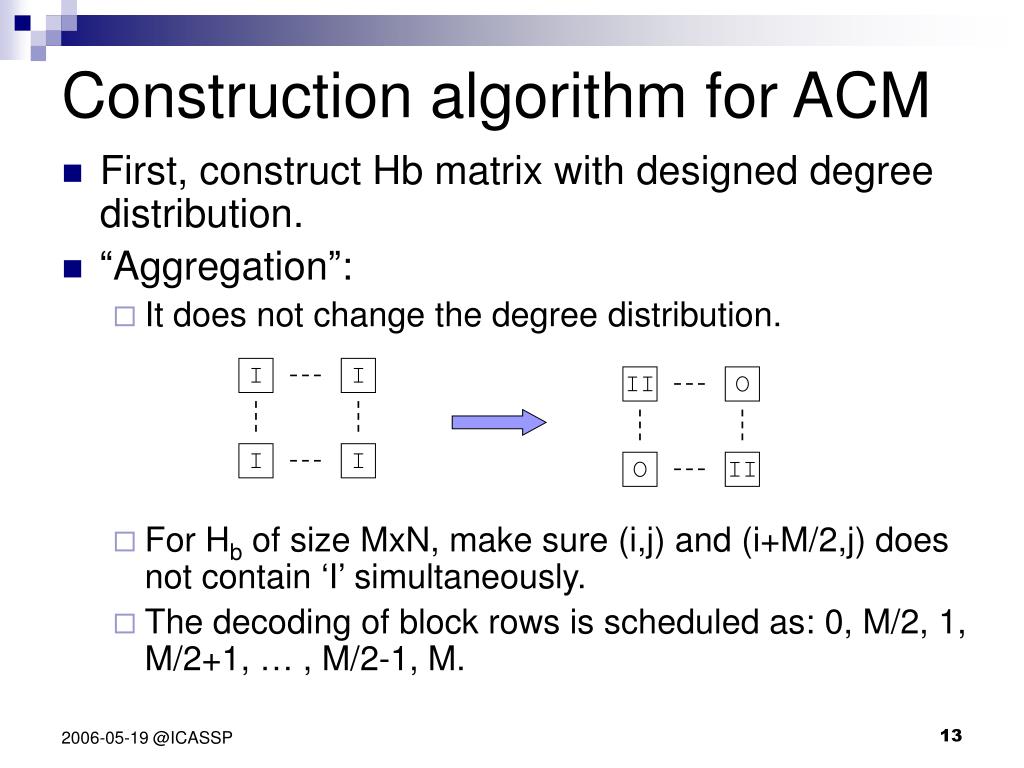

  13. I I II O I I O II Construction algorithm for ACM • First, construct Hb matrix with designed degree distribution. • “Aggregation”: • It does not change the degree distribution. • For Hb of size MxN, make sure (i,j) and (i+M/2,j) does not contain ‘I’ simultaneously. • The decoding of block rows is scheduled as: 0, M/2, 1, M/2+1, … , M/2-1, M.

  14. Hb matrix of ACM based LDPC Original Aggregated Reordered

  15. BER performance of ACM

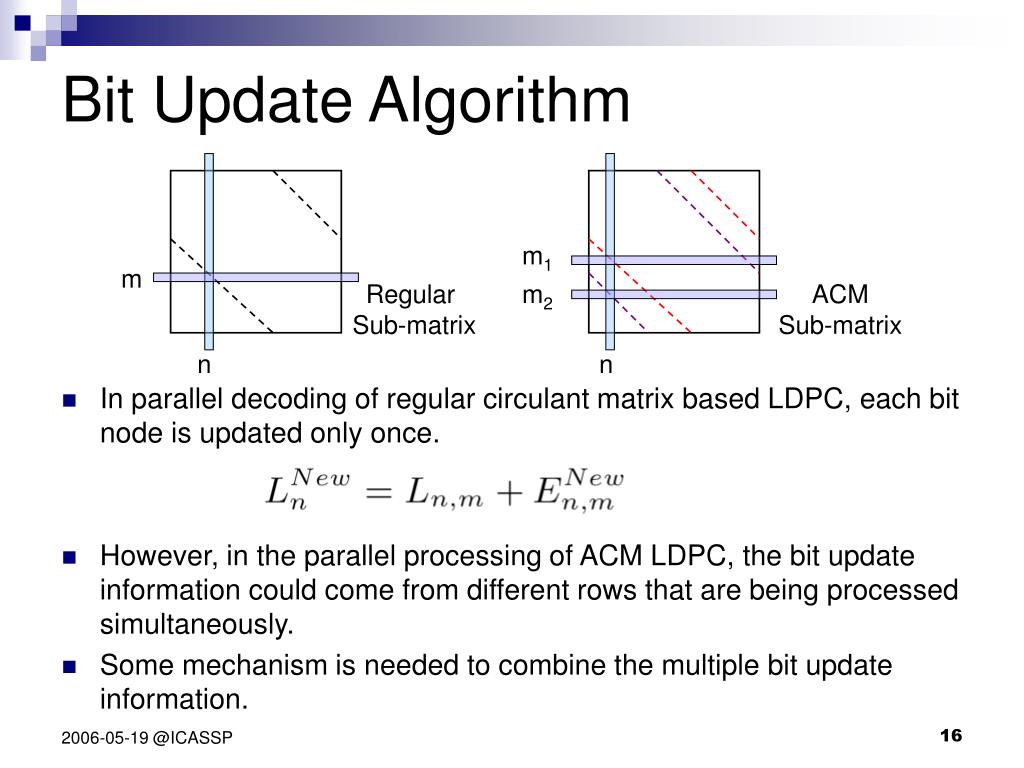

  16. Bit Update Algorithm m1 m Regular Sub-matrix m2 ACM Sub-matrix n n • In parallel decoding of regular circulant matrix based LDPC, each bit node is updated only once. • However, in the parallel processing of ACM LDPC, the bit update information could come from different rows that are being processed simultaneously. • Some mechanism is needed to combine the multiple bit update information.

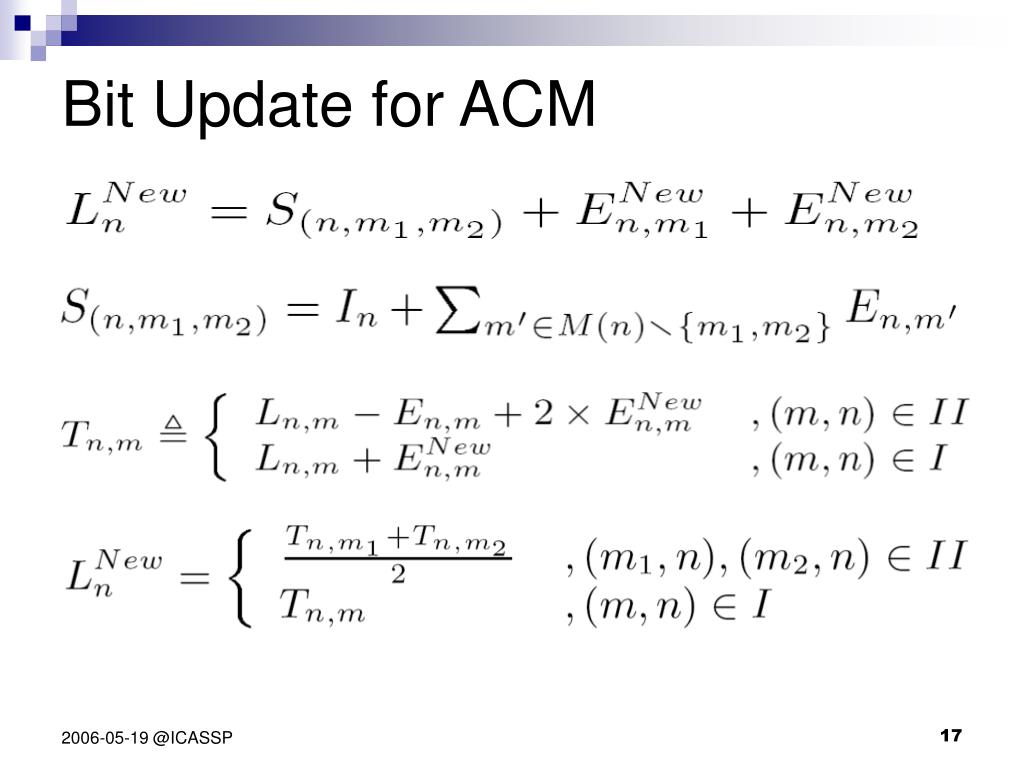

  17. Bit Update for ACM

  18. ACM LDPC decoder architecture

  19. Synthesis result • The decoder was synthesized with TSMC 90 nm lib. • The decoder achieved 930 Mb/s throughput when clocked at 300 MHz for a rate 4/5 code. • Compared with the regular LDPC code, the data-path of the ACM LDPC decoder increased by only 20%, while the throughput increased by a factor of 2. • The data-path contributed 25.6% of the area of the overall decoder.

  20. Outline • Introduction toLDPC codes • Iterative decoding of LDPC codes • Aggregated Circulant Matrix (ACM) based LDPC codes • Construction algorithm • BER performance • Decoder architecture • Conclusion and future work

  21. Concluding Remarks • The proposed ACM LDPC code has comparable performance with the regular LDPC codes. • The advantage is that it can be decoded with a two-fold increase in the throughput at the expense of only 20% increase in data-path complexity. • Efficient implementation of the aggregation algorithm with more than 2 identity matrices is still an open problem.

  22. Thank You!! Questions?
