  1. STONE CITY IN THE

  2. Bruno Miglio Arup Façade Engineering

  3. Grand Egyptian Museum Translucent Stone Wall Stone in the City 12th March 2008

  4. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg exterior

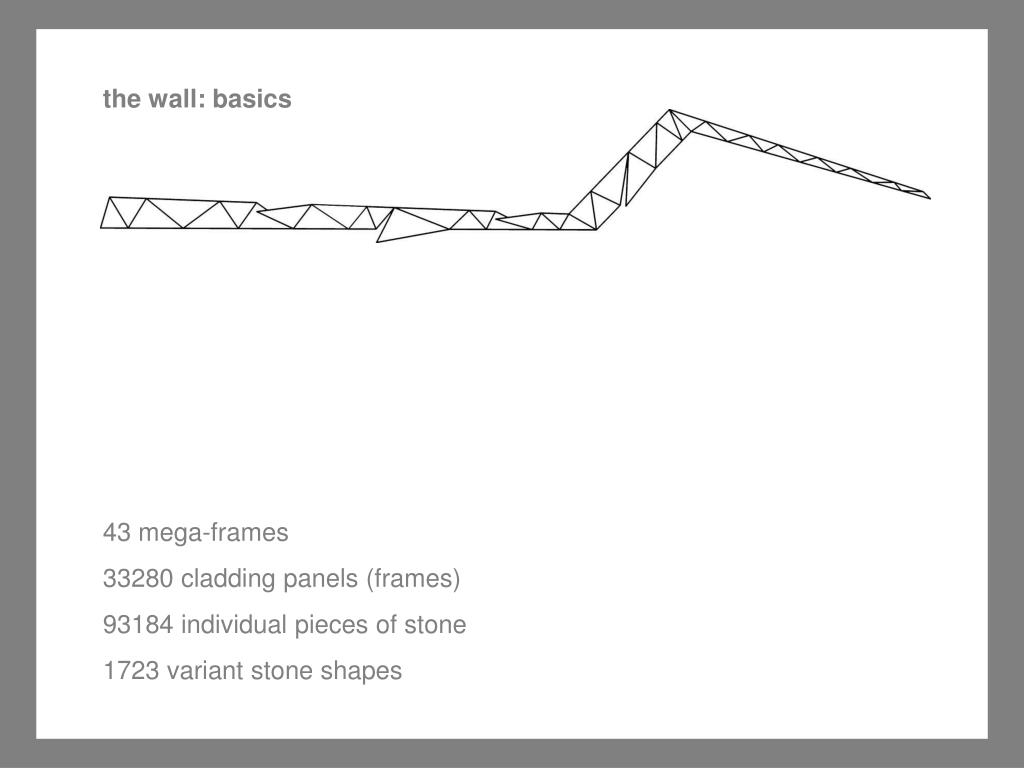

  5. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg the wall: basics 43 mega-frames 33280 cladding panels (frames) 93184 individual pieces of stone 1723 variant stone shapes

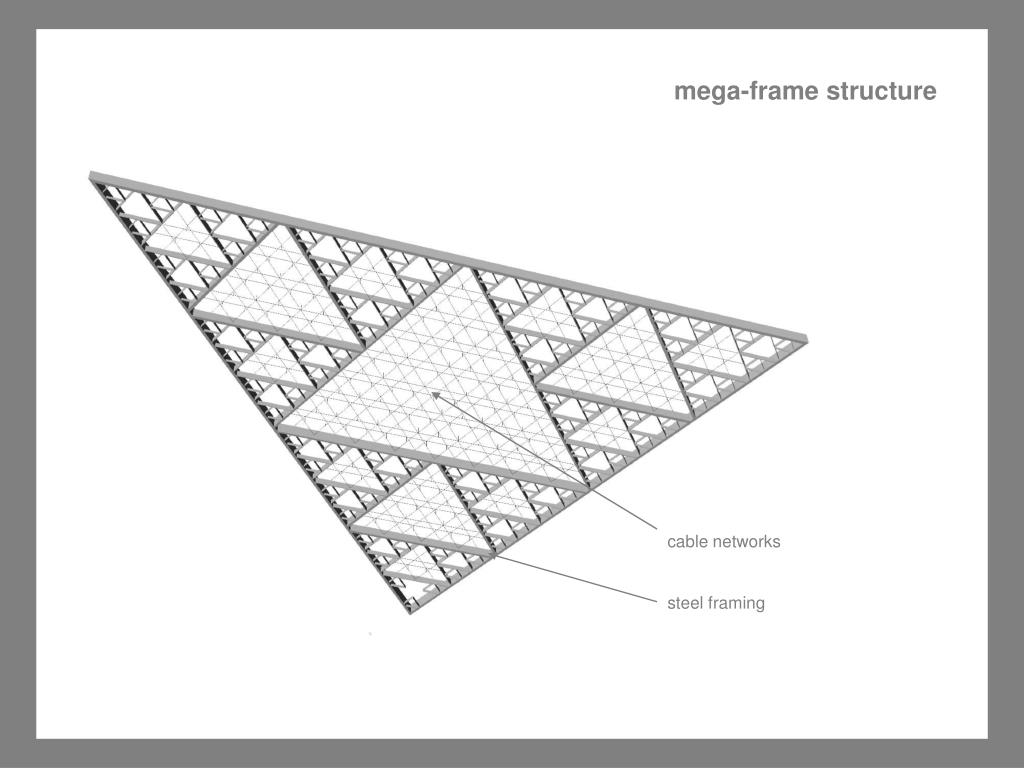

  6. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg mega-frame structure cable networks steel framing

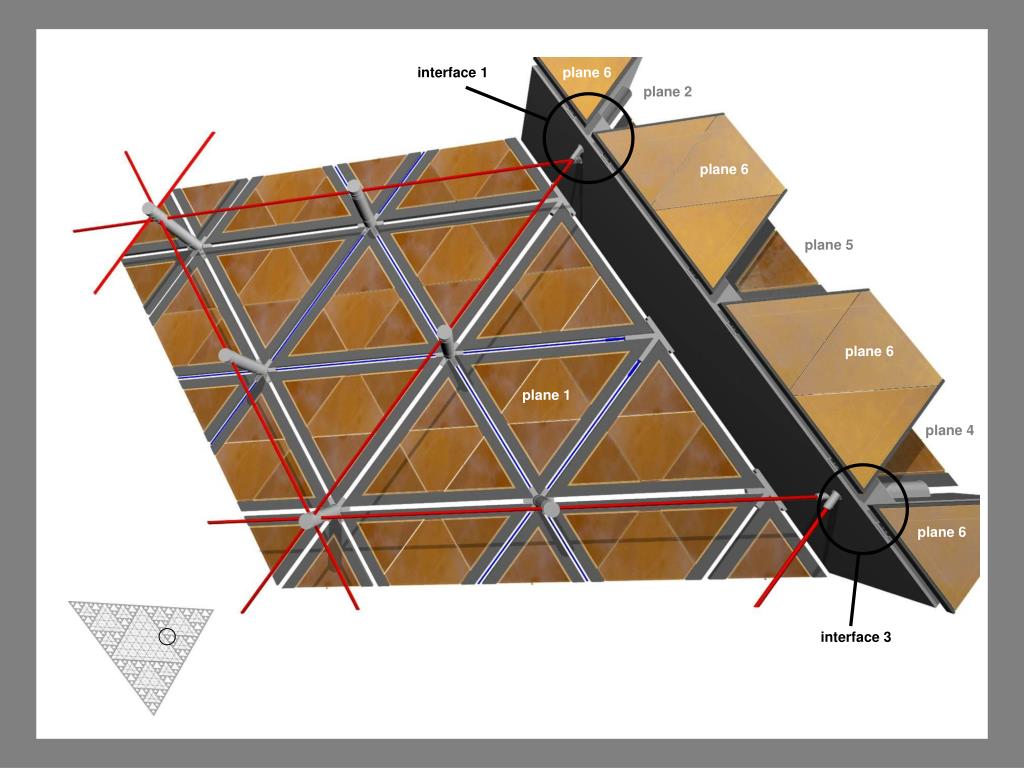

  7. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg interface 1 plane 6 plane 2 plane 6 plane 5 plane 6 plane 1 plane 4 plane 6 interface 3

  8. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg

  9. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg

  10. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg

  11. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg

  12. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg mega-frame 10 framed cladding panel elevation

  13. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg corner casting isometric

  14. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg mega-frame 29 frame: kerf fixing details

  15. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg side length (mm) stress due to unfactored wind load (MPa) mega-frame number panel analysis initial calculations:all un-split

  16. ..\4.40 - calculations\Translucent Stone Wall\TP images\megaframe split.jpg side length (mm) stress due to unfactored wind load (MPa) mega-frame number panel analysis second iteration:subdivision and optimisation

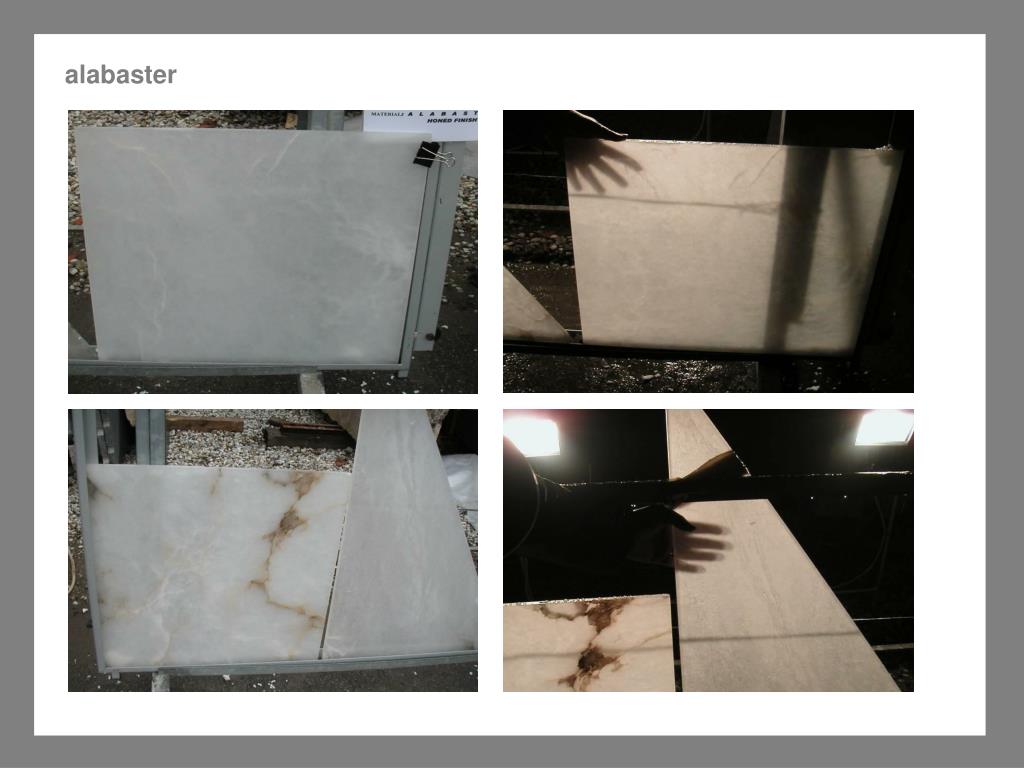

  17. alabaster

  18. marble

  19. Onyx (1)

  20. Onyx (2)

  21. benrather karree, düsseldorf (2003)

  22. bibliothèque de l’alcazar, marseille (2003)

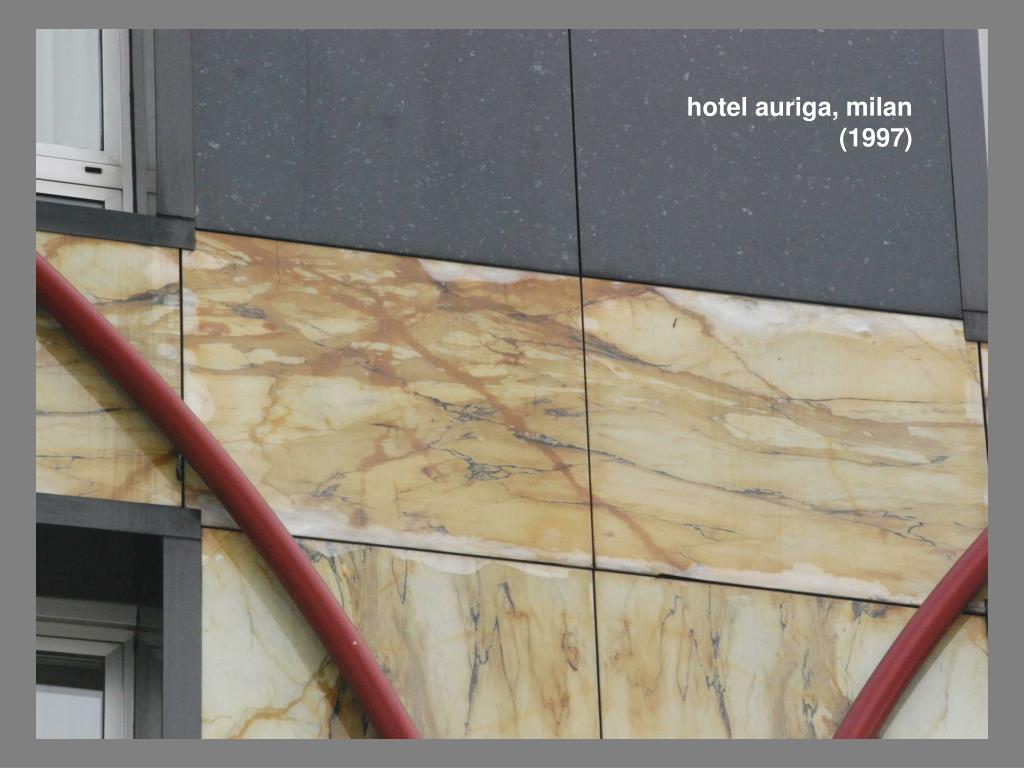

  23. hotel auriga, milan(1997)

  24. iranian white onyx

  25. iranian white onyx

  26. iranian white onyx

  27. iranian white onyx

  28. iranian white onyx

  29. iranian white onyx

  30. iranian white onyx

  31. iranian white onyx

  32. iranian white onyx quarry

  33. iranian white onyx blocks

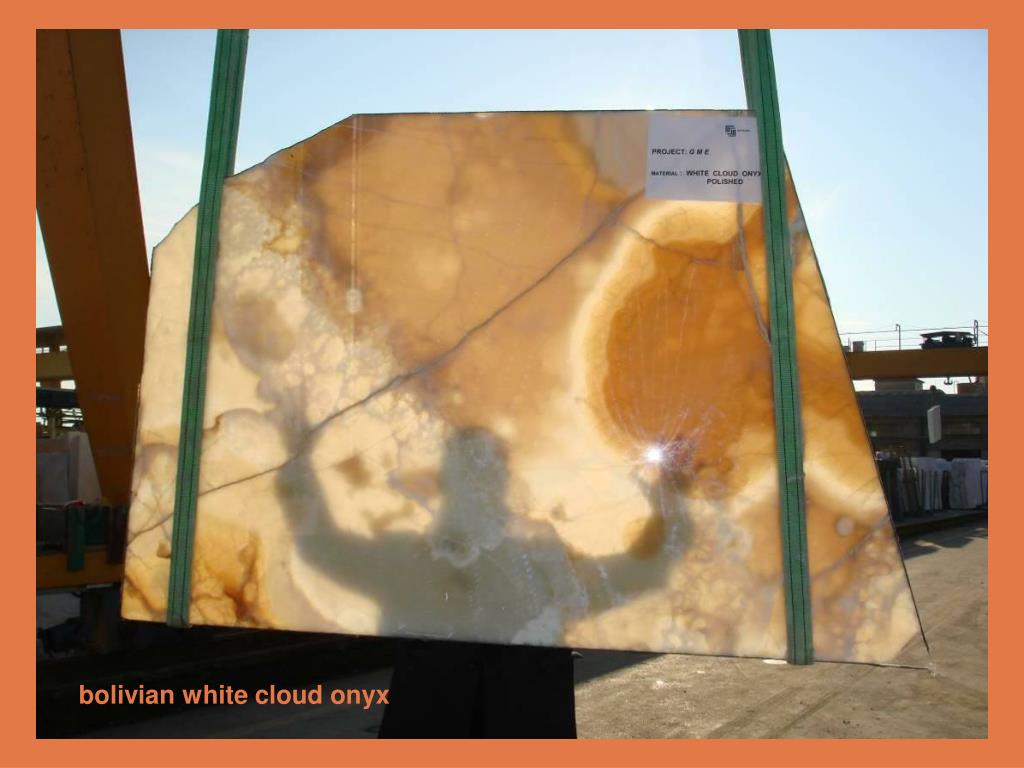

  34. bolivian white cloud onyx

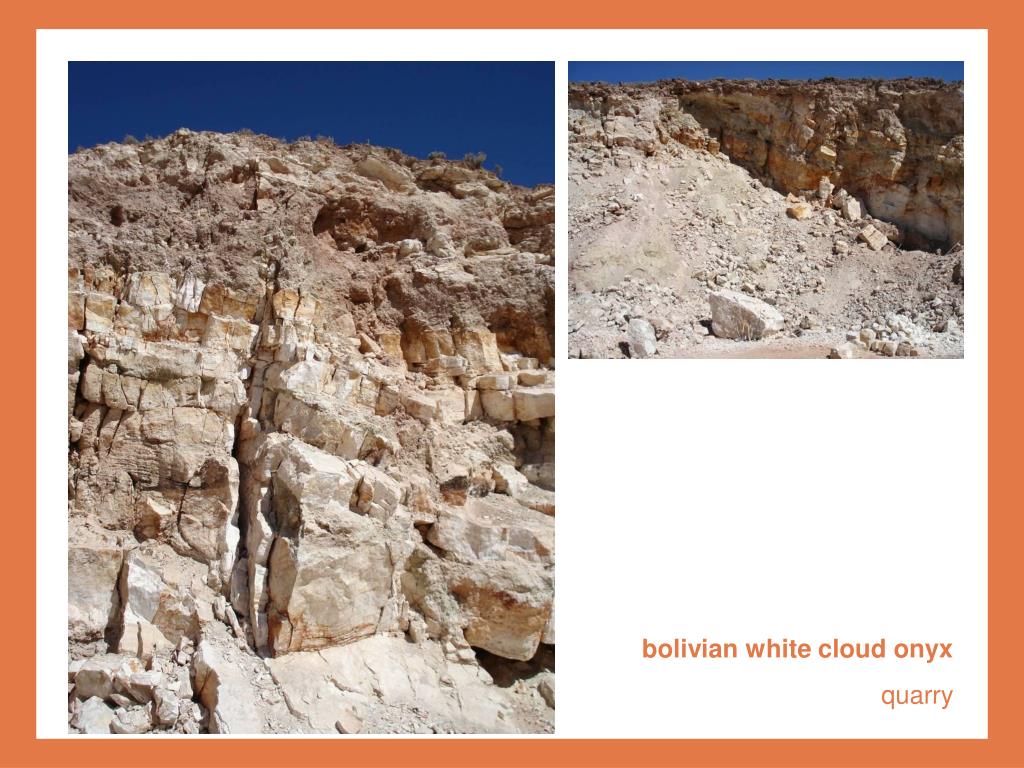

  35. bolivian white cloud onyx quarry

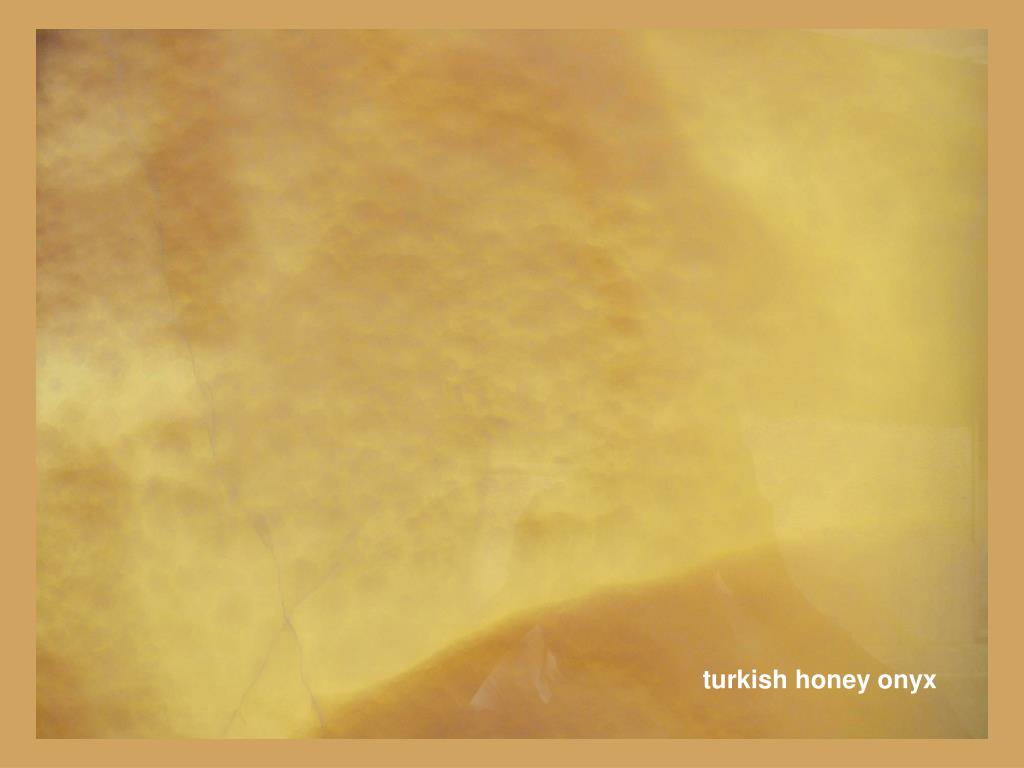

  36. turkish honey onyx

  37. turkish honey onyx

  38. turkish honey onyx quarry

  39. turkish honey onyx quarry

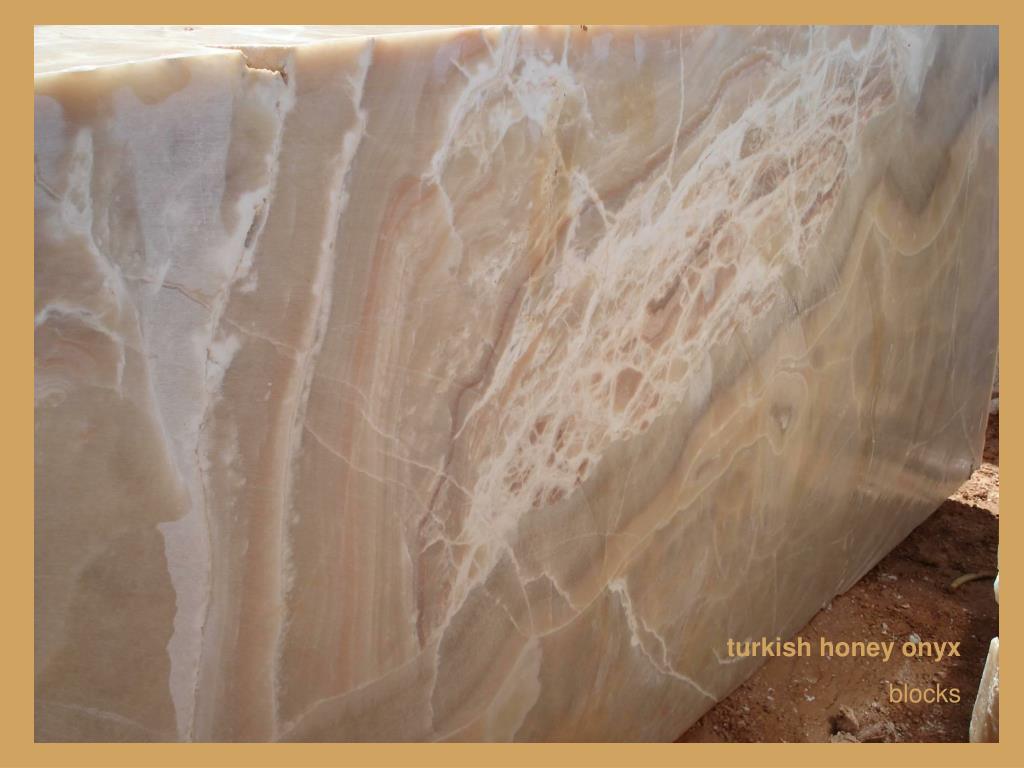

  40. turkish honey onyx blocks

  41. turkish honey onyx blocks

  42. macedonian onyx slabs

  43. macedonian onyx

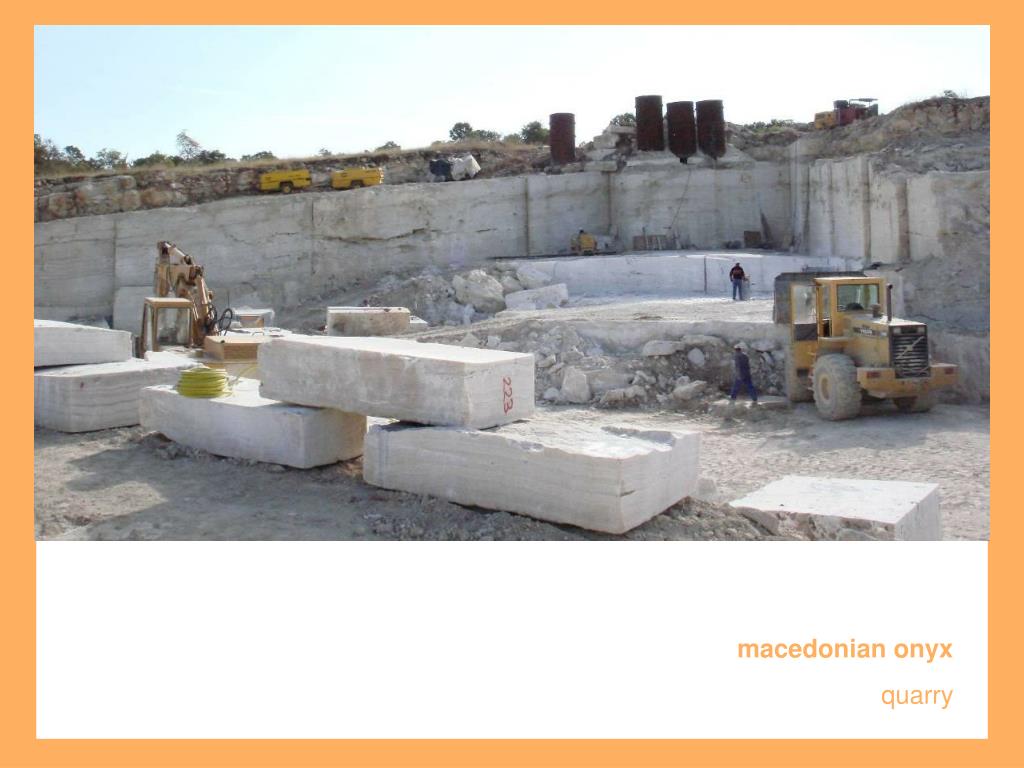

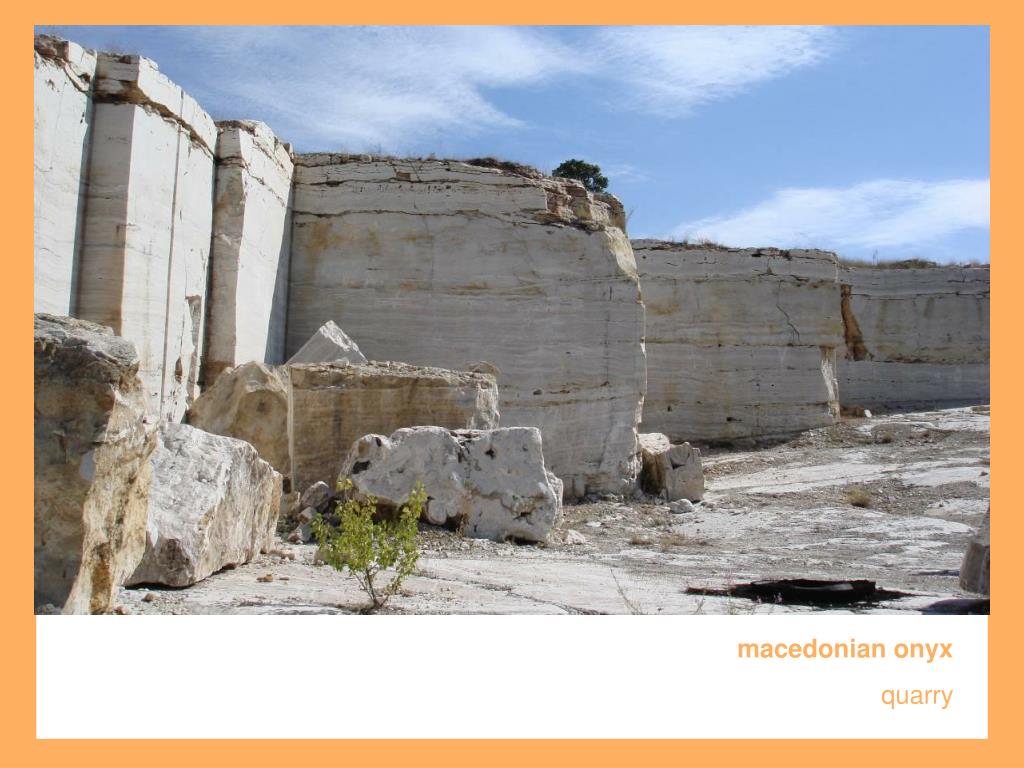

  44. macedonian onyx quarry

  45. macedonian onyx quarry
