Chemical Separations

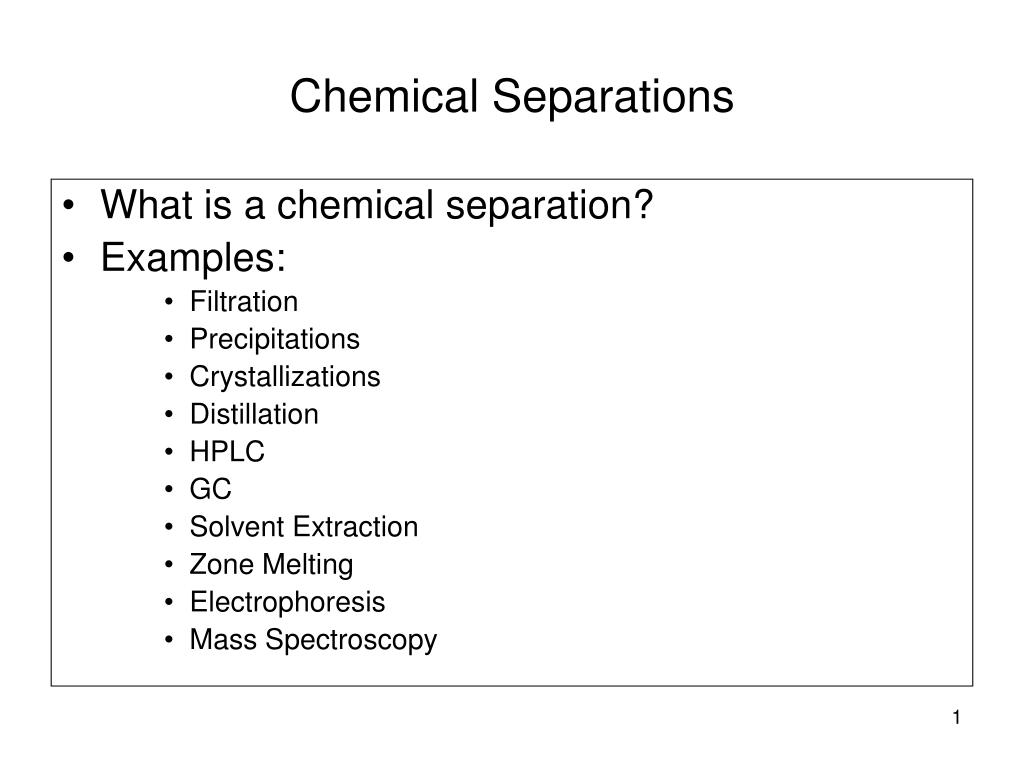

What is a chemical separation? Examples: Filtration Precipitations Crystallizations Distillation HPLC GC Solvent Extraction Zone Melting Electrophoresis Mass Spectroscopy Chemical Separations

What is the object of the separation. Collection of a pure product Isolation for subsequent analysis for either quantification or identification Analysis How Much? What is it? Chemical Separations

Major Industries Petroleum Distillation Distilled Spirits Chemical Separations

Petroleum is a mixture of hydrocarbons. The larger the molecular weight the less volatile. So we must separate into various molecular weight fractions (different boiling points) The results are still complex mixtures Chemical Separations

Chemical Separations

As heat is added to the system the lower volatility compounds will boil away and can be collected. In the spirits industry the low boilers are call foreshots (~75% EtOH) The high boilers are called feints Congeners - Chemical compounds produced during fermentation and maturation. Congeners include esters, acids, aldehydes and higher alcohols. Strictly speaking they are impurities, but they give whisk(e)y its flavour. Their presence in the final spirit must be carefully judged; too many would make it undrinkable. Distillation

What is whiskey? What is brandy? Distillation

Bourbon - US whiskey made from at least 51% corn, distilled to a maximum of 80% abv (160 proof) and put into charred new oak barrels at a strength of no more than 62.5% abv. Organic whisk(e)y - That made from grain grown without chemical fertilizers, herbicides and pesticides. Tennessee whiskey - As bourbon, but filtered through a minimum of 10 feet of sugar-maple charcoal. This is not a legal requirement, but is the method by which Tennessee whiskies are currently produced. Interesting Facts

Malt whisky - Whisky made purely from malted barley. Angels' share - A certain amount of whisk(e)y stored in the barrel evaporates through the wood: this is known as the angels' share. Roughly two per cent of each barrel is lost this way, most of which is alcohol. http://www.whisky-world.com/words/index.php Interesting Facts

Liquid – Solid Liquid - Liquid Extraction

Liquid Solid Extraction (Soxhlet)whale.wheelock.edu/ bwcontaminants/analysis.html

Liquid Solid Extractor (Bunn)

We want to partition a solute between two immiscible phases. Oil and vinegar Ethyl ether and water Hexane water Octanol and water. The two solvent should have low miscibility Have different densities – avoid emulsion formation. Solvent Extraction (Liquid-Liquid)

http://oceanexplorer.noaa.gov/explorations/02sab/background/products/media/chroma1.htmlhttp://oceanexplorer.noaa.gov/explorations/02sab/background/products/media/chroma1.html

Solvent Extraction

Replace concentration with moles over volume and let q equal the fraction in the aqueous phase.m will be the moles of solute in the entire system

Define a new term for the ratio of the volumes of the phases

We can do a little algebra and find an expression for q

p is the term for the fraction in the organic p + q = 1 Giving If it does not end up in the aqueous phase it must be in the organic phase.

You have 100.0 mL of an aqueous solution that is 100.0 mM in compound C. This solution is extracted with 50.0 mL of diethyl ether and the aqueous phase is assayed and it is found that the concentration of compound C that remains is 20.0 mM. What is the equilibrium constant for this extraction system. Sample Problem

Solution

We can do multiple extraction from the aqueous phase. • We end up with the following expression for what is left in the aqueous phase.

How many extractions would be required to remove 99.99% of aspirin from an aqueous solution with an equal volume of n-octanol? Since 99.99% must be removed the decimal fraction equivalent of this is 0.9999. This leaves 0.0001 in the aqueous phase. Since we have equal volumes then Vr is 1.00. We are able to find from the Interactive Analysis Web site that K for Aspirin is 35.5. We plug these values into the q equation and the power is the unknown. Example

Solution

A compound such as aspirin is a carboxylic acid. We can represent this as HA. Do we expect the ion A- to be very soluble in the organic phase??? What if our compound can dissociate or participate in some other equilibrium?

So if we have dissociation then less will go into the organic phase. Kp is the ratio of concentration of aspirin (in the un-dissociated form) in each phase. This ratio will always be the same. How do we account for the ion formation? Dissociation

Distribution Coefficient • Where C is the formal concentration of the species. • Ca = [HA] + [A-] • Dc will vary with conditions • For this compound what is that condition?

Dc • Since the ion is not very soluble in the organic phase then we may assume that the dissociation will not happen in that phase. • This gives us the expression to the right.

Acid Equilibria • What is the equilibrium? • Ka

With a little algebra • So if you know Kd and Ka then you can determine Dc as a function of H+ (pH) • However if [H+] is much larger than Ka then Dc will equal Kd. If the [H+] is close in value to Ka then D will be related to the pH • Plotting this we get.

Well we can now move a solute (analyte) from one phase to another. This can be very useful when extracting a compound that has significant chemical differences from other compounds in solution. As a matter of fact this has been used as an interview question for prospective co-ops when I worked in industry. The question would go like this. You have carried out a series of reactions and it is now time to work up the product which currently sits in an organic solution (methylene chloride). Your expected product is a primary amine. Which of the following solutions would you extract this methylene chloride solution with to isolate your amine. Your choices are: A) Toluene. B) 0.1 N NaOH (aq) C) 0.1 N HCl (aq) D) I never wanted to work here anyhow. So What, Why is this useful.

So far we can tell how one compound moves from one phase to another. What if we are try to separate two compounds, A and B Well we might just suspect that if we find a solvent system that has different values of Dc for each compound we could end up with most of one compound in one phase and the other compound in the opposite phase. It is not that simple. Separation

System I Da = 32 Db = 0.032 (A ratio of 1000) Vr= 1 Let's recall our equations q (fraction in aqueous) = 1 / (DVr + 1) p (fraction in organic) = DVr / (DVr + 1) Vr (volume ratio) = Vo / Va Example

pa = 32*1 / (32*1 + 1) = 0.97 pb = 0.032*1/ (0.032*1 + 1) = 0.03 If we assume that we have equal moles of A and B to start then what is the purity of A in the Organic Phase? Purity = moles A / (moles A + moles B) Purity = 0.97 / (0.97 + 0.03) = 0.97 or 97 % Case I

Da = 1000 Db = 1 VR = 1 (Ratio is still 1000) pa = 1000*1 / (1000*1 + 1*1) = 1000/1001 = 0.999 Aha! we got more a into the organic, as we would expect with a higher D value. Now pb = 1*1 / ( 1*1 +1) = 1/2 = 0.5 oh-oh What do we get for purity of compound a now? purity = 0.999 / (0.999 + 0.50) = 0.666 Yuck! Case II

Once we have selected the solvent and pH, then there is little that we can do to change D. What else do we have in our control????? Let's look p = DVr / (DVr + 1) Not much here except Vr and in fact that is the key to this problem. Is there an optimum Vr value for the values of D that we have? Yes! Our equation for this is V r(opt) = (Da*Db)-0.5 How can we get around this issue?

So let us look at our two cases and see which will give us the optimum values. Case I Da = 32 and Db = 0.032 V r(opt) = (32 * 0.032)-0.5 = ( 1 )-0.5 = 1 So we were already at the optimum. Revisit the two cases

Case II Da = 1000 and Db = 1 Vr (opt) = (1000*1)-0.5 = 1000-0.5 = 0.032 Which mean that when we do our extraction we will extract _______ mL of organic for each _______ mL of aqueous. Case II Revisited

What is our purity for this system? pa = 1000*0.032 / (1000*0.032 + 1) = 32/33 = 0.97 and pb = 1*0.032 / (1*0.032 + 1) = 0.032/1.032 = 0.03 Purity of a then is 0.97/ (0.97 + 0.03) Which will give us the 97% purity we had for Case I with with the Vr of 1. Purity for Case II

If we were to extract again then we would just remove the same proportions. We would get more compound extracted but it would be the same purity. What if we were to take the organic phase and extract it with fresh aqueous phase. We know that one of the two compounds will end up mostly in that aqueous phase so we should enhance the purity of the other compound in the organic phase. Can we improve this purity?

Called that since you are extracting back into the original phase. Back Extraction

Let's look at the numbers. Da = 32 Db = 0.032 Vr = 1 pa = 0.97 pb = 0.03 qa = 0.03 qb = 0.97 Let’s prepare a table. Back Extraction Case I Example

Before Shaking Amount A Amount B Organic Phase 0.97 0.03 Fresh Aqueous Phase 0 0 Initial conditionsprior to starting back extraction .

How much goes to the Aqueous phase q which is 0.03 for A and 0.97 for B How much goes to the Organic phase p which is 0.97 for A and 0.03 for B After Shaking Amount A Amount B Organic Phase (0.97)(0.97) (0.03)(0.03) Aqueous Phase (0.97)(0.03) (0.03)(0.97) Now we extract – shake shake shake

Purity = Amount A / (Amount A + Amount B) = 0.97*0.97 / (0.97*0.97 + 0.03*0.03) = 0.94/(0.94 + 0.0009) = 99.9% What is the yield of A (fraction of the total amount that we started with) Now what is the purity for A in the organic phase???

After second Back Extraction Amount A Amount B Organic Phase 0.94*0.97 0.0009*0.03 Aqueous Phase 0.94*0.03 0.0009*0.97 Let’s do it again – Can we improve purity even more? Purity A = 0.913 / (0.913 + 0.000027) = 99.997% But our yield has dropped to 91.3%, there is a price to pay for the added purity.

Such multiple extraction systems have been developed. Still a viable option for preparative work. For separations it has been replaced by HPLC Called Craig Counter Current Extraction. Special glassware is used. Can We Expand This?Why Would We Want to?

Chemical Separations
