  1. Windows 2000 Windows.NET Servers Unit 2 Lesson 6 Lesson 6—Networking BASICS

  2. Objectives • List and describe the features of a Windows 2000 server. • Create and modify a new user account using Windows 2000. • Add users to a group using Windows 2000. • List the new features of the Windows.NET network operating system. Lesson 6—Networking BASICS

  3. Windows 2000 • It is the most widely used network operating system. • The first version appeared in 1988. • There are four versions of Windows 2000. Lesson 6—Networking BASICS

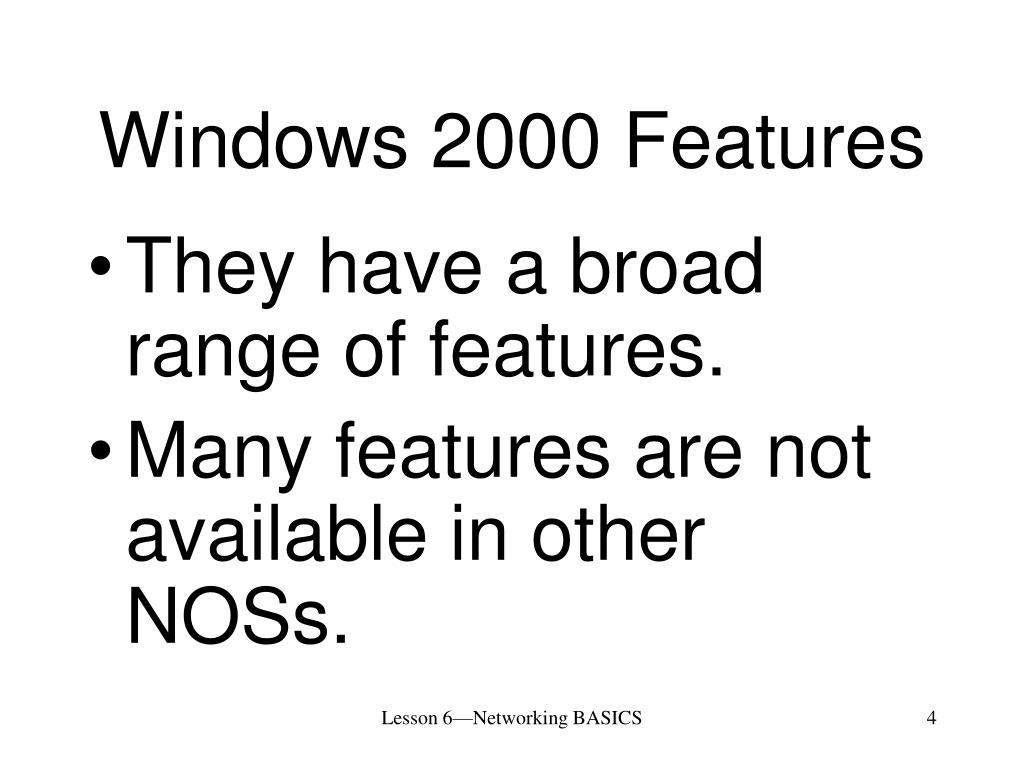

  4. Windows 2000 Features • They have a broad range of features. • Many features are not available in other NOSs. Lesson 6—Networking BASICS

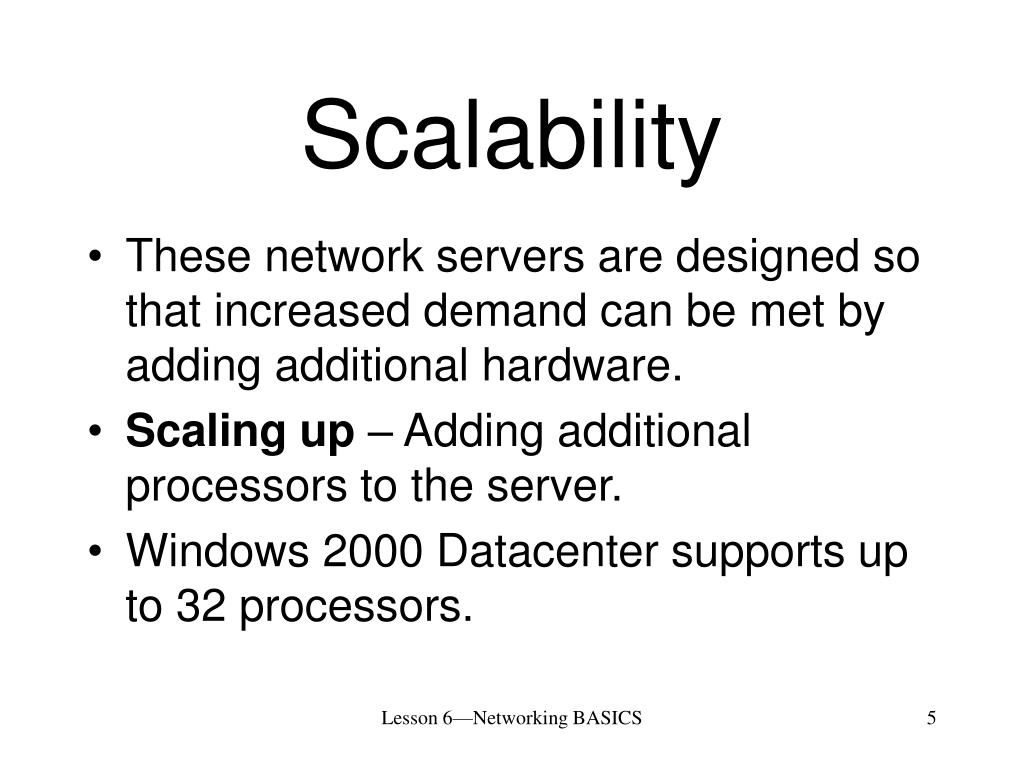

  5. Scalability • These network servers are designed so that increased demand can be met by adding additional hardware. • Scaling up – Adding additional processors to the server. • Windows 2000 Datacenter supports up to 32 processors. Lesson 6—Networking BASICS

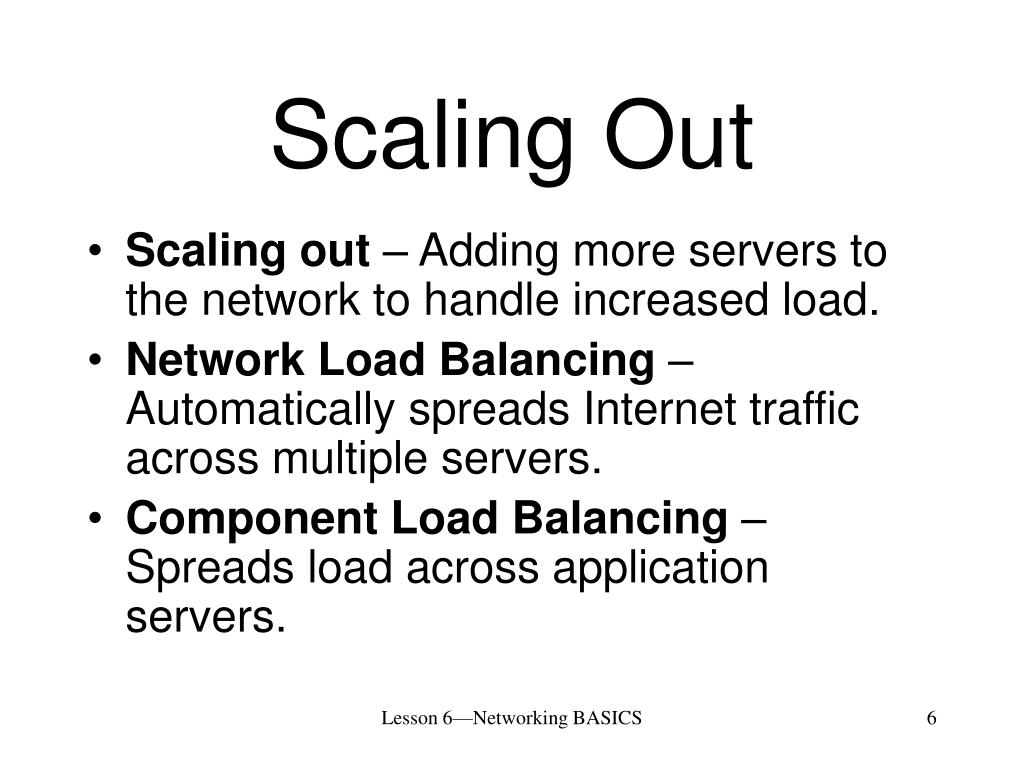

  6. Scaling Out • Scaling out – Adding more servers to the network to handle increased load. • Network Load Balancing – Automatically spreads Internet traffic across multiple servers. • Component Load Balancing – Spreads load across application servers. Lesson 6—Networking BASICS

  7. Scaling Out Lesson 6—Networking BASICS

  8. Stability • Windows 2000 restricts programs from directly accessing server hardware. • Executive services talks to the kernelsubsystem, which communicates with the hardware abstraction layer (HAL). • HAL consists of virtual hardware objects that represent the actual hardware devices. • Any problem that occurs based on a faulty hardware request is first caught by HAL. Lesson 6—Networking BASICS

  9. Stability Lesson 6—Networking BASICS

  10. Rings • Each process is confined to a specific ring. • Only processes run by the executive services run on Ring 0. All regular applications run on Ring 3. • Any process running on Ring 0 can commun-icate with the hardware through kernel and HAL. • When a program running on Ring 3 needs access to hardware, it must first communicate the request with a process running on Ring 0. Lesson 6—Networking BASICS

  11. Rings Lesson 6—Networking BASICS

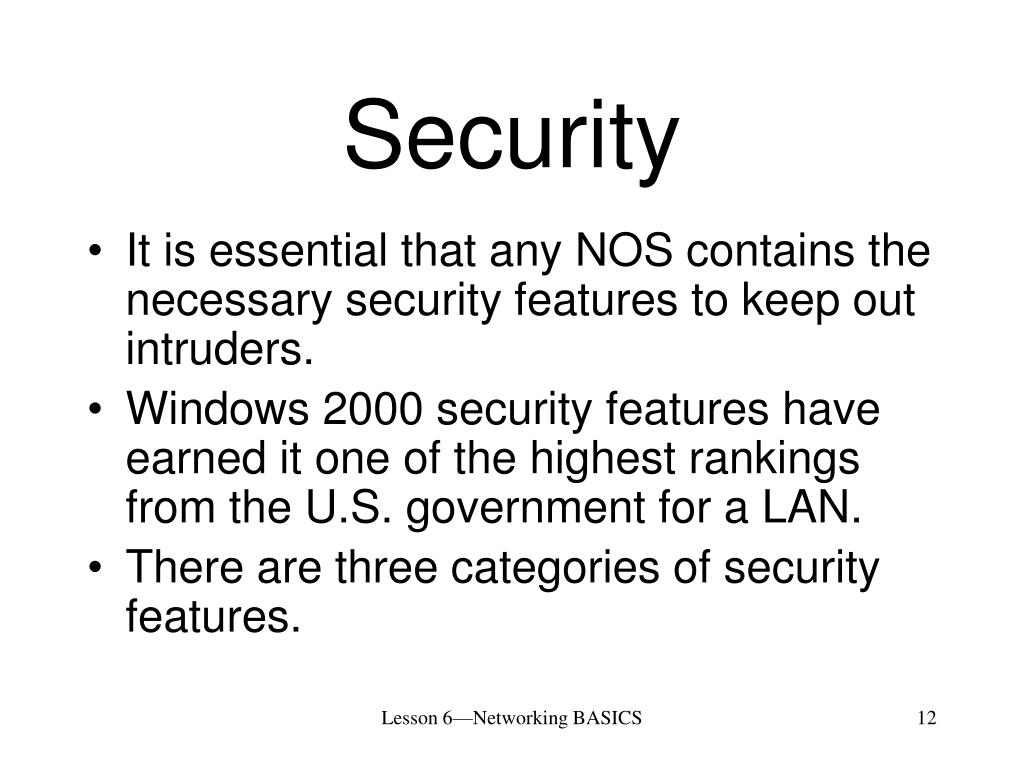

  12. Security • It is essential that any NOS contains the necessary security features to keep out intruders. • Windows 2000 security features have earned it one of the highest rankings from the U.S. government for a LAN. • There are three categories of security features. Lesson 6—Networking BASICS

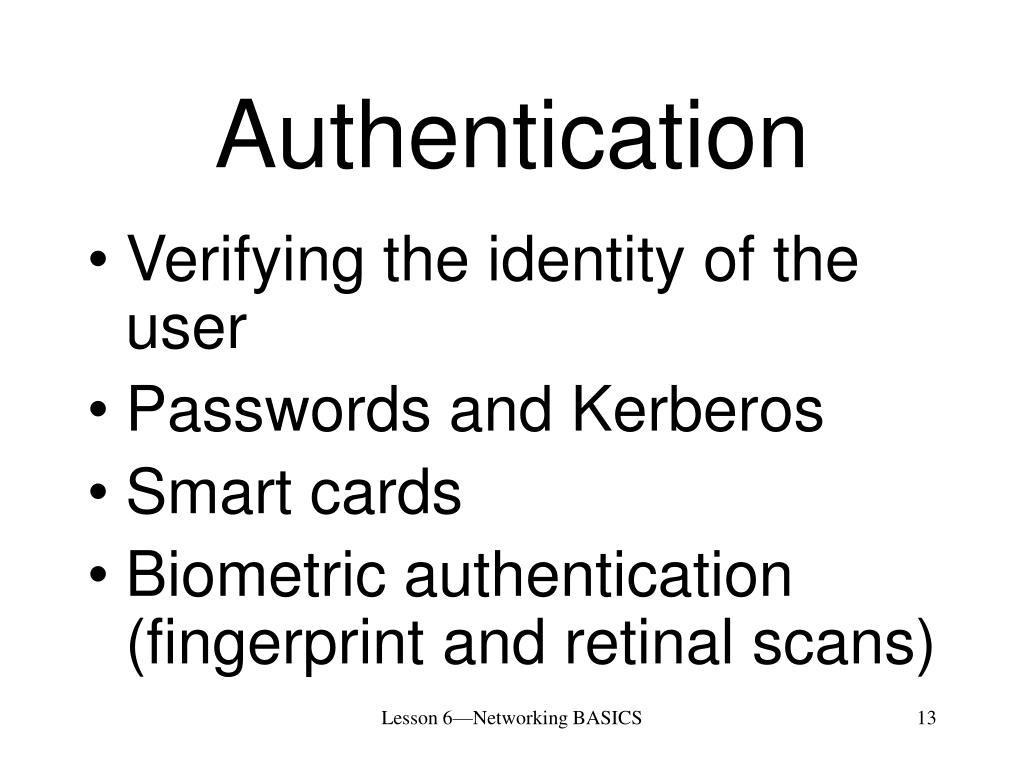

  13. Authentication • Verifying the identity of the user • Passwords and Kerberos • Smart cards • Biometric authentication (fingerprint and retinal scans) Lesson 6—Networking BASICS

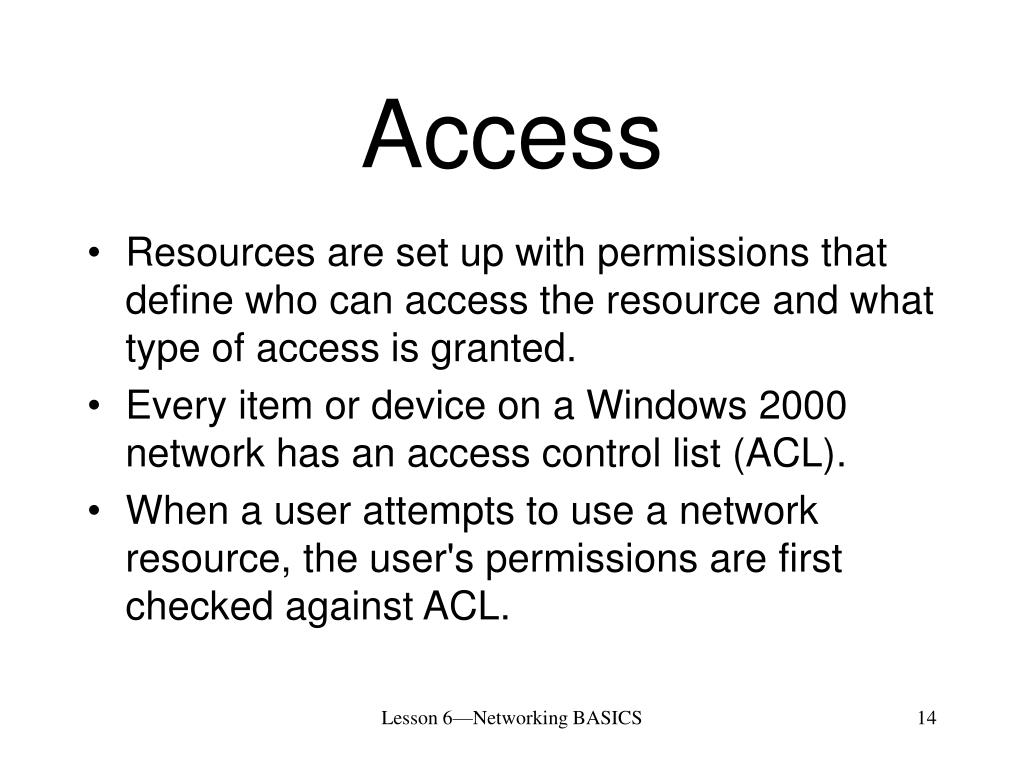

  14. Access • Resources are set up with permissions that define who can access the resource and what type of access is granted. • Every item or device on a Windows 2000 network has an access control list (ACL). • When a user attempts to use a network resource, the user's permissions are first checked against ACL. Lesson 6—Networking BASICS

  15. Data Protection • It is sometimes necessary to encryptsensitive data on a file server. • Windows 2000 supports a public key infrastructure,which allows data to be encrypted and then read without storing the key on a server. • Windows 2000 supports Internet Protocol Security (IPSec), which encrypts IP packets so that packet sniffers cannot be used. Lesson 6—Networking BASICS

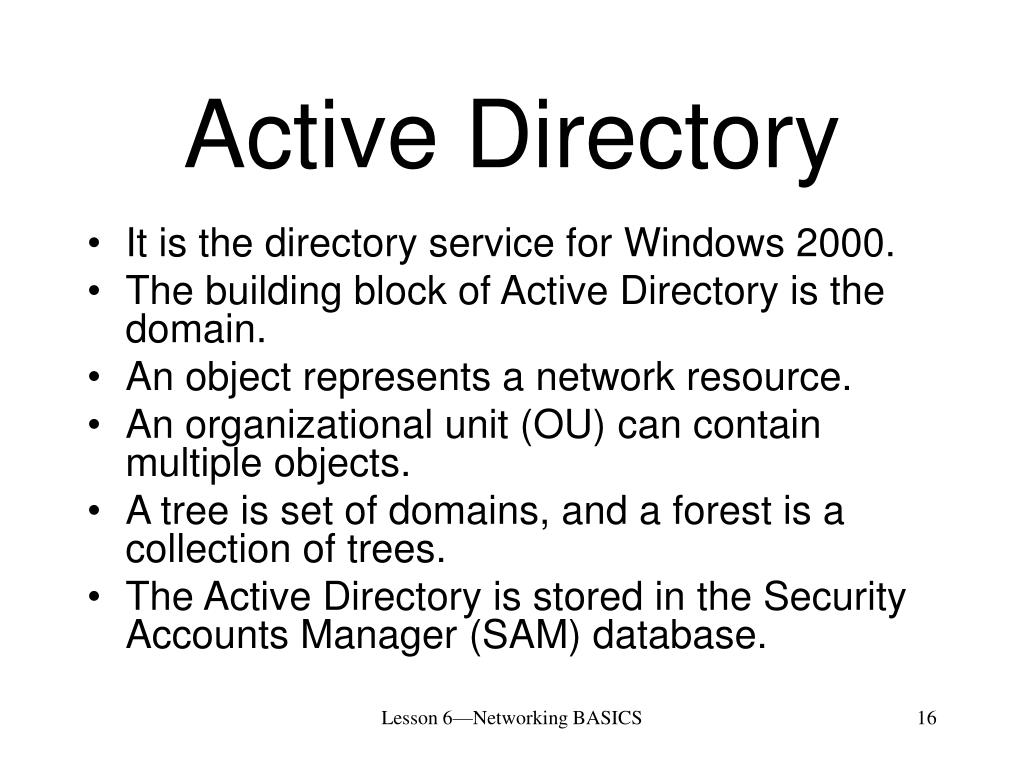

  16. Active Directory • It is the directory service for Windows 2000. • The building block of Active Directory is the domain. • An objectrepresents a network resource. • An organizational unit (OU)can contain multiple objects. • A tree is set of domains, and a forest is a collection of trees. • The Active Directory is stored in the Security Accounts Manager (SAM) database. Lesson 6—Networking BASICS

  17. Active Directory Lesson 6—Networking BASICS

  18. User Accounts • Performed at Computer Management window • Username • Full name • Description • Password • Confirm password Lesson 6—Networking BASICS

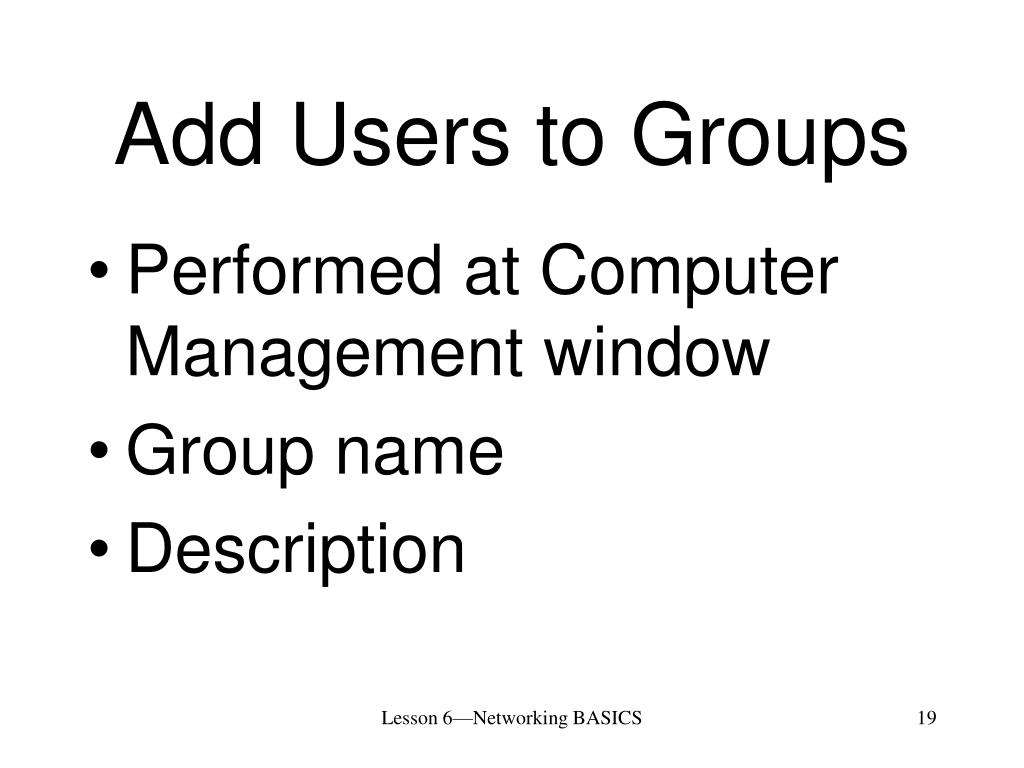

  19. Add Users to Groups • Performed at Computer Management window • Group name • Description Lesson 6—Networking BASICS

  20. Shares • Performed at Windows 2000 Explorer window • Share name • Comment • User limit • Permissions Lesson 6—Networking BASICS

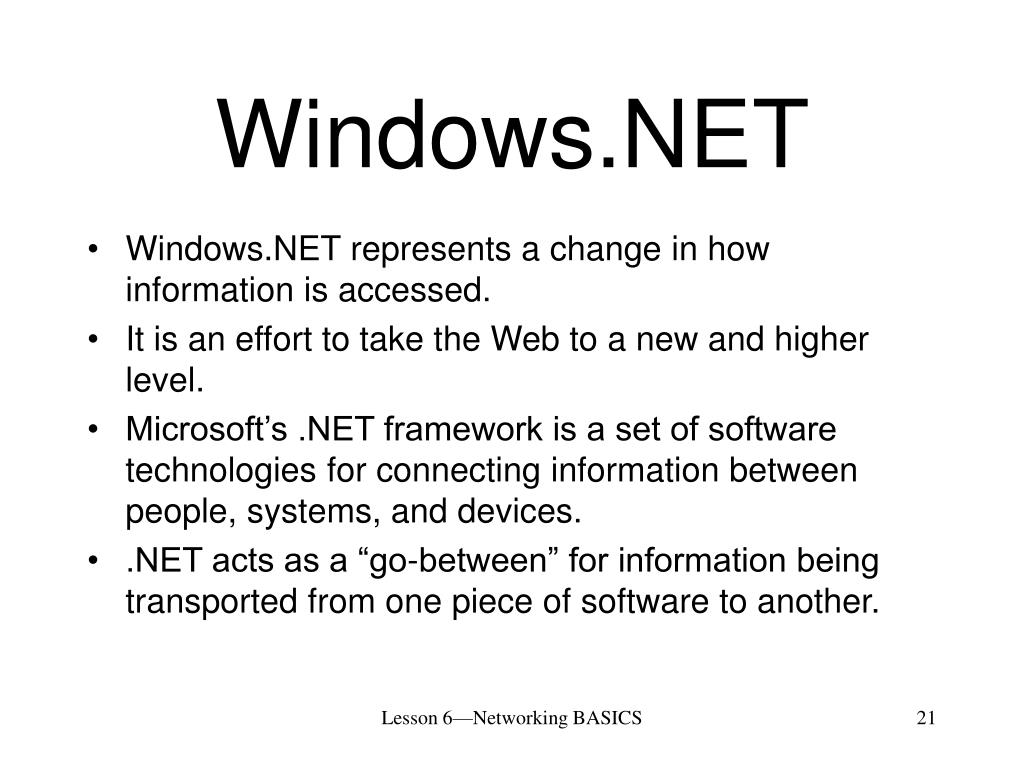

  21. Windows.NET • Windows.NET represents a change in how information is accessed. • It is an effort to take the Web to a new and higher level. • Microsoft’s .NET framework is a set of software technologies for connecting information between people, systems, and devices. • .NET acts as a “go-between” for information being transported from one piece of software to another. Lesson 6—Networking BASICS

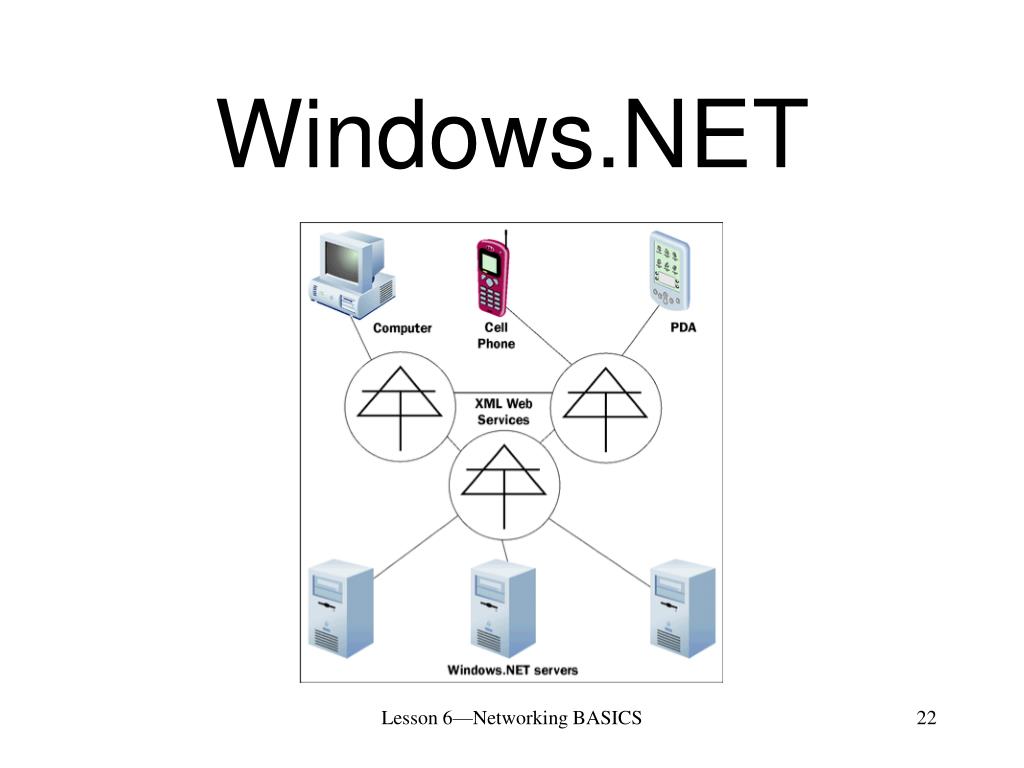

  22. Windows.NET Lesson 6—Networking BASICS

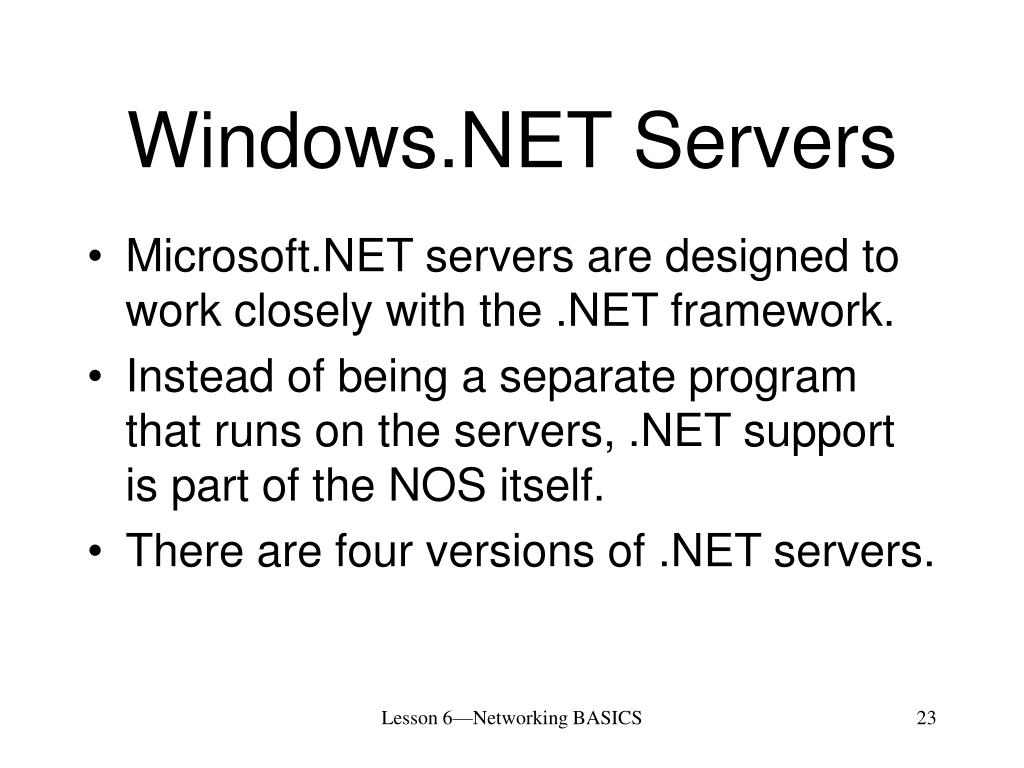

  23. Windows.NET Servers • Microsoft.NET servers are designed to work closely with the .NET framework. • Instead of being a separate program that runs on the servers, .NET support is part of the NOS itself. • There are four versions of .NET servers. Lesson 6—Networking BASICS

  24. Windows.NET Servers • Improved security features in Active Directory • New load-balancing techniques • Enhanced encryption tools • IPv6 support Lesson 6—Networking BASICS

  25. Summary • The Windows 2000 NOS has become the most popular network operating system for LANs. Windows 2000 has many advanced features that make it easy for network administrators to manage and for users to work with. Windows 2000 servers are designed so an increased demand can be easily met by adding additional hardware resources. These resources can be added by either installing more processors to the server (scaling up) or adding more servers (scaling out). To improve its stability, Windows 2000 is divided into different subsystems, and only the hardware abstraction layer (HAL) provides instructions to the hardware. Any problem that occurs based on a faulty hardware request is caught by HAL before it ever reaches the hardware. A second technique used to increase stability is the use of rings, whereby a process running on a specific ring can communicate with the hardware. Lesson 6—Networking BASICS

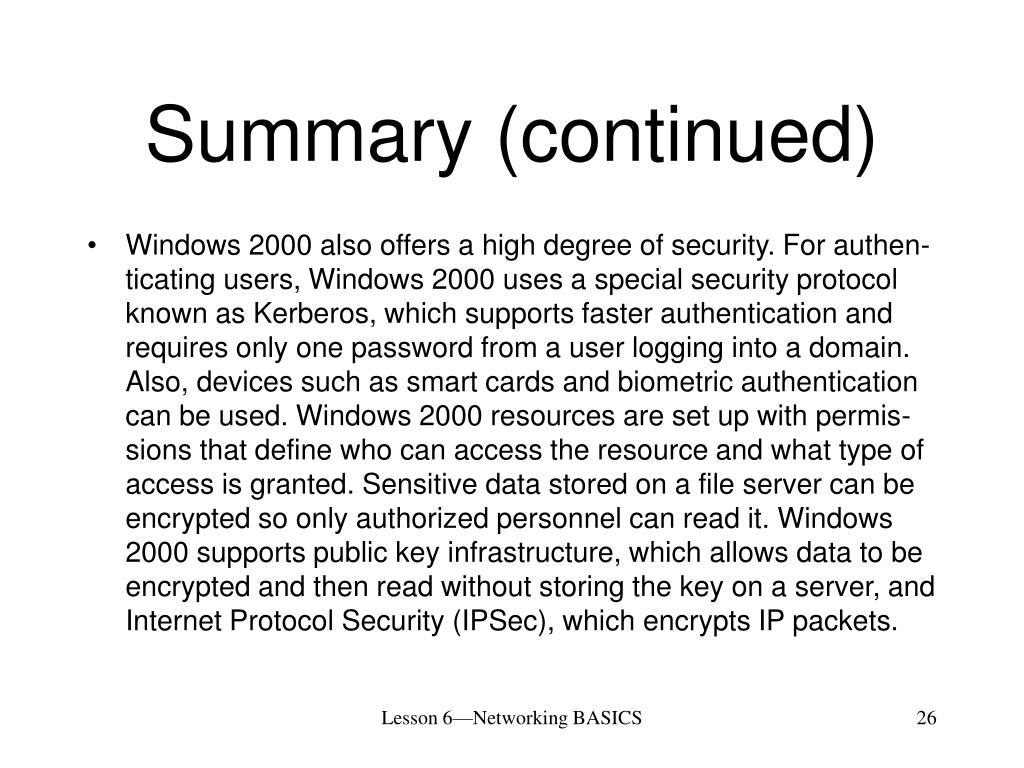

  26. Summary (continued) • Windows 2000 also offers a high degree of security. For authen-ticating users, Windows 2000 uses a special security protocol known as Kerberos, which supports faster authentication and requires only one password from a user logging into a domain. Also, devices such as smart cards and biometric authentication can be used. Windows 2000 resources are set up with permis-sions that define who can access the resource and what type of access is granted. Sensitive data stored on a file server can be encrypted so only authorized personnel can read it. Windows 2000 supports public key infrastructure, which allows data to be encrypted and then read without storing the key on a server, and Internet Protocol Security (IPSec), which encrypts IP packets. Lesson 6—Networking BASICS

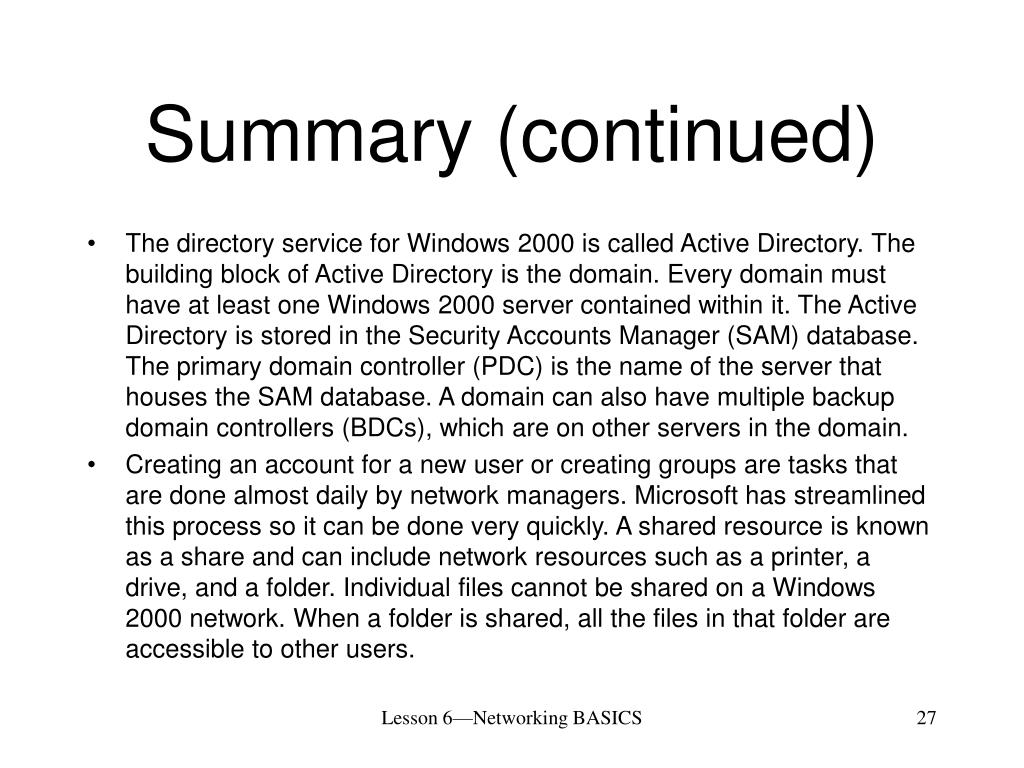

  27. Summary (continued) • The directory service for Windows 2000 is called Active Directory. The building block of Active Directory is the domain. Every domain must have at least one Windows 2000 server contained within it. The Active Directory is stored in the Security Accounts Manager (SAM) database. The primary domain controller (PDC) is the name of the server that houses the SAM database. A domain can also have multiple backup domain controllers (BDCs), which are on other servers in the domain. • Creating an account for a new user or creating groups are tasks that are done almost daily by network managers. Microsoft has streamlined this process so it can be done very quickly. A shared resource is known as a share and can include network resources such as a printer, a drive, and a folder. Individual files cannot be shared on a Windows 2000 network. When a folder is shared, all the files in that folder are accessible to other users. Lesson 6—Networking BASICS

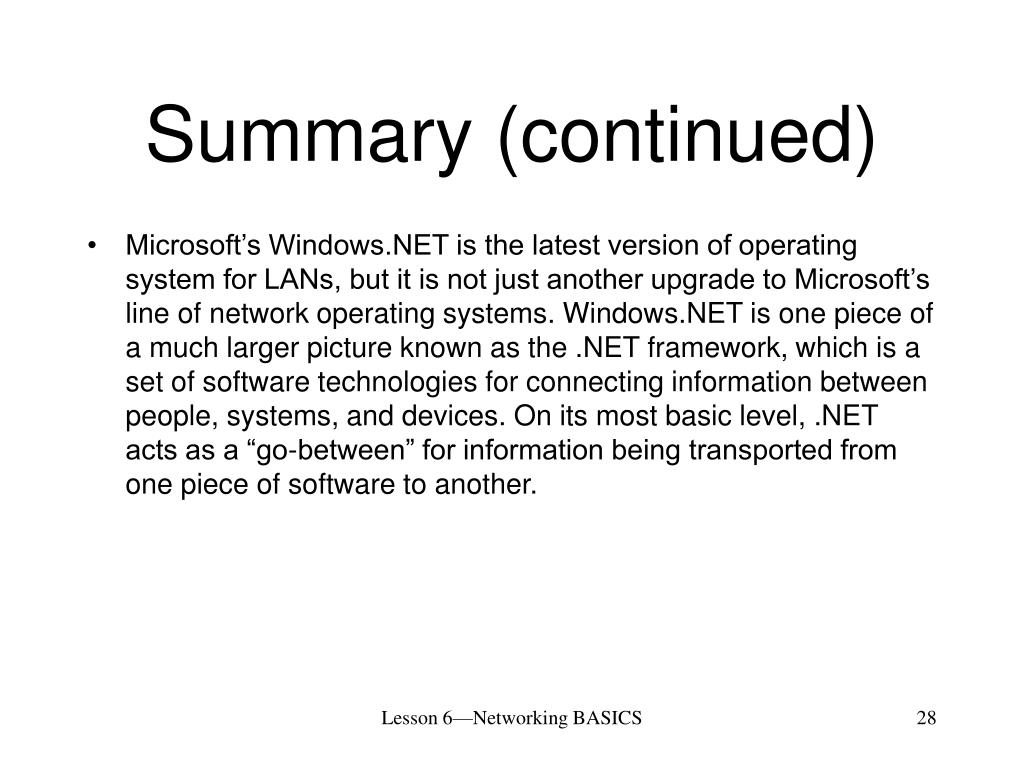

  28. Summary (continued) • Microsoft’s Windows.NET is the latest version of operating system for LANs, but it is not just another upgrade to Microsoft’s line of network operating systems. Windows.NET is one piece of a much larger picture known as the .NET framework, which is a set of software technologies for connecting information between people, systems, and devices. On its most basic level, .NET acts as a “go-between” for information being transported from one piece of software to another. Lesson 6—Networking BASICS

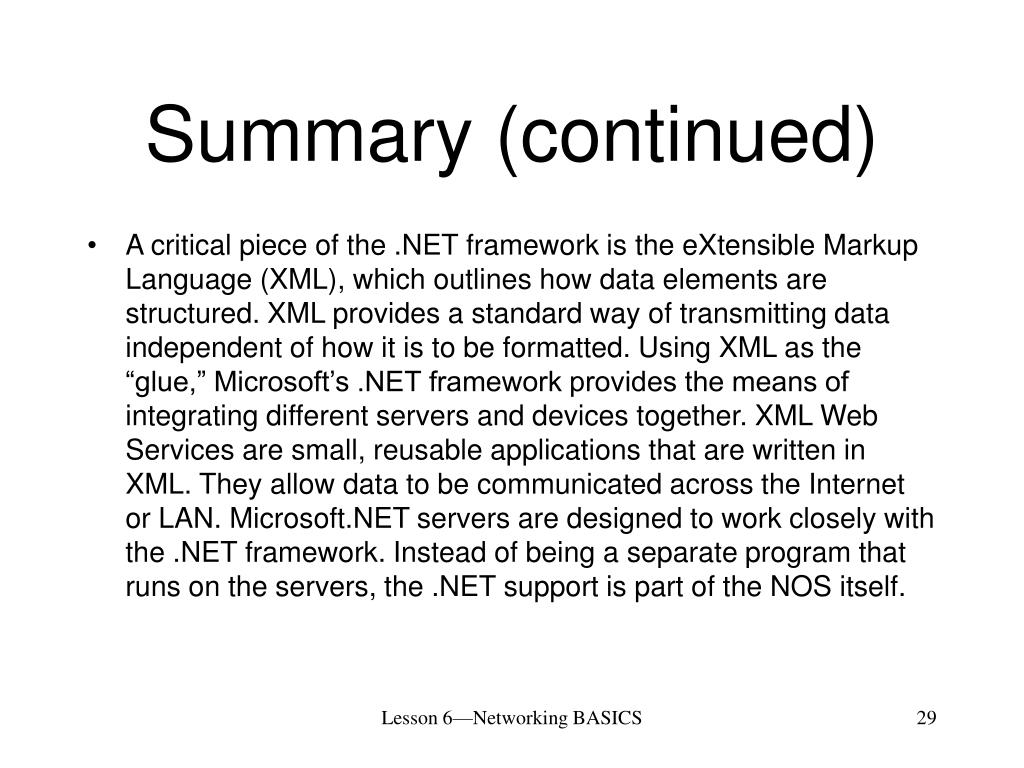

  29. Summary (continued) • A critical piece of the .NET framework is the eXtensible Markup Language (XML), which outlines how data elements are structured. XML provides a standard way of transmitting data independent of how it is to be formatted. Using XML as the “glue,” Microsoft’s .NET framework provides the means of integrating different servers and devices together. XML Web Services are small, reusable applications that are written in XML. They allow data to be communicated across the Internet or LAN. Microsoft.NET servers are designed to work closely with the .NET framework. Instead of being a separate program that runs on the servers, the .NET support is part of the NOS itself. Lesson 6—Networking BASICS
