Fast Wideband Indoor Wireless Channel Modeling Using Advanced Electromagnetic Techniques

Explore high-order time-domain methods for accurate wireless channel modeling, optimizing signal transmission, and fading predictions in indoor environments. Future work includes antenna pattern investigations and adaptive mesh refinement.

lihua
Télécharger la présentation

Fast Wideband Indoor Wireless Channel Modeling Using Advanced Electromagnetic Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

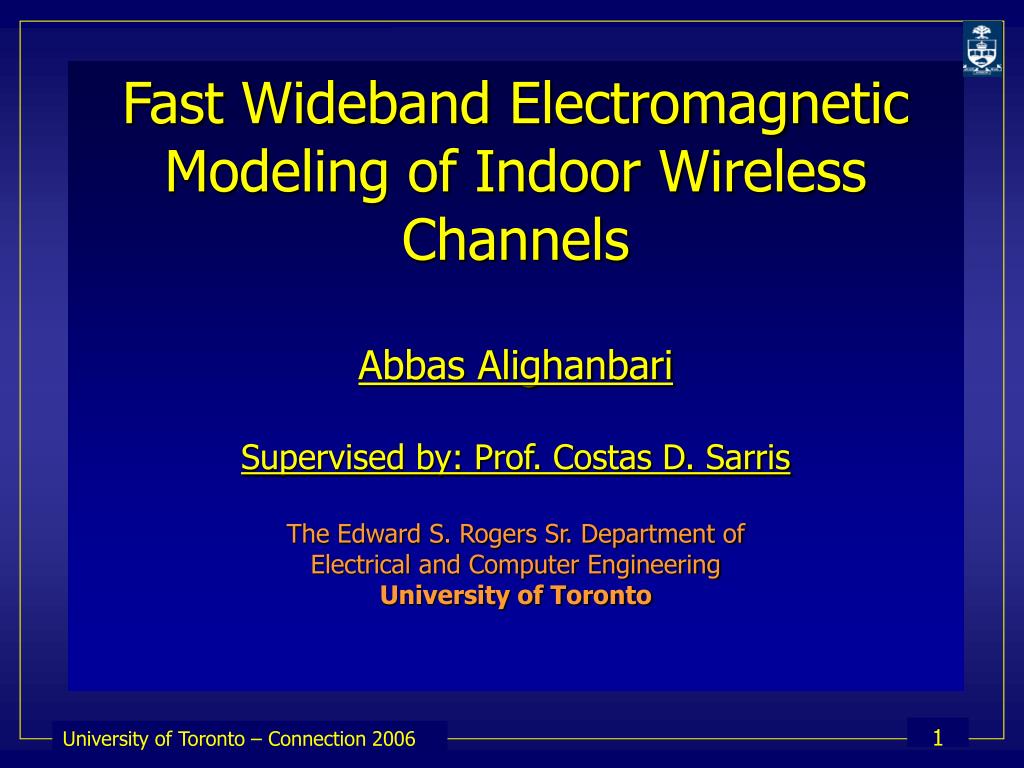

  1. Fast Wideband Electromagnetic Modeling of Indoor Wireless ChannelsAbbas Alighanbari Supervised by: Prof. Costas D. SarrisThe Edward S. Rogers Sr. Department ofElectrical and Computer EngineeringUniversity of Toronto

  2. OUTLINE • Introduction: - Numerical Electromagnetics • Methodologies: - High-order Time-Domain Techniques (S-MRTD v.s. FDTD) • Applications to Wireless Communications: - Signal Fading Predictions - Wideband Characteristics - Optimum Signal Transmission and Detection • Future Work and Conclusions

  3. Numerical Electromagnetics Method of Moments and Finite Elements RF systems wireless communications EMC compliance • Time-Domain: - Finite-Difference Time-Domain (FDTD) - Multi-Resolution Time-Domain (MRTD) • Frequency-Domain - Finite Element Method (FEM) - Software: HFSS, FEMLAB

  4. Spatial field expansion Wavelet basis Pulse basis Galerkin method Galerkin method F D T D M R T D MRTD vs FDTD : Formulation Reference : Krumpholz et al, “A Field Theoretical Comparison of FDTD and TLM”, IEEE MTT-T, Sept. 1995

  5. Spatial Sampling Functions Order-7 Deslauriers-Dubuc Scaling Function Smooth, Compact, Symmetric scaling functions Deslauriers-Dubuc Coifman Daubechies Battle-Lemmarie High-order Families:

  6. Applications • Microwave and Optical Circuits - RF Circuits and Antenna Design • Wireless Communications - Mobile Communications - Indoor Wireless Networks - Ultra-Wideband Systems

  7. Ultra-Wideband Wireless • Extremely narrow pulse width (less than 1ns) • Low spectral power density ( Less than noise level) • Low Interference to/from other wireless systems • High speed multiple users • High channel capacity

  8. OUTLINE • Introduction: - Numerical Electromagnetics • Methodologies: - High-order Time-Domain Techniques (S-MRTD v.s. FDTD) • Applications to Wireless Communications: - Accurate Signal Fading Predictions - Wideband Characteristics and Channel Responses - Optimum Signal Transmission and Detection • Future Work and Conclusions

  9. Wideband Channel Modeling Simulated Floor plan: P2 * * P1

  10. Channel Responses S-MRTD-5 : 3hrs/11min S-MRTD-7.5: 11hrs/15min FDTD-20: 4 days (92hrs/16min) Receiving point P1 Receiving point P2

  11. Error-Time Performance 4 times saving on: - CPU time - Cache Memory

  12. Signal Fading Profile Sinusoidalsteady state S-MRTD-5 FDTD-10 52 hrs/36min 12 hrs/44min Conductivity= 0.002 S/m Relative Permittivity = 3

  13. Signal Fading Profile Sinusoidalsteady state FDTD-10 S-MRTD-5 52 hrs/36min 12 hrs/44min Conductivity= 0.05 S/m Relative Permittivity = 3

  14. Signal Attenuation (Fading) NLOS LOS LOS NLOS

  15. Power Profile 2

  16. Wall Attenuation and Guiding Effects Path Loss Exponent (PLE)

  17. Fading Statistics - Rayleigh Model NLOS points σ= rms value of the received signal Cumulative Density Functions

  18. Conclusions • Performance Analysis and Applications of S-MRTD • The application of S-MRTD to Wireless Channel Modeling • Fading and Statistical Properties • Optimized Signal Transmission and Detection

  19. Future Work • Investigation of Antenna Patterns in Smart Antenna Applications • Adaptive Mesh Refinement • 3D Modeling of Wireless Channels

  20. Questions/Remarks ? Thank you !
