  1. An Introduction to Proof-Carrying Code David Walker Princeton University (slides kindly donated by George Necula; modified by David Walker)

  2. extensible systems extension host Motivation • Extensible systems can be more flexible and more efficient than client-server interaction server client client-server David Walker - Foundations of Security 2003

  3. Motivation • Extensible systems can be more flexible and more efficient than client-server interaction server client client-server extensible system extension host David Walker - Foundations of Security 2003

  4. Example: Deep-Space Onboard Analysis Data: > 10MB/sec Bandwidth: < 1KB/sec Latency: > hours • Note: • efficiency (cycles, bandwidth) • safety critical operation Source: NASA Jet Propulsion Lab

  5. Host More Examples of Extensible Systems Device driver Operating system Applet Web browser Loaded procedure Database server DCOM Component DCOM client … Code David Walker - Foundations of Security 2003

  6. Concerns Regarding Extensibility • Safety and reliability concerns • How to protect the host from the extensions ? Extensions of unknown origin ) potentially malicious Extensions of known origin ) potentially erroneous • Complexity concerns • How can we do this without having to trust a complex infrastructure? • Performance concerns • How can we do this without compromising performance? • Other concerns (not addressed here) • How to ensure privacy and authenticity? • How to protect the component from the host? David Walker - Foundations of Security 2003

  7. Approaches to Component Safety • Digital signatures • Run-time monitoring and checking • Bytecode verification • Proof-carrying code David Walker - Foundations of Security 2003

  8. Checker Host Assurance Support: Digital Signatures Code • Example properties: • “Microsoft produced this software” • “Verisoft tested the software with test suite 17” • No direct connection with program semantics • Microsoft recently recommended that Microsoft be removed from one’s list of trusted code signers David Walker - Foundations of Security 2003

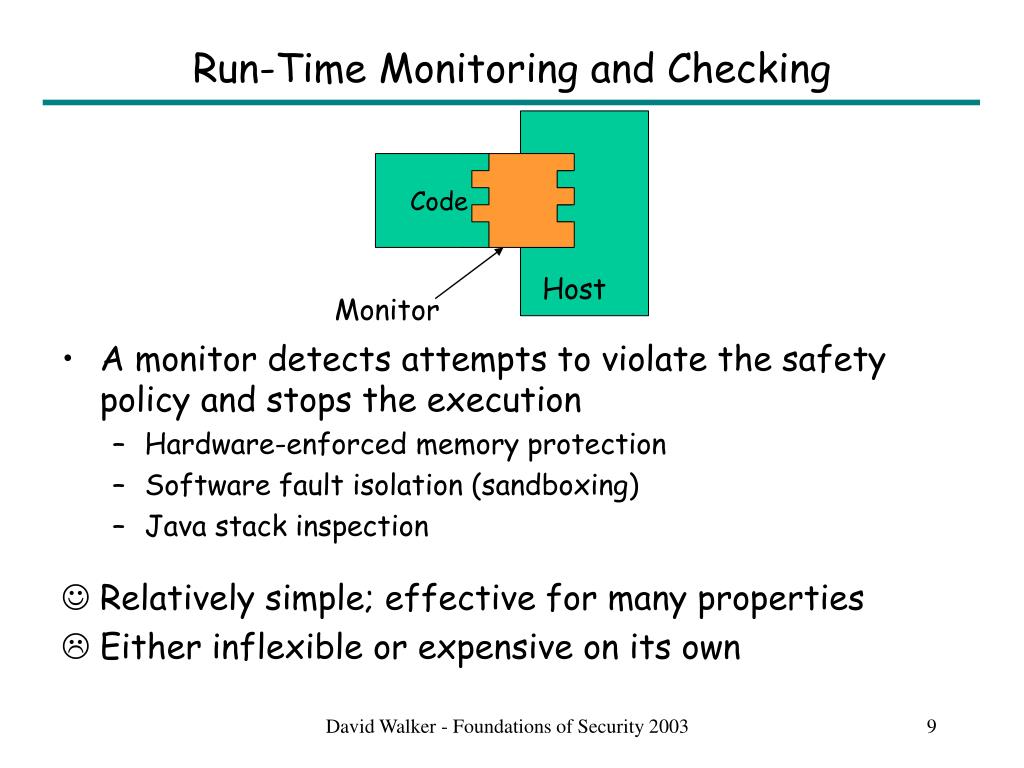

  9. Host Run-Time Monitoring and Checking • A monitor detects attempts to violate the safety policy and stops the execution • Hardware-enforced memory protection • Software fault isolation (sandboxing) • Java stack inspection Code Monitor • Relatively simple; effective for many properties • Either inflexible or expensive on its own David Walker - Foundations of Security 2003

  10. Code Checker Host Java Bytecode Code Compiler JVM bytecode Code • Relatively simple; overall an excellent idea • Large trusted computing base • commercial, optimizing JIT: 200,000-500,000 LOC • when is the last time you wrote a bug-free 200,000 line program? • Java-specific; somewhat limited policies David Walker - Foundations of Security 2003

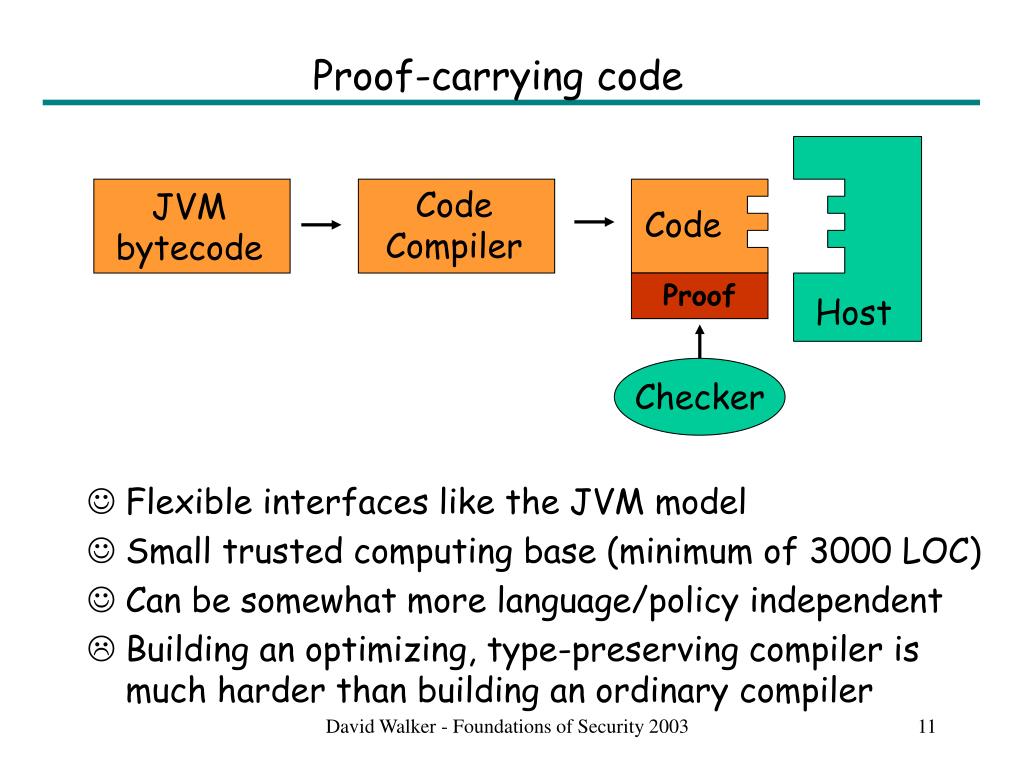

  11. Code Checker Host Proof-carrying code Code Compiler JVM bytecode Proof • Flexible interfaces like the JVM model • Small trusted computing base (minimum of 3000 LOC) • Can be somewhat more language/policy independent • Building an optimizing, type-preserving compiler is much harder than building an ordinary compiler David Walker - Foundations of Security 2003

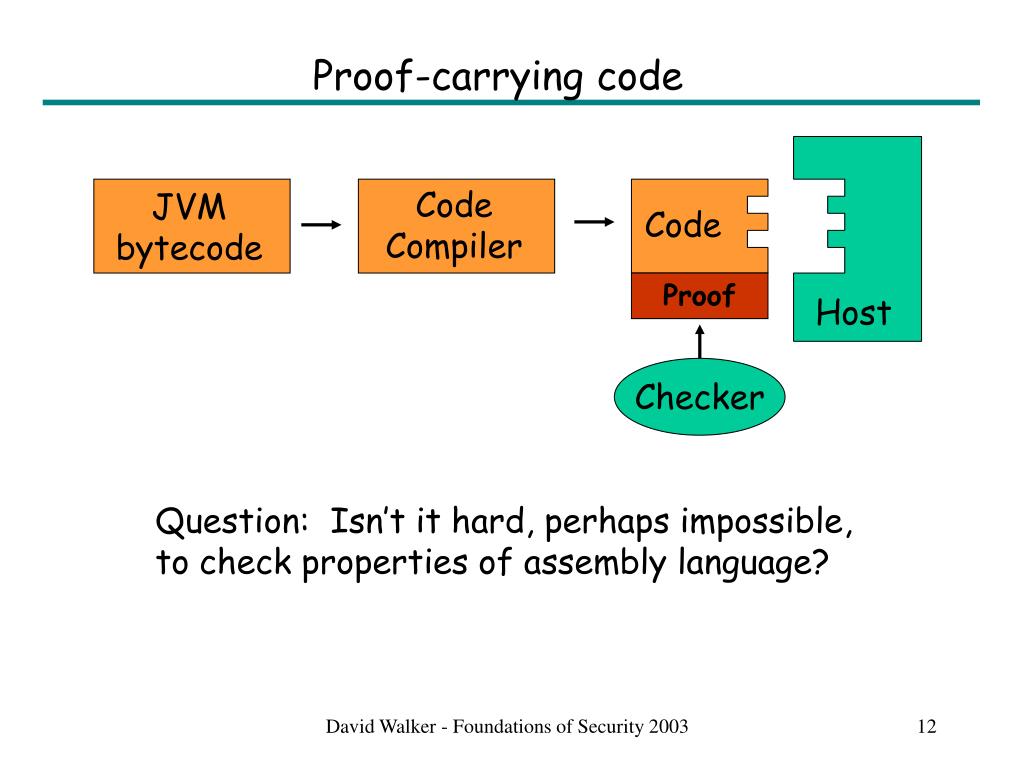

  12. Code Checker Host Proof-carrying code Code Compiler JVM bytecode Proof Question: Isn’t it hard, perhaps impossible, to check properties of assembly language? David Walker - Foundations of Security 2003

  13. Code Checker Host Proof-carrying code Code Compiler JVM bytecode Proof Question: Isn’t it hard, perhaps impossible, to check properties of assembly language? Actually, no, not really, provided we have a proof to guide the checker. David Walker - Foundations of Security 2003

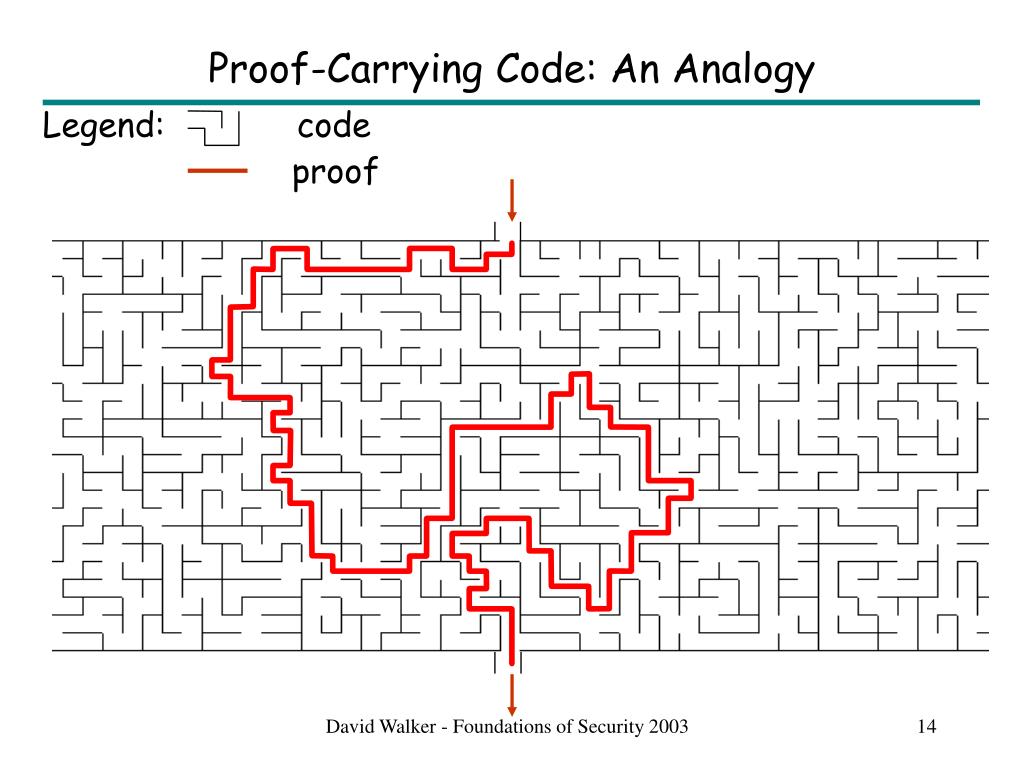

  14. Legend: code proof Proof-Carrying Code: An Analogy David Walker - Foundations of Security 2003

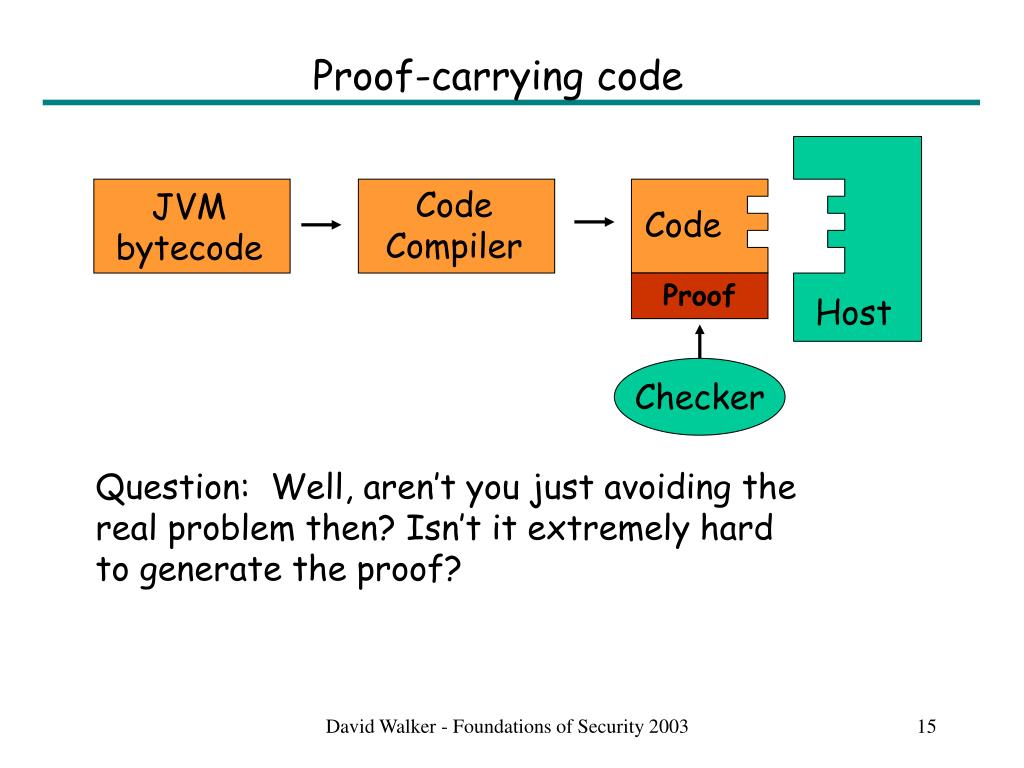

  15. Code Checker Host Proof-carrying code Code Compiler JVM bytecode Proof Question: Well, aren’t you just avoiding the real problem then? Isn’t it extremely hard to generate the proof? David Walker - Foundations of Security 2003

  16. Code Checker Host Proof-carrying code Code Compiler JVM bytecode Proof Question: Well, aren’t you just avoiding the real problem then? Isn’t it extremely hard to generate the proof? Yes. But there is a trick. David Walker - Foundations of Security 2003

  17. Code Checker Host PCC + Type-Preserving Compilation Code Compiler JVM bytecode Types Proof Types Compiler • The trick: we fool the programmer into doing our • proof for us! • We convince them to program in a typesafe language. • We design our compiler to translate the typing derivation • into a proof of safety • We can always make this work for type safety properties David Walker - Foundations of Security 2003

  18. Good Things About PCC • Someone else does the really hard work (the compiler writer) • Hard to prove safety but easy to check a proof • Research over the last 5-10 years indicates we can produce proofs of type safety properties for assembly language • Requires minimal trusted infrastructure • Trust proof checker but not the compiler • Again, recent research shows PCC TCB can be as small as ~3000 LOC • Agnostic to how the code and proof are produced • Not compiler specific; Hand-optimized code is Ok • Can be much more general than the JVM type system • Only limited by the logic that is used (and we can use very general logics) • Coexists peacefully with cryptography • Signatures are a syntactic checksum • Proofs are a semantic checksum • (see Appel & Felten’s proof-carrying authorization) David Walker - Foundations of Security 2003

  19. The Different Flavors of PCC • Type Theoretic PCC[Morrisett, Walker, et al. 1998] • source-level types are translated into low-level types for machine language or assembly language programs • the proof of safety is a typing derivation that is verified by a type checker • Logical PCC[Necula, Lee, 1996, 1997] • low-level types are encoded as logical predicates • a verification-condition generator runs over the program and emits a theorem, which if true, implies the safety of the program • the proof of safety is a proof of this theorem • Foundational PCC[Appel et al. 2000] • the semantics of the machine is encoded directly in logic • a type system for the machine is built up directly from the machine semantics and proven correct using a general-purpose logic (eg: higher-order logic) • the total TCB is approximately 3000 LOC David Walker - Foundations of Security 2003

  20. The Common Theme • Every general-purpose system for proof carrying code relies upon a type system for checking low-level program safety • why? • building a proof of safety for low-level programs is hard • success depends upon being able to structure these proofs in a uniform, modular fashion • types provide the framework for developing well-structured safety proofs • In the following lectures, we will study the low-level typing mechanisms that are the basis for powerful systems of proof carrying code David Walker - Foundations of Security 2003
