Proof Carrying Code Zhiwei Lin

Outline • Proof-Carrying Code • The Design and Implementation of a Certifying Compiler • A Proof – Carrying Code Architecture for Java • A Certifying Compiler for Java

Proof-Carrying Code George C.Necula Carnegie Mellon University January 1997

Proof-Carrying Code • Why do we need Proof-Carrying Code • In distributed and web computing, particularly when mobile code is allowed. • Agent A on one part of the network write a component of the software in ML, compile it to native machine code, then transmit it to an agent B on another node for execution • How does agent A convince the agent B that the native code have the type-safety properties shared by all ML programs

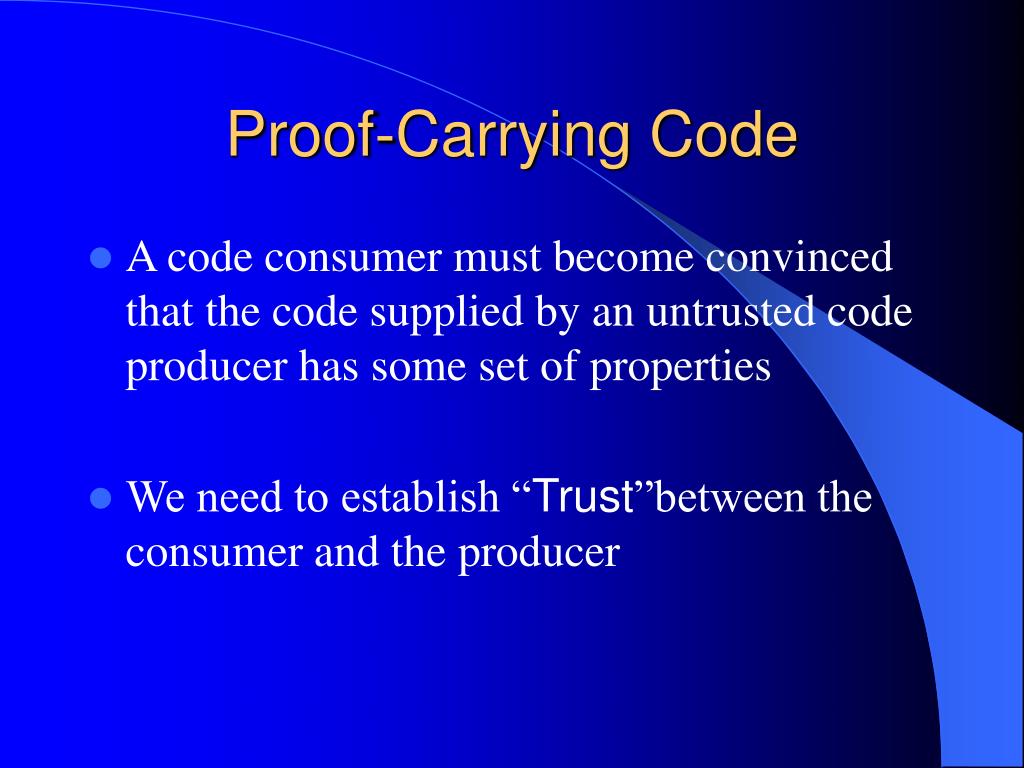

Proof-Carrying Code • A code consumer must become convinced that the code supplied by an untrusted code producer has some set of properties • We need to establish “Trust”between the consumer and the producer

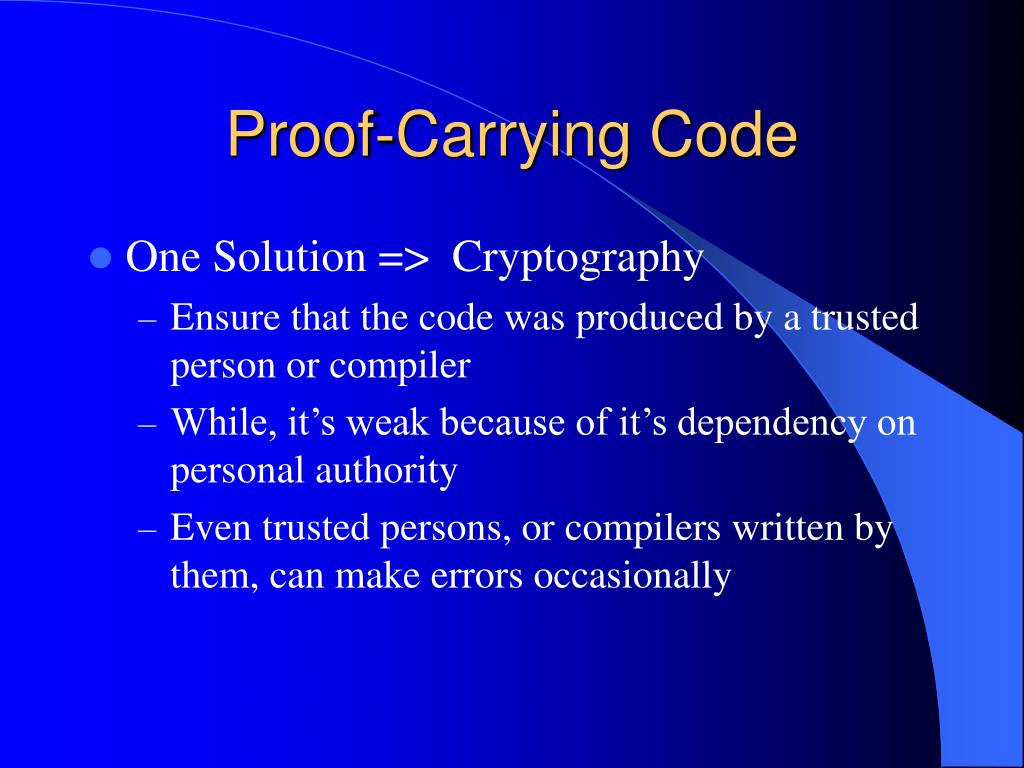

Proof-Carrying Code • One Solution => Cryptography • Ensure that the code was produced by a trusted person or compiler • While, it’s weak because of it’s dependency on personal authority • Even trusted persons, or compilers written by them, can make errors occasionally

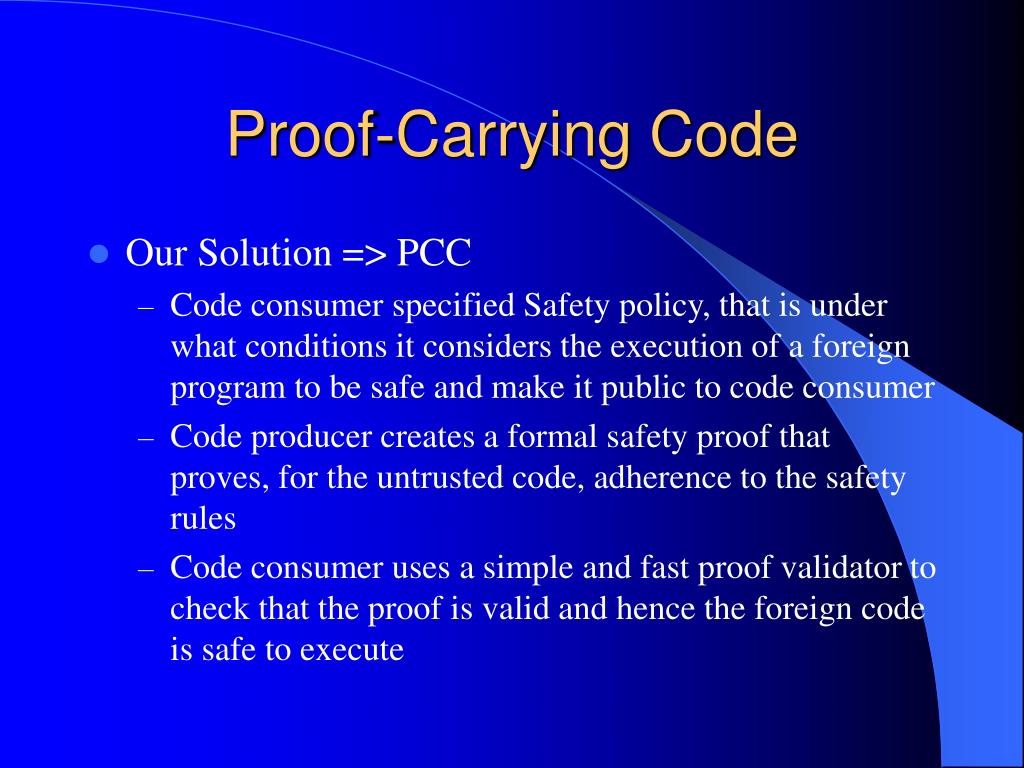

Proof-Carrying Code • Our Solution => PCC • Code consumer specified Safety policy, that is under what conditions it considers the execution of a foreign program to be safe and make it public to code consumer • Code producer creates a formal safety proof that proves, for the untrusted code, adherence to the safety rules • Code consumer uses a simple and fast proof validator to check that the proof is valid and hence the foreign code is safe to execute

Proof-Carrying Code • 3 Stages of PCC • Stage 1: Certification • The coder producer compiles the source code and verifies the program with respect to the specification described by the safety policy • A proof of successful verification together with the native code component forms the PCC binary • Code producer can store the resulting PCC binary for future use. Or can deliver it to code consumers for execution

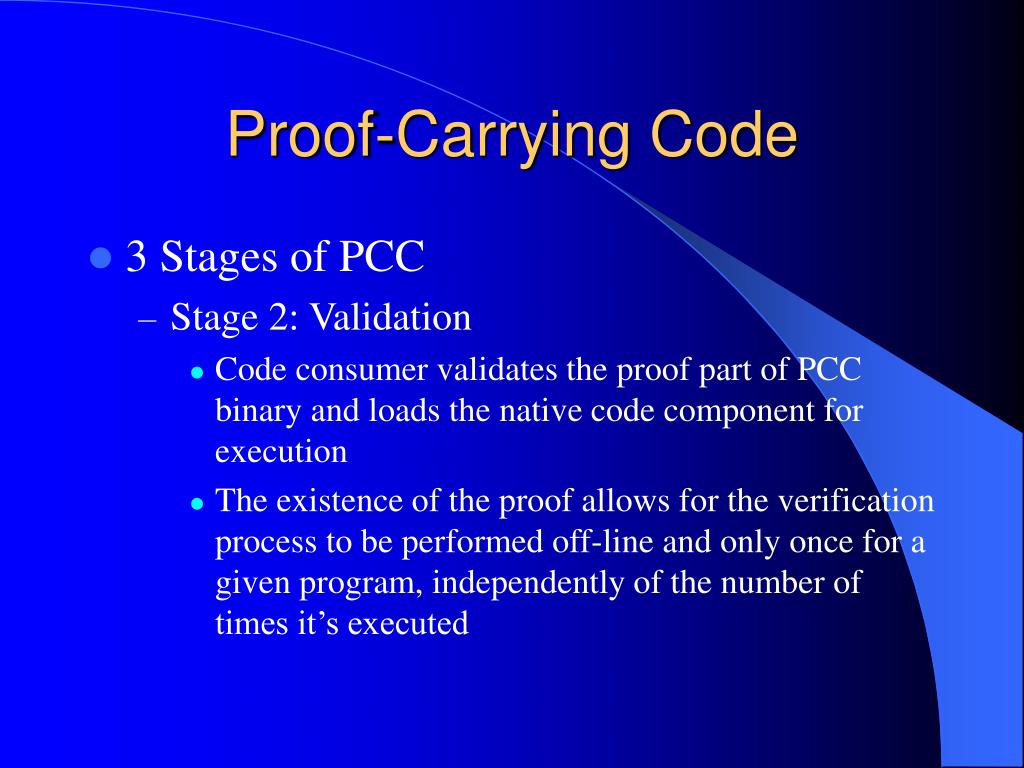

Proof-Carrying Code • 3 Stages of PCC • Stage 2: Validation • Code consumer validates the proof part of PCC binary and loads the native code component for execution • The existence of the proof allows for the verification process to be performed off-line and only once for a given program, independently of the number of times it’s executed

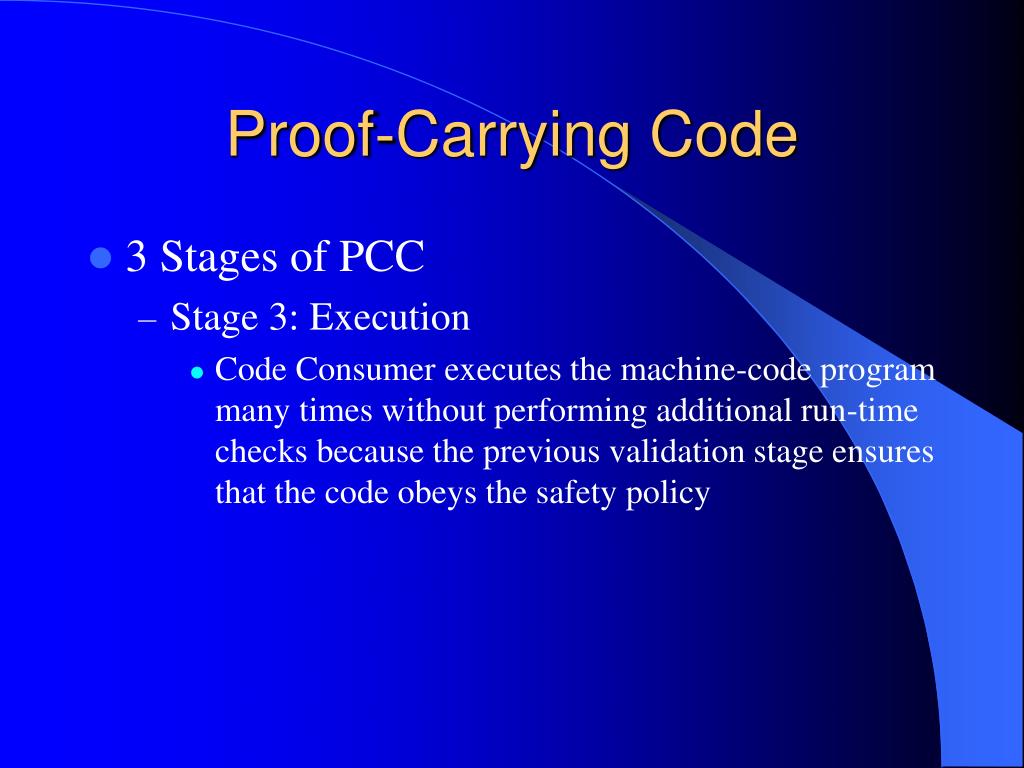

Proof-Carrying Code • 3 Stages of PCC • Stage 3: Execution • Code Consumer executes the machine-code program many times without performing additional run-time checks because the previous validation stage ensures that the code obeys the safety policy

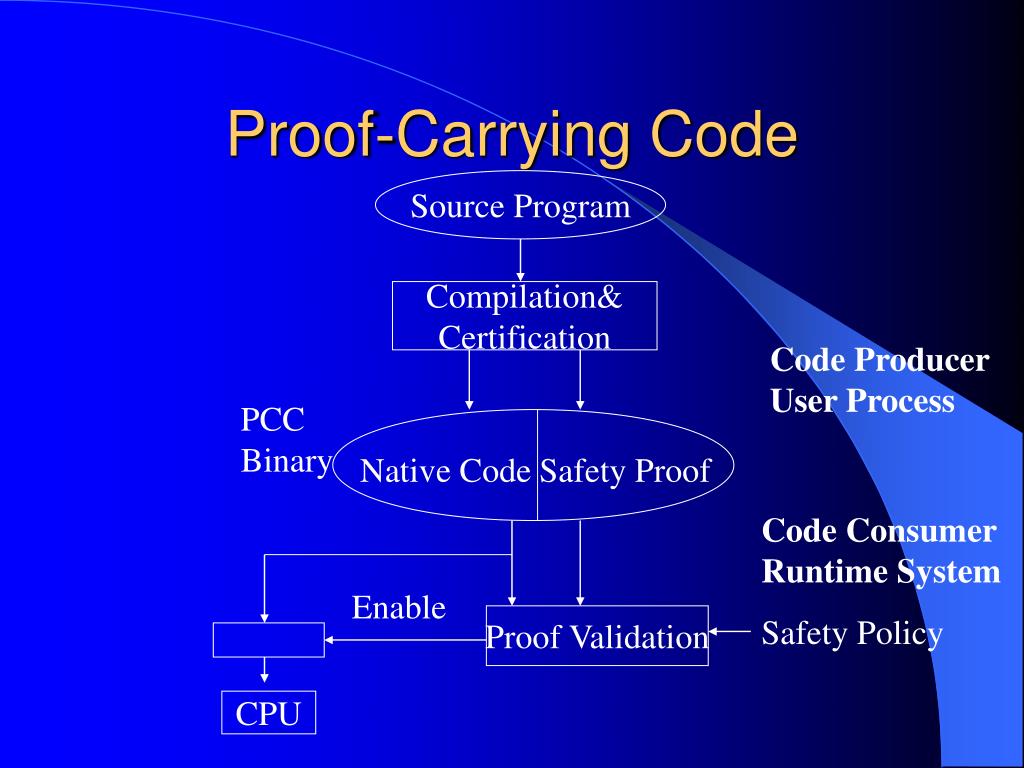

Proof-Carrying Code Source Program Compilation& Certification Code Producer User Process PCC Binary Native Code Safety Proof Code Consumer Runtime System Enable Proof Validation Safety Policy CPU

Certifying Compiler George C.Necula, Peter Lee Carnegie Mellon University June 1998

Certifying Compiler • Certifying Compiler vs. PCC • PCC depends on semi-automatic theorem-proving techniques to generate safety proofs • Certifying Compiler produces safety proofs for a PCC system for type safety completely automatically

Certifying Compiler • What’s Certifying Compiler • A combination of a compiler and a certifier • A compiler that translates programs into assembly language programs, and a certifier that automatically checks the type safety and memory safety of any assembly language program produced by the compiler

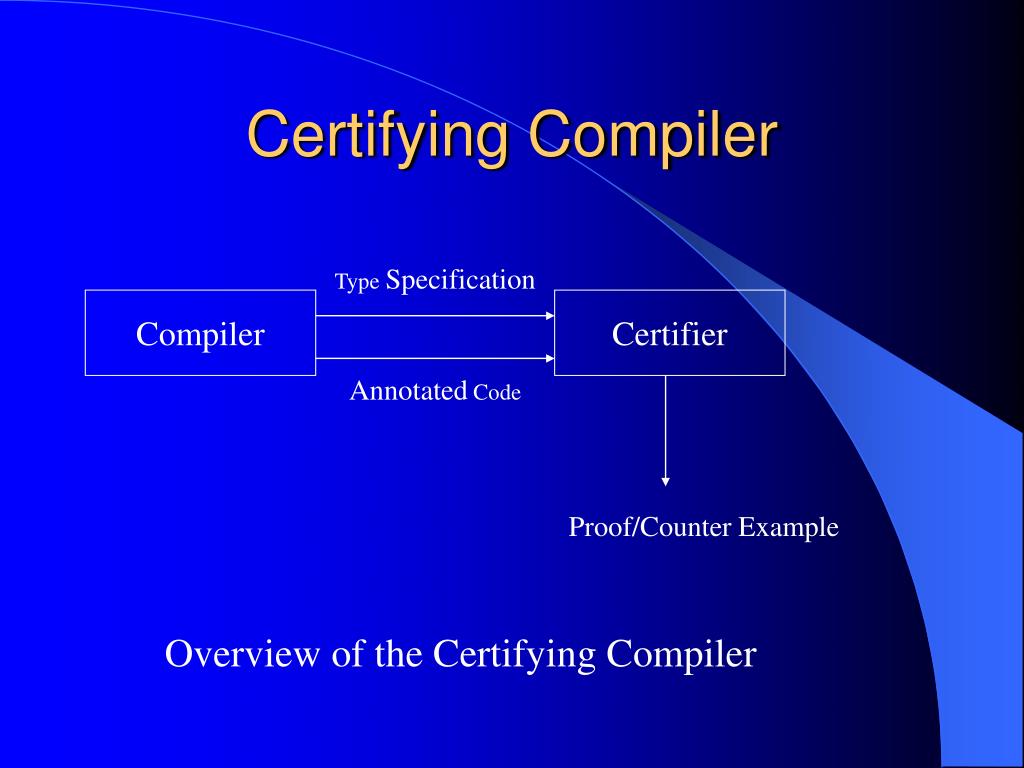

Certifying Compiler Type Specification Compiler Certifier Annotated Code Proof/Counter Example Overview of the Certifying Compiler

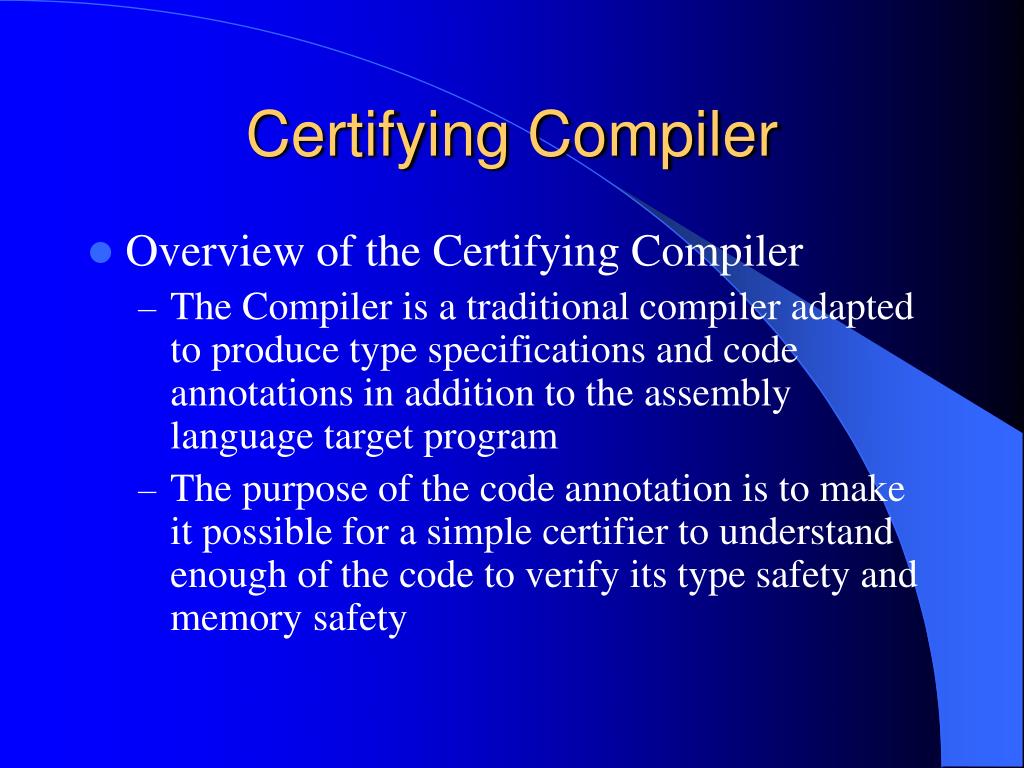

Certifying Compiler • Overview of the Certifying Compiler • The Compiler is a traditional compiler adapted to produce type specifications and code annotations in addition to the assembly language target program • The purpose of the code annotation is to make it possible for a simple certifier to understand enough of the code to verify its type safety and memory safety

Certifying Compiler • The Certifier subsystem is itself a pipeline composed of three subsystems • The verification condition generator(VCGen) • The prover • The proof checker

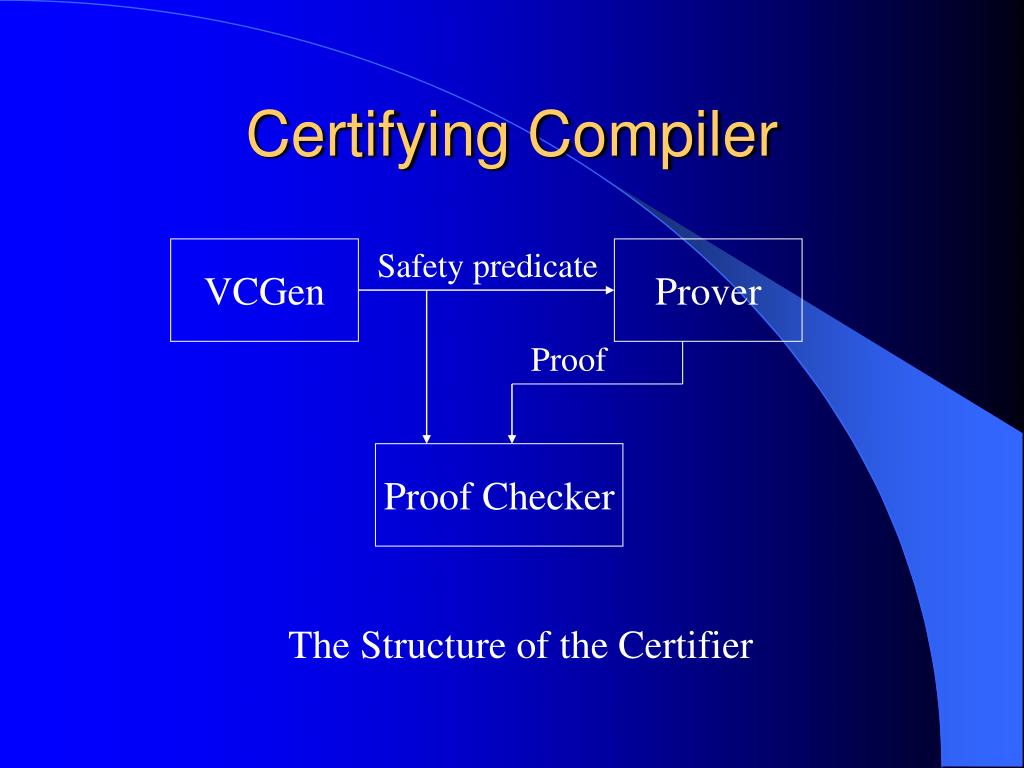

Certifying Compiler VCGen Safety predicate Prover Proof Proof Checker The Structure of the Certifier

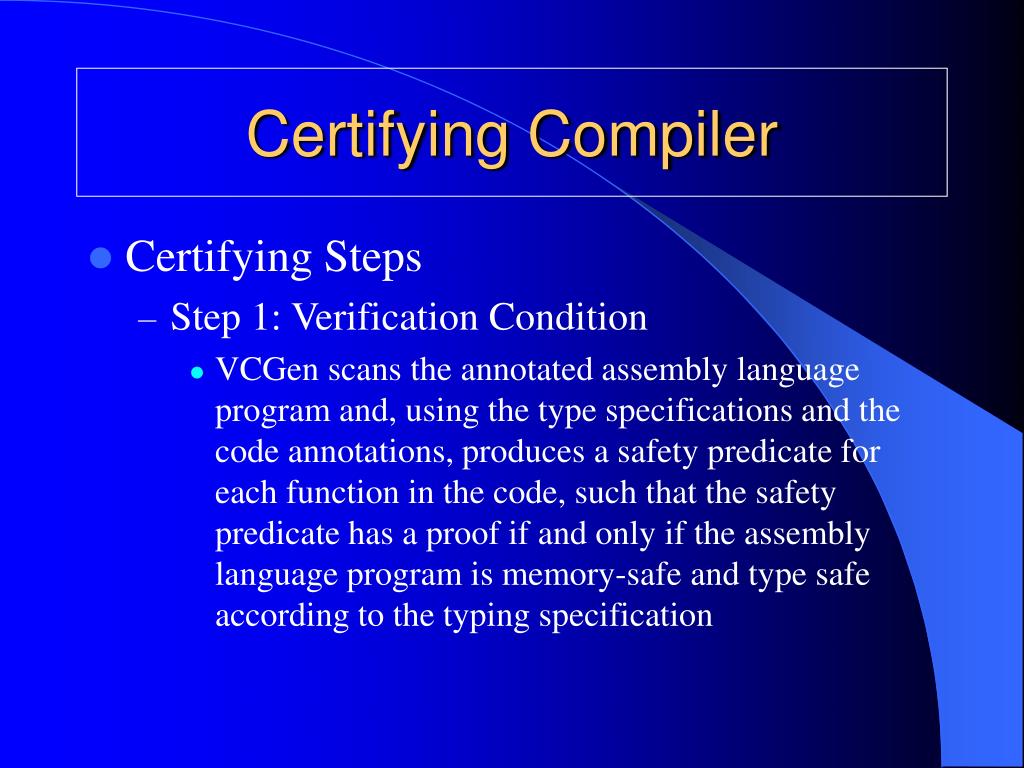

Certifying Compiler • Certifying Steps • Step 1: Verification Condition • VCGen scans the annotated assembly language program and, using the type specifications and the code annotations, produces a safety predicate for each function in the code, such that the safety predicate has a proof if and only if the assembly language program is memory-safe and type safe according to the typing specification

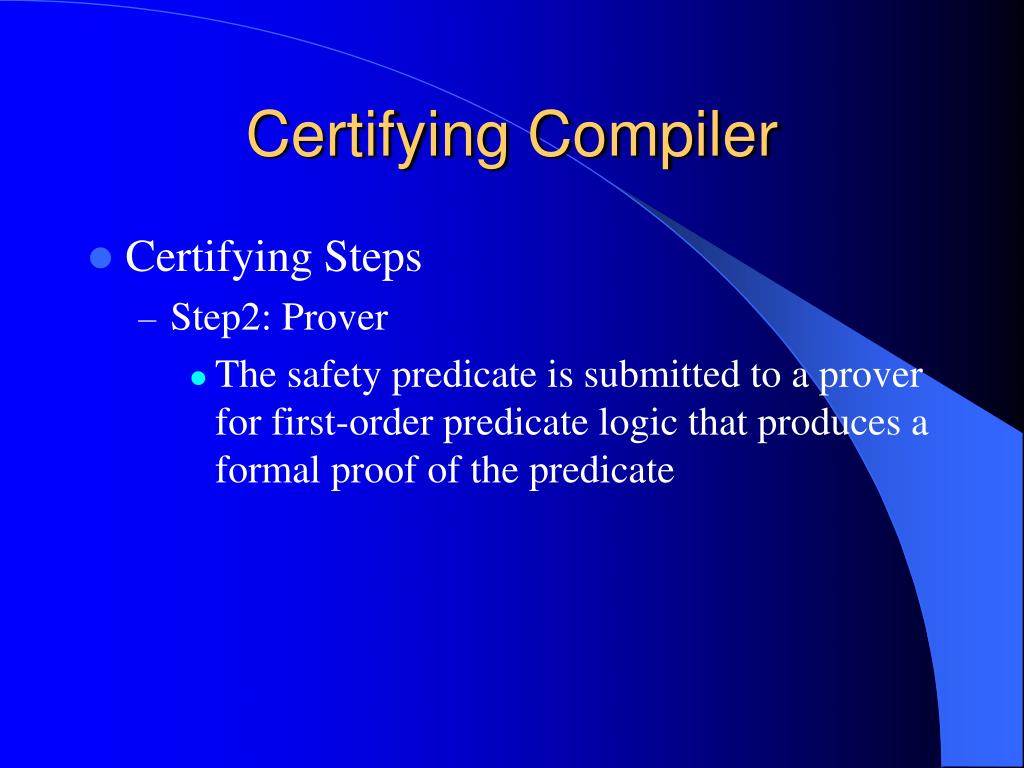

Certifying Compiler • Certifying Steps • Step2: Prover • The safety predicate is submitted to a prover for first-order predicate logic that produces a formal proof of the predicate

Certifying Compiler • Certifying Steps • Step3: Proof Checker • The safety predicate and its proof are given to a very simple proof checker that verifies that we actually have a valid proof of the required safety predicate, and therefore the compiler output is memory safe and type safe

A Proof-Carrying Code Architecture for Java Christopher Colby, Peter Lee, and George C.Necula In 12th CAV00, Chicago, 15 July 2000.

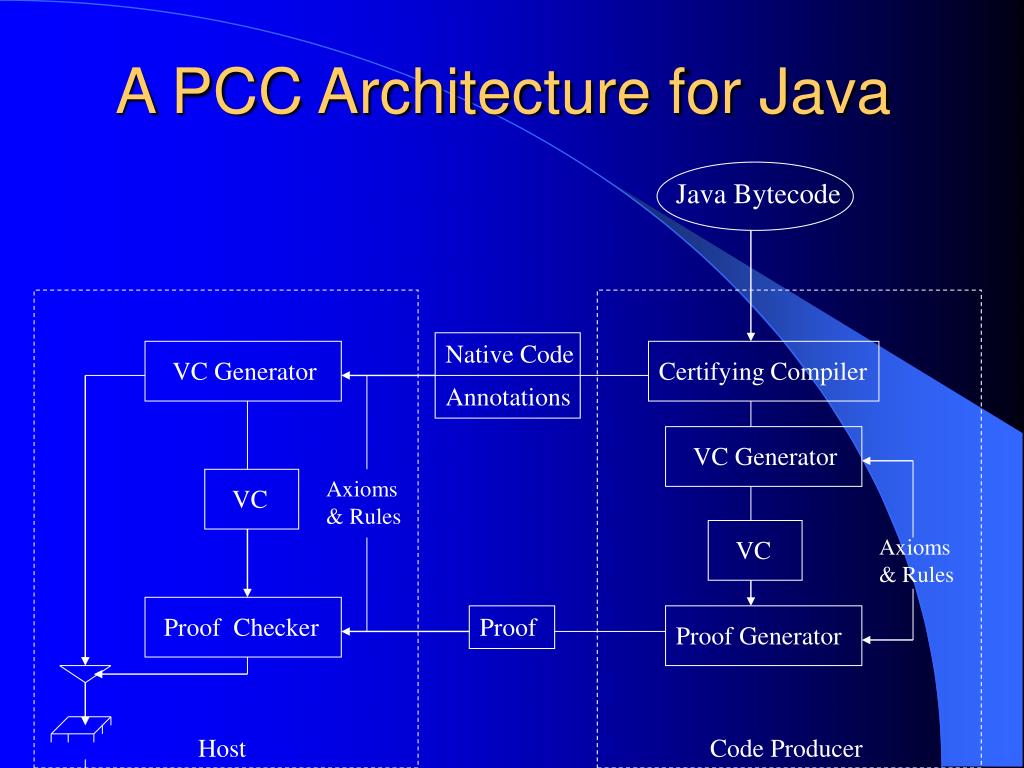

A PCC Architecture for Java Java Bytecode Native Code VC Generator Certifying Compiler Annotations VC Generator Axioms & Rules VC Axioms & Rules VC Proof Checker Proof Proof Generator Host Code Producer

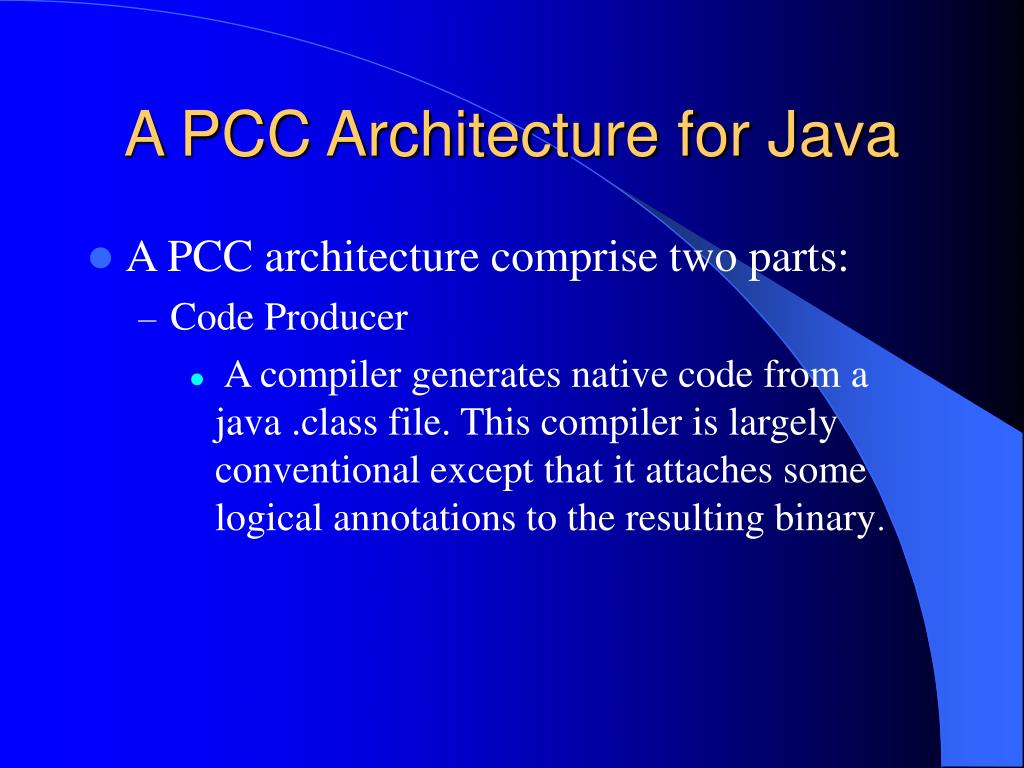

A PCC Architecture for Java • A PCC architecture comprise two parts: • Code Producer • A compiler generates native code from a java .class file. This compiler is largely conventional except that it attaches some logical annotations to the resulting binary.

A PCC Architecture for Java • A PCC architecture comprise two parts: • Code Producer • The annotated binary is then analyzed by verification-condition generator. The VC Generator outputs a logical predicate that describes a precondition that, if true, would imply that any possible execution of the binary is safe by scanning each native-code instruction and emitting safety conditions as they arise. The result is called the verification condition(VC)

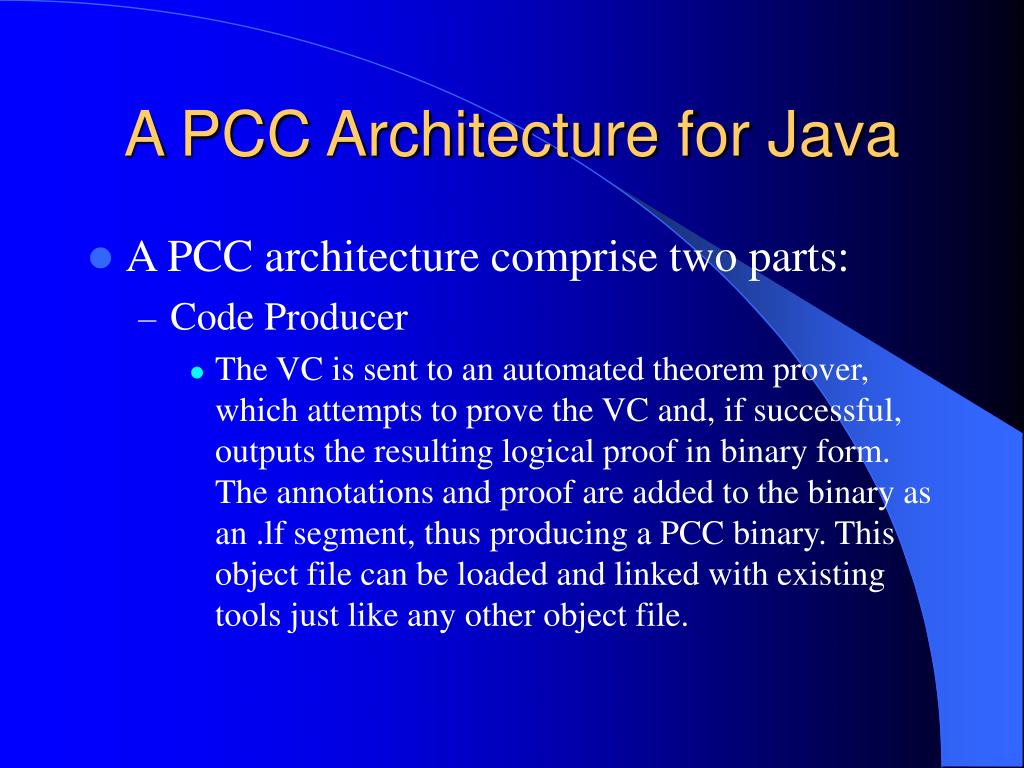

A PCC Architecture for Java • A PCC architecture comprise two parts: • Code Producer • The VC is sent to an automated theorem prover, which attempts to prove the VC and, if successful, outputs the resulting logical proof in binary form. The annotations and proof are added to the binary as an .lf segment, thus producing a PCC binary. This object file can be loaded and linked with existing tools just like any other object file.

A PCC Architecture for Java • A PCC architecture comprise two parts: • Host • Host first separates the annotated binary from the proof • Host then runs a VC generator on the annotated binary to produce a VC from a safety policy specified by the same set of rules an axioms • Lastly, it checks the proof to make sure that it’s indeed a valid proof under the safety policy.

Advantages Over Related Techniques • The trustworthiness of the proof-checker is an important advantage over approaches that involve the use of complex compilers or interpreters in the code consumer. Here, almost the entire burden is on the code producer. The code consumer has only to perform a fast, simple, and easy-to-trust proof-checking process • No Cryptography or trusted third parties are required because PCC are ‘self-certifying’

Advantages Over Related Techniques • As the untrusted code is verified statically before executed, we not only save execution time but we detect potentially hazardous operations early, thus avoiding the situations when the code consumer must kill the untrusted process after it has acquired resources or modified state

Conclusion • PCC Theory • Certifying Compiler • PCC Architecture for Java • Advantages of PCC
