3. Elaboration Iteration 1

3. Elaboration Iteration 1. 11. Domain Model: Adding Associations. Objectives. Identify a domain model’s associations. Preamble. My view of associations differs from that of the UP. What follows is my current view .

lilka
Télécharger la présentation

3. Elaboration Iteration 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3. Elaboration Iteration 1 11. Domain Model: Adding Associations

  2. Objectives • Identify a domain model’s associations

  3. Preamble • My view of associations differs from that of the UP. • What follows is my current view. • objectA hasa objectB when objectA has an instance of objectB as an attribute. • An association implies a hasa relation If there is no hasa relation, the association is not noteworthy. • The hasa relation is not symmetric.

  4. Illustration Mandelbrot Set Viewer Viewer ____________ View ________________ Region IterationLimit SpatialResolution ColorResolution ColorMap Iterate Controller ____________ Operation 1 0 1 + * means 0 or more instances + means 1 or more instances 0 multiplicity can be omitted.

  5. Names • Association names are like method names. Intention: objectA verb objectB. Translation: objectA invoke objectB.verb • 2 objects may have many associations . • Flight departs from Airport • Flight lands at Airport

  6. Illustration Mandelbrot Set Viewer View ________________ Region IterationLimit SpatialResolution ColorResolution ColorMap Iterate Viewer ____________ Controller ____________ Operation + displays 1 1 controlled by * means 0 or more instances + means 1 or more instances 0 multiplicity can be omitted.

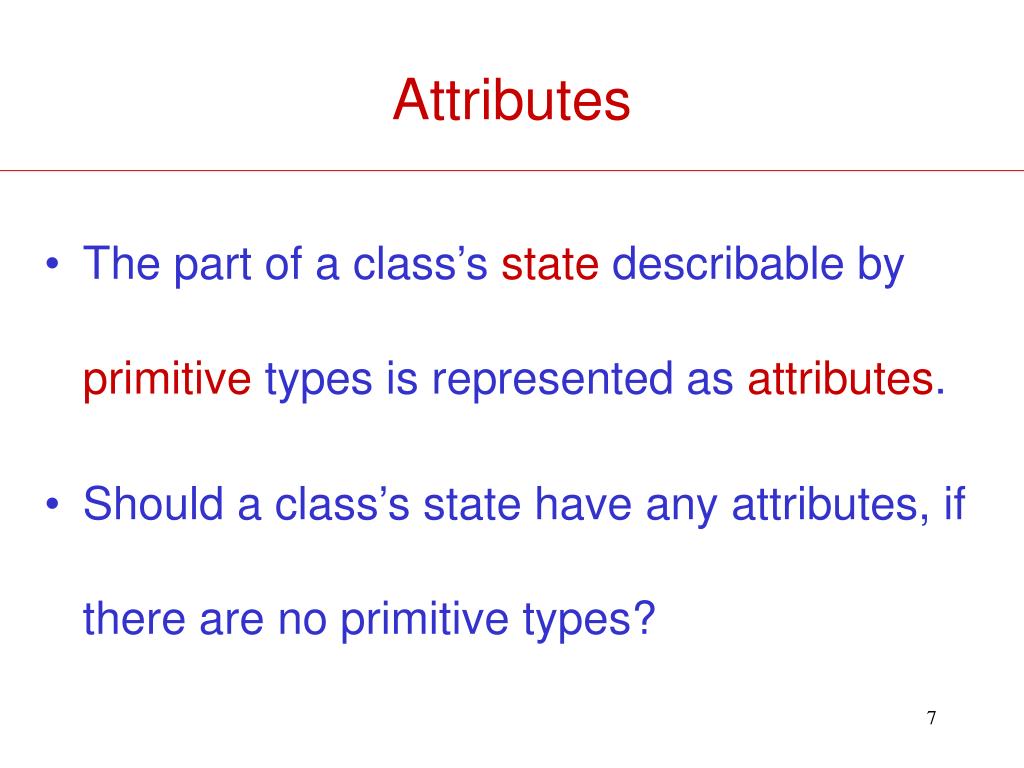

  7. Attributes • The part of a class’s state describable by primitive types is represented as attributes. • Should a class’s state have any attributes, if there are no primitive types?

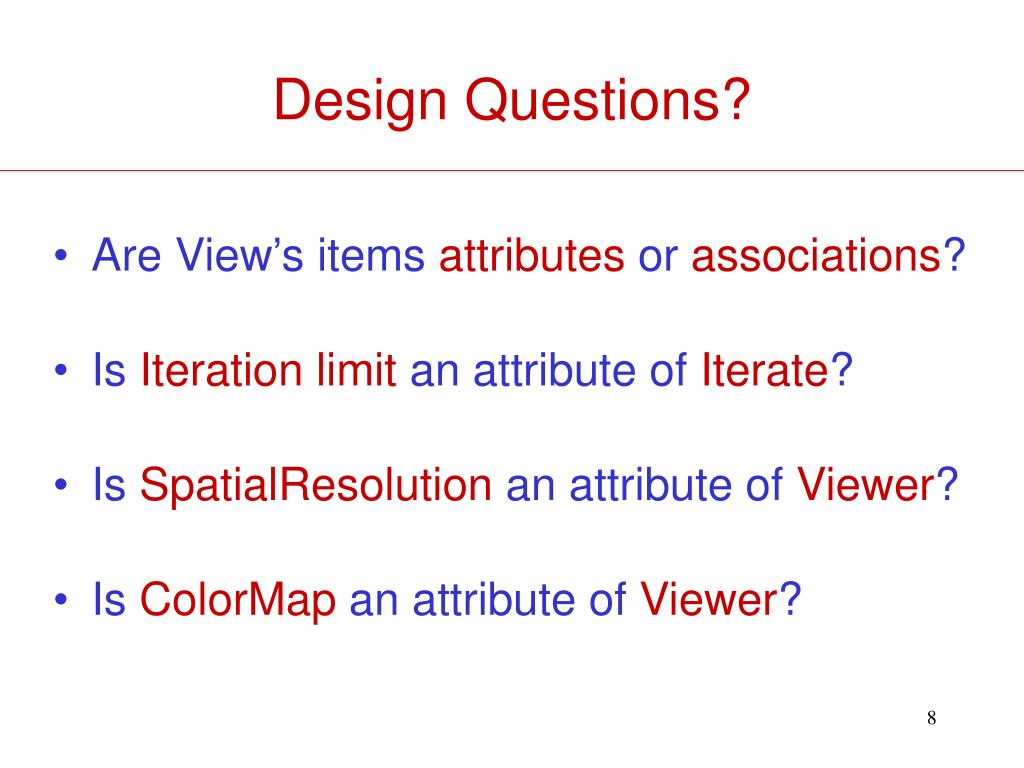

  8. Design Questions? • Are View’s items attributes or associations? • Is Iteration limit an attribute of Iterate? • Is SpatialResolution an attribute of Viewer? • Is ColorMap an attribute of Viewer?
