  1. Lecture 2 Pairwise Sequence Alignment

  2. WHAT?

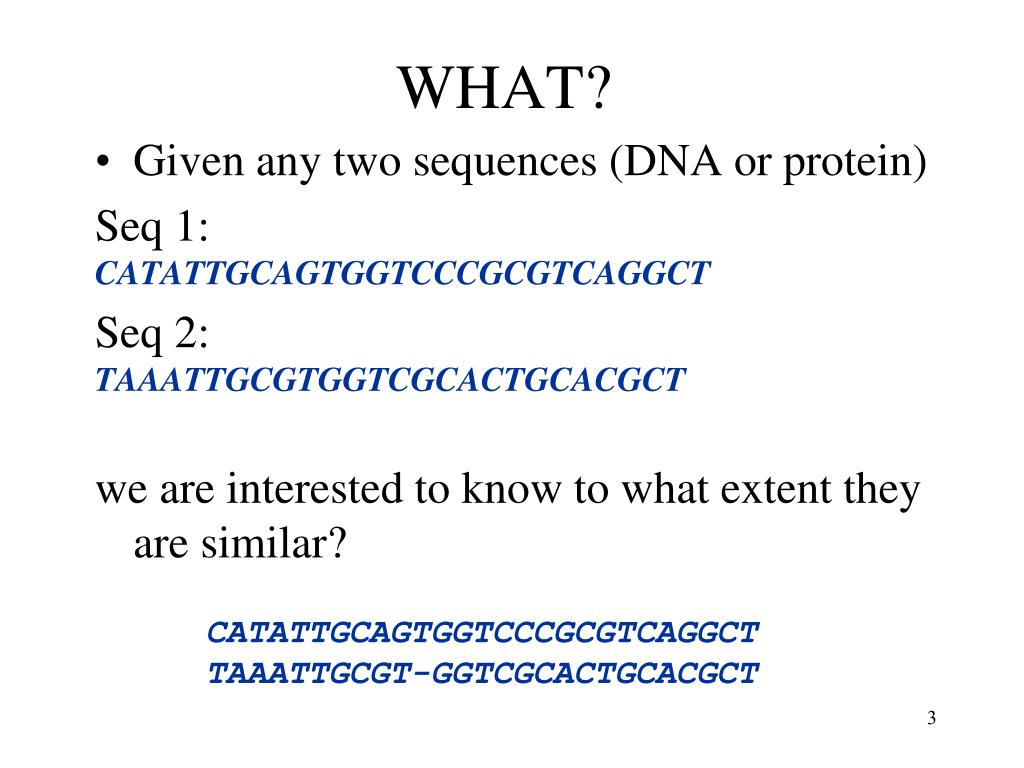

  3. WHAT? • Given any two sequences (DNA or protein) Seq 1: CATATTGCAGTGGTCCCGCGTCAGGCT Seq 2: TAAATTGCGTGGTCGCACTGCACGCT we are interested to know to what extent they are similar? CATATTGCAGTGGTCCCGCGTCAGGCT TAAATTGCGT-GGTCGCACTGCACGCT

  4. WHY?

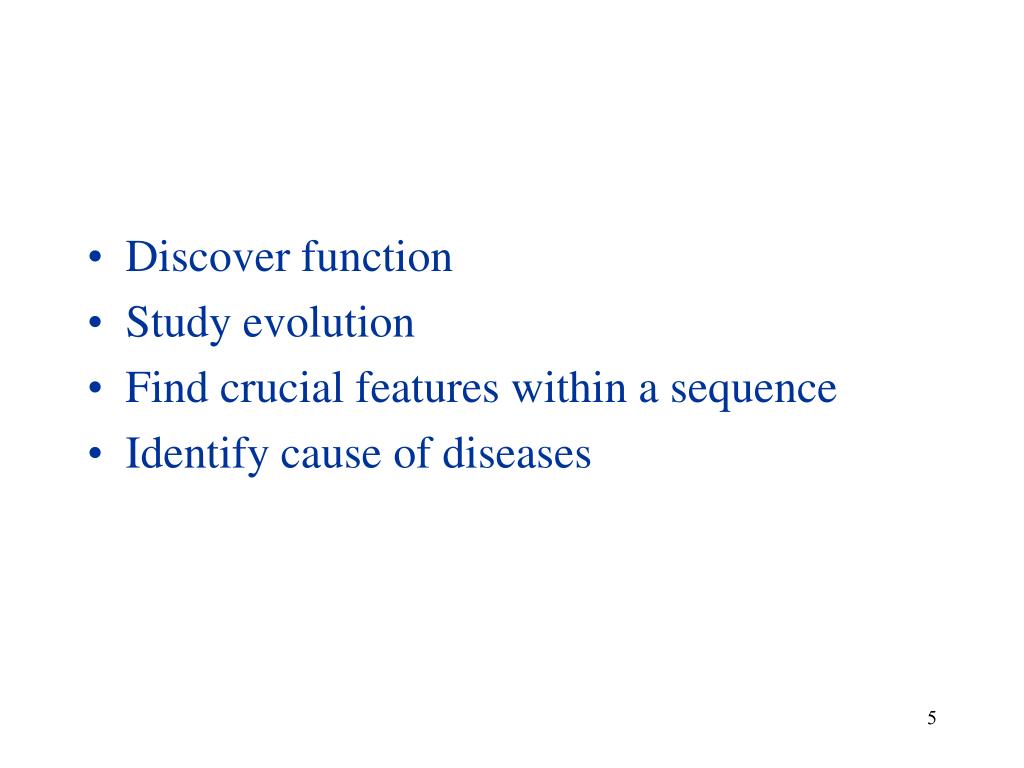

  5. Discover function • Study evolution • Find crucial features within a sequence • Identify cause of diseases

  6. Discover function Sequences that are similar probably have the same function

  7. in the genome Find crucial features ? • Regions in the sequences that are strongly conserved between different sequences can indicate their functional importance High Low

  8. Identify cause of disease • Comparison of sequences between individuals can detect changes that are related to diseases

  9. Sickle Cell Anemia • Due to 1 swapping an A for a T, causing inserted amino acid to be valine instead of glutamine in hemoglobin Image source: http://www.cc.nih.gov/ccc/ccnews/nov99/

  10. Healthy Individual >gi|28302128|ref|NM_000518.4| Homo sapiens hemoglobin, beta (HBB), mRNA ACATTTGCTTCTGACACAACTGTGTTCACTAGCAACCTCAAACAGACACCATGGTGCATCTGACTCCTGA GGAGAAGTCTGCCGTTACTGCCCTGTGGGGCAAGGTGAACGTGGATGAAGTTGGTGGTGAGGCCCTGGGC AGGCTGCTGGTGGTCTACCCTTGGACCCAGAGGTTCTTTGAGTCCTTTGGGGATCTGTCCACTCCTGATG CTGTTATGGGCAACCCTAAGGTGAAGGCTCATGGCAAGAAAGTGCTCGGTGCCTTTAGTGATGGCCTGGC TCACCTGGACAACCTCAAGGGCACCTTTGCCACACTGAGTGAGCTGCACTGTGACAAGCTGCACGTGGAT CCTGAGAACTTCAGGCTCCTGGGCAACGTGCTGGTCTGTGTGCTGGCCCATCACTTTGGCAAAGAATTCA CCCCACCAGTGCAGGCTGCCTATCAGAAAGTGGTGGCTGGTGTGGCTAATGCCCTGGCCCACAAGTATCA CTAAGCTCGCTTTCTTGCTGTCCAATTTCTATTAAAGGTTCCTTTGTTCCCTAAGTCCAACTACTAAACT GGGGGATATTATGAAGGGCCTTGAGCATCTGGATTCTGCCTAATAAAAAACATTTATTTTCATTGC >gi|4504349|ref|NP_000509.1| beta globin [Homo sapiens] MVHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLG AFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVAN ALAHKYH

  11. Diseased Individual >gi|28302128|ref|NM_000518.4| Homo sapiens hemoglobin, beta (HBB), mRNA ACATTTGCTTCTGACACAACTGTGTTCACTAGCAACCTCAAACAGACACCATGGTGCATCTGACTCCTGA GGTGAAGTCTGCCGTTACTGCCCTGTGGGGCAAGGTGAACGTGGATGAAGTTGGTGGTGAGGCCCTGGGC AGGCTGCTGGTGGTCTACCCTTGGACCCAGAGGTTCTTTGAGTCCTTTGGGGATCTGTCCACTCCTGATG CTGTTATGGGCAACCCTAAGGTGAAGGCTCATGGCAAGAAAGTGCTCGGTGCCTTTAGTGATGGCCTGGC TCACCTGGACAACCTCAAGGGCACCTTTGCCACACTGAGTGAGCTGCACTGTGACAAGCTGCACGTGGAT CCTGAGAACTTCAGGCTCCTGGGCAACGTGCTGGTCTGTGTGCTGGCCCATCACTTTGGCAAAGAATTCA CCCCACCAGTGCAGGCTGCCTATCAGAAAGTGGTGGCTGGTGTGGCTAATGCCCTGGCCCACAAGTATCA CTAAGCTCGCTTTCTTGCTGTCCAATTTCTATTAAAGGTTCCTTTGTTCCCTAAGTCCAACTACTAAACT GGGGGATATTATGAAGGGCCTTGAGCATCTGGATTCTGCCTAATAAAAAACATTTATTTTCATTGC >gi|4504349|ref|NP_000509.1| beta globin [Homo sapiens] MVHLTPVEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLG AFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVAN ALAHKYH

  12. How do sequences change?

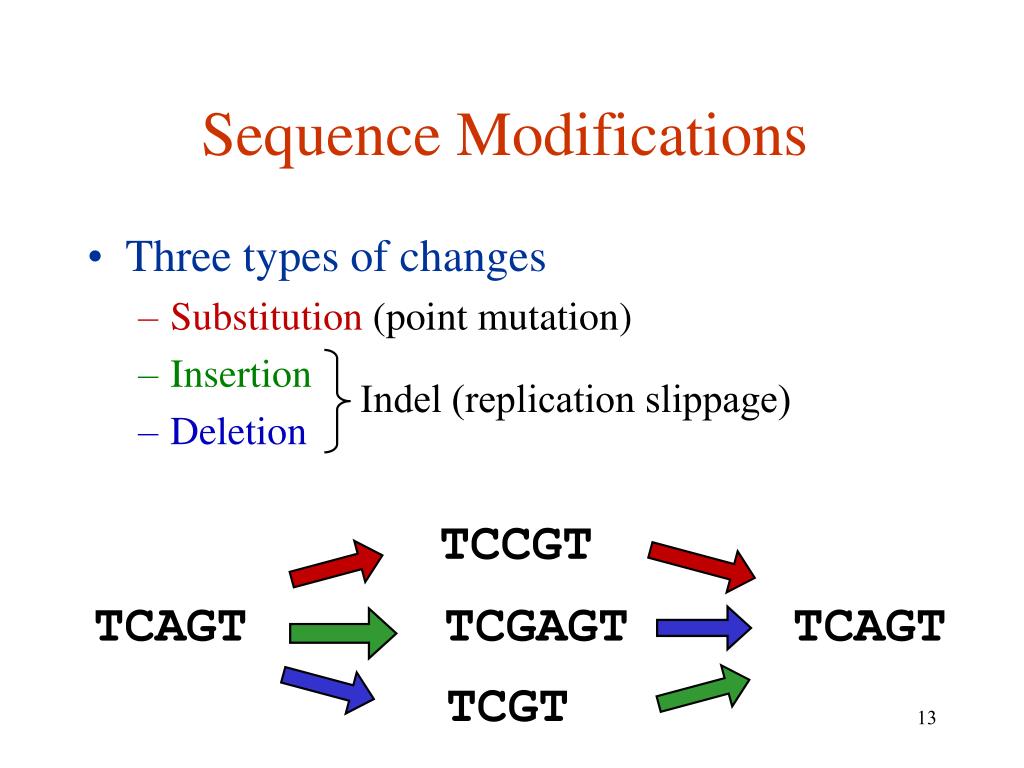

  13. Indel (replication slippage) TCCGT TCGAGT TCAGT TCGT Sequence Modifications • Three types of changes • Substitution (point mutation) • Insertion • Deletion TCAGT

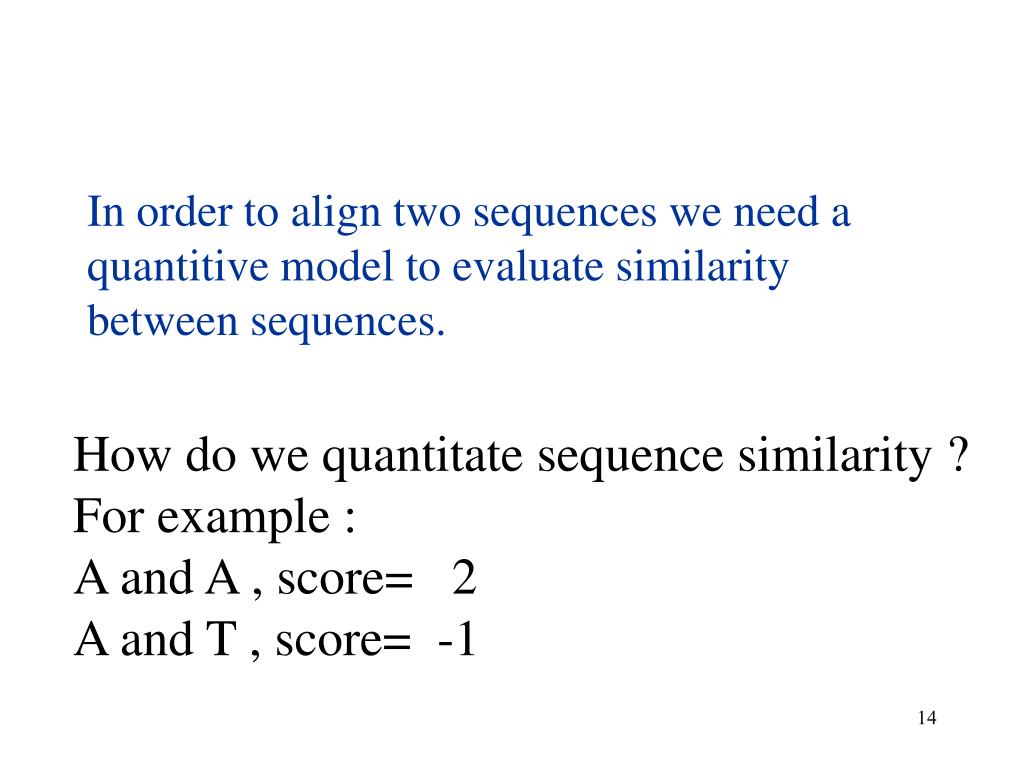

  14. In order to align two sequences we need a quantitive model to evaluate similarity between sequences. How do we quantitate sequence similarity ? For example : A and A , score= 2 A and T , score= -1

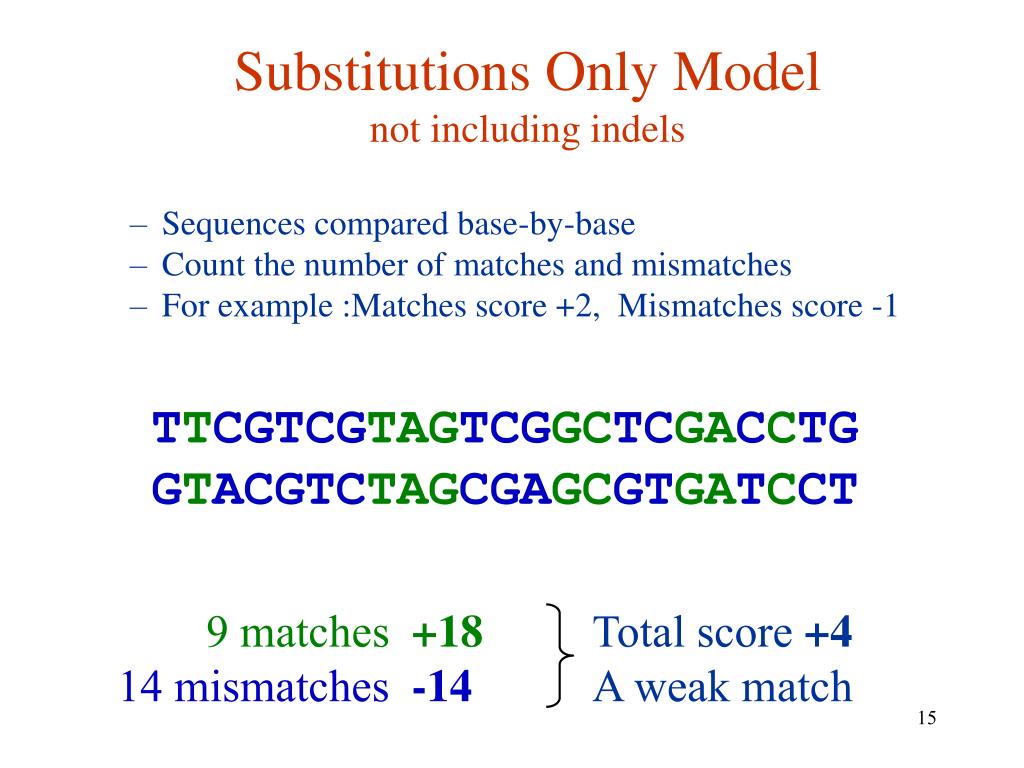

  15. Total score +4 A weak match Substitutions Only Modelnot including indels • Sequences compared base-by-base • Count the number of matches and mismatches • For example :Matches score +2, Mismatches score -1 TTCGTCGTAGTCGGCTCGACCTGGTACGTCTAGCGAGCGTGATCCT 9 matches +18 14 mismatches -14

  16. Total score +24 A strong match Including Indels • Create an ‘alignment’ • Count matches within alignment • Indels are scored as mismatches -1 TT-CGTCGTAGTCG-GC-TCGACC-TGGTACGTC-TAG-CGAGCGT-GATCCT- 17 matches +34 2 mismatches - 2 8 indels - 8

  17. TT-CGTCGTAGTCG-GC-TCGACC-TGGTACGTC-TAG-CGAGCGT-GATCCT- +24 -TTCGT-CGTAGTC-GGCTCG-ACCTGGTAC-GTCTA-GCGAGCGT-GATCC-T 0 Choosing an Alignment • Many different alignments are possible • Should consider all possible • Take the best score found • There may be more than one best alignment

  18. Why is it hard ? Alignment requires an algorithm that performs a number of comparisons roughly proportional to the square of the average sequence length n2.

  19. Dynamic Programming • A method for reducing a complex problem to a set of identical sub-problems • The best solution to one sub-problem is independent from the best solution to the other sub-problem

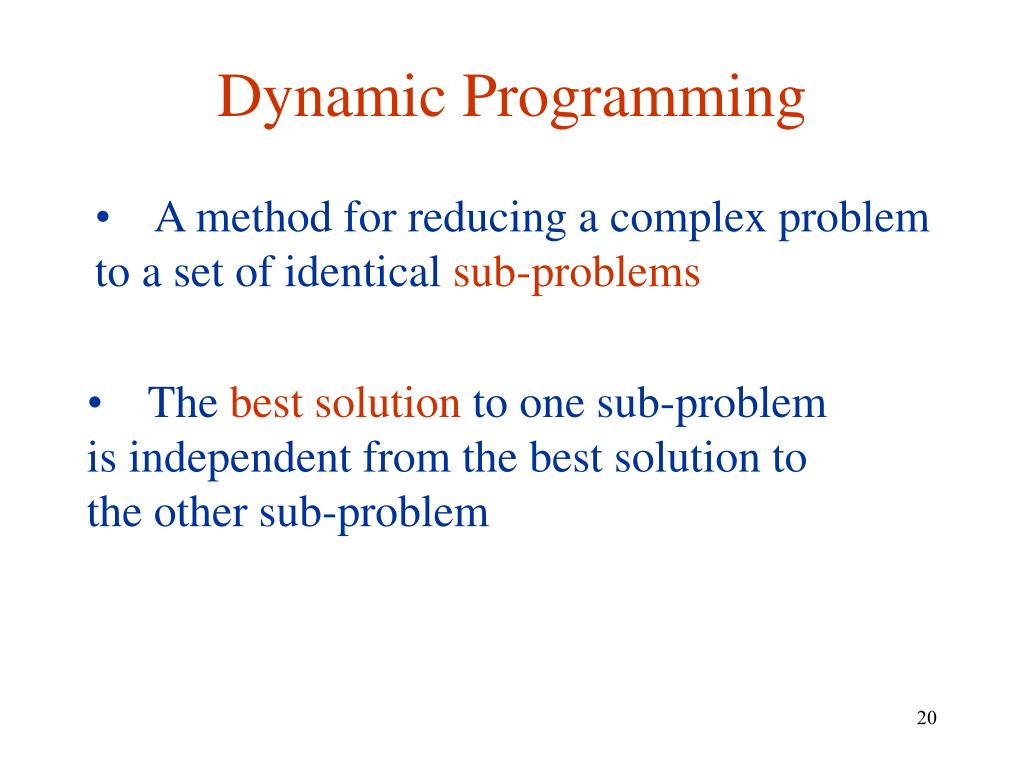

  20. Dynamic Programming • A method for reducing a complex problem to a set of identical sub-problems • The best solution to one sub-problem is independent from the best solution to the other sub-problem

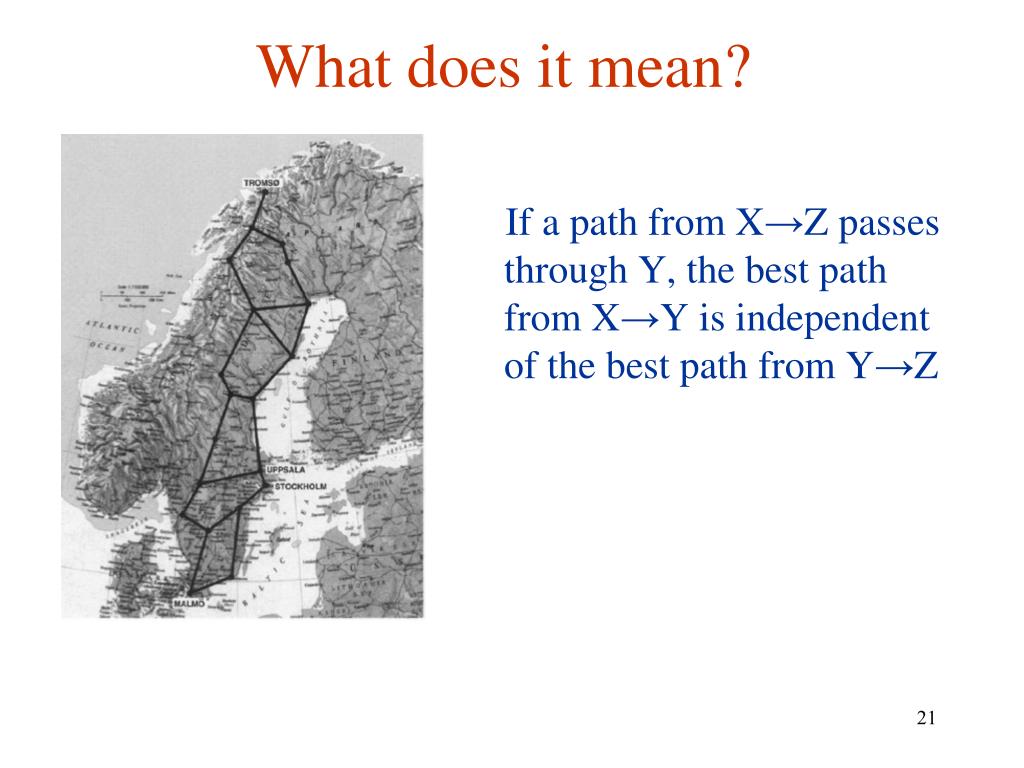

  21. What does it mean? If a path from X→Z passes through Y, the best path from X→Y is independent of the best path from Y→Z

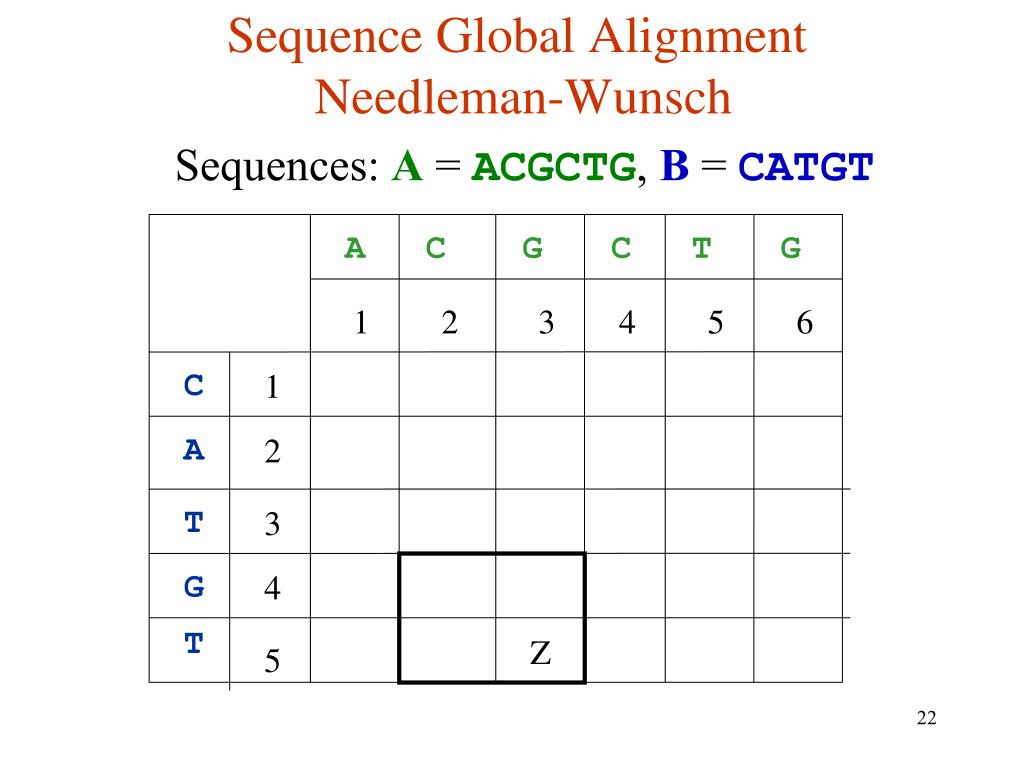

  22. Sequence Global Alignment Needleman-Wunsch Sequences: A = ACGCTG, B = CATGT A C G C T G 1 2 3 4 5 6 C 1 A 2 T 3 G 4 T Z 5

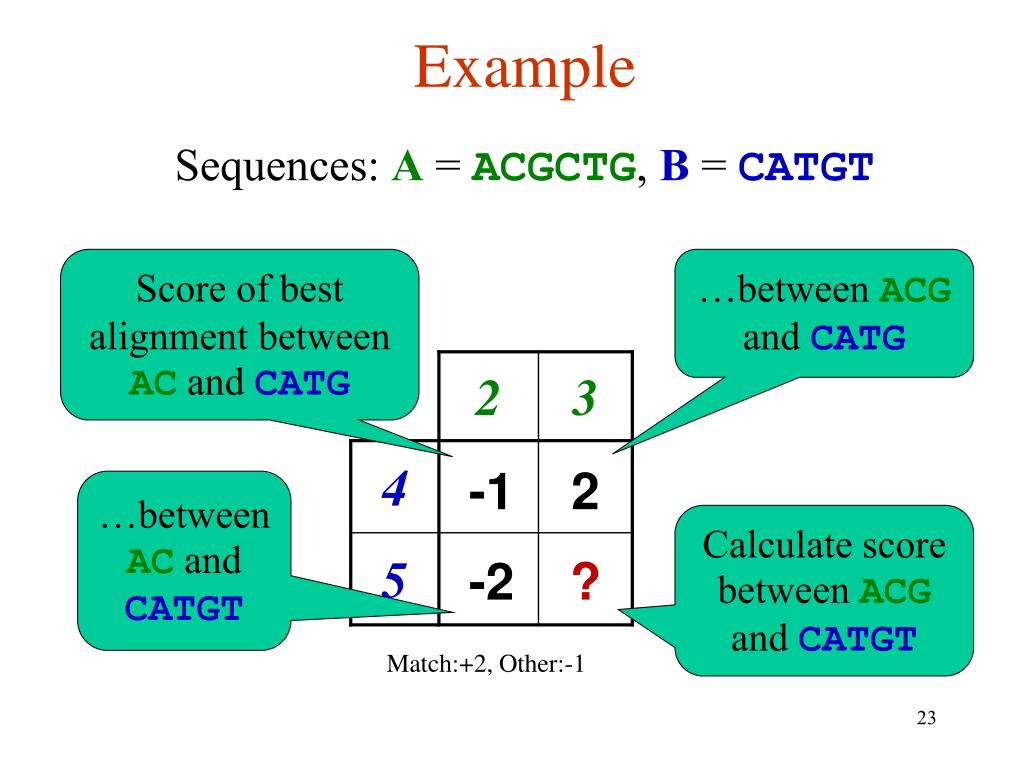

  23. Score of best alignment between AC and CATG …between ACG and CATG -1 2 …between AC and CATGT Calculate score between ACG and CATGT -2 ? Example Sequences: A = ACGCTG, B = CATGT Match:+2, Other:-1

  24. Example Align the next letter in the sequences Insertion in the first sequence (del) 3 5 - 5 Insertion in the Second sequence 3 -

  25. -1 from before plus -1 for mismatch of G against T-2 2 from before plus -1 for mismatch of – against T1 -2 from before plus -1 for mismatch of G against –-3 Cell gets highest score of -2,1,-31 1 Example -1 2 -2 Sequences: A = ACGCTG, B = CATGT

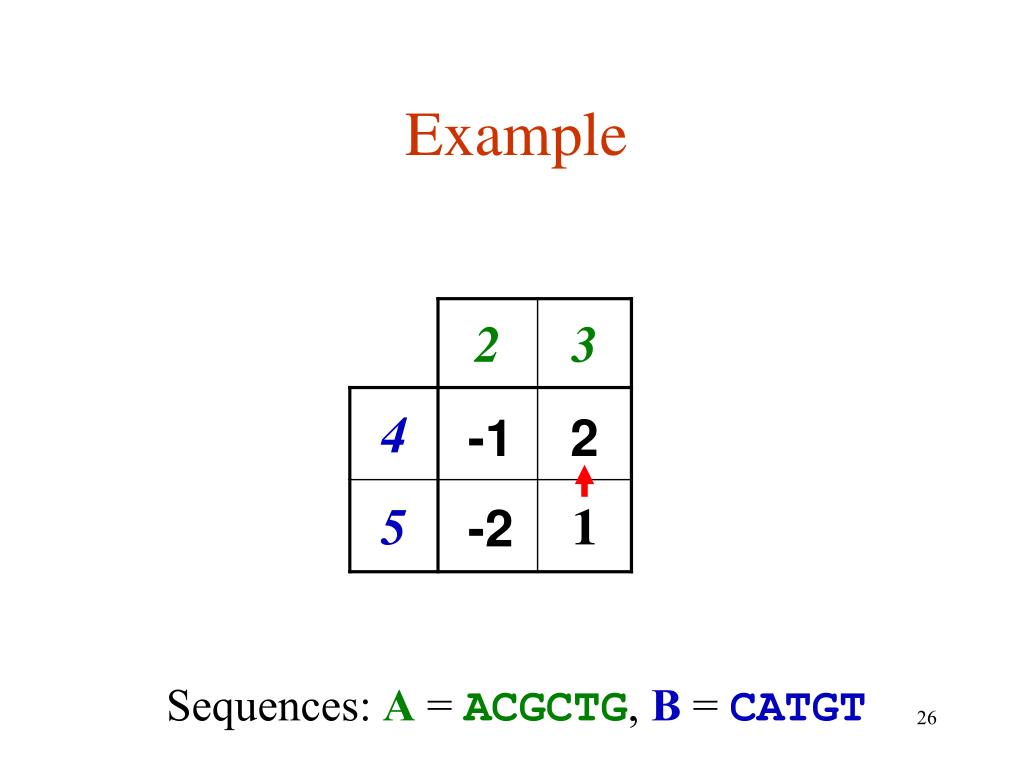

  26. Example -1 2 -2 Sequences: A = ACGCTG, B = CATGT

  27. A -

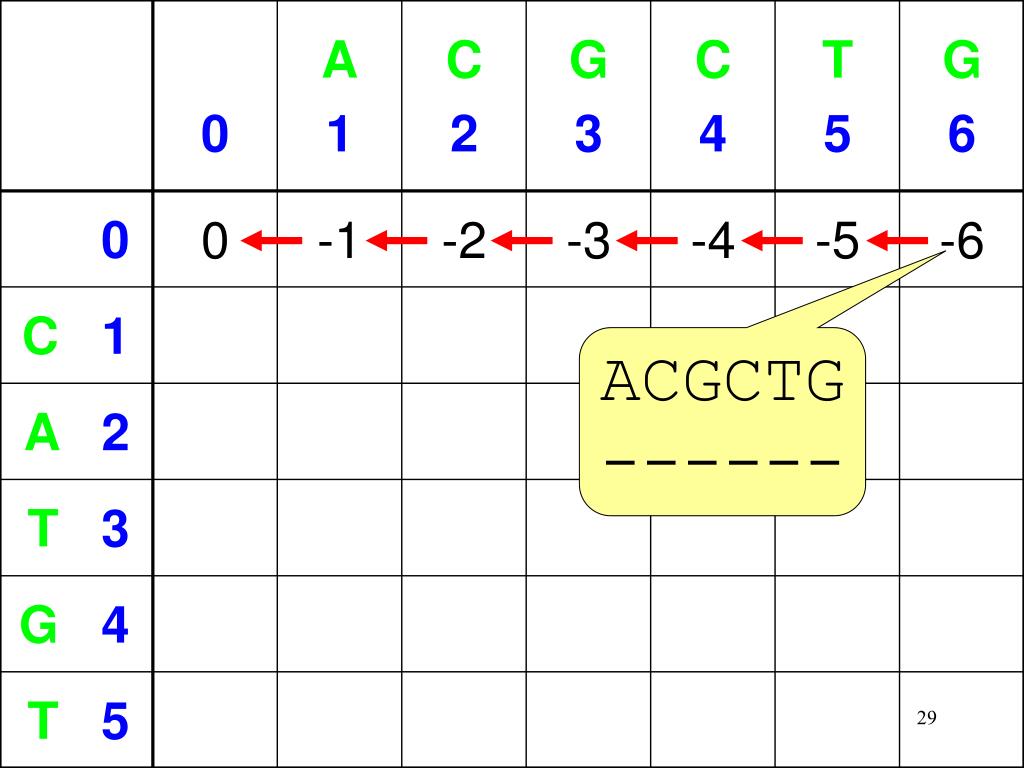

  28. ACGCTG ------

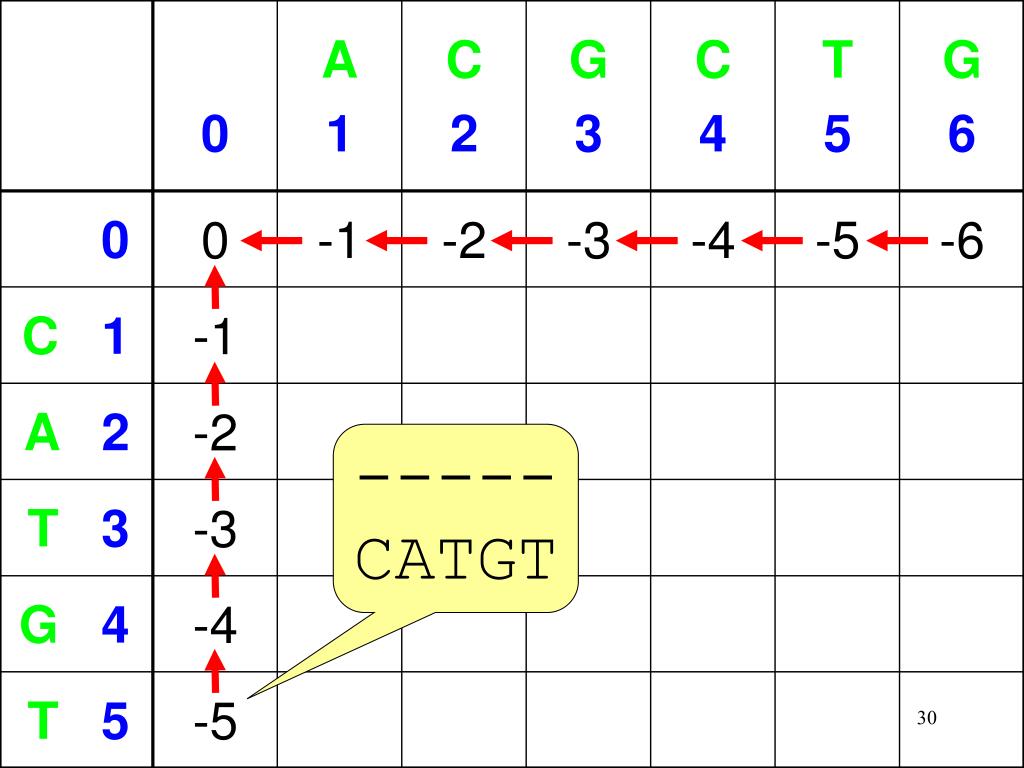

  29. ----- CATGT

  30. A C

  31. AC -C

  32. ACG -C-

  33. ACGC ---C ACGC -C--

  34. ACG -CA

  35. ACGCTG- -C-ATGT

  36. ACGCTG- -CA-TGT

  37. -ACGCTG CATG-T-

  38. Needleman-Wunsch Global Alignment • Compare entire sequence against another • Global alignment score is bottom right cell

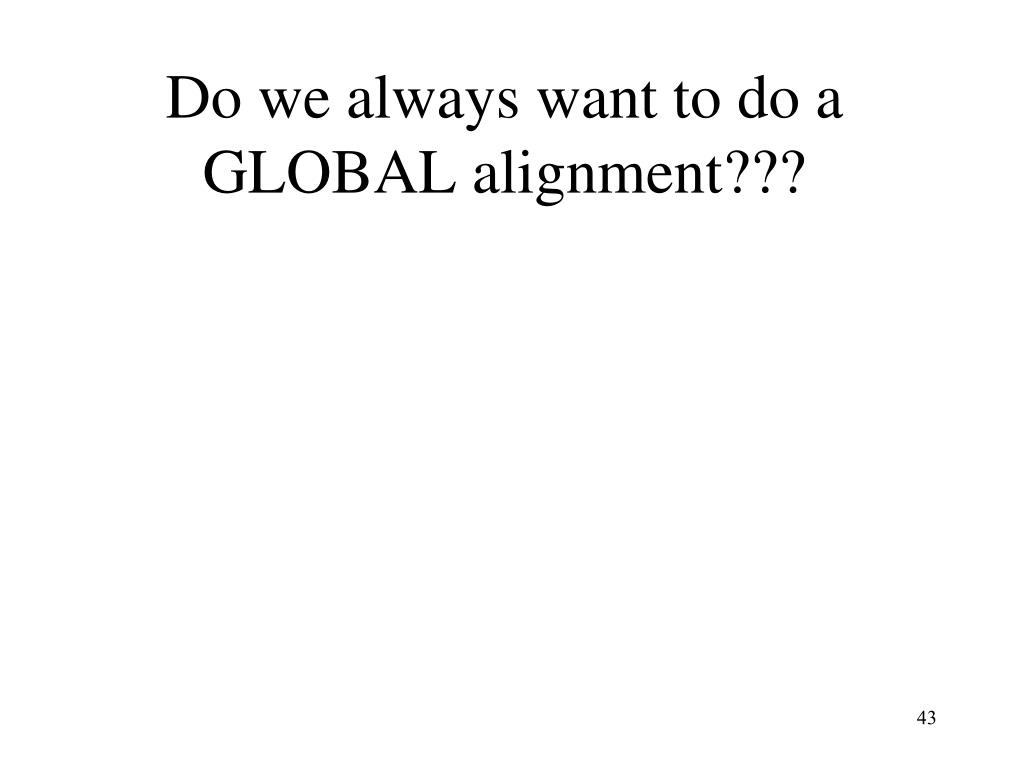

  39. Do we always want to do a GLOBAL alignment???

  40. DorothyHodkin DorothyCrowfootHodkin Dorothy Hodkin DorothyCrowfootHodkin DOROTHY DOROTHY HODGKIN HODGKIN Global alignment: DOROTHY--------HODGKIN DOROTHYCROWFOOTHODGKIN Local alignment:

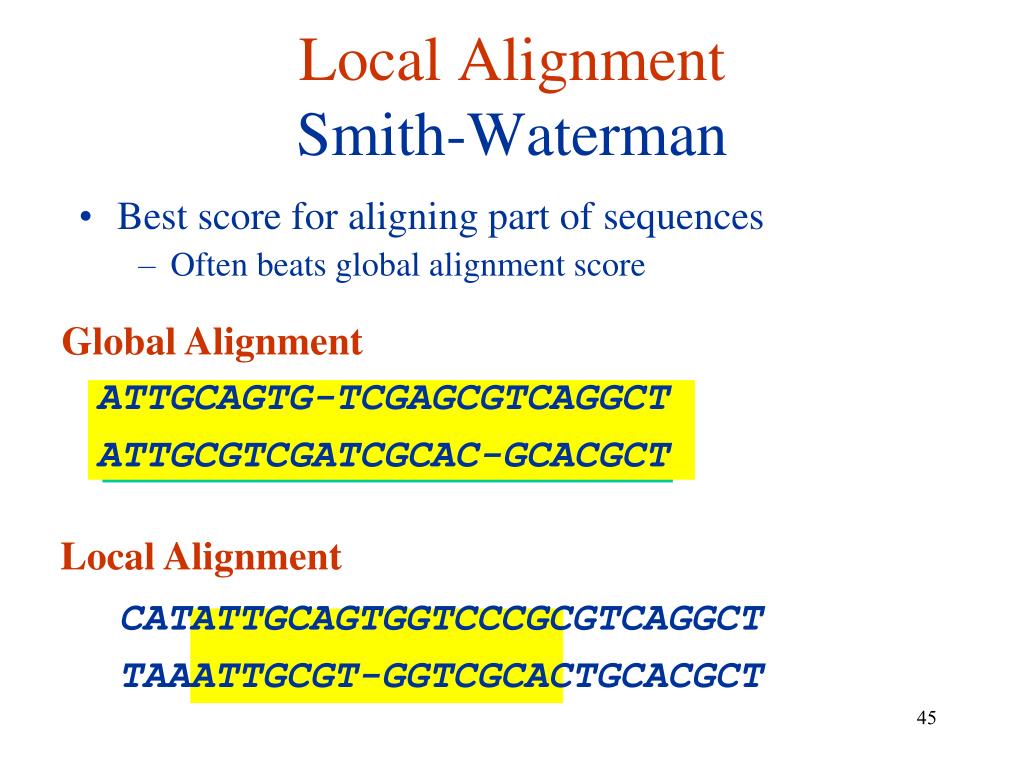

  41. Local AlignmentSmith-Waterman • Best score for aligning part of sequences • Often beats global alignment score Global Alignment ATTGCAGTG-TCGAGCGTCAGGCT ATTGCGTCGATCGCAC-GCACGCT Local Alignment CATATTGCAGTGGTCCCGCGTCAGGCT TAAATTGCGT-GGTCGCACTGCACGCT

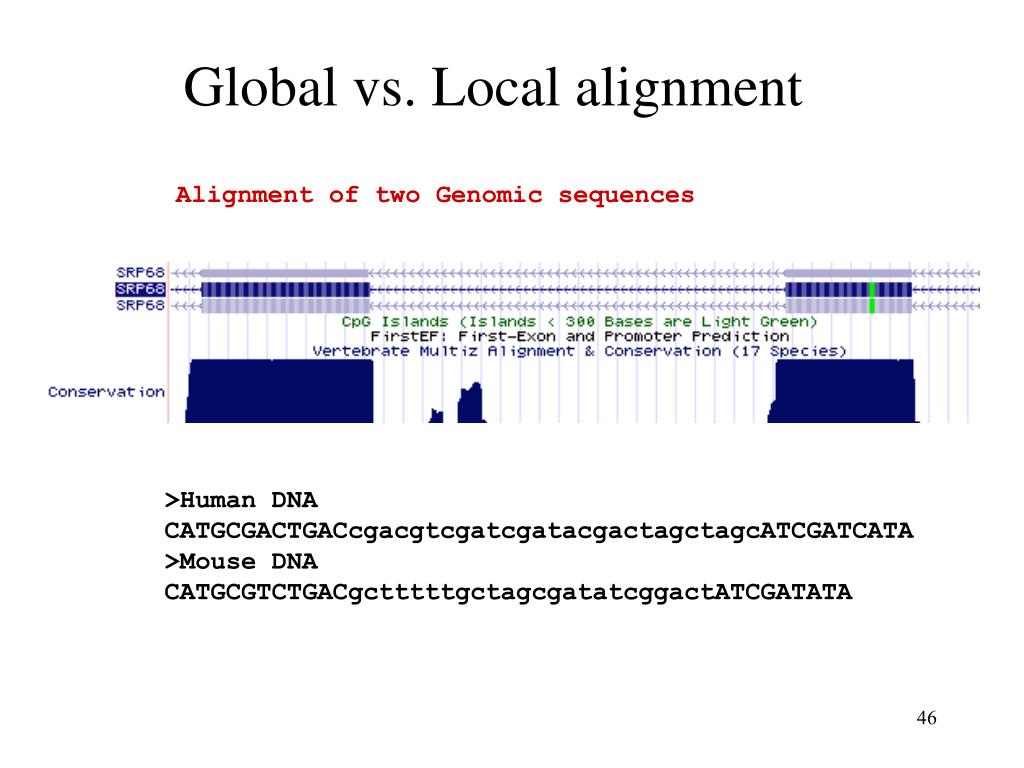

  42. Global vs. Local alignment Alignment of two Genomic sequences >Human DNA CATGCGACTGACcgacgtcgatcgatacgactagctagcATCGATCATA >Mouse DNA CATGCGTCTGACgctttttgctagcgatatcggactATCGATATA

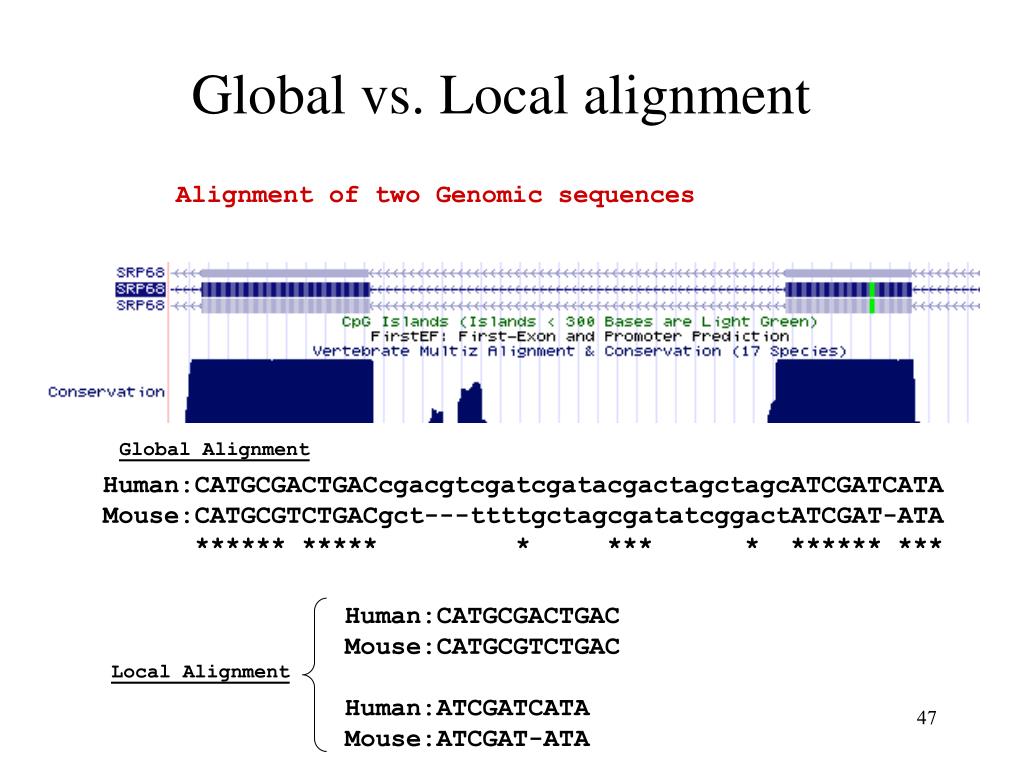

  43. Global vs. Local alignment Alignment of two Genomic sequences Global Alignment Human:CATGCGACTGACcgacgtcgatcgatacgactagctagcATCGATCATA Mouse:CATGCGTCTGACgct---ttttgctagcgatatcggactATCGAT-ATA ****** ***** * *** * ****** *** Human:CATGCGACTGAC Mouse:CATGCGTCTGAC Human:ATCGATCATA Mouse:ATCGAT-ATA Local Alignment

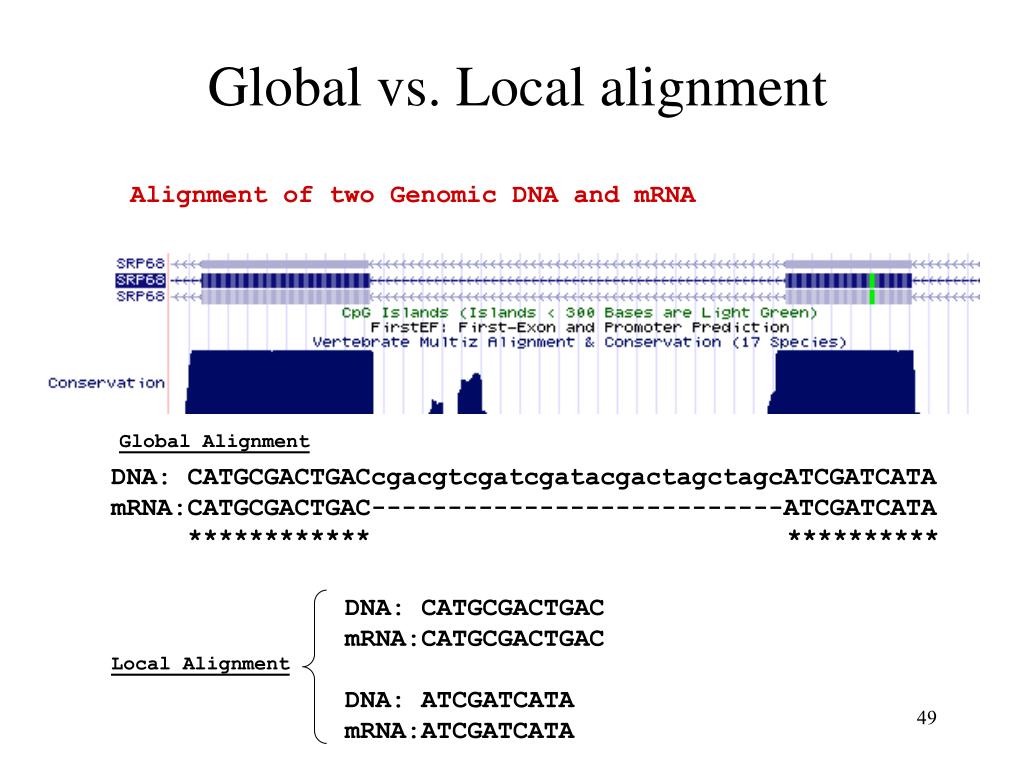

  44. Global vs. Local alignment Alignment of two Genomic DNA and mRNA >Human DNA CATGCGACTGACcgacgtcgatcgatacgactagctagcATCGATCATA >Human mRNA CATGCGACTGACATCGATCATA
