  1. Sedimentation Biophysical Tools '02 - Sedimentation

  2. Principle centrifugal force - buoyancy = frictional force w: angular velocityr: distance from the center of spinningm: mass of the moleculen: partial specific volumer: density of solutionv: velocity of sedimentationf: frictional coefficient Sedimentation coeff. = velocity per unit centrifugal field Biophysical Tools '02 - Sedimentation

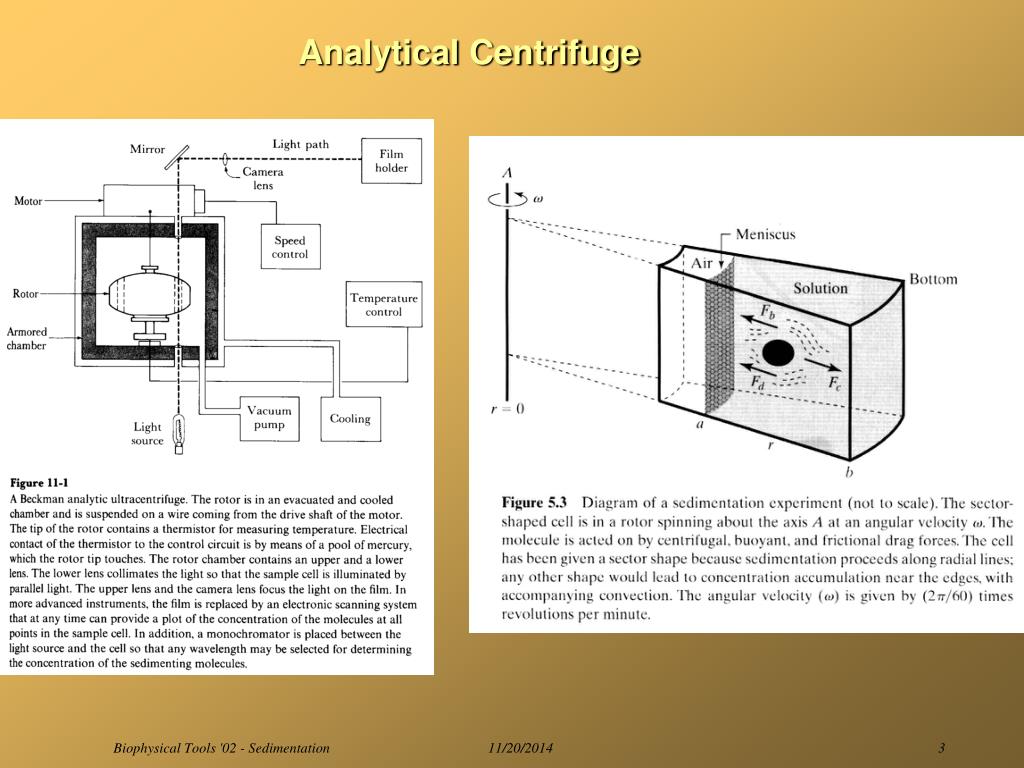

  3. Analytical Centrifuge Biophysical Tools '02 - Sedimentation

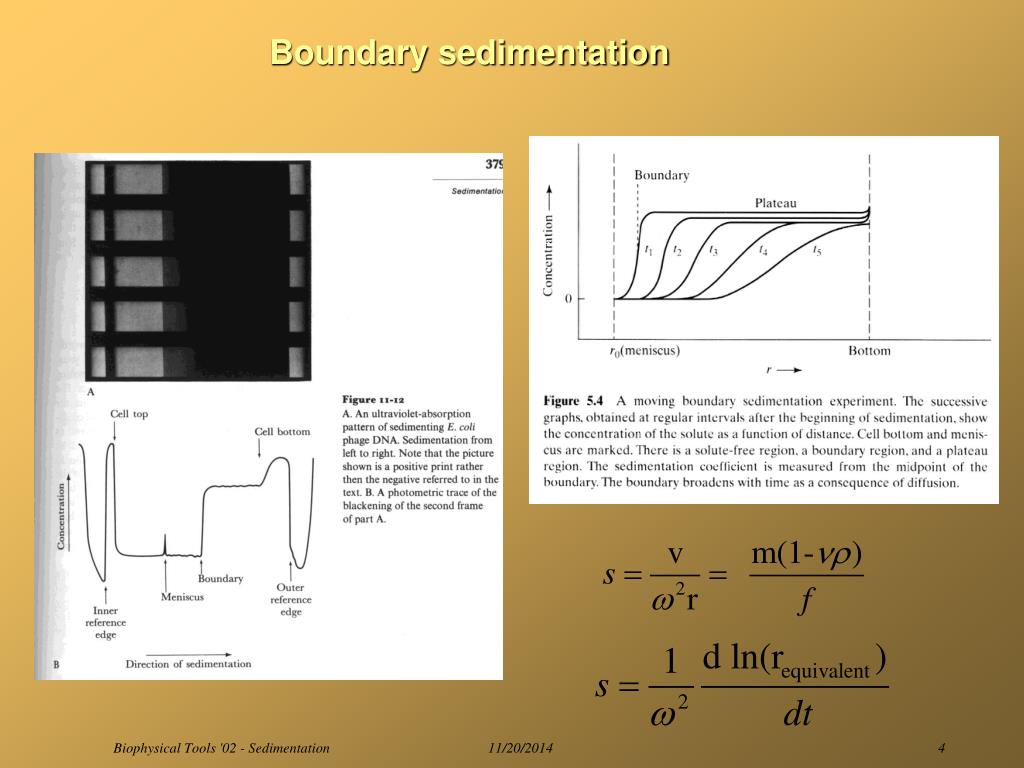

  4. Boundary sedimentation Biophysical Tools '02 - Sedimentation

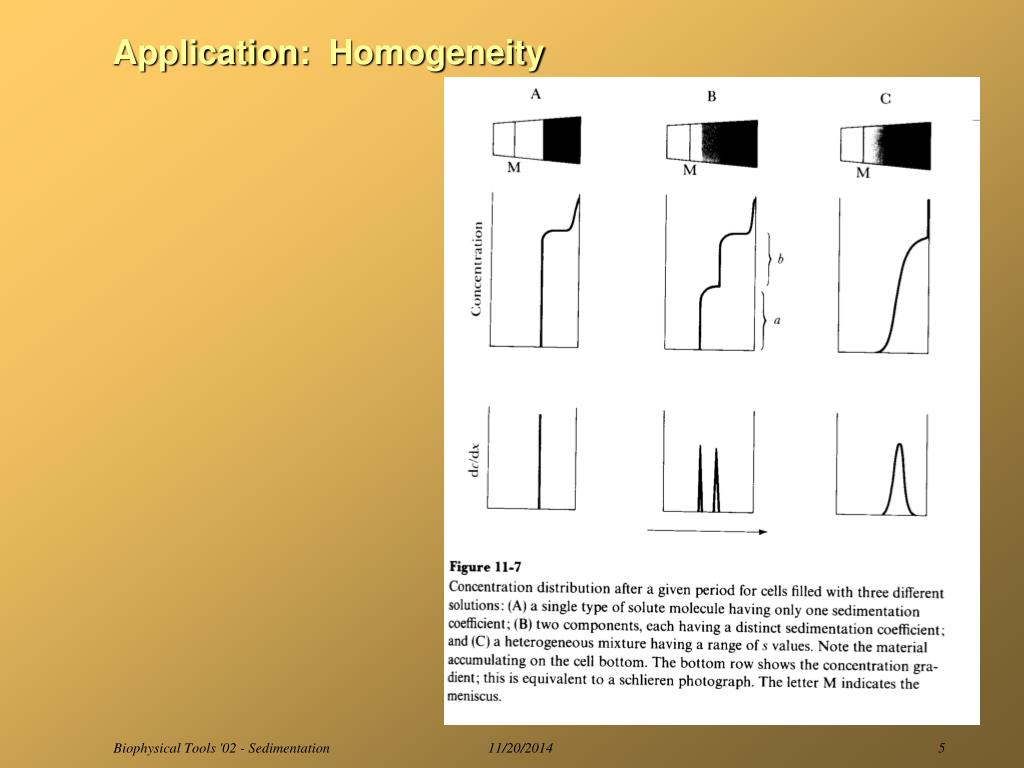

  5. Application: Homogeneity Biophysical Tools '02 - Sedimentation

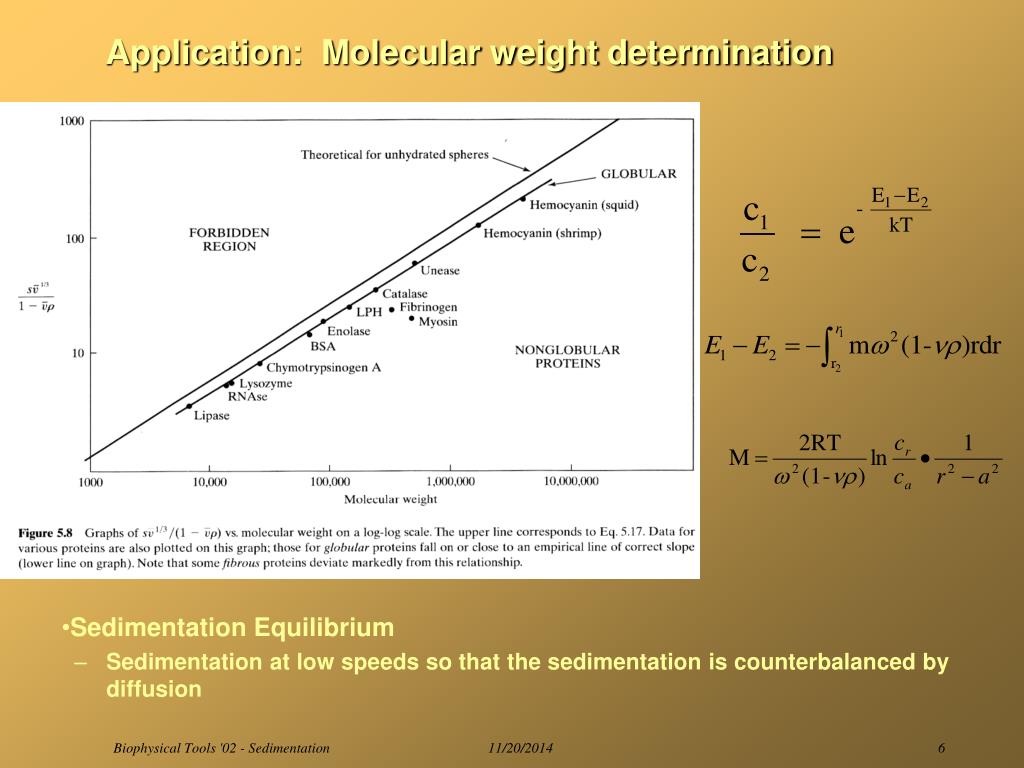

  6. Application: Molecular weight determination • Sedimentation Equilibrium • Sedimentation at low speeds so that the sedimentation is counterbalanced by diffusion Biophysical Tools '02 - Sedimentation

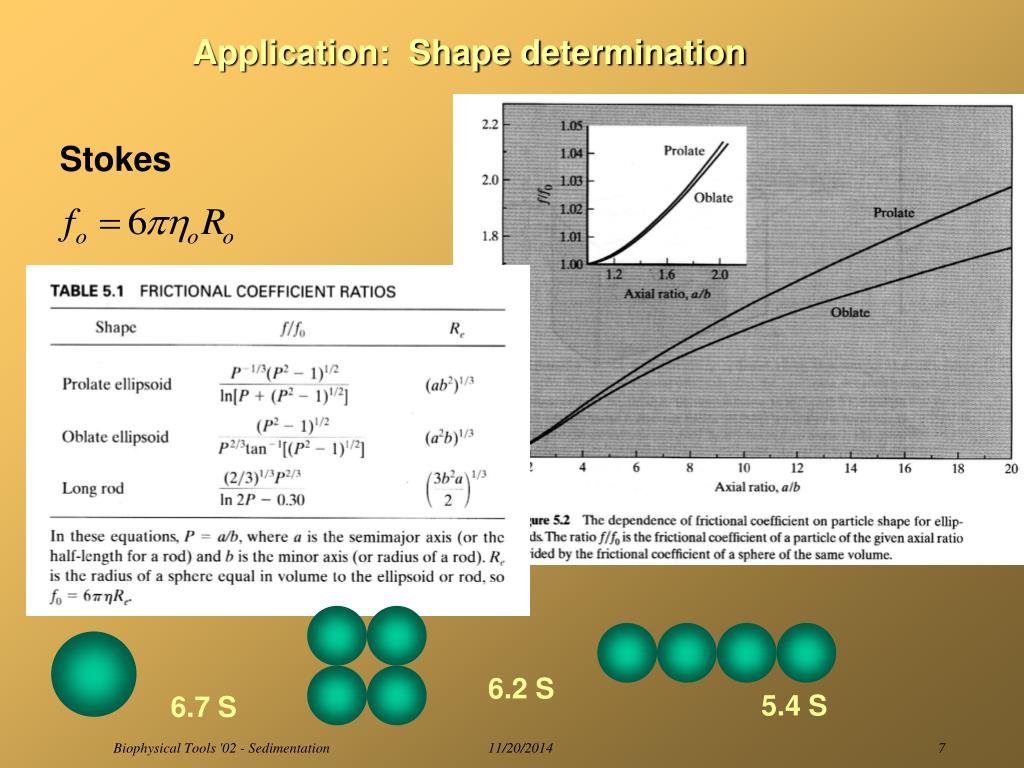

  7. Application: Shape determination Stokes 6.2 S 5.4 S 6.7 S Biophysical Tools '02 - Sedimentation

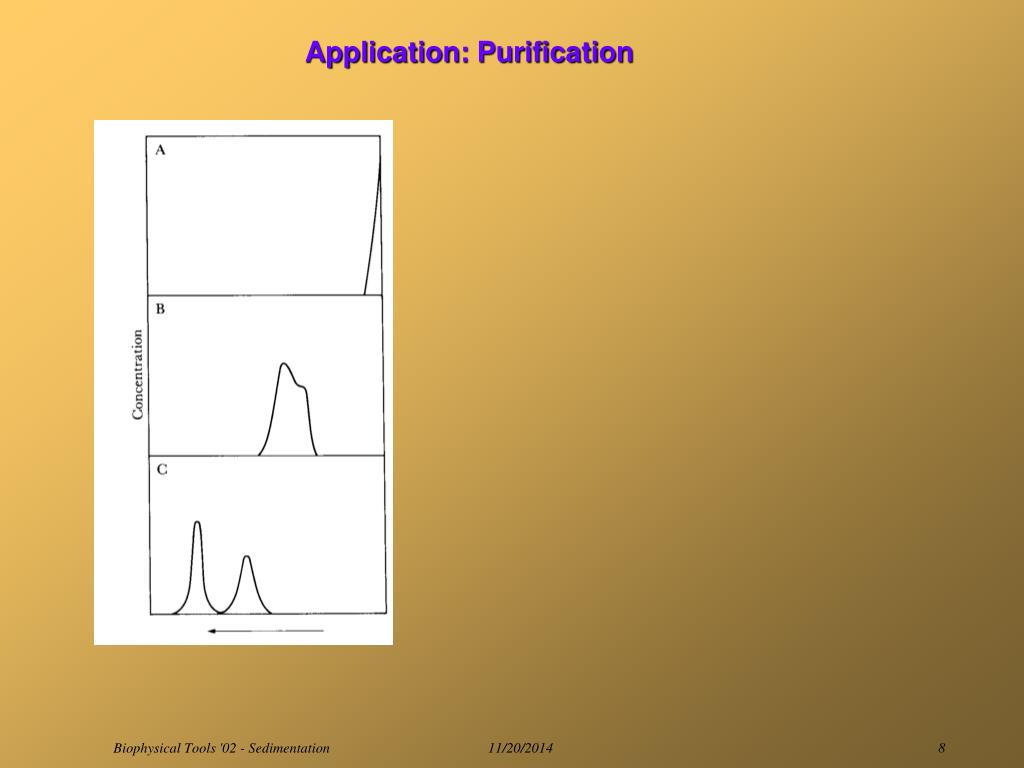

  8. Application: Purification Biophysical Tools '02 - Sedimentation

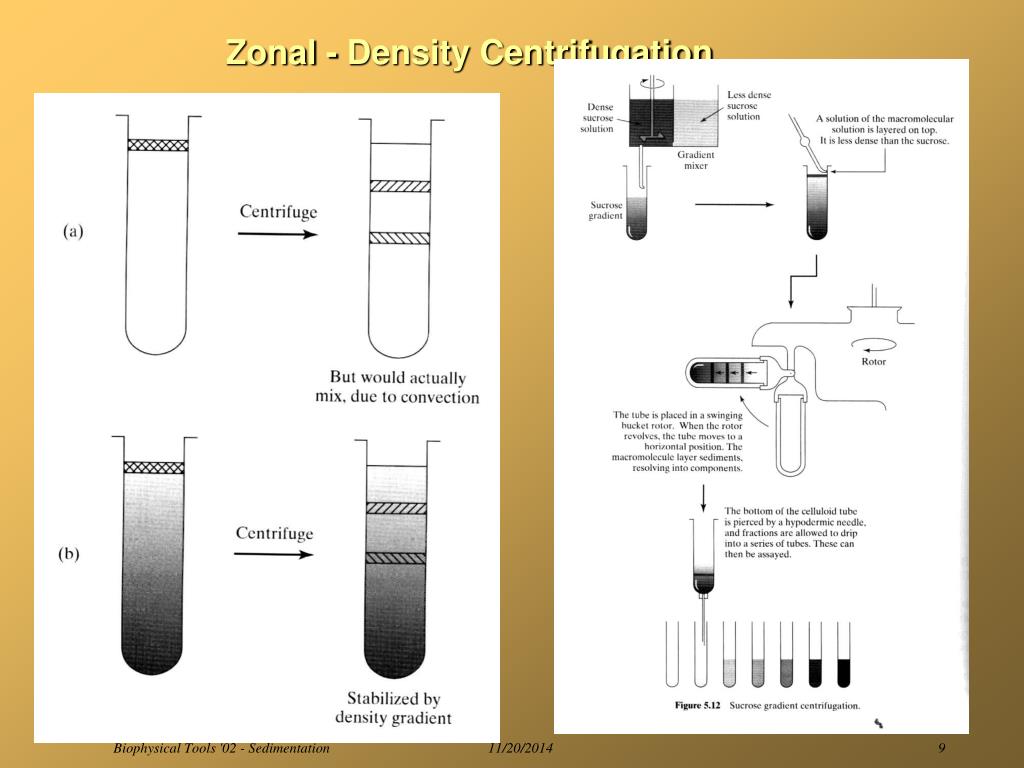

  9. Zonal - Density Centrifugation Biophysical Tools '02 - Sedimentation

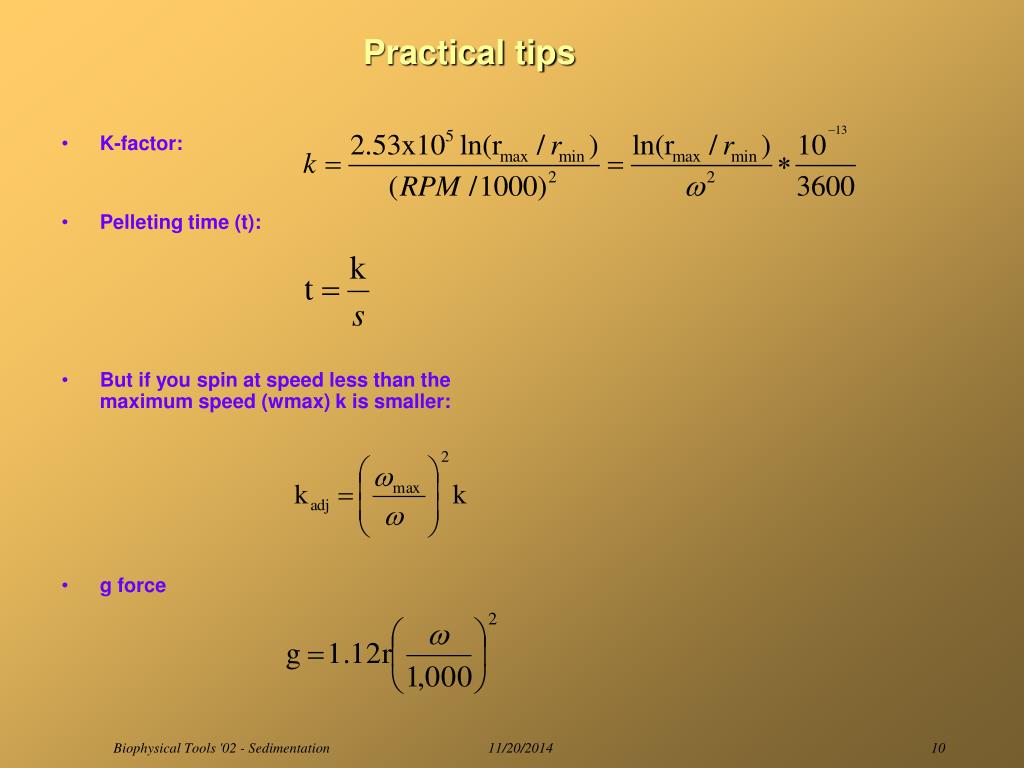

  10. Practical tips • K-factor: • Pelleting time (t): • But if you spin at speed less than the maximum speed (wmax) k is smaller: • g force Biophysical Tools '02 - Sedimentation
