  1. Compatibility of the IERS earth rotation representation and its relation to the NRO conditions Athanasios Dermanis Department of Geodesy and Surveying The Aristotle University of Thessaloniki

  2. Earth Rotation: Relation of Terrestrial to Celestial Reference System Celestial Reference System: Terrestrial Reference System: Mathematical model: = orthogonal rotation matrix = earth rotation parameters

  3. To every orthogonal rotation matrix R(t) corresponds a unique rotation vector: defined by Notation: [a] is the antisymmetric matrix with axial vector a

  4. R = QDW: Separation of earth rotation in 3 parts: Q = Precession-Nutation D = Diurnal rotation W = Polar motion Classical model: 9 parameters 7 parameters reduced to 5 by 2 NRO conditions IERS model (IAU 2000): s = s(g,F) = s(xP,yP) NRO conditions: s = s(d,E) = s(X,Y) OSU Report Nr. 245, 1977: 5 parameters Number of independent parameters needed: 3 (geometric description) 6 (dynamic description – state vector)

  5. Characteristics of the IERS earth rotation representation Consequences on model-compatible rotation vector Precession Nutation Q from theory Rotation vector not aligned to common 3rd axis of intermediate systems CIP high frequency terms removed from precession-nutation Diurnal Rotation around R D from observations Magnitude not equal to rate of diurnal rotation angle Polar Motion W

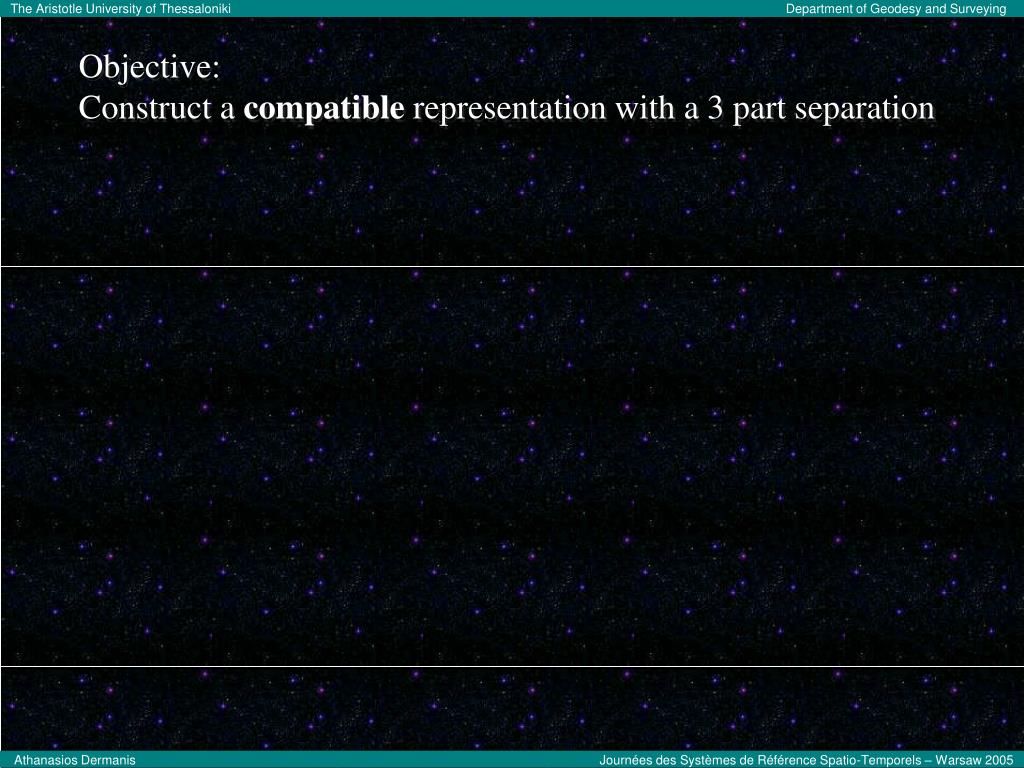

  6. Objective: Construct a compatible representation with a 3 part separation

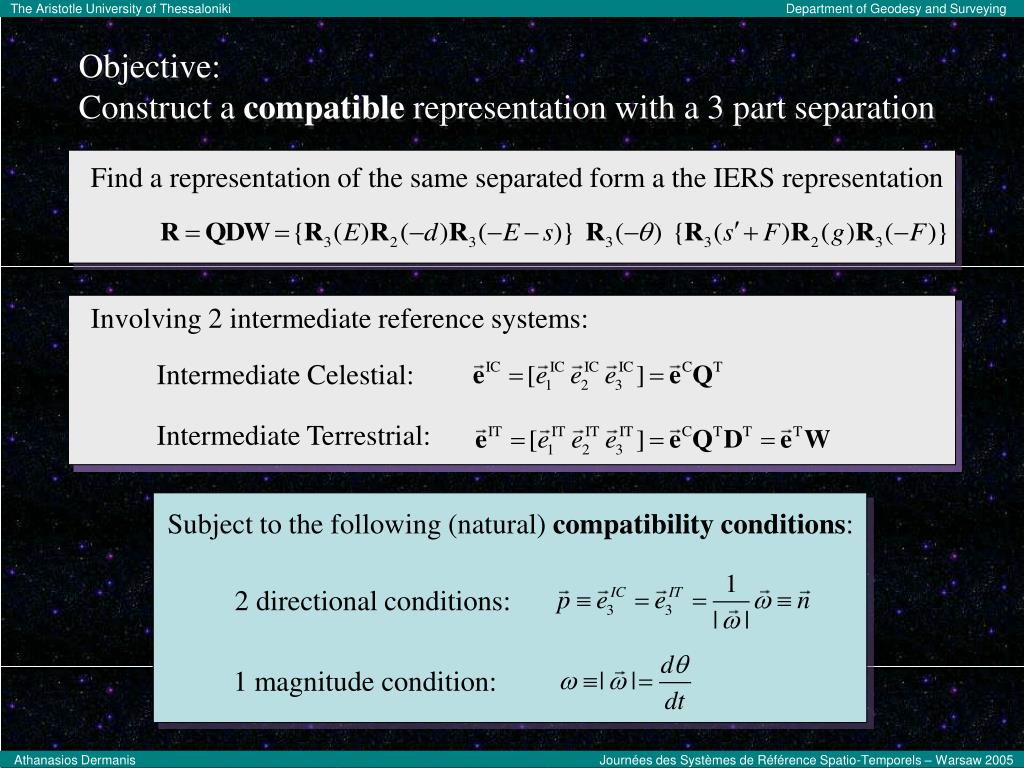

  7. Objective: Construct a compatible representation with a 3 part separation Find a representation of the same separated form a the IERS representation Involving 2 intermediate reference systems: Intermediate Celestial: Intermediate Terrestrial:

  8. Objective: Construct a compatible representation with a 3 part separation Find a representation of the same separated form a the IERS representation Involving 2 intermediate reference systems: Intermediate Celestial: Intermediate Terrestrial: Subject to the following (natural) compatibility conditions: 2 directional conditions: 1 magnitude condition:

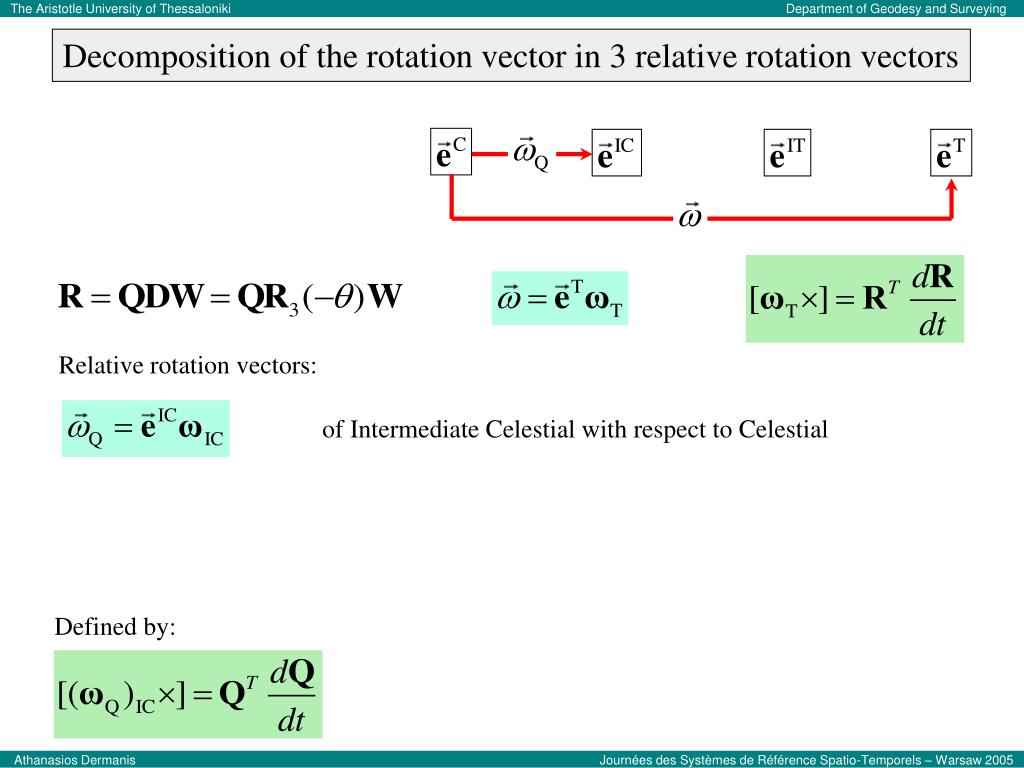

  9. Decomposition of the rotation vector in 3 relative rotation vectors

  10. Decomposition of the rotation vector in 3 relative rotation vectors Relative rotation vectors:

  11. Decomposition of the rotation vector in 3 relative rotation vectors Relative rotation vectors: of Intermediate Celestial with respect to Celestial Defined by:

  12. Decomposition of the rotation vector in 3 relative rotation vectors Relative rotation vectors: of Intermediate Celestial with respect to Celestial of Intermediate Terrestrial with respect to Intermediate Celestial Defined by:

  13. Decomposition of the rotation vector in 3 relative rotation vectors Relative rotation vectors: of Intermediate Celestial with respect to Celestial of Intermediate Terrestrial with respect to Intermediate Celestial of Terrestrial with respect to Intermediate Terrestrial Defined by:

  14. Decomposition of the rotation vector in 3 relative rotation vectors Relative rotation vectors: of Intermediate Celestial with respect to Celestial of Intermediate Terrestrial with respect to Intermediate Celestial of Terrestrial with respect to Intermediate Terrestrial Defined by:

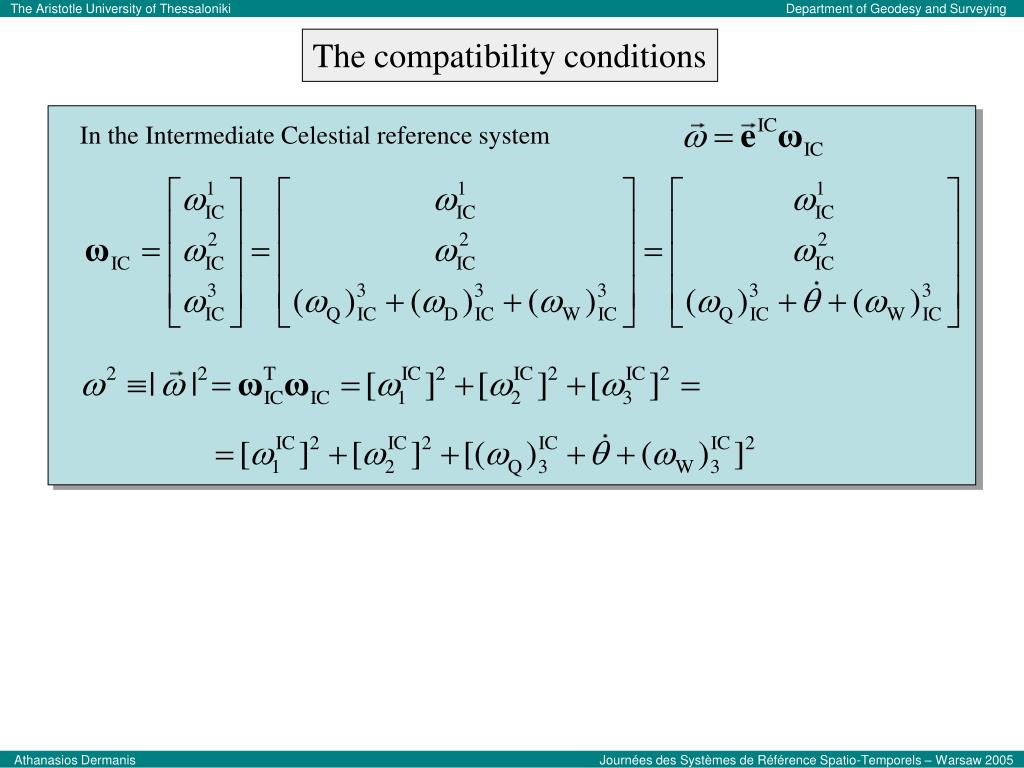

  15. The compatibility conditions In the Intermediate Celestial reference system

  16. The compatibility conditions In the Intermediate Celestial reference system = Celestial Pole (direction of diurnal rotation), e.g. CEP, CIP = Compatible rotation vector (derived from rotation matrix R) = Compatible Celestial Pole (CCP)

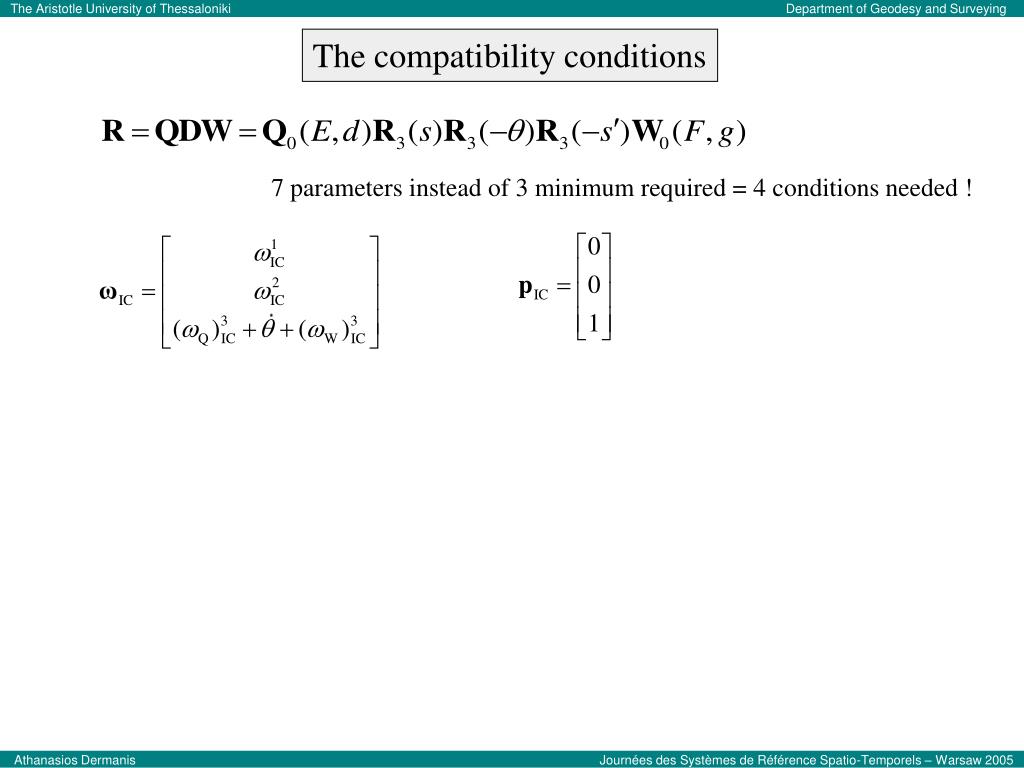

  17. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed !

  18. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed !

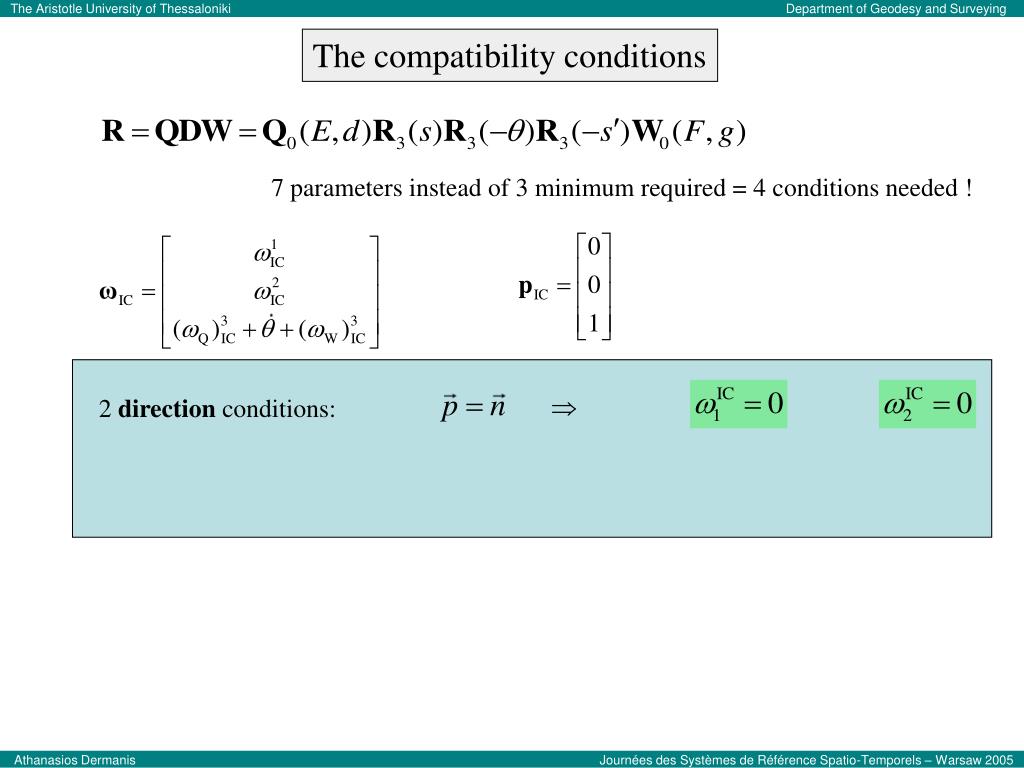

  19. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed ! 2 direction conditions:

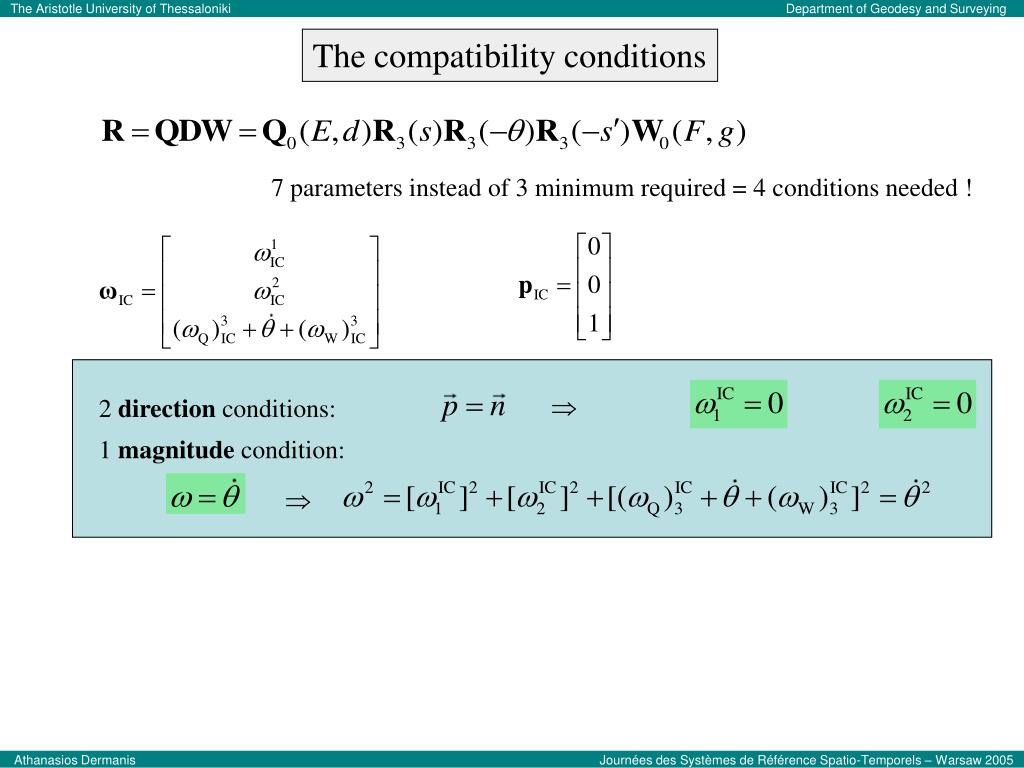

  20. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed ! 2 direction conditions: 1 magnitude condition:

  21. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed ! 2 direction conditions: 1 magnitude condition: Missing 4th condition: Ds = arbitrary !

  22. The compatibility conditions 7 parameters instead of 3 minimum required = 4 conditions needed ! 2 direction conditions: 1 magnitude condition: Missing 4th condition: Ds = arbitrary ! 4th condition = arbitrary definition of origin of diurnal rotation angle

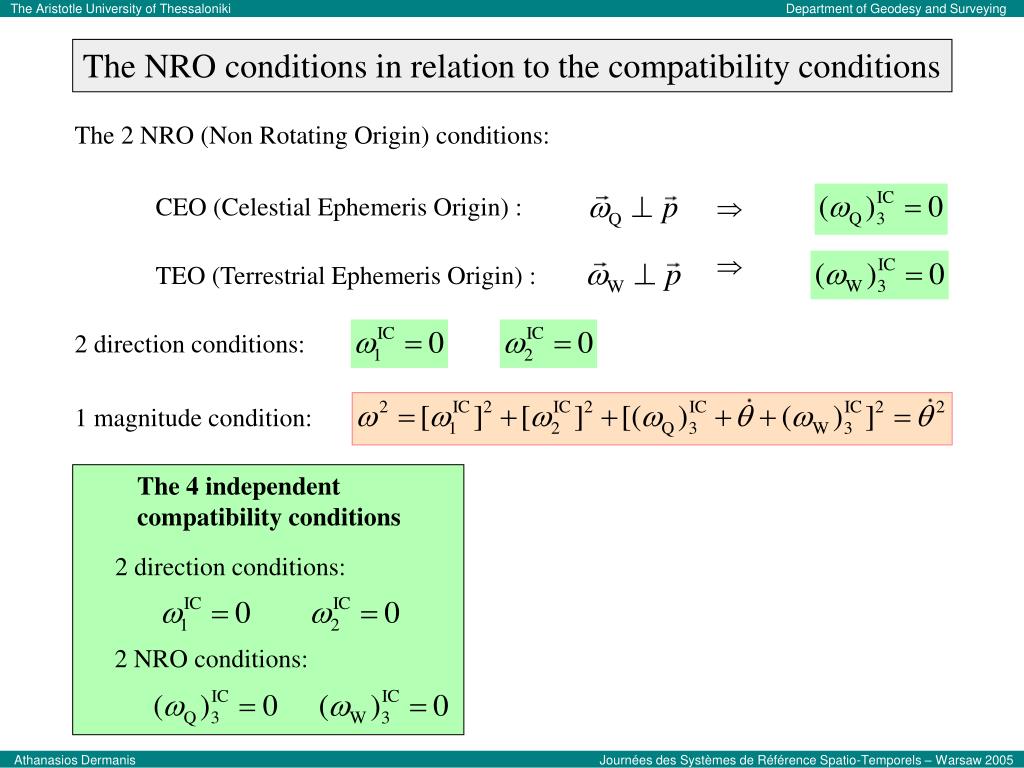

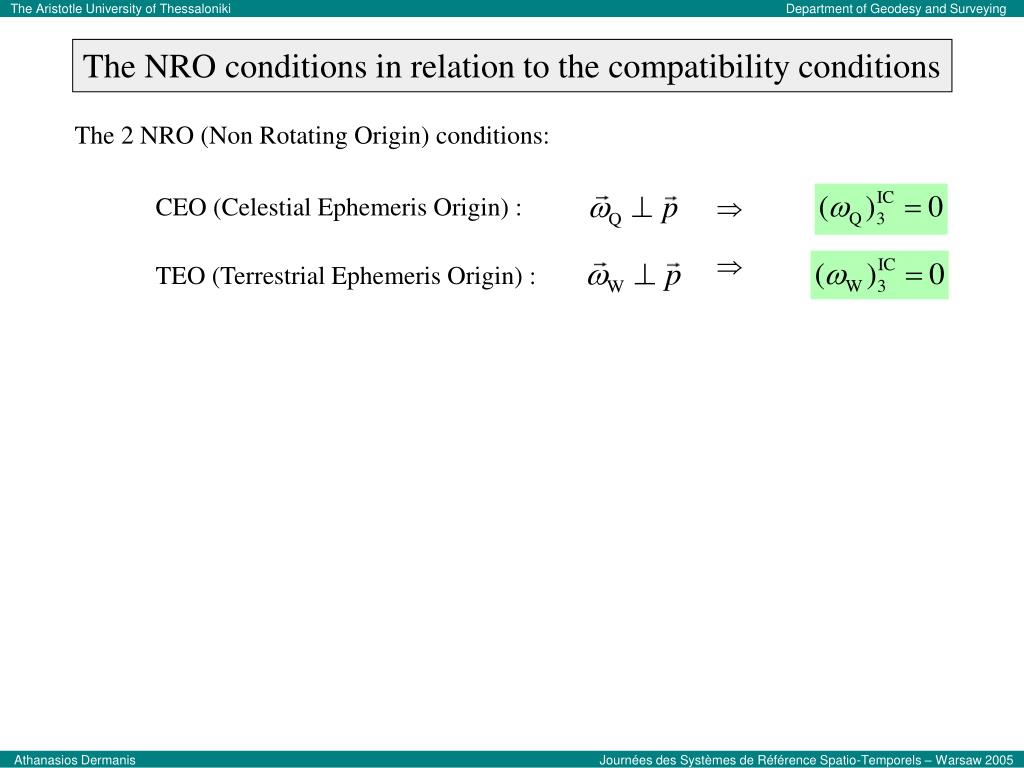

  23. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) :

  24. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions:

  25. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition:

  26. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition: The 4 independent compatibility conditions 2 direction conditions: 2 NRO conditions:

  27. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition: The 4 independent compatibility conditions 2 direction conditions: 2 NRO conditions:

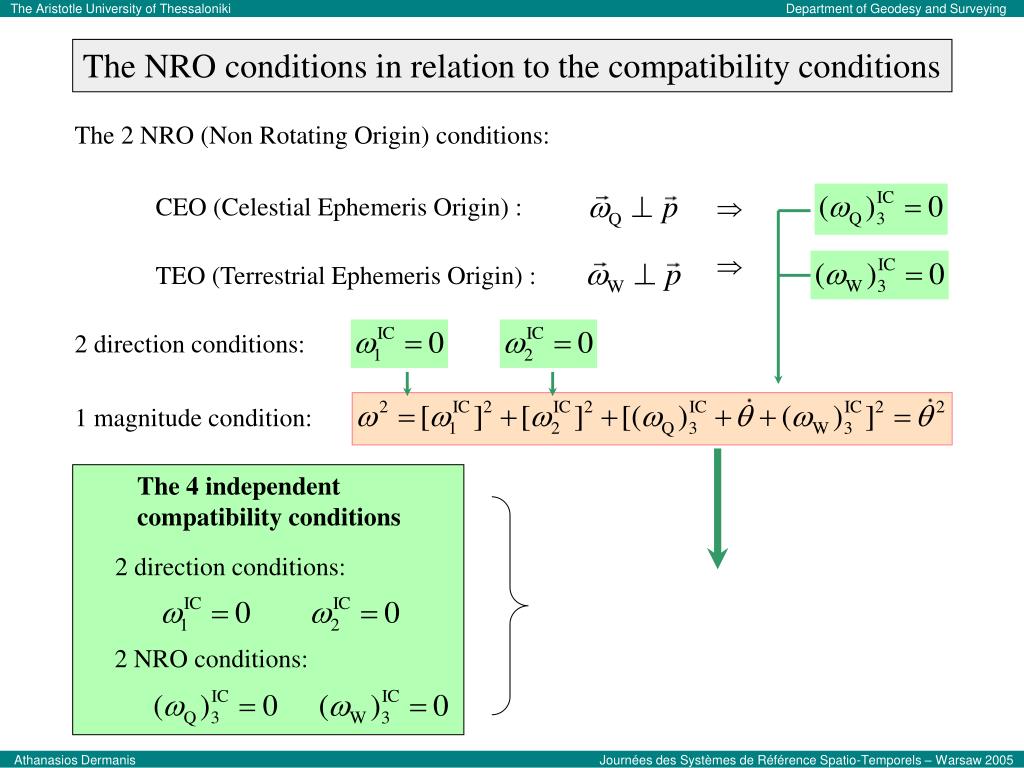

  28. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition: The 4 independent compatibility conditions 2 direction conditions: 2 NRO conditions:

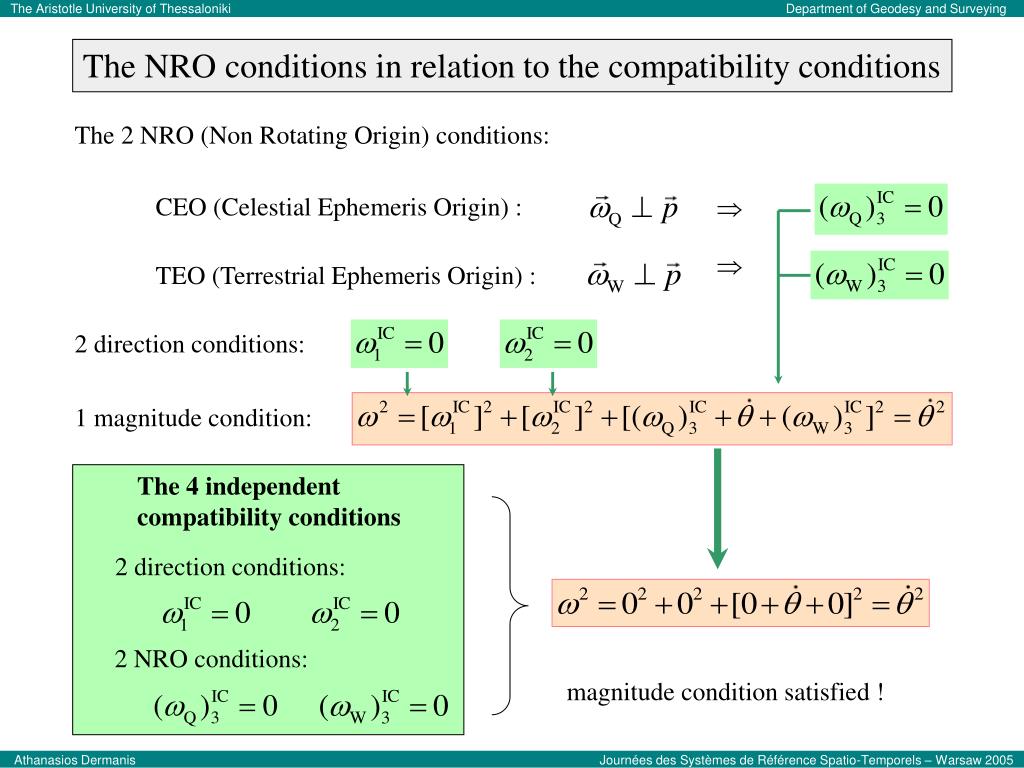

  29. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition: The 4 independent compatibility conditions 2 direction conditions: 2 NRO conditions:

  30. The NRO conditions in relation to the compatibility conditions The 2 NRO (Non Rotating Origin) conditions: CEO (Celestial Ephemeris Origin) : TEO (Terrestrial Ephemeris Origin) : 2 direction conditions: 1 magnitude condition: The 4 independent compatibility conditions 2 direction conditions: 2 NRO conditions: magnitude condition satisfied !

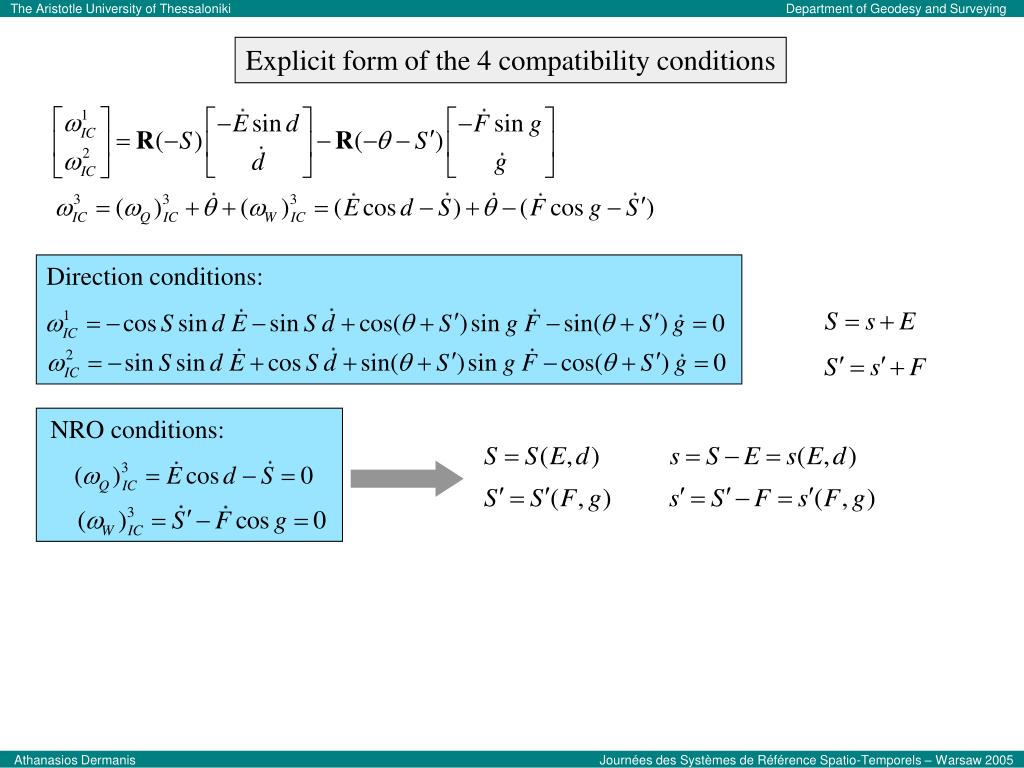

  31. Explicit form of the 4 compatibility conditions

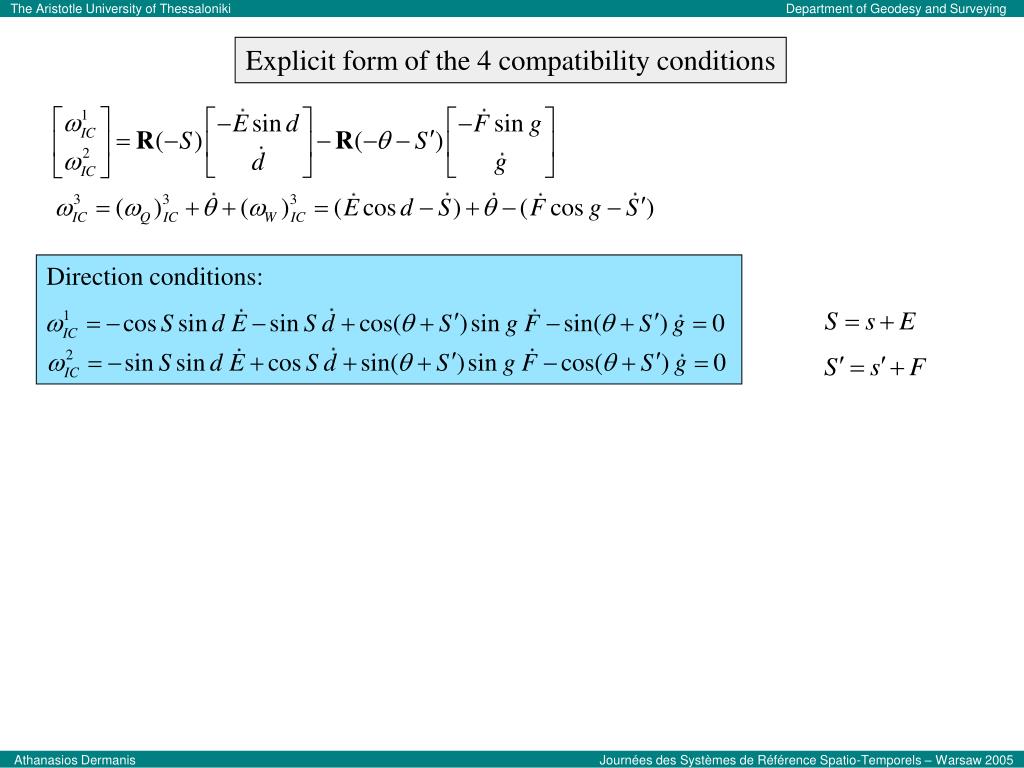

  32. Explicit form of the 4 compatibility conditions Direction conditions:

  33. Explicit form of the 4 compatibility conditions Direction conditions: NRO conditions:

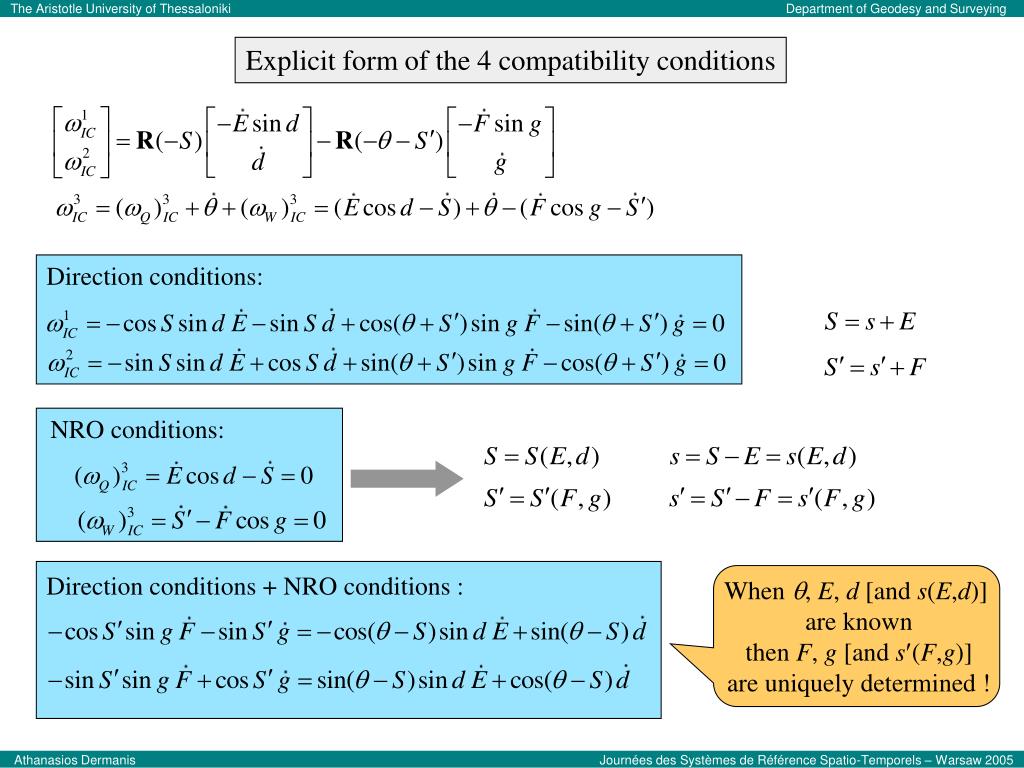

  34. Explicit form of the 4 compatibility conditions Direction conditions: NRO conditions: Direction conditions + NRO conditions : When , E, d [and s(E,d)] are known then F, g [and s(F,g)] are uniquely determined !

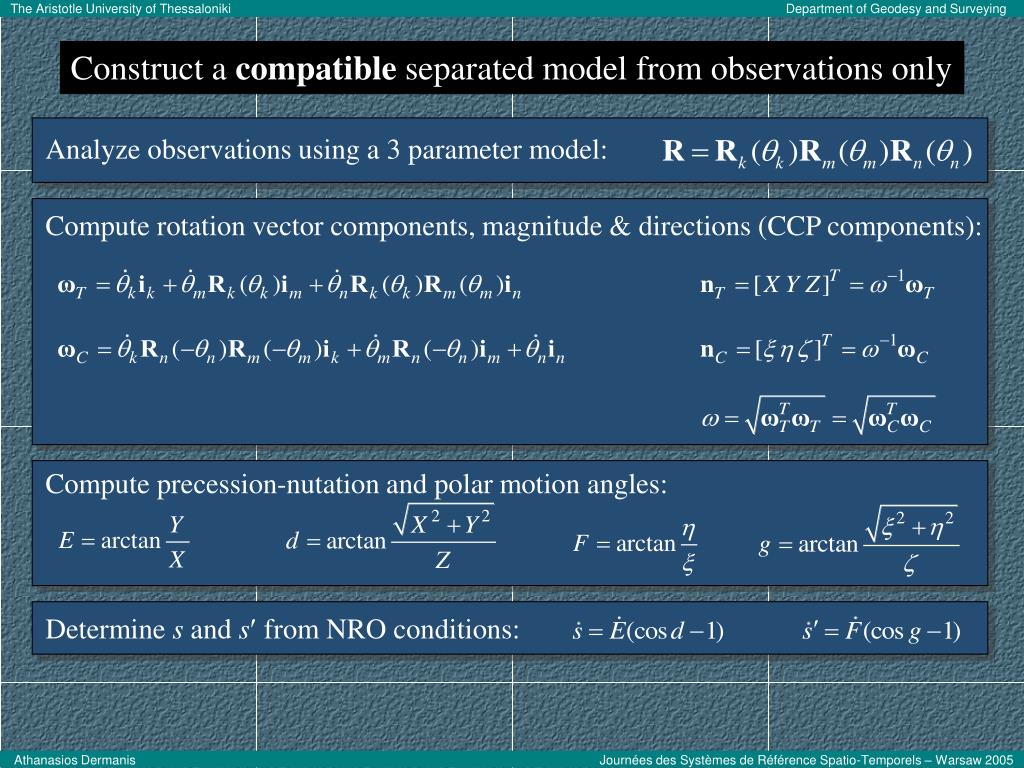

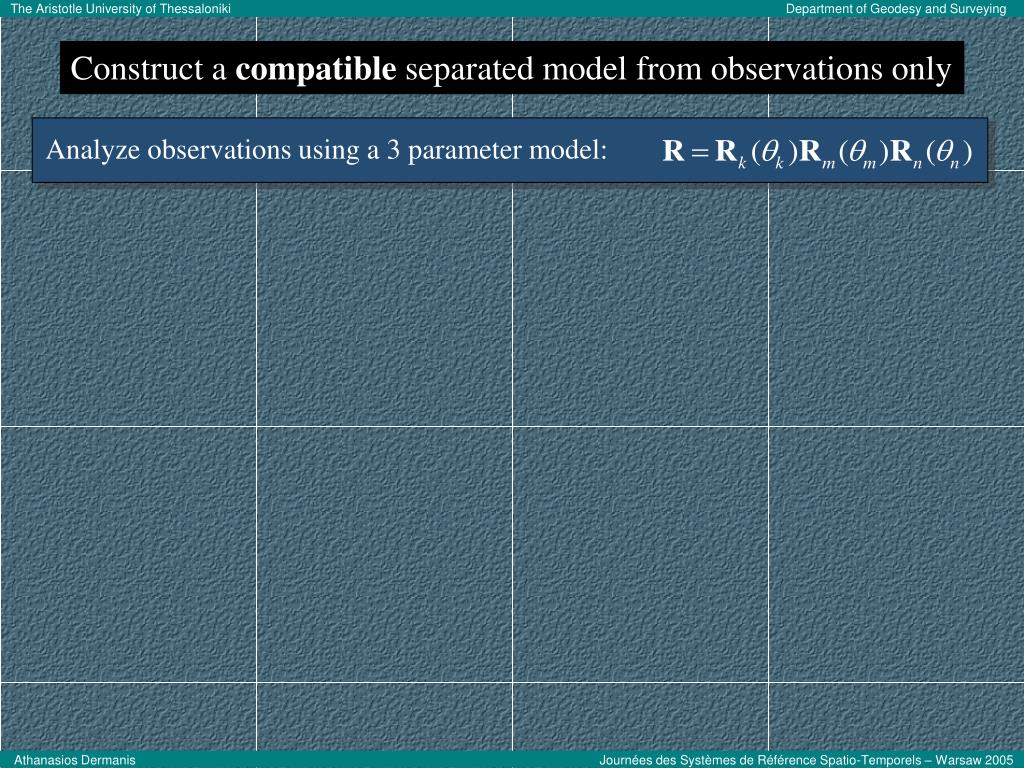

  35. Construct a compatibleseparated model from observations only Analyze observations using a 3 parameter model:

  36. Construct a compatibleseparated model from observations only Analyze observations using a 3 parameter model: Compute rotation vector components, magnitude & directions (CCP components):

  37. Construct a compatibleseparated model from observations only Analyze observations using a 3 parameter model: Compute rotation vector components, magnitude & directions (CCP components): Compute precession-nutation and polar motion angles:

  38. Construct a compatibleseparated model from observations only Analyze observations using a 3 parameter model: Compute rotation vector components, magnitude & directions (CCP components): Compute precession-nutation and polar motion angles: Determine s and s from NRO conditions:

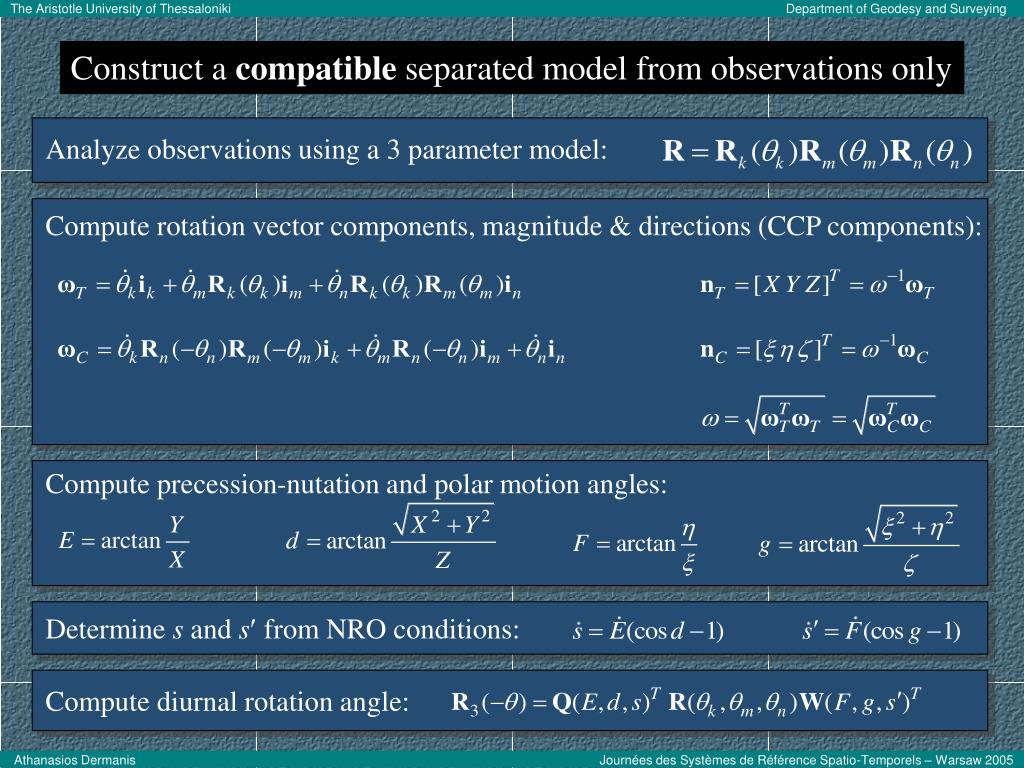

  39. Construct a compatibleseparated model from observations only Analyze observations using a 3 parameter model: Compute rotation vector components, magnitude & directions (CCP components): Compute precession-nutation and polar motion angles: Determine s and s from NRO conditions: Compute diurnal rotation angle:
