Displaying and Describing Categorical Data

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Each year, The Princeton Review conducts surveys of high school students who are applying to college and of parents of college applicants. The report “2009 College Hopes & Worries Survey Findings” included a summary of how 12,715 high school students responded to the question “Ideally how far from home would you like the college you attend to be?” Also included was a summary of how 3,007 parents of students applying to college responded to the question “How far from home would you like the college your child attends to be?” • Identify the W’s of the survey.

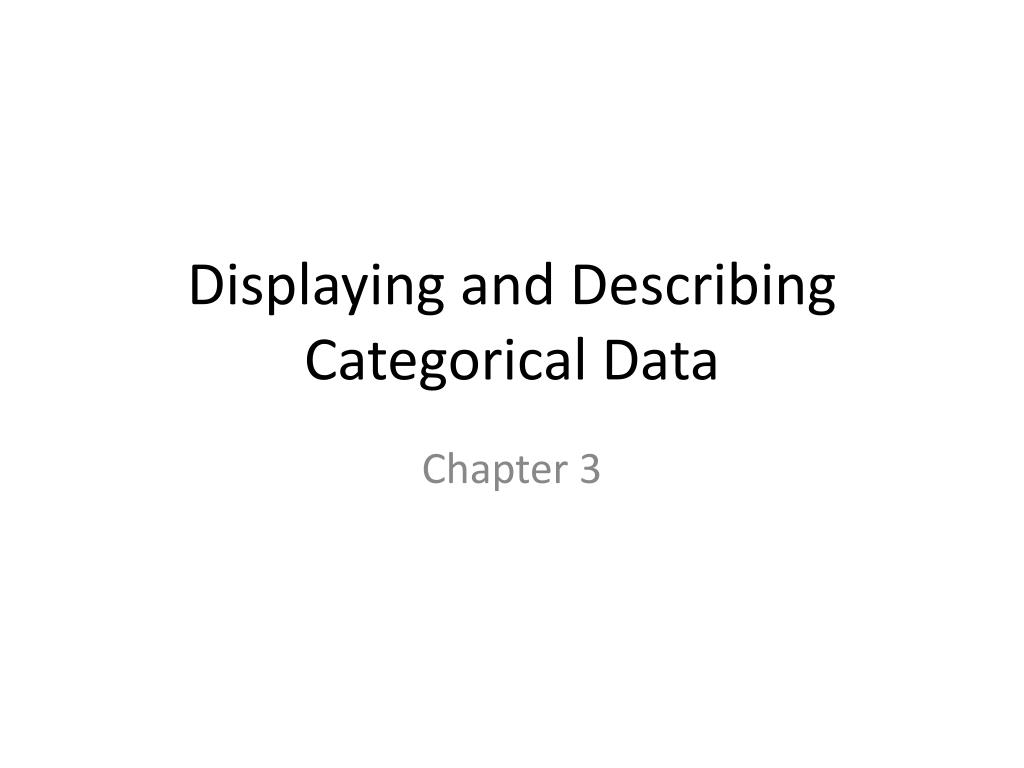

  2. Displaying and Describing Categorical Data Chapter 3

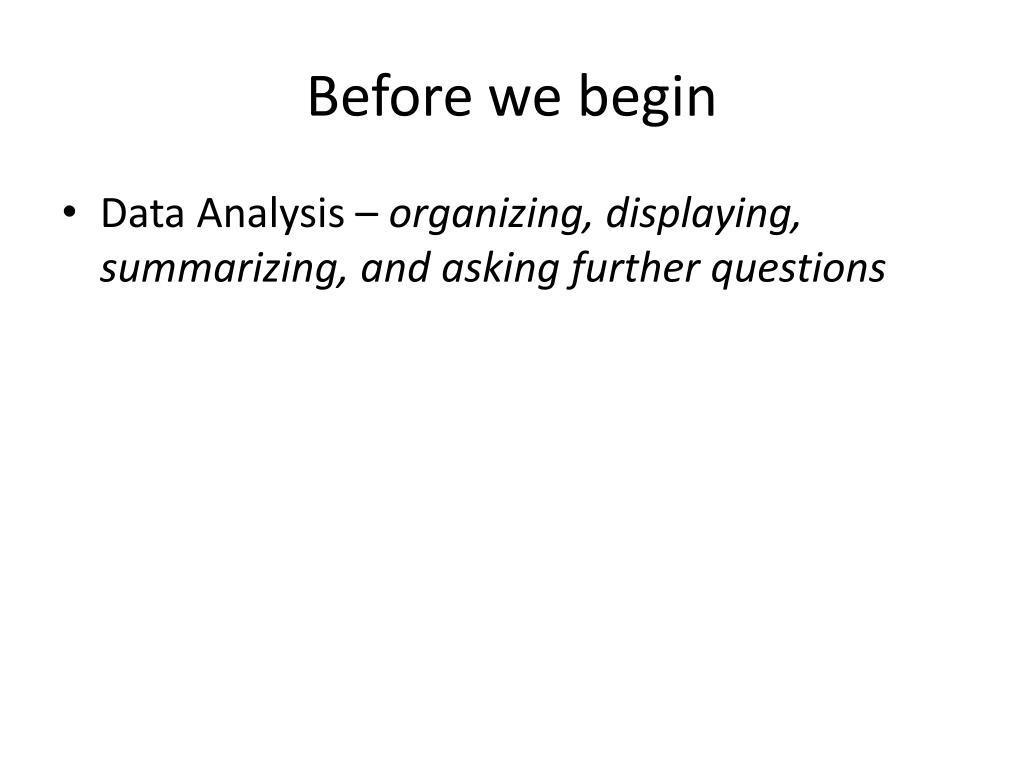

  3. Before we begin • Data Analysis – organizing, displaying, summarizing, and asking further questions

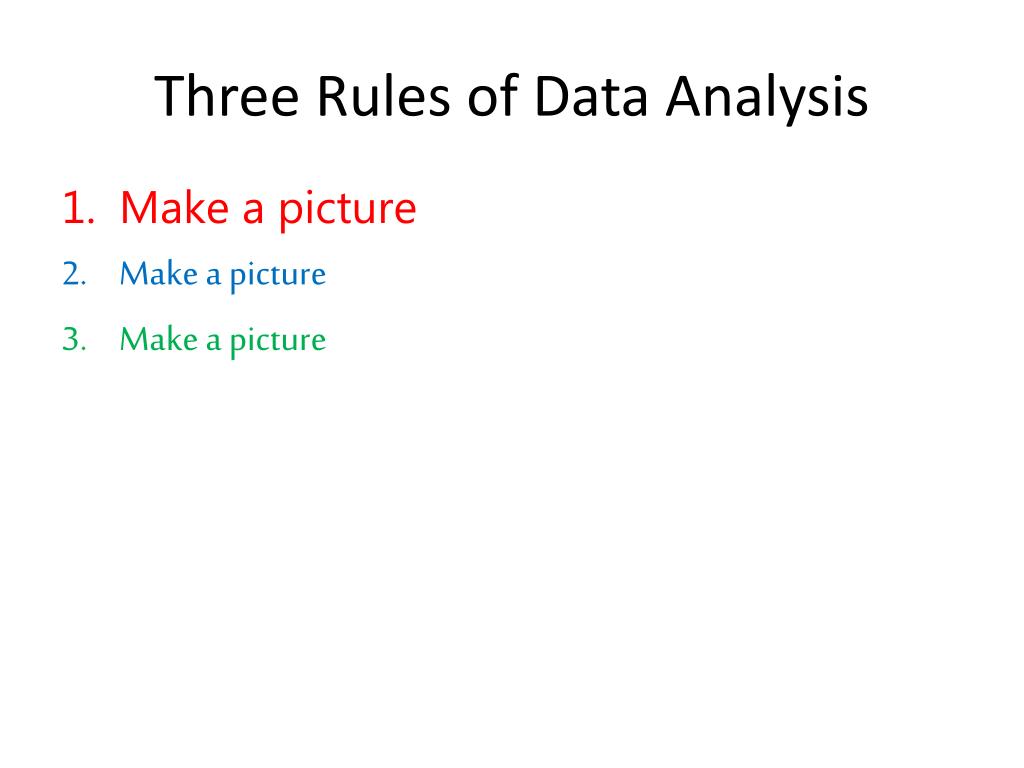

  4. Three Rules of Data Analysis • Make a picture • Make a picture • Make a picture

  5. Think, Show, Tell • Think -- a picture is the easiest way for you to see patterns and relationships that may be hiding in the data • Show – an appropriately selected picture will show important features of the data, including extraordinary values or possible errors • Tell -- a picture is worth a thousand words

  6. Categorical Data • A categorical (or qualitative) variable names categories and answers questions about how cases fall into those categories. (e.g., sex, race, ethnicity) • The data are counts or percentages of individual cases in categories

  7. The W’s • Who: High school students applying to college, parents of college applicants • What: preference for distance from college to home (miles) • Why: not specified • Where: not specified • When: 2009 • How: survey

  8. The Results

  9. Frequency vs. Relative Frequency • Frequency -- the number of time that a category appears in the data set • Relative frequency =

  10. Bar ChartsFrequency vs. Relative Frequency

  11. Bar Charts • When to use: Number of variables: 1 Data type: categorical Purpose: displaying data distribution Leave space between each category!!!

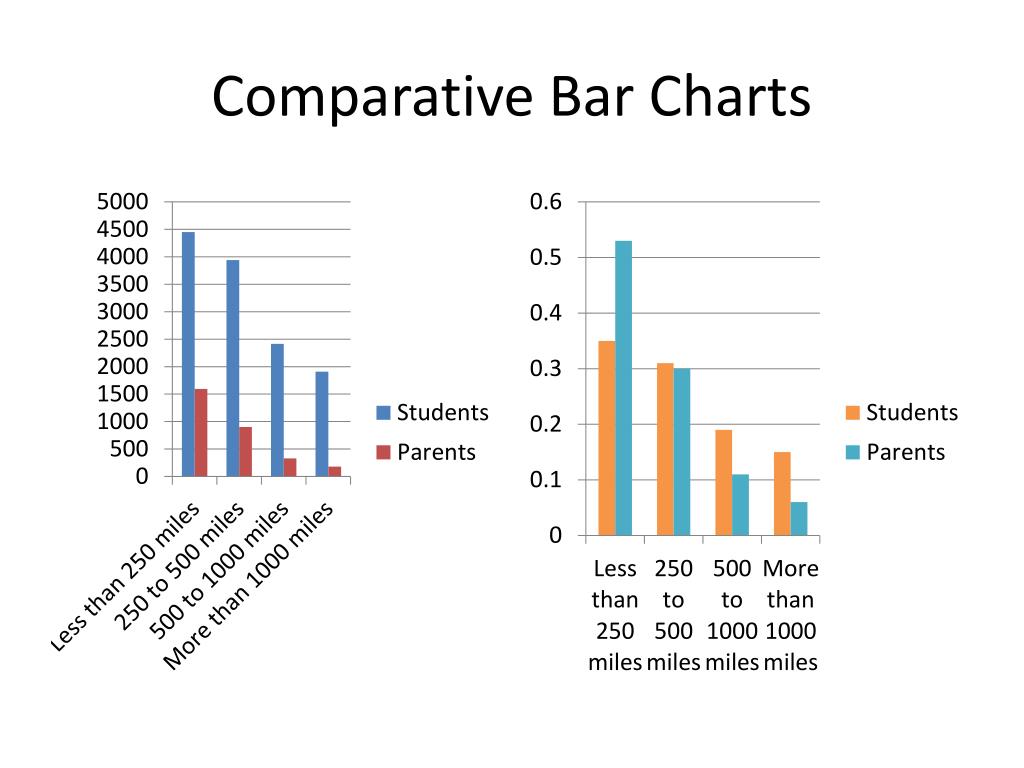

  12. Comparative Bar Charts

  13. Comparative Bar Charts • When to use: Number of variables: 1 variable for two or more groups Data type: categorical Purpose: comparing two or more data distributions Relative frequency must be the vertical axis!!!

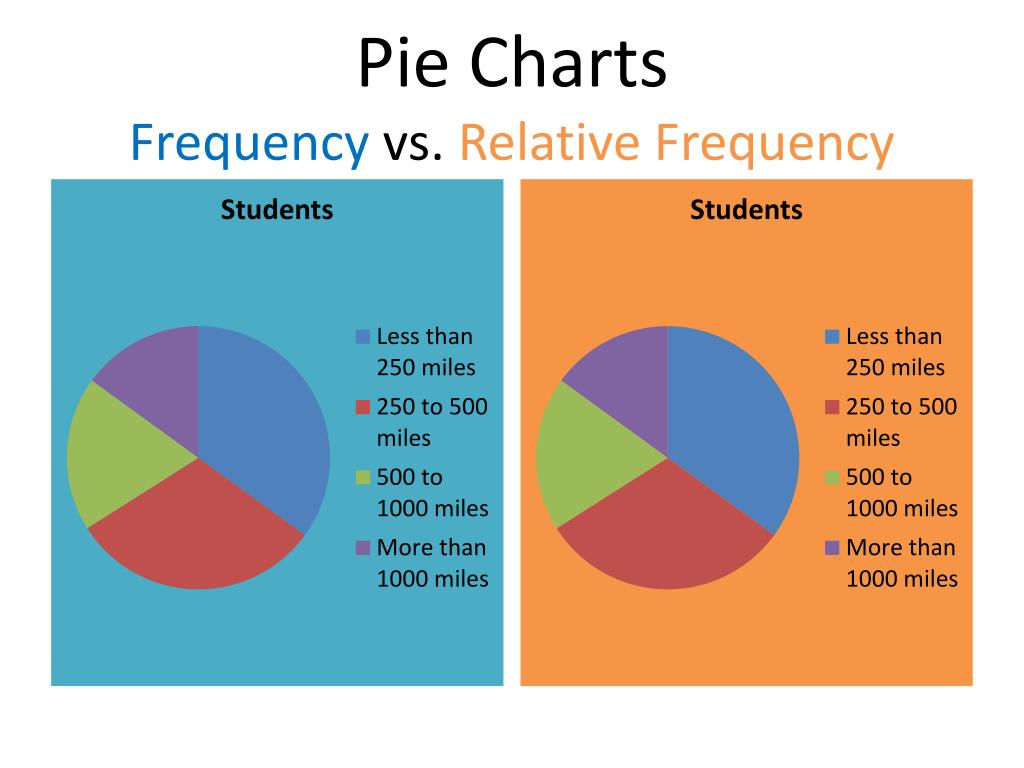

  14. Pie ChartsFrequency vs. Relative Frequency

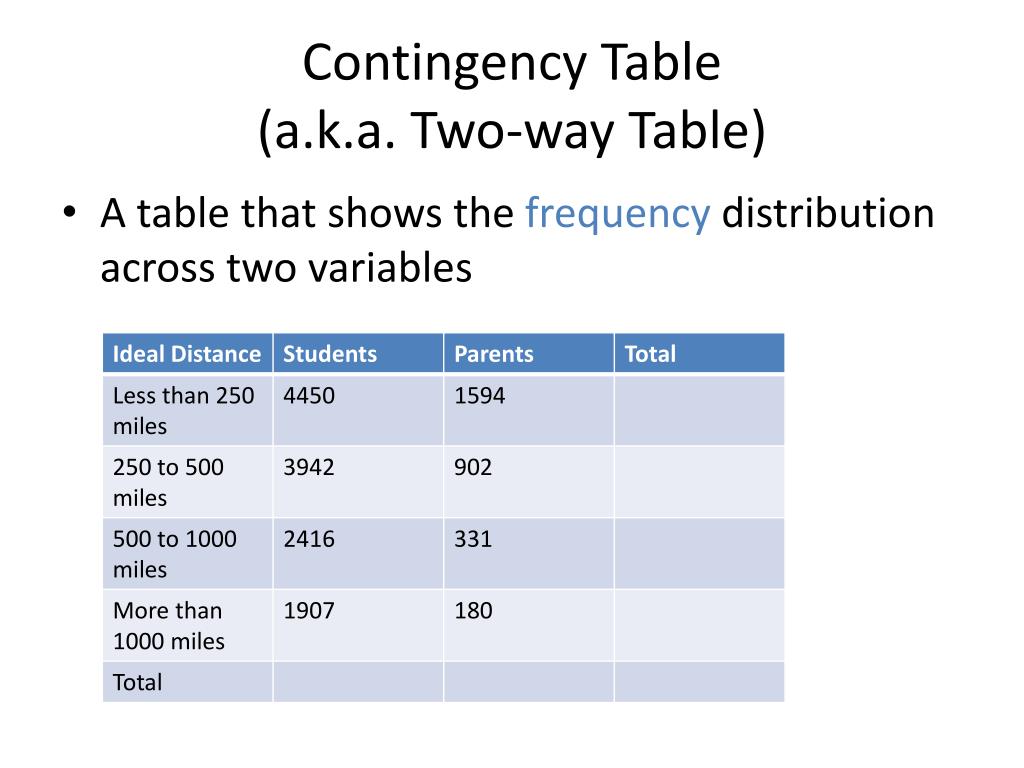

  15. Contingency Table(a.k.a. Two-way Table) • A table that shows the frequency distribution across two variables

  16. Contingency Table(a.k.a. Two-way Table) • A table that shows the frequency distribution across two variables

  17. Marginal Distribution

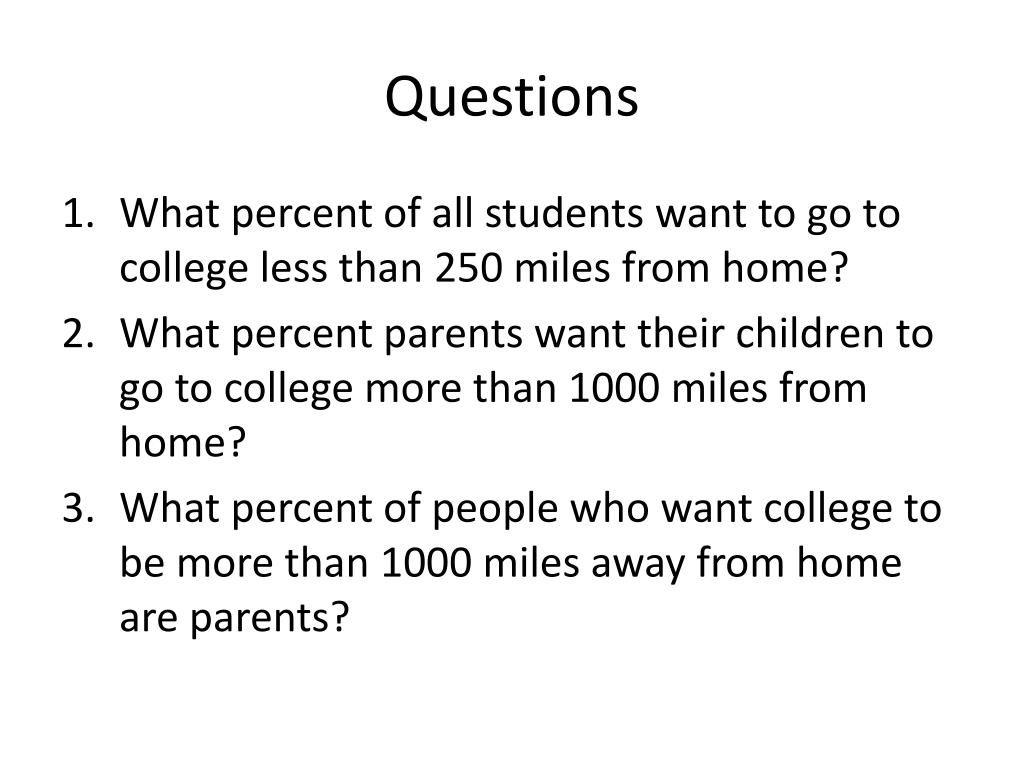

  18. Questions • What percent of all students want to go to college less than 250 miles from home? • What percent parents want their children to go to college more than 1000 miles from home? • What percent of people who want college to be more than 1000 miles away from home are parents?

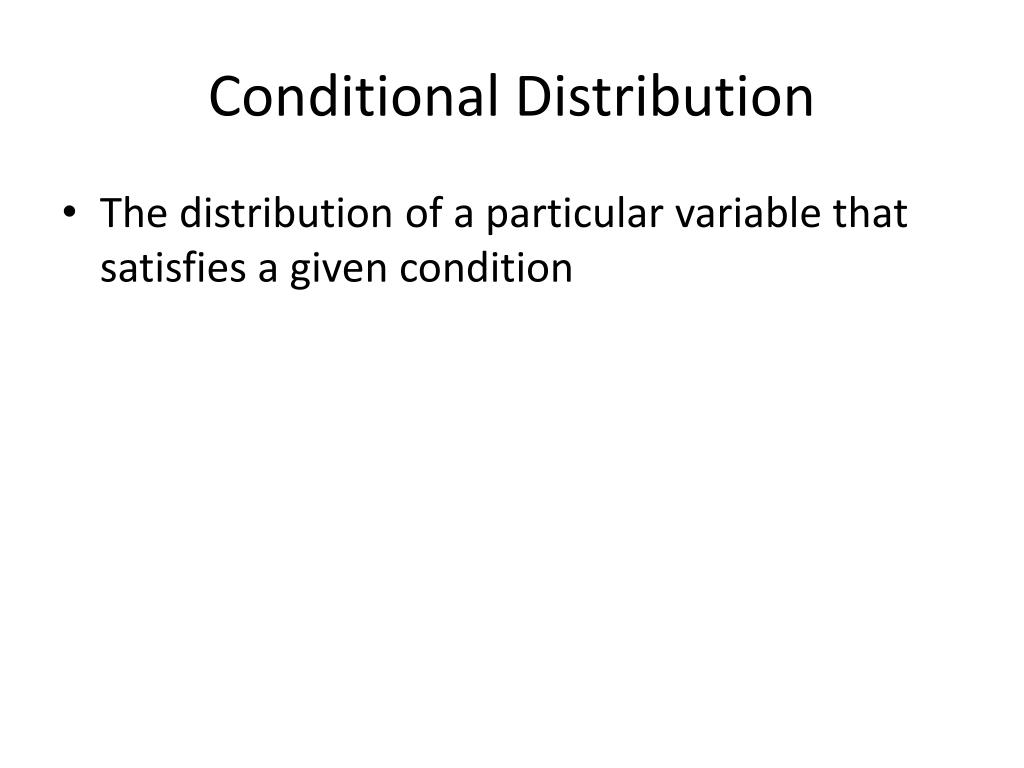

  19. Conditional Distribution • The distribution of a particular variable that satisfies a given condition
