Section 10.8 Graphs of Polar Equations by Hand
1. Circle with center not at the pole. 2. Limaçon with and without a loop. 3. Cardioid Rose Curve
Making a table of values. Using symmetry. Finding the maximum value of r and the zeros.
Sketch the graph r = 6cos θ using all ways. Describe the graph in detail. A circle with the center at (3, 0) and a radius of 3. 1. Find the maximum r value. r = 6 cos 0 = 6 (6, 0)
2. The way to use a table is to find an exact ordered pair on the graph. When is cosine ½? Find r when

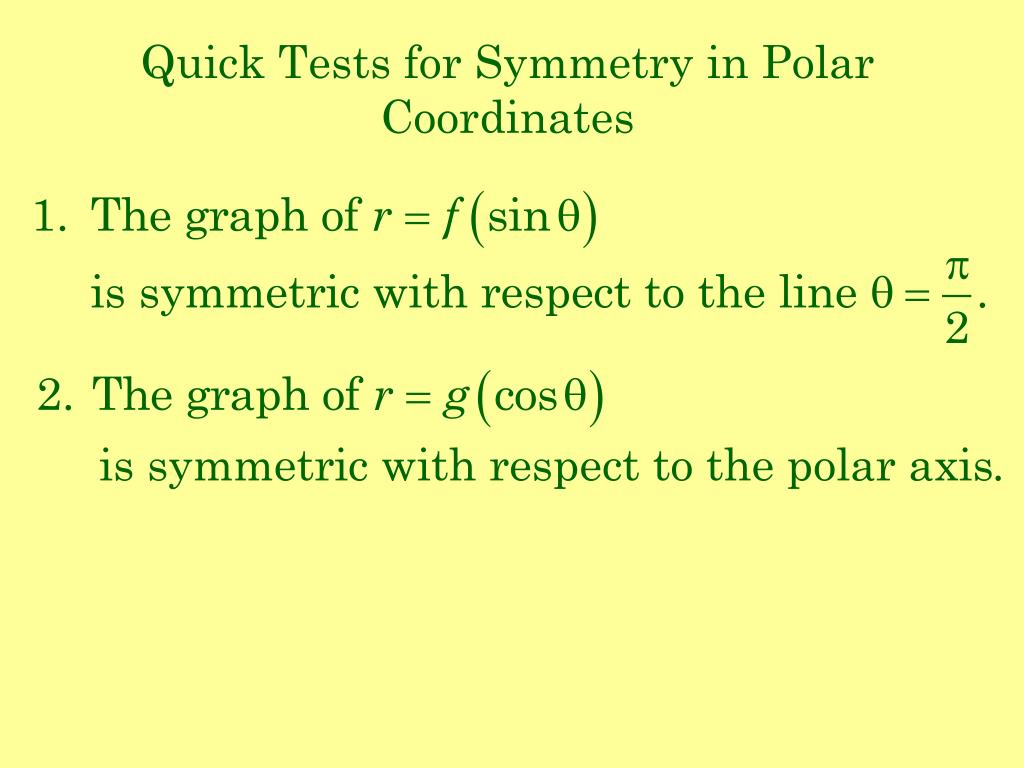

3. What symmetry will the graph have? Symmetry with the polar axis. Now reflect all the points you have across the polar axis.

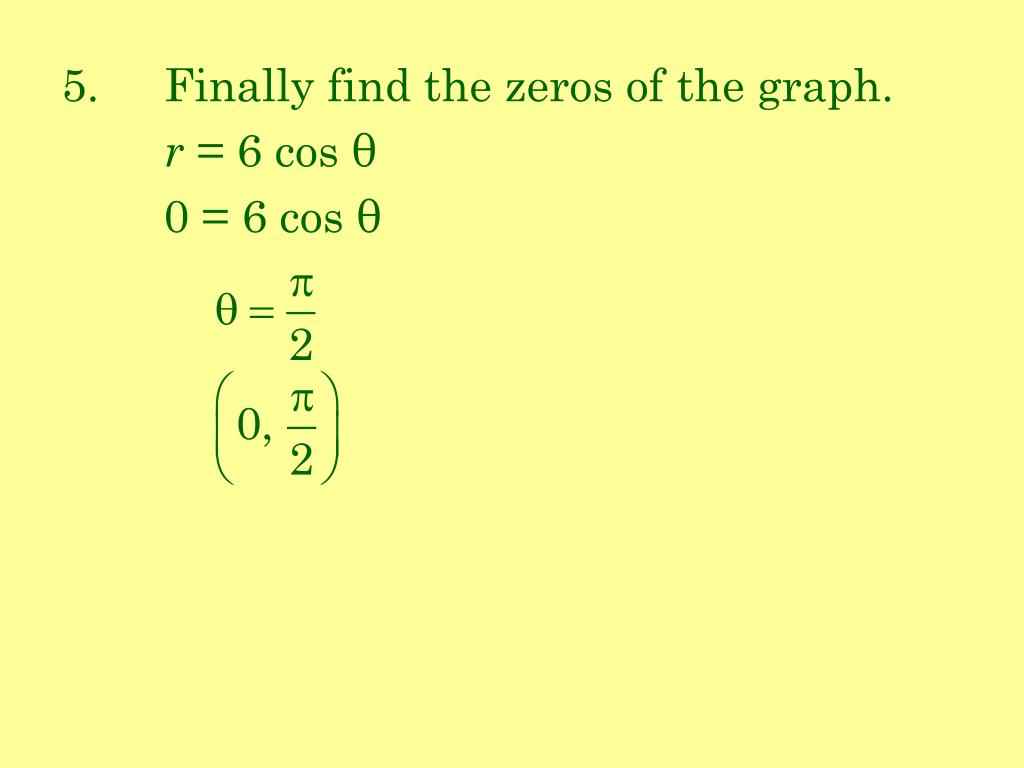

5. Finally find the zeros of the graph. r = 6 cos θ 0 = 6 cos θ
Sketch the graph r = 2 + 4sin Describe the graph in detail. This is a limaçon with a loop. Find the maximum r, find the zeros, graph all points possible with exact integer values for r, and finally use symmetry to find other points.

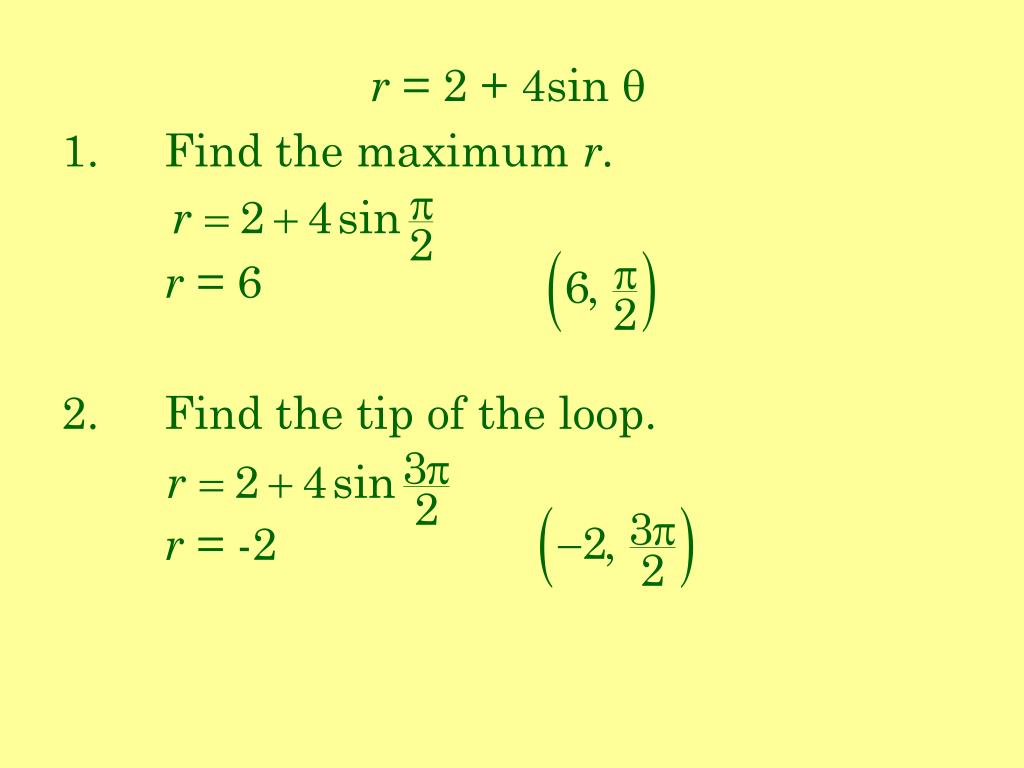

r = 2 + 4sin Find the maximum r. r = 6 Find the tip of the loop. r = -2
3. Find the zeros. 0 = 2 + 4sin Find the point with exact integer values for r. r = 4
4. r = 2 + 4sin 0p r = 2 (2, 0p) 5. Now use symmetry to find other points on the graph.
Sketch the graph r = 4sin 2. Describe the graph in detail. A rose curve Since n is even, there will be 2n petals. A rose curve with 4 petals. Find the first petal by setting the equation equal to the maximum r then use the angle measure between petals to find the 4 petals.

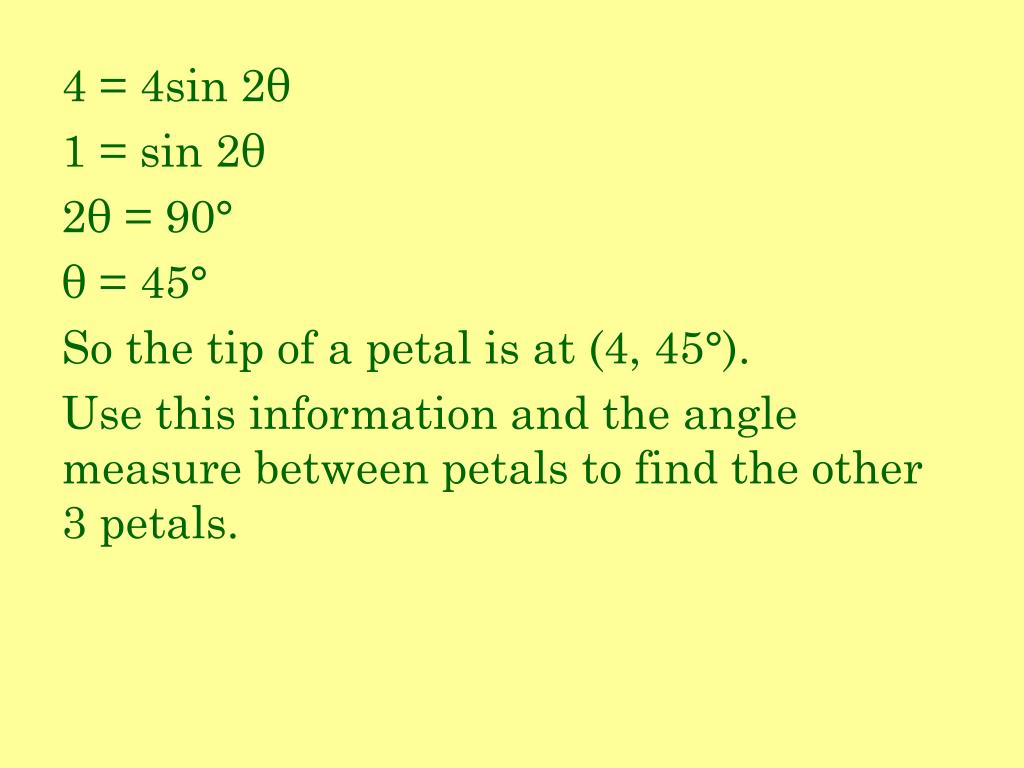

4 = 4sin 2θ 1 = sin 2θ 2θ = 90° θ = 45° So the tip of a petal is at (4, 45°). Use this information and the angle measure between petals to find the other 3 petals.
Sketch the graph r = 8cos 3. Since n is odd, there are n petals. So there are 3 petals. These 3 petals are 120° apart. Find the 1st petal the same way as before. The 1st petal is at (8, 0).
