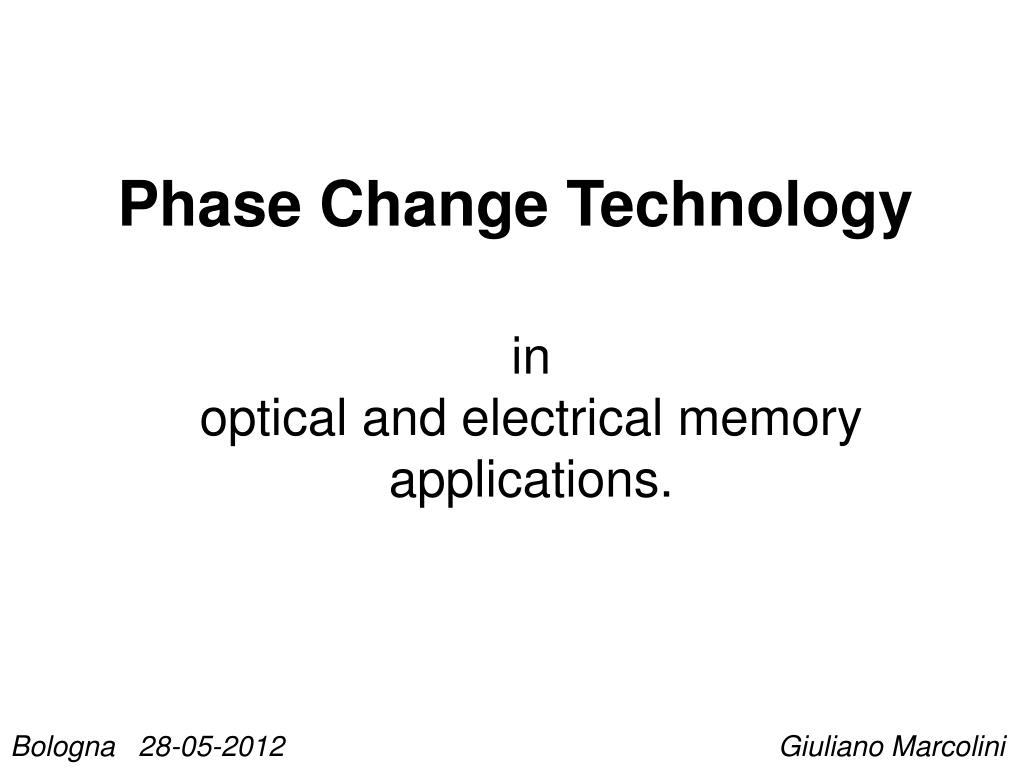

Phase Change Technology. in optical and electrical memory applications . Bologna 28-05-2012. Giuliano Marcolini. Classification of memories. Data type Analogic memories Digital memories Data retention Volatile memories Non-volatile memories Data access

livana
Télécharger la présentation

Phase Change Technology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PhaseChangeTechnology in optical and electricalmemoryapplications. Bologna 28-05-2012 Giuliano Marcolini

  2. Classificationofmemories • Data type • Analogicmemories • Digitalmemories • Data retention • Volatile memories • Non-volatilememories • Data access • Sequentalaccessmemories • Randomaccessmemories

  3. Classificationofmemories Analogic Memories

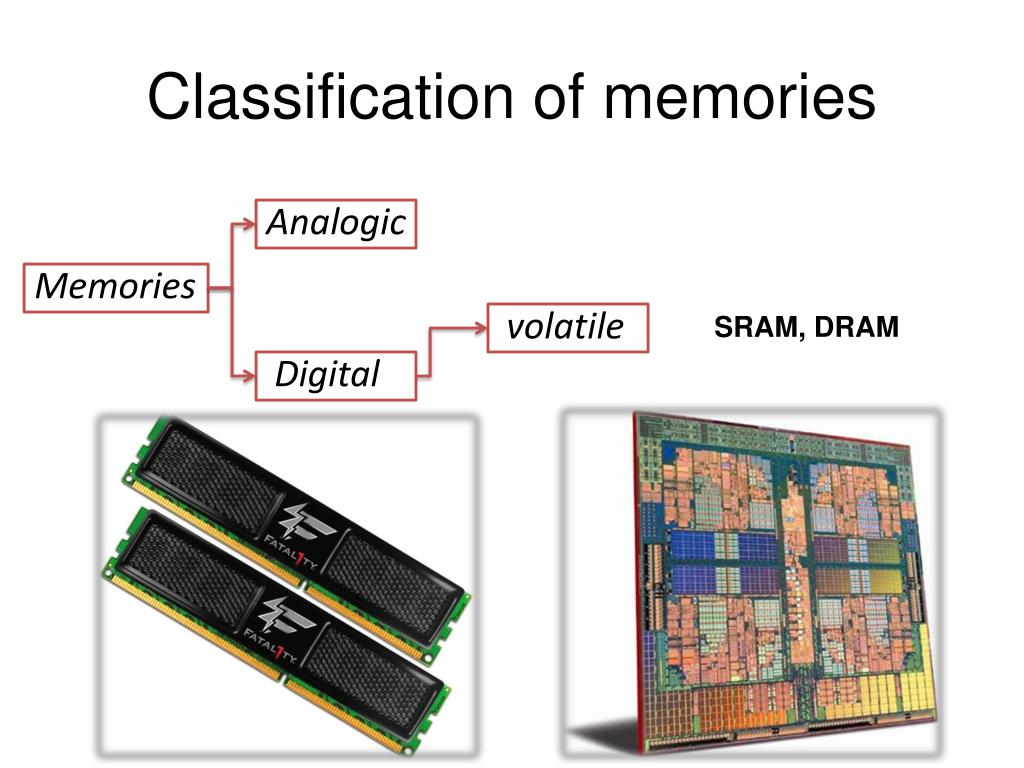

  4. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital

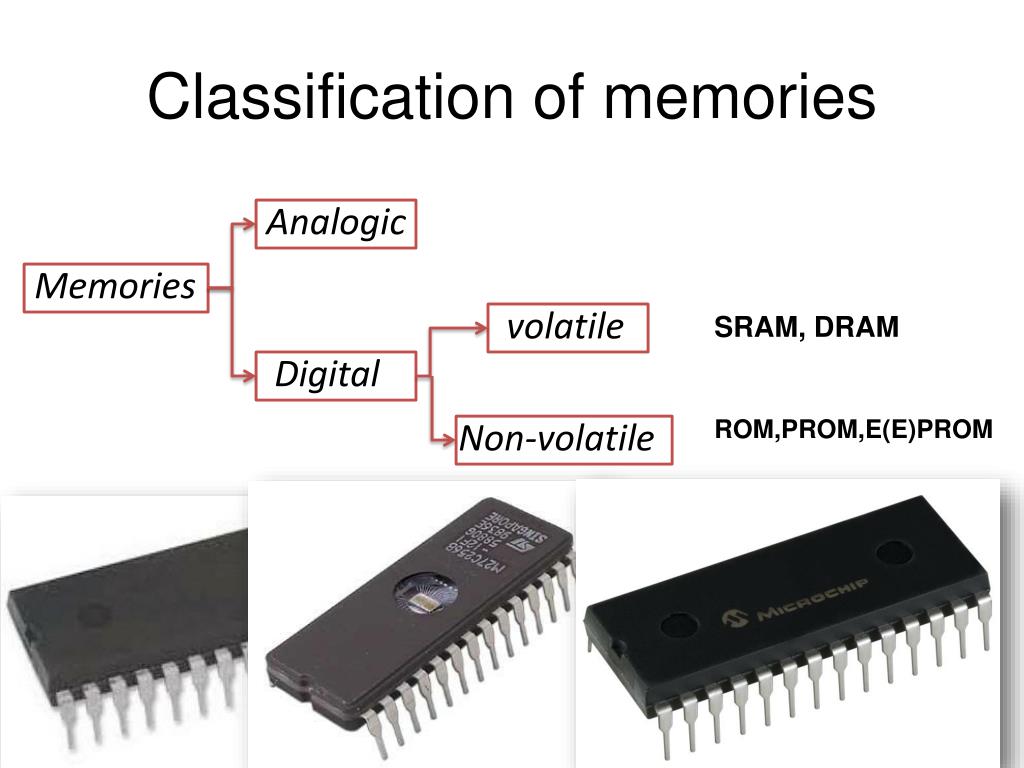

  5. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM

  6. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM Memory Card, SSD

  7. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM Memory Card, SSD Magnetic disk

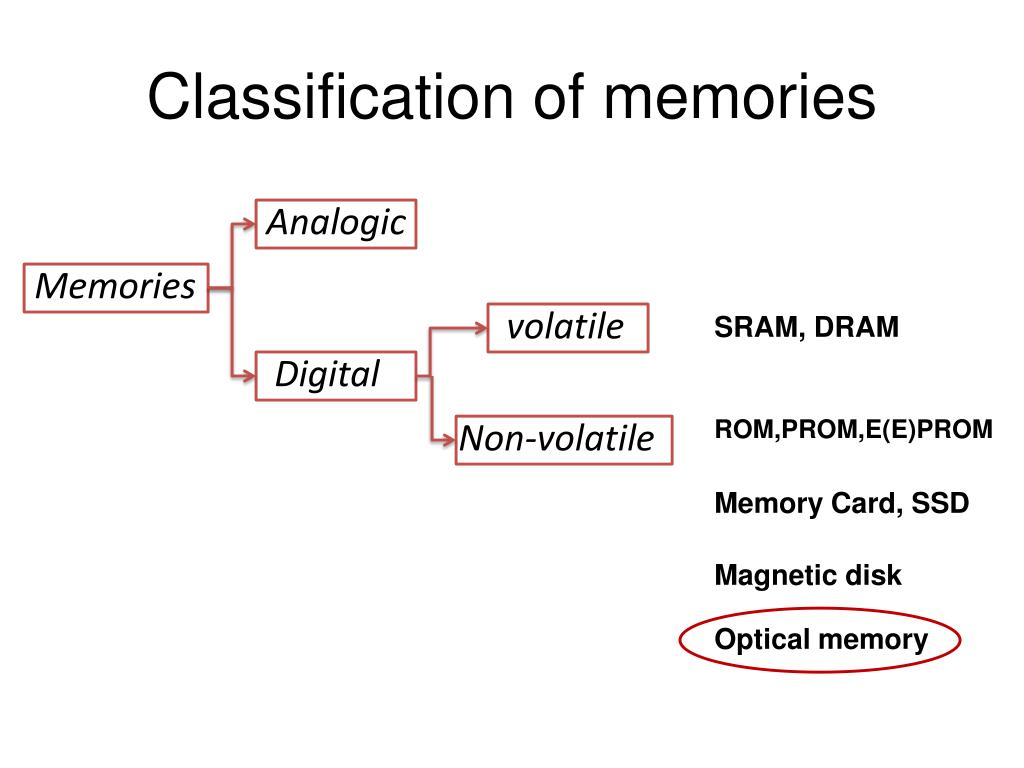

  8. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM Memory Card, SSD Magnetic disk Opticalmemory

  9. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM Memory Card, SSD Magnetic disk Opticalmemory

  10. Opticalstorage:CD-rom

  11. Opticalstorage:CD-rom

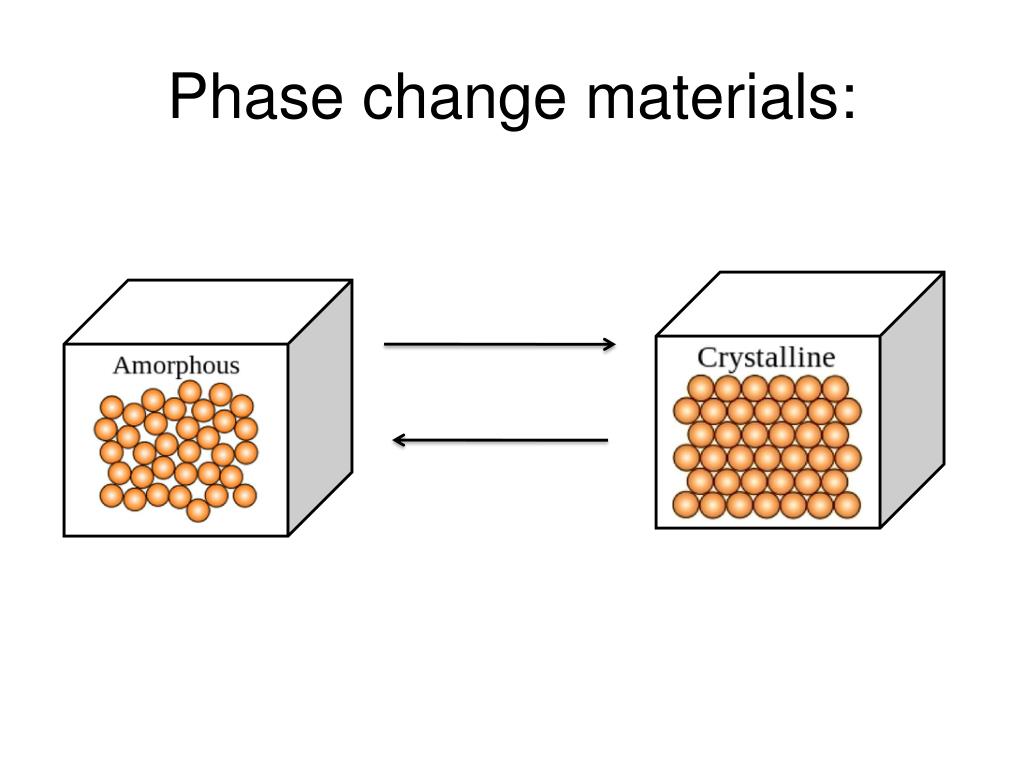

  12. Phasechangematerials:

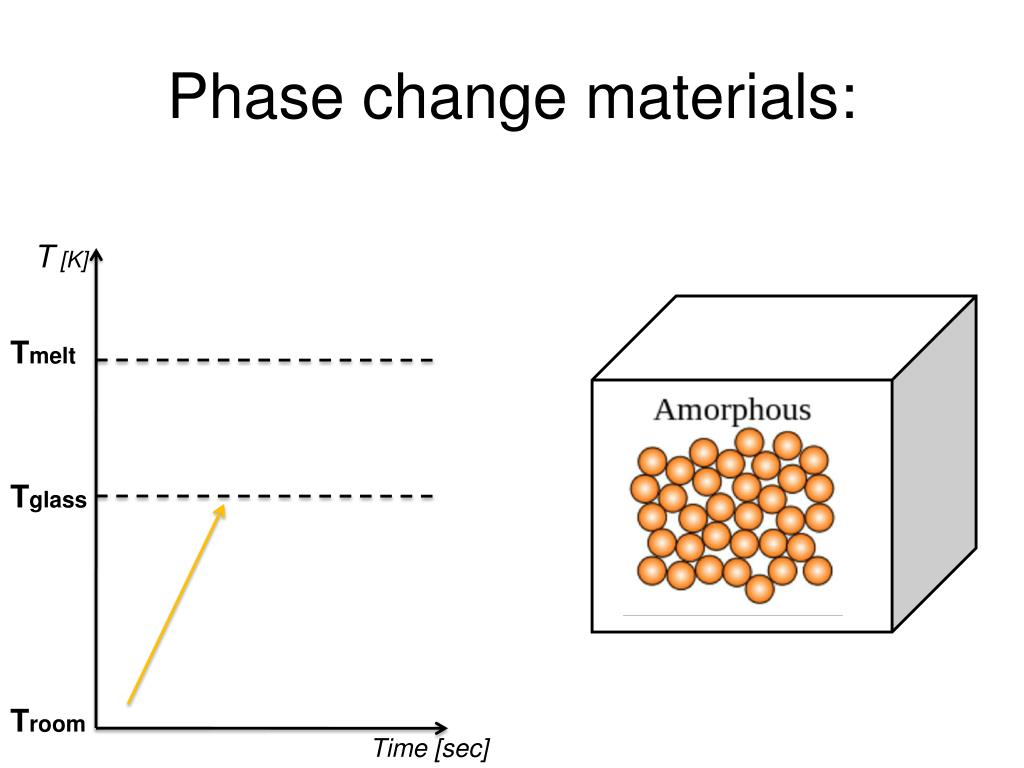

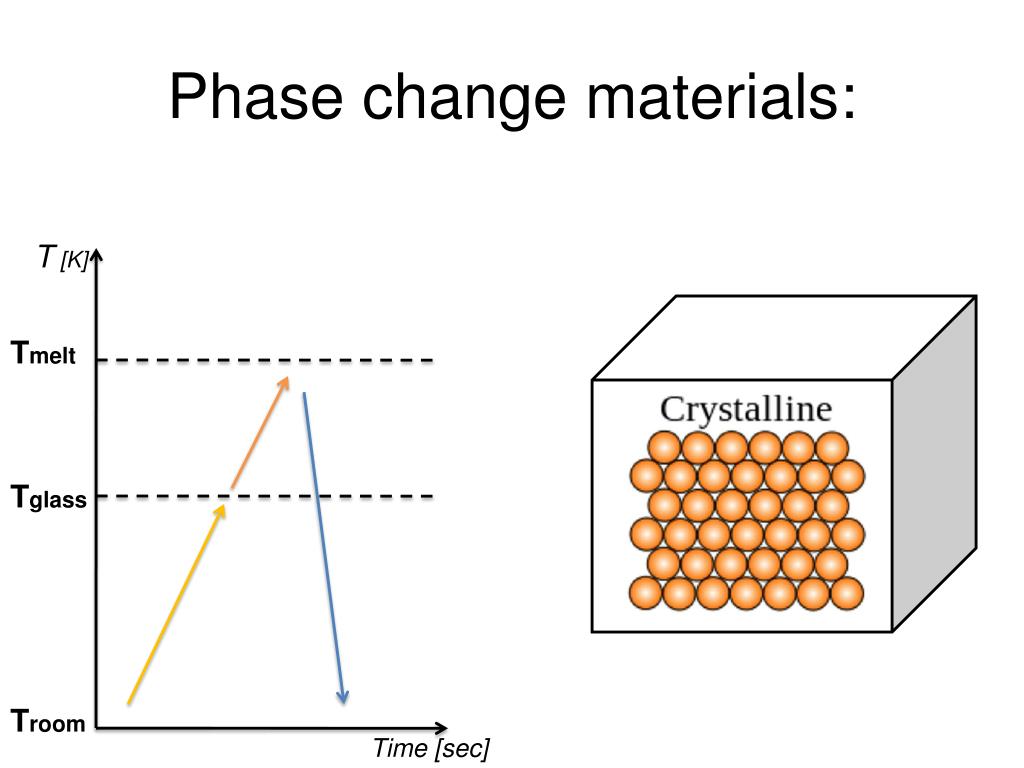

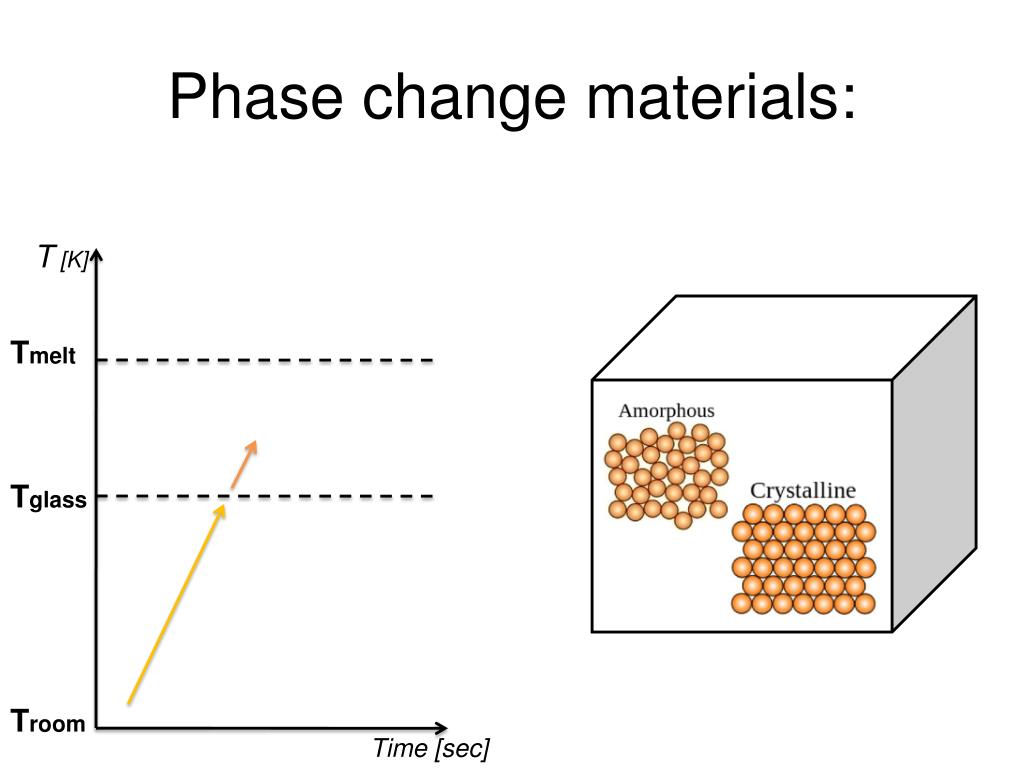

  13. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  14. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  15. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  16. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  17. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  18. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  19. Phasechangematerials: T [K] Tmelt Tglass Troom Time [sec]

  20. Opticalstorage:CD-RW

  21. Opticalstorage:DVD &Blu Ray

  22. CD vs DVD vs Blu-rayWriting 400 nm 700 nm

  23. CD vs DVD vs Blu-rayWriting 400 nm 700 nm

  24. CD vs DVD vs Blu-rayWriting 400 nm 700 nm

  25. Blu-Ray vs HD-DVD

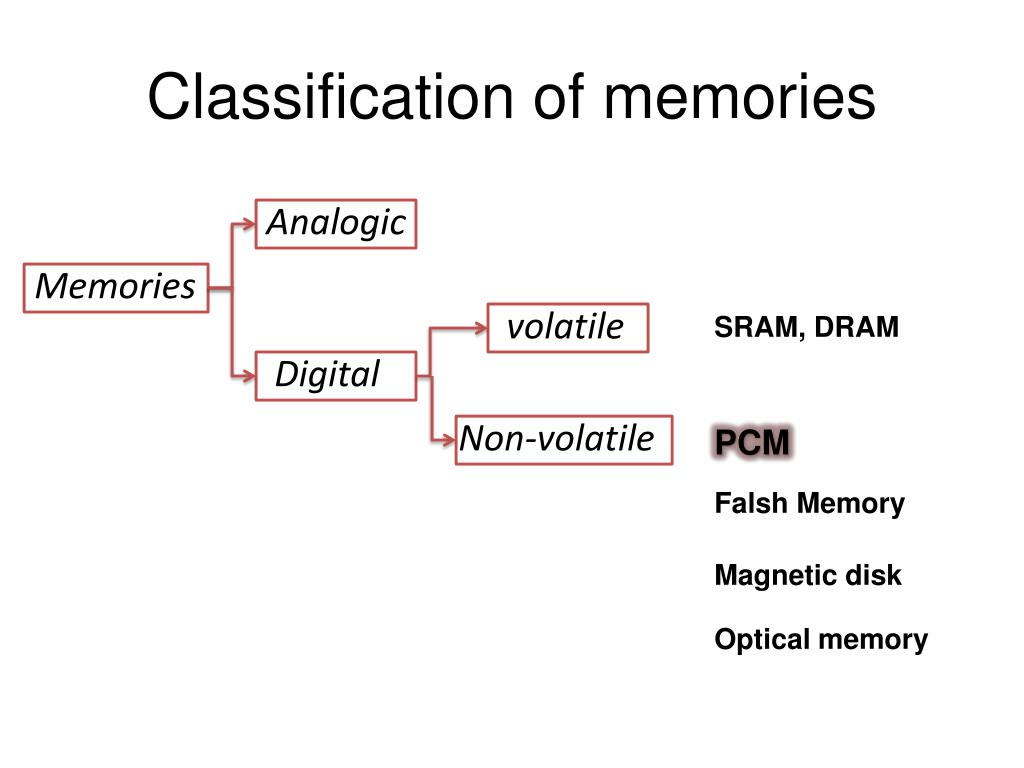

  26. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile ROM,PROM,E(E)PROM PCM Memory Card, SSD FalshMemory PhaseChangeMemories Magnetic disk Opticalmemory

  27. PhaseChangeMemories R [Ω] ≈ 109Ω ≈ 105Ω

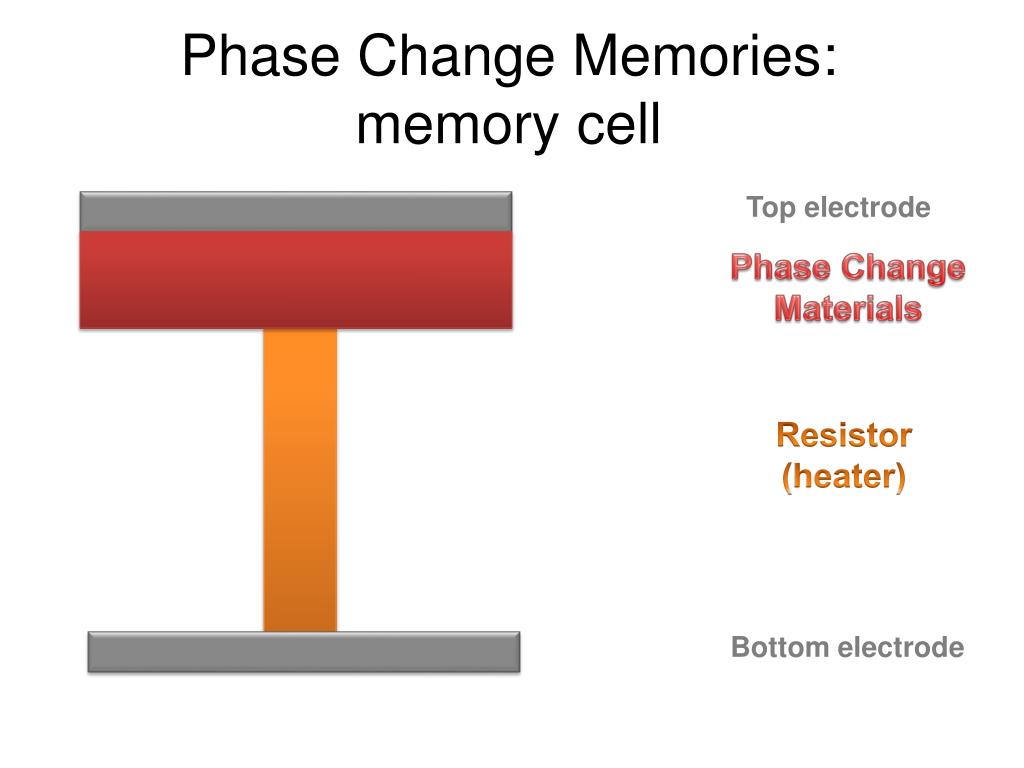

  28. PhaseChangeMemories:memorycell Top electrode PhaseChange Materials Resistor (heater) Bottomelectrode

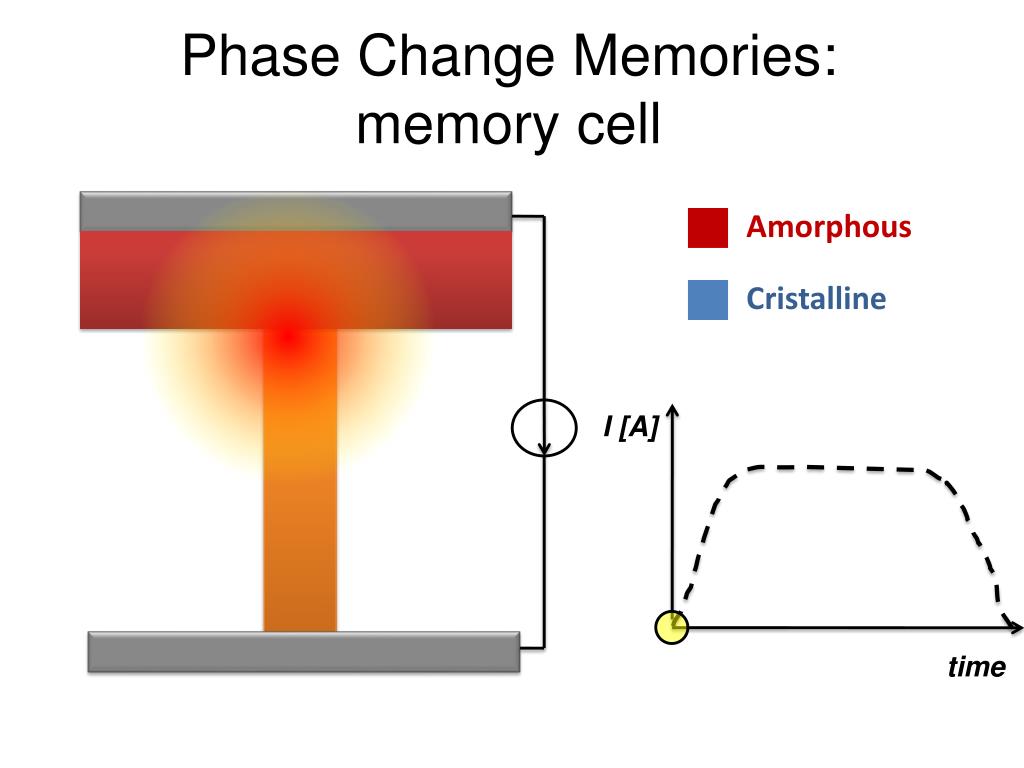

  29. PhaseChangeMemories:memorycell Amorphous Cristalline I [A] time

  30. PhaseChangeMemories:cross-pointarray

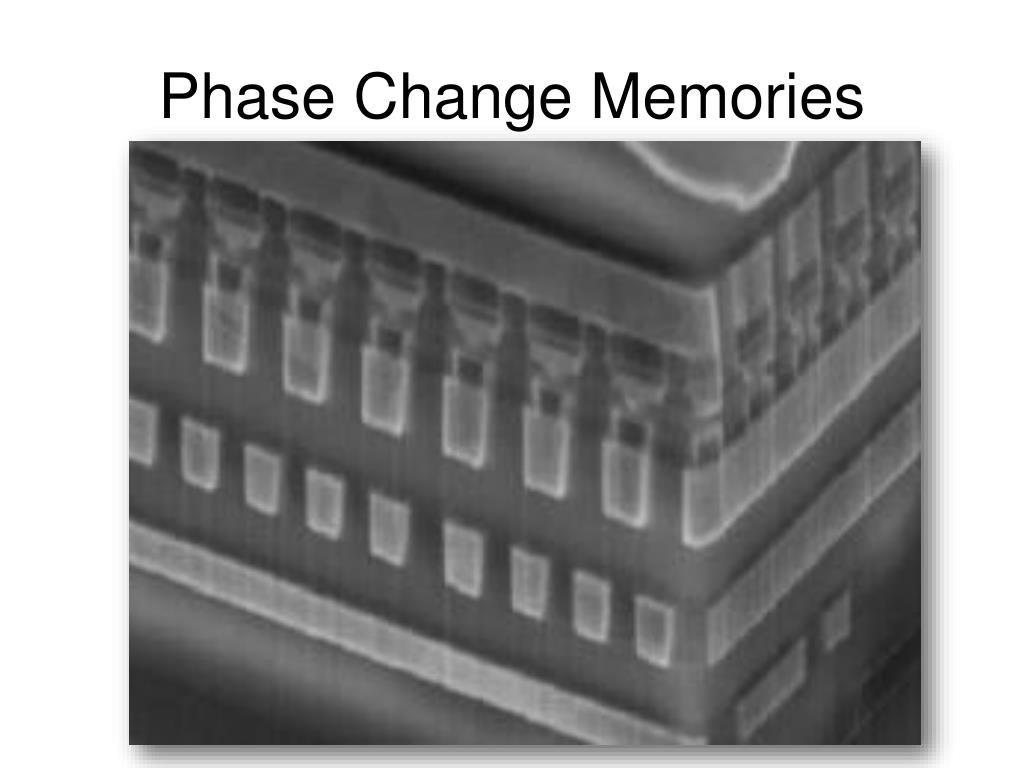

  31. PhaseChangeMemories

  32. Classificationofmemories Analogic Memories volatile SRAM, DRAM Digital Non-volatile PCM FalshMemory Magnetic disk Opticalmemory

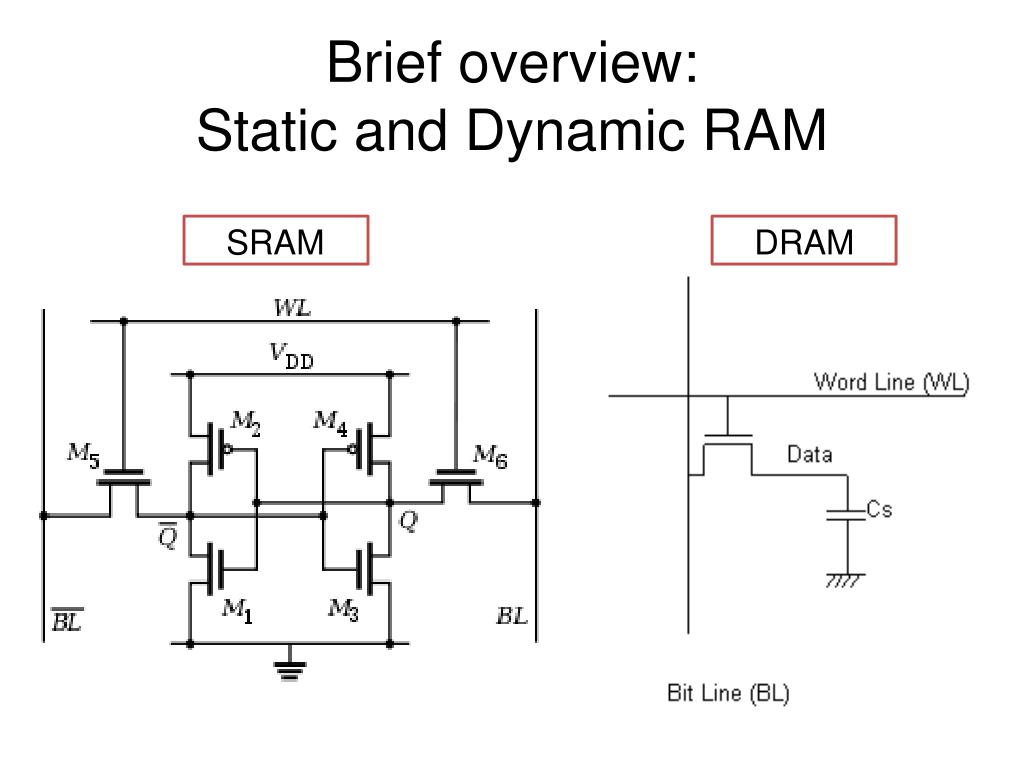

  33. Briefoverview:Static and Dynamic RAM SRAM DRAM

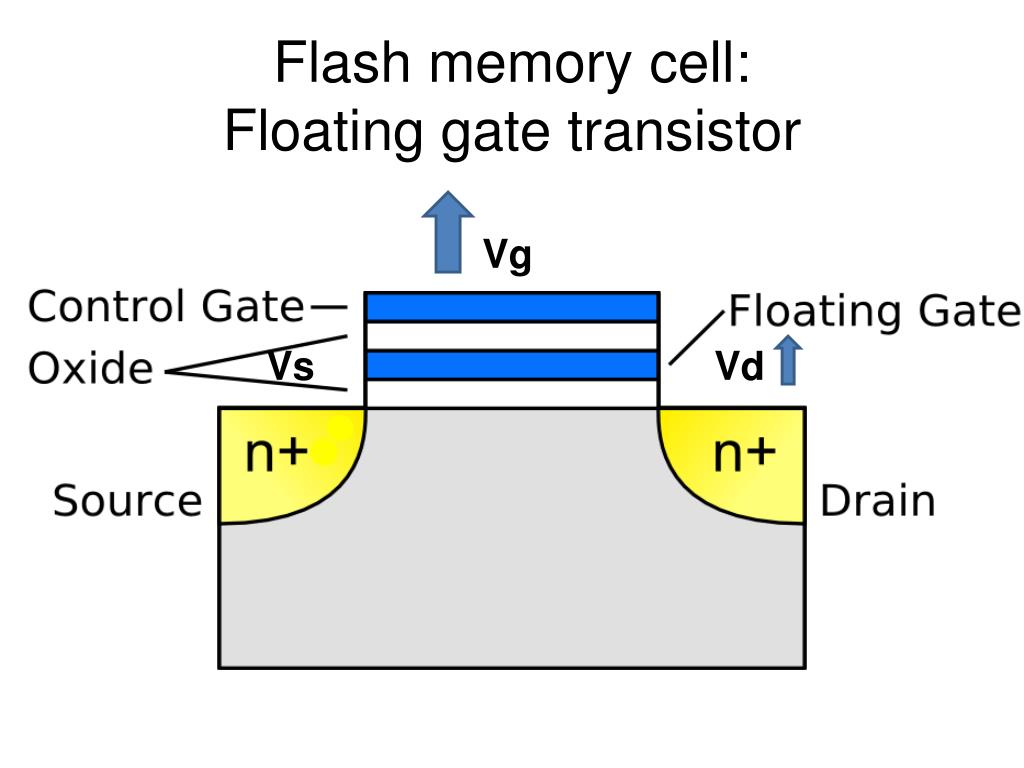

  34. Flash memorycell: Floatinggate transistor Vg Vs Vd

  35. Briefoverview:Flash memorycell Vg Vs Vd

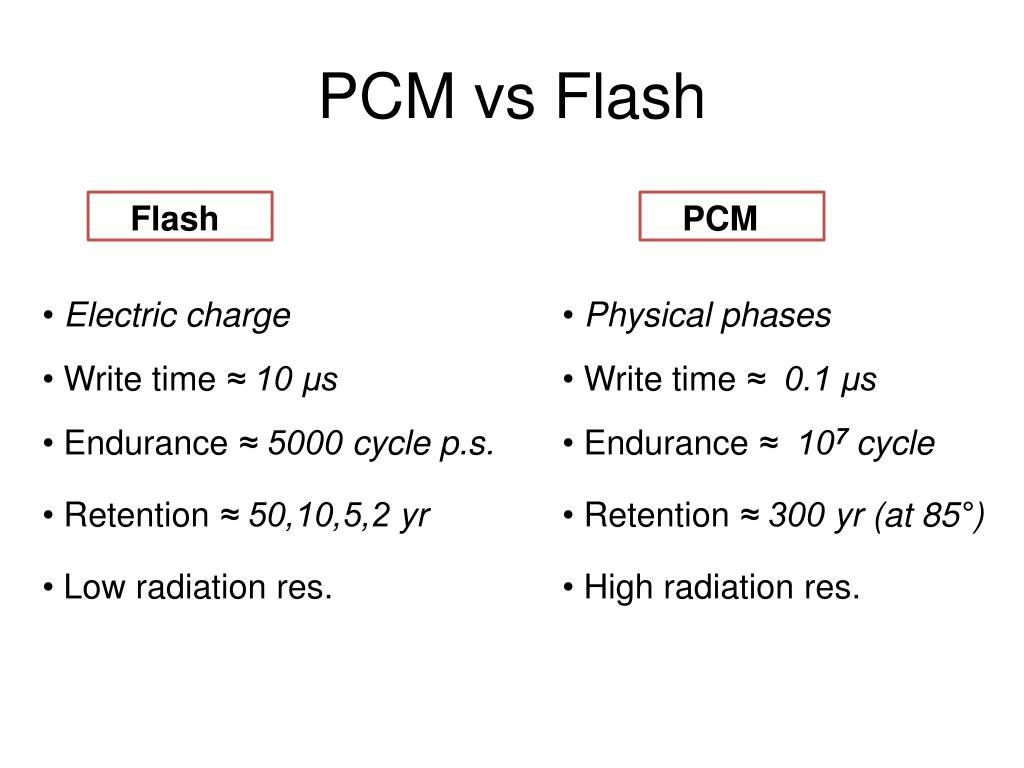

  36. PCM vs Flash Flash PCM • Electriccharge • Physicalphases • Writetime≈ 10 µs • Writetime≈ 0.1 µs • Endurance ≈ 5000 cyclep.s. • Endurance ≈ 107cycle • Retention ≈ 50,10,5,2 yr • Retention≈ 300 yr (at 85°) • Low radiationres. • High radiationres.

  37. Questions ?

  38. Thankyou and goodbye !
