  1. Phase change memory technologyRob Wolters September 2008

  2. Contents • Introduction • Phase change materials • Memory cell concepts • Switching • Endurance • Retention • Perspective

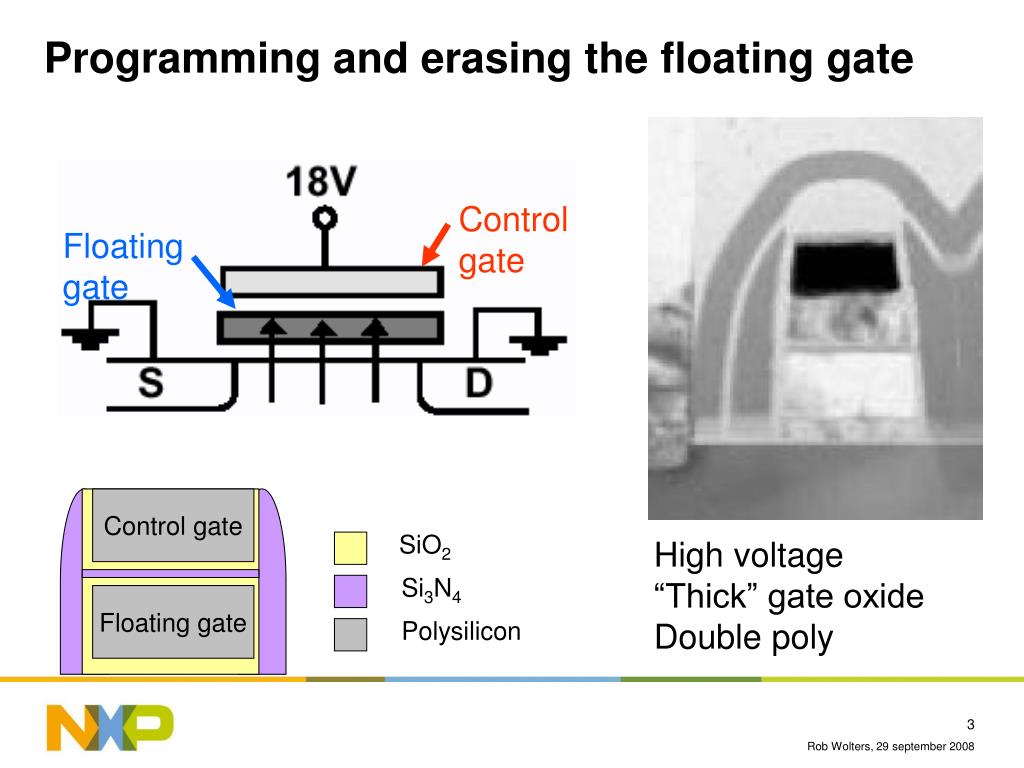

  3. Control gate Floating gate SiO2 Si3N4 Polysilicon Programming and erasing the floating gate Control gate High voltage “Thick” gate oxide Double poly Floating gate

  4. performance is stagnating! forever! density is improving! for how long? Introduction (present NVM)

  5. Optical storage: CD, DVD and Blu-ray disc

  6. Optical storage: Blu-Ray DVD-RW 300 nm

  7. ‘225’ Sb-M SbTe-M SEM picture of DVD-RW dots Phase change materials

  8. DVD-RW materials on chip What is the PC RAM challenge: How to integrate into

  9. PE word-lines • PE based on a switching resistance • Phase-change materials amorphous phase: ‘high’-Ohmic • crystalline phase: ‘low’-Ohmic • Fast switching between amorphous and crystalline phase bit-lines PC RAM principle • A simple scalable device: • An access transistor and a programmable element (PE) • High switching speed (~ns) • Read/write endurance: >1012 (Flash: 106) • Memory array with NMOS transistors:

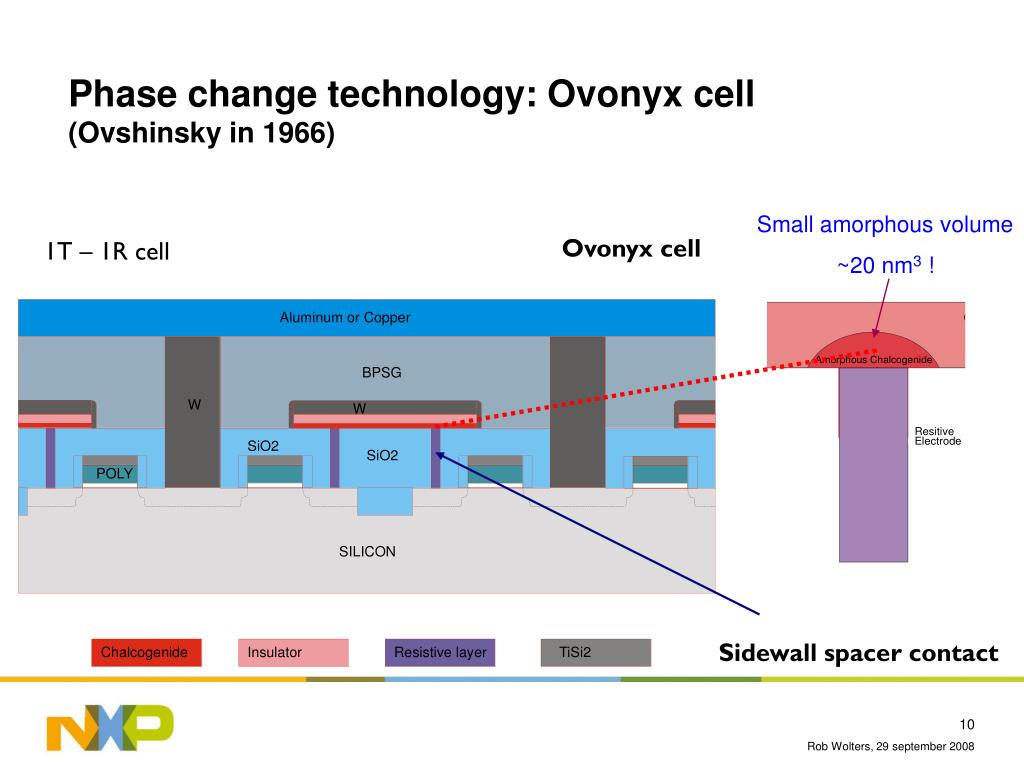

  10. Small amorphous volume ~20 nm3 ! Phase change technology: Ovonyx cell(Ovshinsky in 1966) Ovonyx cell 1T – 1R cell Sidewall spacer contact

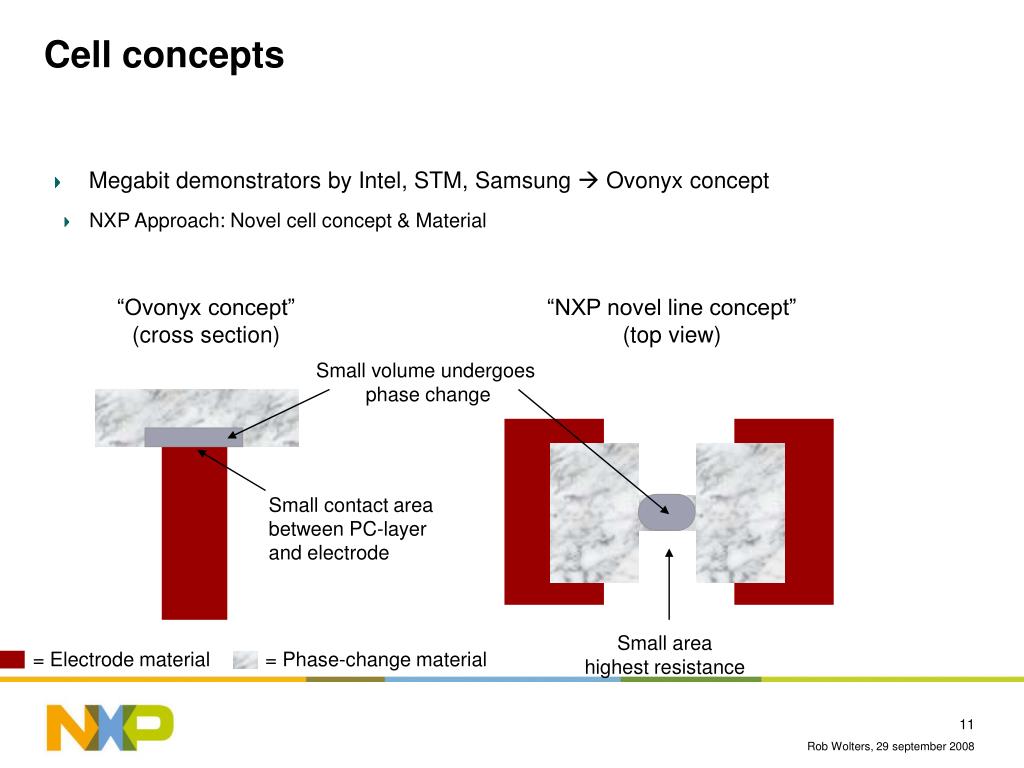

  11. NXP Approach: Novel cell concept & Material “NXP novel line concept” (top view) Small area highest resistance = Electrode material = Phase-change material Cell concepts • Megabit demonstrators by Intel, STM, Samsung  Ovonyx concept “Ovonyx concept” (cross section) Small volume undergoes phase change Small contact area between PC-layer and electrode

  12. Metal contacts (TiN) line of phase-change material Thickness: 15 nm Width: 50nm Length: 1000 nm Line concept

  13. Switching Electric pulses induce Joule heating RESET pulse: - T > Tmelt - Rapid cooling down  amorphization SET pulse: - T > Tcryst - Longer pulse  crystallization

  14. Single cell data for “fast-growth” material

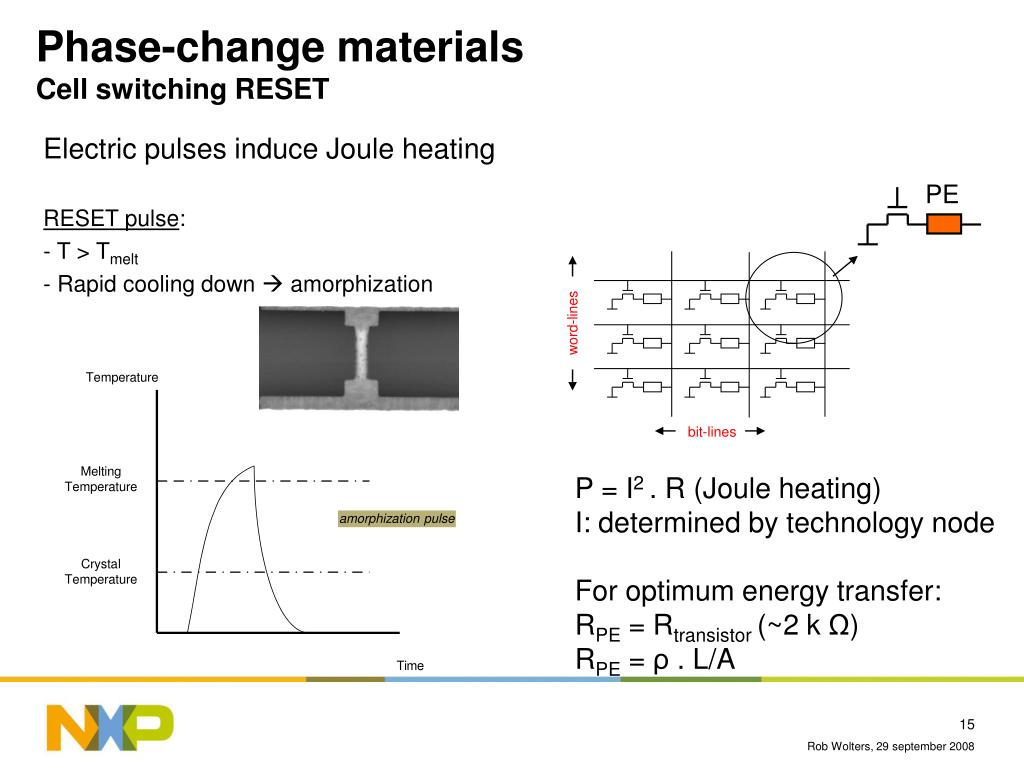

  15. PE word-lines bit-lines Phase-change materialsCell switching RESET Electric pulses induce Joule heating RESET pulse: - T > Tmelt - Rapid cooling down  amorphization P = I2 . R (Joule heating) I: determined by technology node For optimum energy transfer: RPE = Rtransistor (~2 k Ω) RPE = ρ . L/A

  16. Phase-change materialsCell switching RESET 20 nm 5 nm Ireset as a function of line width for 20 and 5 nm thick PC, L=2W

  17. Phase-change materialsCell switching SET Amorphous state shows a threshold voltage

  18. 1.4 PE 1.2 word-lines 1 Amorphous 0.8 Idut [mA] 0.6 Crystalline 0.4 0.2 Threshold voltage 0 -0.5 0 0.5 1 1.5 2 2.5 Vdut [V] bit-lines Cell switching Vdut = VT . L V: determined by technology node VT : material characteristic V = 1-2 V, L < 100 nm

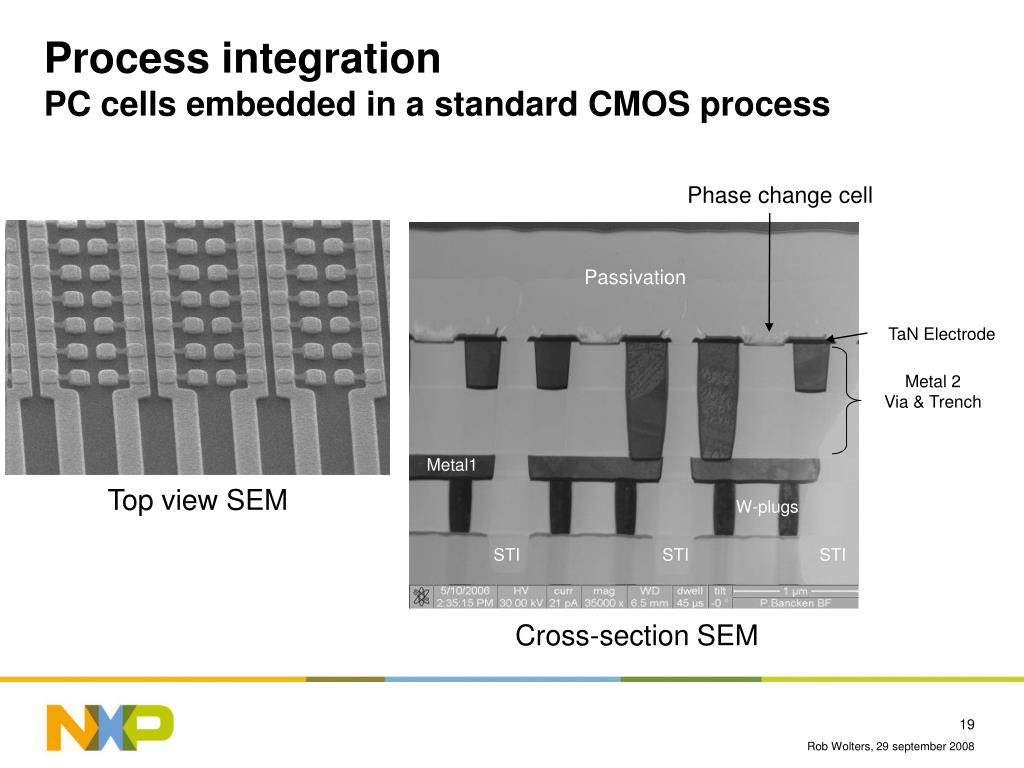

  19. Phase change cell Passivation TaN Electrode Metal 2 Via & Trench Metal1 W-plugs STI STI STI Process integration PC cells embedded in a standard CMOS process Top view SEM Cross-section SEM

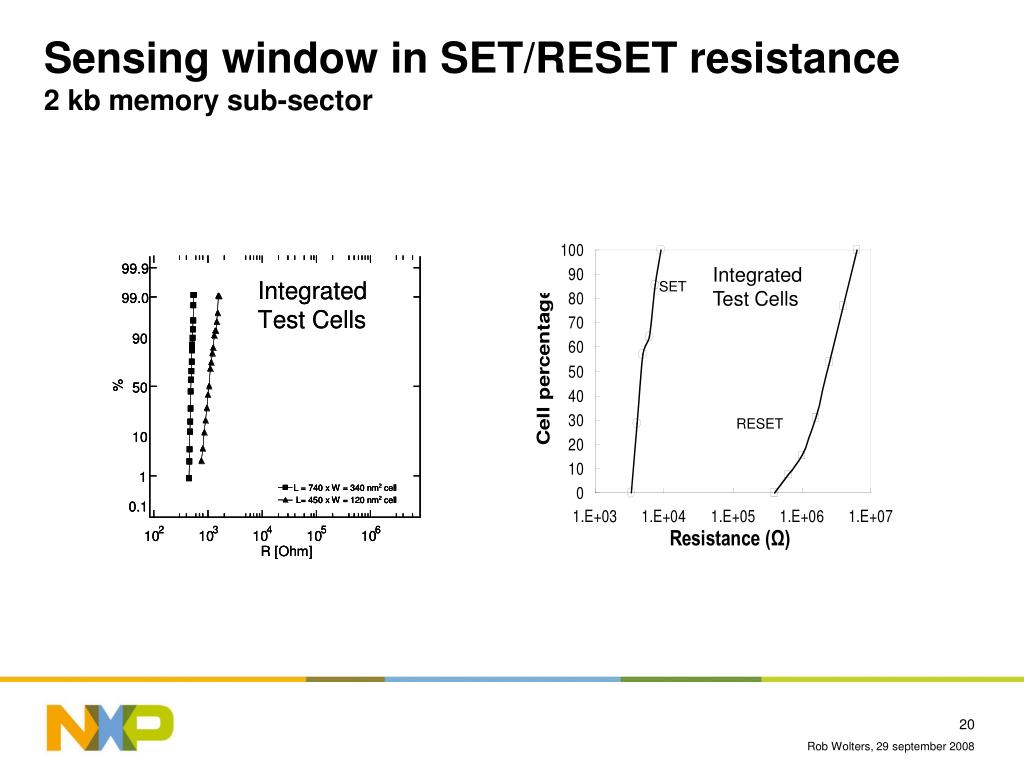

  20. Integrated Test Cells SET RESET Sensing window in SET/RESET resistance2 kb memory sub-sector

  21. Imin+15% Endurance

  22. Retention DVD: amorphous dots in a crystalline matrix Size: appr. 300 x 300 nm PC cell: amorphous dot and crystalline areas aside. Size: appr. 50 x 100 nm System tends to the lowest energy: crystallinity!

  23. Retention DVD: amorphous dots in a crystalline matrix Increased doping Ga15Sb75

  24. Positioning of amorphous spot. Thomson Effect • Thermoelectric effect • IEDM 2007

  25. Perspective • PCM performance • Fast (~50 ns) • Low voltage (0.4-2 V) • Scaling: good • Medium endurance (109-1013) • Medium current (50-300 A) • Energy (pJ/switch) • PCM costs • Only 3 additional masks • NVM/Flash performance • Slow (s-ms) • High voltage (10-15 V) • Scaling: bad • Short endurance (105-106) • Low current (~ nA) • Energy (nJ/switch) • NVM/Flash costs • 8-10 additional masks
