Mind The Gap

1. 1 1 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Mind The Gap

2. 1 3 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Mind The Gap עיר ללא גבולות Urban underground Stations

3. 1 A landmark An Icon A Square A Symbol Kyoto Railway Station Lyon Satolas Airport Railway Station Waterloo Station, London London Underground 3 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borserless Urban underground Stations What are the Urban Roles of Underground Stations? Comparing to railway stations which have acquired urban roles had a major impact on the new City’s Form, Underground Stations tend to be disconnected of the City and practically form another urban layer. Usually the only architectural element which connects the two layers is a circulation structure which will be shown later on. “Kontroll” (Control), frames from the movie

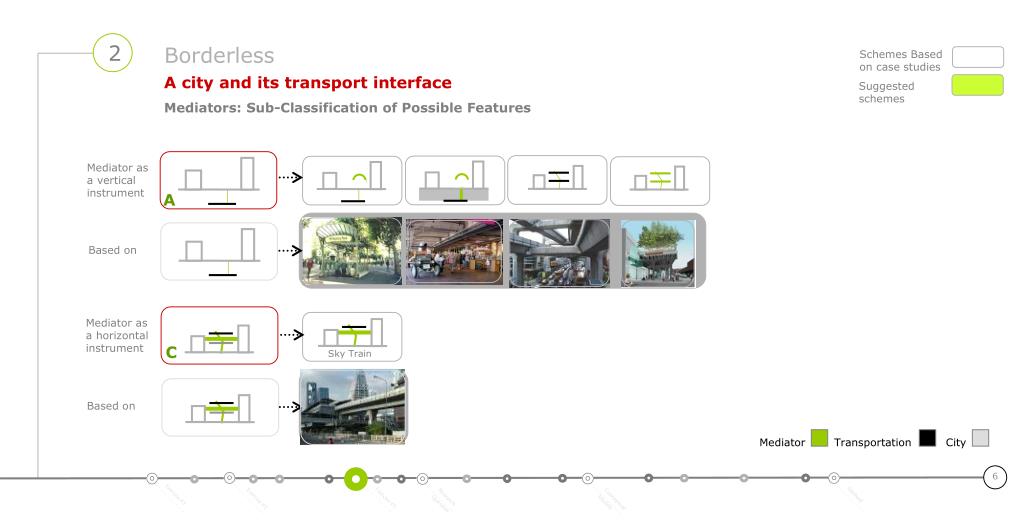

4. 2 A Mediator as a horizontal instrument C Sky Train Schemes Based on case studies Based on Suggested schemes Mediator Transportation City 6 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless A city and its transport interface Mediators: Sub-Classification of Possible Features Mediator as a vertical instrument Based on

5. 2 D Schemes Based on case studies Suggested schemes Mediator Transportation City 7 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless A city and its transport interface Mediators: Sub-Classification of Possible Features Mediator as an adding to a structure B Based on A 3D Mediator switching layers Based on

6. 2 Mediator as a vertical instrument Perceptual connection Physical connection A Mediator as a horizontal instrument Mediator as an adding to a structure Perceptual connection Perceptual connection Physical connection Physical connection B C Perceptual connection Physical connection A 3D Mediator switching layers D Mediator Transportation City 8 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless A city and its transport interface Mediators: Sub-Classification of Possible Features A+B: A horizontal – vertical world requires a mediator – vertical to mediate two horizontal layers or the opposite, that mediating is done normally in just order to move from one layer to the other, and a strong physical connect doesn’t guaranty a perceptual one. C: Adding another functional layer such a hotel or a promenade increases the perceptual connection since using the same space not as a mare passage reconnects it to the city’s activities. D: When one layer becomes the other the perceptual connection gets stronger (movement, eye site).

7. 2 Leisure B Culture Services Dwelling 9 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless A city and its transport interface Mediators: Classification of Possible Programs Mediator as a functional adding to a structure. What are the possible programs relating to the location (underground or partly underground) and the urban context (a metro station)?

8. 2 15 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless Underground Station formation formation of a multi-layered ruled-surfaced UG space A 3D Mediator switching layers D

9. 2 16 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Method Underground Station formation formation of a multi-layered ruled-surfaced UG space

10. 2 17 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Borderless Underground Station formation formation of a multi-layered ruled-surfaced UG space

11. 1 10 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Conceptual Models A city and its transport system Conceptual breathing connections between two systems

12. 3 4 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Linked A Network of underground Stations An additional Circulation layer, An additional perceptual map When Looking at the entire Network of Underground Stations, They normally form, like with one single station, a detached layer of the Urban Circulation System, suggest another way of moving around the city and perceiving it. Thus, Metro maps may form an additional perceptual map of the city. Madrid metro map Rome p.t. map London metro map Berlin p.t. map NY UG map Madrid map Rome map London map Berlin map NY map

13. 2 a City, its streets, focal points and transport system a City, its streets and focal points Shrinking perceptual distances – old focal points, new ones. Fabric transformation- stretching the lines between the new points. 5 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Linked A city and its transport interface A Perceptual Fabric transformation An Abstract representation of a city an its intercourse with its transport system: first a city and its focal points, then showing the fabric transformation due to the perceptual changing distances between each two points. Focal Points cause a fabric deformation. They seem to get closer after that deformation (inspiration – add of TGV), and gain an additional meaning through the process of traveling: the way becomes irrelevant, focal points get stronger.

14. 3 11 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Linked Underground Stations formation Conceptual formation of a generic diagram for 10 underground stations in different locations 1= UG TRAIN PATH 2= HIGH RATING+HIGH STAY 3= HIGH RATING+LOW STAY 4= BRIDGE 5= LOW RATING+LOW STAY 6= LOW RATING+HIGH STAY 7= “STATION” 8= ROAD 4 3 5 1= 200 2= 220 3= 310 4= 176 5= 84 6= 231 7= 192 8= 190 2 6 1 7 8 Station #1 Station #2 Station #3 Station #4 Station #5 Station #6 Station #7 Station #8 Station #9 Station #10

15. 3 Section #1 Section #2 Section #3 Section #4 Section #5 Section #6 12 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Conceptual Models Underground Stations formation Conceptual formation of one station based on different forming sections

16. 3 City Flows Local Sections 13 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Linked Underground Stations formation Formation of one station based on different forming sections CT Tube is constructed by two sets of flows, two sets of contexts: the entire underground city network and the urban space which it is located in. Adding a new tube to surrounding it give a potential play with its outside structure, is the inside tube is lit. 30

17. 4 18 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Location - A connector station Beit Ma’ariv Junction, Tel Aviv

18. 4 Tel Aviv Karlibach Selected Underground station Yafo Tel Aviv Metropolis future mass transport system 18 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Location - A connector station Beit Ma’ariv Junction, Tel Aviv

19. 4 20 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv City 2012 Expected influence of UG Stations over the city’s culture and leisure zones Tel Aviv Ramat Gan Giv’ataim 2006 2012 Dead Zone Culture Shopping zones Red line stations Main road/street UG line planned Yafo Red line High way

20. 4 Boarding Alighting Arrivals Departures 19 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Expected volumes and paths of passengers 2012 Forecast of different paths and passengers volumes on Beit Ma’ariv junction

21. 4 Boarding Alighting Arrivals Departures 20 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Expected paths of passengers 2012 paths of passengers, cars, rail tracks on Beit Ma’ariv junction

22. 4 20 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Expected paths of passengers – 3D model of paths

23. 4 22 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Time,Zone Tel Aviv Metropolis future mass transport system Expected paths of passengers – 3D model of paths

24. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form

25. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Borderless Folding spaces to enlarge overlappings between upper world and the train level

26. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Borderless Folding spaces to enlarge overlappings between upper world and the train level Sections showing folds in both directions – train direction and the opposite

27. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Linked Platforms as circulation space of galleries and shopping area Platforms area as main circulation system of galeries spaces and shopping area. This circulation space continues to the next station and there the passeneger can continue his shopping / galleries trip.

28. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Linked Platforms as circulation space of galleries and shopping area Section through undergound platforms whish is the main circulation system of the galeries and shops

29. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Linked Location of spaces on road’s path A part of the galleries and shopping spaces are located on the road and under it and enables to continue the spaces to the next stations

30. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Program- possible combinations Diagram of overlapping programs Museum Shopping promenade Shops Space for public activities Offices Services (W.C+ Telephones) Information Center Metro Station Deck Information/ Tickets Collections Cloak room Office Services (W.C+ Telephones) Education Center Exhibitions Information / Tickets Shop Cafe

31. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Program overlapping programs

32. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Program overlapping programs

33. 4 23 Exercise #1 Research Question Conceptual Models Method Exercise #1 Exercise #1 Form Design Design of main circulation area
