  1. The Quest for Quantum Ants QIP Seminar, July 2007 Yair Wiener

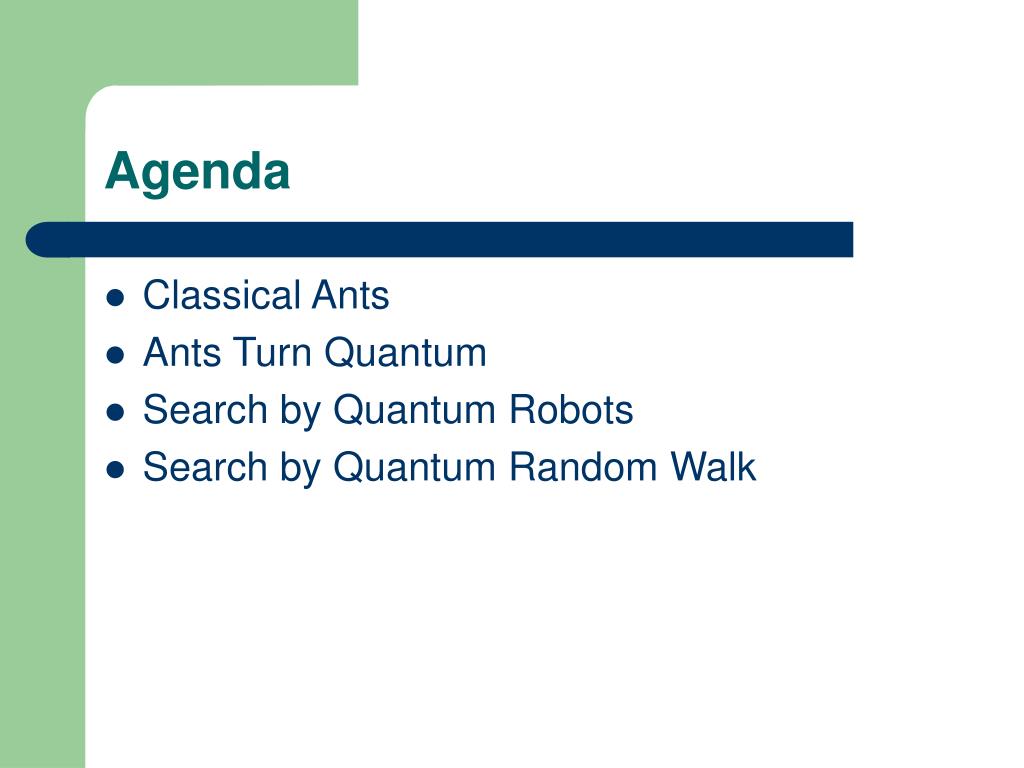

  2. Agenda • Classical Ants • Ants Turn Quantum • Search by Quantum Robots • Search by Quantum Random Walk

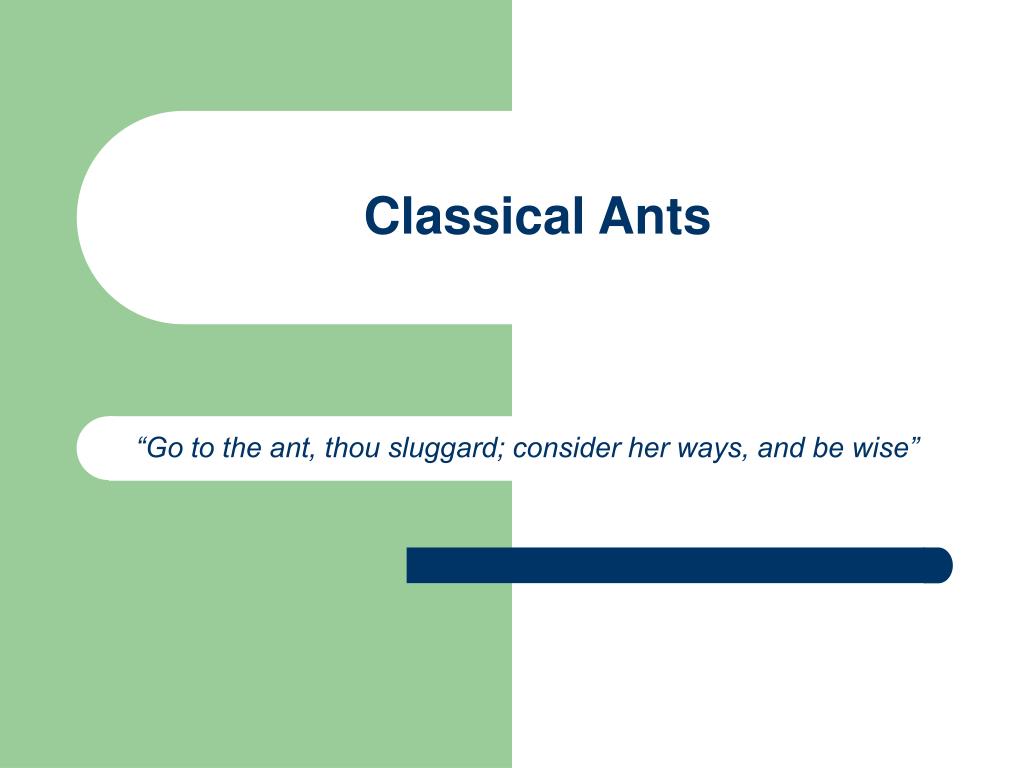

  3. Classical Ants “Go to the ant, thou sluggard; consider her ways, and be wise”

  4. Biological Ants • Ants (initially) wander randomly, and upon finding food return to their colony while laying down pheromone trails • If other ants find such a path, they are likely to follow the trail, returning and reinforcing it if they eventually find food

  5. Ant Inspired Algorithms * • Ant Colony Optimization (ACO) • Edge Ant Walk (EAW) • Vertex Ant Walk (VAW) (*) Partial list

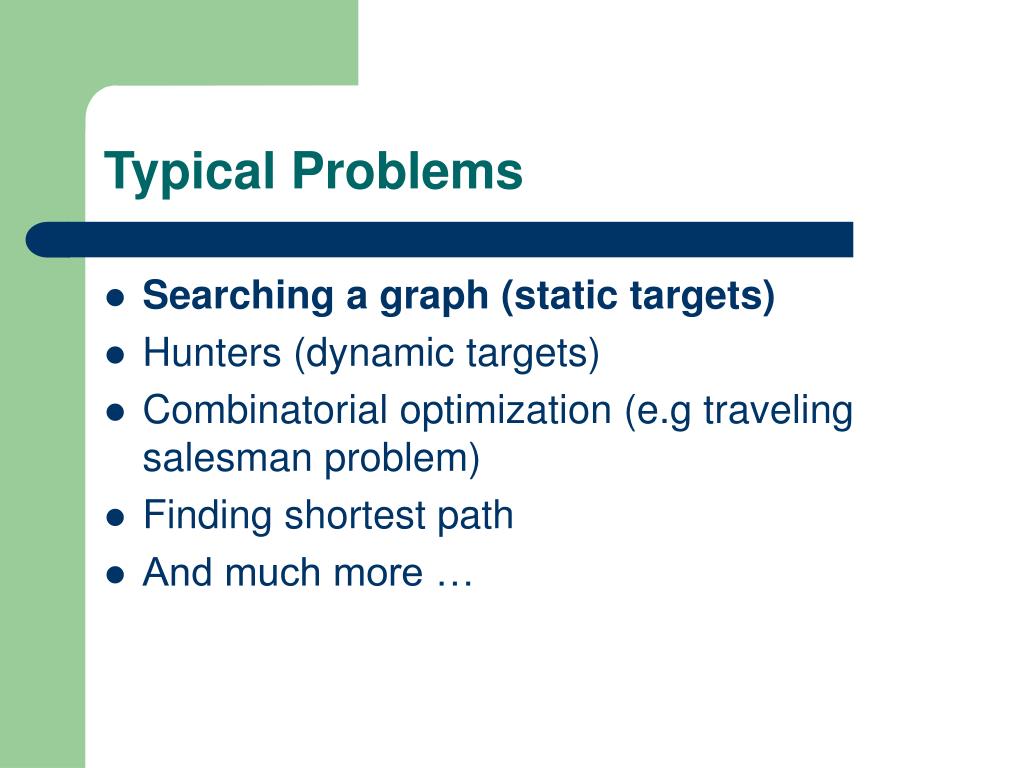

  6. Typical Problems • Searching a graph (static targets) • Hunters (dynamic targets) • Combinatorial optimization (e.g traveling salesman problem) • Finding shortest path • And much more …

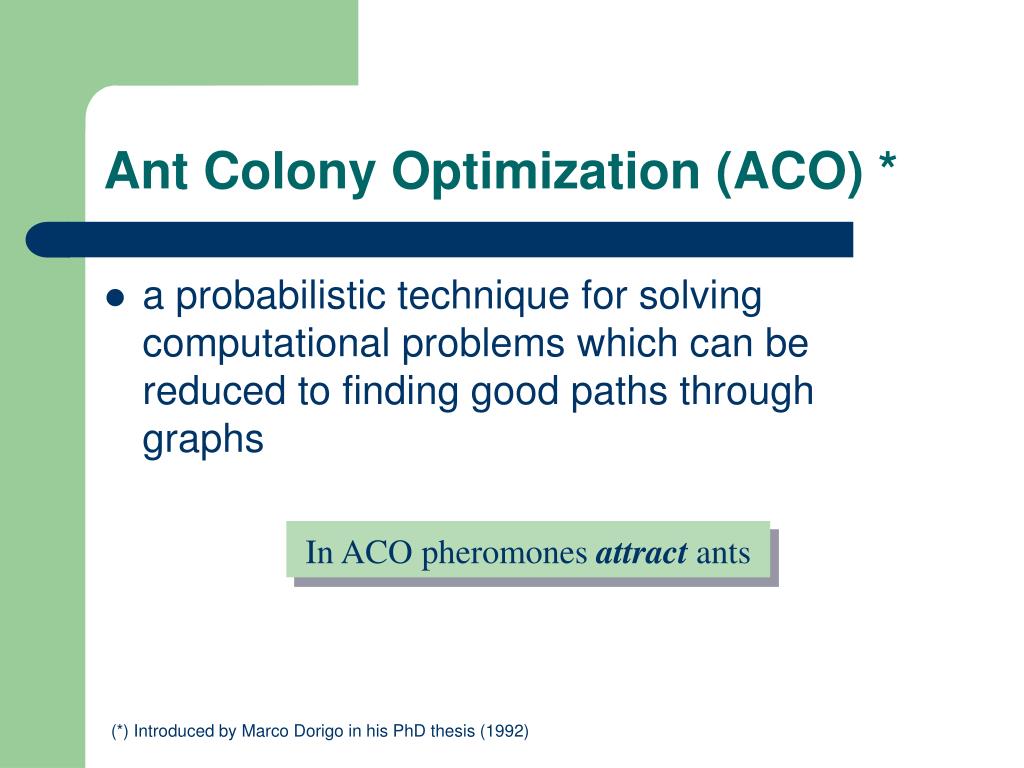

  7. In ACO pheromones attract ants Ant Colony Optimization (ACO) * • a probabilistic technique for solving computational problems which can be reduced to finding good paths through graphs (*) Introduced by Marco Dorigo in his PhD thesis (1992)

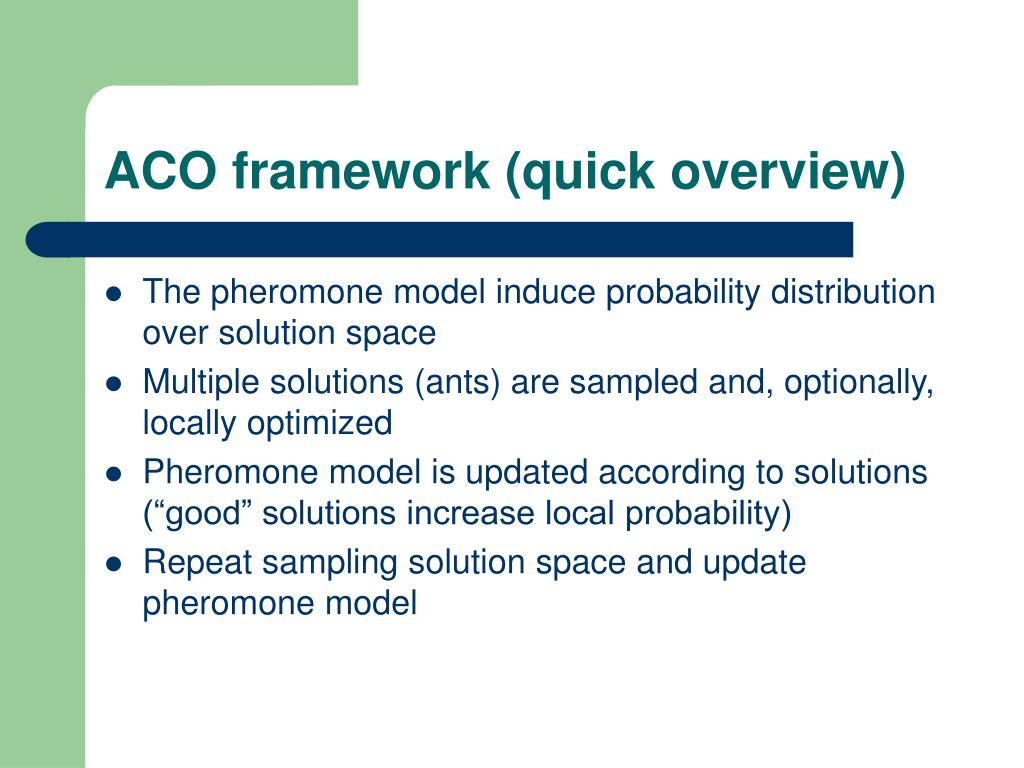

  8. ACO framework (quick overview) • The pheromone model induce probability distribution over solution space • Multiple solutions (ants) are sampled and, optionally, locally optimized • Pheromone model is updated according to solutions (“good” solutions increase local probability) • Repeat sampling solution space and update pheromone model

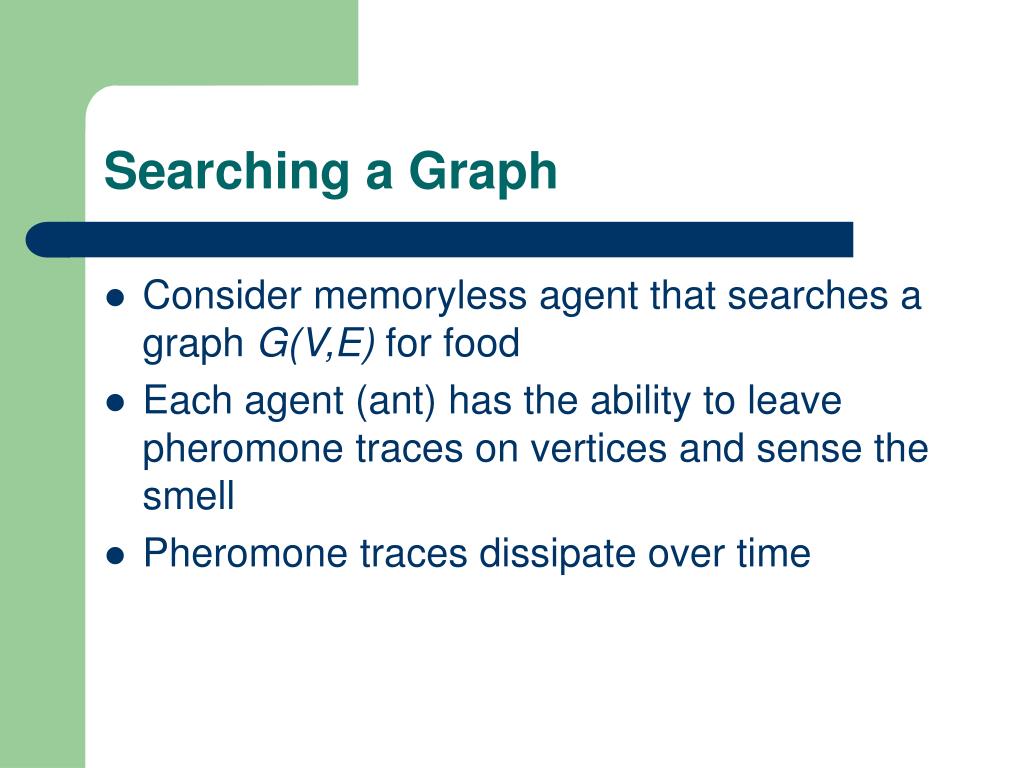

  9. Searching a Graph • Consider memoryless agent that searches a graph G(V,E) for food • Each agent (ant) has the ability to leave pheromone traces on vertices and sense the smell • Pheromone traces dissipate over time

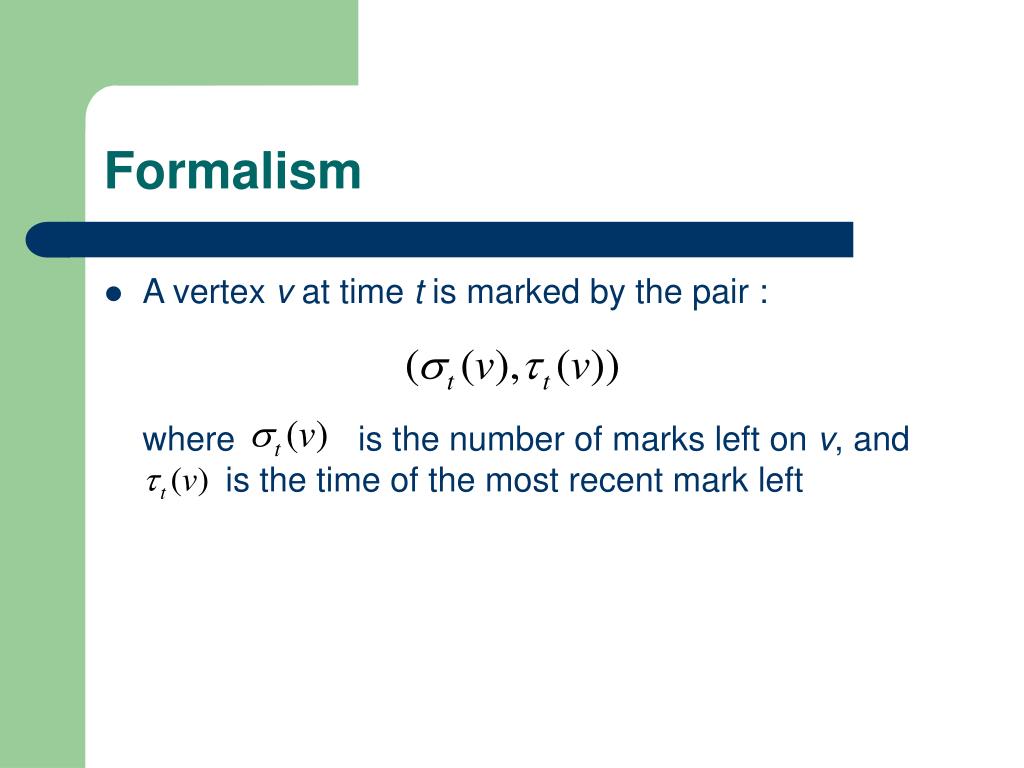

  10. Formalism • A vertex v at time t is marked by the pair : where is the number of marks left on v, and is the time of the most recent mark left

  11. In VAW pheromones repel ants Vertex Ant Walk (VAW) * • v := u’s neighbor with minimal value of • go to v (*) “Efficiently Searching a Graph by a Smell-Oriented Vertex Process”, A. Wagner et al, Annals of Mathematics and Artificial Intelligence 24 (1998) pp. 211-223

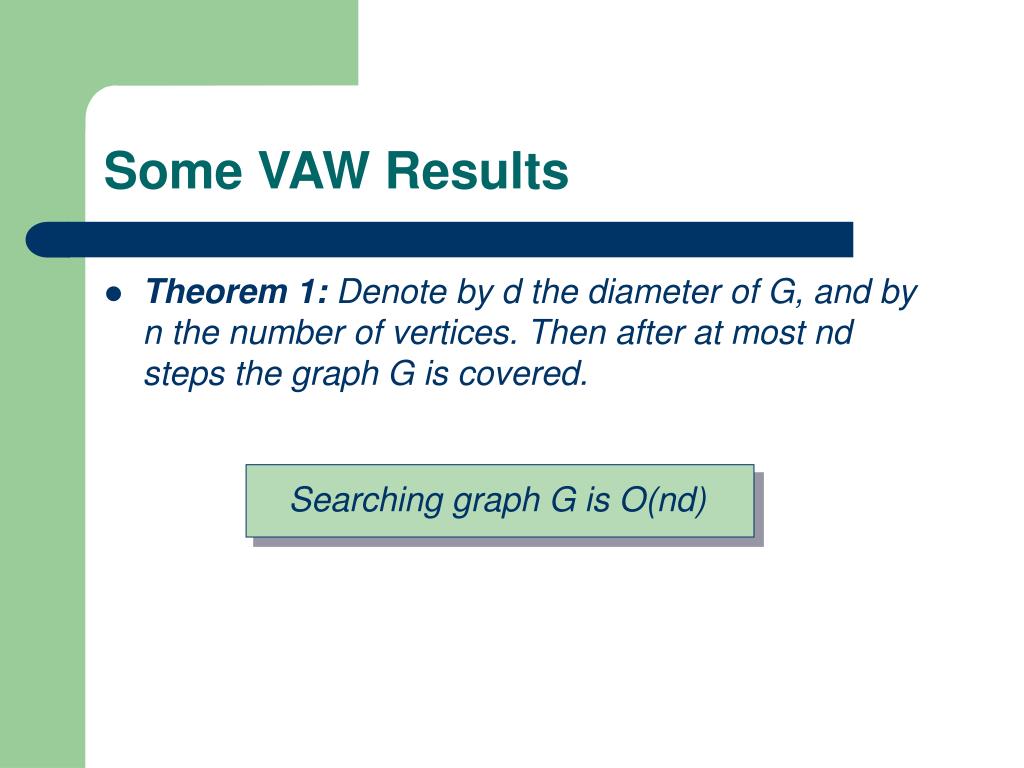

  12. Some VAW Results • Theorem 1: Denote by d the diameter of G, and by n the number of vertices. Then after at most nd steps the graph G is covered. Searching graph G is O(nd)

  13. Comparison to random walk • Random Walk: O(n2) • VAW: O(n) n fully connected graph

  14. Comparison to random walk • See example graph G4 • Complexity of reaching rightmost node: • Random Walk: O(2n) • VAW: O(n2n ) (*) The graph is from “An example of the difference between quantum and classical random walks”, A.Childs et al, Quantum Information Processing, 1:35, 2002.

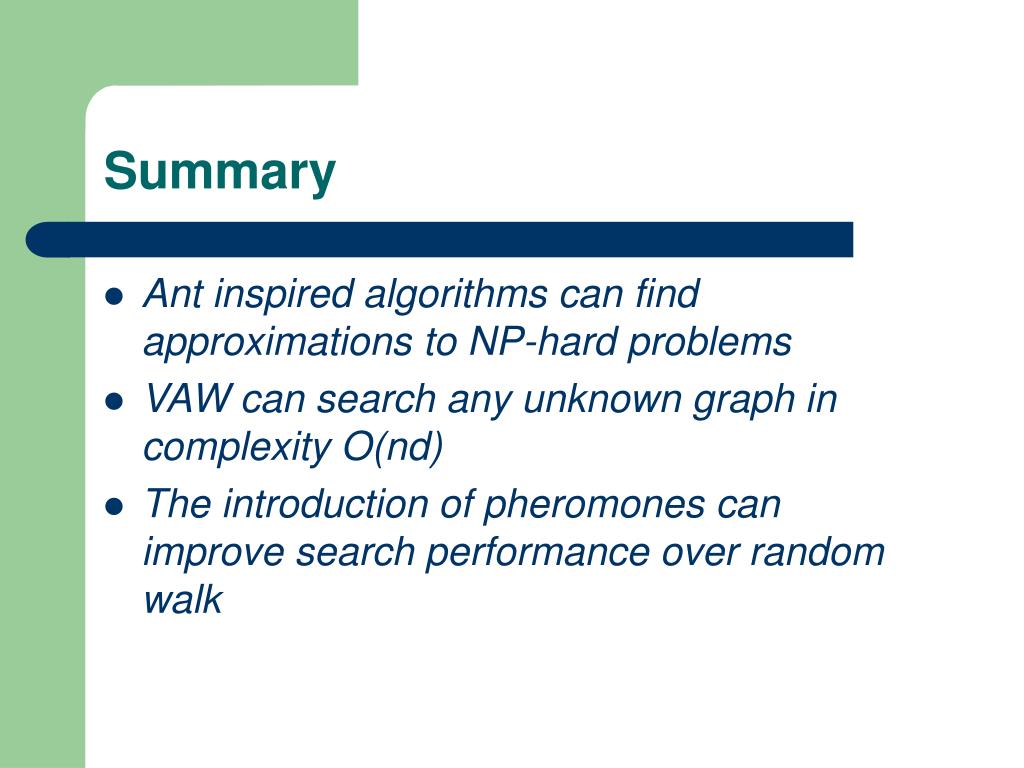

  15. Summary • Ant inspired algorithms can find approximations to NP-hard problems • VAW can search any unknown graph in complexity O(nd) • The introduction of pheromones can improve search performance over random walk

  16. Ants Turn Quantum

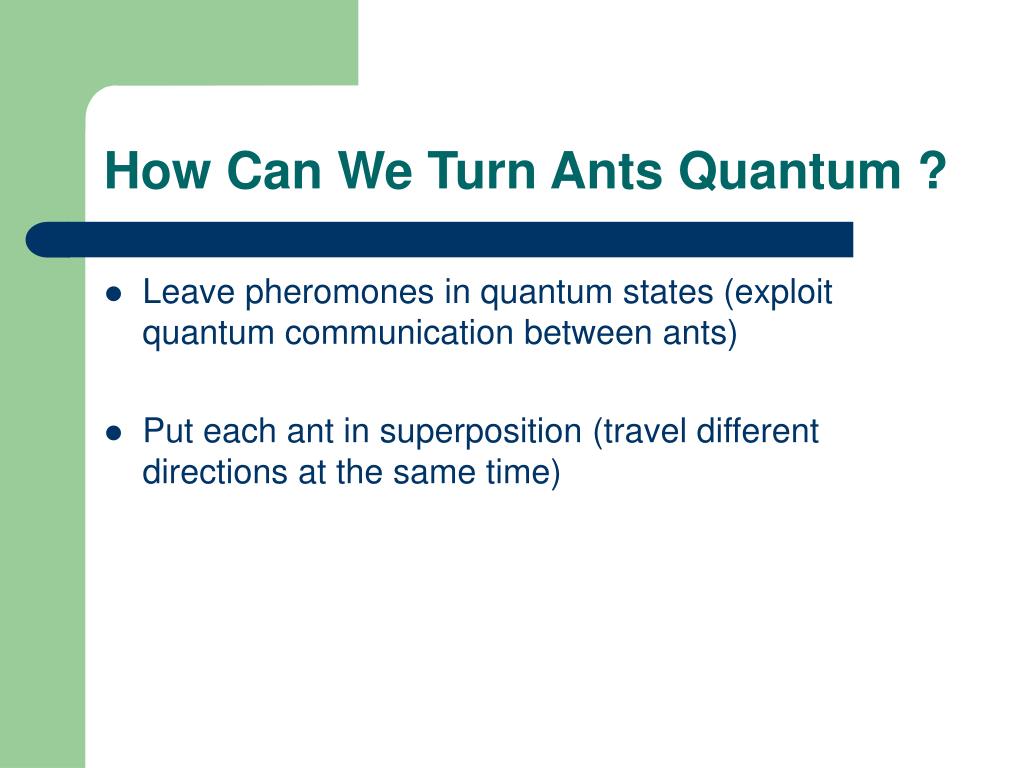

  17. How Can We Turn Ants Quantum ? • Leave pheromones in quantum states (exploit quantum communication between ants) • Put each ant in superposition (travel different directions at the same time)

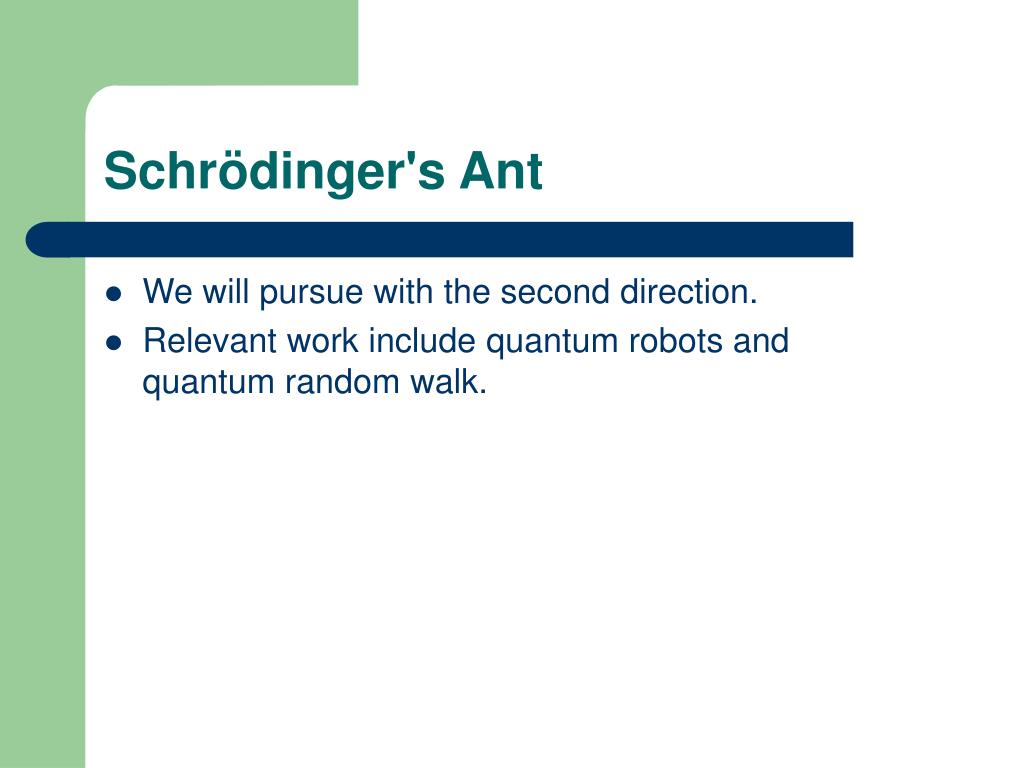

  18. Schrödinger's Ant • We will pursue with the second direction. • Relevant work include quantum robots and quantum random walk.

  19. Quantum Robots

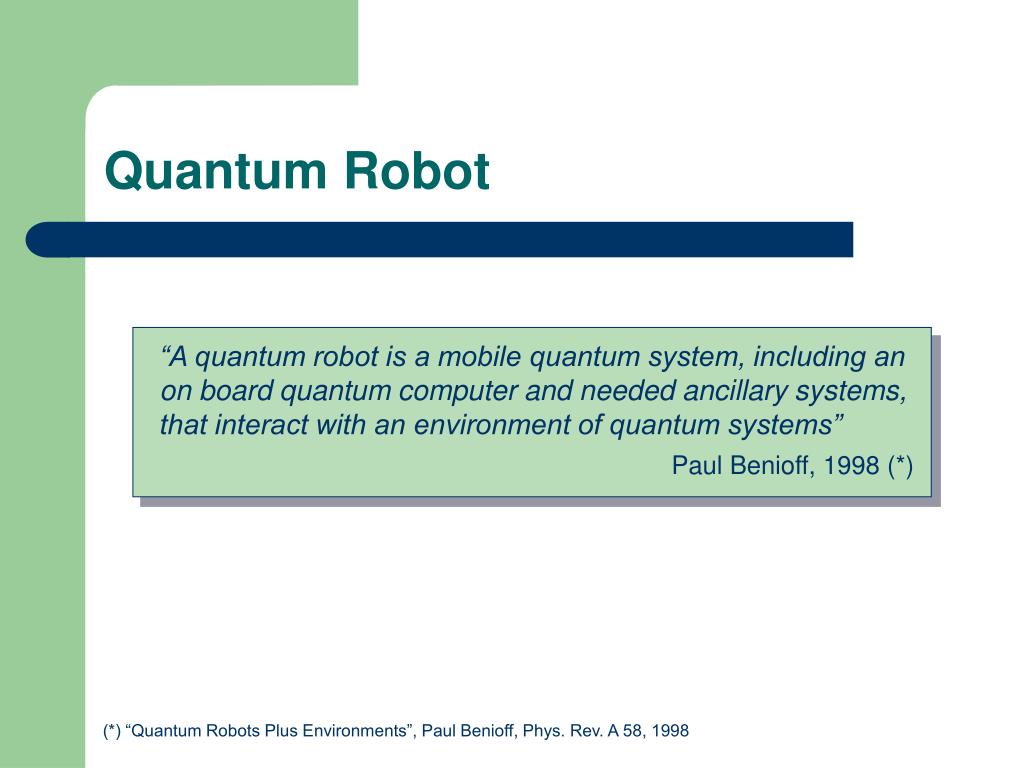

  20. “A quantum robot is a mobile quantum system, including an on board quantum computer and needed ancillary systems, that interact with an environment of quantum systems” Paul Benioff, 1998 (*) Quantum Robot (*) “Quantum Robots Plus Environments”, Paul Benioff, Phys. Rev. A 58, 1998

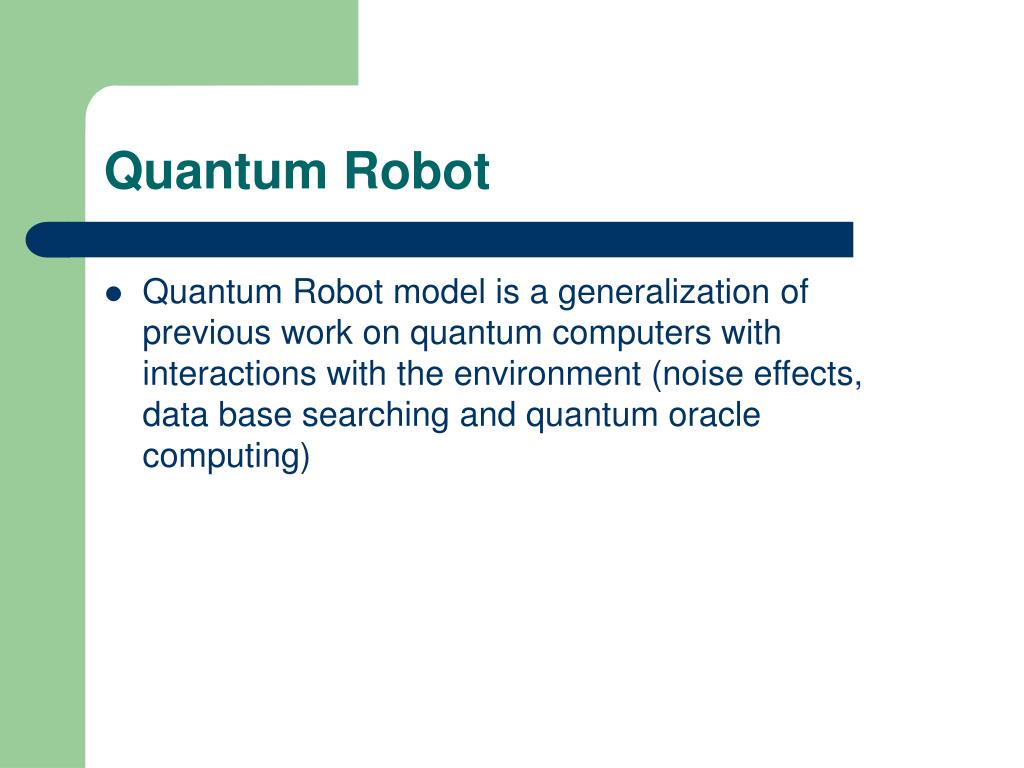

  21. Quantum Robot • Quantum Robot model is a generalization of previous work on quantum computers with interactions with the environment (noise effects, data base searching and quantum oracle computing)

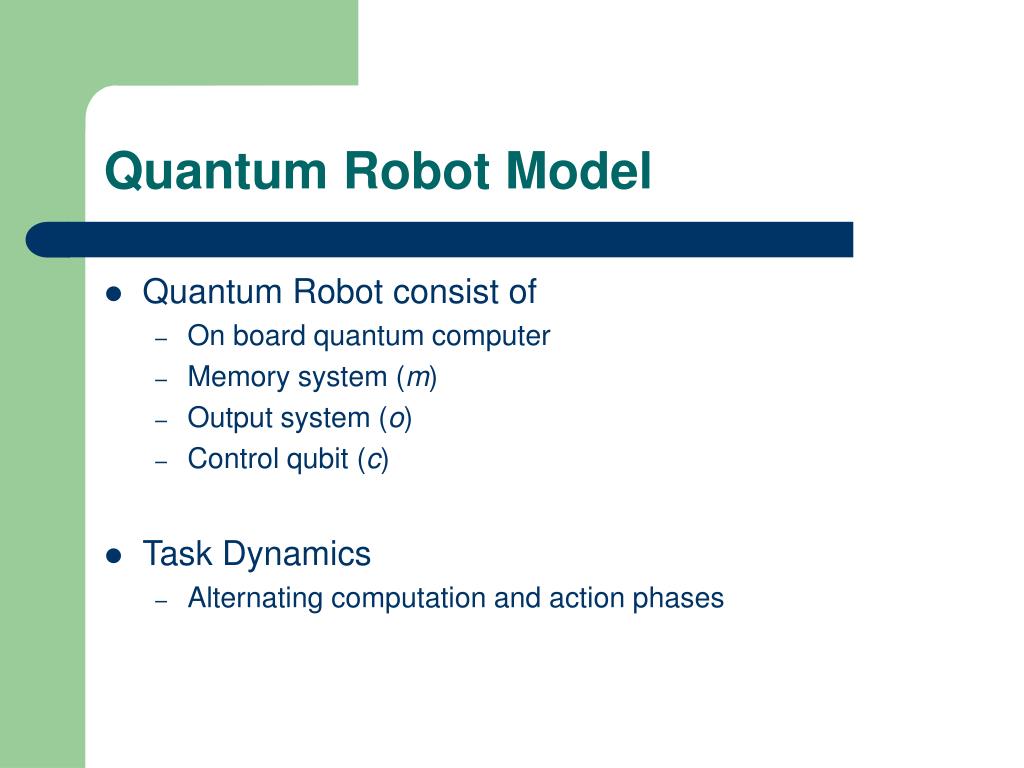

  22. Quantum Robot Model • Quantum Robot consist of • On board quantum computer • Memory system (m) • Output system (o) • Control qubit (c) • Task Dynamics • Alternating computation and action phases

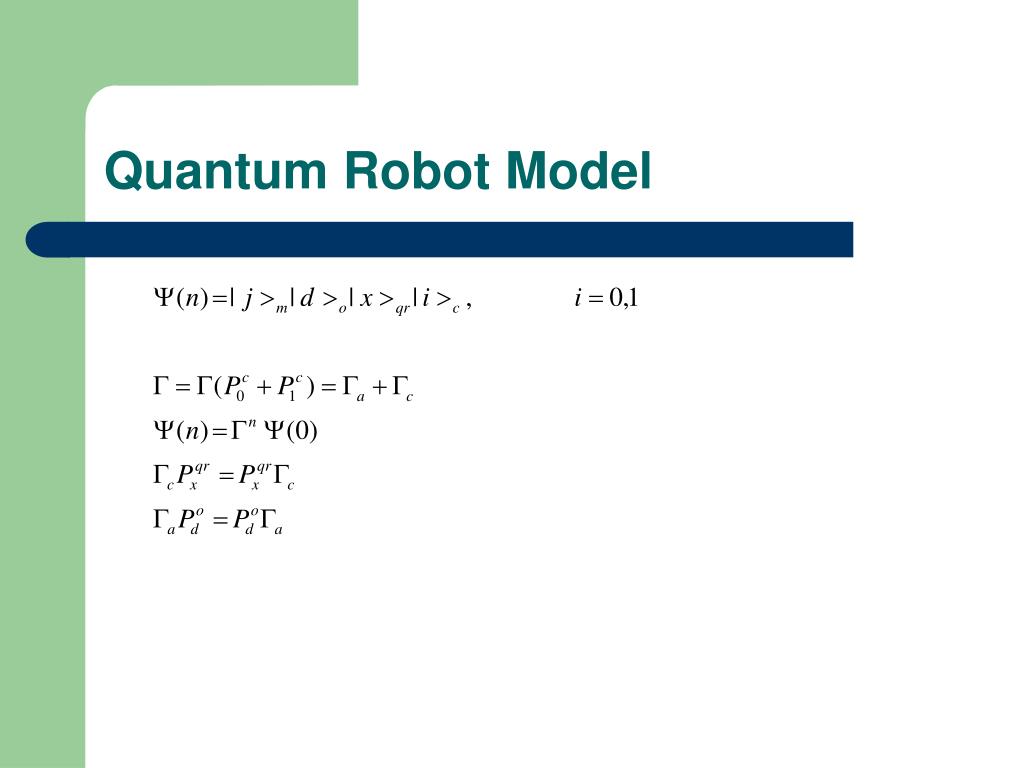

  23. Quantum Robot Model

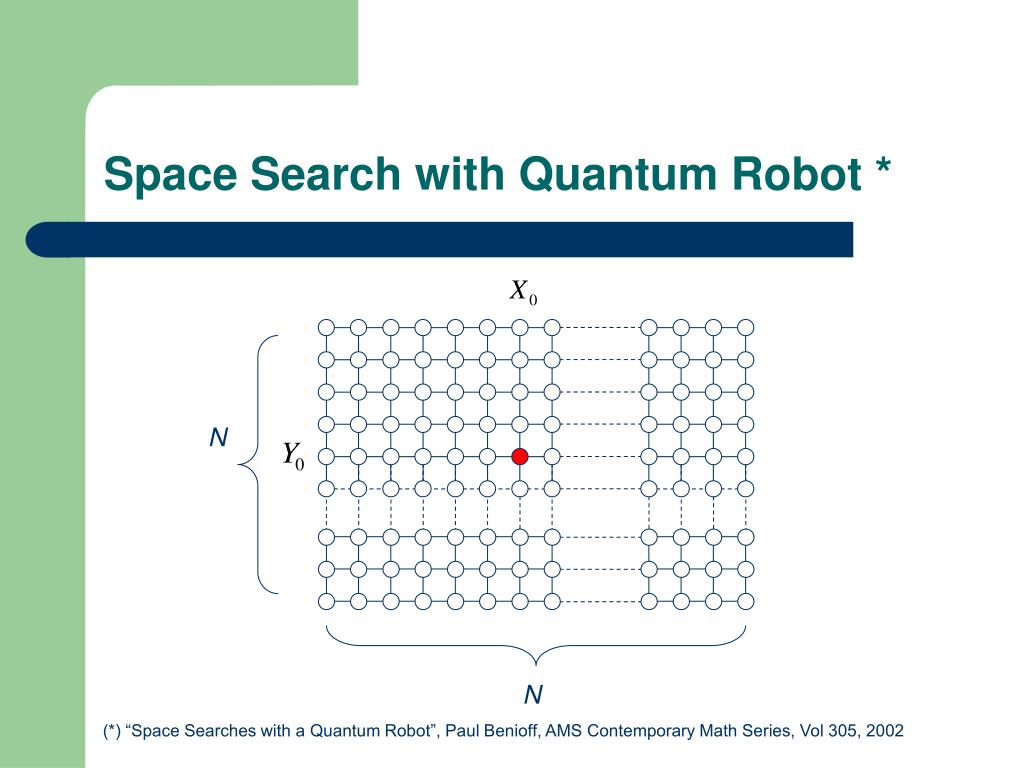

  24. Space Search with Quantum Robot * N N (*) “Space Searches with a Quantum Robot”, Paul Benioff, AMS Contemporary Math Series, Vol 305, 2002

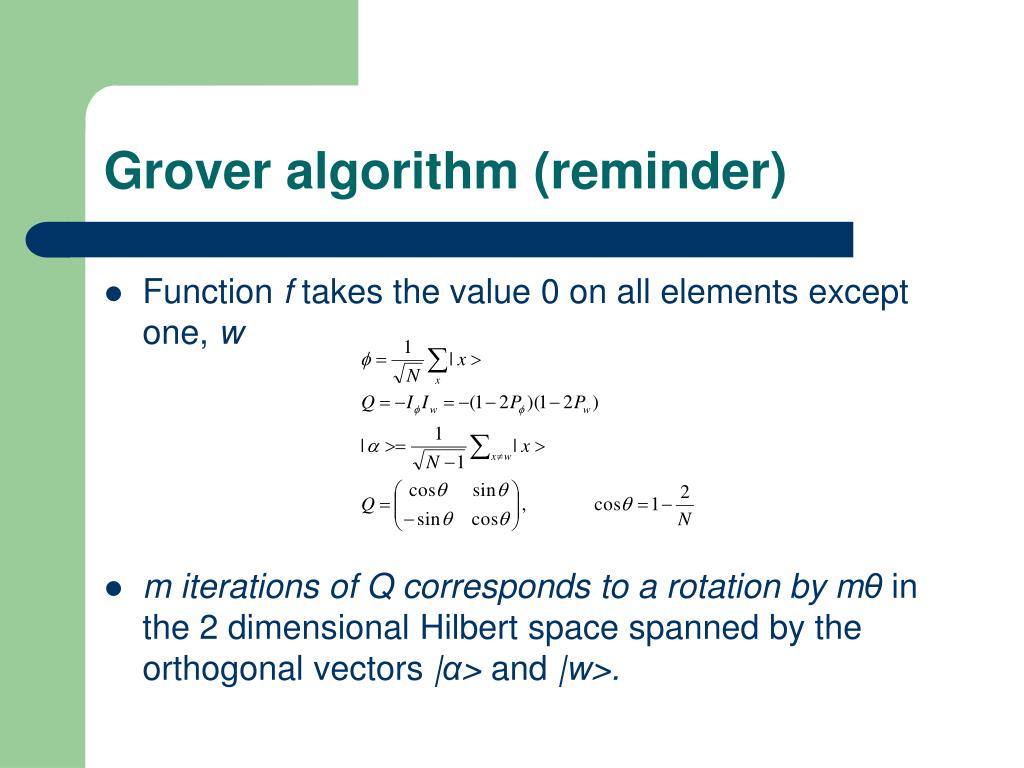

  25. Grover algorithm (reminder) • Function f takes the value 0 on all elements except one, w • m iterations of Q corresponds to a rotation by mθin the 2 dimensional Hilbert space spanned by the orthogonal vectors |α> and |w>.

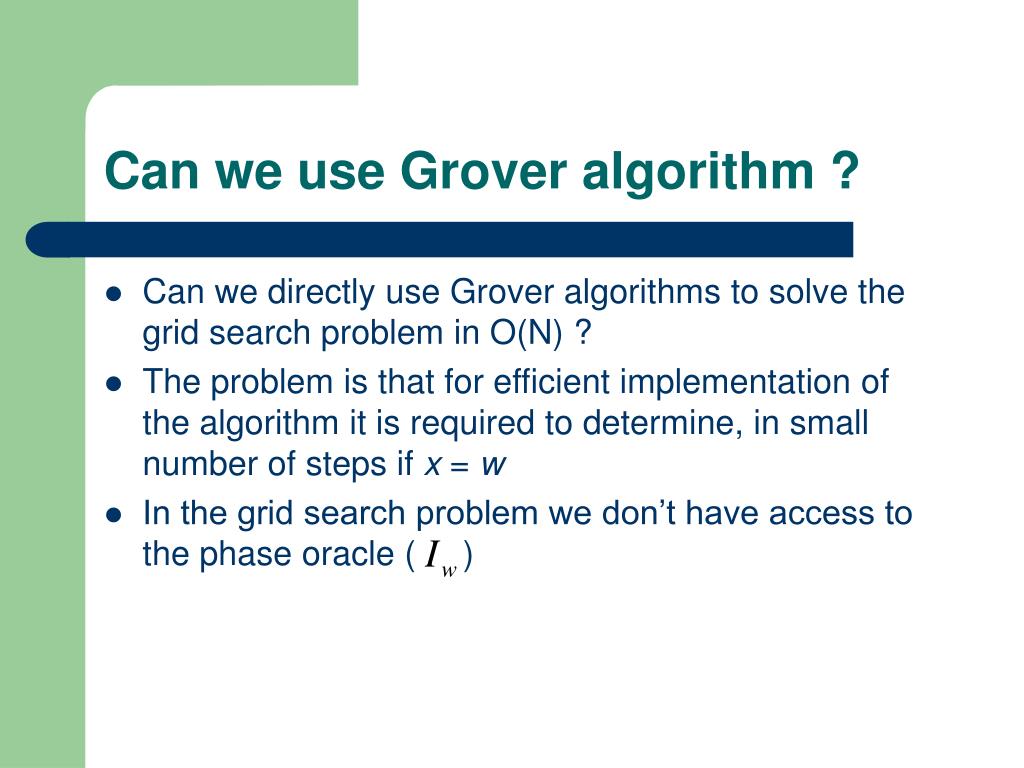

  26. Can we use Grover algorithm ? • Can we directly use Grover algorithms to solve the grid search problem in O(N) ? • The problem is that for efficient implementation of the algorithm it is required to determine, in small number of steps if x = w • In the grid search problem we don’t have access to the phase oracle ( )

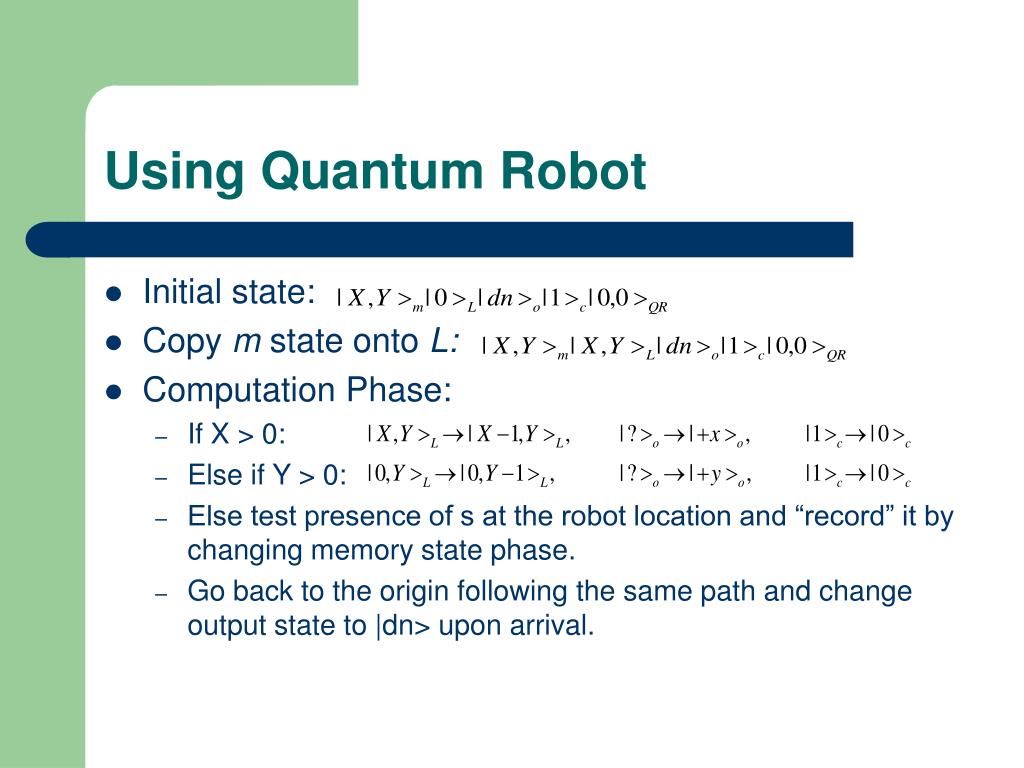

  27. Using Quantum Robot • Initial state: • Copy m state onto L: • Computation Phase: • If X > 0: • Else if Y > 0: • Else test presence of s at the robot location and “record” it by changing memory state phase. • Go back to the origin following the same path and change output state to |dn> upon arrival.

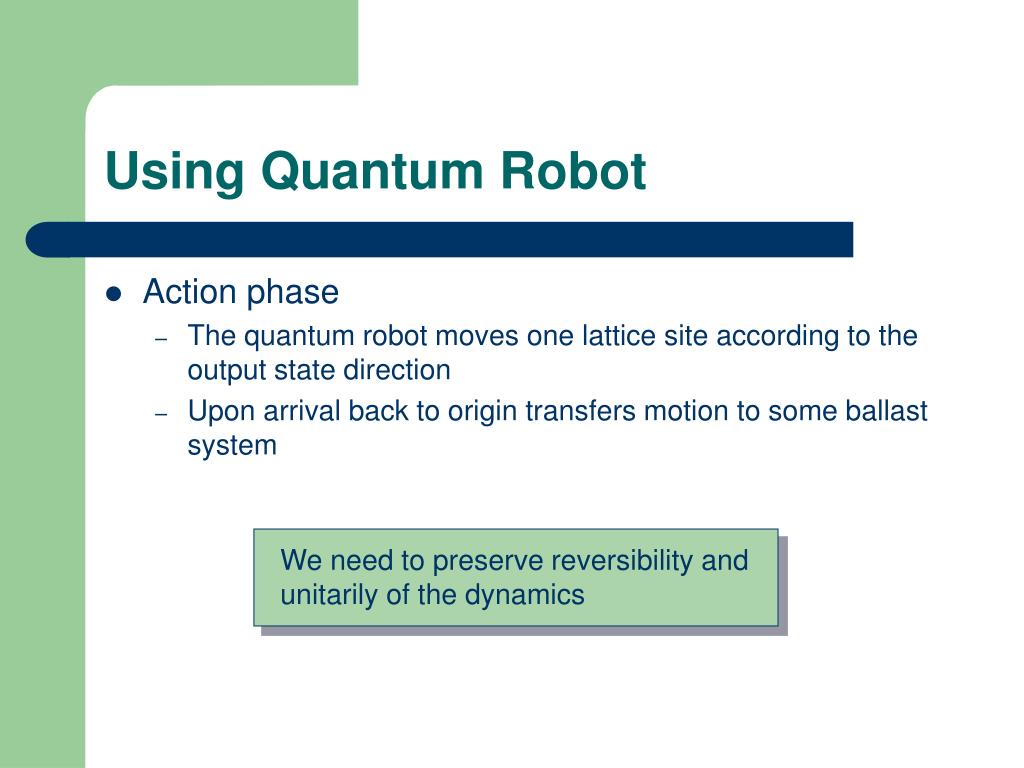

  28. We need to preserve reversibility and unitarily of the dynamics Using Quantum Robot • Action phase • The quantum robot moves one lattice site according to the output state direction • Upon arrival back to origin transfers motion to some ballast system

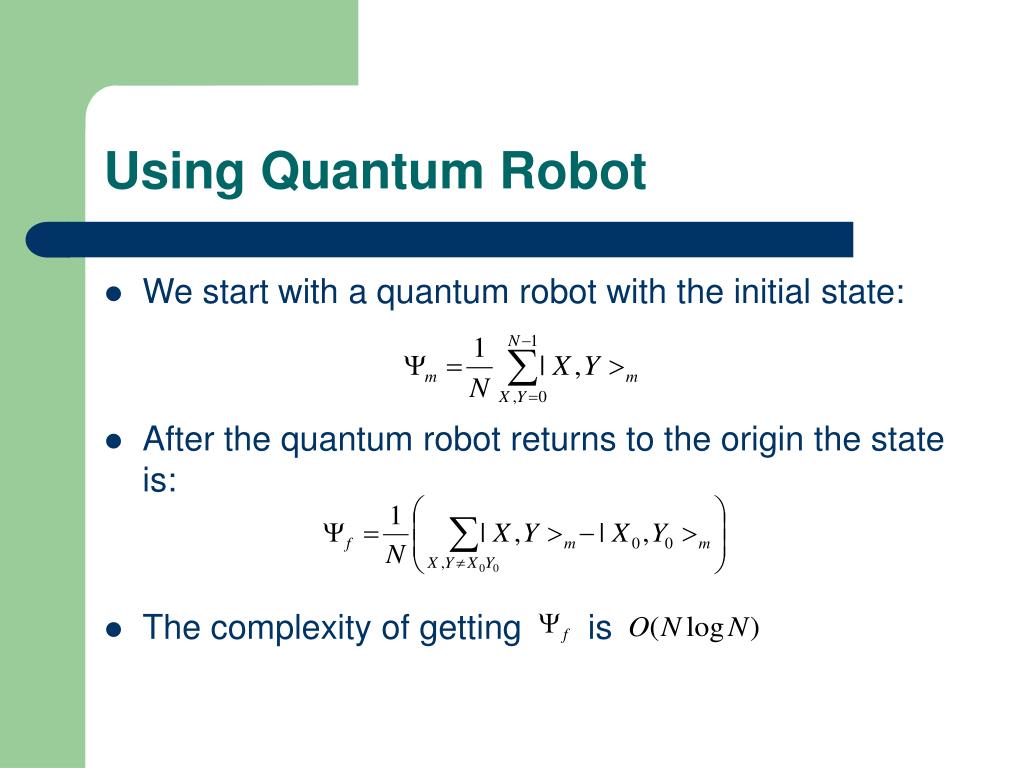

  29. Using Quantum Robot • We start with a quantum robot with the initial state: • After the quantum robot returns to the origin the state is: • The complexity of getting is

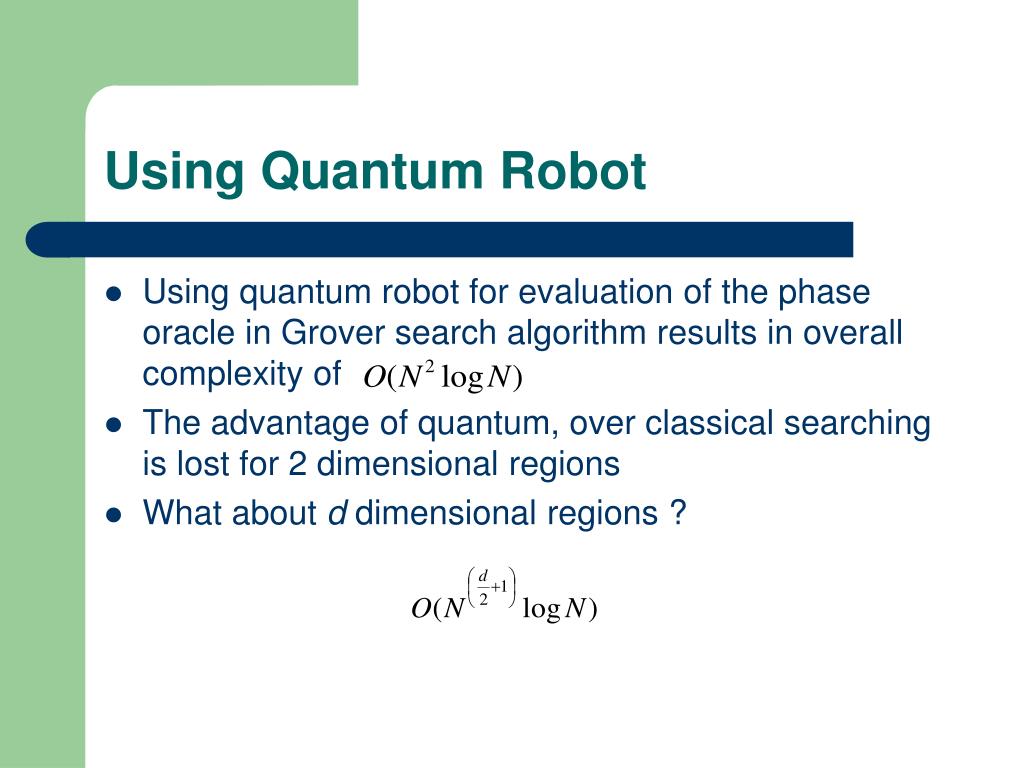

  30. Using Quantum Robot • Using quantum robot for evaluation of the phase oracle in Grover search algorithm results in overall complexity of • The advantage of quantum, over classical searching is lost for 2 dimensional regions • What about d dimensional regions ?

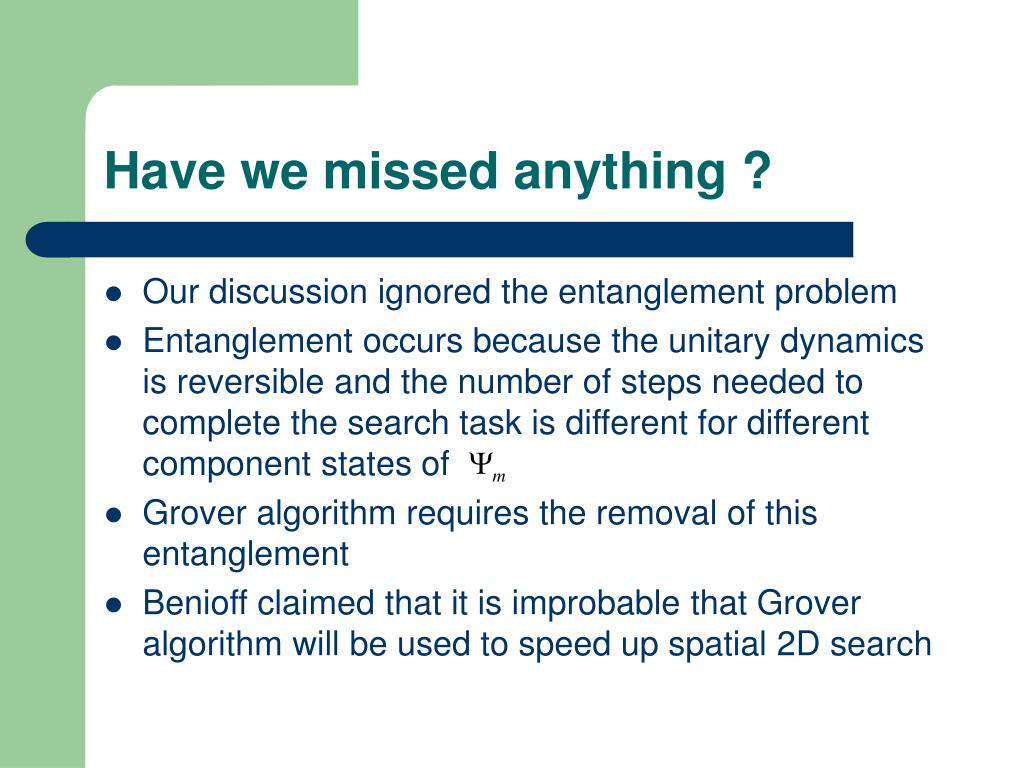

  31. Have we missed anything ? • Our discussion ignored the entanglement problem • Entanglement occurs because the unitary dynamics is reversible and the number of steps needed to complete the search task is different for different component states of • Grover algorithm requires the removal of this entanglement • Benioff claimed that it is improbable that Grover algorithm will be used to speed up spatial 2D search

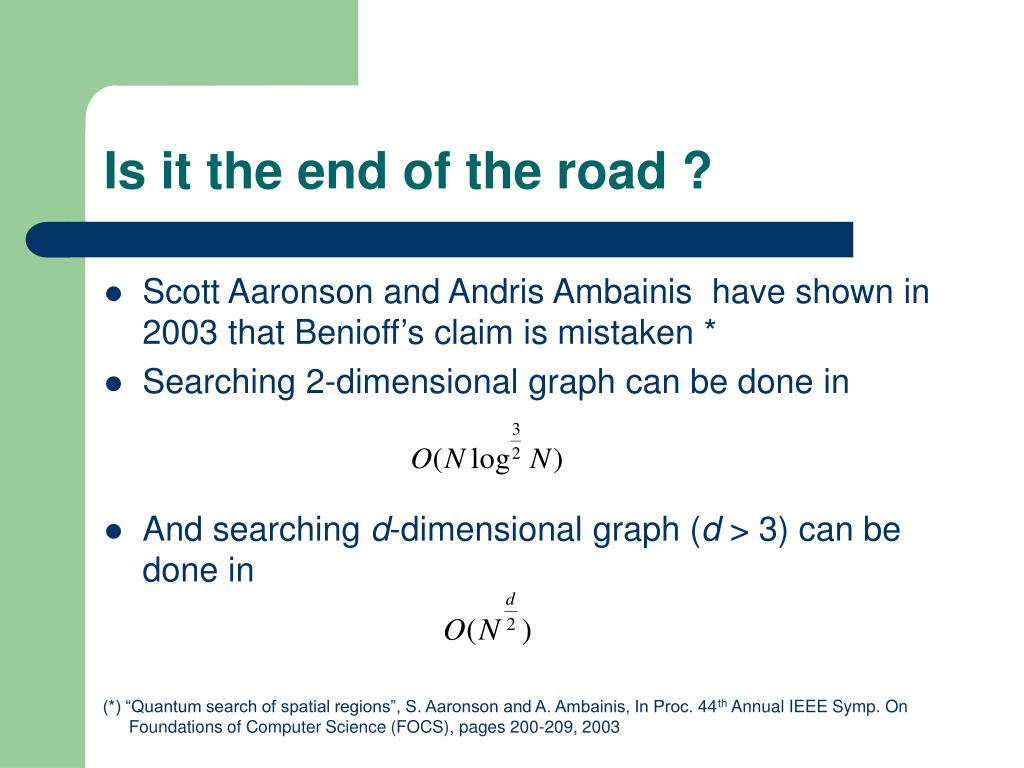

  32. Is it the end of the road ? • Scott Aaronson and Andris Ambainis have shown in 2003 that Benioff’s claim is mistaken * • Searching 2-dimensional graph can be done in • And searching d-dimensional graph (d > 3) can be done in (*) “Quantum search of spatial regions”, S. Aaronson and A. Ambainis, In Proc. 44th Annual IEEE Symp. On Foundations of Computer Science (FOCS), pages 200-209, 2003

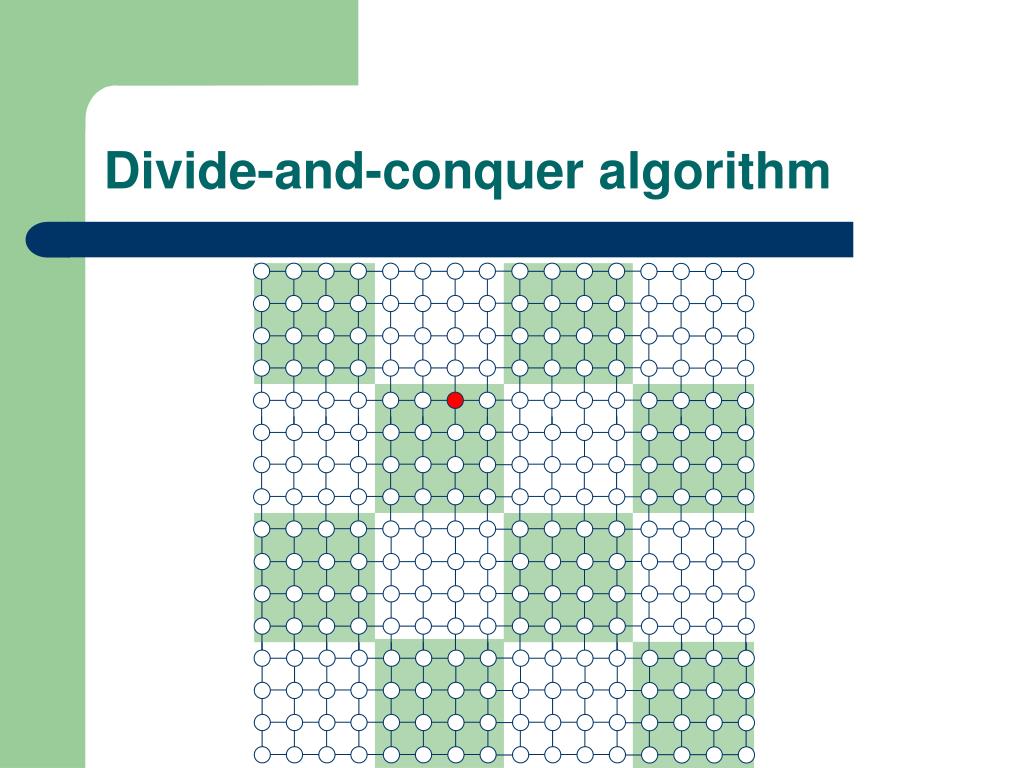

  33. Divide-and-conquer algorithm

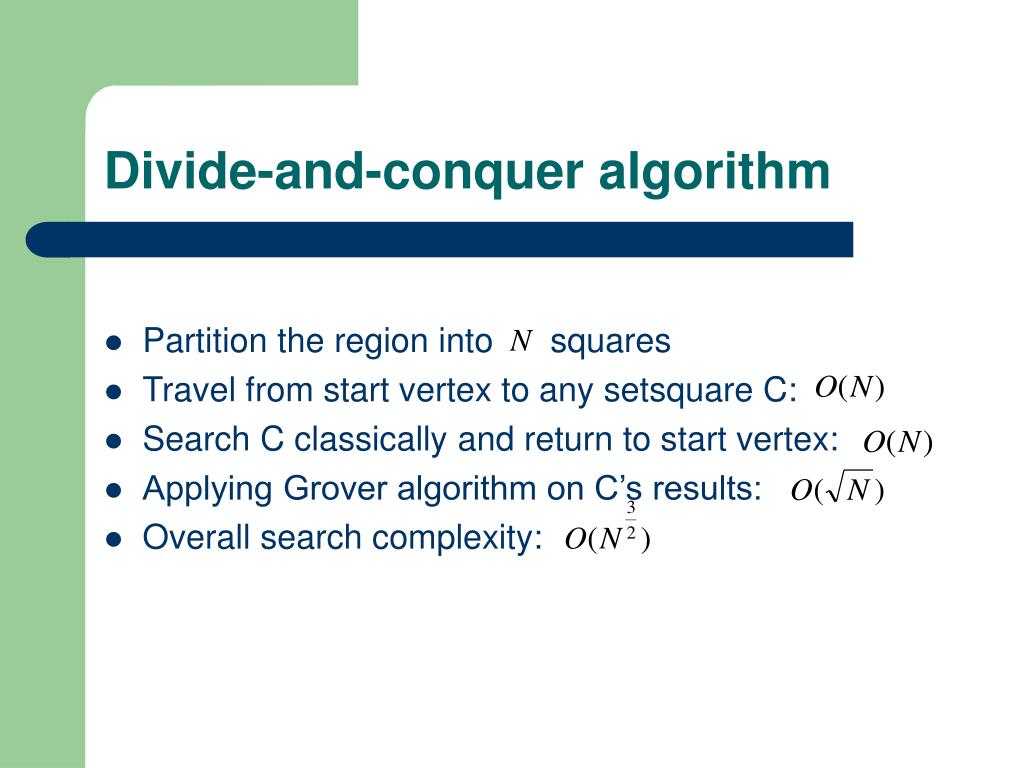

  34. Divide-and-conquer algorithm • Partition the region into squares • Travel from start vertex to any setsquare C: • Search C classically and return to start vertex: • Applying Grover algorithm on C’s results: • Overall search complexity:

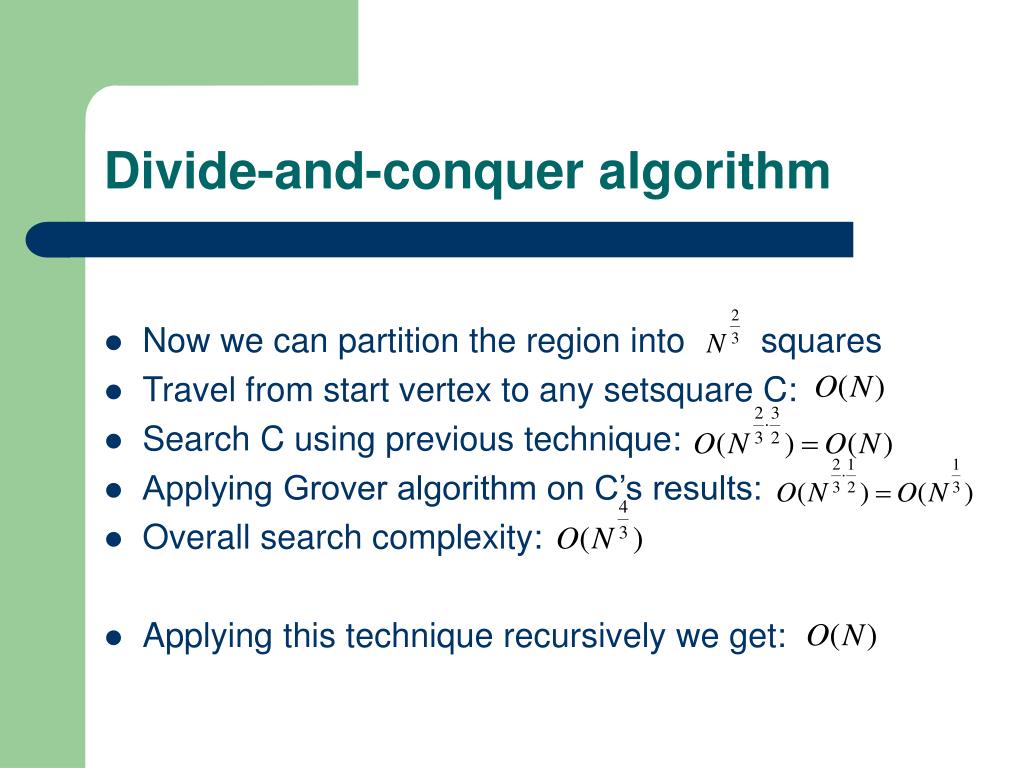

  35. Divide-and-conquer algorithm • Now we can partition the region into squares • Travel from start vertex to any setsquare C: • Search C using previous technique: • Applying Grover algorithm on C’s results: • Overall search complexity: • Applying this technique recursively we get:

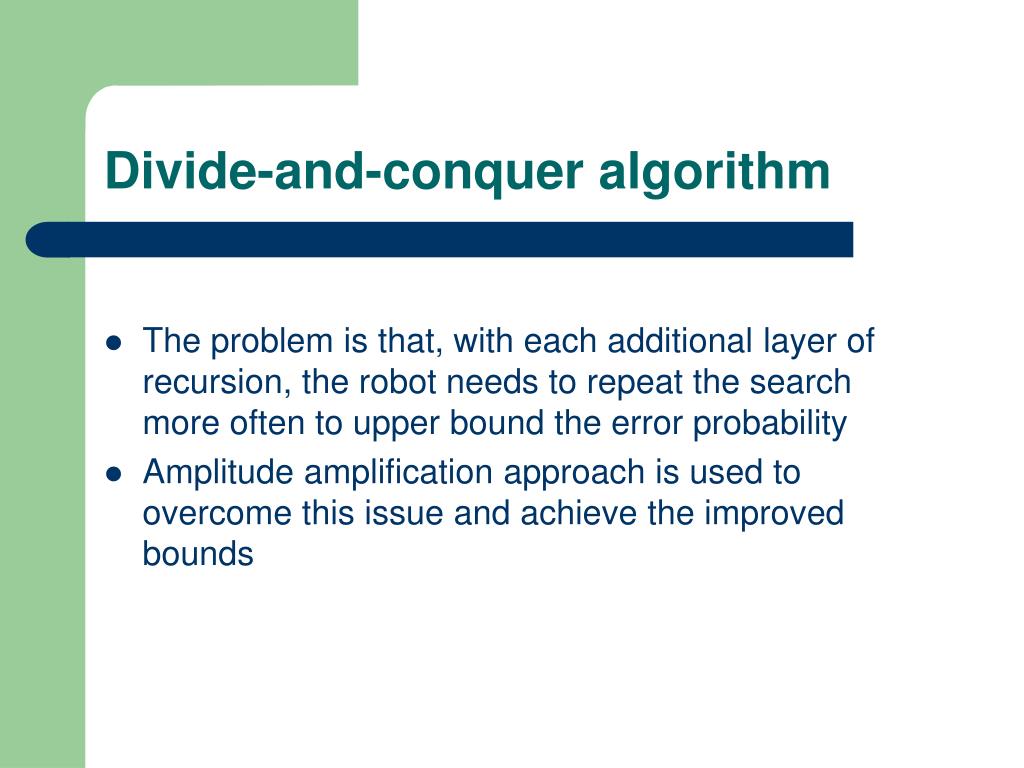

  36. Divide-and-conquer algorithm • The problem is that, with each additional layer of recursion, the robot needs to repeat the search more often to upper bound the error probability • Amplitude amplification approach is used to overcome this issue and achieve the improved bounds

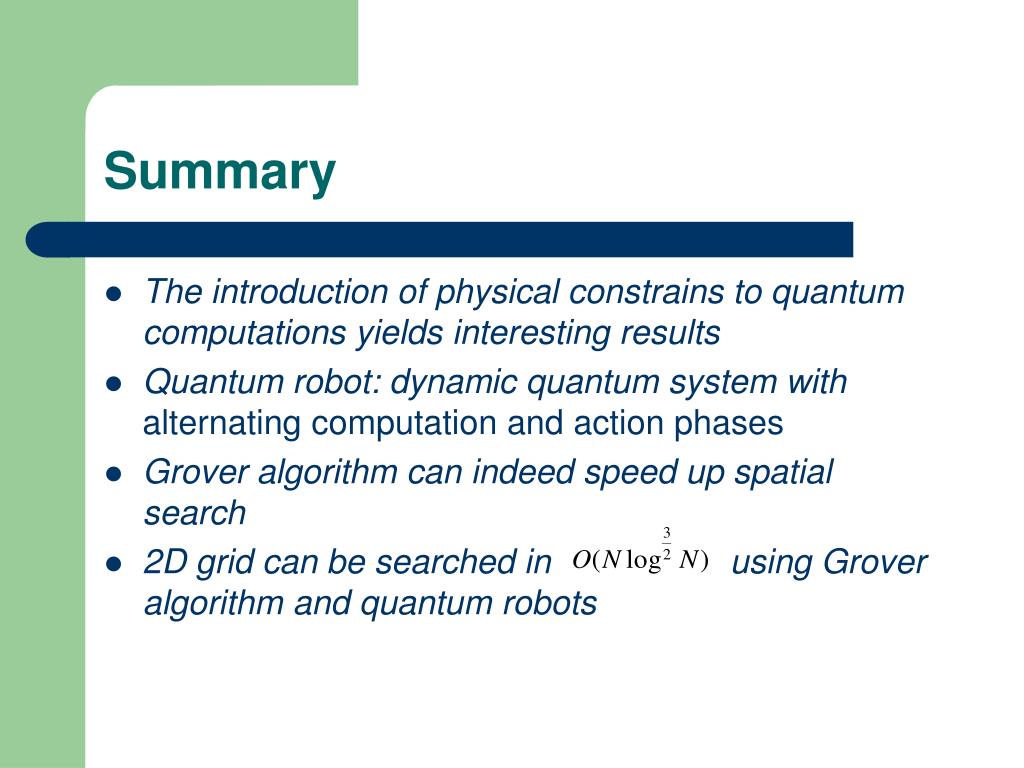

  37. Summary • The introduction of physical constrains to quantum computations yields interesting results • Quantum robot: dynamic quantum system with alternating computation and action phases • Grover algorithm can indeed speed up spatial search • 2D grid can be searched in using Grover algorithm and quantum robots

  38. Quantum Random Walk

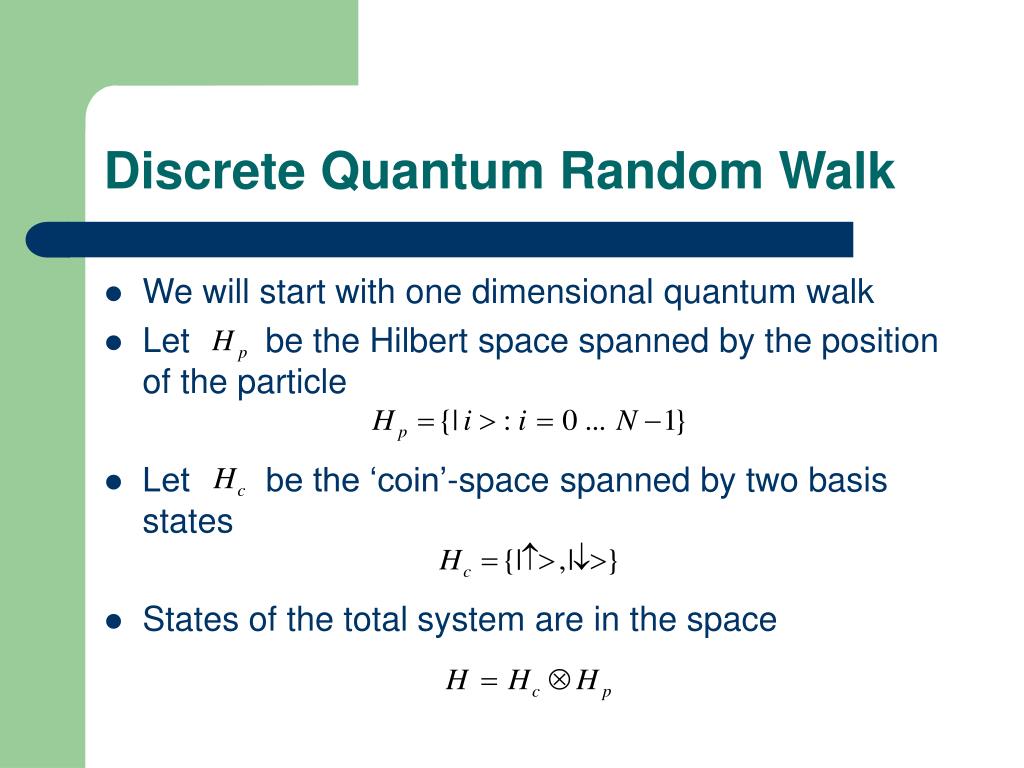

  39. Discrete Quantum Random Walk • We will start with one dimensional quantum walk • Let be the Hilbert space spanned by the position of the particle • Let be the ‘coin’-space spanned by two basis states • States of the total system are in the space

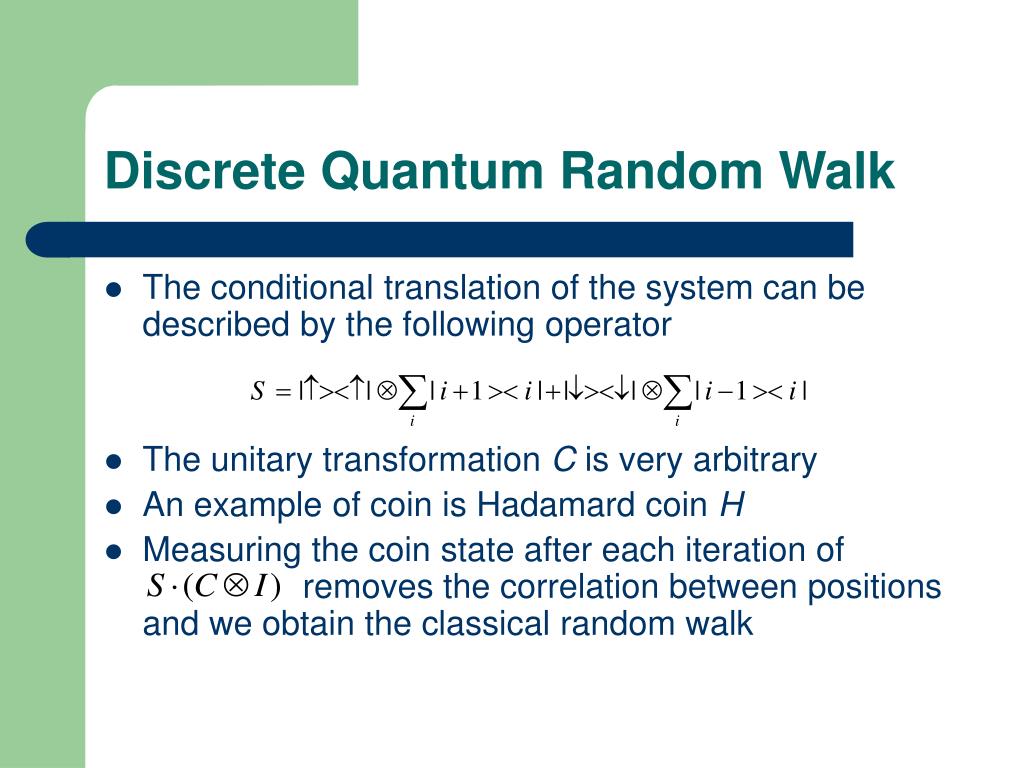

  40. Discrete Quantum Random Walk • The conditional translation of the system can be described by the following operator • The unitary transformation C is very arbitrary • An example of coin is Hadamard coin H • Measuring the coin state after each iteration of removes the correlation between positions and we obtain the classical random walk

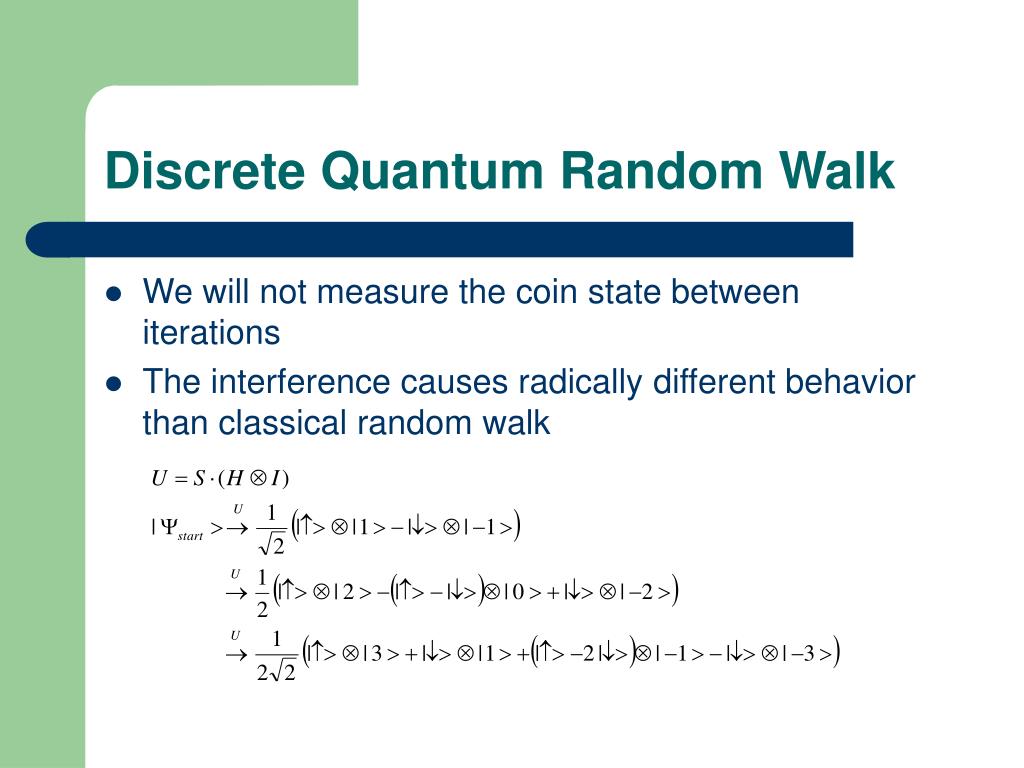

  41. Discrete Quantum Random Walk • We will not measure the coin state between iterations • The interference causes radically different behavior than classical random walk

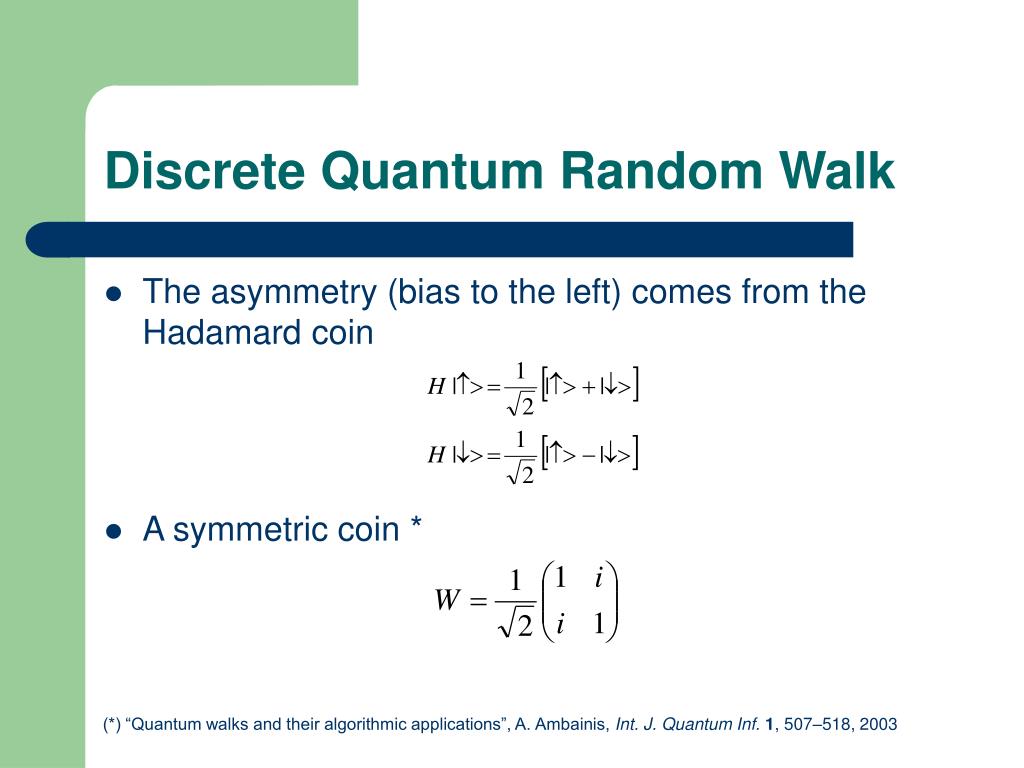

  42. Discrete Quantum Random Walk • The asymmetry (bias to the left) comes from the Hadamard coin • A symmetric coin * (*) “Quantum walks and their algorithmic applications”, A. Ambainis, Int. J. Quantum Inf.1, 507–518, 2003

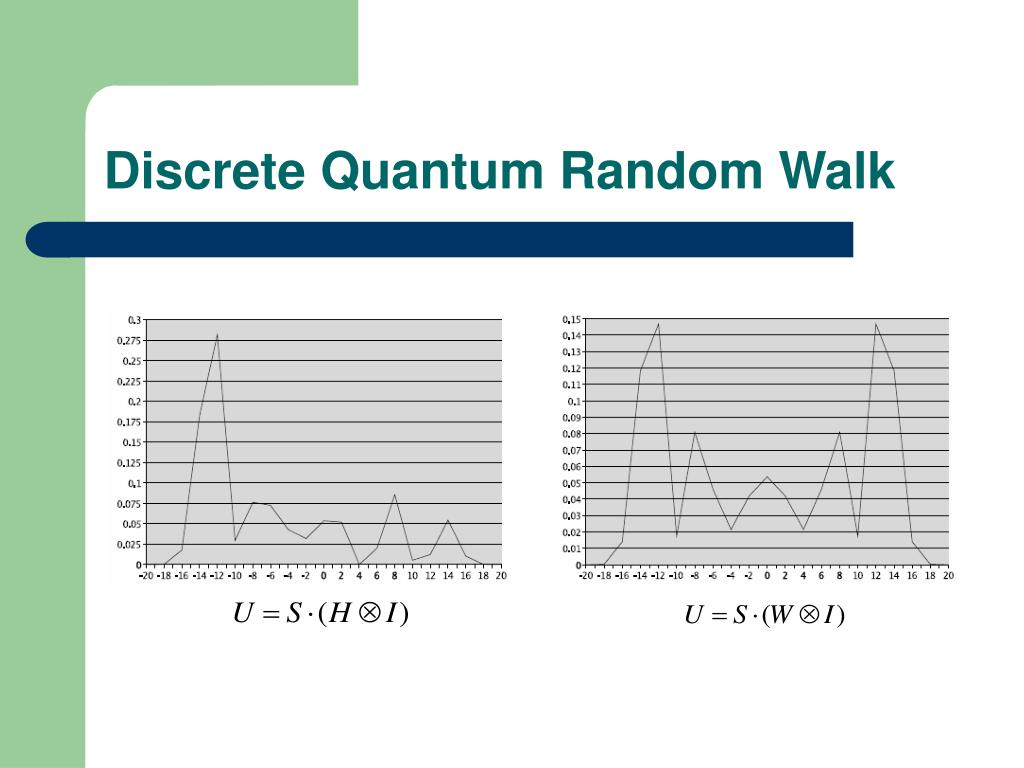

  43. Discrete Quantum Random Walk

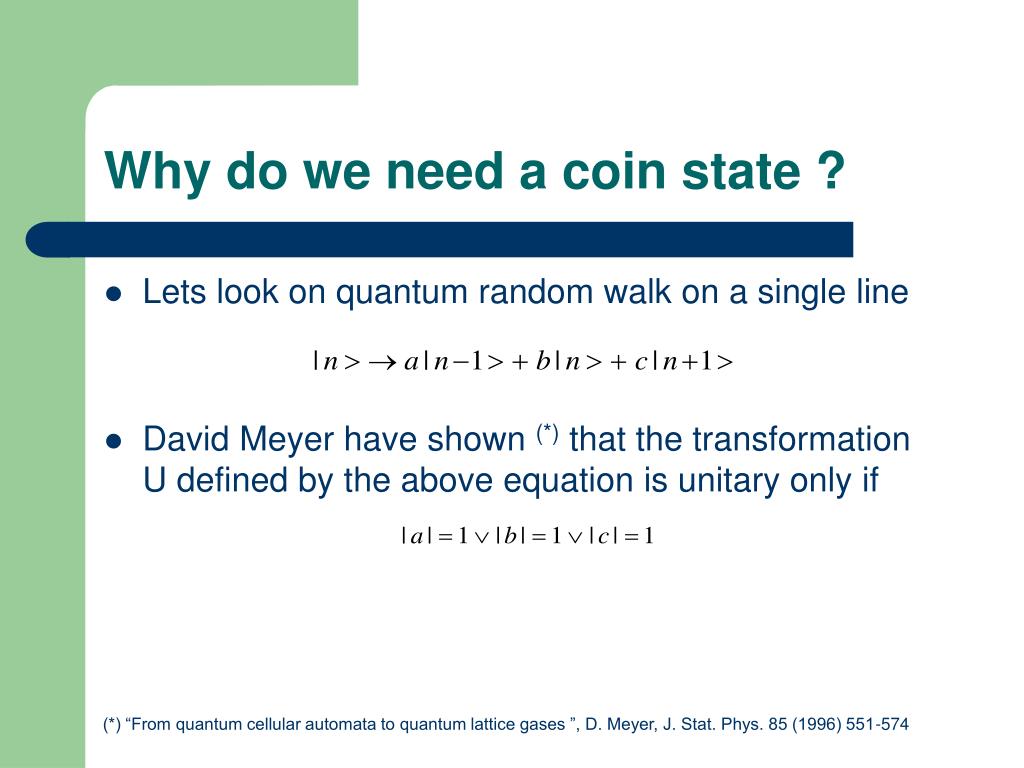

  44. Why do we need a coin state ? • Lets look on quantum random walk on a single line • David Meyer have shown (*) that the transformation U defined by the above equation is unitary only if (*) “From quantum cellular automata to quantum lattice gases ”, D. Meyer, J. Stat. Phys. 85 (1996) 551-574

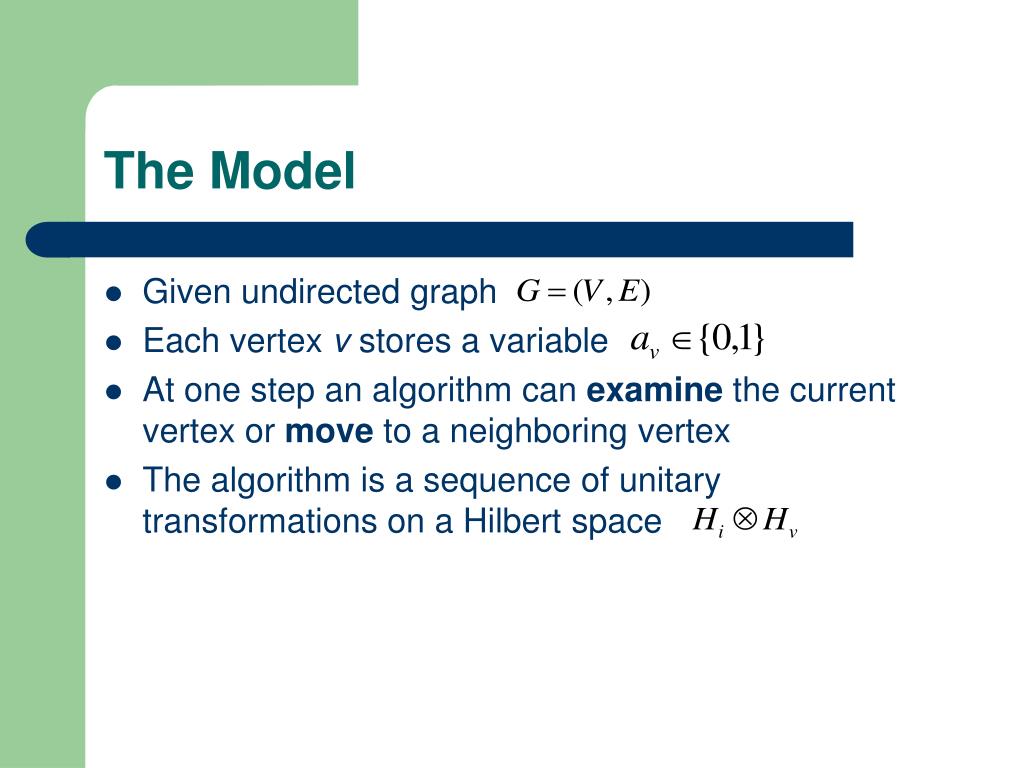

  45. The Model • Given undirected graph • Each vertex v stores a variable • At one step an algorithm can examine the current vertex or move to a neighboring vertex • The algorithm is a sequence of unitary transformations on a Hilbert space

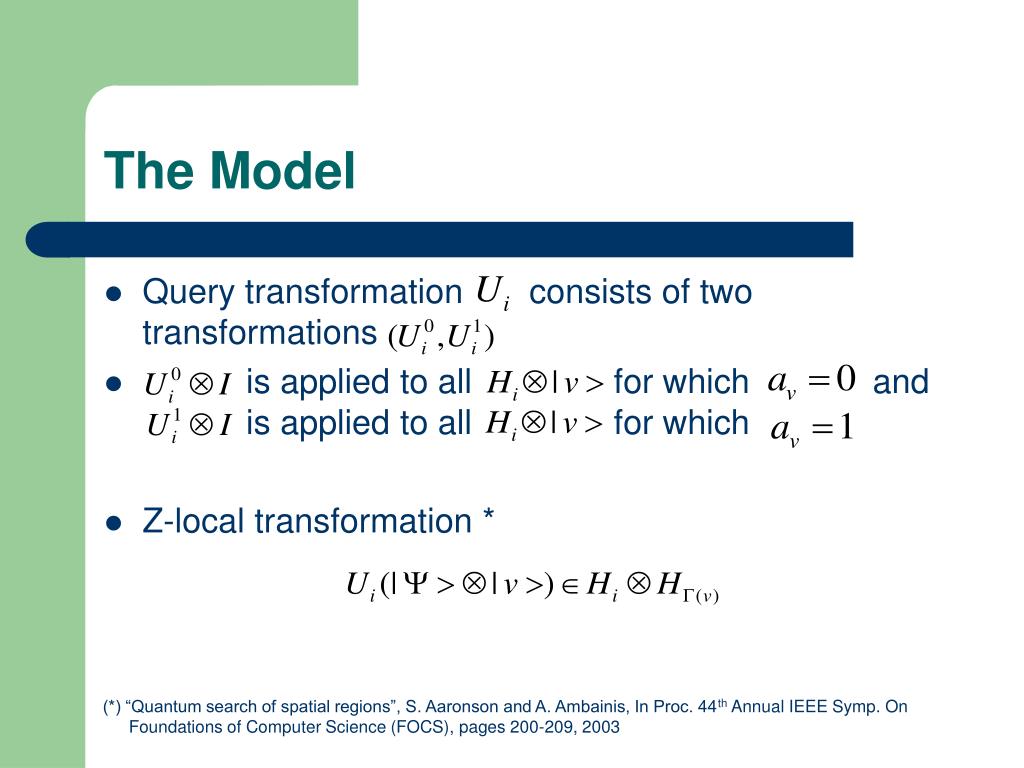

  46. The Model • Query transformation consists of two transformations • is applied to all for which and is applied to all for which • Z-local transformation * (*) “Quantum search of spatial regions”, S. Aaronson and A. Ambainis, In Proc. 44th Annual IEEE Symp. On Foundations of Computer Science (FOCS), pages 200-209, 2003

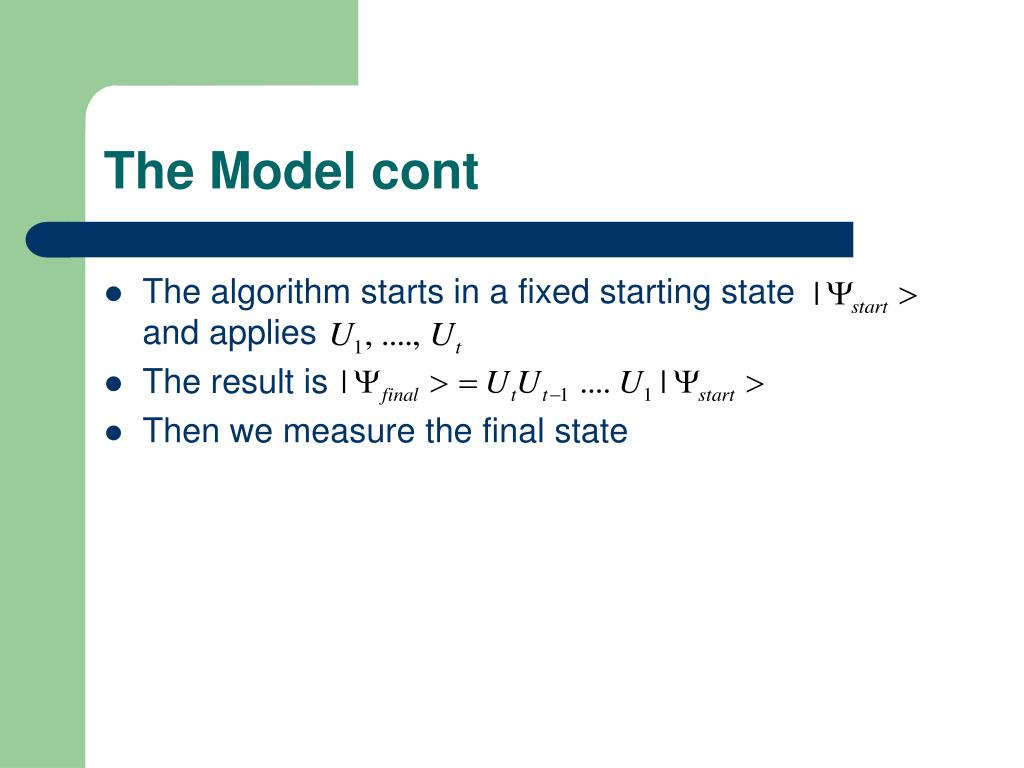

  47. The Model cont • The algorithm starts in a fixed starting stateand applies • The result is • Then we measure the final state

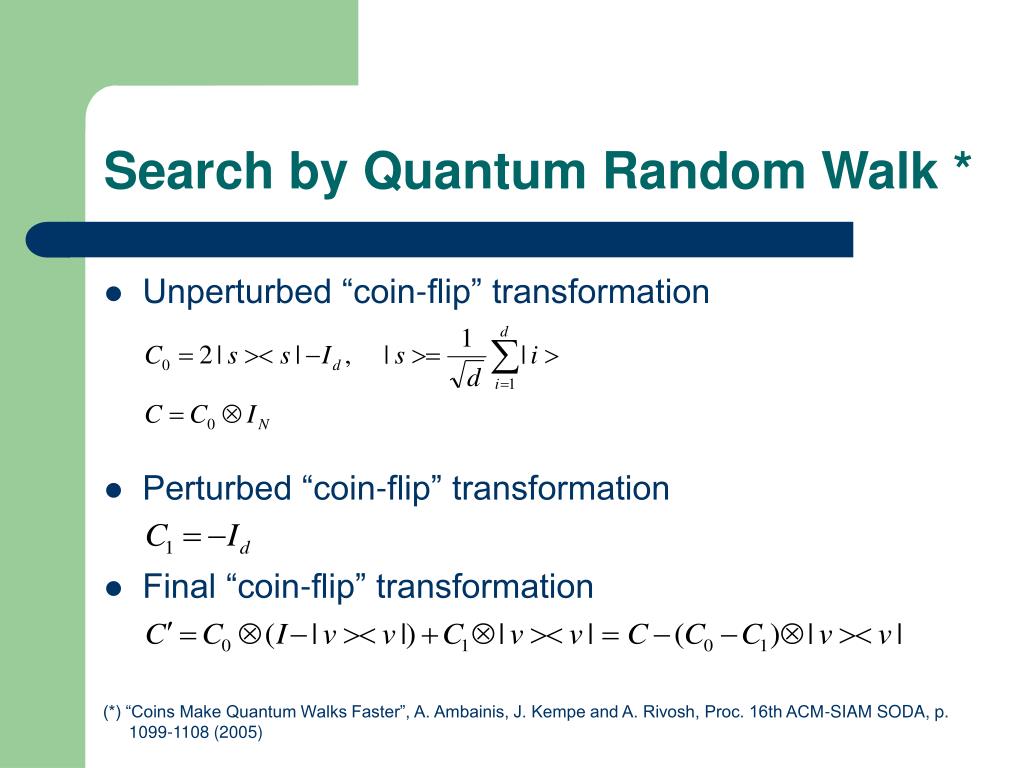

  48. Search by Quantum Random Walk * • Unperturbed “coin-flip” transformation • Perturbed “coin-flip” transformation • Final “coin-flip” transformation (*) “Coins Make Quantum Walks Faster”, A. Ambainis, J. Kempe and A. Rivosh, Proc. 16th ACM-SIAM SODA, p. 1099-1108 (2005)

  49. Search by Quantum Random Walk • S is a shift controlled by the coin register Where is a permutation of the d basis states of the coin space • The “marked walk” operator

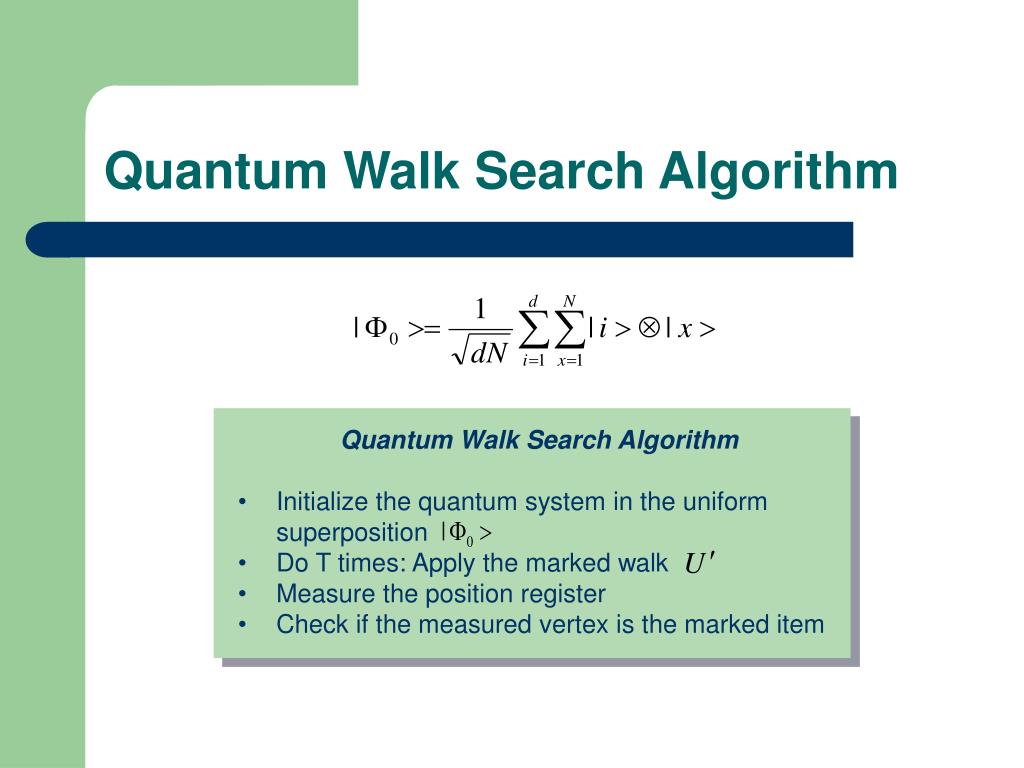

  50. Quantum Walk Search Algorithm • Initialize the quantum system in the uniform superposition • Do T times: Apply the marked walk • Measure the position register • Check if the measured vertex is the marked item Quantum Walk Search Algorithm
