  1. WebMapping Solutions Maurits van der Vlugt Webmapping Team Manager Social Change Online http://webmap.socialchange.net.au Maurits@socialchange.net.au

  2. MapServer MapServer MapServer MapServer Web Browser internet internet MapBroker: “search and display” Metadata Registration ASP - Hosting Generic GUI Builder Geo-referencing Data Publishingservices Webmapping Products and Services Web Map Services Viewer Client Middleware Discovery Display

  3. Selected WebMapping Products • MapBroker • Drives CANRI • MapOrganiser • Generic GUI Builder

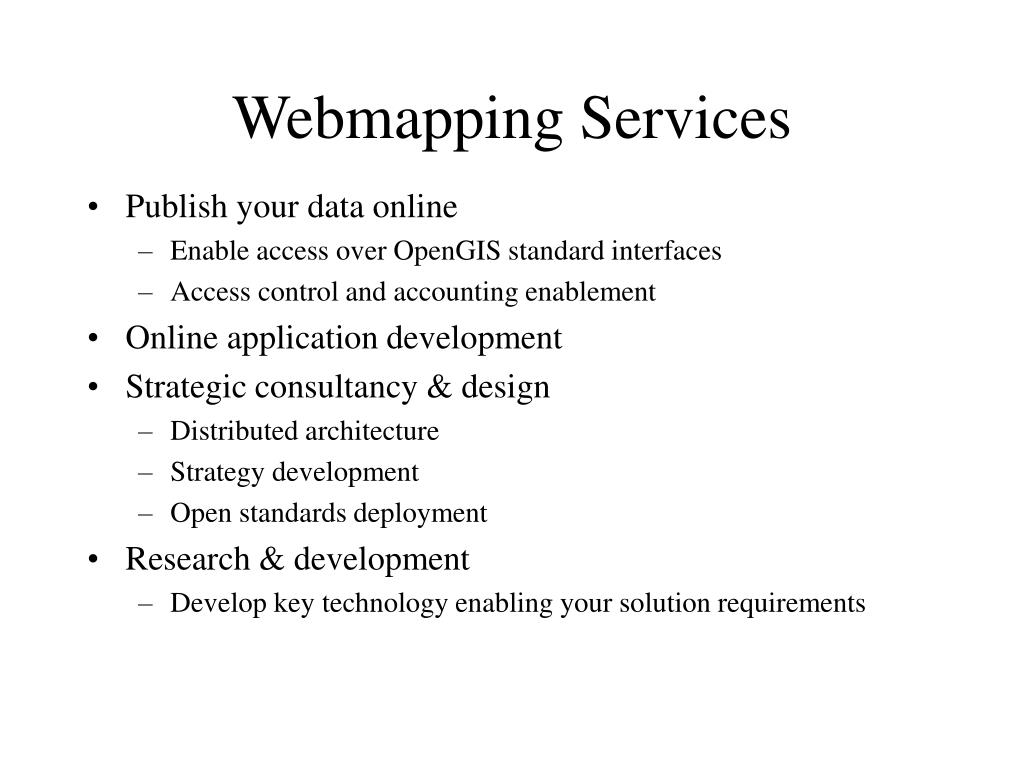

  4. Webmapping Services • Publish your data online • Enable access over OpenGIS standard interfaces • Access control and accounting enablement • Online application development • Strategic consultancy & design • Distributed architecture • Strategy development • Open standards deployment • Research & development • Develop key technology enabling your solution requirements

  5. MapBroker – the engine behind all CANRI applications

  6. Products: Generic GUI Builder • Build your own Interoperable WebMapping Application using our Online Wizard in 30 minutes! • Link to online services (WMS’s and Catalogs) • Save your configuration as XML documents

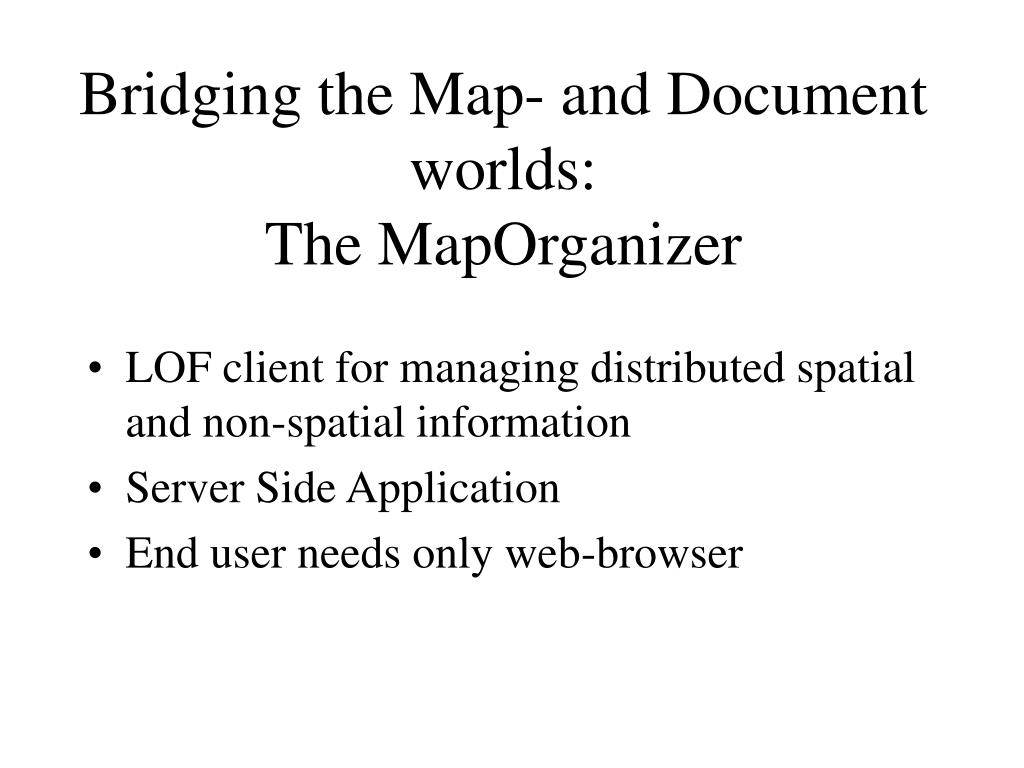

  7. Bridging the Map- and Document worlds: The MapOrganizer • LOF client for managing distributed spatial and non-spatial information • Server Side Application • End user needs only web-browser

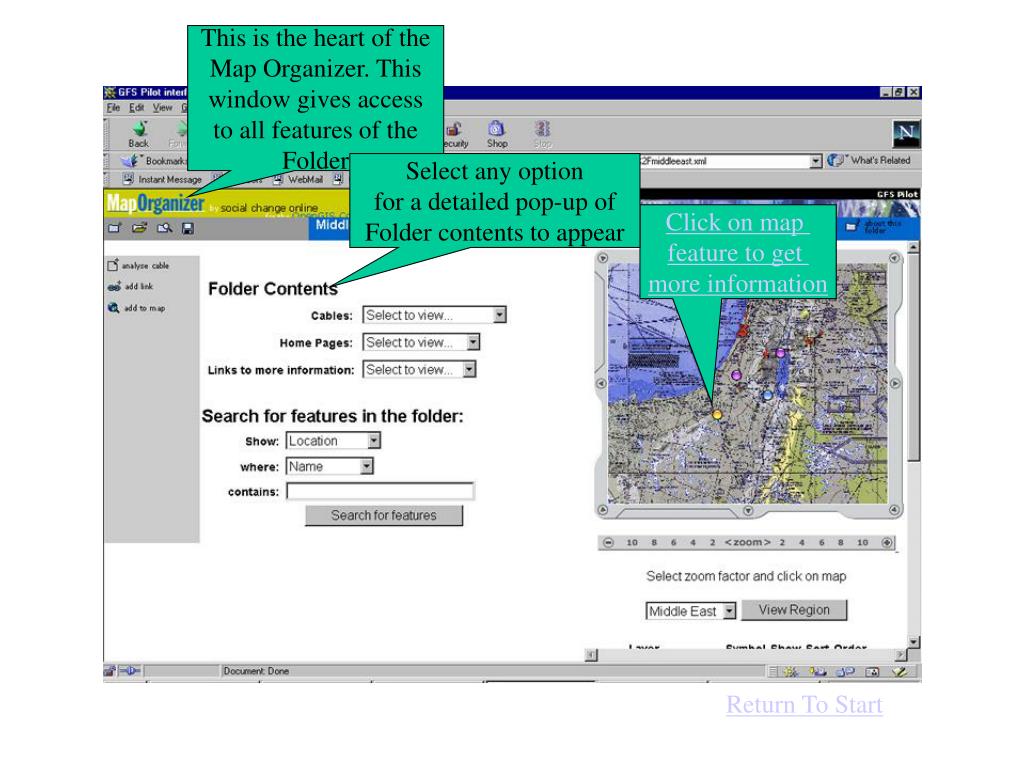

  8. Main Window This is the heart of the Map Organizer. This window gives access to all features of the Folder Select any option for a detailed pop-up of Folder contents to appear Click on map feature to get more information Return To Start

  9. Analyze text source Select a text source: Either a collection of articles, or a URL to parse, or enter text Select to use all available vocabularies for parsing, or a single vocabulary Back

  10. The geoparsed results from the selected articles Geoparsed results The “view source” button results in source text to be displayed in the right window pane The parsed text, with identified terms highlighted

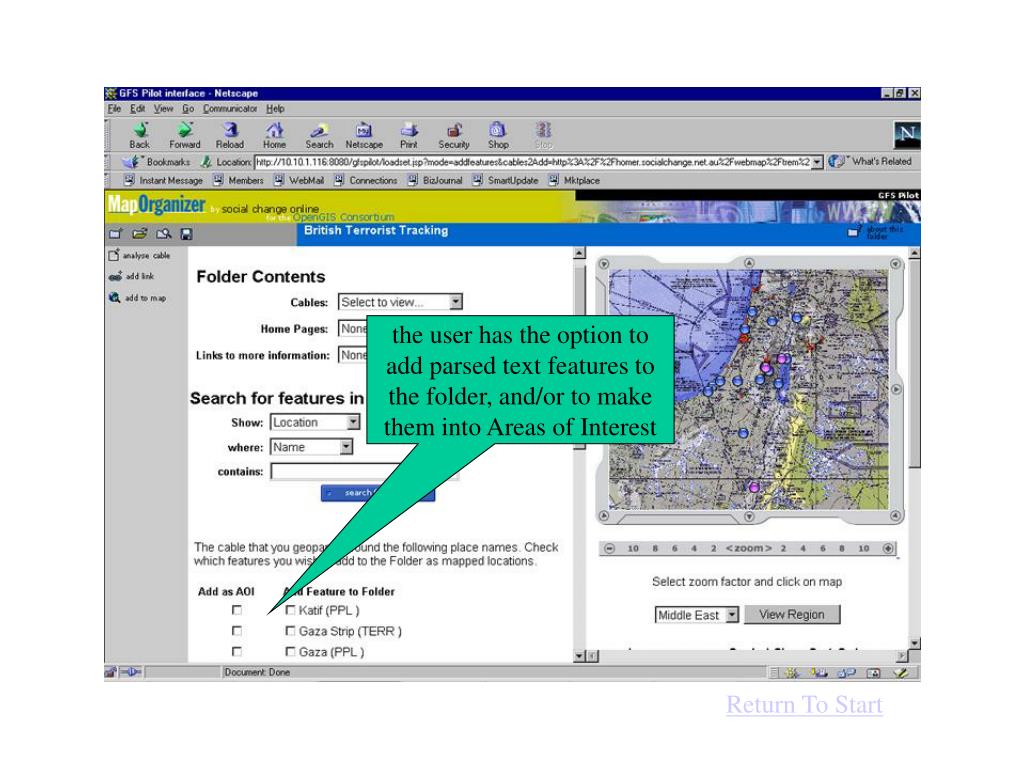

  11. New features added to Folder the user has the option to add parsed text features to the folder, and/or to make them into Areas of Interest Return To Start

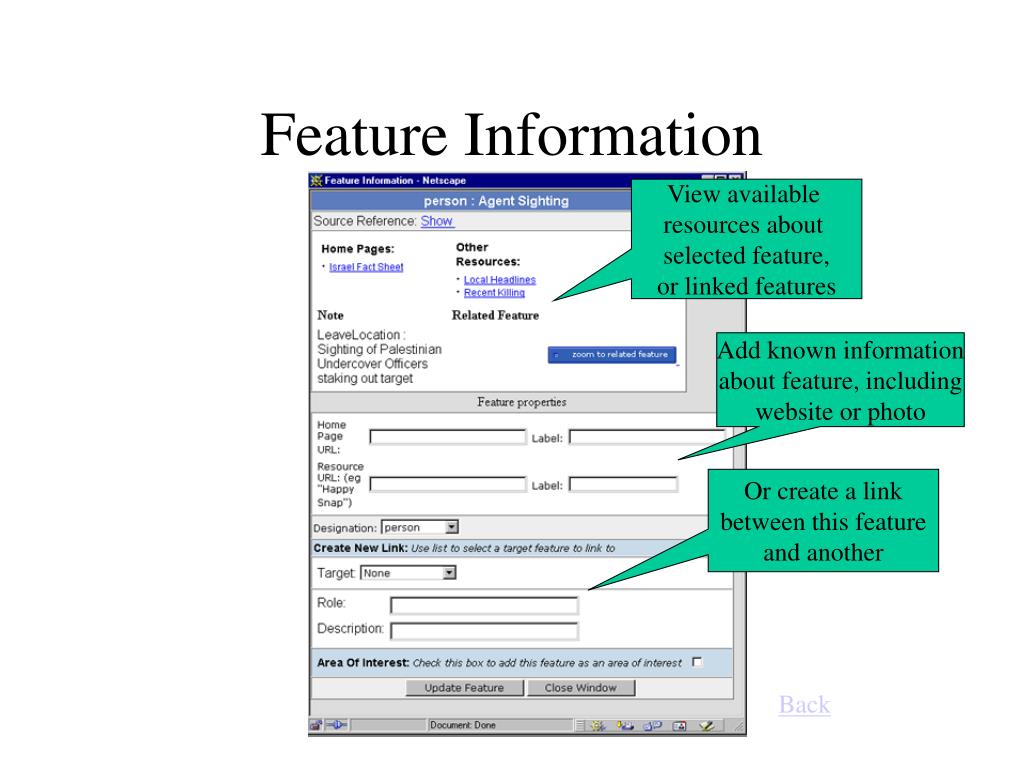

  12. Feature Information View available resources about selected feature, or linked features Add known information about feature, including website or photo Or create a link between this feature and another Back

  13. Some of our clients • US Government • OpenGIS Consortium • New South Wales government • National Parks & Wildlife Service • Department of Land and Water Conservation • NSW OIT • Federal government • AGSO • Australian Museum

  14. Some practical solutions

  15. A single interface allows planners and river managers to better understand past and current relationships between river flows, land use, weather and other factors. US local and federal Government agencies are using this project to better manage the flood plain of the Upper Susquehanna-Lackawanna. (This project is a private implementation. Demos can be arranged on application to Social Change Online) Flood Plain Management

  16. Wildlife Atlashttp://wildlifeatlas.npws.nsw.gov.au/

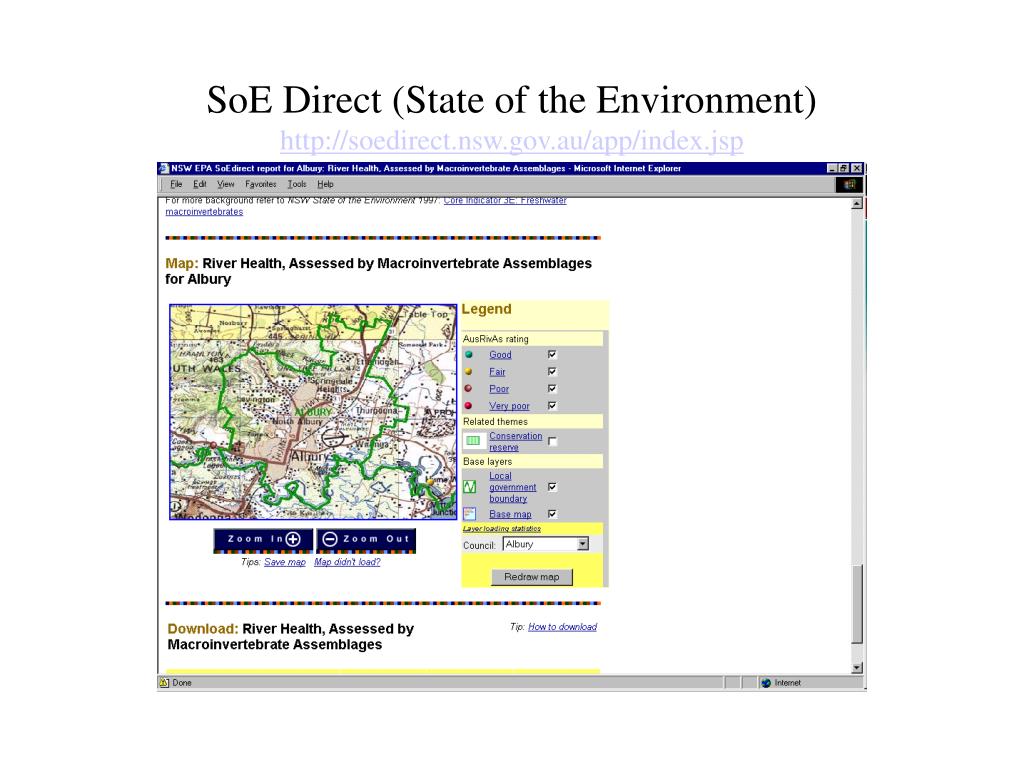

  17. SoE Direct (State of the Environment) http://soedirect.nsw.gov.au/app/index.jsp

  18. Summary • Products • MapBroker Fuse distributed data, vendor independent, on the fly • Generic GUI BuilderBuild your own WebMapping application in 30 minutes • MapOrganiserManage geographic and non-geographic data in a single view • Services • Online application development • Internet strategy development

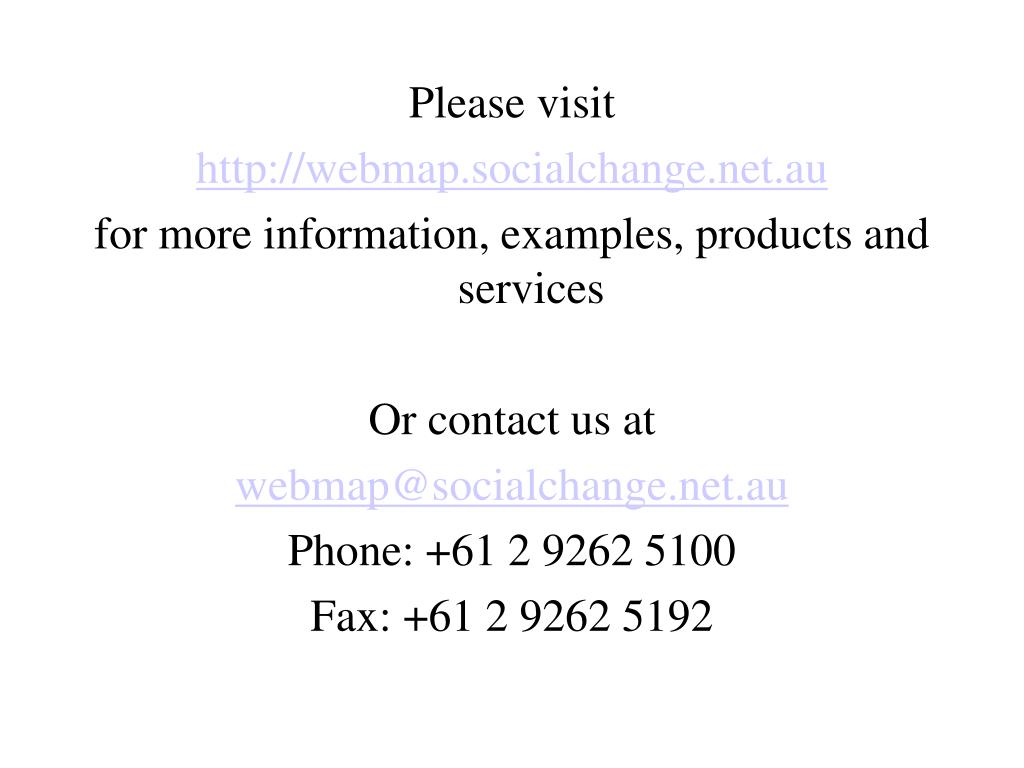

  19. Please visit http://webmap.socialchange.net.au for more information, examples, products and services Or contact us at webmap@socialchange.net.au Phone: +61 2 9262 5100 Fax: +61 2 9262 5192
