CSC 308 – Graphics Programming Java 3D – New Geometry Content Information from online tutorial at http://java.sun.com/developer/onlineTraining/java3d/ Dr. Paige H. Meeker Computer Science Presbyterian College, Clinton, SC
Creating New Content in Java 3D There are three major ways to create new geometric content using Java3D: • Use the Geometric Utility Classes • Specify Vertex Coordinates • Use a Geometry Loader
Shape3D Objects • Defines a visual object • Can only be a leaf of the scene graph • Does not contain information about shape or color • Refers to node component objects to obtain geometry and appearance
Node Components • Contain exact specifications of attributes of visual objects
Geometry Utility Classes • Box • Cone • Cylinder • Sphere • Inside the com.sun.j3d.utils.geometry package
Creating a Yoyo using two cones public ConeYoyo() { yoyoBG = new BranchGroup(); Transform3D rotate = new Transform3D(); Appearance yoyoAppear = new Appearance(); rotate.rotZ(Math.PI/2.0d); TransformGroup yoyoTGR1 = new TransformGroup(rotate); translate.set(new Vector3f(0.1f,0.0f,0.0f); TransformGroup yoyoTGT1 = new TransformGroup(translate); Cone cone1 = new Cone(0.6f, 0.2f); cone1.setAppearance(yoyoAppear); yoyoBG.addChild(yoyoTGT1); yoyoTGT1.addChild(yoyoTGR1); yoyoTGR1.addChild(cone1); translate.set(newVector3f(-0.1f, 0.0f, 0.0f); TransformGroup yoyoTGT2 = new TransformGroup(translate); rotate.rotZ(-Math.PI/2.0d); TransformGroup yoyoTGR2 = new TransformGroup(rotate); Cone cone2 = new Cone(0.6f, 0.2f); cone2.setAppearance(yoyoAppear); yoyoBG.addChild(yoyo.TGT2); yoyoTGT2.addChild(yoyoTGR2); yoyoTGR2.addChild(cone2); yoyoGB.compile(); } // end of ConeYoyo constructor
Mathematical Classes • Found in javax.vecmath.* • Each vertex of a visual object made up of up to four javax.vecmath objects – commonly: • Point (for coordinates) • Color (for colors) • Vector (for surface normals) • TexCoord (for texture coordinates)
Point* • Point classes represent • the coordinates of a vertex • Position of a raster image • Point light sources • Spatial location of a sound

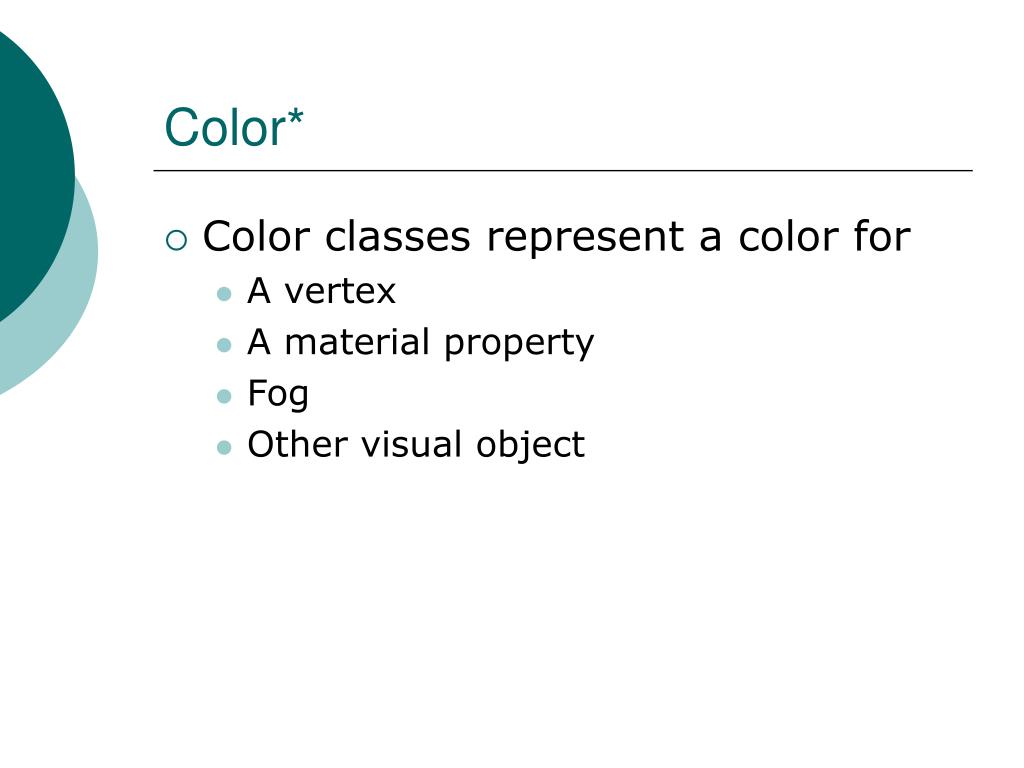

Color* • Color classes represent a color for • A vertex • A material property • Fog • Other visual object
Vector* • Vector classes represent • A surface normal • Direction of light source • Direction of sound source
TexCoord* • Two types – used to represent a set of texture coordinates at a vertex • TexCoord2f – maintains texture coordinates as an (s,t) coordinate pair • TexCoord3f – maintains texture coordinates as an (s,t,r) coordinate triple
Appearance Bundle • Refers to several different NodeComponent subclasses called appearance attribute objects • PointAttributes • LineAttributes • PolygonAttributes • ColoringAttributes • TransparencyAttributes • RenderingAttributes • Material • TextureAttributes • Texture • TexCoordGeneration
Sharing NodeComponent Objects Sharing NodeComponent Objects can enhance performance
Back Face Culling • Polygons have two faces. For many visual objects, only one needs to be rendered, so the renderer can cull the unnecessary faces. • Front face is the face for which the vertices are defined in counter-clockwise order. • By default, back faces are culled
Not Culling • Sometimes backface culling is a problem – you can turn it off.
