  1. An Interactive Virtual Endoscopy Tool With Automated Path Generation Delphine Nain, MIT AI Laboratory. Thesis Advisor: W. Eric. L Grimson, MIT AI Laboratory.

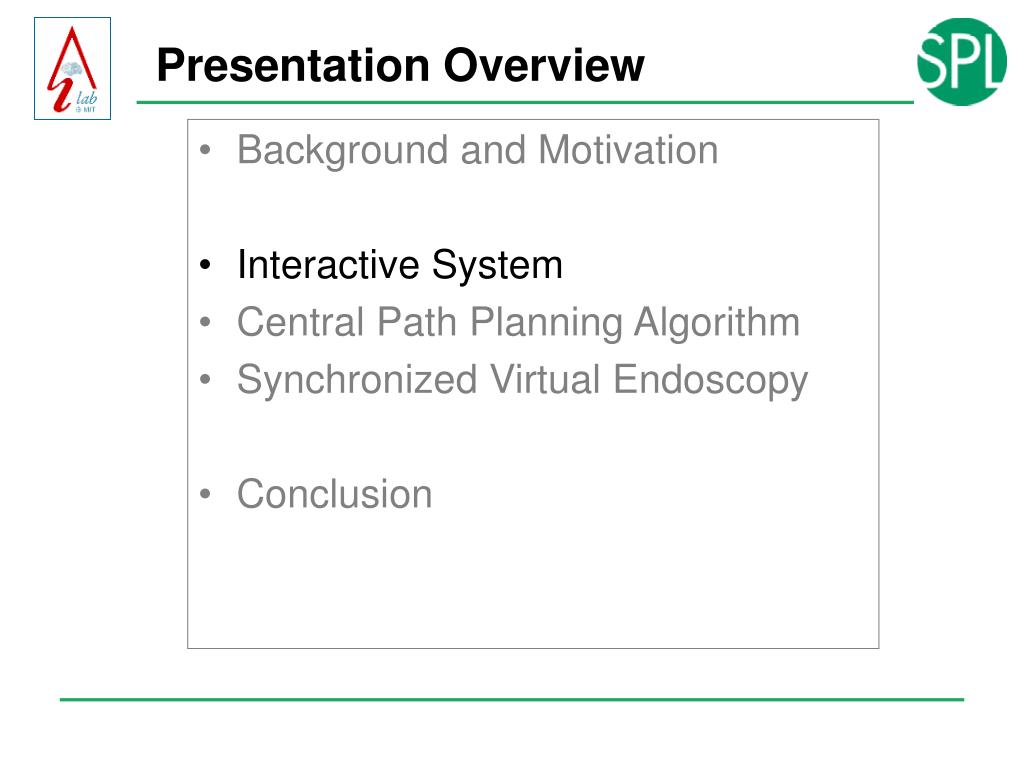

  2. Presentation Overview • Background and Motivation • Interactive System • Central Path Planning Algorithm • Synchronized Virtual Endoscopy • Conclusion

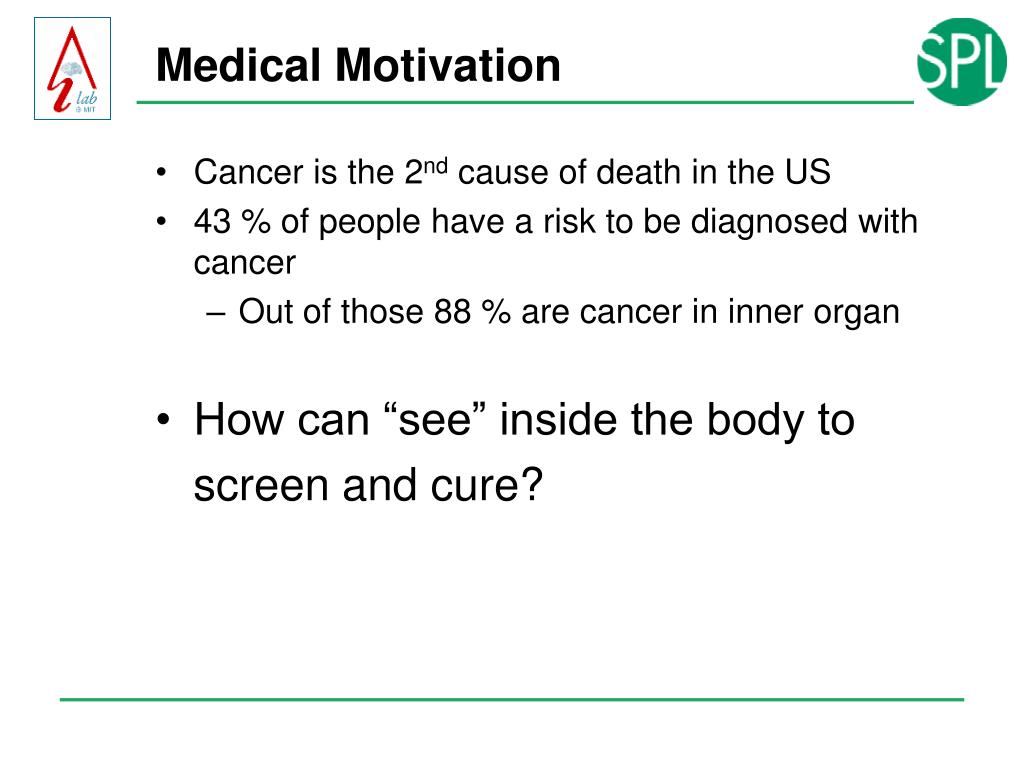

  3. Medical Motivation • Cancer is the 2nd cause of death in the US • 43 % of people have a risk to be diagnosed with cancer • Out of those 88 % are cancer in inner organ • How can “see” inside the body to screen and cure?

  4. Conventional Endoscopy • advantages: • minimally invasive • high resolution • interactivity • disadvantages: • can be painful and uncomfortable • limited exploration

  5. Conventional Medical Imaging

  6. Conventional Visualization • advantages: • non invasive • information on tissue shape through and beyond walls of organ • disadvantages: • mentally align contiguous slides • lower resolution than video

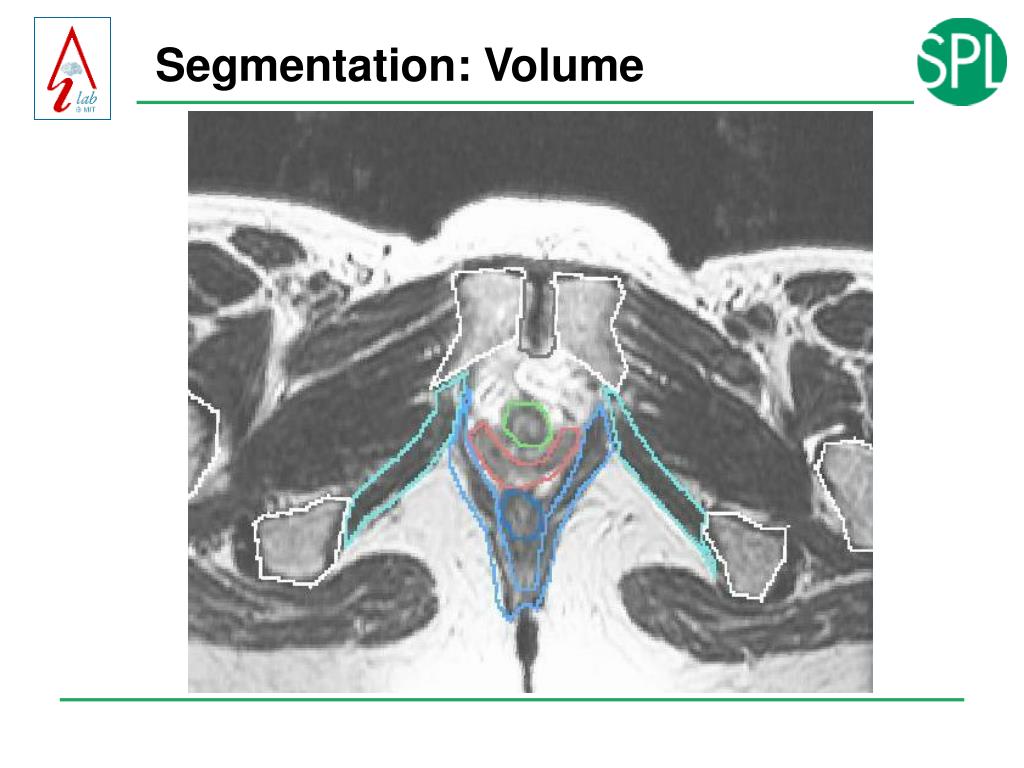

  7. Segmentation: Volume

  8. 3D Reconstruction : Model

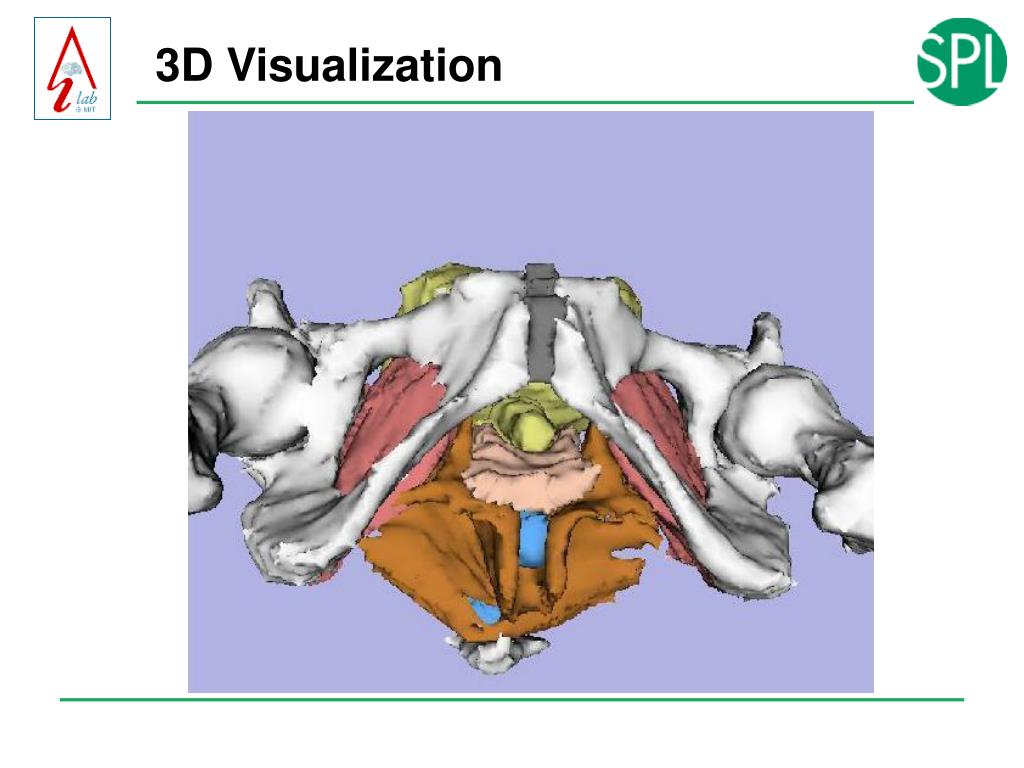

  9. 3D Visualization

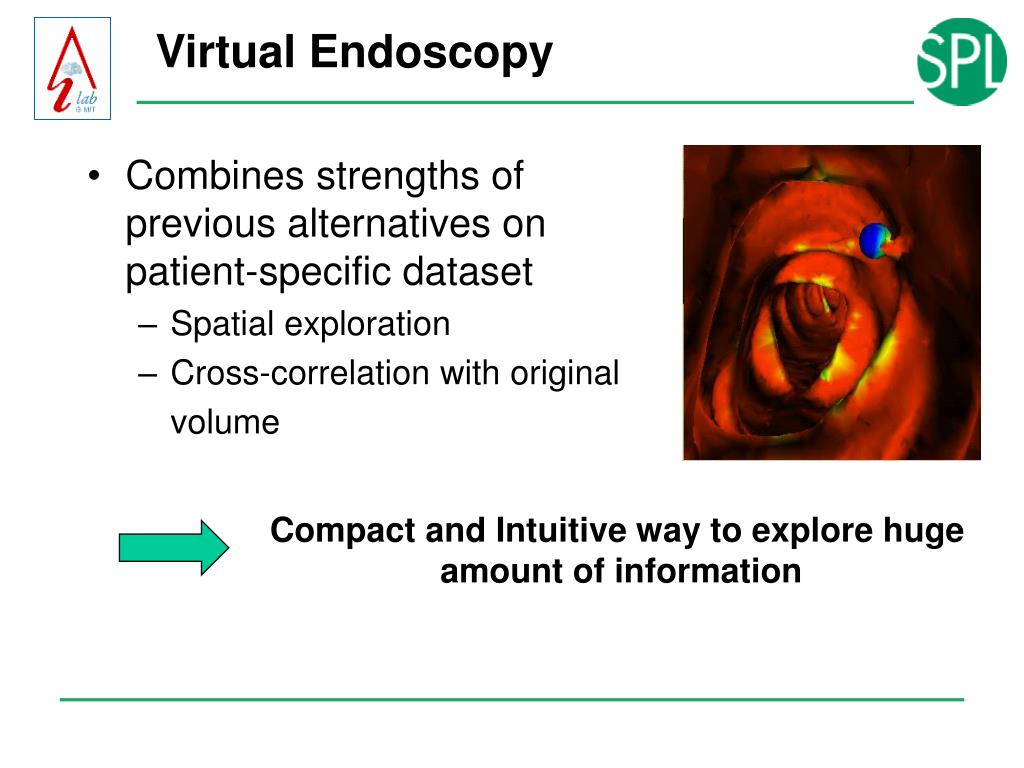

  10. Virtual Endoscopy • Combines strengths of previous alternatives on patient-specific dataset • Spatial exploration • Cross-correlation with original volume Compact and Intuitive way to explore huge amount of information

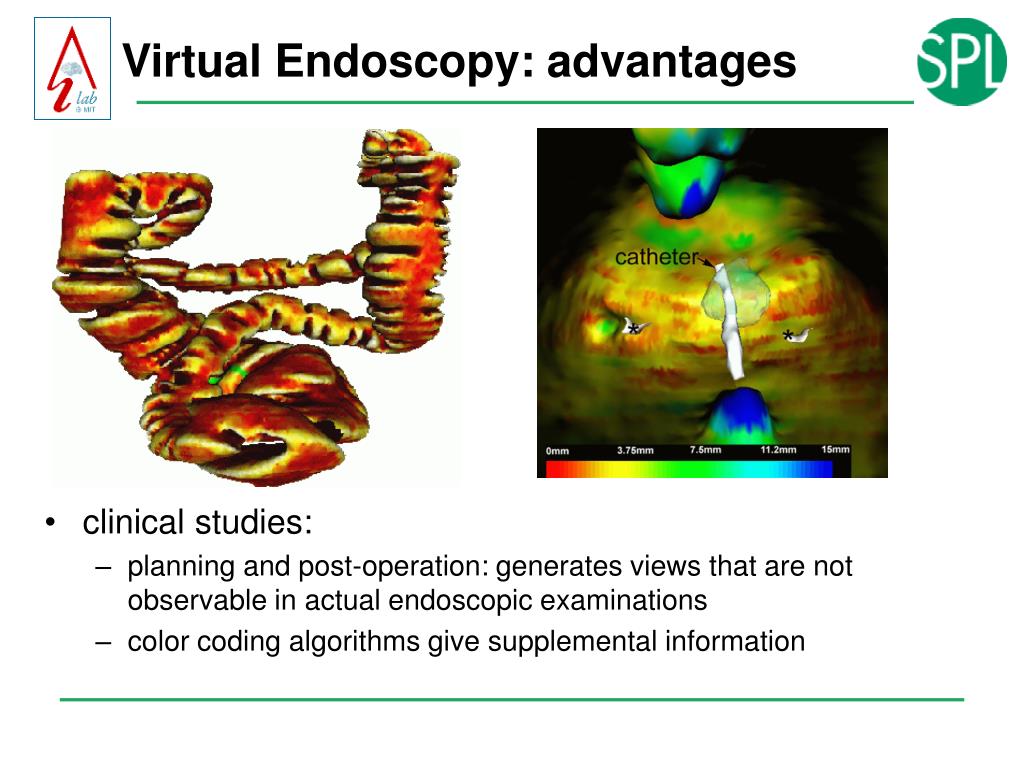

  11. Virtual Endoscopy: advantages • clinical studies: • planning and post-operation: generates views that are not observable in actual endoscopic examinations • color coding algorithms give supplemental information

  12. Virtual Colonoscopy

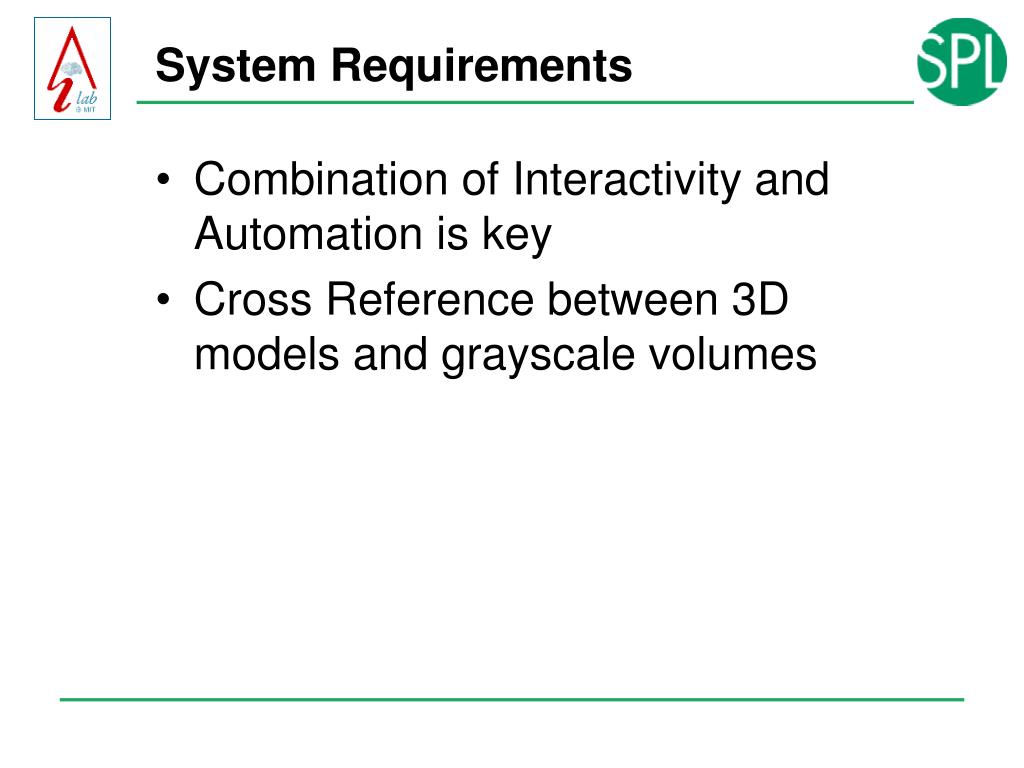

  13. System Requirements • Combination of Interactivity and Automation is key • Cross Reference between 3D models and grayscale volumes

  14. Presentation Overview • Background and Motivation • Interactive System • Central Path Planning Algorithm • Synchronized Virtual Endoscopy • Conclusion

  15. Display

  16. Navigation Interface

  17. Cross Reference Provided by Arjan Welmers

  18. Path: Update

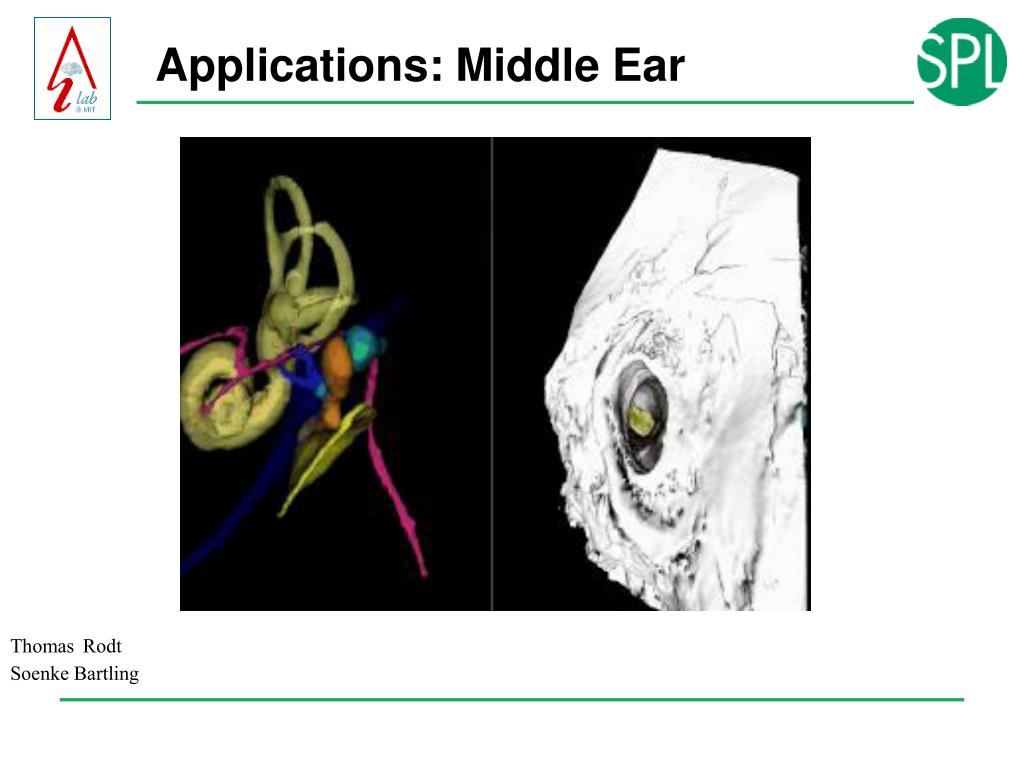

  19. Applications: Middle Ear ThomasRodt Soenke Bartling

  20. Applications: Cardiovascular Provided by Bonglin Chung

  21. Presentation Overview • Background and Motivation • Interactive System • Central Path Planning Algorithm • Synchronized Virtual Endoscopy • Conclusion

  22. Automated Path Planning • Goal: provide a “create path” button that produces a centerline inside a 3D model of any topology

  23. Input

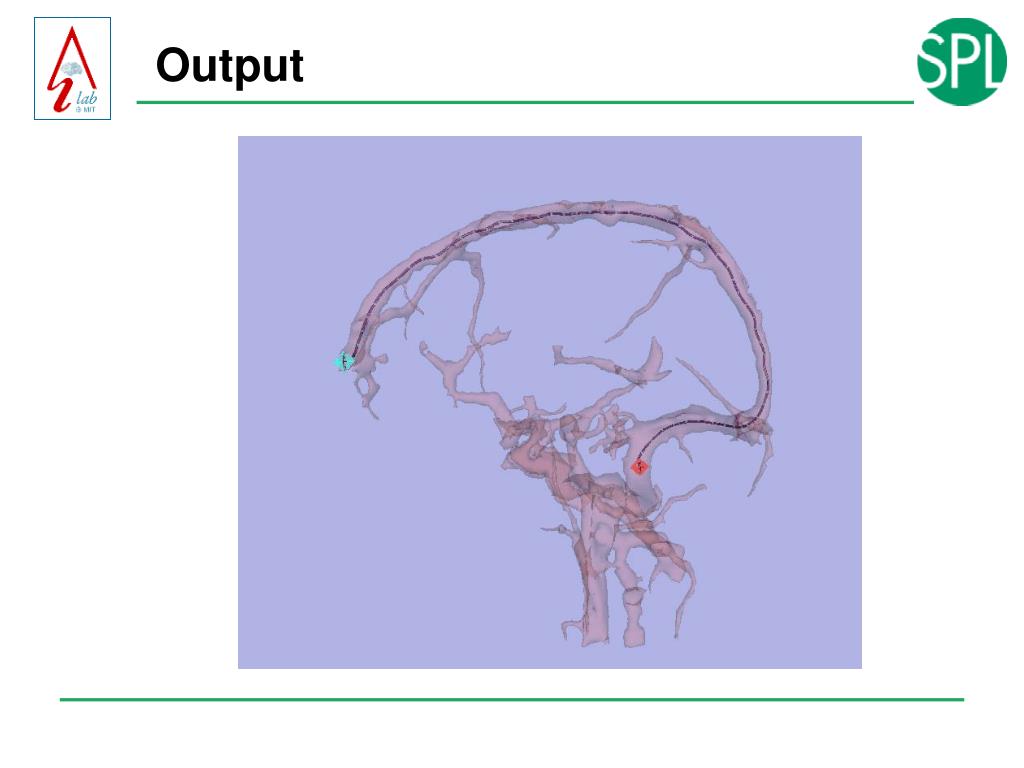

  24. Output

  25. Step 1: Produce a Labelmap

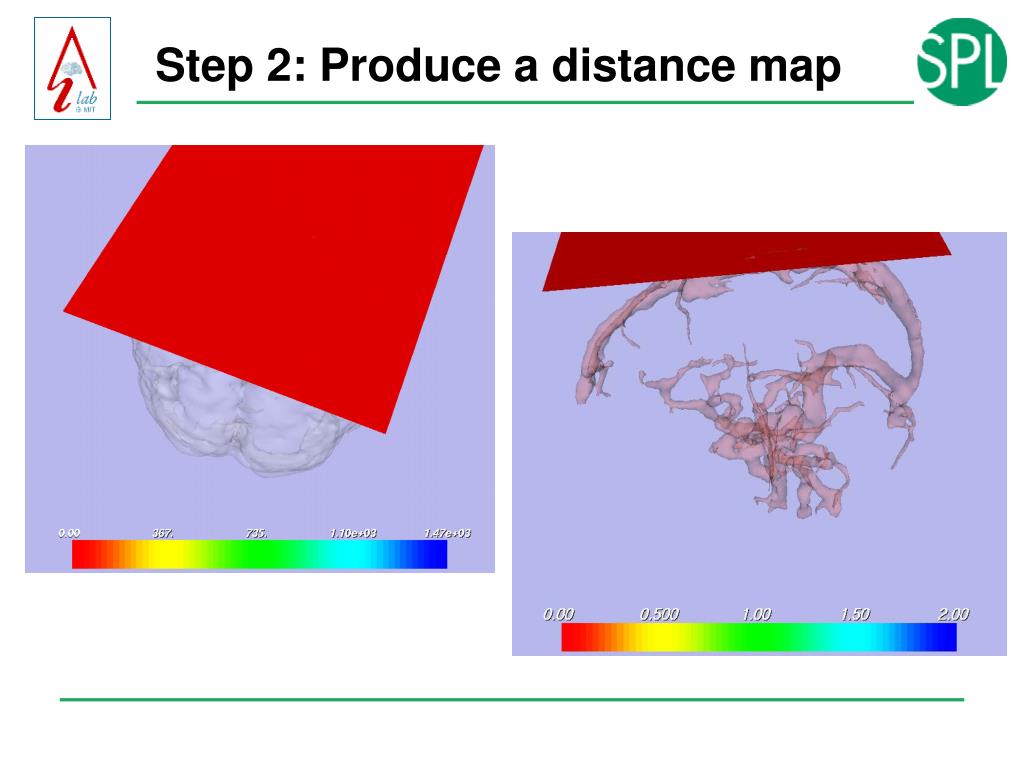

  26. Step 2: Produce a distance map

  27. Step 3: Create a Graph Create a Graph description of the Distance Map • Nodes are voxels inside the model • Edge weight are 1/(distance)2 from the wall of the organ

  28. Step 4: Run modified Dijkstra Dijkstra algorithm is a single source shortest path algorithm • We use a binary heap • An optimization: keep an evolving front, stop when reach the end node

  29. Step 5: Results Running Time: ~7s

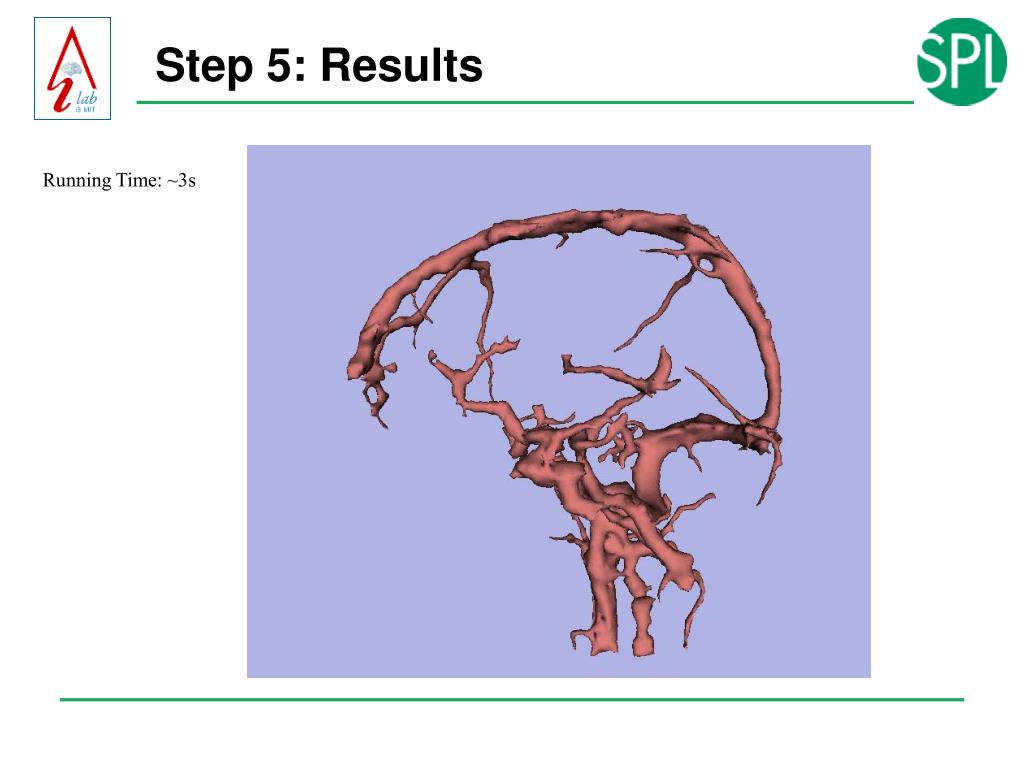

  30. Step 5: Results Running Time: ~3s

  31. Presentation Overview • Background and Motivation • Interactive System • Central Path Planning Algorithm • Synchronized Virtual Endoscopy • Conclusion

  32. Synchronized Virtual Colonoscopy

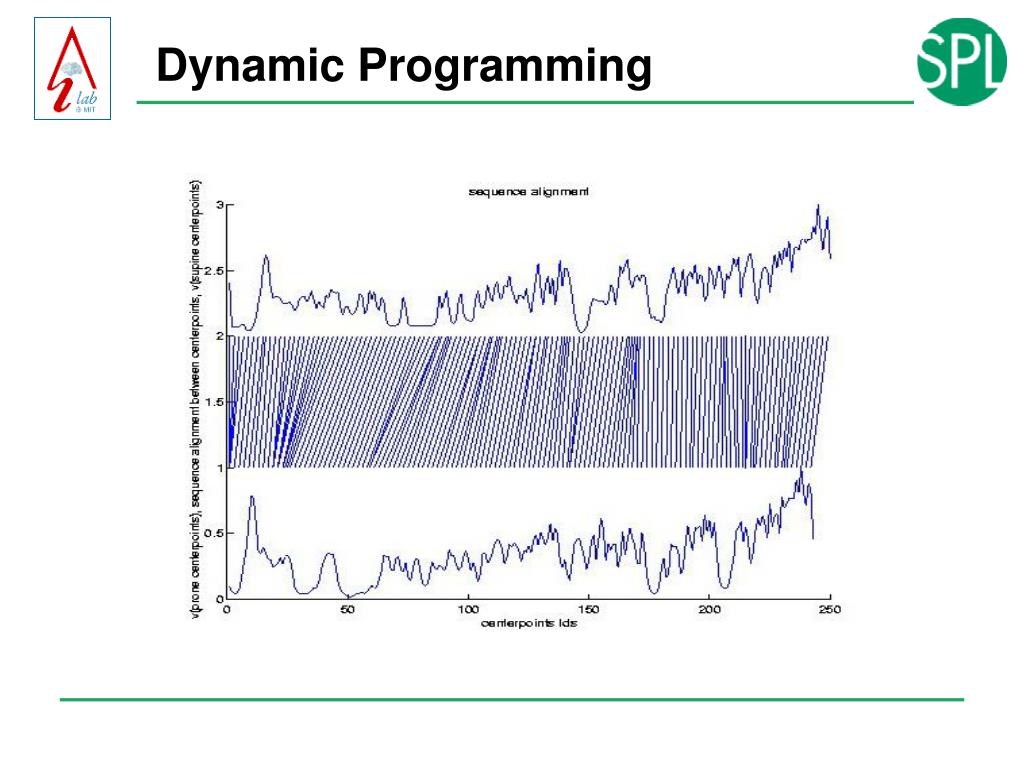

  33. Dynamic Programming

  34. Results

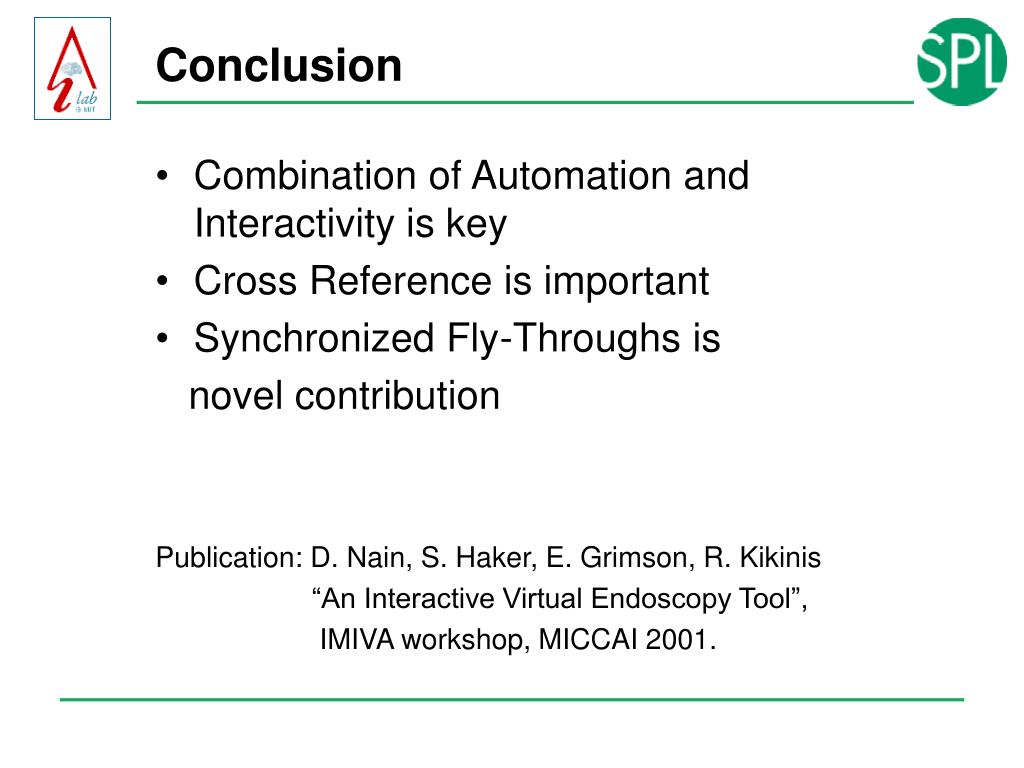

  35. Conclusion • Combination of Automation and Interactivity is key • Cross Reference is important • Synchronized Fly-Throughs is novel contribution Publication: D. Nain, S. Haker, E. Grimson, R. Kikinis “An Interactive Virtual Endoscopy Tool”, IMIVA workshop, MICCAI 2001.

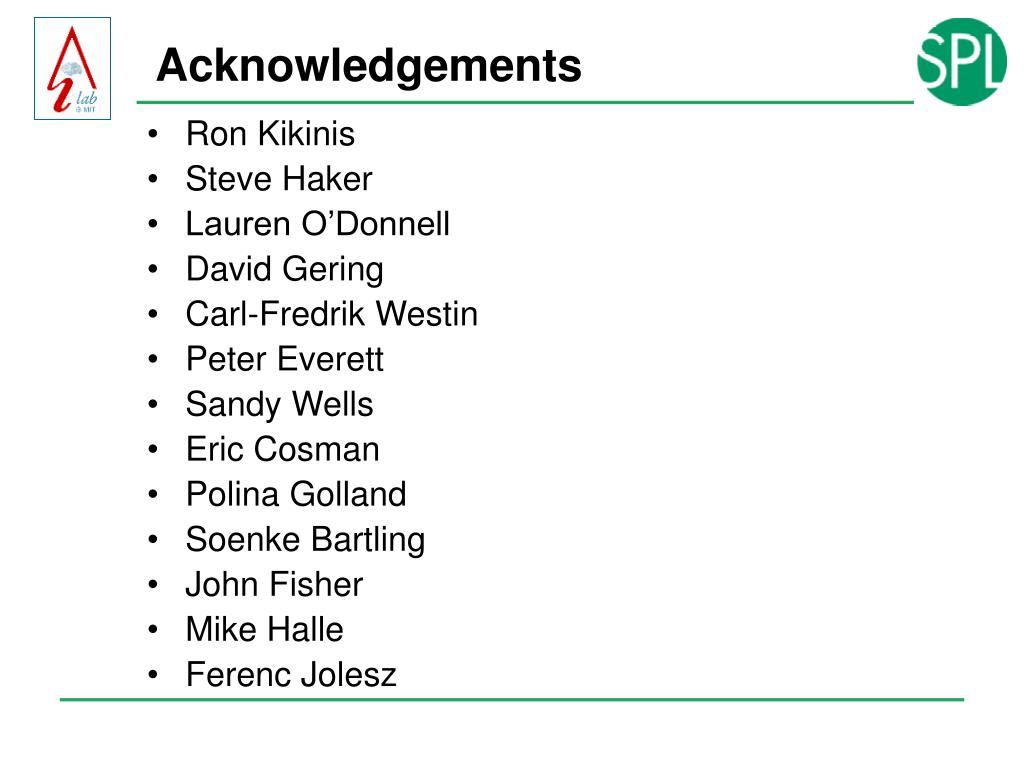

  36. Acknowledgements • Ron Kikinis • Steve Haker • Lauren O’Donnell • David Gering • Carl-Fredrik Westin • Peter Everett • Sandy Wells • Eric Cosman • Polina Golland • Soenke Bartling • John Fisher • Mike Halle • Ferenc Jolesz

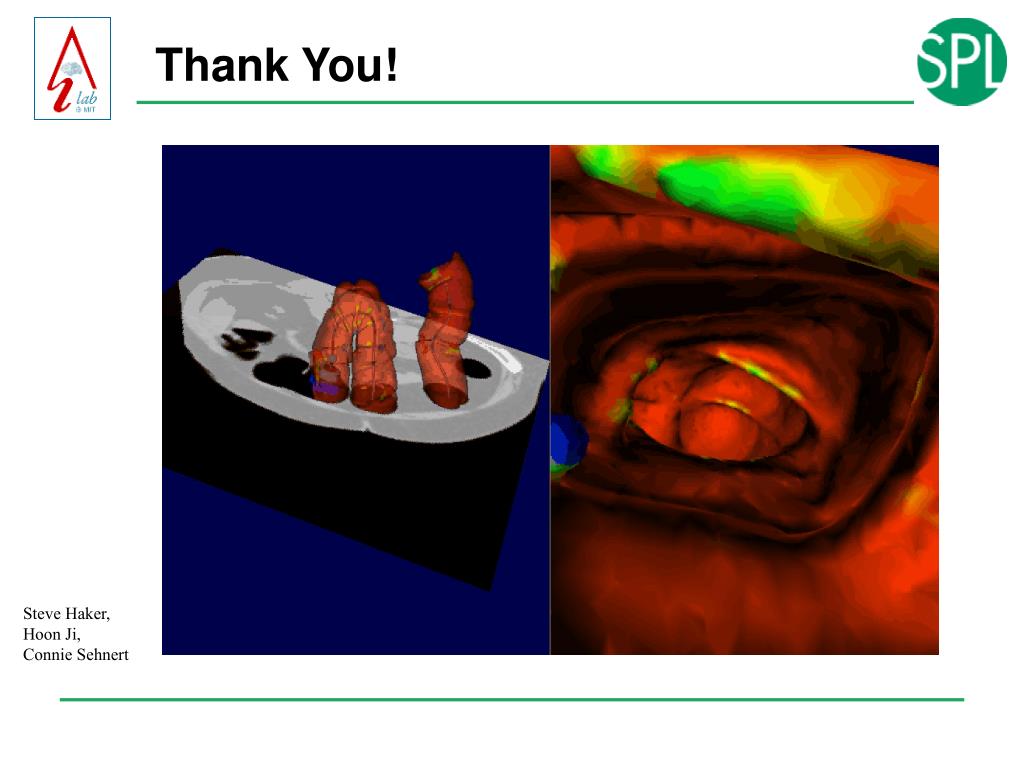

  37. Thank You! Steve Haker, Hoon Ji, Connie Sehnert

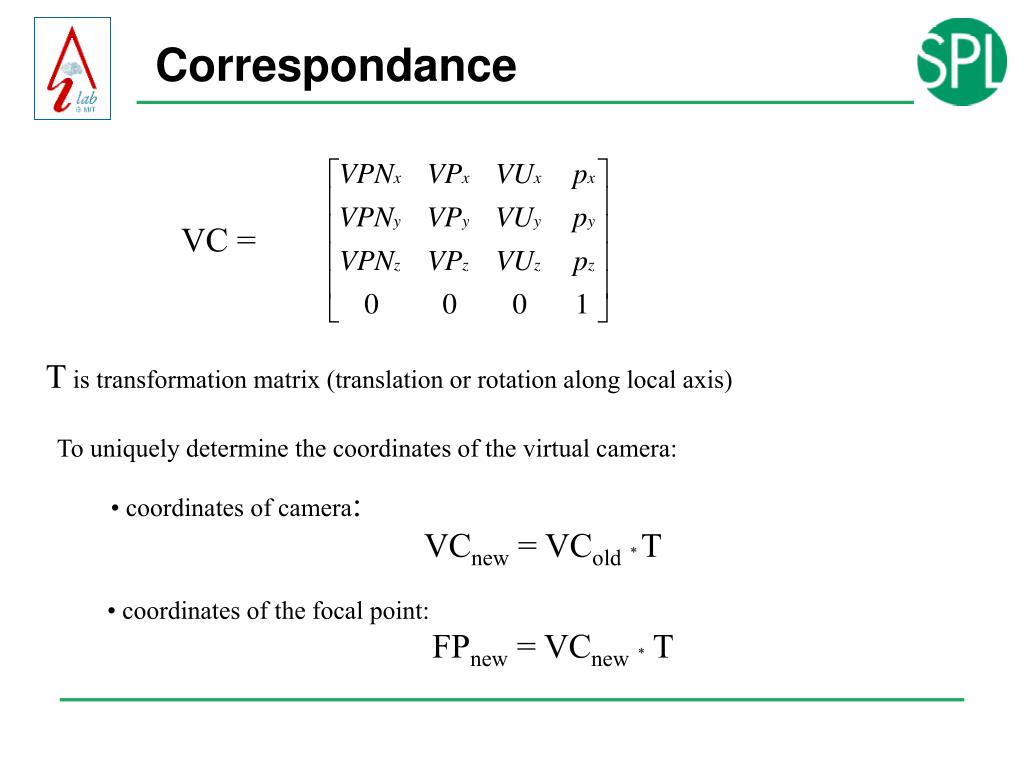

  38. Correspondance VC = T is transformation matrix (translation or rotation along local axis) To uniquely determine the coordinates of the virtual camera: • coordinates of camera: • VCnew = VCold* T • coordinates of the focal point: • FPnew = VCnew* T

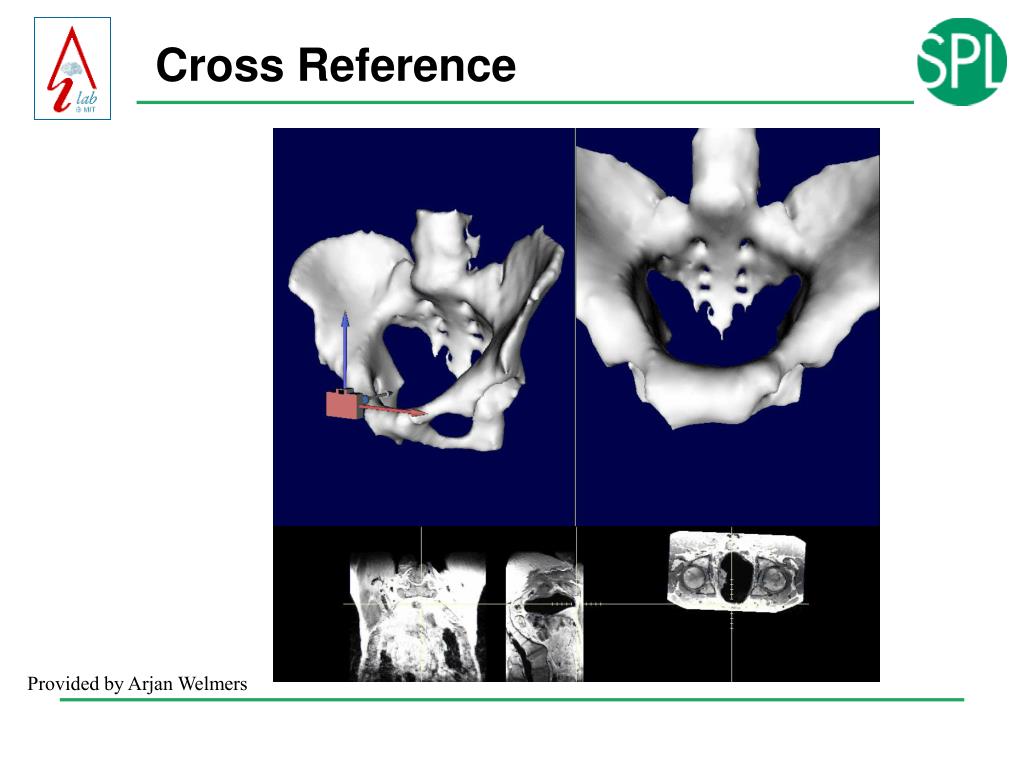

  39. Cross Reference Provided by Arjan Welmers

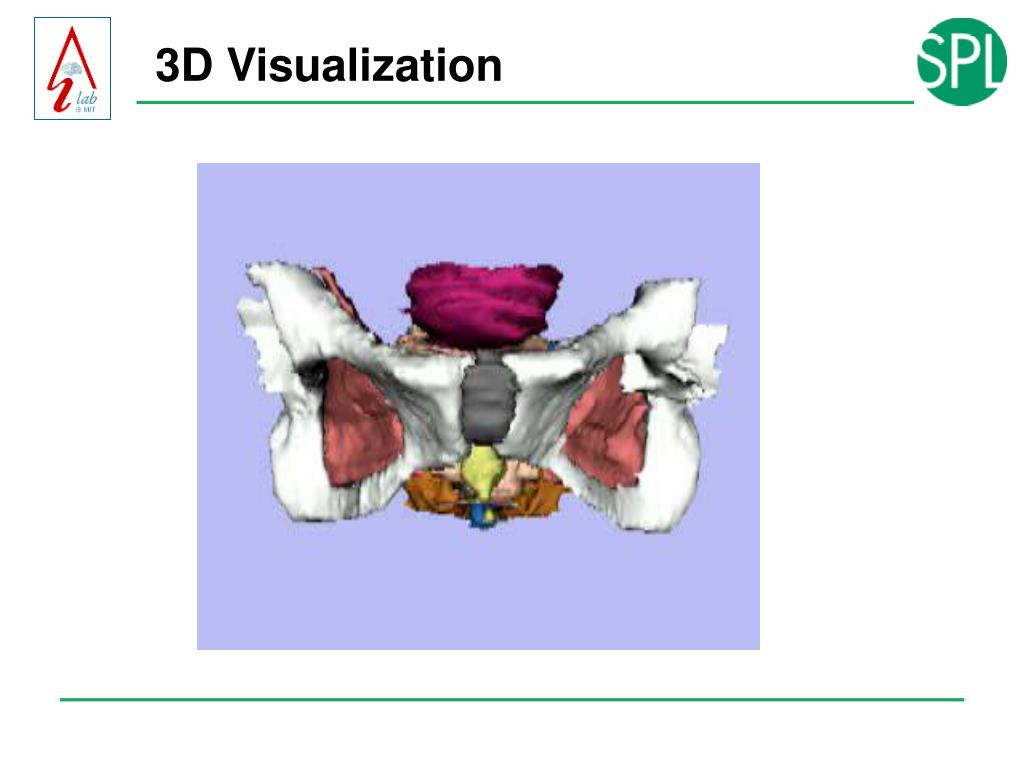

  40. 3D Visualization

  41. Synchronized Virtual Endoscopy
