  1. BreakerVisu 3.0 – Visualization and Logging-System for the Energy Distribution PDCD-CBP / Jansen

  2. Content • Operating Data • Current State • HMI / Visualization • Remote • Topology • Compatible Equipment • Your Opinion

  3. BreakerVisu Operating DataEnergy Distribution

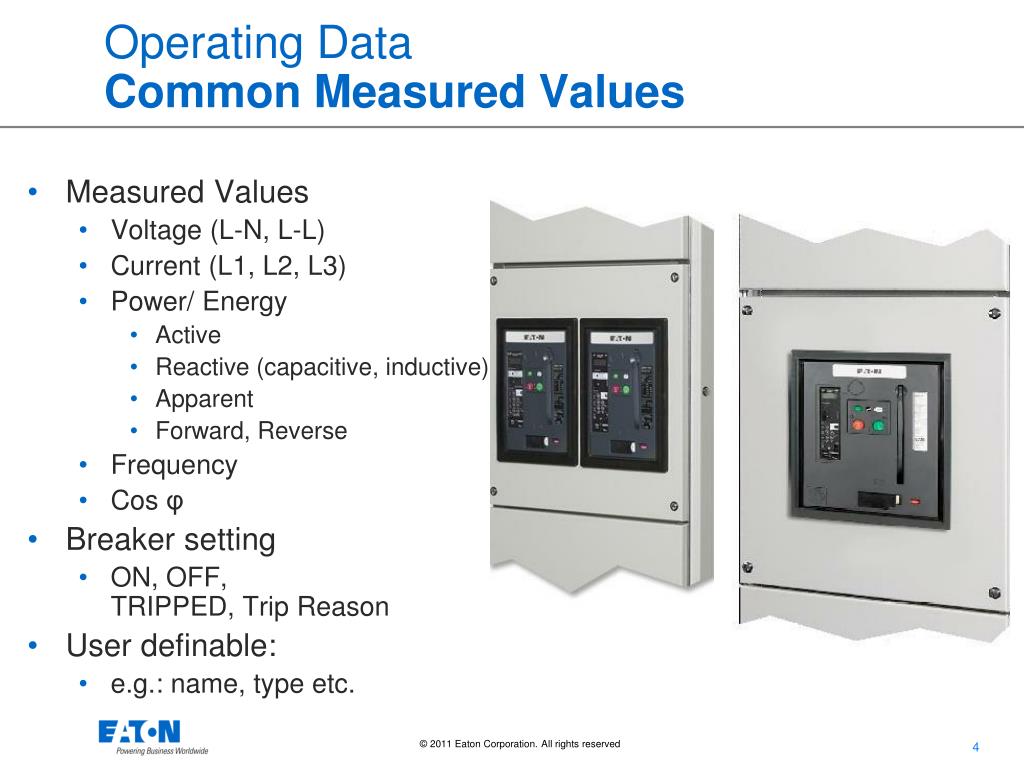

  4. Operating DataCommon Measured Values • Measured Values • Voltage (L-N, L-L) • Current (L1, L2, L3) • Power/ Energy • Active • Reactive (capacitive, inductive) • Apparent • Forward, Reverse • Frequency • Cos φ • Breaker setting • ON, OFF,TRIPPED, Trip Reason • User definable: • e.g.: name, type etc.

  5. Operating DataAdditional Functions Loggin *.csv Event Energy Other Operating Data NZM Ware Indication % mechanical electrical User input Utalizationcategory Ratedvoltage Breaker type Storable Internal flashmemory External SD-card External USB-drive

  6. Operating DataArea of Application Eaton Circuit Breaker Series NRX (ACB) IZMX16 IZMX40 IZM26 (ACB) NZM (MCCB) NZM-XMC (Measuring and Communication Module)

  7. BreakerVisu Current State

  8. Current State Individual Displays for Incomer and important Outgoer

  9. BreakerVisu The newAnd innovative Energy Distribution

  10. The newand innovative Energy DistributionOur Vision Centralizing of individual displays through an On-Site HMI

  11. The newand innovative Energy DistributionAdvantages Your advantages: Centralizing of Information Accessible via web-browser Very easy installation leads to lower costs Ready-made: fully programmed device Quick overview during maintenance Customizing Feature: Hardware location Safety feature: Ware Indication Operating data logging, exportable

  12. BreakerVisu HMI / Visualization

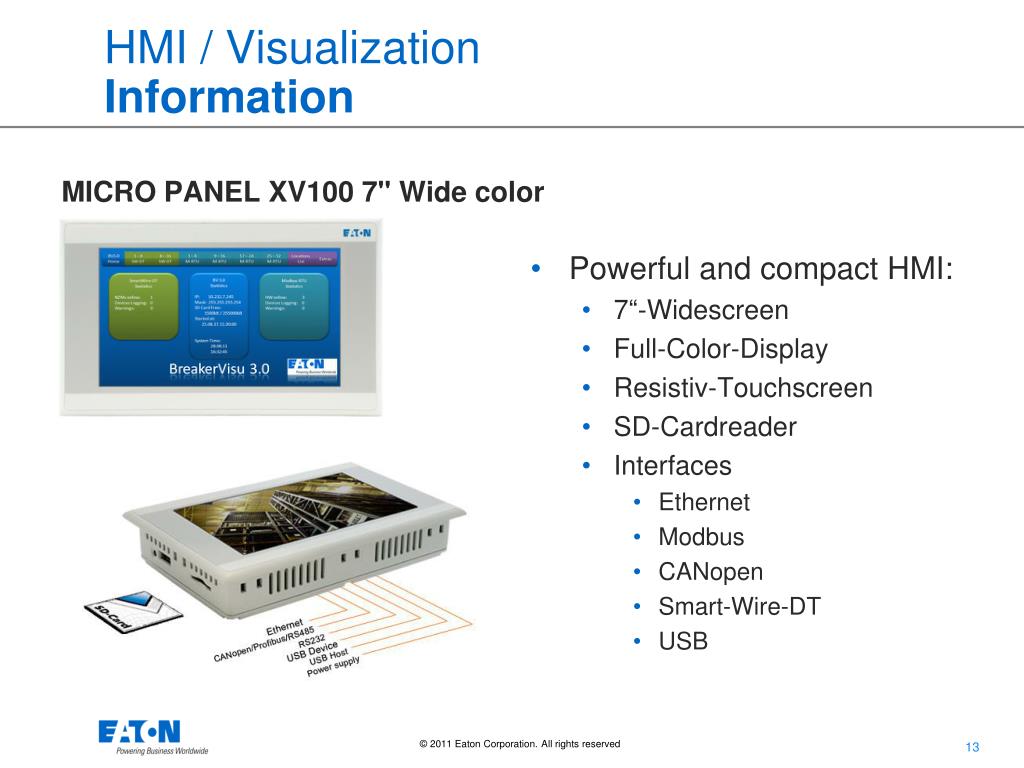

  13. HMI / VisualizationInformation MICRO PANEL XV100 7" Wide color Powerful and compact HMI: 7“-Widescreen Full-Color-Display Resistiv-Touchscreen SD-Cardreader Interfaces Ethernet Modbus CANopen Smart-Wire-DT USB

  14. HMI / VisualizationMain page

  15. HMI / VisualizationOverview Modbus

  16. HMI / VisualizationSubsite XMC

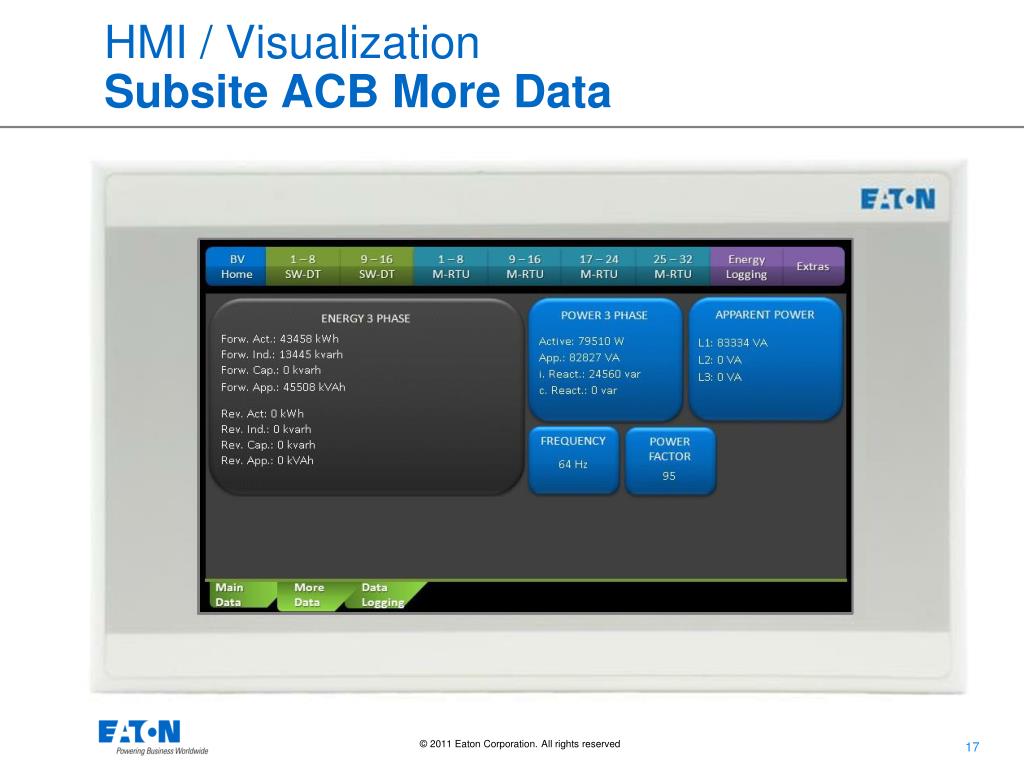

  17. HMI / VisualizationSubsite ACB More Data

  18. HMI / VisualizationOverview SmartWire-DT

  19. HMI / VisualizationSubsiteSmartwire-DT

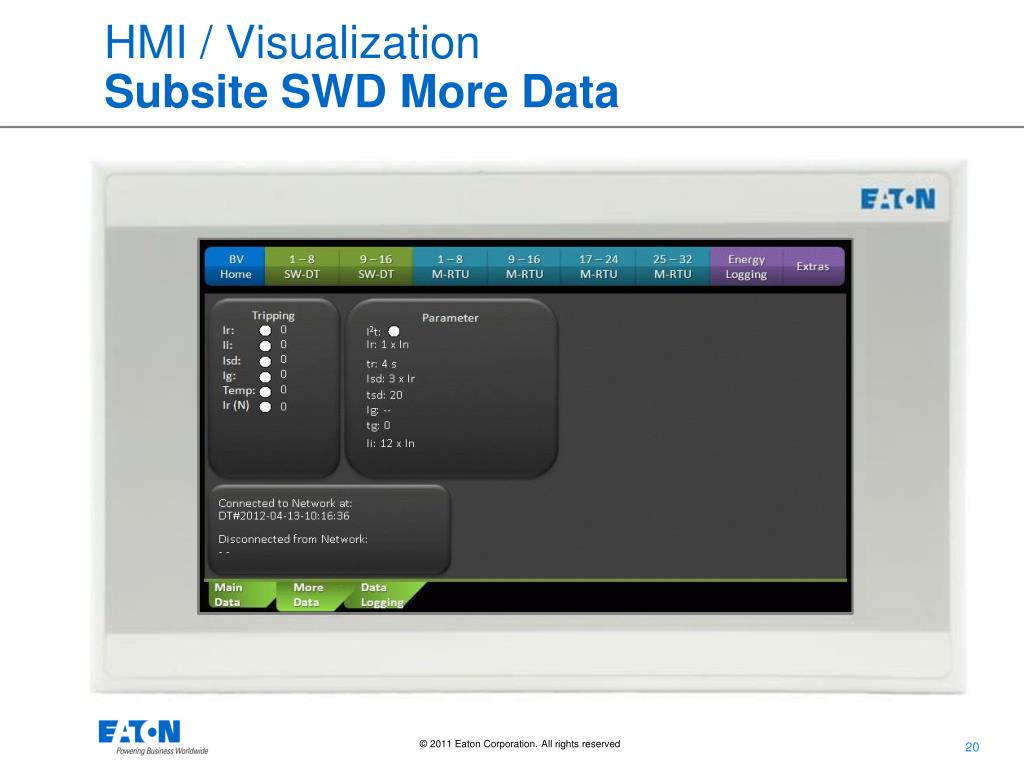

  20. HMI / VisualizationSubsite SWD More Data

  21. HMI / VisualizationHardware location Customizing byuser, e.g.: (Motor A…)

  22. HMI / VisualizationExtras

  23. BreakerVisu Hands-On Demo

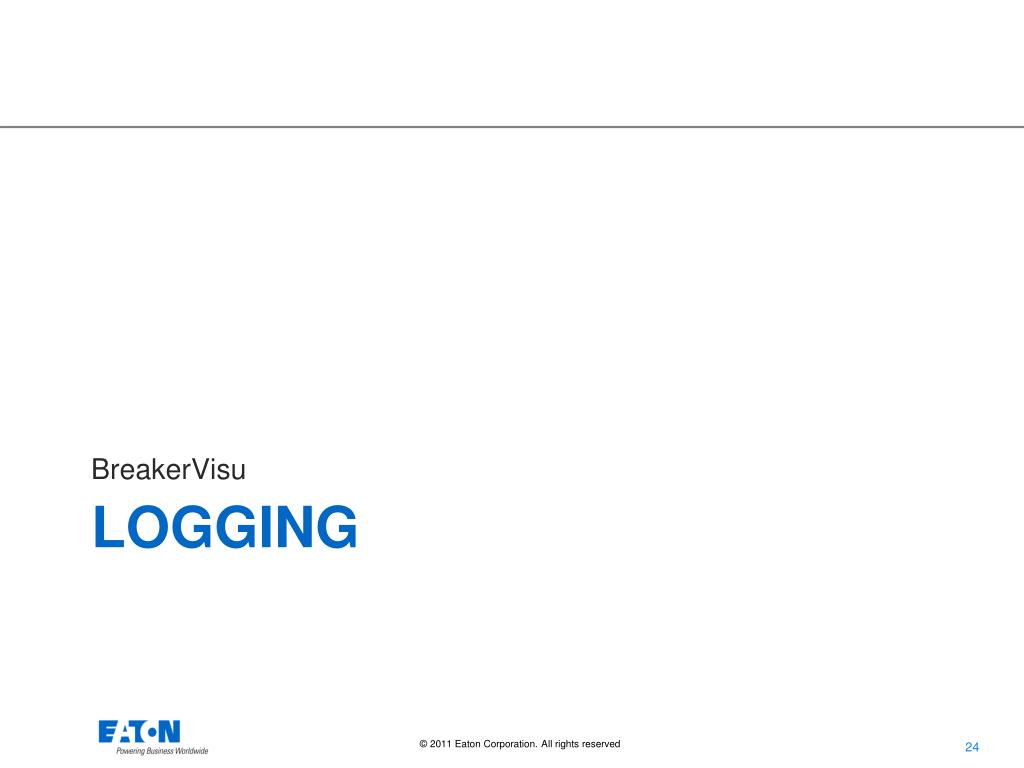

  24. BreakerVisu Logging

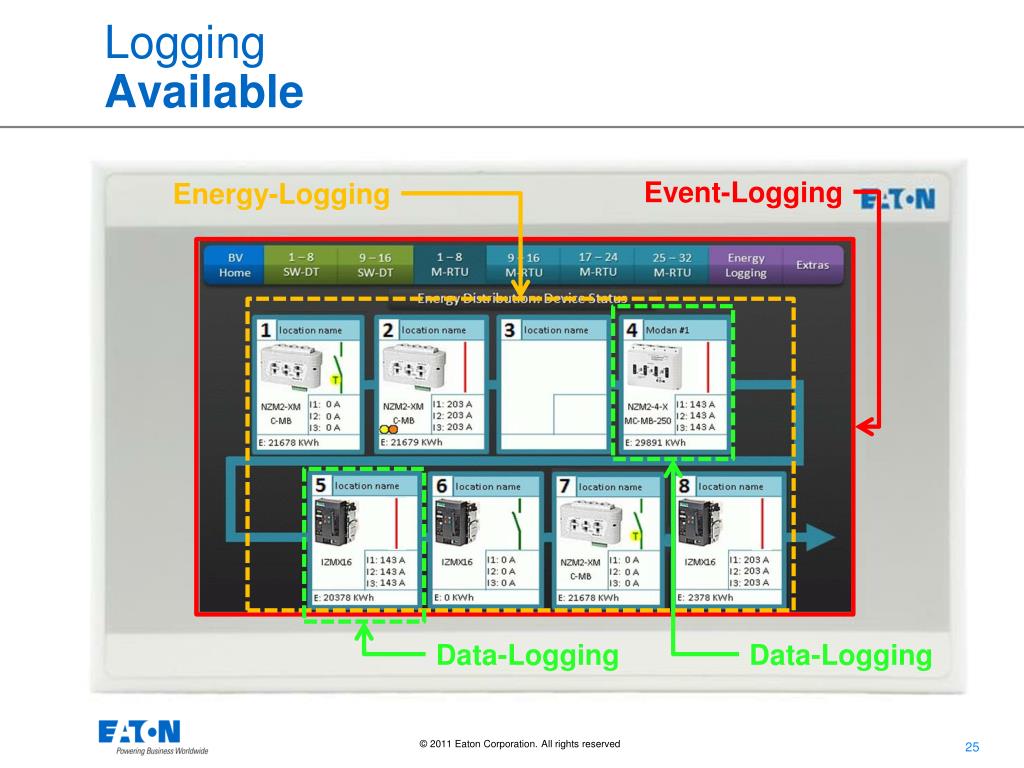

  25. LoggingAvailable Event-Logging Energy-Logging Data-Logging Data-Logging

  26. LoggingFeatures • Event-Logging • Always active • Status: Breaker, Network, HMI • Energy-Logging • For all devices • User-definable intervalls: daily, weekly, etc. • Data-Logging • To be activated for every device seperatly • Induvidual Logging (Voltage, Current, etc.) • User-definable intervalls

  27. LoggingConfiguration I

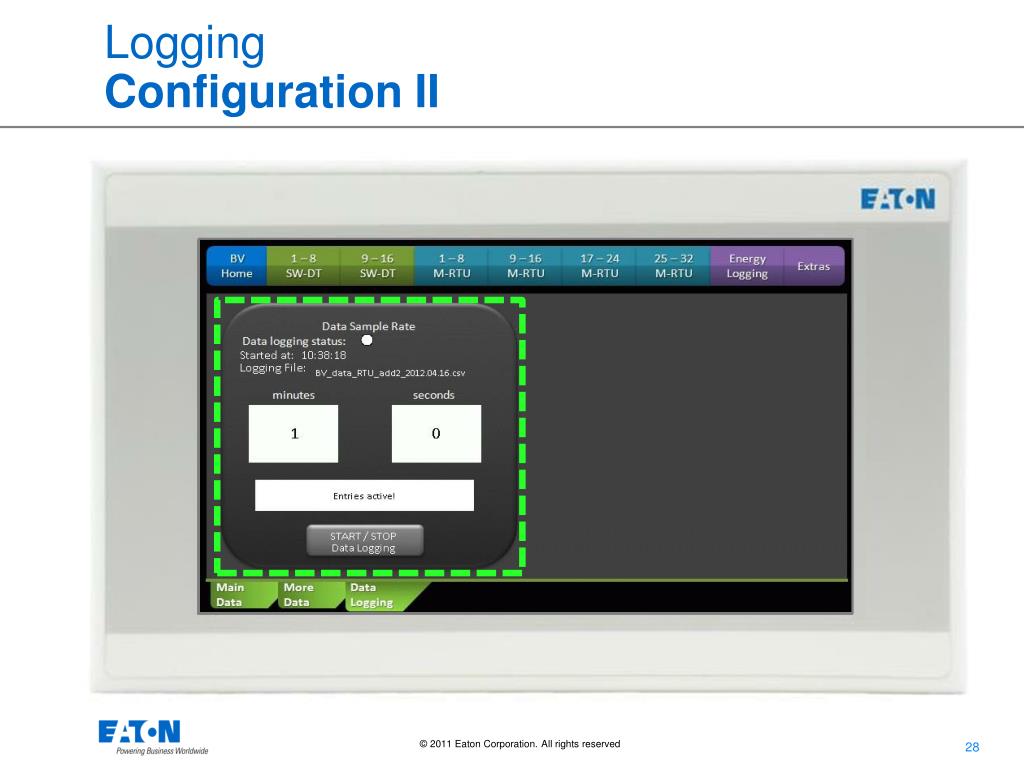

  28. LoggingConfiguration II

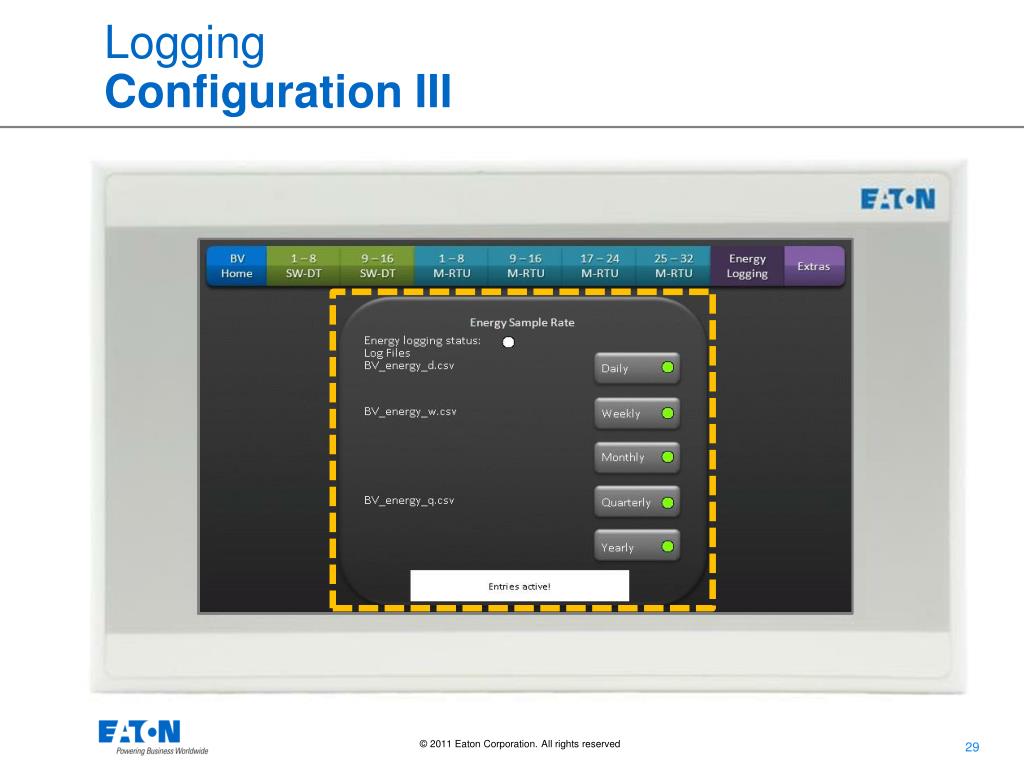

  29. LoggingConfigurationIII

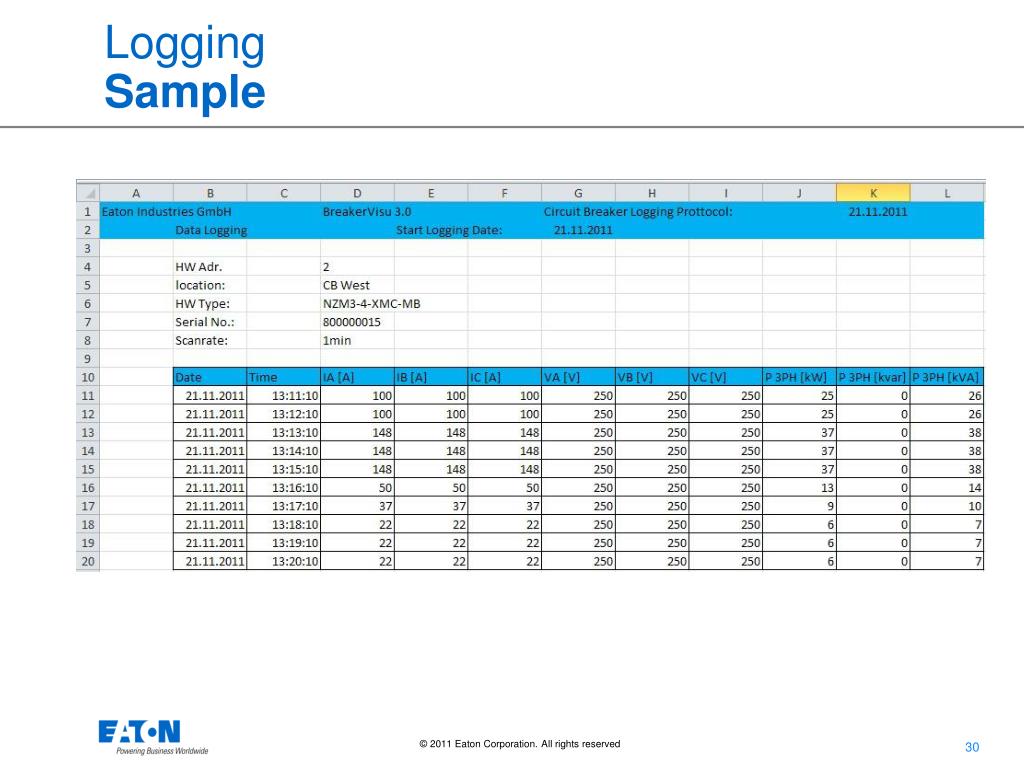

  30. LoggingSample

  31. BreakerVisu Remote

  32. Remotevia Ethernet • Access via Ethernet • http://.. • Intranet • FTP-Server • Same functionality like at the HMI • Password protection possible • Participants • Overview pages unlimited • Max. 2 subsites at a time

  33. BreakerVisu Topology

  34. TopologyBreakerVisu 3.0 Web Browser 1 Web Browser 2 Web Browser 3 Web Browser x Ethernet TCP/IP Multi-Breaker Display CANopen HMI/PLC XV100 IZMX16 IZMX40 Adr. 1 Adr. 2 Gateway 2 Gateway 1 IZM26 Adr. 3 Adr. 1 Adr. 9 NZM2/3/4 with NZM-XSWD-704 NZM-XMC for NZM2… NZM3… Adr. 10 Adr. 2 NZM2/3/4 with NZM-XSWD-704 Adr. 32 Adr. 8 Adr. 16 Modbus RTU Network SmartWireNetwork

  35. BreakerVisu Compatible Equipment

  36. CompatibleEquipmentSeries NRX Series NRX – IZMX16/40 IZMX-MCAM

  37. CompatibleEquipmentIZM26 IZM26 IZM-MMINT

  38. Compatible EquipmentNZM NZM2, -3, -4 NZM-XSWD-704

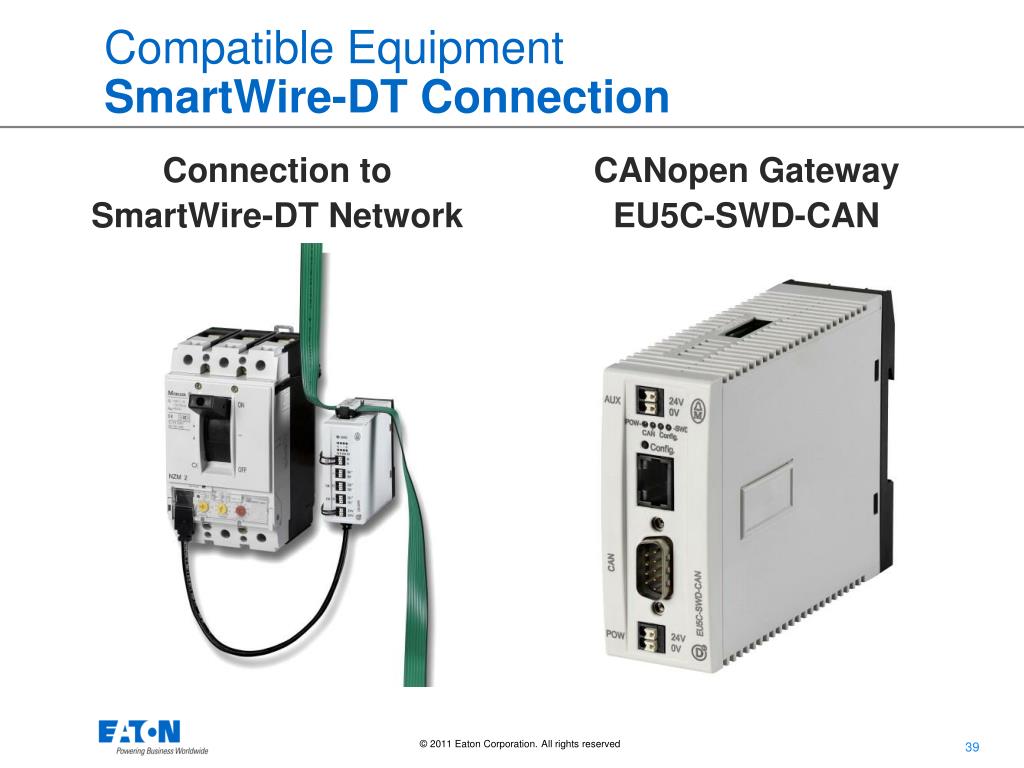

  39. Compatible EquipmentSmartWire-DT Connection Connection toSmartWire-DT Network CANopen GatewayEU5C-SWD-CAN

  40. Compatible EquipmentNZM-XMC Measuringand Communication ModuleNZM…-XMC-MB für NZM2, -3 Assembly

  41. BreakerVisu Your Opinion

  42. Your Opinion • Plaudit • Critique • Feedback • Questions
