Configuring and Managing Resource Access

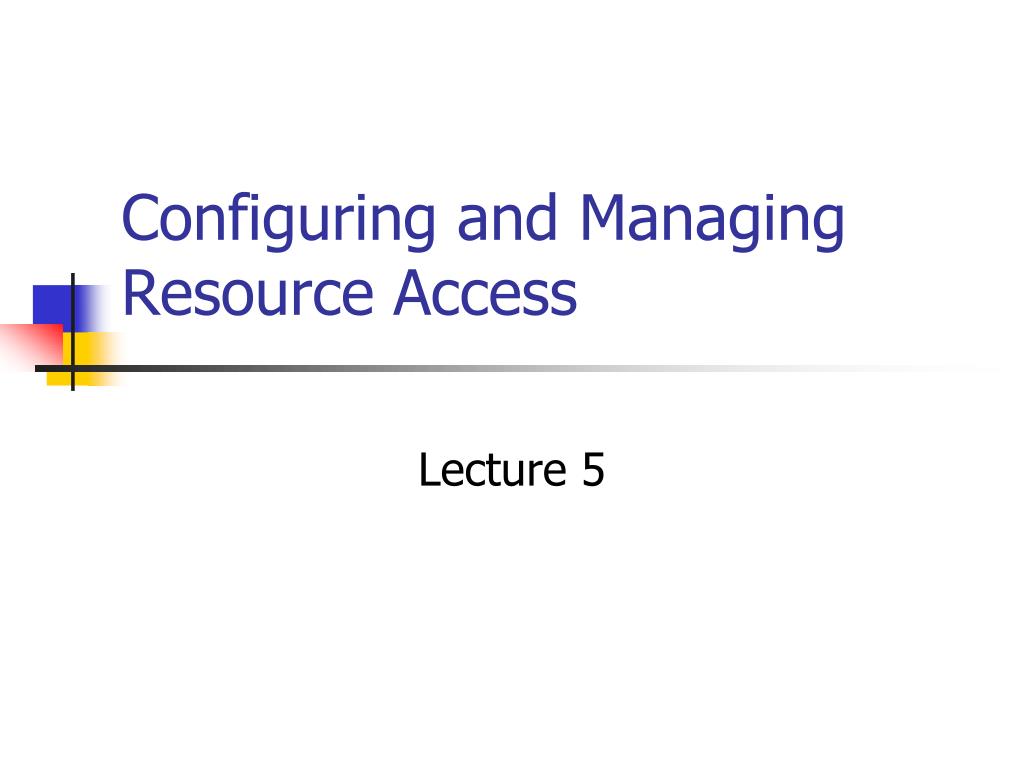

1. Configuring and Managing Resource Access Lecture 5

2. Folder and File Security • Access Control List (ACL) – list of privileges given to a user account or a group • DACL – discretionary ACL – configured by an admin or owner • SACL – system control ACL – contains information for auditing access

3. Folder and File Attributes • Read-only • Hidden • Extended attributes: Archive, Index (not Windows Search Service), Compress, Encrypt

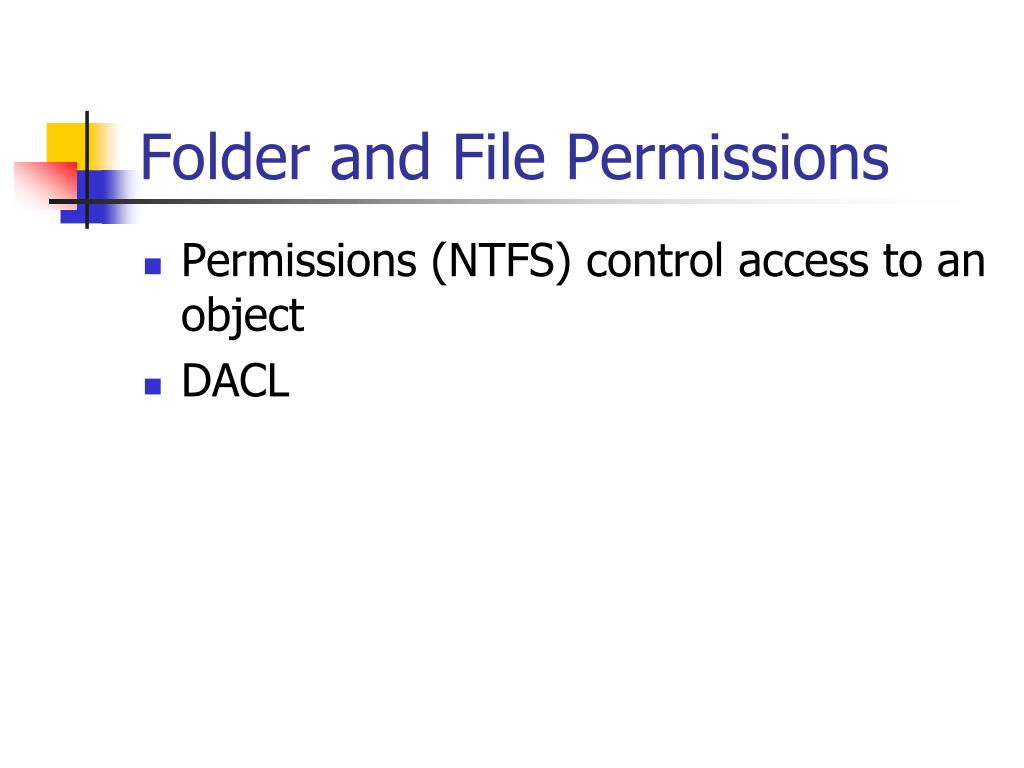

4. Folder and File Permissions • Permissions (NTFS) control access to an object • DACL

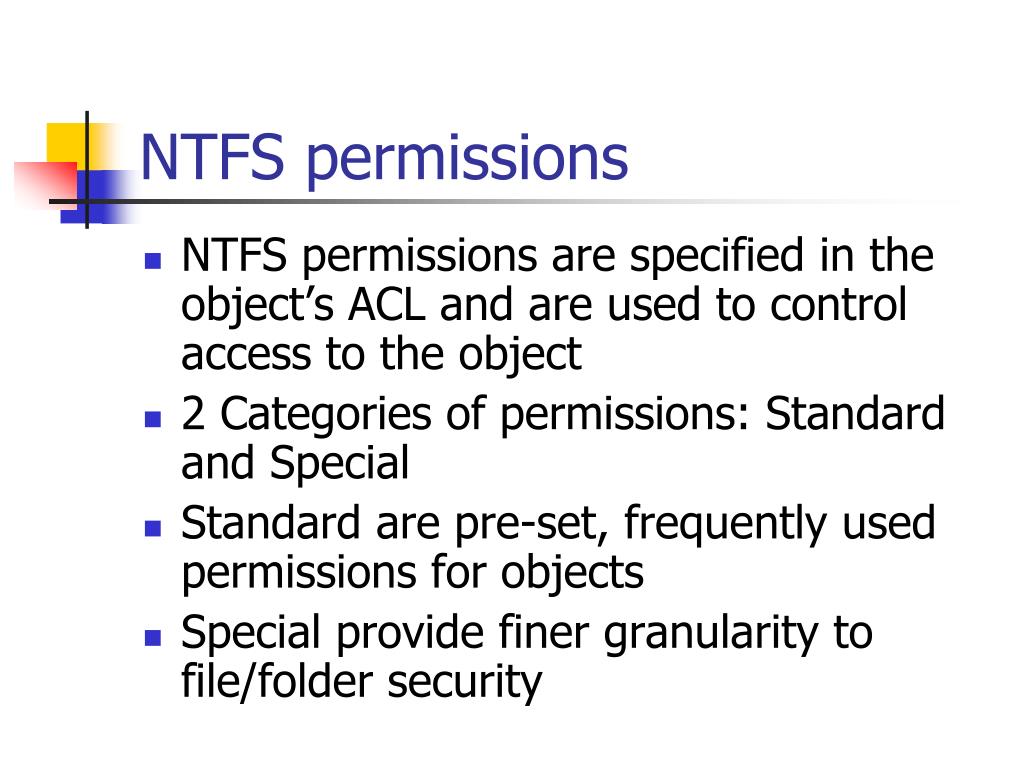

5. NTFS permissions • NTFS permissions are specified in the object’s ACL and are used to control access to the object • 2 Categories of permissions: Standard and Special • Standard are pre-set, frequently used permissions for objects • Special provide finer granularity to file/folder security

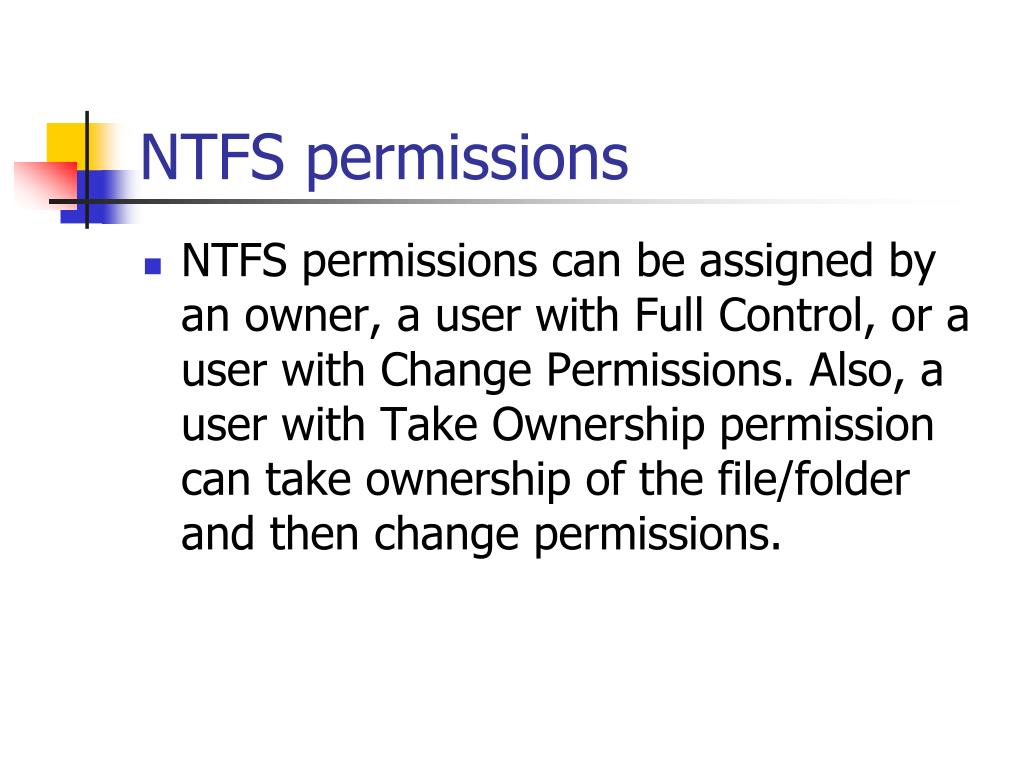

6. NTFS permissions • NTFS permissions can be assigned by an owner, a user with Full Control, or a user with Change Permissions. Also, a user with Take Ownership permission can take ownership of the file/folder and then change permissions.

7. Standard NTFS Permissions • Read • Read&Execute • List Folder Contents • Write • Modify • Full Control

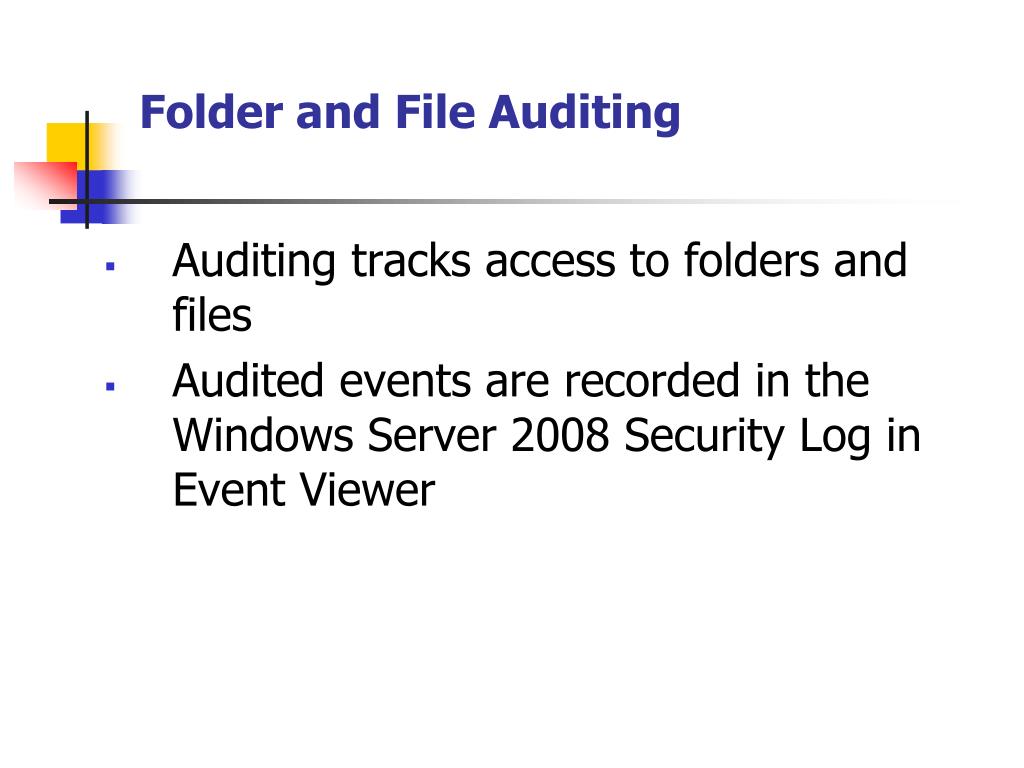

8. Folder and File Auditing • Auditing tracks access to folders and files • Audited events are recorded in the Windows Server 2008 Security Log in Event Viewer

9. Folder and File ownership • An owner is the person who creates a folder/file. • Owner can change permissions • Ownership can be transferred to a user with Full Control or Take Ownership permissions • Administrators can always take ownership

10. New, Moved and Copied files and folders permissions • When a file or folder is moved or copied, it will inherit the destination folder permissions. • The only exception is when a file/folder is moved within the same NTFS volume - then it will retain its original permissions.

11. Shared Folders and Permissions • Shared folder gives users access over the network • In Server 2008 sharing is more secure (not shared with Everyone by default)

12. Shared Folder Permissions • Share permissions are different from NTFS (NTFS and share permissions are cumulative) • Deny permissions take precedence’ • Shared folders can be cached • Shared Folders can be published in AD

13. Shared Folder Permissions • Reader (former Read) • Contributor (former Change) • Co-owner (former Full Control) • Owner

14. Effective permissions • User and Group NTFS permissions combine for the least restrictive combination, except where Deny overrides Allow. Files may have different permissions that parent folder permissions. • When combining share and NTFS permissions always chose the MOST restrictive combination

15. Effective NTFS permissions • Determine effective shared by choosing the least restrictive of all shared. The exception is Denied permission overrides Allow. • Determine effective NTFS by choosing the least restrictive of all shared. The exception is Denied permission overrides Allow.   • Combine the results of steps 1 and 2 and choose the MOST restrictive permission out of share and NTFS. IF there is no overlap - no permissions are effective.

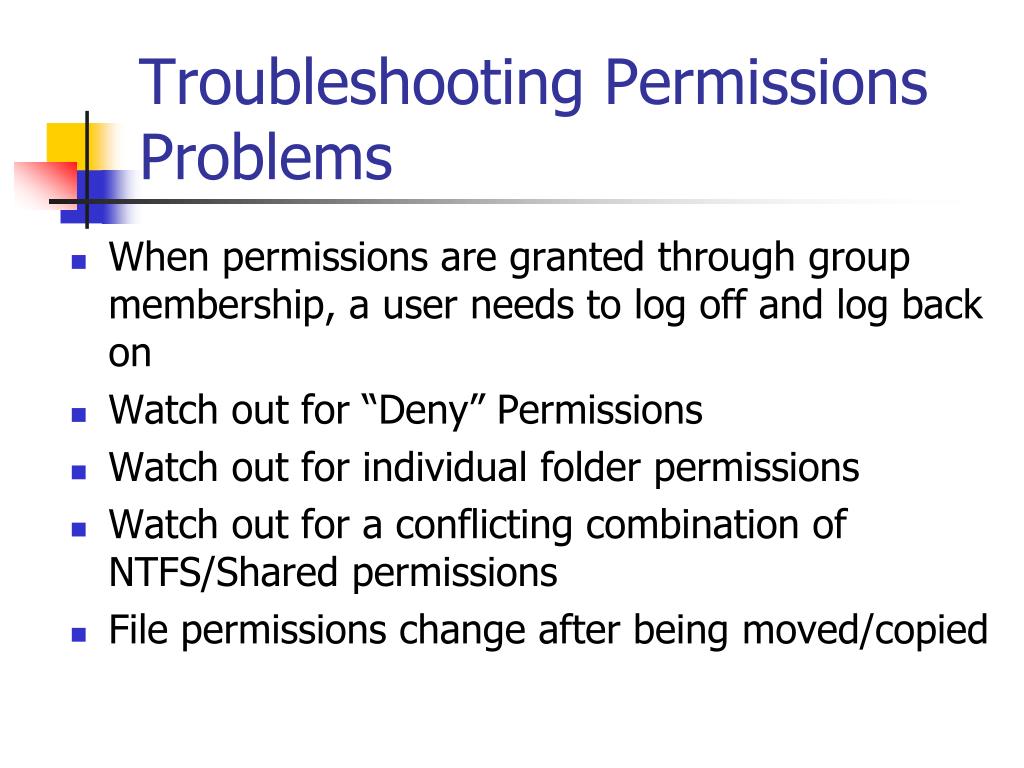

16. Troubleshooting Permissions Problems • When permissions are granted through group membership, a user needs to log off and log back on • Watch out for “Deny” Permissions • Watch out for individual folder permissions • Watch out for a conflicting combination of NTFS/Shared permissions • File permissions change after being moved/copied

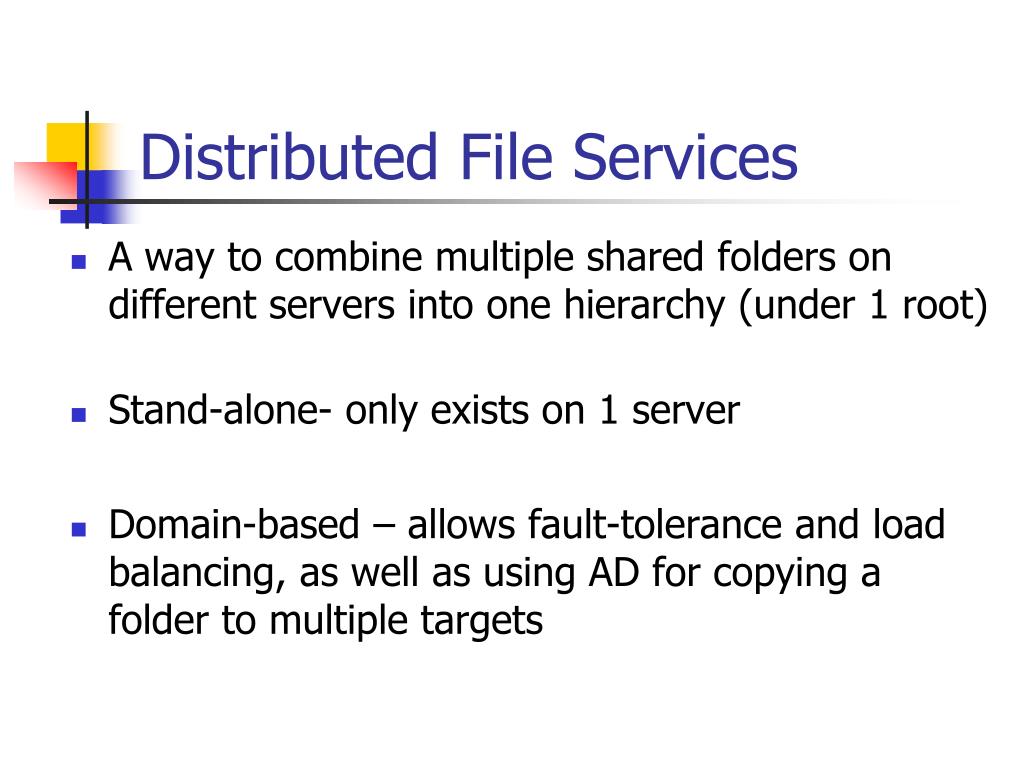

17. Distributed File Services • A way to combine multiple shared folders on different servers into one hierarchy (under 1 root) • Stand-alone- only exists on 1 server • Domain-based – allows fault-tolerance and load balancing, as well as using AD for copying a folder to multiple targets
