Time-dependent b value for aftershock sequences

Time-dependent b value for aftershock sequences. Yuh-Ing Chen Institute of Statistics National Central University Chungli, Taiwan. Statsei4, Japan, 2006/1/10. Outline. Reasenberg-Jones (RJ) model Distribution of aftershock-magnitude Modified Reasenberg-Jones (MRJ) model

lore
Télécharger la présentation

Time-dependent b value for aftershock sequences

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Time-dependent bvalue for aftershock sequences Yuh-Ing Chen Institute of Statistics National Central University Chungli, Taiwan Statsei4, Japan, 2006/1/10

  2. Outline • Reasenberg-Jones (RJ) model • Distribution of aftershock-magnitude • Modified Reasenberg-Jones (MRJ) model • Comparison of RJ and MRJ models

  3. 1. Reasenberg and Jones model Gutenberg-Richter (1944) law log N(M)= a- bM, for M≧ Mc, where N(M) is the number of earthquakes with magnitude M or larger and Mc is the cut-off magnitude. The distribution of M is left-truncated exponential with survival distribution S(M)=exp {-β(M -Mc)} , M≧ Mc

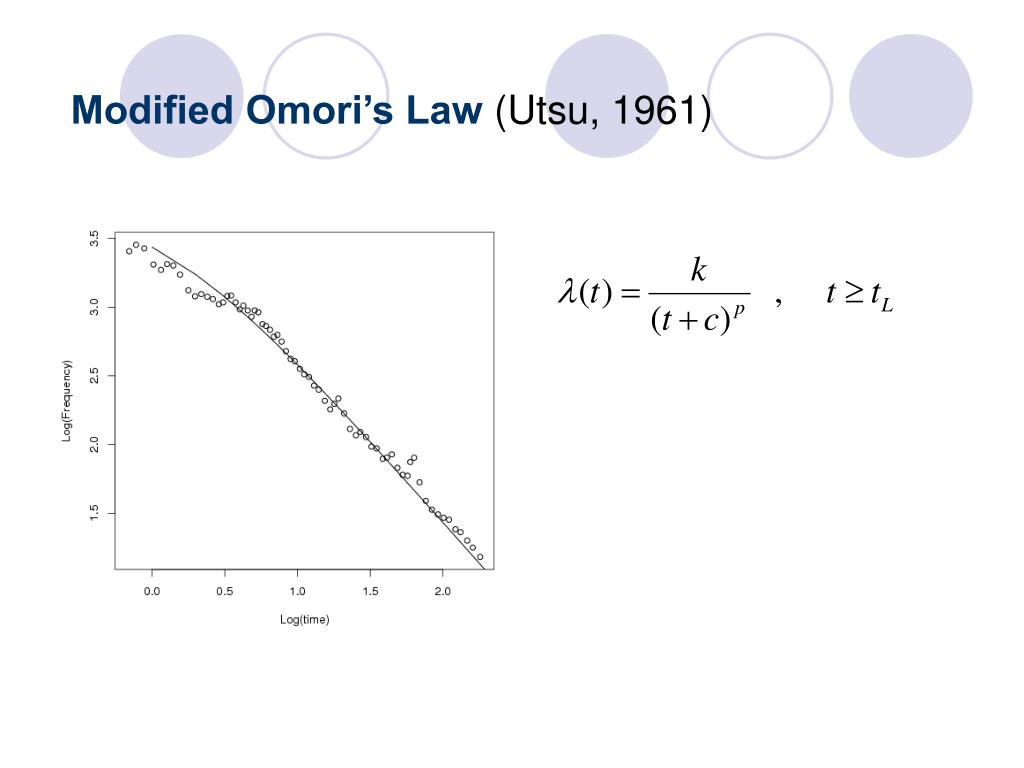

  4. Modified Omori’s Law(Utsu, 1961)

  5. Reasenberg-Jones(1989)model P = P{At least one aftershock with magnitude between and occurs in (S, T)}

  6. Determination of Mc－Wiemer (2000)

  7. b-value and p-value

  8. Probabilitic aftershock hazard (PAH) map－Wiemer (2000) The probability that at least one M≧5.0 aftershocks occurred during [t+1, t+7) days after the Chi-Chi earthquake for 2≦t≦5 Days.

  9. Evaluation of the PAH map - Phi coefficient Alarming for M≧ M0 aftershocks in the grids with P ≧ P0

  10. Phi coefficients for alarming M≧5.0 aftershocks based on the RJ-PAH map ← 2.326

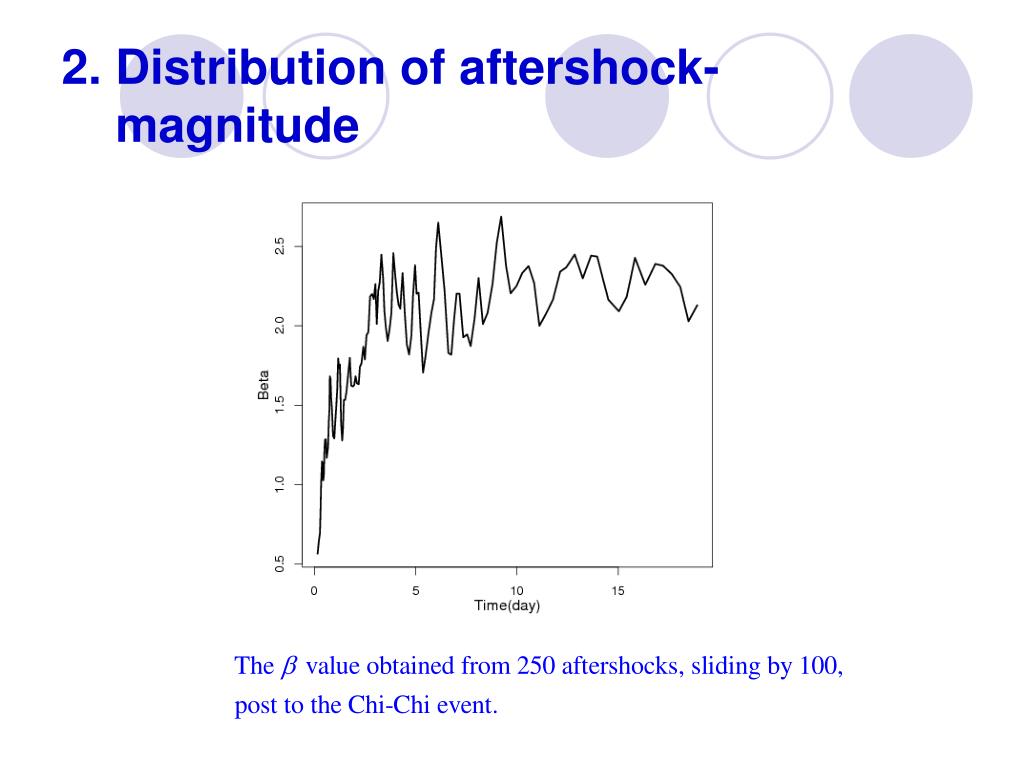

  11. 2. Distribution of aftershock- magnitude

  12. 3. Modified Reasenberg-Jones model

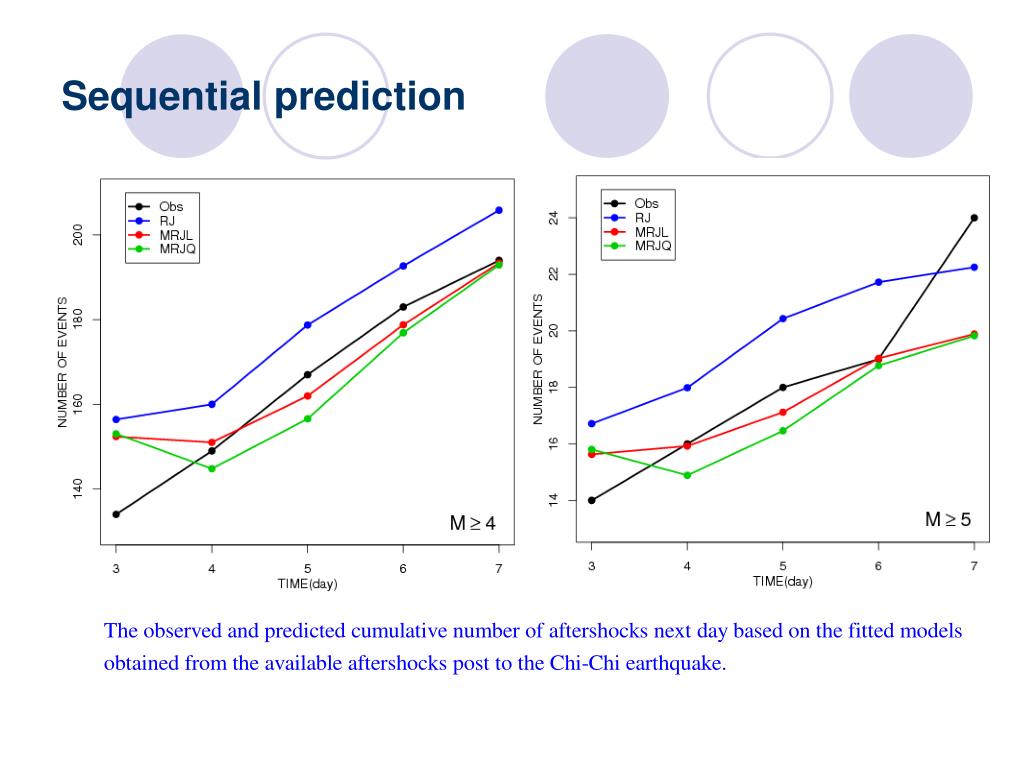

  13. Sequential prediction

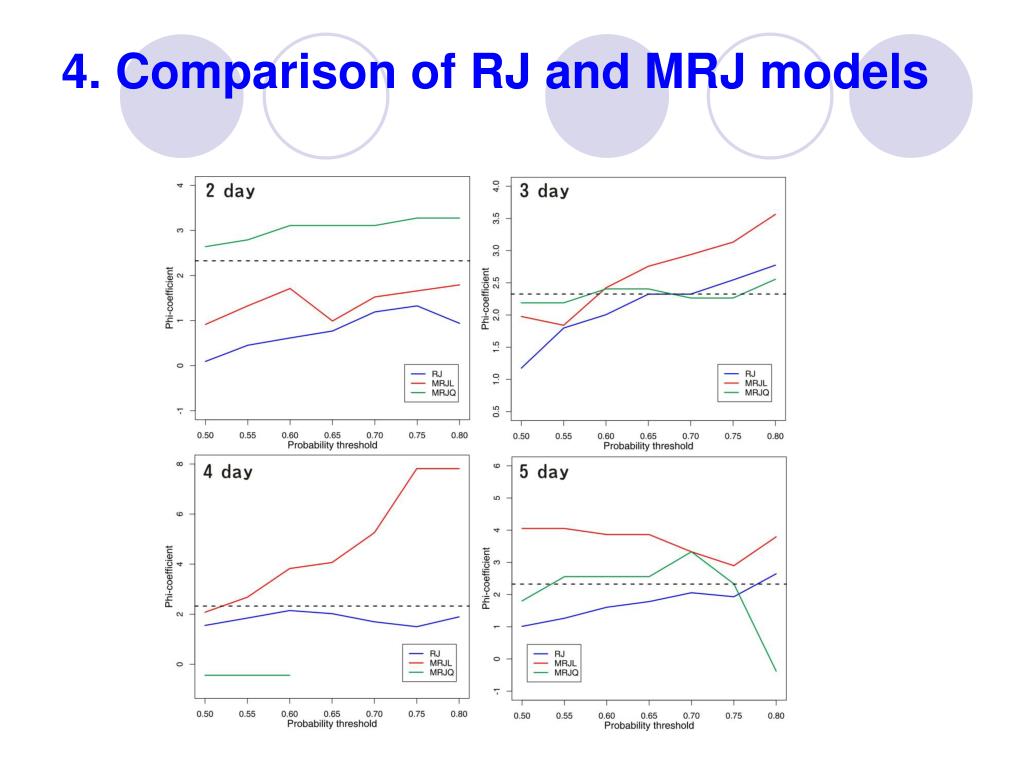

  14. 4. Comparison of RJ and MRJ models
