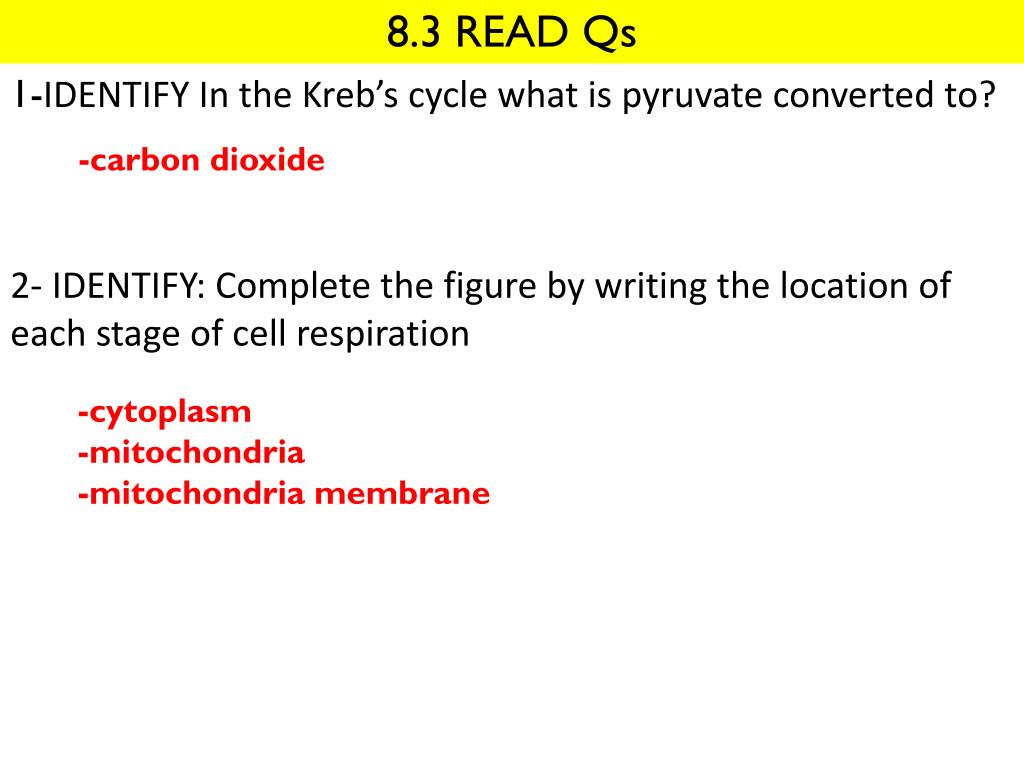

  1. 8.3 READ Qs 1-IDENTIFY In the Kreb’s cycle what is pyruvate converted to? 2- IDENTIFY: Complete the figure by writing the location of each stage of cell respiration -carbon dioxide -cytoplasm -mitochondria -mitochondria membrane

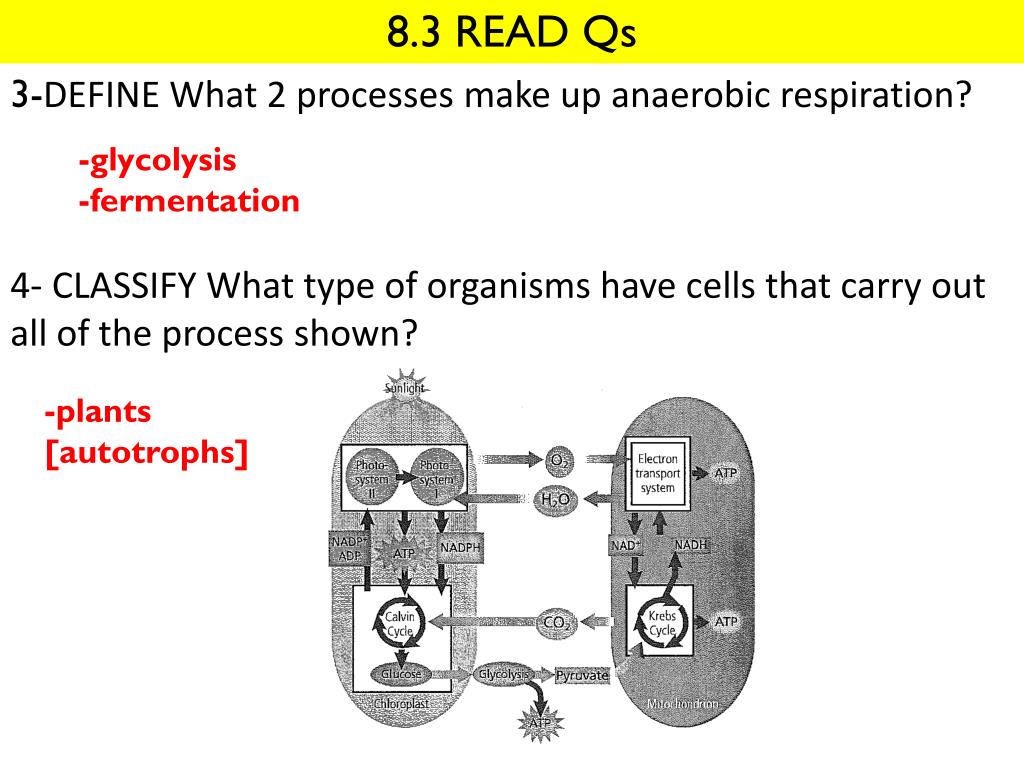

  2. 8.3 READ Qs 3-DEFINE What 2 processes make up anaerobic respiration? 4- CLASSIFY What type of organisms have cells that carry out all of the process shown? -glycolysis -fermentation -plants [autotrophs]

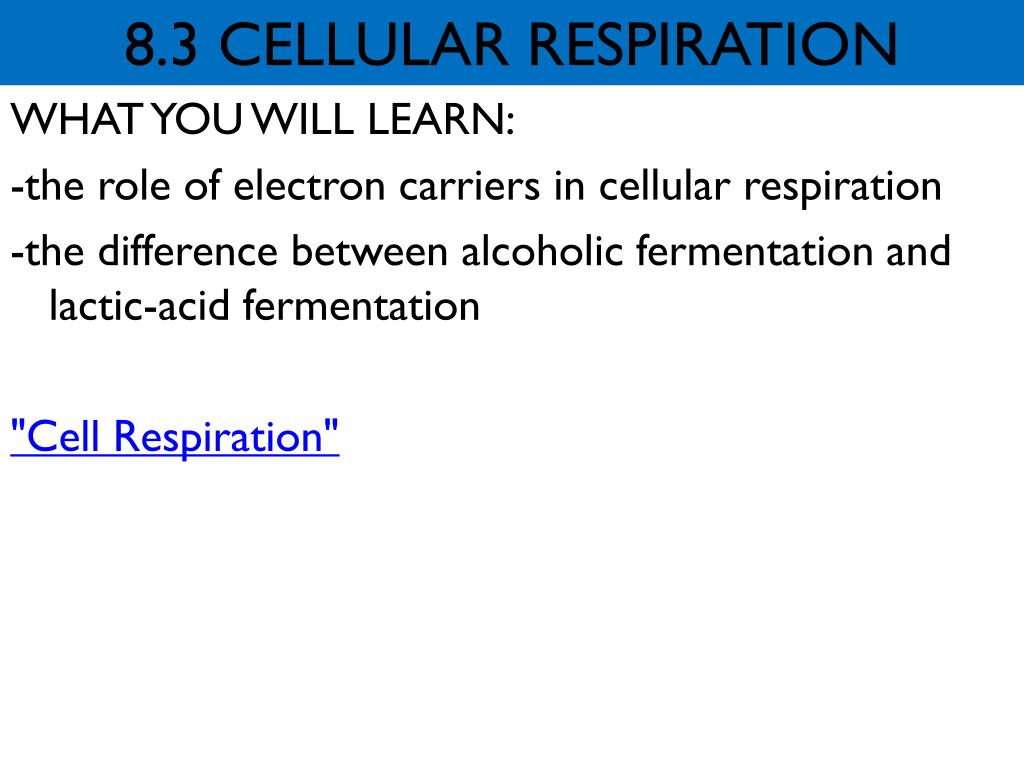

  3. 8.3 CELLULAR RESPIRATION WHAT YOU WILL LEARN: -the role of electron carriers in cellular respiration -the difference between alcoholic fermentation and lactic-acid fermentation "Cell Respiration"

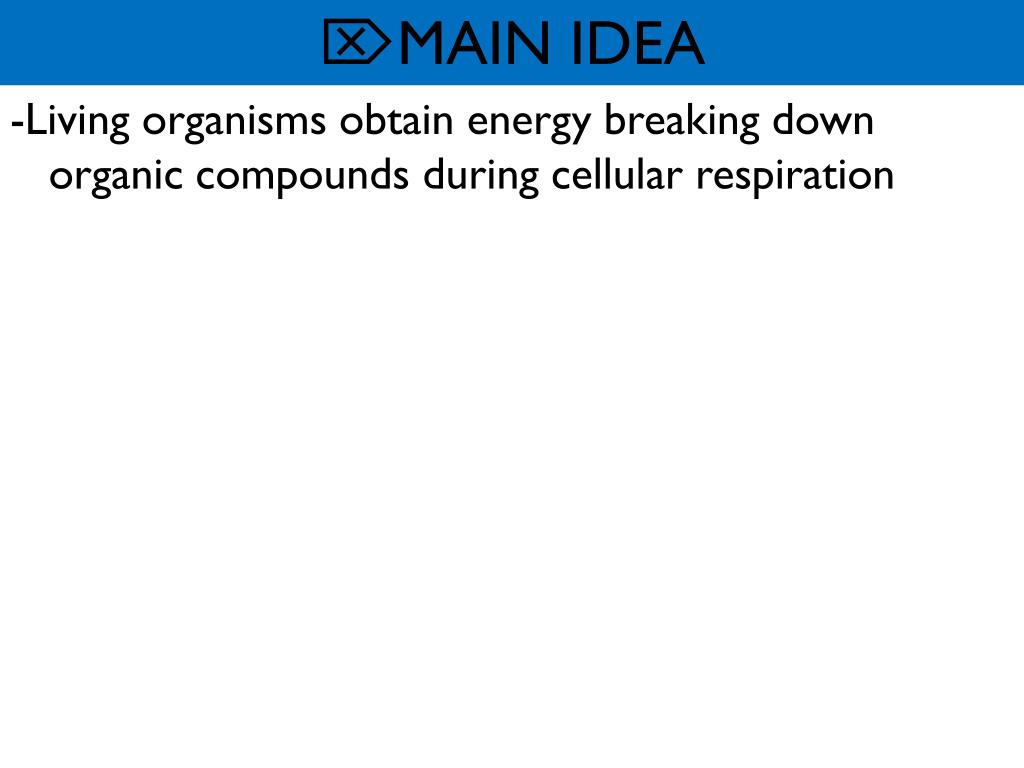

  4. MAIN IDEA -Living organisms obtain energy breaking down organic compounds during cellular respiration

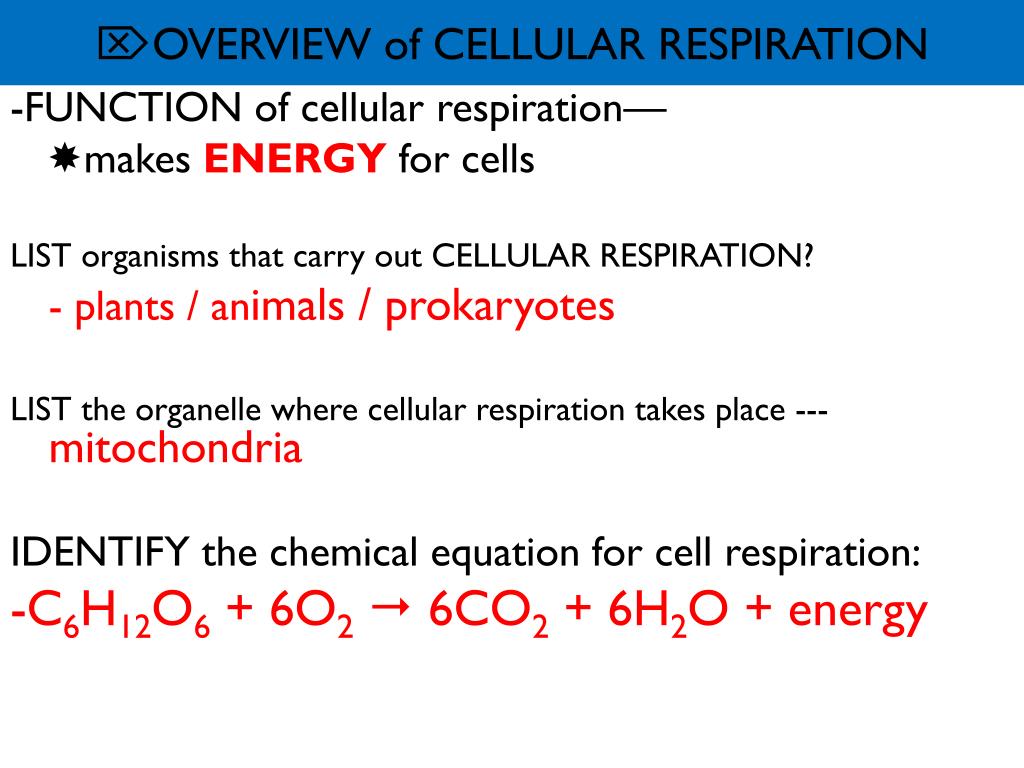

  5. OVERVIEW of CELLULAR RESPIRATION -FUNCTION of cellular respiration— makes ENERGY for cells LIST organisms that carry out CELLULAR RESPIRATION? - plants / animals / prokaryotes LIST the organelle where cellular respiration takes place ---mitochondria IDENTIFY the chemical equation for cell respiration: -C6H12O6 + 6O2 6CO2 + 6H2O + energy

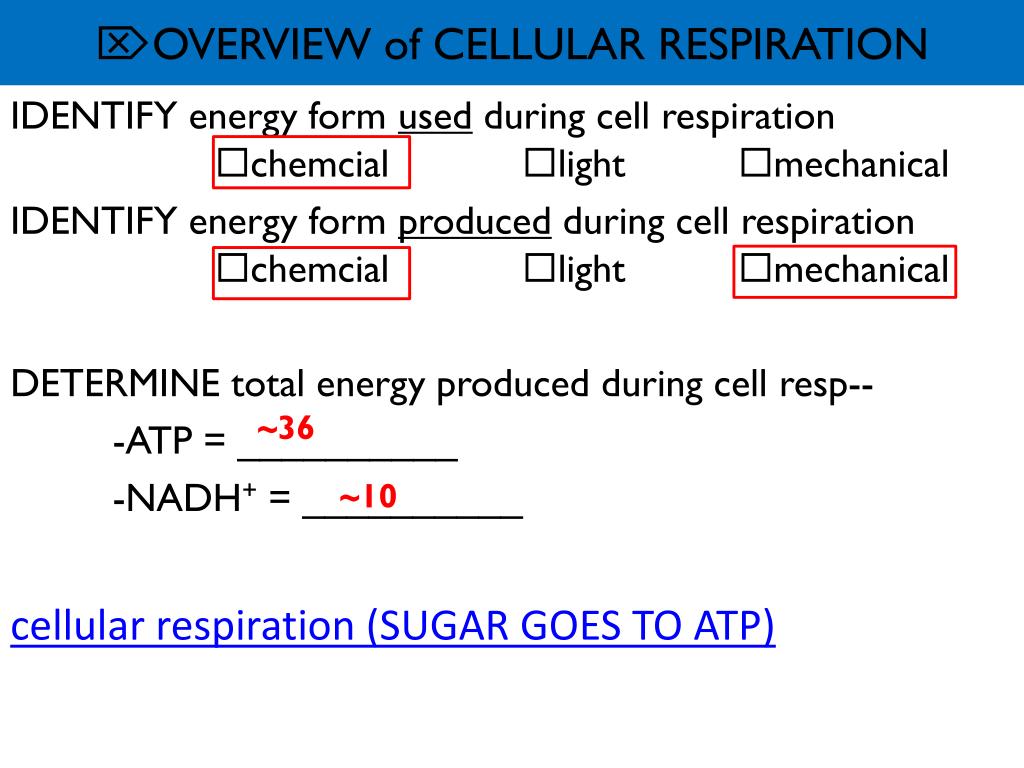

  6. OVERVIEW of CELLULAR RESPIRATION IDENTIFY energy form used during cell respiration chemciallight mechanical IDENTIFY energy form produced during cell respiration chemciallight mechanical DETERMINE total energy produced during cell resp-- -ATP = __________ -NADH+ = __________ cellular respiration (SUGAR GOES TO ATP) ~36 ~10

  7. IMPORTANT STRUCTURES of CELL RESP HOW CELLS OBTAIN ENERGY http://www.youtube.com/watch?v=i8c5JcnFaJ0

  8. PHASES of CELLULAR RESPIRATION -2 ATP net -2 NADH+ cytoplasm glucosepyruvate -2 ATP net -8 NADH+ pyruvateCO2 mitochondria mitochondrial membrane e- + H+ + O2 H2O + ATP ~32 ATP net ~36-38 ATP net ~10 NADH+

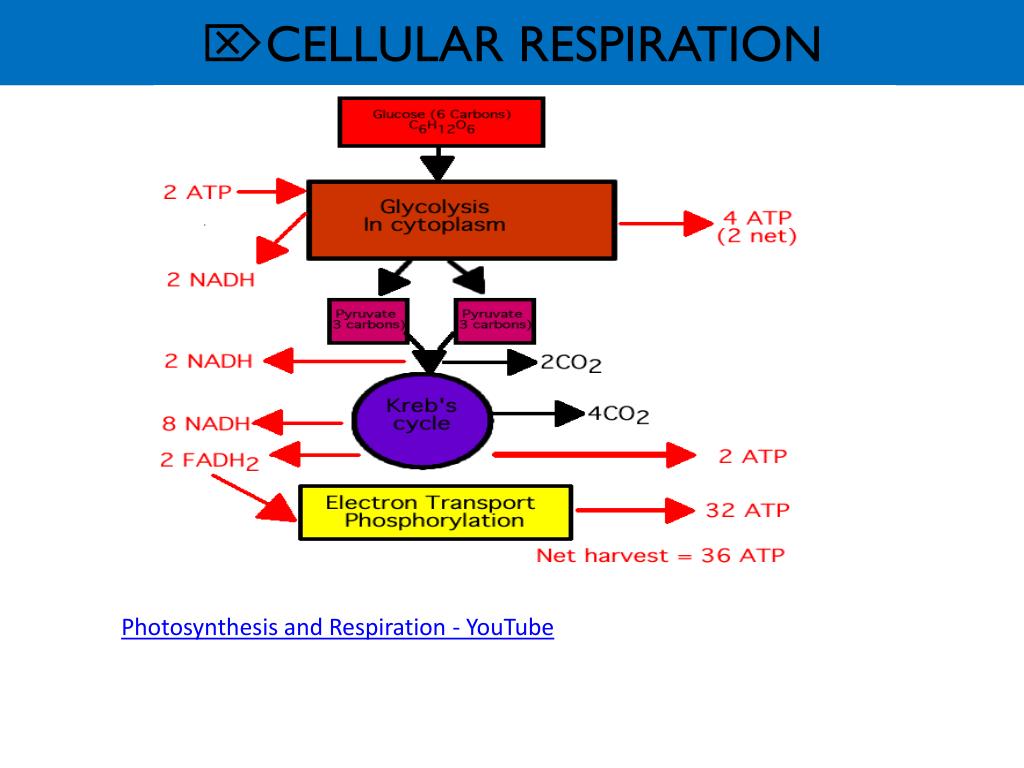

  9. CELLULAR RESPIRATION Photosynthesis and Respiration - YouTube

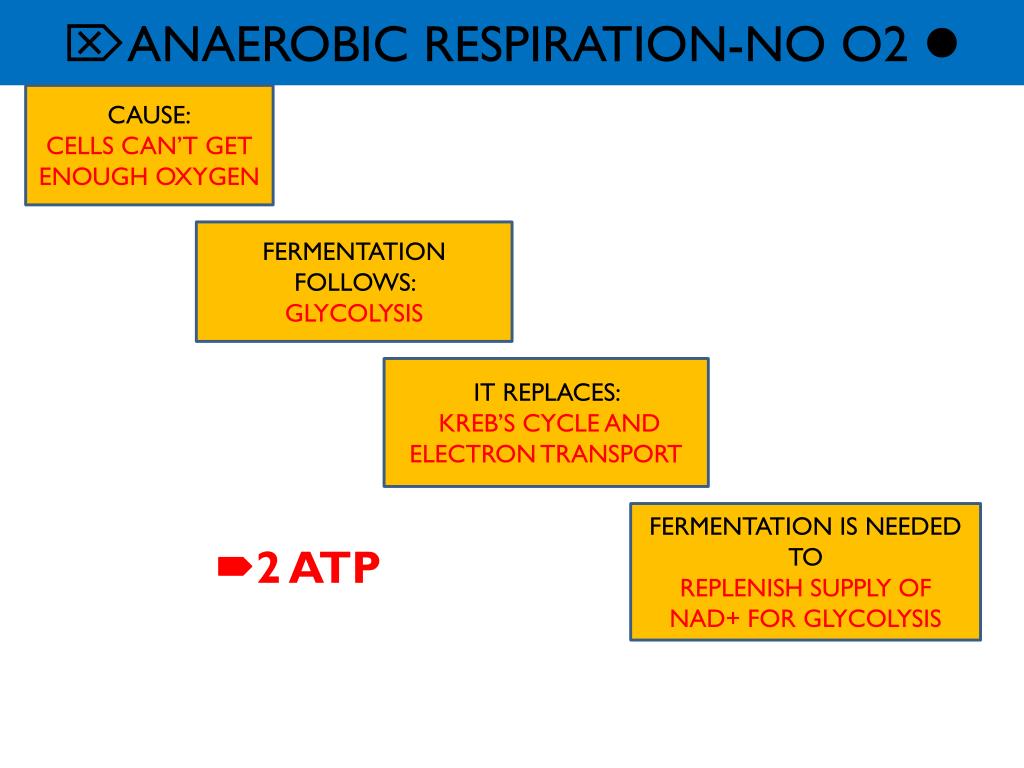

  10. ANAEROBIC RESPIRATION-NO O2  CAUSE: CELLS CAN’T GET ENOUGH OXYGEN FERMENTATION FOLLOWS: GLYCOLYSIS IT REPLACES: KREB’S CYCLE AND ELECTRON TRANSPORT FERMENTATION IS NEEDED TO REPLENISH SUPPLY OF NAD+ FOR GLYCOLYSIS 2 ATP

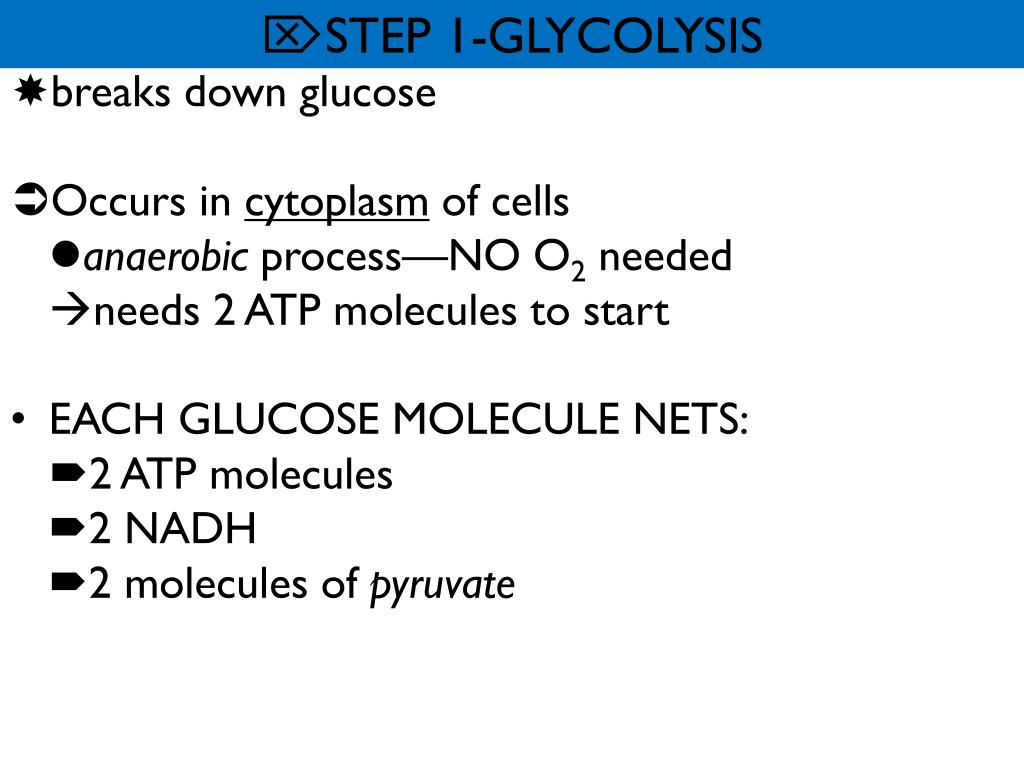

  11. STEP 1-GLYCOLYSIS breaks down glucose Occurs in cytoplasm of cells anaerobic process—NO O2 needed needs 2 ATP molecules to start • EACH GLUCOSE MOLECULE NETS: 2 ATP molecules 2 NADH 2 molecules of pyruvate

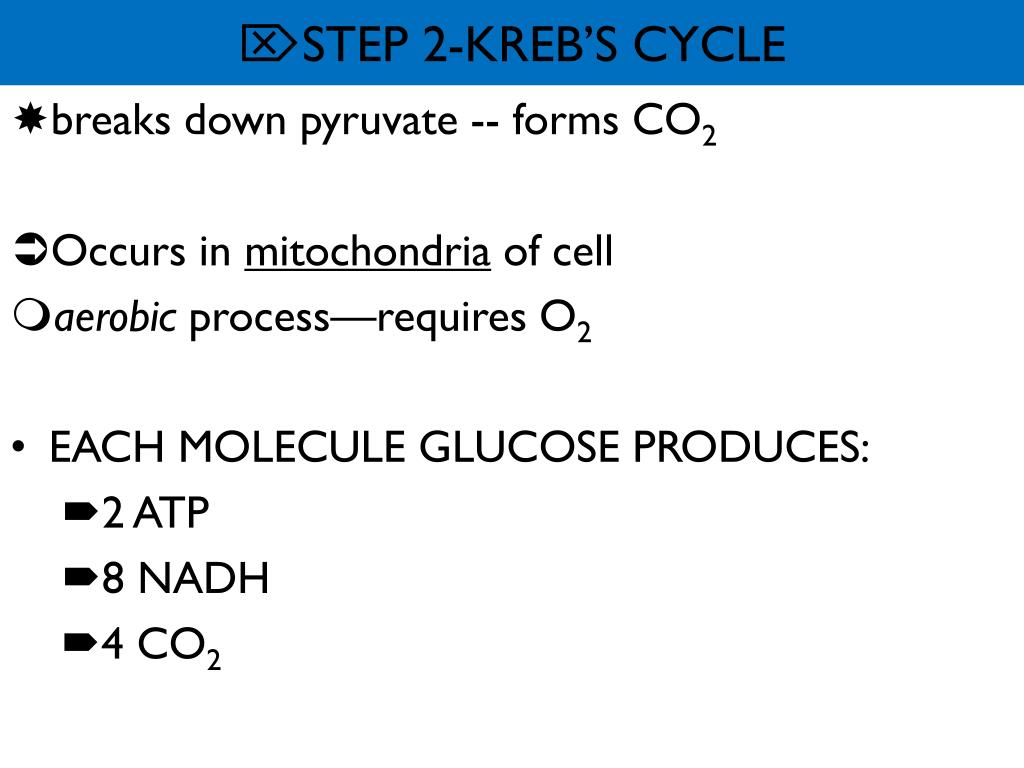

  12. STEP 2-KREB’S CYCLE breaks down pyruvate-- forms CO2 Occurs in mitochondria of cell aerobic process—requires O2 • EACH MOLECULE GLUCOSE PRODUCES: 2 ATP 8 NADH 4 CO2

  13. STEP 3-ELECTRON TRANSPORT ATP made from high-energy electrons & protons Occurs in mitochondrial membrane aerobic process—requires O2 • EACH GLUCOSE MOLECULE PRODUCES: 32 ATP electrons & protons w/O2 make H2O

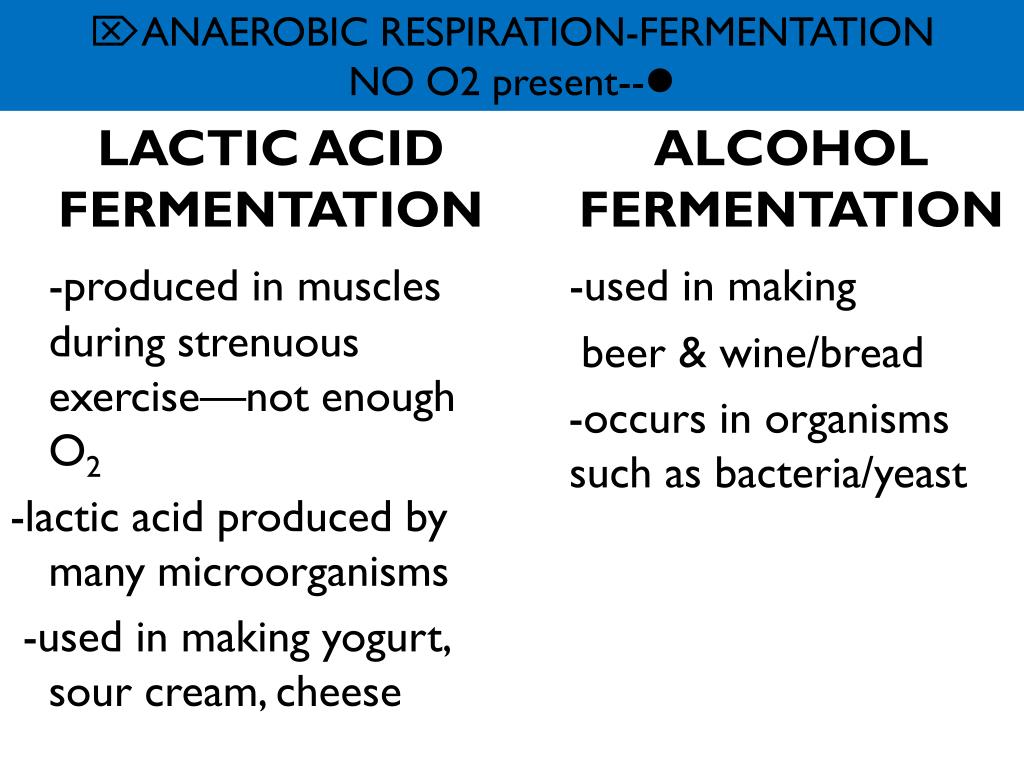

  14. ANAEROBIC RESPIRATION-FERMENTATIONNO O2 present-- LACTIC ACID FERMENTATION -produced in muscles during strenuous exercise—not enough O2 -lactic acid produced by many microorganisms -used in making yogurt, sour cream, cheese ALCOHOL FERMENTATION -used in making beer & wine/bread -occurs in organisms such as bacteria/yeast

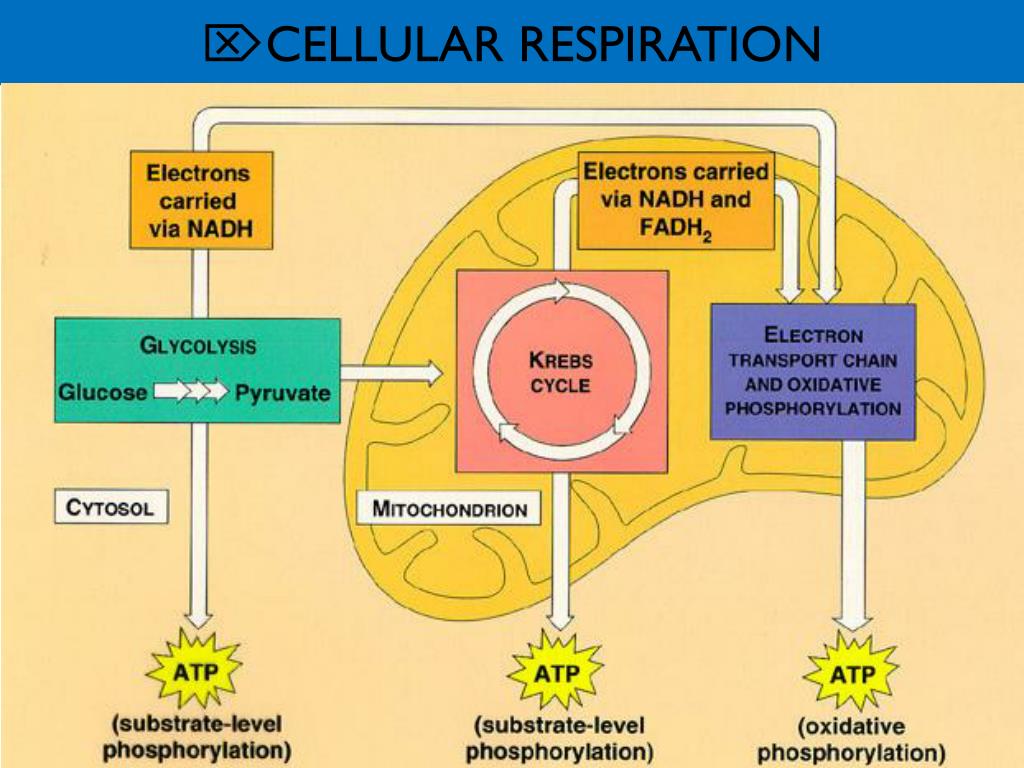

  15. CELLULAR RESPIRATION
