  1. Introduction to the radiancy and the colour 2008 Technical Advisory Service

  2. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

  3. The radiancy Solar radiancy Radiators Close IR Radio waves Visible Long IR

  4. The radiancy Solar spectrum

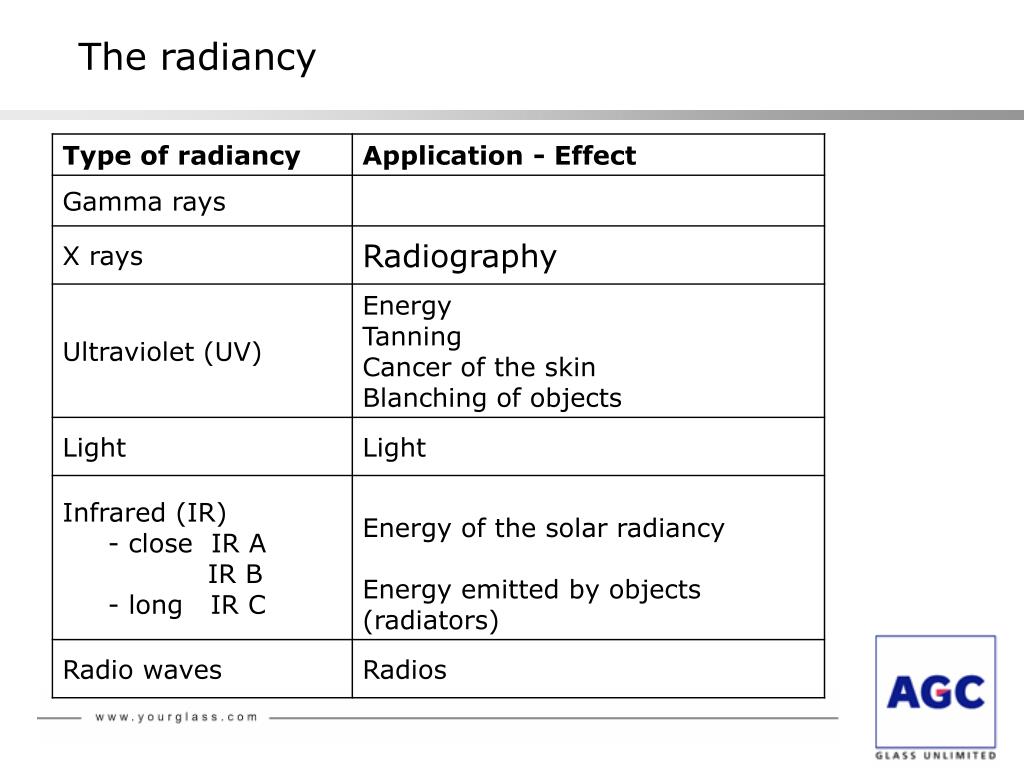

  5. The radiancy

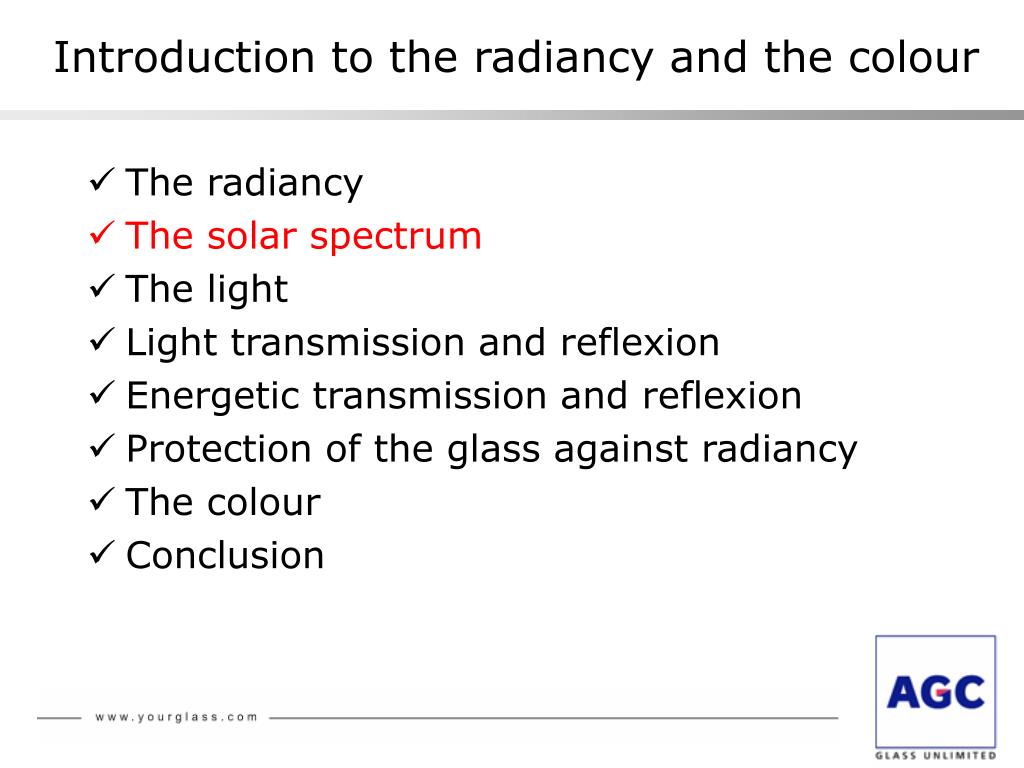

  6. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

  7. The solar spectrum Energy UV Light Short infra red Intensity(W/m²) 1.5 1.0 0.5 0 2500 280 380 780 0 Wavelength (nm)

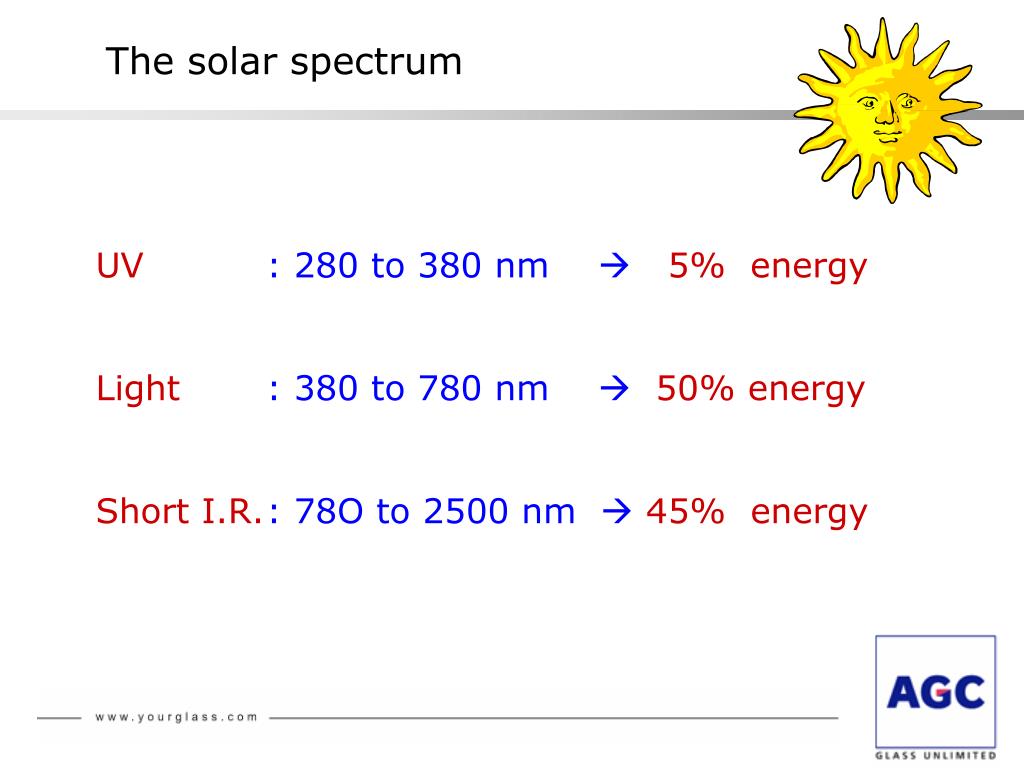

  8. The solar spectrum UV : 280 to 380 nm 5% energy Light : 380 to 780 nm 50% energy Short I.R. : 78O to 2500 nm 45% energy

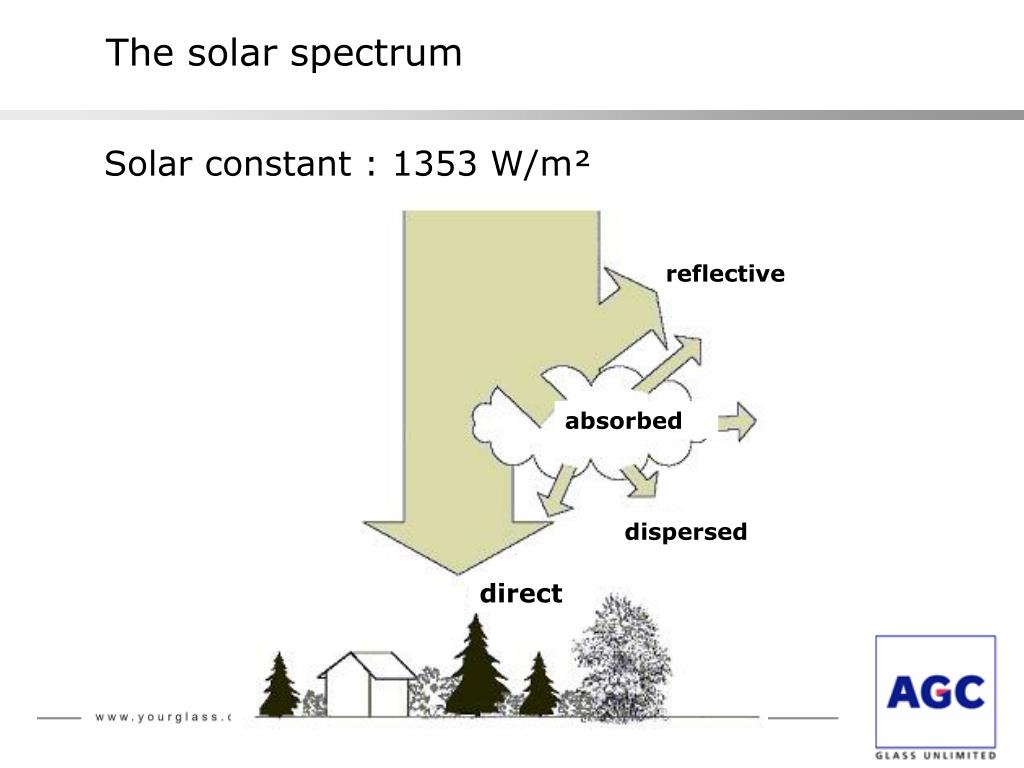

  9. The solar spectrum Solar constant : 1353 W/m² reflective absorbed dispersed direct

  10. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

  11. The solar spectrum 1.5 Light Intensity(W/m²) 1.0 0.5 0 2500 280 380 780 0 Wavelength (nm)

  12. The ligth

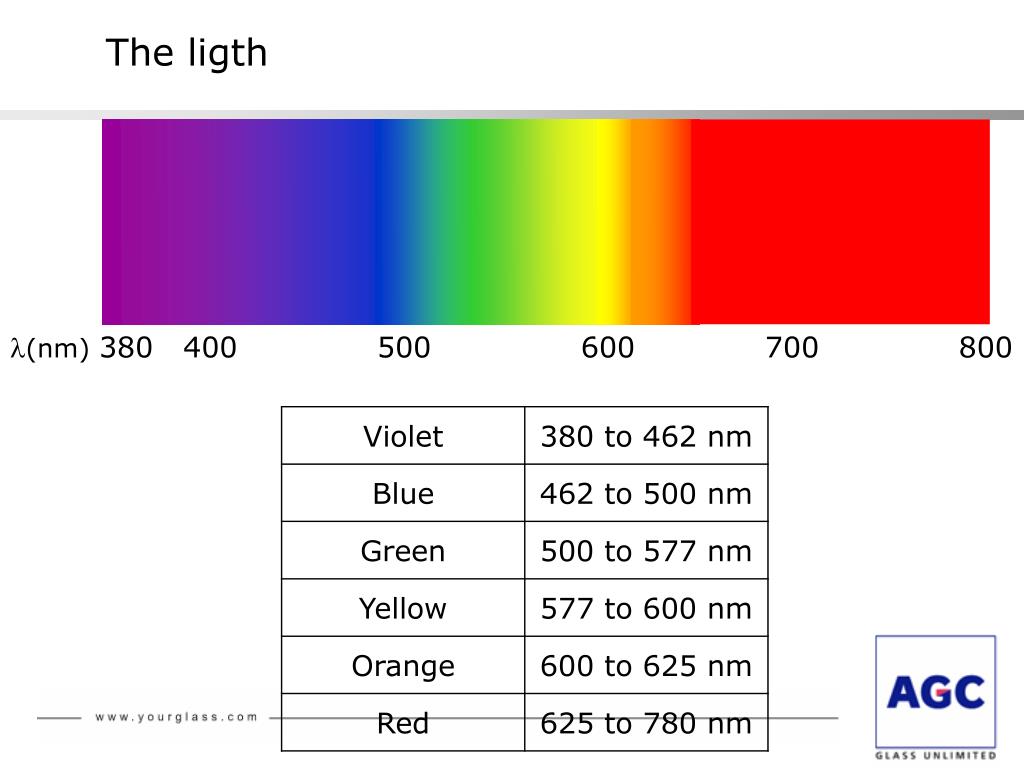

  13. The ligth l(nm) 380 400 500 600 700 800

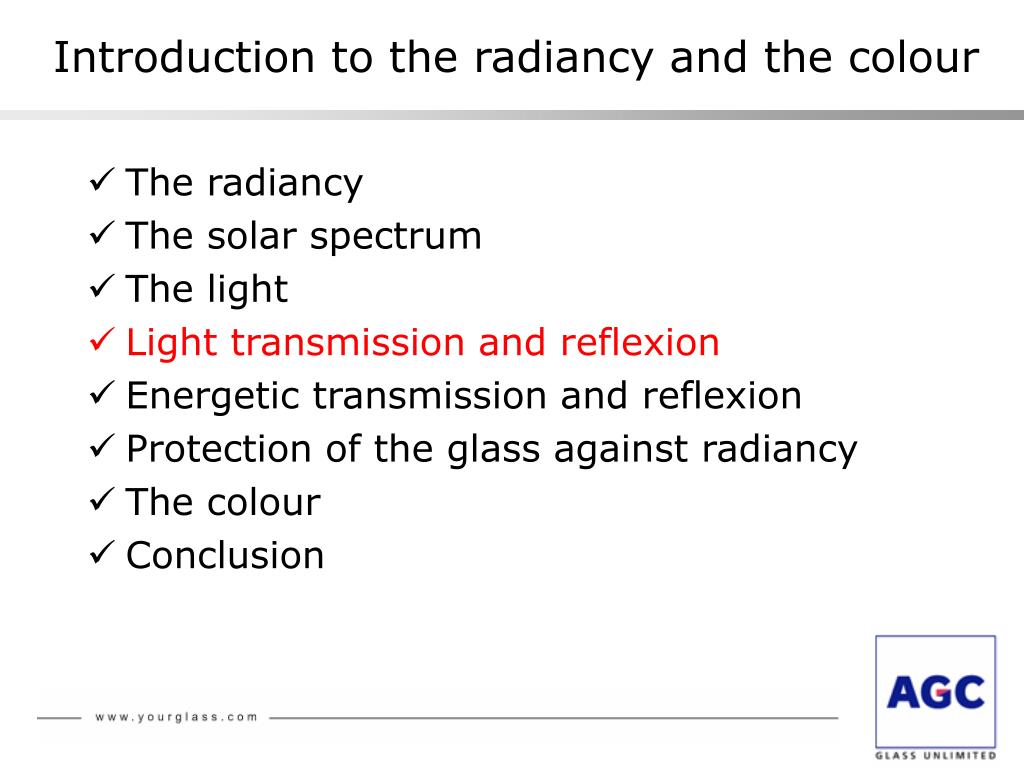

  14. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

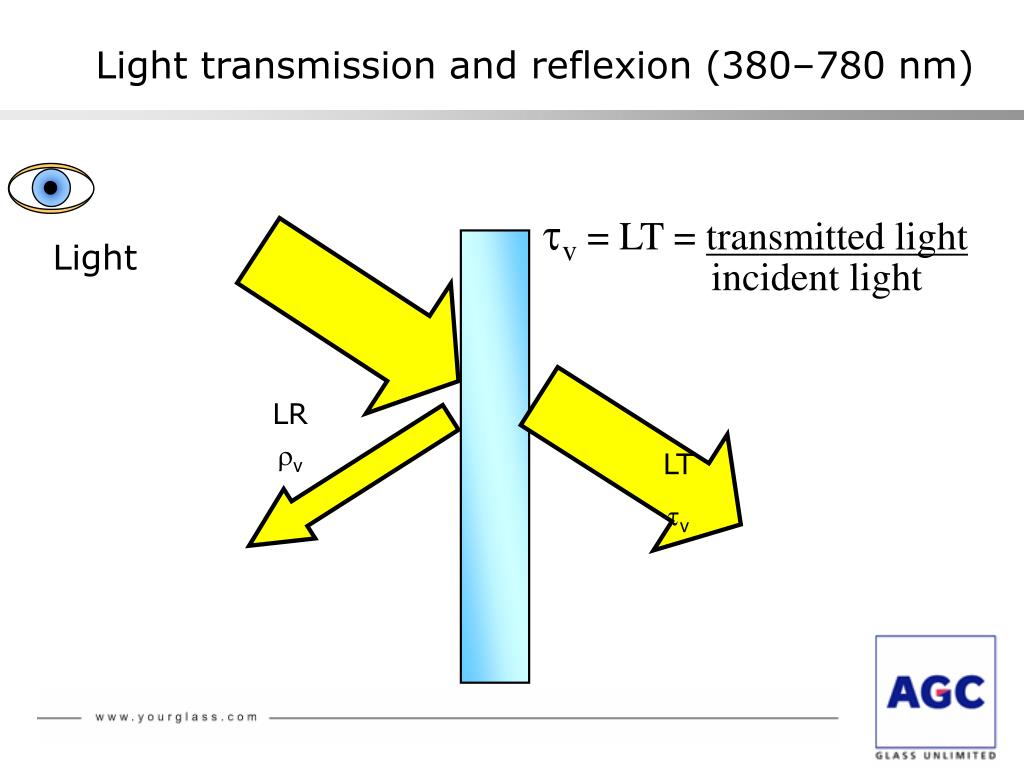

  15. Light transmission and reflexion (380–780 nm) LR rv LT tv tv = LT = transmitted light incident light Light

  16. Light transmission and reflexion (380–780 nm) the light transmission depends on : • the transmission’s curve of the product • the reference illuminant • the eye sensibilty

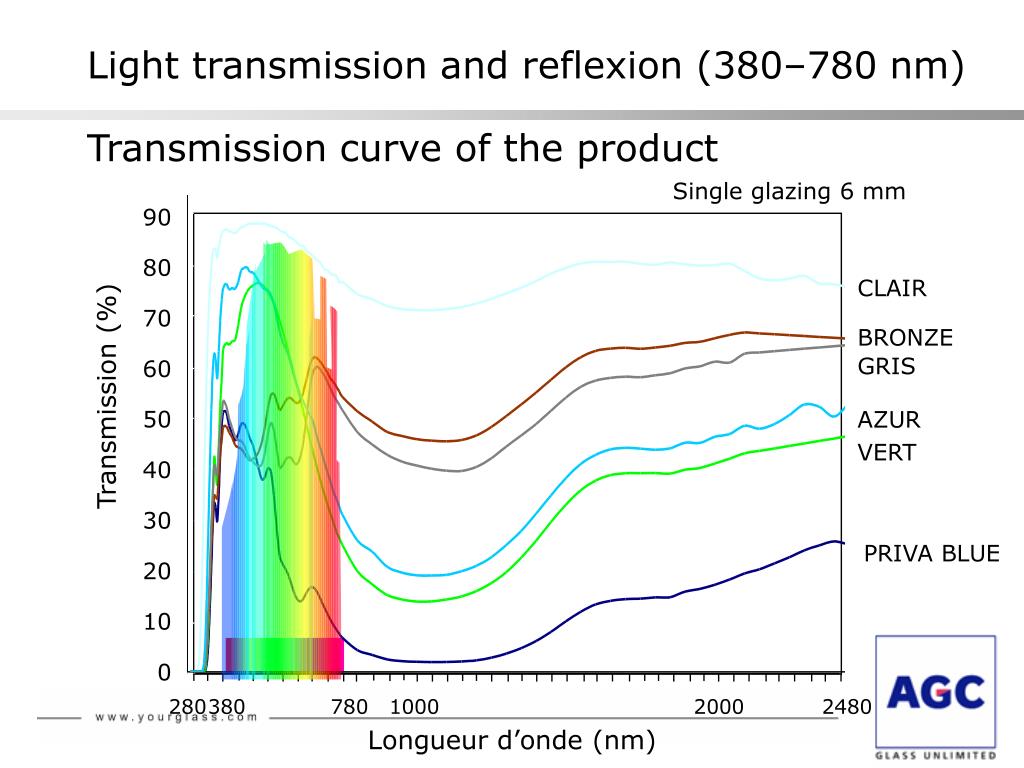

  17. Light transmission and reflexion (380–780 nm) Transmission curve of the product Single glazing 6 mm 90 80 CLAIR 70 BRONZE GRIS 60 Transmission (%) 50 AZUR VERT 40 30 PRIVA BLUE 20 10 0 280 380 780 1000 2000 2480 Longueur d’onde (nm)

  18. Light transmission and reflexion (380–780 nm) Reference illuminant

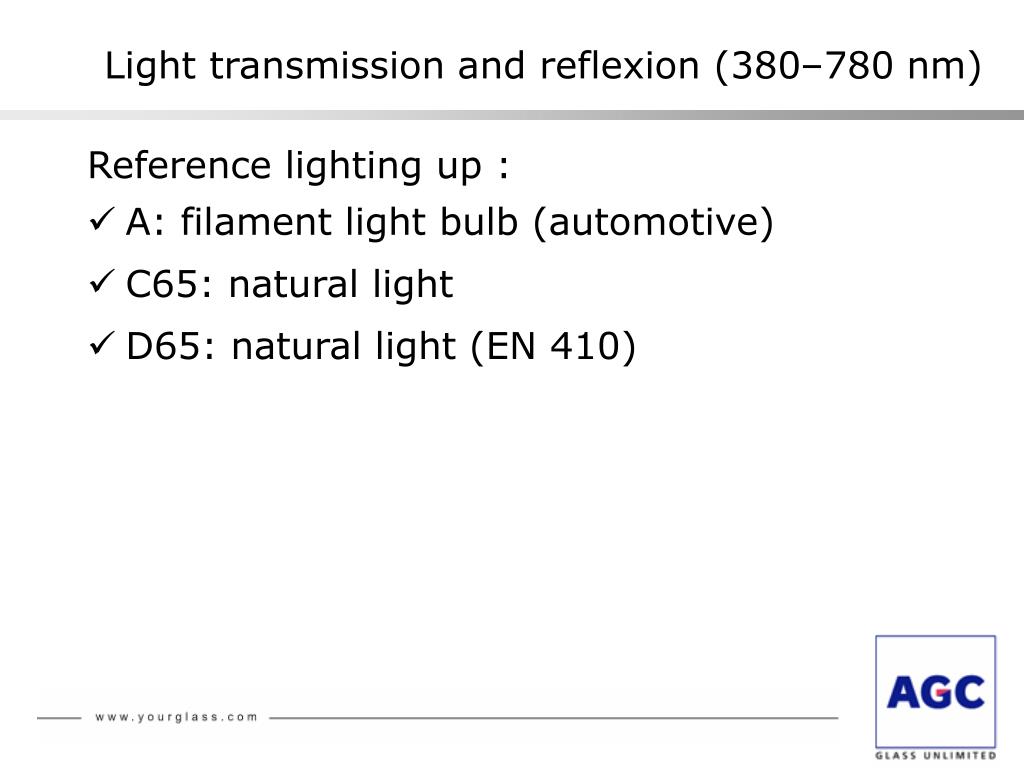

  19. Light transmission and reflexion (380–780 nm) Reference lighting up : • A: filament light bulb (automotive) • C65: natural light • D65: natural light (EN 410)

  20. Light transmission and reflexion (380–780 nm) Eye sensitivity

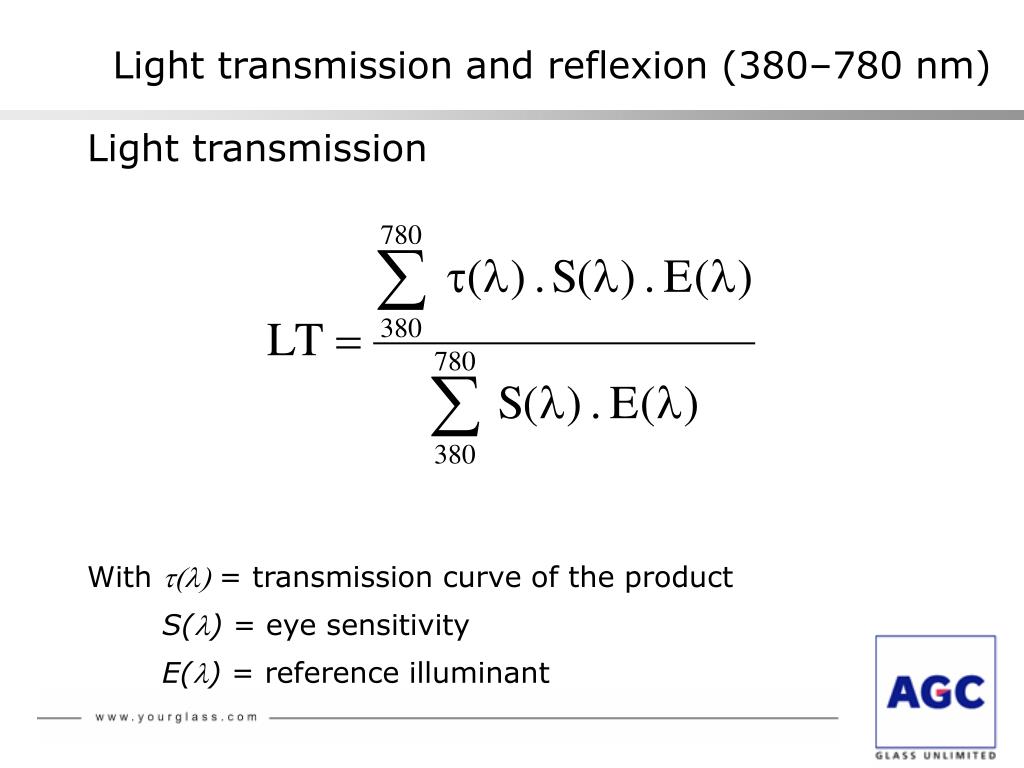

  21. Light transmission and reflexion (380–780 nm) Light transmission With t(l) = transmission curve of the productS(l) = eye sensitivityE(l) = reference illuminant

  22. Light transmission and reflexion (380–780 nm) Light reflexion With r(l) = transmission curve of the productS(l) = eye sensitivity E(l) = reference lighting up

  23. Light transmission and reflexion (380–780 nm) Index of reproduction of colours RD65 This index gives a quantitative evaluation of the difference in colorbetween 8 samples of color-test lit directly by illuminating D65, and the light coming from same illuminating, transmitted by theglazing

  24. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

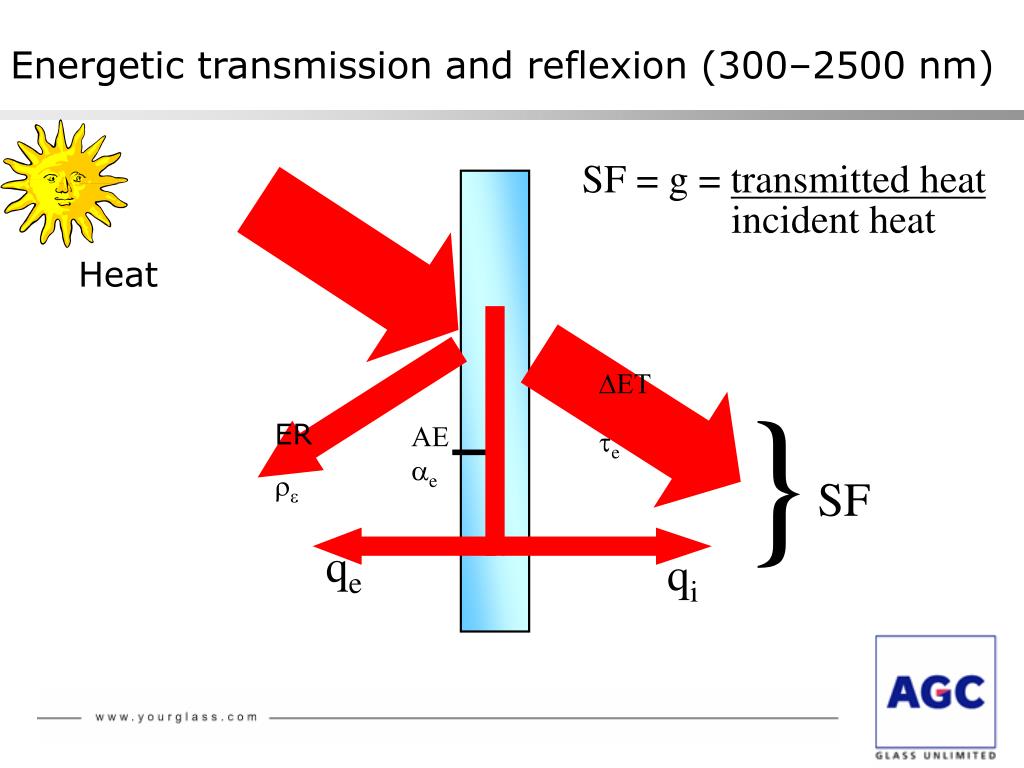

  25. Energetic transmission and reflexion (300–2500 nm) DET te ER re AEae qe qi SF = g = transmitted heat incident heat Heat }SF

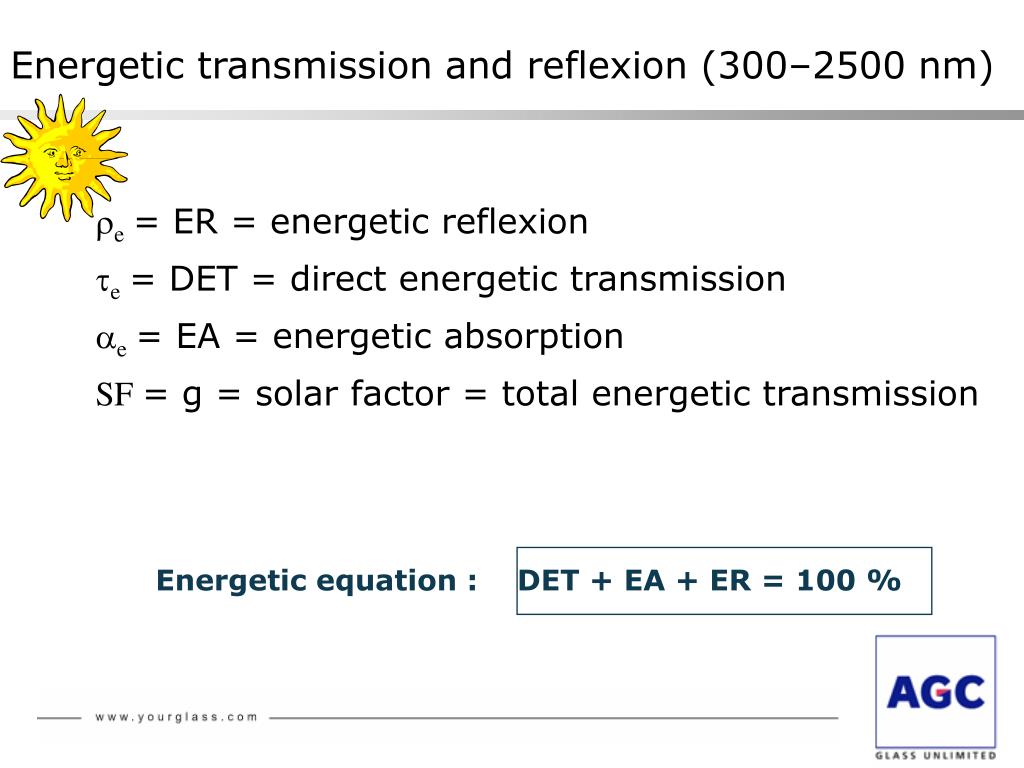

  26. Energetic transmission and reflexion (300–2500 nm) Energetic equation : DET + EA + ER = 100 % re= ER = energetic reflexion te= DET = direct energetic transmission ae= EA = energetic absorption SF = g = solar factor = total energetic transmission

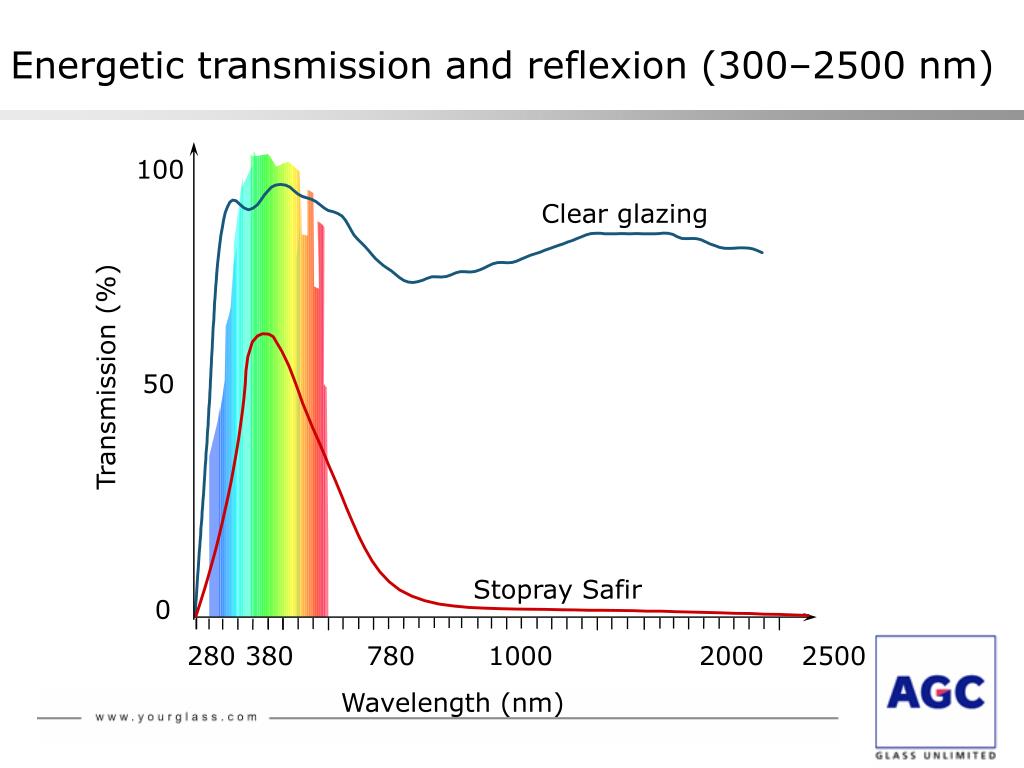

  27. Energetic transmission and reflexion (300–2500 nm) 100 Clear glazing Transmission (%) 50 Stopray Safir 0 280 380 780 1000 2000 2500 Wavelength(nm)

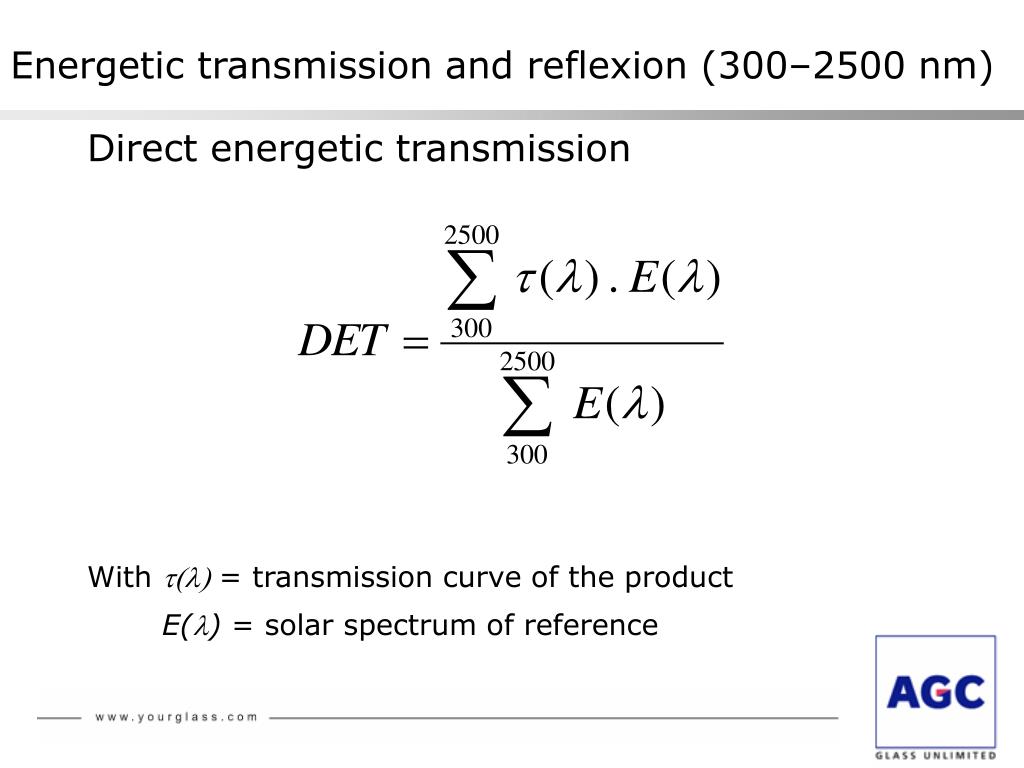

  28. Energetic transmission and reflexion (300–2500 nm) Direct energetic transmission With t(l) = transmission curve of the productE(l) = solar spectrum of reference

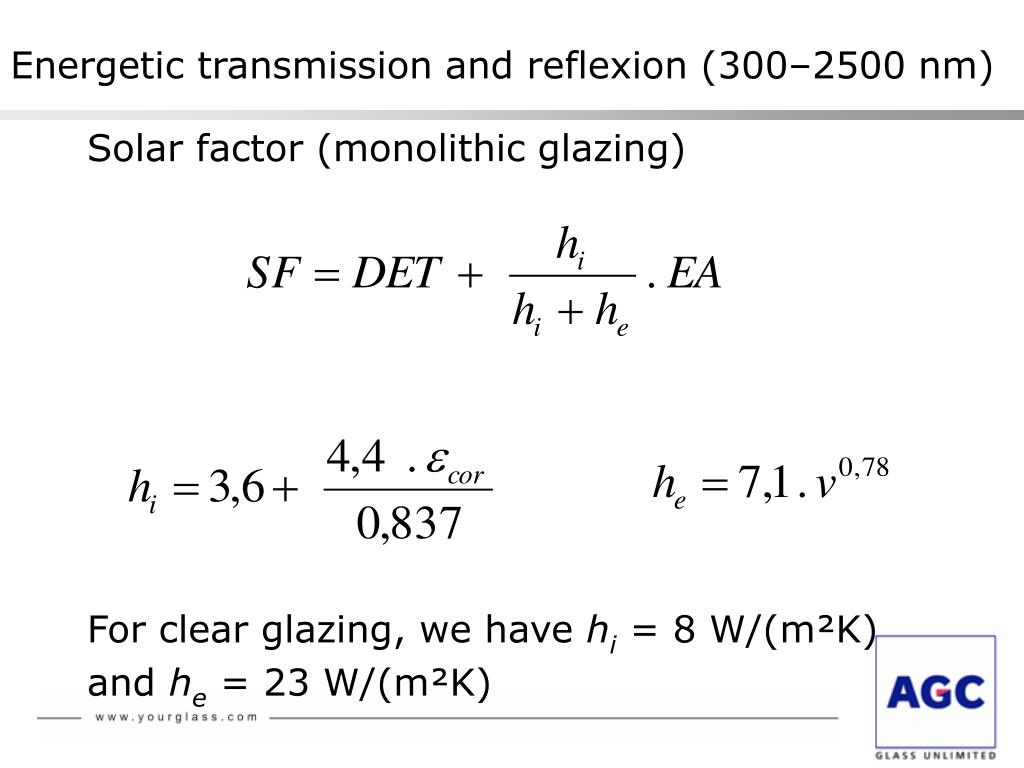

  29. Energetic transmission and reflexion (300–2500 nm) Solar factor (monolithic glazing) For clear glazing, we have hi = 8 W/(m²K) and he = 23 W/(m²K)

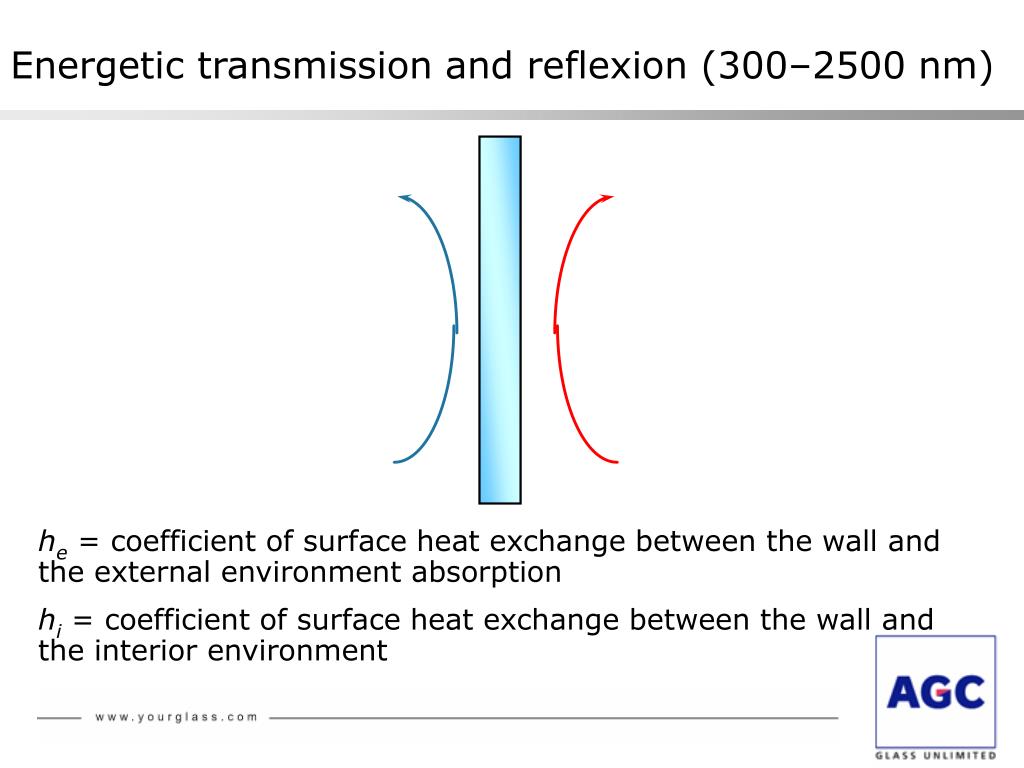

  30. Energetic transmission and reflexion (300–2500 nm) he = coefficient of surface heat exchange between the wall and the external environment absorption hi = coefficient of surface heat exchange between the wall and the interior environment

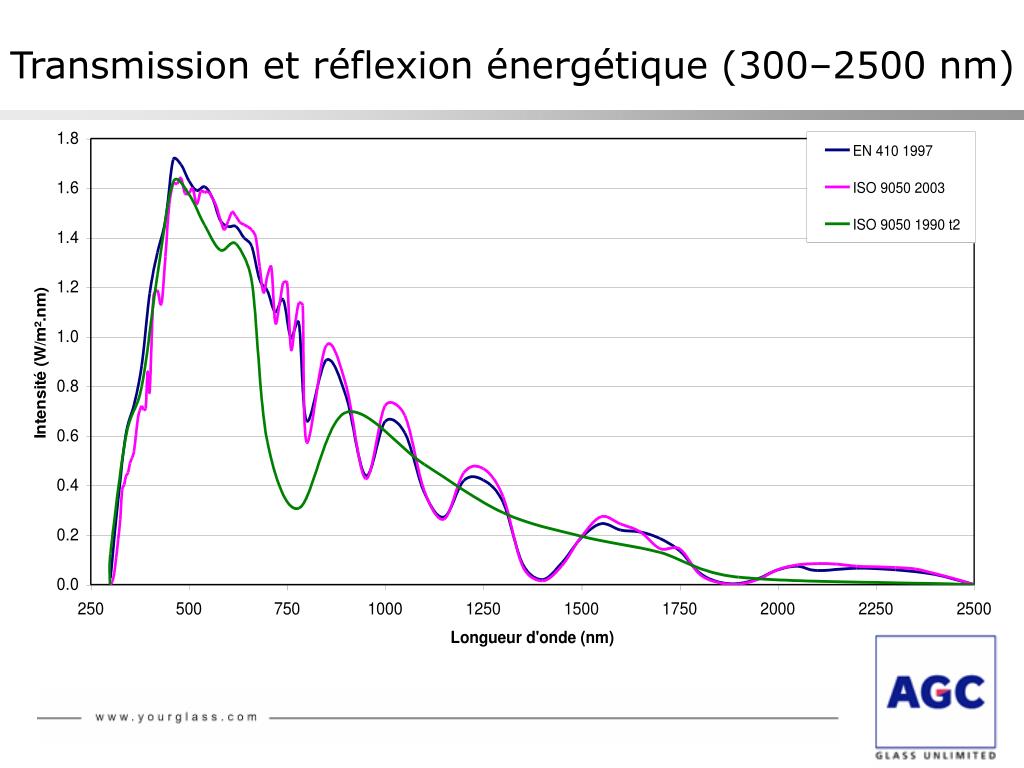

  31. Transmission et réflexion énergétique (300–2500 nm)

  32. Energetic transmission and reflexion (300–2500 nm) Remarks : indexes of the USA standards • SHGC (solar heat gain coefficient) = SFS • SC (shading coefficient) = sS/87 • SC sw = DET/87 • SC lw = SC – SC sw • Relative Heat Gain: RHG (W/m²) = 630 SC + 7,8 U

  33. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

  34. Protection of the glass against radiancy Protection against X rays • Glass with high lead content

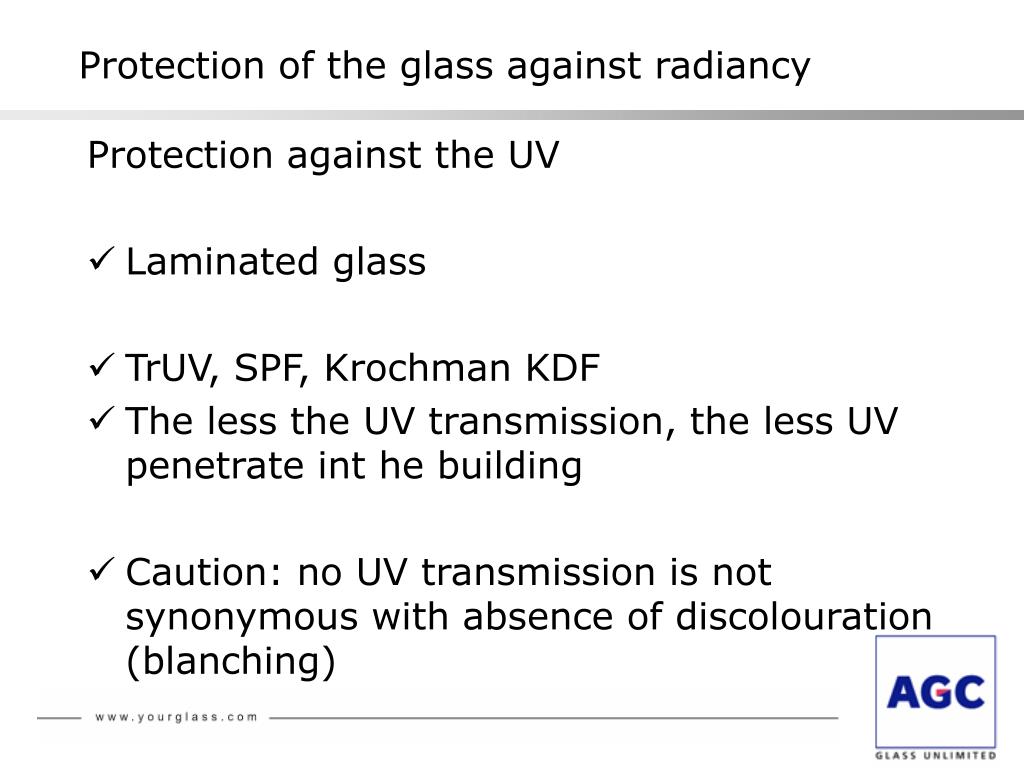

  35. Protection of the glass against radiancy Protection against the UV • Laminated glass • TrUV, SPF, Krochman KDF • The less the UV transmission, the less UV penetrate int he building • Caution: no UV transmission is not synonymous with absence ofdiscolouration (blanching)

  36. Protection of the glass against radiancy Protection against the light and lighting of the buildings • Coloured glazings, coated glass • TL • The highest the LT, the more light comes into the building. The lighting level of the buildings depends on the LT  See training «Glass and solar control»

  37. Protection of the glass against radiancy Protection against vision • Opaque, mat, painted, printed glazings …

  38. Protection of the glass against radiancy Protection against short IR and the heat • Ccoloured glass, coated glass • SF, (TrIR) • The lowest the SF, the lowest heat comes into the building. The system of air conditioning of a building depends on the level of SF  See training «Glass and solar control»

  39. Protection of the glass against radiancy Protection against long IR • Low emissivity glass (Top N, Top NT, Stopray, Planibel G, Sunergy) • Emissivity e, Ug • The heating system depends on the level of insulation of the building  See training «Glass and thermal insulation»

  40. Protection of the glass against radiancy Protection against radio waves • Electrified coated glass

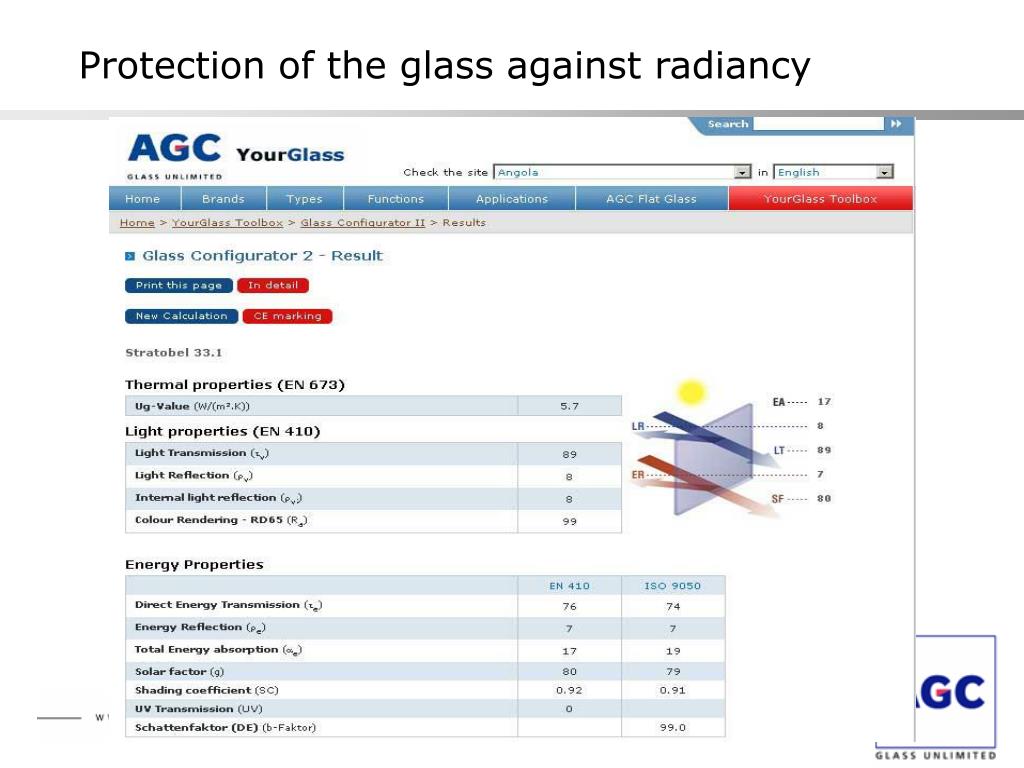

  41. Protection of the glass against radiancy

  42. Introduction to the radiancy and the colour • The radiancy • The solar spectrum • The light • Light transmission and reflexion • Energetic transmission and reflexion • Protection of the glass against radiancy • The colour • Conclusion

  43. The colour

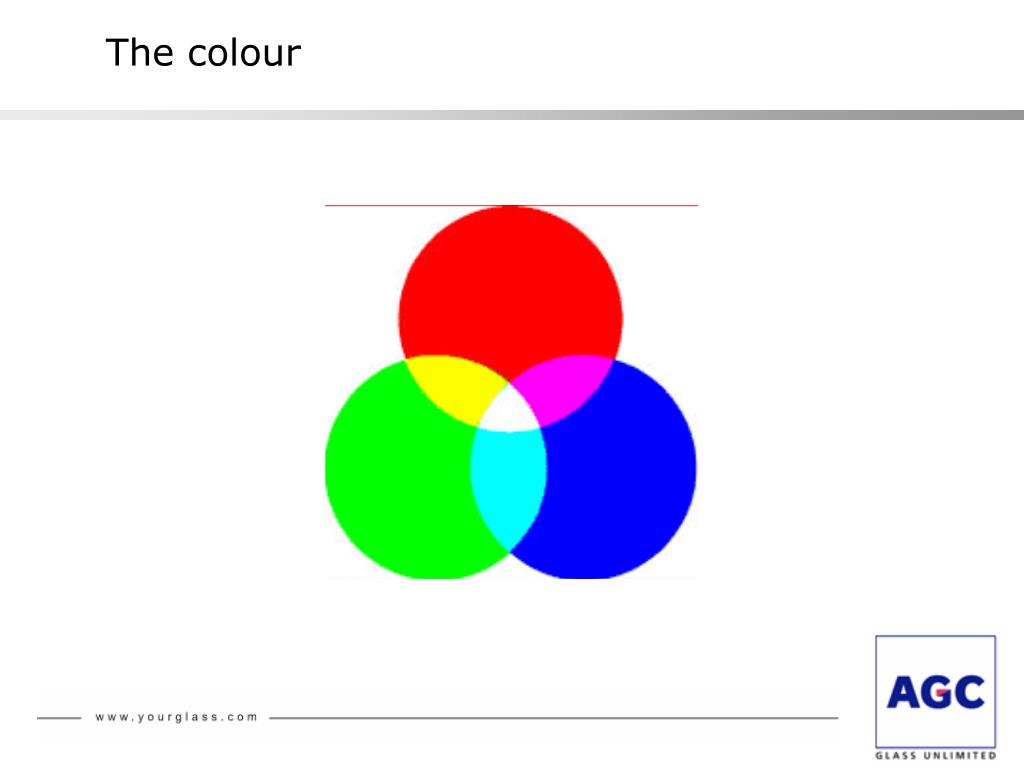

  44. The colour

  45. The colour

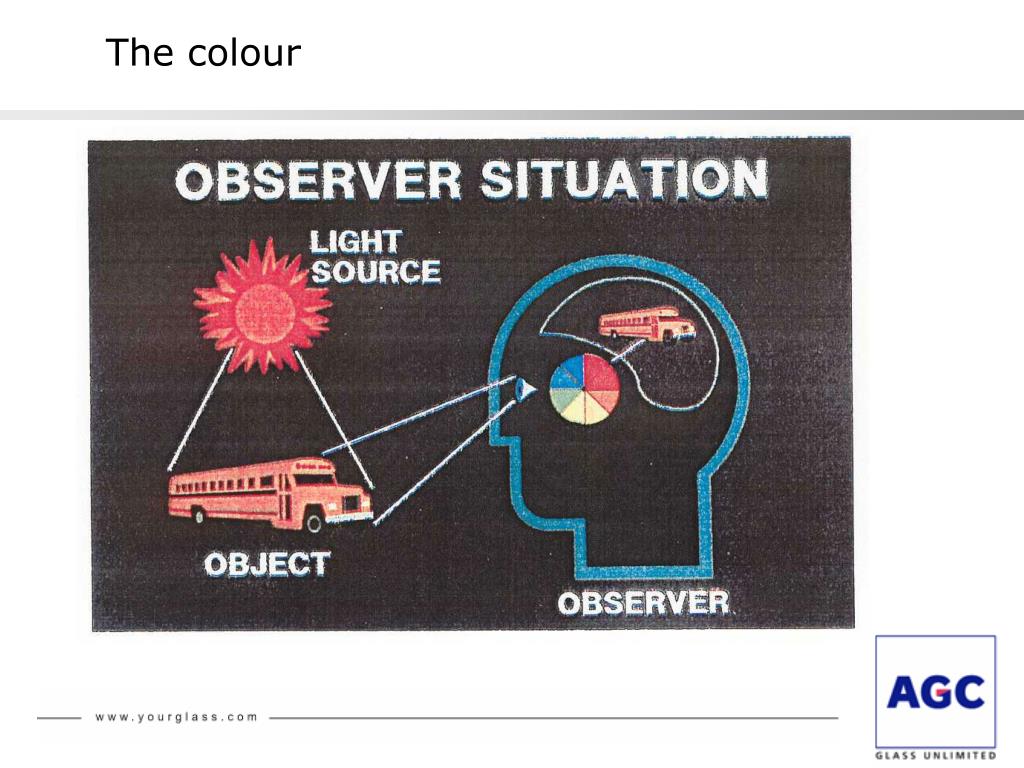

  46. The colour The colour of an object depends on : • the illuminant which lights the object • the object itself which modifies by transmission or reflexion the received light • the eye of the observer and the transfer of the image towards the brain

  47. The colour

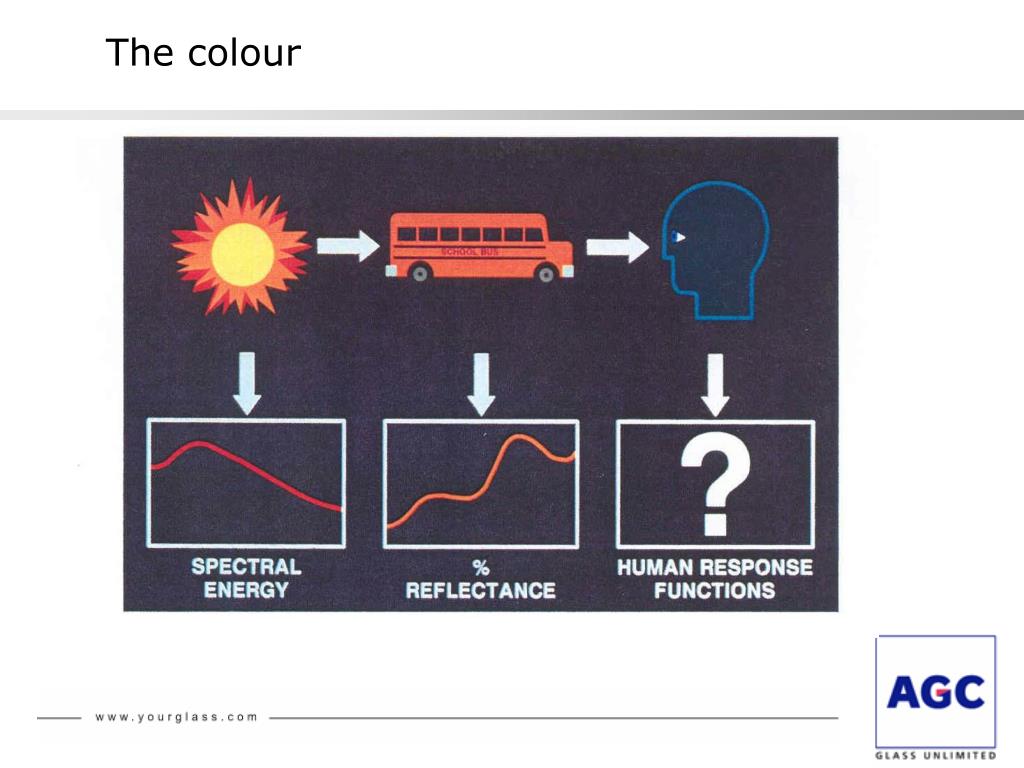

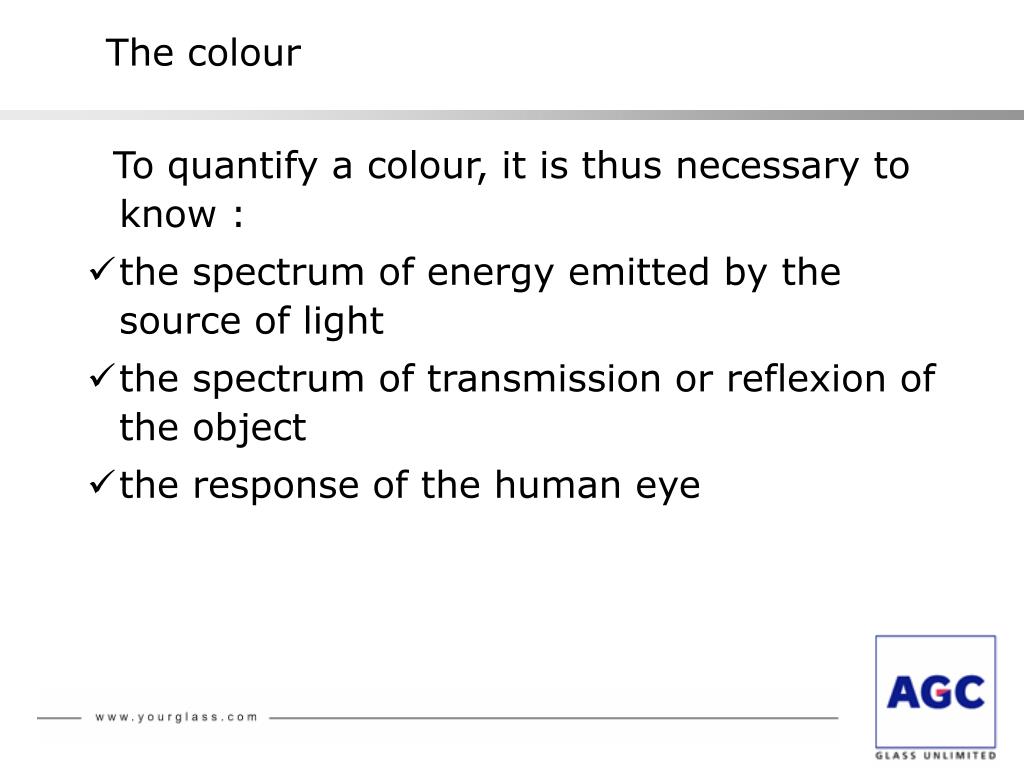

  48. The colour To quantify a colour, it is thus necessary to know : • the spectrum of energy emitted by the source of light • the spectrum of transmission or reflexion of the object • the response of the human eye

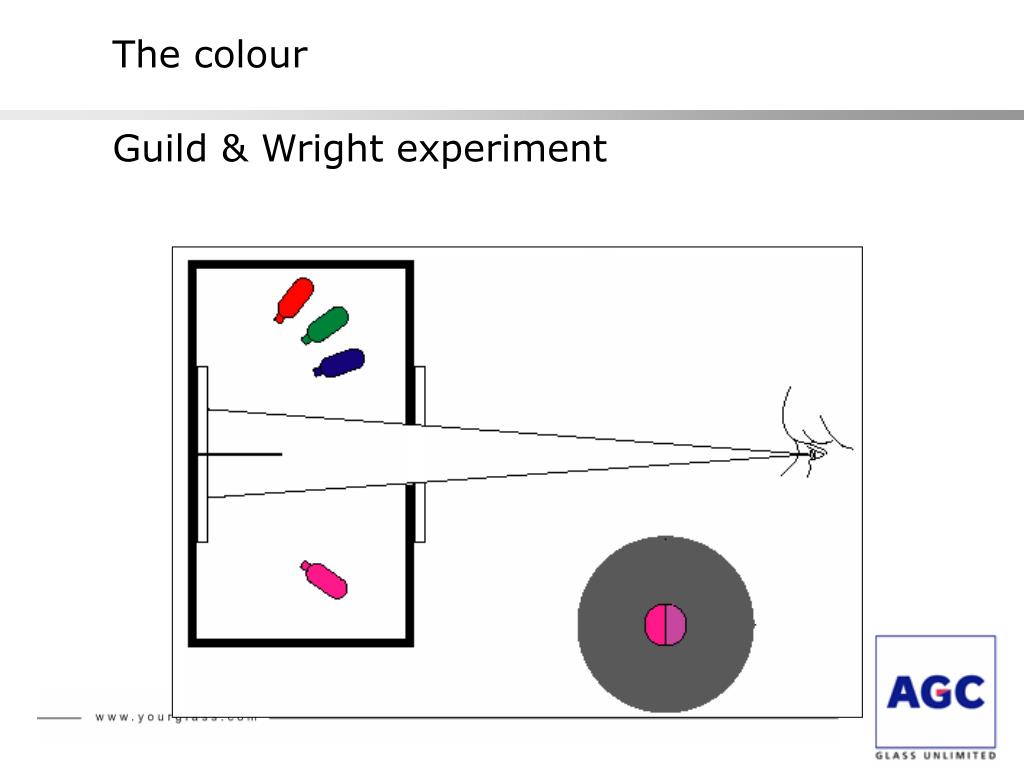

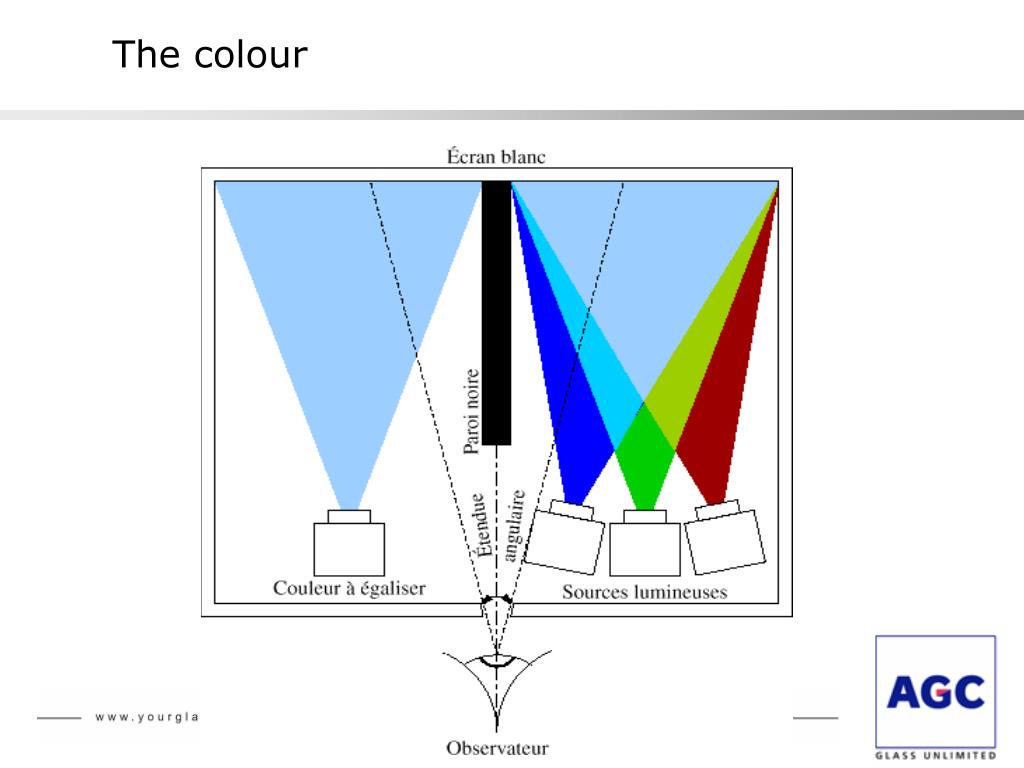

  49. The colour Guild & Wright experiment

  50. The colour
