Introduction to Software Testing Why Do We Test Software?

1. Introduction to Software TestingWhy Do We Test Software? Dr. Pedro Mejia Alvarez

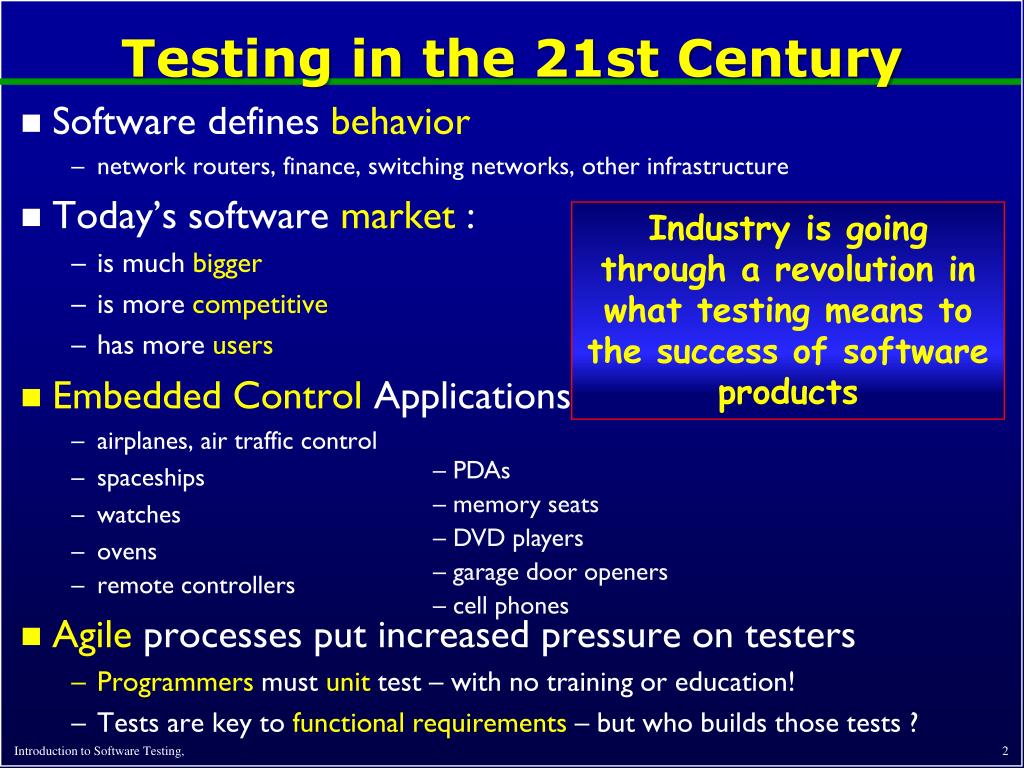

2. Testing in the 21st Century • Software defines behavior • network routers, finance, switching networks, other infrastructure • Today’s software market : • is much bigger • is more competitive • has more users • Embedded Control Applications • airplanes, air traffic control • spaceships • watches • ovens • remote controllers • Agile processes put increased pressure on testers • Programmers must unit test – with no training or education! • Tests are key to functional requirements – but who builds those tests ? Industry is going through a revolution in what testing means to the success of software products • PDAs • memory seats • DVD players • garage door openers • cell phones

3. Software is a Skin that Surrounds Our Civilization Quote due to Dr. Mark Harman

4. Software Faults, Errors & Failures • Software Fault : A static defect in the software • Software Error : An incorrect internal state that is the manifestation of some fault • Software Failure : External, incorrect behavior with respect to the requirements or other description of the expected behavior Faults in software are equivalent to design mistakes in hardware. Software does not degrade.

5. Fault and Failure Example • A patient gives a doctor a list of symptoms • Failures • The doctor tries to diagnose the root cause, the ailment • Fault • The doctor may look for anomalous internal conditions (high blood pressure, irregular heartbeat, bacteria in the blood stream) • Errors Most medical problems result from external attacks (bacteria, viruses) or physical degradation as we age. They were there at the beginning and do not “appear” when a part wears out.

6. A Concrete Example Fault: Should start searching at 0, not 1 public static intnumZero (int [ ] arr) { // Effects: If arr is null throw NullPointerException // else return the number of occurrences of 0 in arr int count = 0; for (inti = 1; i < arr.length; i++) { if (arr [ i ] == 0) { count++; } } return count; } Test 1 [ 2, 7, 0 ] Expected: 1 Actual: 1 Error: i is 1, not 0, on the first iteration Failure: none Test 2 [ 0, 2, 7 ] Expected: 1 Actual: 0 Error: i is 1, not 0 Error propagates to the variable count Failure: count is 0 at the return statement

7. The Term Bug • Bug is used informally • Sometimes speakers mean fault, sometimes error, sometimes failure … often the speaker doesn’t know what it means ! • This class will try to use words that have precise, defined, and unambiguous meanings “an analyzing process must equally have been performed in order to furnish the Analytical Engine with the necessary operative data; and that herein may also lie a possible source of error. Granted that the actual mechanism is unerring in its processes, the cards may give it wrong orders. ” – Ada, Countess Lovelace (notes on Babbage’s Analytical Engine) BUG “It has been just so in all of my inventions. The first step is an intuition, and comes with a burst, then difficulties arise—this thing gives out and [it is] then that 'Bugs'—as such little faults and difficulties are called—show themselves and months of intense watching, study and labor are requisite. . .” – Thomas Edison

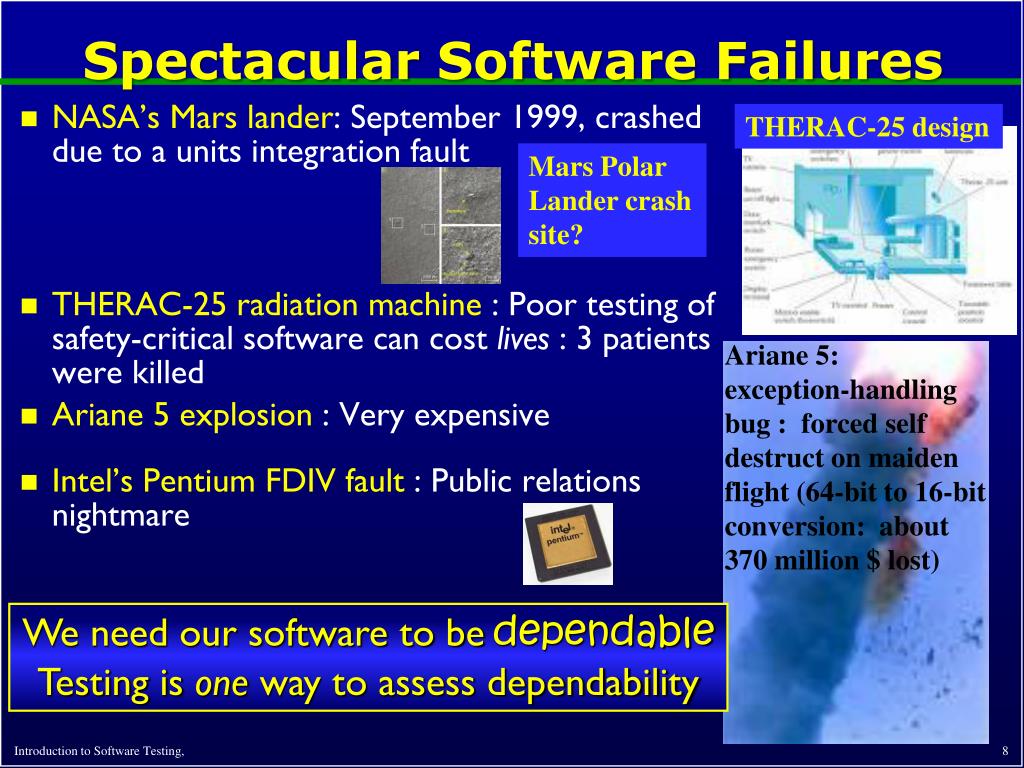

8. Spectacular Software Failures • NASA’s Mars lander: September 1999, crashed due to a units integration fault THERAC-25 design Mars PolarLander crashsite? • THERAC-25 radiation machine: Poor testing of safety-critical software can cost lives : 3 patients were killed Ariane 5:exception-handlingbug : forced selfdestruct on maidenflight (64-bit to 16-bitconversion: about370 million $ lost) • Ariane 5 explosion : Very expensive • Intel’s Pentium FDIV fault : Public relations nightmare We need our software to bedependable Testing is one way to assess dependability

9. Northeast Blackout of 2003 508 generating units and 256 power plants shut down Affected 10 million people in Ontario, Canada Affected 40 million people in 8 US states Financial losses of $6 Billion USD The alarm system in the energy management system failed due to a software error and operators were not informed of the power overload in the system

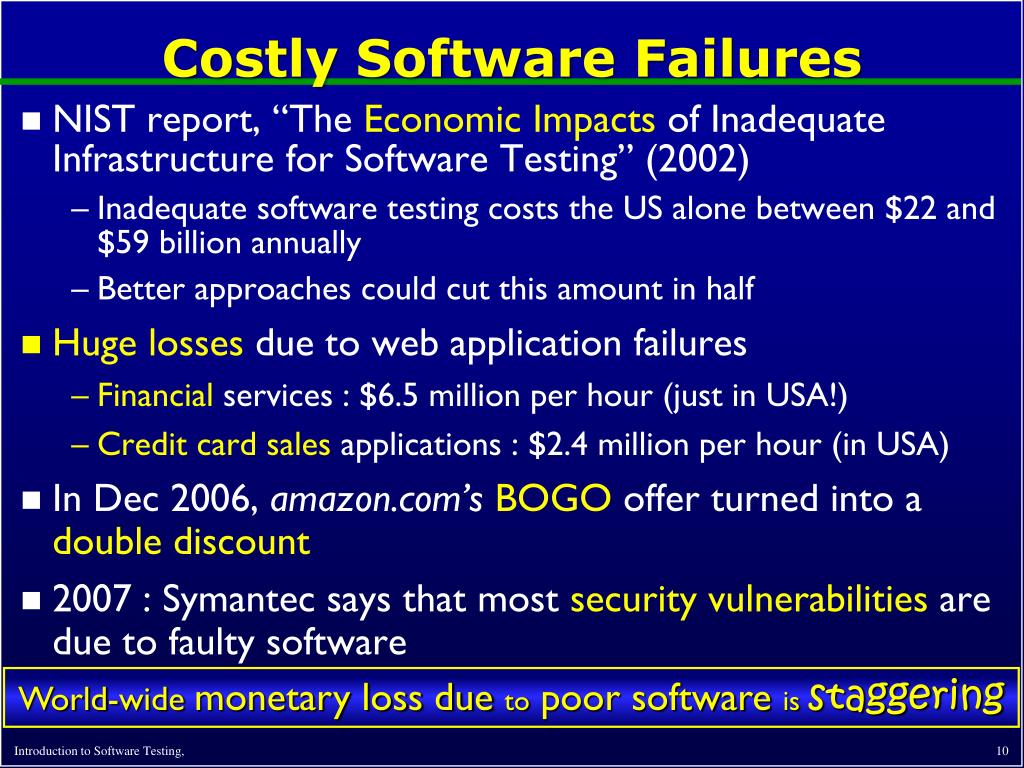

10. Costly Software Failures • NIST report, “The Economic Impacts of Inadequate Infrastructure for Software Testing” (2002) • Inadequate software testing costs the US alone between $22 and $59 billion annually • Better approaches could cut this amount in half • Huge losses due to web application failures • Financial services : $6.5 million per hour (just in USA!) • Credit card sales applications : $2.4 million per hour (in USA) • In Dec 2006, amazon.com’sBOGO offer turned into a double discount • 2007 : Symantec says that most security vulnerabilities are due to faulty software World-wide monetary loss due to poor software is staggering

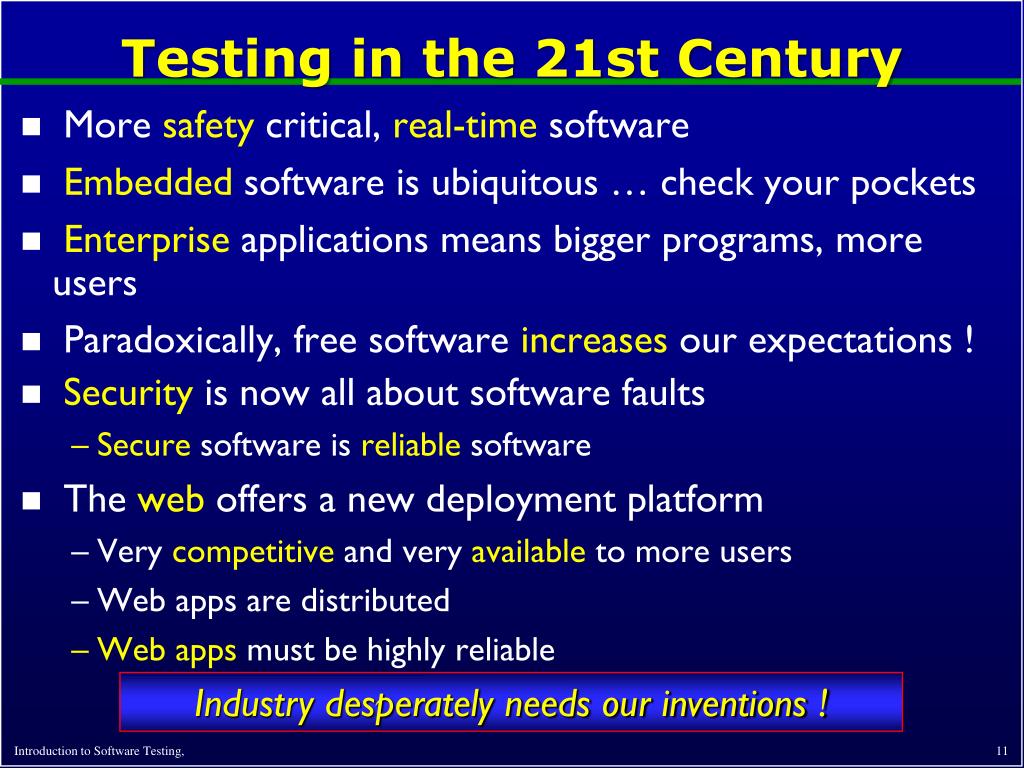

11. Testing in the 21st Century • More safety critical, real-time software • Embedded software is ubiquitous … check your pockets • Enterprise applications means bigger programs, more users • Paradoxically, free software increases our expectations ! • Security is now all about software faults • Secure software is reliable software • The web offers a new deployment platform • Very competitive and very available to more users • Web apps are distributed • Web apps must be highly reliable Industry desperately needs our inventions !

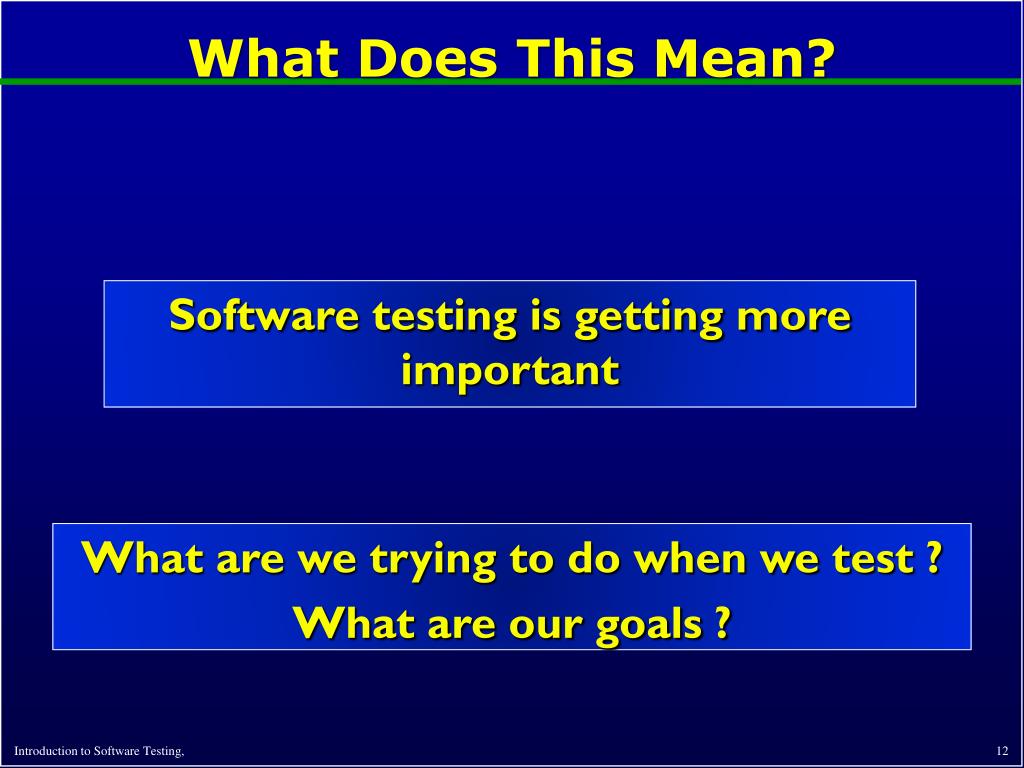

12. What Does This Mean? Software testing is getting more important What are we trying to do when we test ? What are our goals ?

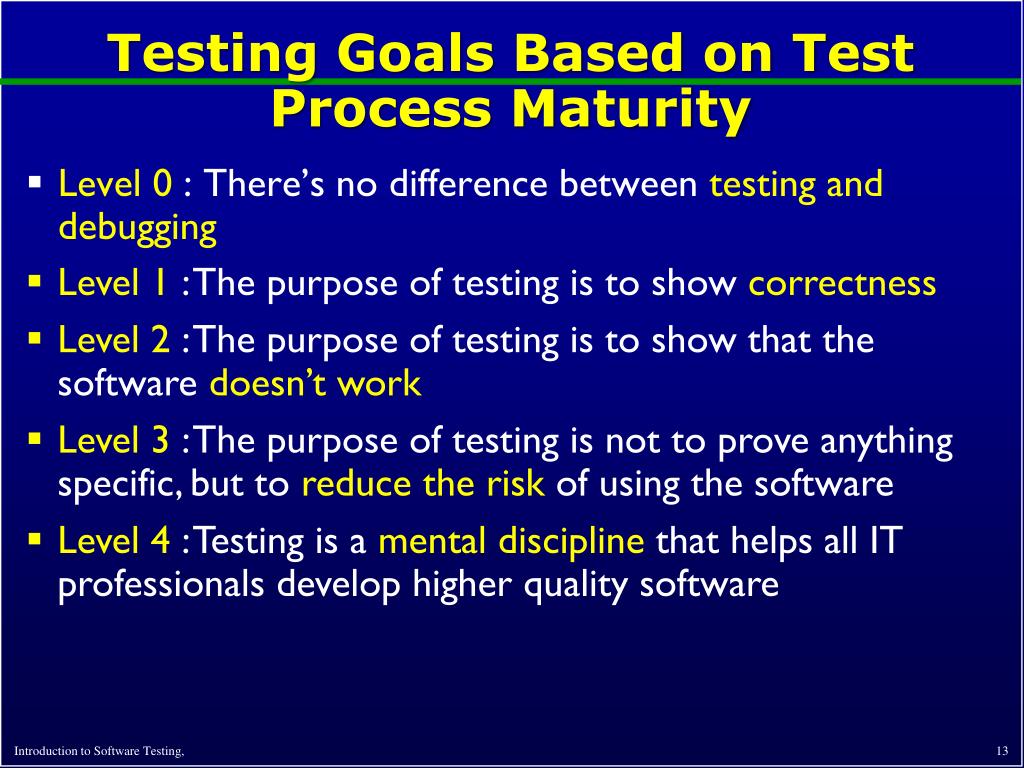

13. Testing Goals Based on Test Process Maturity • Level 0 : There’s no difference between testing and debugging • Level 1 : The purpose of testing is to show correctness • Level 2 : The purpose of testing is to show that the software doesn’t work • Level 3 : The purpose of testing is not to prove anything specific, but to reduce the risk of using the software • Level 4 : Testing is a mental discipline that helps all IT professionals develop higher quality software

14. Level 0 Thinking • Testing is the same as debugging • Does not distinguish between incorrect behavior and mistakes in the program • Does not help develop software that is reliable or safe This is what we teach undergraduate CS majors

15. Level 1 Thinking • Purpose is to show correctness • Correctness is impossible to achieve • What do we know if no failures? • Good software or bad tests? • Test engineers have no: • Strict goal • Real stopping rule • Formal test technique • Test managers are powerless This is what hardware engineers often expect

16. Level 2 Thinking • Purpose is to show failures • Looking for failures is a negative activity • Puts testers and developers into an adversarial relationship • What if there are no failures? This describes most software companies. How can we move to a team approach ??

17. Level 3 Thinking • Testing can only show the presence of failures • Whenever we use software, we incur some risk • Risk may be small and consequences unimportant • Risk may be great and consequences catastrophic • Testers and developers cooperate to reduce risk This describes a few “enlightened” software companies

18. Level 4 Thinking A mental discipline that increases quality • Testing is only one way to increase quality • Test engineers can become technical leaders of the project • Primary responsibility to measure and improve software quality • Their expertise should help the developers This is the way “traditional” engineering works

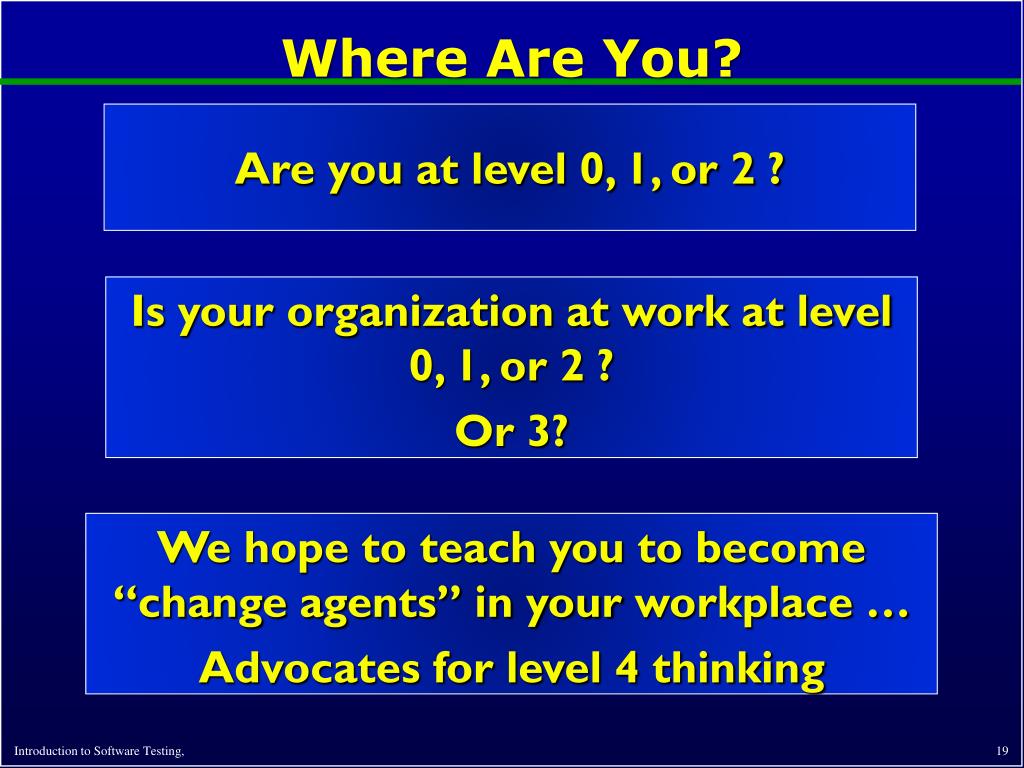

19. Where Are You? Are you at level 0, 1, or 2 ? Is your organization at work at level 0, 1, or 2 ? Or 3? We hope to teach you to become “change agents” in your workplace … Advocates for level 4 thinking

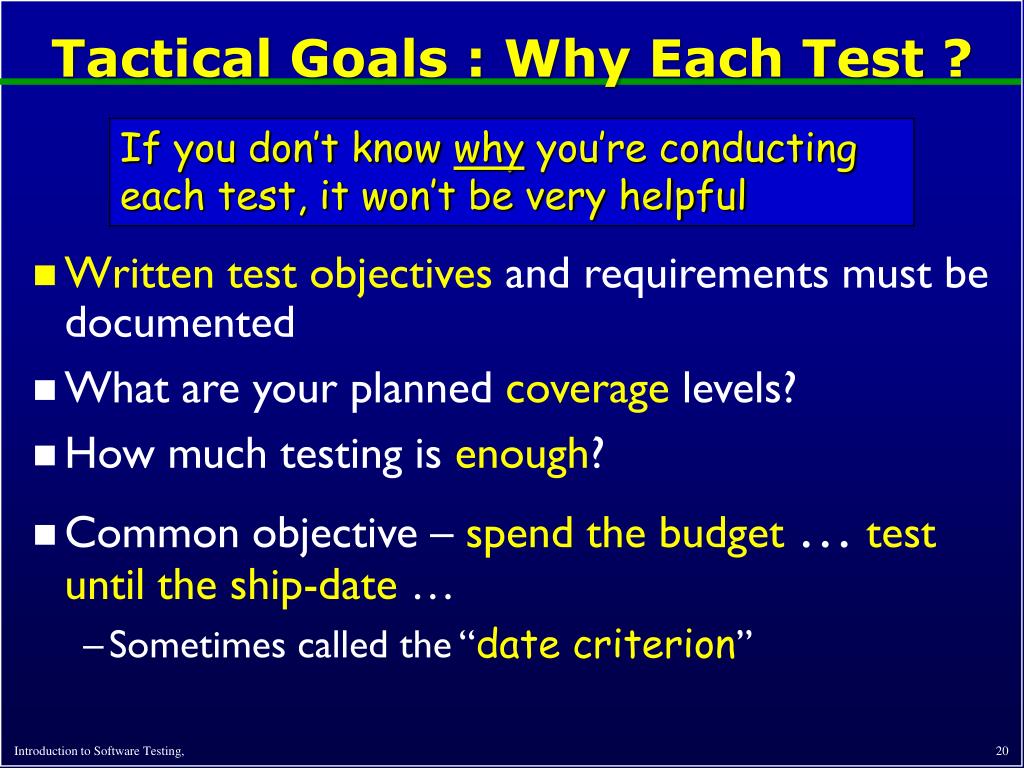

20. Tactical Goals : Why Each Test ? If you don’t know why you’re conducting each test, it won’t be very helpful • Written test objectives and requirements must be documented • What are your planned coverage levels? • How much testing is enough? • Common objective – spend the budget…test until the ship-date … • Sometimes called the “date criterion”

21. MicroSteff – big software system for the mac Big software program V.1.5.1 Jan/2007 Jan/2011 Verdatim DataLife MF2-HD 1.44 MB Here! Test This! My first “professional” job A stack of computer printouts—and no documentation

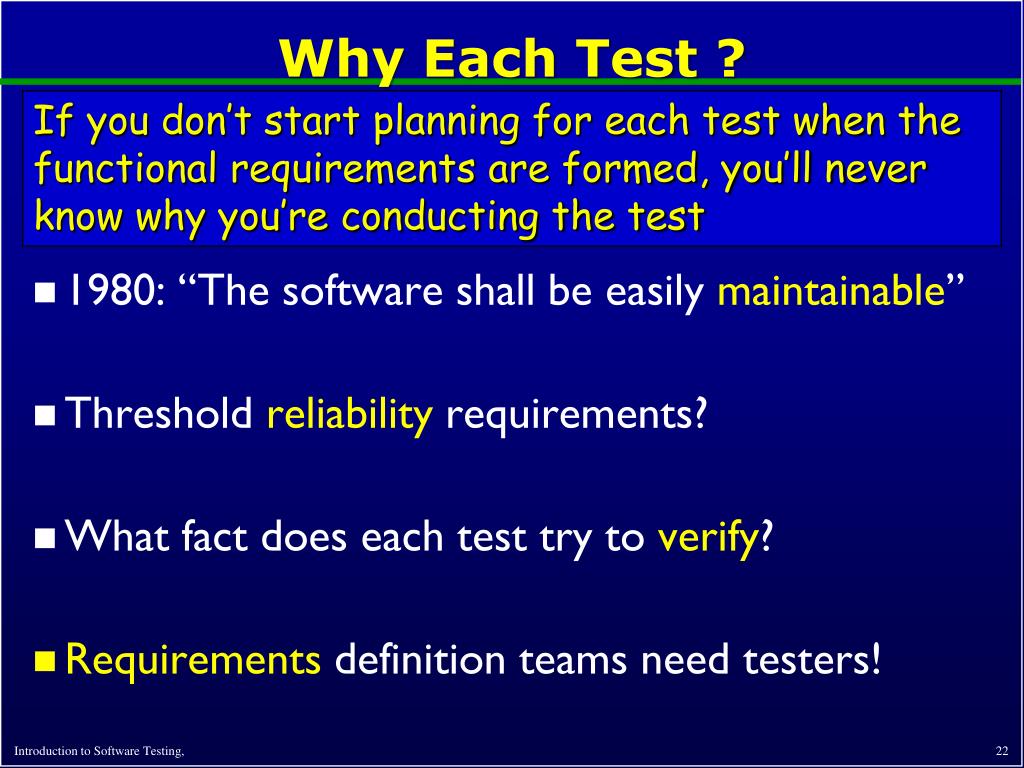

22. Why Each Test ? If you don’t start planning for each test when the functional requirements are formed, you’ll never know why you’re conducting the test • 1980: “The software shall be easily maintainable” • Threshold reliability requirements? • What fact does each test try to verify? • Requirements definition teams need testers!

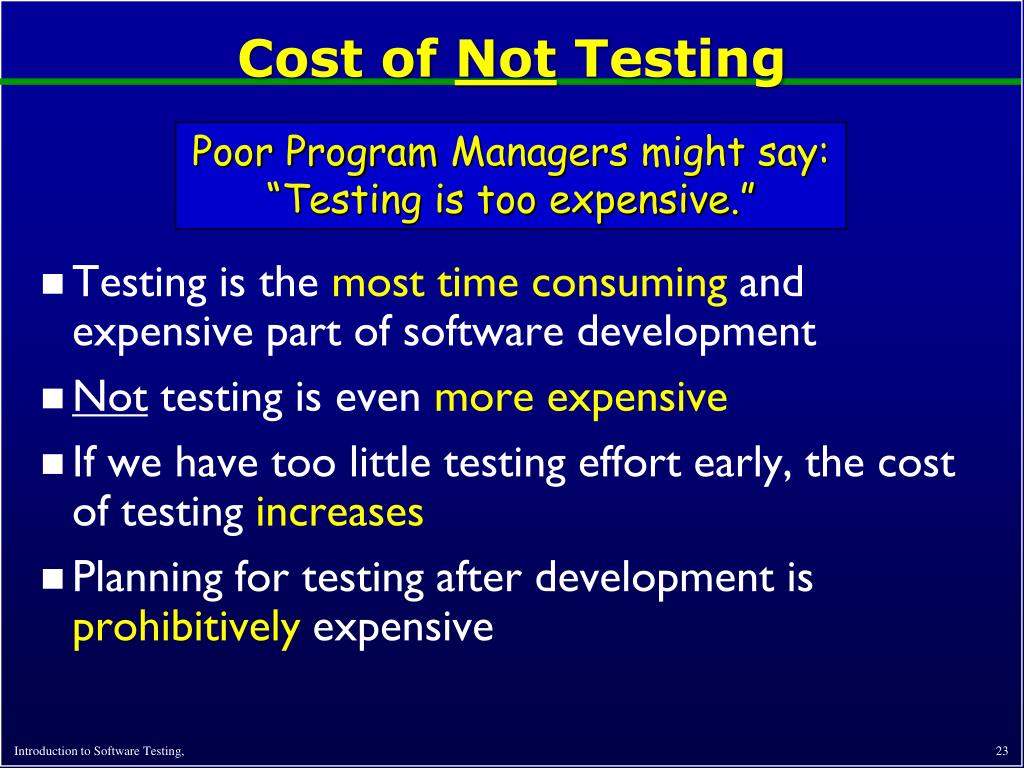

23. Cost of Not Testing • Testing is the most time consuming and expensive part of software development • Not testing is even more expensive • If we have too little testing effort early, the cost of testing increases • Planning for testing after development is prohibitively expensive Poor Program Managers might say: “Testing is too expensive.”

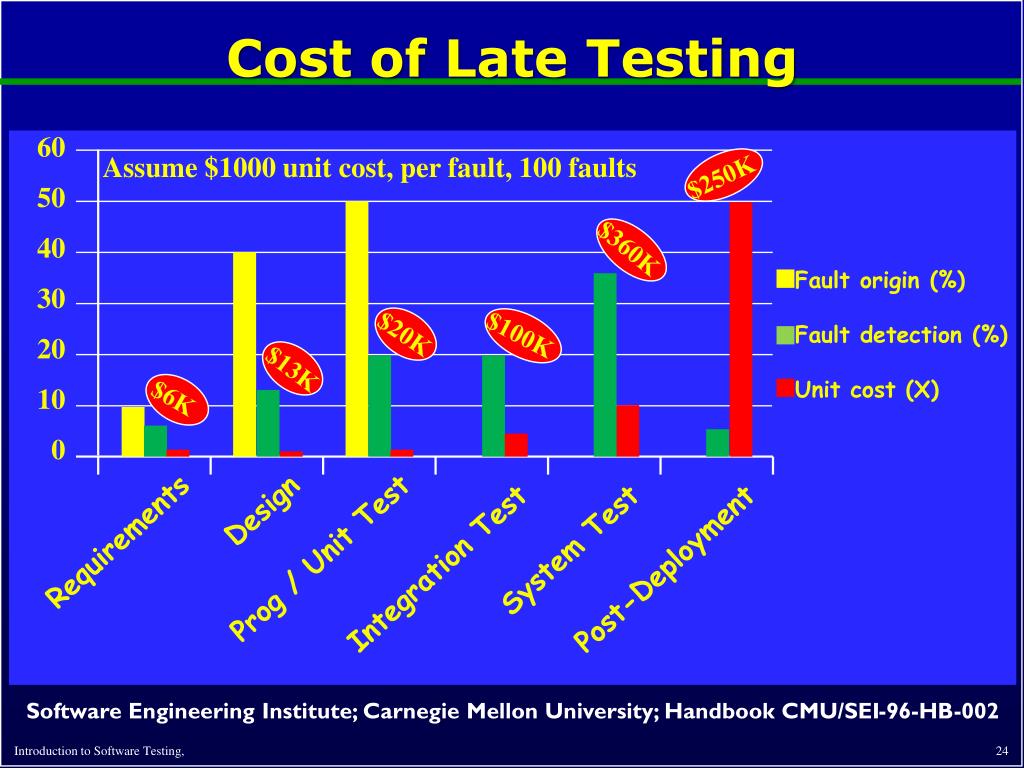

24. Cost of Late Testing 60 Assume $1000 unit cost, per fault, 100 faults 50 40 Fault origin (%) Fault detection (%) Unit cost (X) 30 20 10 0 Requirements Design Prog / Unit Test Integration Test System Test Post-Deployment $6K $13K $20K $100K $360K $250K Software Engineering Institute; Carnegie Mellon University; Handbook CMU/SEI-96-HB-002

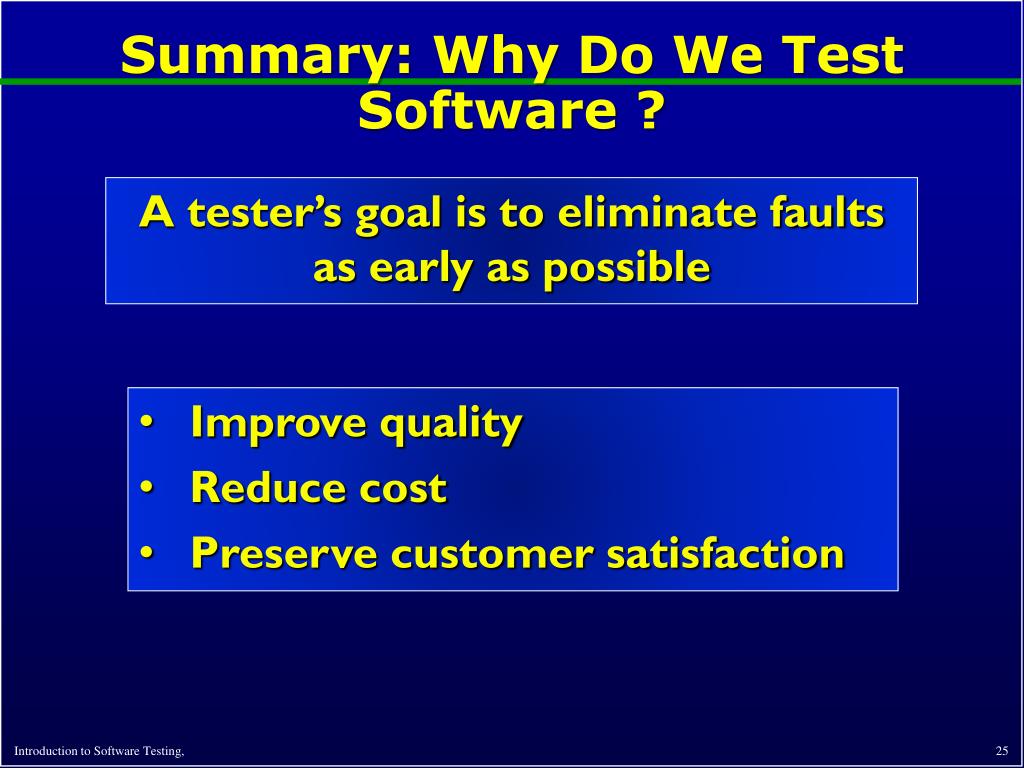

25. Summary: Why Do We Test Software ? A tester’s goal is to eliminate faults as early as possible • Improve quality • Reduce cost • Preserve customer satisfaction

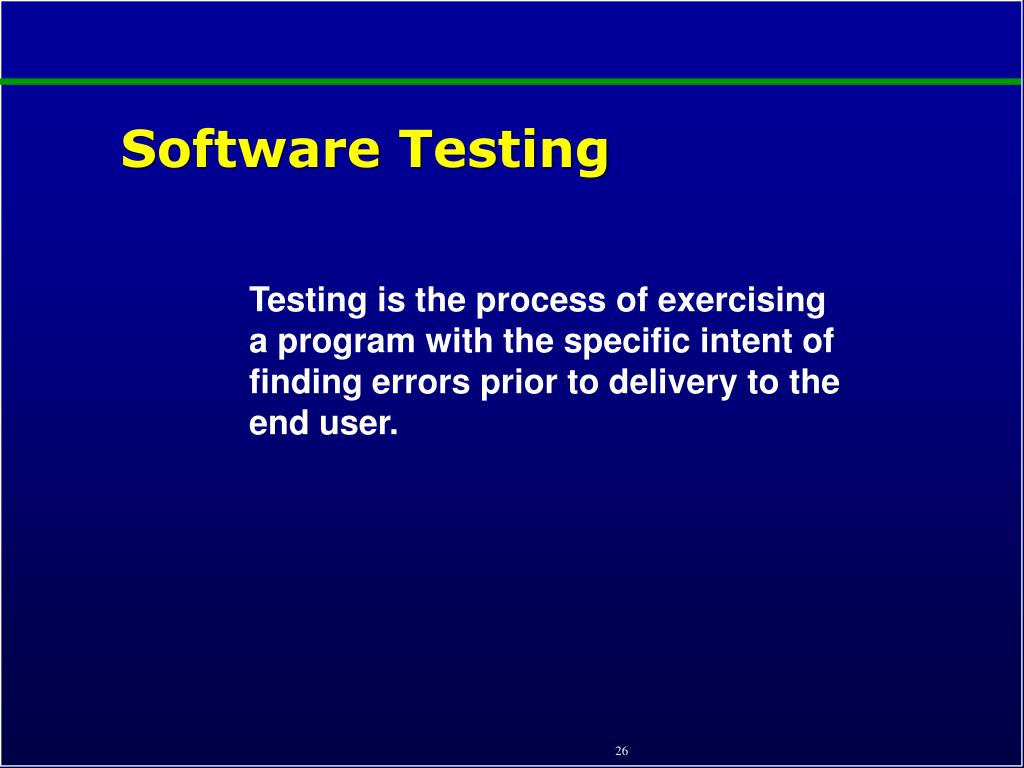

26. Software Testing Testing is the process of exercising a program with the specific intent of finding errors prior to delivery to the end user.

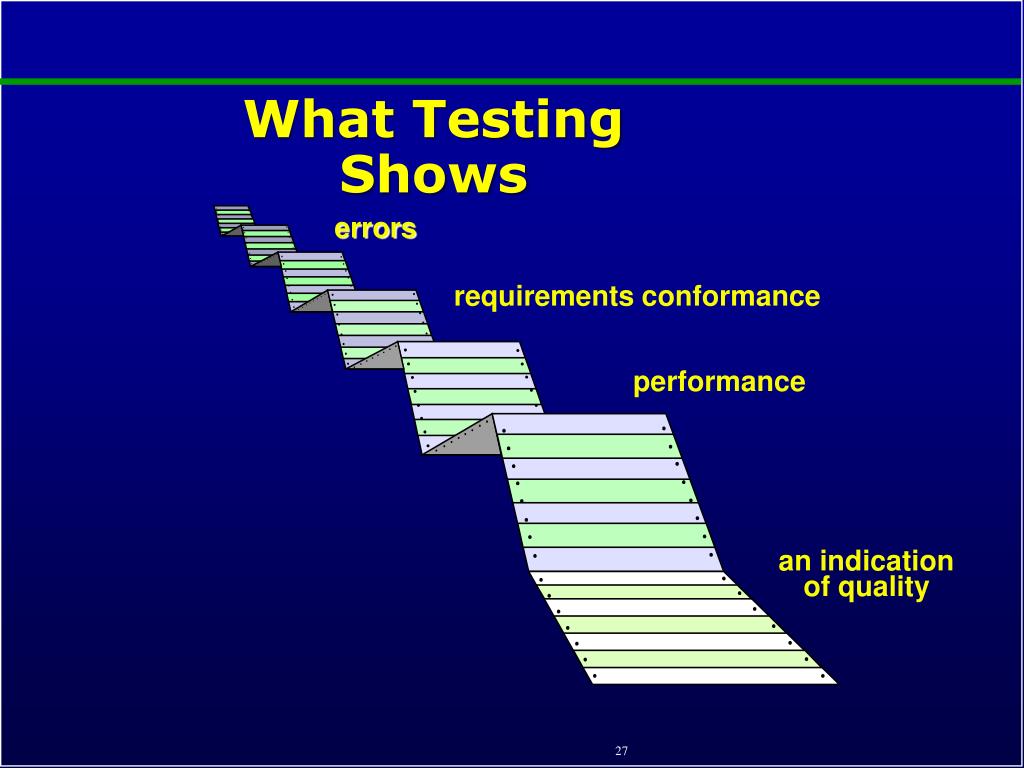

27. What Testing Shows errors requirements conformance performance an indication of quality

28. Strategic Approach • To perform effective testing, you should conduct effective technical reviews. By doing this, many errors will be eliminated before testing commences. • Testing begins at the component level and works "outward" toward the integration of the entire computer-based system. • Different testing techniques are appropriate for different software engineering approaches and at different points in time. • Testing is conducted by the developer of the software and (for large projects) an independent test group. • Testing and debugging are different activities, but debugging must be accommodated in any testing strategy.

29. V & V • Verificationrefers to the set of tasks that ensure that software correctly implements a specific function. • Validationrefers to a different set of tasks that ensure that the software that has been built is traceable to customer requirements. Boehm [Boe81] states this another way: • Verification: "Are we building the product right?" • Validation: "Are we building the right product?"

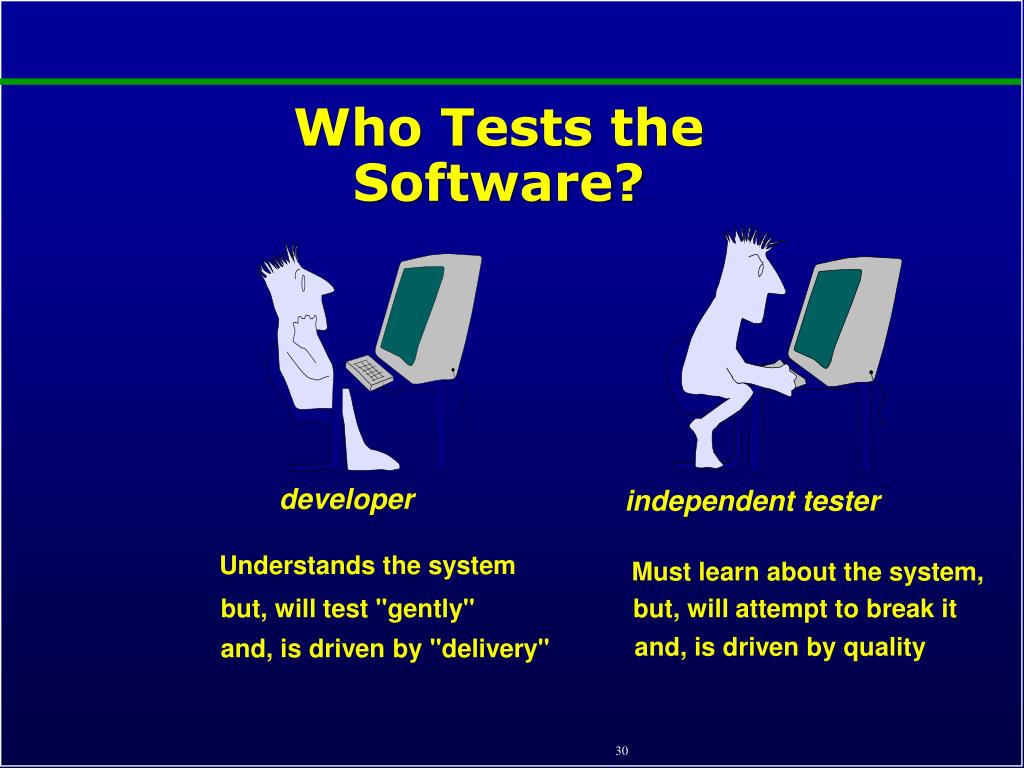

30. Who Tests the Software? developer independent tester Understands the system Must learn about the system, but, will test "gently" but, will attempt to break it and, is driven by quality and, is driven by "delivery"

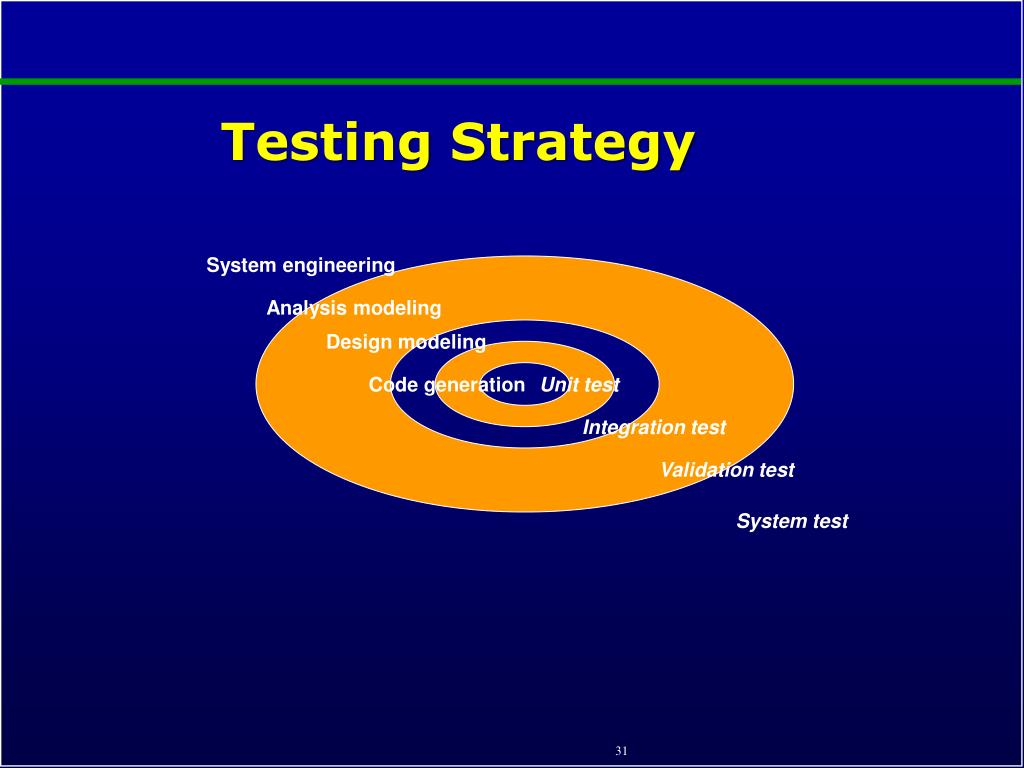

31. Testing Strategy System engineering Analysis modeling Design modeling Code generation Unit test Integration test Validation test System test

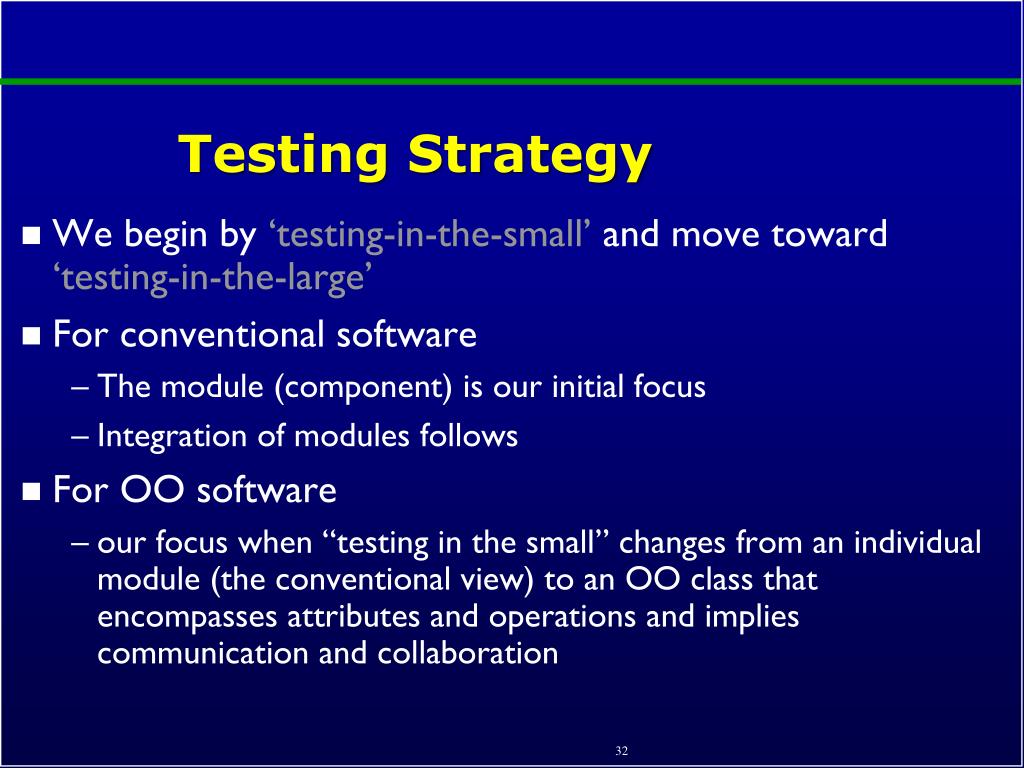

32. Testing Strategy • We begin by ‘testing-in-the-small’ and move toward ‘testing-in-the-large’ • For conventional software • The module (component) is our initial focus • Integration of modules follows • For OO software • our focus when “testing in the small” changes from an individual module (the conventional view) to an OO class that encompasses attributes and operations and implies communication and collaboration

33. Strategic Issues • Specify product requirements in a quantifiable manner long before testing commences. • State testing objectives explicitly. • Understand the users of the software and develop a profile for each user category. • Develop a testing plan that emphasizes “rapid cycle testing.” • Build “robust” software that is designed to test itself • Use effective technical reviews as a filter prior to testing • Conduct technical reviews to assess the test strategy and test cases themselves. • Develop a continuous improvement approach for the testing process.

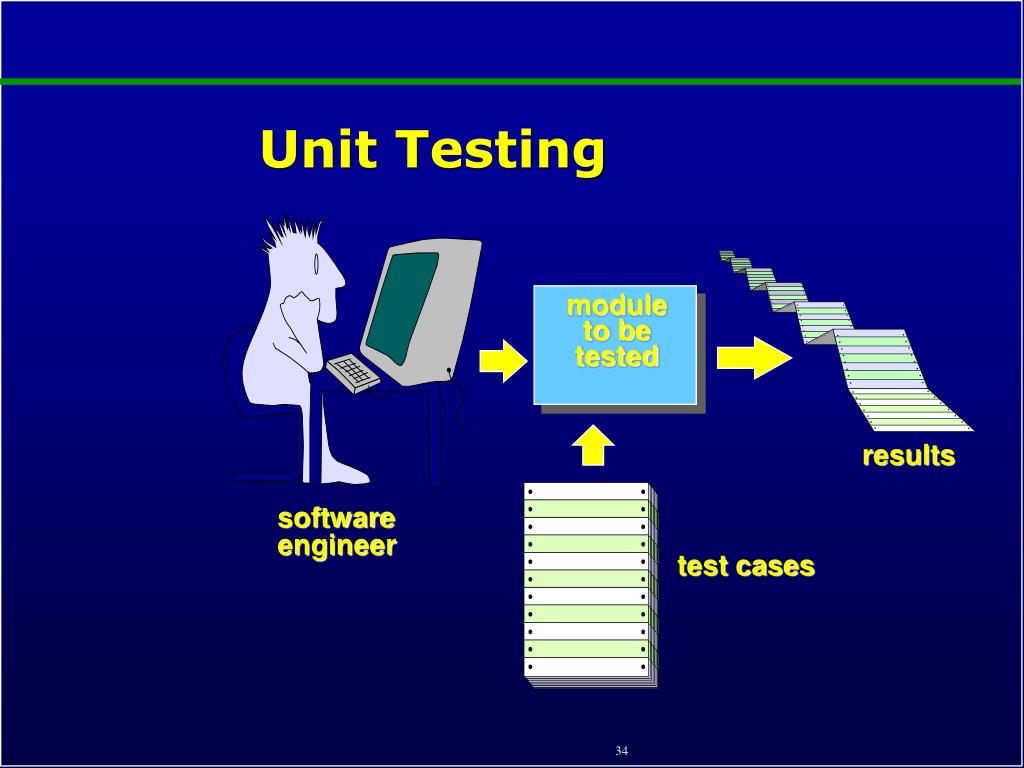

34. Unit Testing module to be tested results software engineer test cases

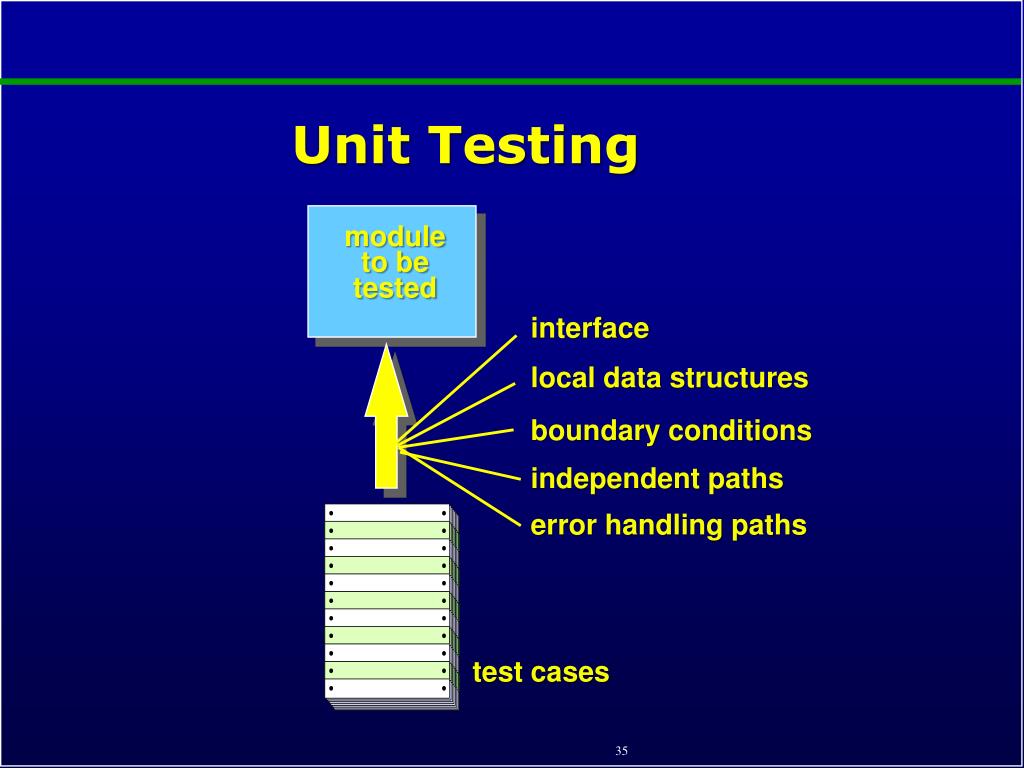

35. Unit Testing module to be tested interface local data structures boundary conditions independent paths error handling paths test cases

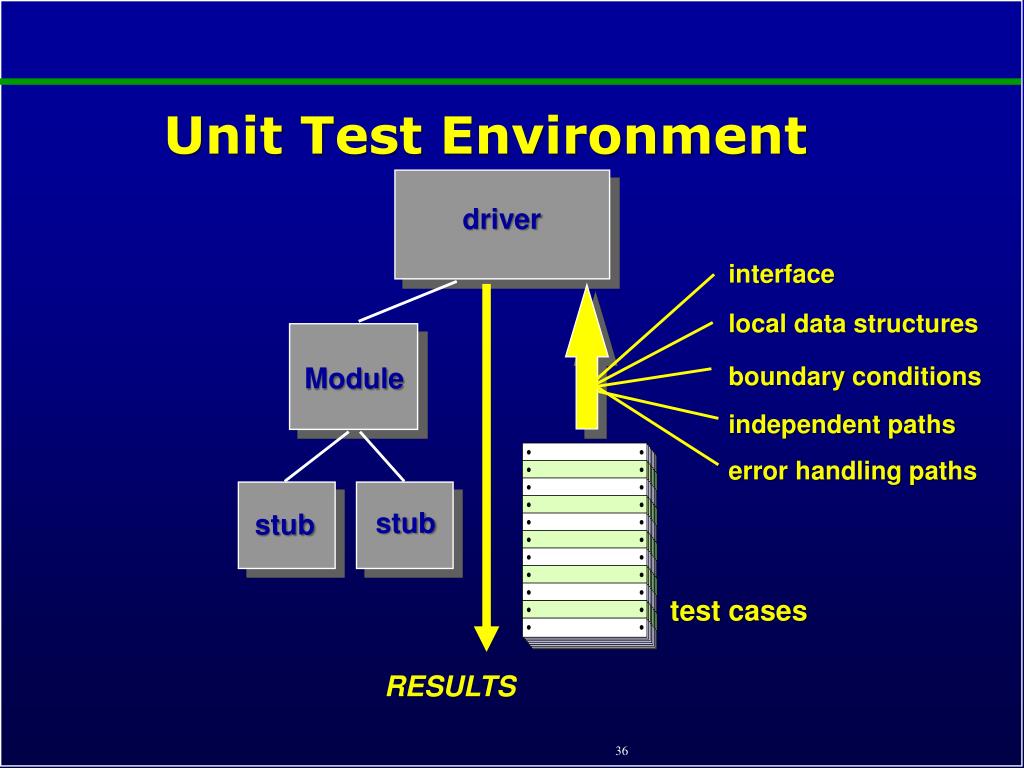

36. Unit Test Environment driver interface local data structures boundary conditions Module independent paths error handling paths stub stub test cases RESULTS

37. Integration Testing Strategies • Options: • • the “big bang” approach • • an incremental construction strategy

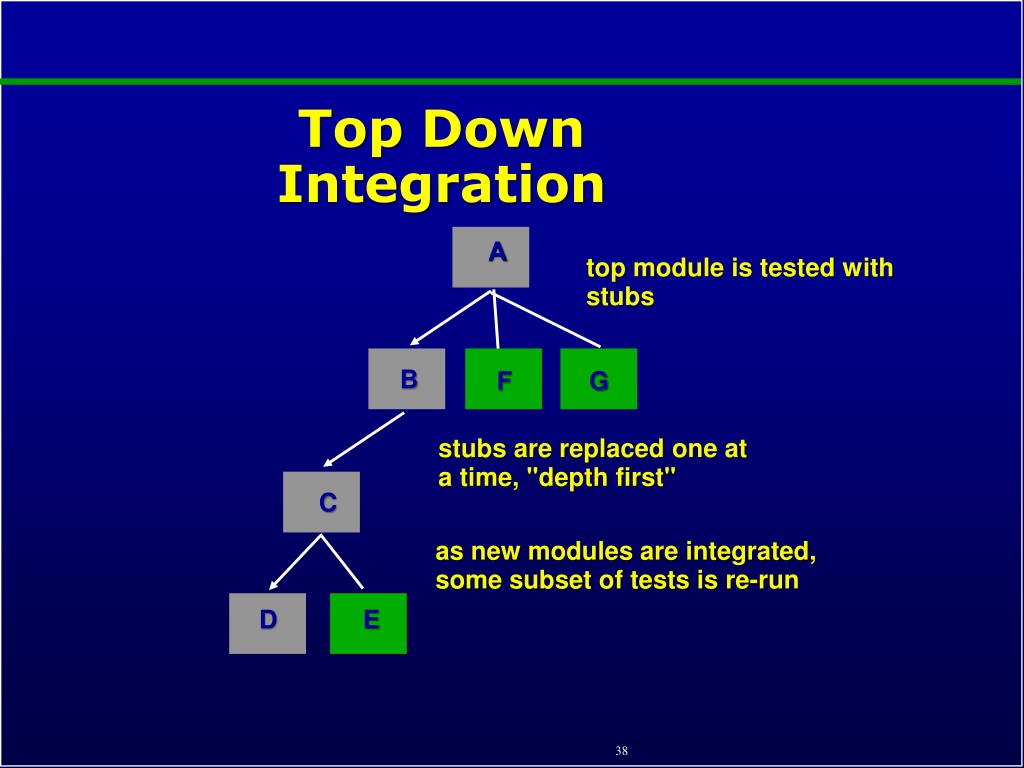

38. Top Down Integration A top module is tested with stubs B F G stubs are replaced one at a time, "depth first" C as new modules are integrated, some subset of tests is re-run D E

39. Bottom-Up Integration A B F G drivers are replaced one at a time, "depth first" C worker modules are grouped into builds and integrated D E cluster

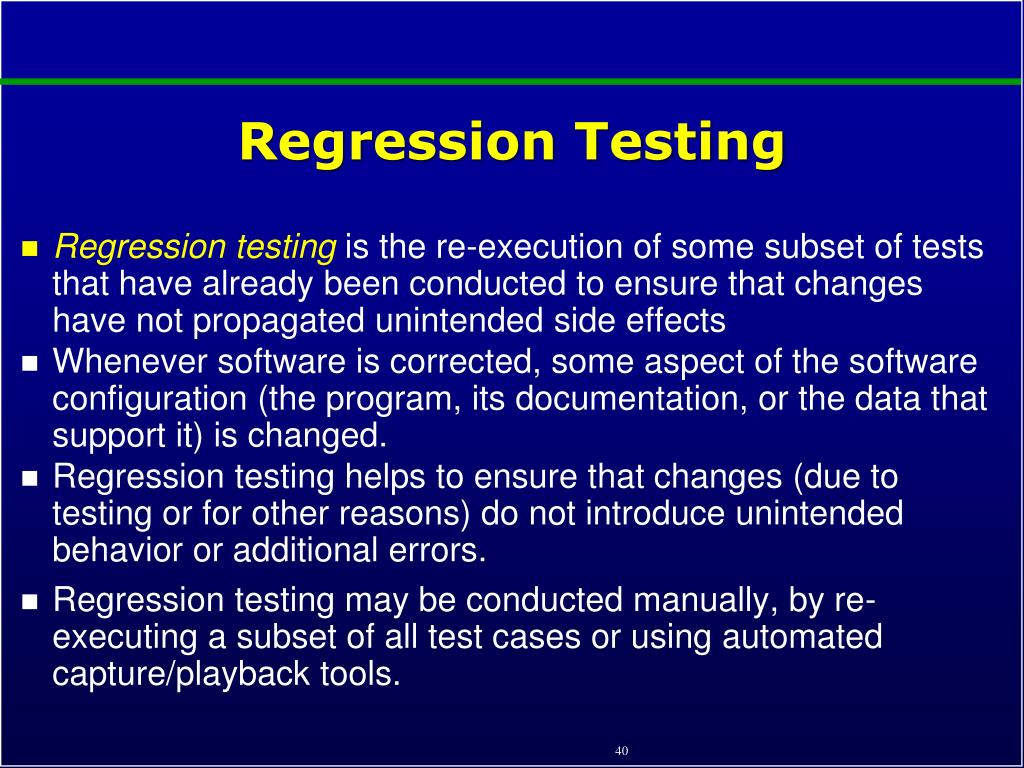

40. Regression Testing • Regression testing is the re-execution of some subset of tests that have already been conducted to ensure that changes have not propagated unintended side effects • Whenever software is corrected, some aspect of the software configuration (the program, its documentation, or the data that support it) is changed. • Regression testing helps to ensure that changes (due to testing or for other reasons) do not introduce unintended behavior or additional errors. • Regression testing may be conducted manually, by re-executing a subset of all test cases or using automated capture/playback tools.

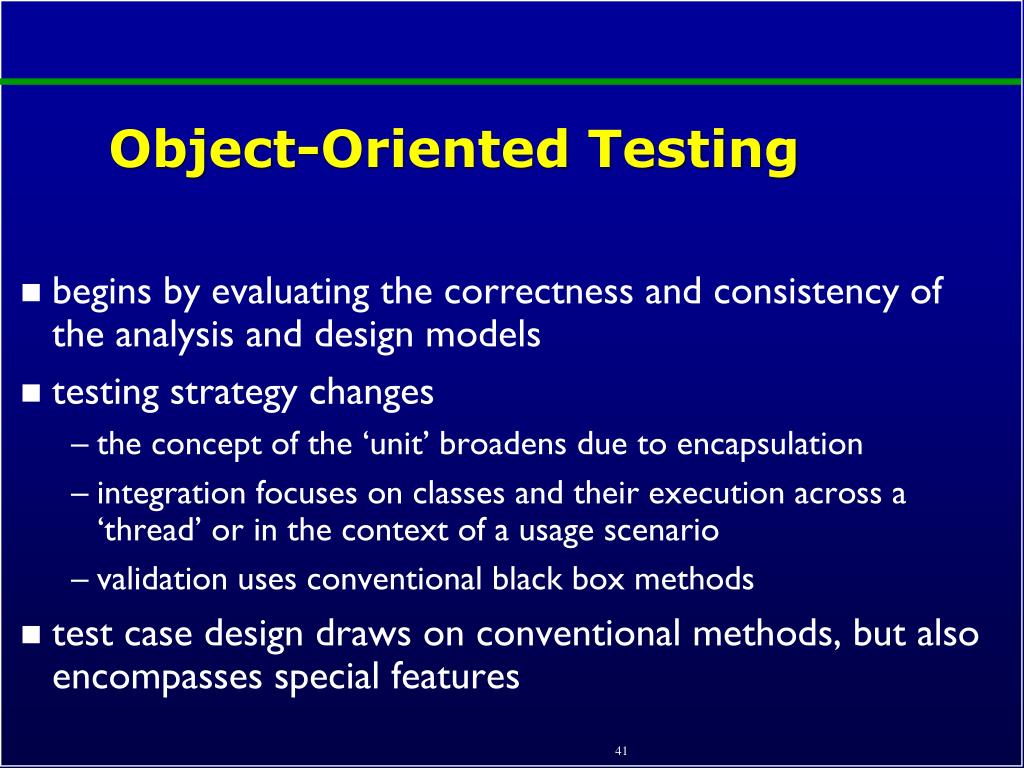

41. Object-Oriented Testing • begins by evaluating the correctness and consistency of the analysis and design models • testing strategy changes • the concept of the ‘unit’ broadens due to encapsulation • integration focuses on classes and their execution across a ‘thread’ or in the context of a usage scenario • validation uses conventional black box methods • test case design draws on conventional methods, but also encompasses special features

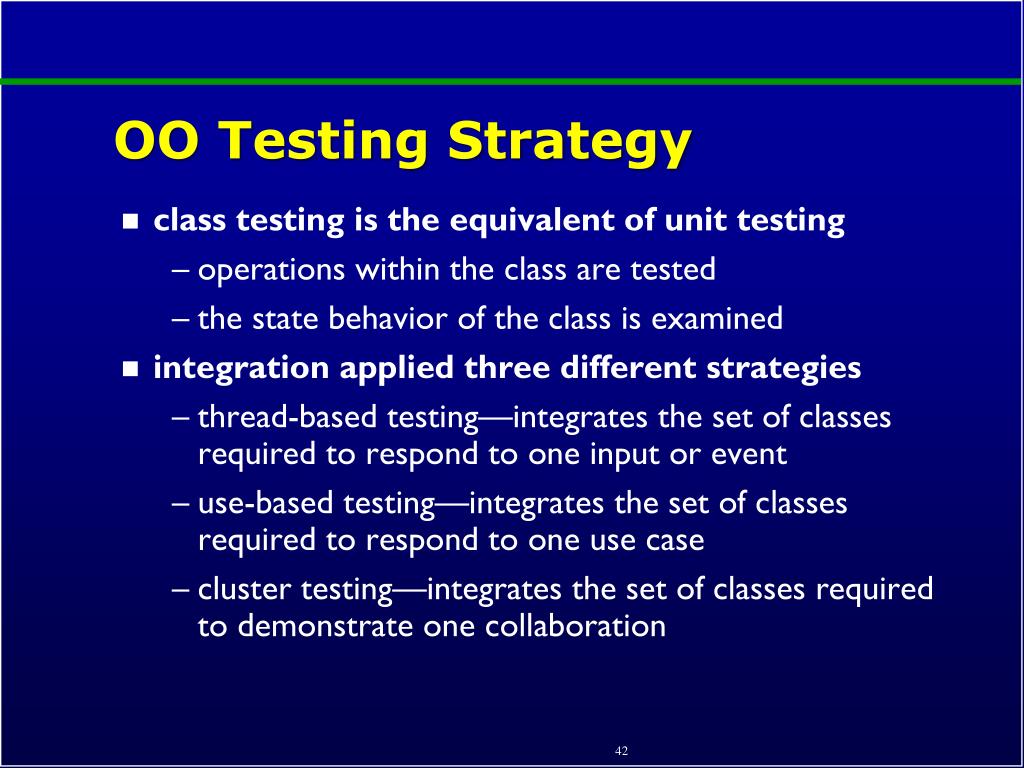

42. OO Testing Strategy • class testing is the equivalent of unit testing • operations within the class are tested • the state behavior of the class is examined • integration applied three different strategies • thread-based testing—integrates the set of classes required to respond to one input or event • use-based testing—integrates the set of classes required to respond to one use case • cluster testing—integrates the set of classes required to demonstrate one collaboration

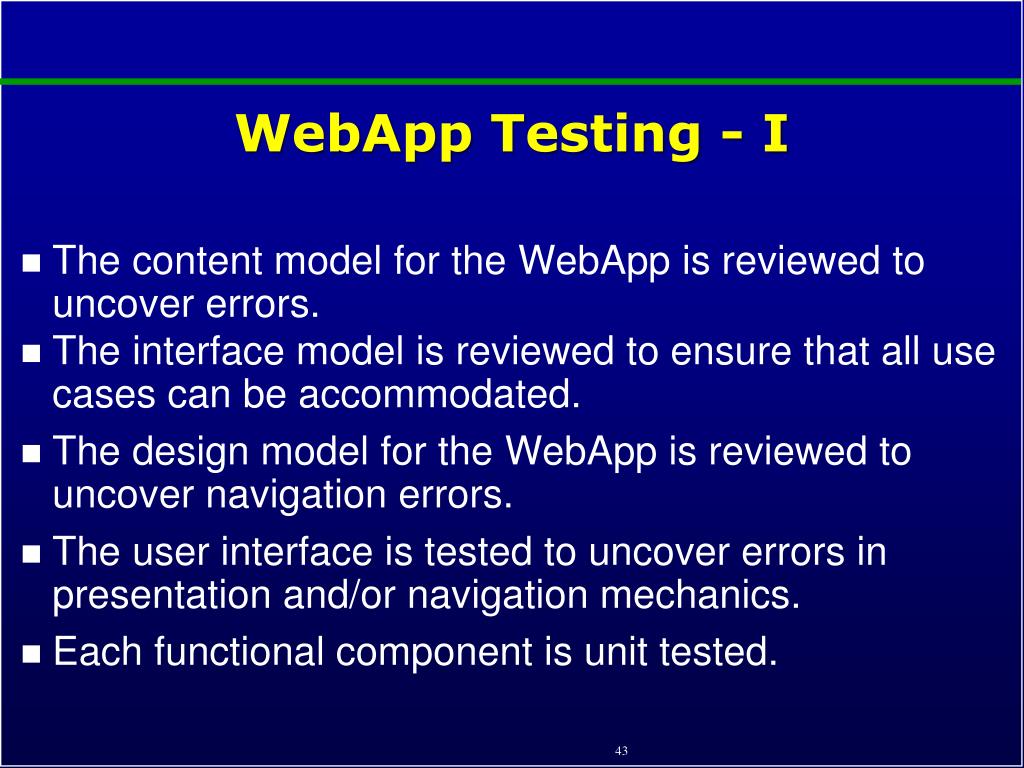

43. WebApp Testing - I • The content model for the WebApp is reviewed to uncover errors. • The interface model is reviewed to ensure that all use cases can be accommodated. • The design model for the WebApp is reviewed to uncover navigation errors. • The user interface is tested to uncover errors in presentation and/or navigation mechanics. • Each functional component is unit tested.

44. WebApp Testing - II • Navigation throughout the architecture is tested. • The WebApp is implemented in a variety of different environmental configurations and is tested for compatibility with each configuration. • Security tests are conducted in an attempt to exploit vulnerabilities in the WebApp or within its environment. • Performance tests are conducted. • The WebApp is tested by a controlled and monitored population of end-users. The results of their interaction with the system are evaluated for content and navigation errors, usability concerns, compatibility concerns, and WebApp reliability and performance.

45. High Order Testing • Validation testing • Focus is on software requirements • System testing • Focus is on system integration • Alpha/Beta testing • Focus is on customer usage • Recovery testing • forces the software to fail in a variety of ways and verifies that recovery is properly performed • Security testing • verifies that protection mechanisms built into a system will, in fact, protect it from improper penetration • Stress testing • executes a system in a manner that demands resources in abnormal quantity, frequency, or volume • Performance Testing • test the run-time performance of software within the context of an integrated system

46. Debugging: A Diagnostic Process

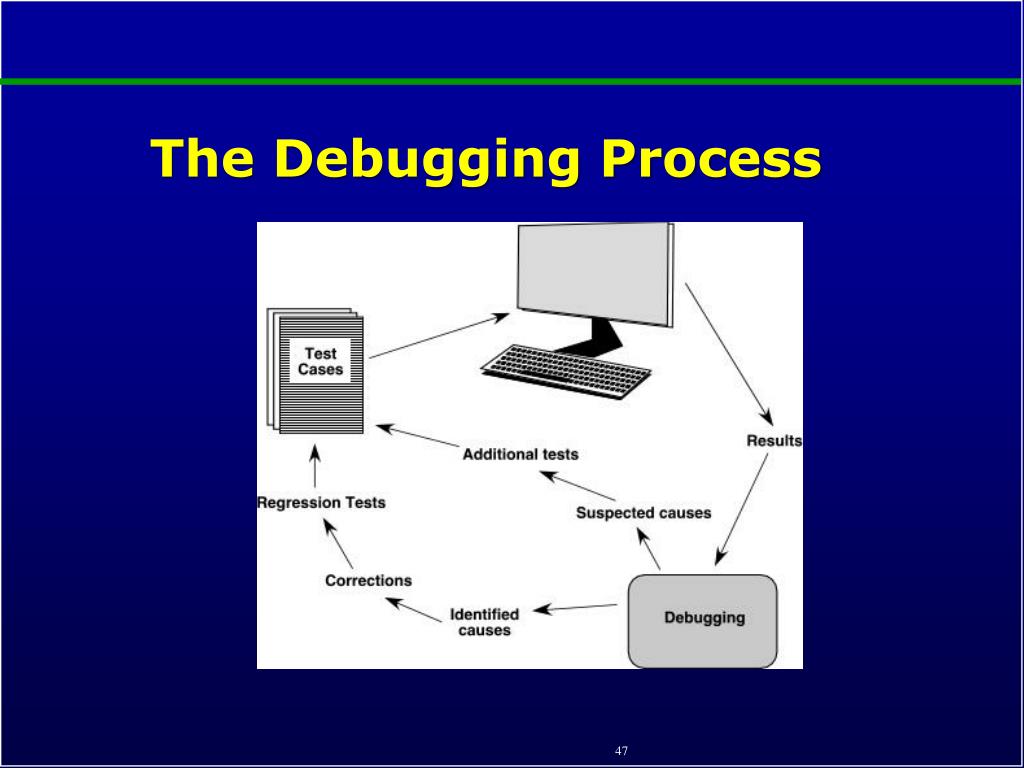

47. The Debugging Process

48. Debugging Effort time required to diagnose the symptom and determine the cause time required to correct the error and conduct regression tests

49. Symptoms & Causes symptom and cause may be geographically separated symptom may disappear when another problem is fixed cause may be due to a combination of non-errors cause may be due to a system or compiler error cause may be due to symptom assumptions that everyone cause believes symptom may be intermittent

50. Consequences of Bugs infectious damage catastrophic extreme serious disturbing annoying mild Bug Type Bug Categories: function-related bugs, system-related bugs, data bugs, coding bugs, design bugs, documentation bugs, standards violations, etc.
