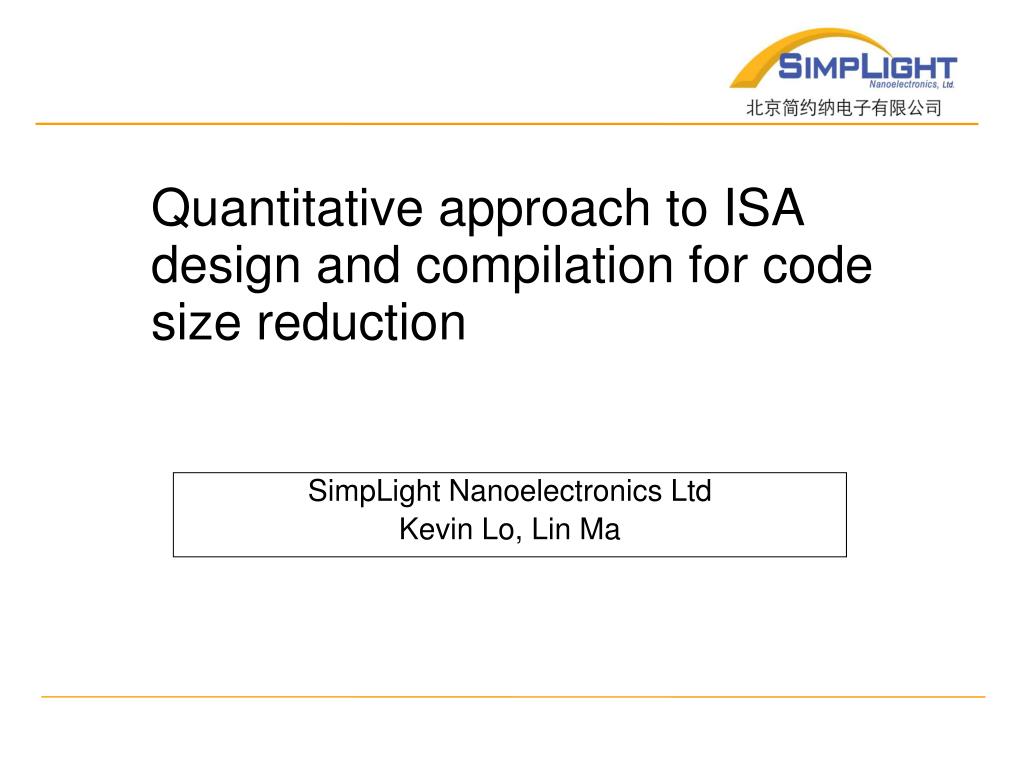

  1. SimpLight Nanoelectronics Ltd Kevin Lo, Lin Ma Quantitative approach to ISA design and compilation for code size reduction

  2. SimpLight Confidential Outline • Introduction • Problem definition • Existing approach • Our approach • Hardware support • compiler support • Experimental Results • Summary

  3. SimpLight Confidential Introduction • Code Size is a critical issue for Embedded Applications. • Mixed size Instruction Set is commonly used • Normal length instruction set • Compressed length instruction set

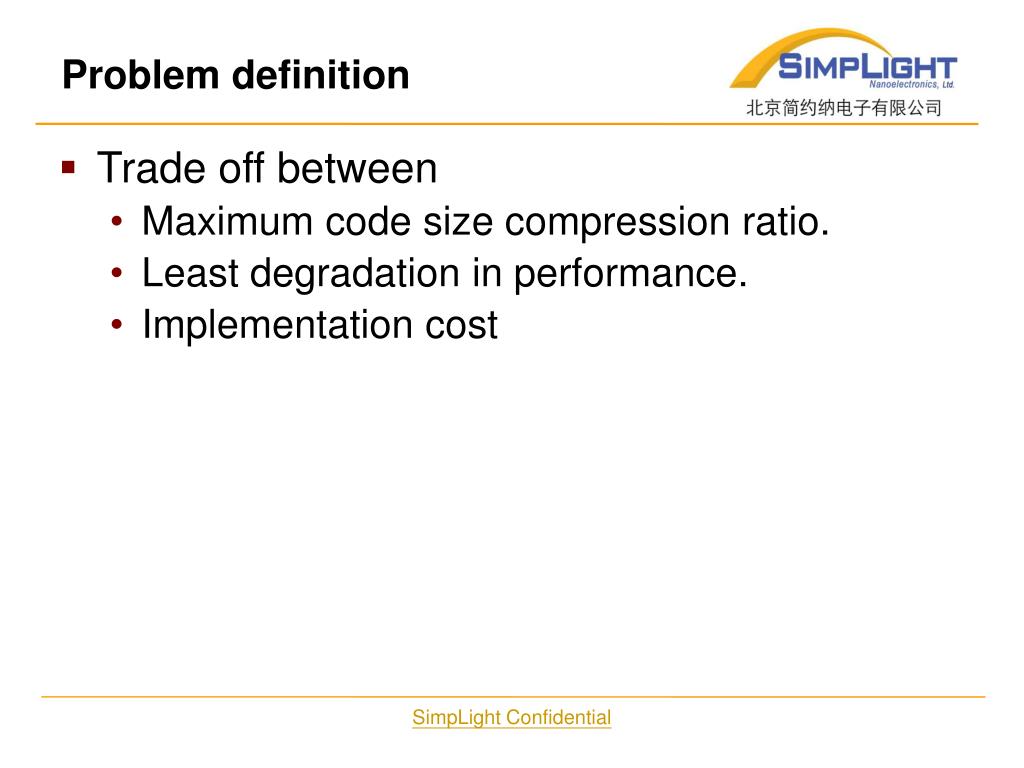

  4. SimpLight Confidential Problem definition • Trade off between • Maximum code size compression ratio. • Least degradation in performance. • Implementation cost

  5. Existing approach SimpLight Confidential

  6. SimpLight Confidential Instruction Analysis • Real applications • Uclibc: Open source c-library package for embedded applications • 729a: Voice codec program used in mobile phones • Mpeg4: MPEG-4/ASP decoder program • Nucleus: RTOS for embedded processors (ported to the Mips-like architecture) • Libmad: MPEG audio decoder library • Uclinux: Linux kernel release 2.6.xx for embedded processors • Lay2/3: Layer 2 and Layer 3 of the GSM wireless communication protocol stack

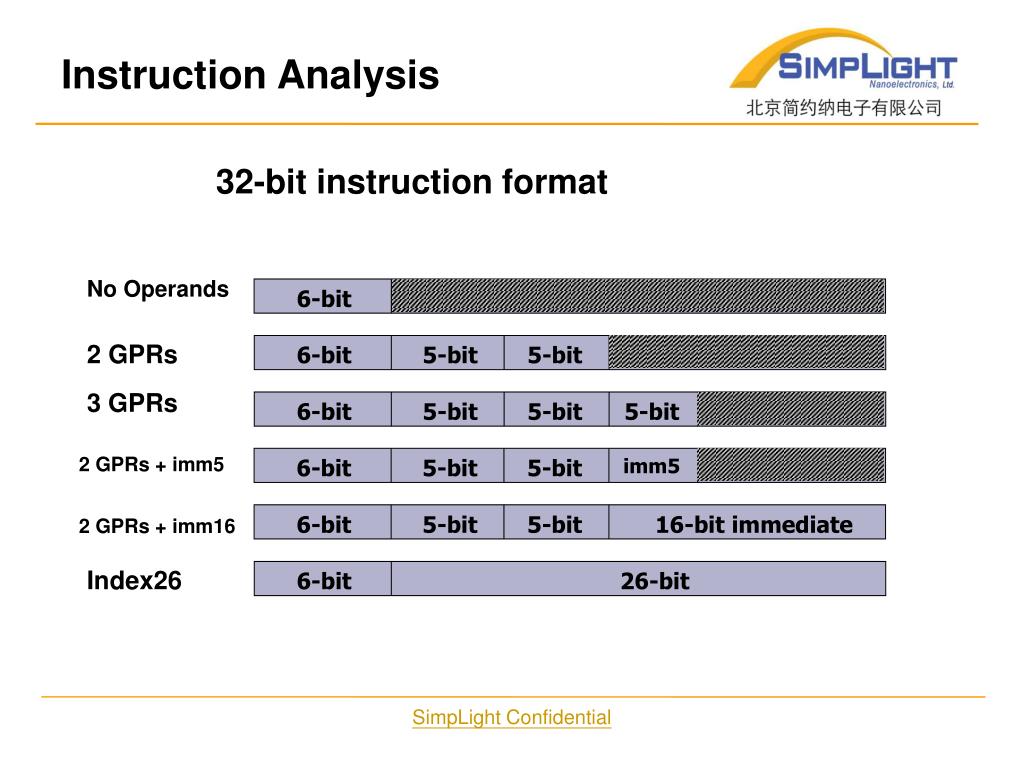

  7. No Operands 6-bit Index26 6-bit 26-bit 2 GPRs 6-bit 5-bit 5-bit 3 GPRs 6-bit 5-bit 5-bit 5-bit 6-bit 5-bit 5-bit 16-bit immediate 2 GPRs + imm16 2 GPRs + imm5 6-bit 5-bit 5-bit imm5 Instruction Analysis 32-bit instruction format SimpLight Confidential

  8. No Operands 6-bit 2 GPRs 6-bit 5-bit 5-bit 3% use 16-bit or less 16-bit instruction format SimpLight Confidential

  9. 3 GPRs 6-bit 5-bit 5-bit 5-bit 2 GPRs + imm5 6-bit 5-bit 5-bit imm5 8% result == one operand 16-bit instruction format SimpLight Confidential

  10. 3 GPRs 6-bit 5-bit 5-bit 5-bit 6-bit 5-bit 5-bit imm5 20.9% use $0 16-bit instruction format 2 GPRs + imm5 SimpLight Confidential

  11. 6-bit 5-bit 5-bit 16-bit immediate 2 GPRs + imm16 21.3% use stack pointer 16-bit instruction format SimpLight Confidential

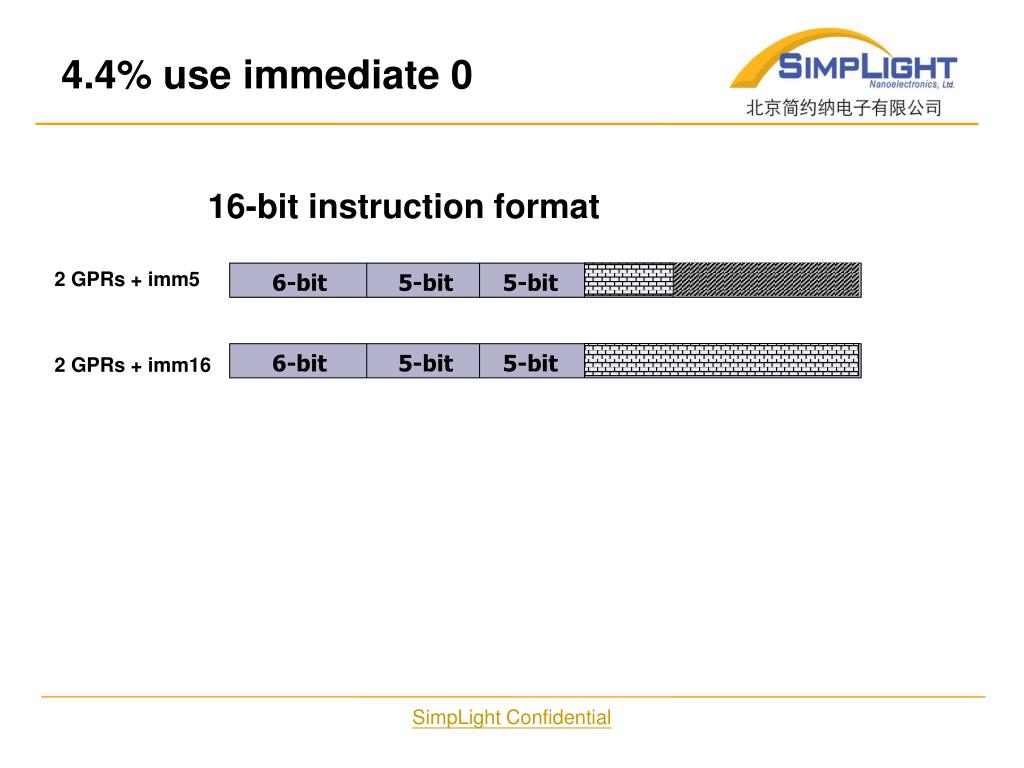

  12. 6-bit 5-bit 5-bit 16-bit immediate 2 GPRs + imm16 6-bit 5-bit 5-bit imm5 4.4% use immediate 0 16-bit instruction format 2 GPRs + imm5 SimpLight Confidential

  13. imm5 No Operands 6-bit 2 GPRs 6-bit 5-bit 5-bit 3 GPRs 6-bit 5-bit 5-bit 5-bit 6-bit 5-bit 5-bit 16-bit immediate 2 GPRs + imm16 2 GPRs + imm5 6-bit 5-bit 5-bit imm5 Total 47.47% could only use 16-bit 16-bit instruction format Maximum 24% code size reduction ratio SimpLight Confidential

  14. SimpLight Confidential Hardware support • Decoding phase-instruction fetching handler • For word aligned 16-bit instruction: same as 32-bit • For half-word aligned 16-bit instruction: shift to form a word alignment 32-bit

  15. SimpLight Confidential Instruction Selection - tag Register Allocation Instruction replacement Code Emitting Scheduling for code size Compiler support Normal Instruction Set Analyze OP to tag candidates Schedule for max paired 16-bit OPs Mixed instruction Assembly

  16. SimpLight Confidential Scheduling for code size • Object • Get more paired 16-bit OPs • Heuristic for code size purpose • At step t, data ready instructions in a priority list { OP16_1t, OP32_2t… }, OP16_1t is a best candidate if satisfies: • OP16_it is the only candidate • More than One 16-bit instructions in the priority list • At step t-1, an unpairedOP16_jt-1was issued. • use original scheduling policy to loop body BB to minimize performance degradation

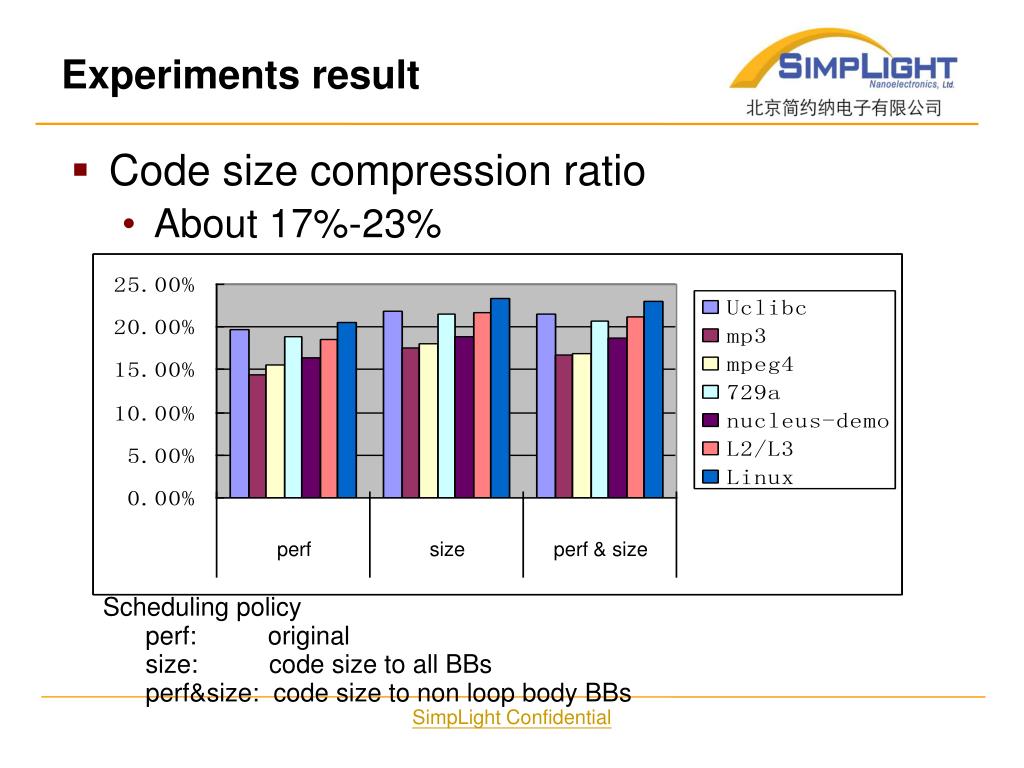

  17. SimpLight Confidential perf size perf & size Experiments result • Code size compression ratio • About 17%-23% Scheduling policy perf: original size: code size to all BBs perf&size: code size to non loop body BBs

  18. Experiments result • Performance • slight improvement to performance from 0.6% to 4.6% SimpLight Confidential

  19. Summary • A simple but effective approach to implement code size reduction • Focus on instruction analysis with real applications • Using all registers • Scheduling policy for code size purpose • Little cost in hardware • About 17%-23% compression ratio and slight improvement to performance from 0.6% to 4.6% SimpLight Confidential

  20. SimpLight Confidential Thank you !
