Types of identification methods

Types of identification methods. Diagnostic (dichotomous) keys: Bracketed or numerical keys Indented keys Multi-access keys or polyclaves Comparison methods Electronic keys. Dichotomising key. Dichotomous key - bracketed. 1. Leaves mealy beneath; flowers lilac or purple………….…...2

louisecowan
Télécharger la présentation

Types of identification methods

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

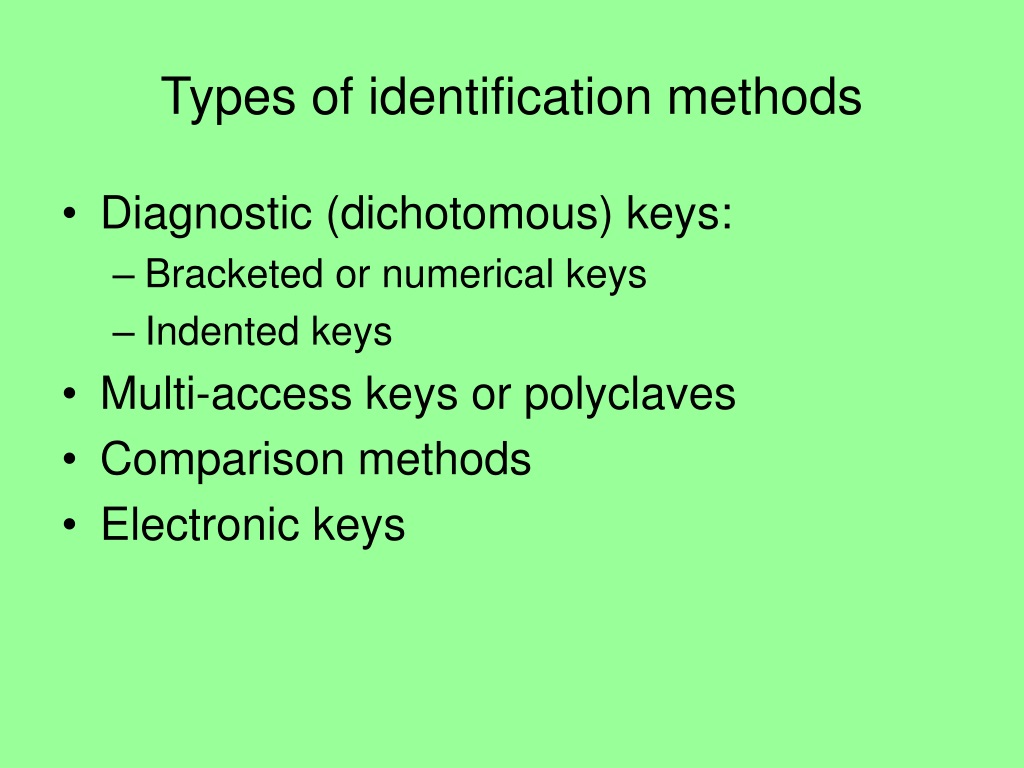

  1. Types of identification methods • Diagnostic (dichotomous) keys: • Bracketed or numerical keys • Indented keys • Multi-access keys or polyclaves • Comparison methods • Electronic keys

  2. Dichotomising key

  3. Dichotomous key - bracketed 1. Leaves mealy beneath; flowers lilac or purple………….…...2 + Leaves not mealy beneath; flowers yellow………………......3 2. Leaves crenulate; flowers lilac, heterostylous; corolla lobes distant; calyx teeth ± acute; capsule cylindrical, much exceeding calyx….....................................................................1. farinosa + Leaves not crenulate; flowers blue-purple, not; corolla lobes contiguous; calyx teeth obtuse; capsule ovoid, slightly exceeding calyx…………… ……………………….…..2. scotica 3. Scape distinct; pedicels finely pubescent; limbe of corolla concave, rarely exceeding 20mm diam…………………..……4 + Scape 0 or nearly so; pedicels with shaggy hairs; limb of corolla flat, usually more than 30mm……………………….…..5. vulgaris 4. Calyx uniformerly pale green; corolla with folds in the throat; fruit ovoid, enclosed in the calyx……………………………….3. veris + Calyx with midribs conspicuously darker green than the remainder; corolla without folds in the throat; fruit oblong- ovoid, exceeding calyx……………………………………….…..4. elatior leads couplet

  4. Dichotomous key – indented(new numbers) 1. Leaves mealy beneath; flowers lilac or purple 2. Leaves crenulate; flowers lilac, heterostylous; corolla lobes distant; calyx teeth ± acute; capsule cylindrical, much exceeding calyx…...........................................................................1. farinosa 2. Leaves not crenulate; flowers blue-purple, not; corolla lobes contiguous; calyx teeth obtuse; capsule ovoid, slightly exceeding calyx………………..……………………………..2. scotica 1. Leaves not mealy beneath; flowers yellow 3. Scape distinct; pedicels finely pubescent; limbe of corolla concave, rarely exceeding 20mm diam. 4. Calyx uniformerly pale green; corolla with folds in the throat; fruit ovoid, enclosed in the calyx……………………………….3. veris 4. Calyx with midribs conspicuously darker green than the remainder; corolla without folds in the throat; fruit oblong- ovoid, exceeding calyx……………………………………….…..4. elatior 3. Scape 0 or nearly so; pedicels with shaggy hairs; limb of corolla flat, usually more than 30mm………………………..…..5. vulgaris leads couplet couplet

  5. Dichotomous key – indented(repeated numbers) 1. Leaves mealy beneath; flowers lilac or purple 2. Leaves crenulate; flowers lilac, heterostylous; corolla lobes distant; calyx teeth ± acute; capsule cylindrical, much exceeding calyx…...........................................................................1. farinosa 2. Leaves not crenulate; flowers blue-purple, not; corolla lobes contiguous; calyx teeth obtuse; capsule ovoid, slightly exceeding calyx………………..……………………………..2. scotica 1. Leaves not mealy beneath; flowers yellow 2. Scape distinct; pedicels finely pubescent; limbe of corolla concave, rarely exceeding 20mm diam. 3. Calyx uniformerly pale green; corolla with folds in the throat; fruit ovoid, enclosed in the calyx……………………………….3. veris 3. Calyx with midribs conspicuously darker green than the remainder; corolla without folds in the throat; fruit oblong- ovoid, exceeding calyx……………………………………….…..4. elatior 2. Scape 0 or nearly so; pedicels with shaggy hairs; limb of corolla flat, usually more than 30mm………………………..…..5. vulgaris leads couplet couplet

  6. Dichotomous key – indented(letters, symbols, etc.) A. Leaves mealy beneath; flowers lilac or purple B. Leaves crenulate; flowers lilac, heterostylous; corolla lobes distant; calyx teeth ± acute; capsule cylindrical, much exceeding calyx…...........................................................................1. farinosa BB. Leaves not crenulate; flowers blue-purple, not; corolla lobes contiguous; calyx teeth obtuse; capsule ovoid, slightly exceeding calyx………………..……………………………..2. scotica AA. Leaves not mealy beneath; flowers yellow C. Scape distinct; pedicels finely pubescent; limbe of corolla concave, rarely exceeding 20mm diam. D. Calyx uniformerly pale green; corolla with folds in the throat; fruit ovoid, enclosed in the calyx……………………………….3. veris DD. Calyx with midribs conspicuously darker green than the remainder; corolla without folds in the throat; fruit oblong- ovoid, exceeding calyx……………………………………….…..4. elatior CC. Scape 0 or nearly so; pedicels with shaggy hairs; limb of corolla flat, usually more than 30mm………………………..…..5. vulgaris leads couplet couplet

  7. Dichotomous key – indented(continuous text) A. Leaves mealy beneath; flowers lilac or purple - B. Leaves crenulate; flowers lilac, heterostylous; corolla lobes distant; calyx teeth ± acute; capsule cylindrical, much exceeding calyx 1. farinosa - BB. Leaves not crenulate; flowers blue-purple, not; corolla lobes contiguous; calyx teeth obtuse; capsule ovoid, slightly exceeding calyx 2. scotica - AA.Leaves not mealy beneath; flowers yellow - C. Scape distinct; pedicels finely pubescent; limb of corolla concave, rarely exceeding 20mm diam. - D. Calyx uniformerly pale green; corolla with folds in the throat;fruit ovoid, enclosed in the calyx 3. veris - DD. Calyxwith midribs conspicuously darker green than theremainder; corolla without folds in the throat; fruit oblong-ovoid, exceeding calyx 4. elatior - CC. Scape 0 or nearly so; pedicels with shaggy hairs; limb of corolla flat, usually more than 30mm 5. vulgaris couplet

  8. Indented versus bracketed keys Indented (+) • Groups taxa Indented (-) • Leads may be far apart • Less economical on space • Less intuitive? Bracketed (+) • Leads next to each other • More economical on space • More intuitive? Bracketed (-) • Doesn’t group taxa

  9. Definitions • Character – a fundamental item of descriptive information Characters can be: • Qualitative – eg colour, hairs etc • Quantitative discontinuous – eg petals number • Quantitative continuous – eg leaf length • State/value - the data recorded for a character • Data matrix – a table of character information

  10. Contructing a dichotomous key • Try to split taxa into even groups • Avoid “chipping” • Characters should be easily seen • Characters should be reliable and constant • Contrasting characters must contrast – not overlapping • If possible use several contrasting characters in each couplet – ideally vegetative, flowering and fruiting • Each lead of the same couplet should begin with the same word • Should be dichotomising (forking); triplets avoided? • Avoid - Leaves large leaves small • Avoid “not as above” – restrict to major differences

  11. Data matrix

  12. Contructing a key • Try to split key evenly • Avoid “chipping” • Characters should be easily seen • Characters should be reliable and constant • Contrasting characters must contrast – not overlapping • If possible use several contrasting characters in each couplet – ideally vegetative, flowering and fruiting • Each lead of the same couplet should begin with the same word • Should be dichotomising (forking); triplets avoided? • Avoid - Leaves large leaves small • Avoid “not as above” – restrict to major differences

  13. Flora of Bhutan

  14. Contructing a key • Try to split key evenly • Avoid “chipping” • Characters should be easily seen • Characters should be reliable and constant • Contrasting characters must contrast – not overlapping • If possible use several contrasting characters in each couplet – ideally vegatative, flowering and fruiting • Each lead of the same couplet should begin with the same word • Should be dichotomising (forking); triplets avoided? • Avoid - Leaves large leaves small • Avoid “not as above” – restrict to major differences • If necessary key out more than once

  15. Multi-access keys

  16. Data matrix

  17. Character Character stateCharacter state code • Leaf surface • Mealy A • Non mealy B • Flower colour • Lilac A • Purple B • Yellow C • Leaf margin • Crenulate A • Entire B • Scape • Present A • Absent B • Calyx colour • Green A • Green/white B • White C Unknown plant Leaves not mealy B Flowers yellow C Leaf margin ? Scape distinct A Calyx geen A

  18. P. farinosa A A A B B P. scotica A A B B C P. veris B C B A A P. elatior B C B A B P. vulgaris B C B B C Unknown plant B C ? A A

  19. Comparison methods • Check in herbarium • Go through literature (Floras/Monographs) • descriptions • illustrations • maps • Other eg. AIDGAP willow key

  20. Illustrated Keyseg Ethnoflora of Soqotra
