Dilation. The basic morphological operations applied to either grayscale or binary images are Erosion and Dilation. Erosion shrinks image objects while dilation expands them. Course Name: Digital Image Processing Level(UG/PG): UG Author(s) : Phani Swathi Chitta

louvain
Télécharger la présentation

Dilation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

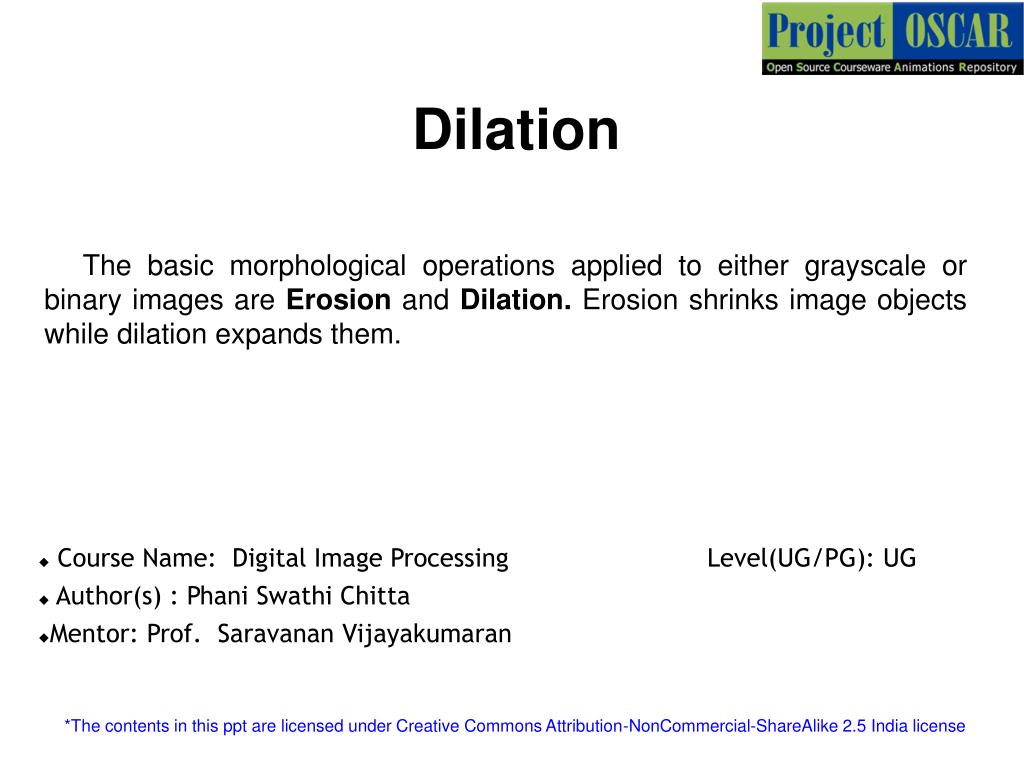

  1. Dilation The basic morphological operations applied to either grayscale or binary images are Erosion and Dilation. Erosion shrinks image objects while dilation expands them. • Course Name: Digital Image Processing Level(UG/PG): UG • Author(s) : Phani Swathi Chitta • Mentor: Prof. Saravanan Vijayakumaran *The contents in this ppt are licensed under Creative Commons Attribution-NonCommercial-ShareAlike 2.5 India license

  2. Learning Objectives After interacting with this Learning Object, the learner will be able to: • Explain the basic morphological operation (Dilation)

  3. Definitions of the components/Keywords: • Characteristics of Dilation - Dilation generally increases the sizes of objects, filling in holes and broken areas, and connecting areas that are separated by spaces smaller than the size of the structuring element. - With grayscale images, dilation increases the brightness of objects by taking the neighborhood maximum when passing the structuring element over the image. - With binary images, dilation connects areas that are separated by spaces smaller than the structuring element and adds pixels to the perimeter of each image object. • The dilation operator takes two pieces of data as inputs. - The first is the image which is to be dilated. - The second is a (usually small) set of coordinate points known as a structuring element (also known as a kernel). • It is this structuring element that determines the precise effect of the dilation on the input image. • In dilation, every background pixel that is touching an object pixel is changed into an object pixel. Dilation makes the objects larger, and can merge multiple objects into one. 1 2 3 4 5

  4. Master Layout 1 1 Image after dilation Original Image 2 3 • Give radio buttons to select any one structuring element of sizes 5x5, 7x7, 11x11 • The structuring elements (SE) are 4 5

  5. Step 1: 1 2 3 4 5

  6. Step 2: 1 2 3 4 5

  7. Step 3: 1 2 3 4 5

  8. Step 4: 1 2 3 4 5

  9. Step 6: 1 2 3 4 5

  10. Step 7: 1 2 3 4 5

  11. Step 8: 1 2 3 4 5

  12. Electrical Engineering Slide 1 Slide 3 Slide 23, 24,25 Slide 26 Introduction Definitions Analogy Test your understanding (questionnaire)‏ Lets Sum up (summary)‏ Want to know more… (Further Reading)‏ Interactivity: Try it yourself • Select any one of the figures • a b • c d • Select the structuring element 12 Credits

  13. Questionnaire 1 1.After dilating the image, will the number of background pixels increase or decrease? Answers: a) Increase b) Decrease 2 3 4 5

  14. Questionnaire 1 2. Image a Image b:Structuring Element What is the resulting image after dilating the image a using structuring element (image b)? Answers: a)b) 2 3 4 5

  15. Questionnaire 1 2. Image a Image b:Structuring Element What is the resulting image after dilating the image a using structuring element (image b)? Answers: c) d) 2 3 4 5

  16. Links for further reading Reference websites: http://siri.lmao.sk/fiit/DSO/Prednasky/2a Morphological processing Recap & Extend / Digital Image Processing Lecture Morphological processing Recap &Extend.pdf http://en.wikipedia.org/wiki/Dilation_%28morphology%29 http://homepages.inf.ed.ac.uk/rbf/HIPR2/dilatedemo.htm http://homepages.inf.ed.ac.uk/rbf/HIPR2/dilate.htm Books: Digital Image Processing – Rafael C. Gonzalez, Richard E. Woods, Third edition, Prentice Hall
