  1. Circuit Lab. Experiment-1 Int. To Circuit Components Lab. Devices and Voltage Measurement

  2. DIGITAL MULTIMETER

  3. ETS-7000 Digital Analog Training System

  4. SFG-2120 FUNCTION GENERATOR

  5. GDS-1102 DIGITAL OSCILLOSCOPE

  6. GPC-3060DDC POWER SUPPLY

  7. Circuit Components • Passive • Resistor, capacitor, inductor, diode • Active • BJT, JFET, MOSFET, triac, opamp

  8. Resistor (W)

  9. Resistor Reading

  10. =56.102 =5600 W =5.6 kW Tolerance %5

  11. =10.105 =100000 W =100 kW Tolerance %5

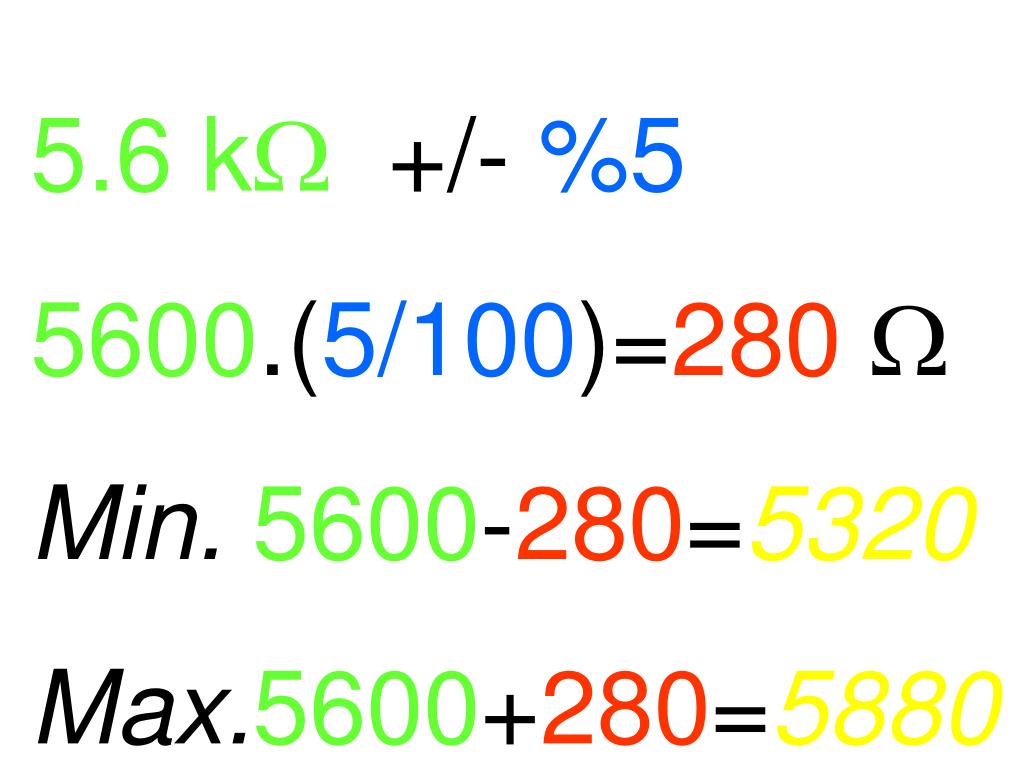

  12. 5.6 kW +/- %5 5600.(5/100)=280W Min.5600-280=5320 Max.5600+280=5880

  13. Capacitor(F) farad

  14. Electrolytic Capacitors

  15. Inductor (H) henry

  16. Multimeter

  17. Multimeter Connection

  18. Protoboard (Breadboard)

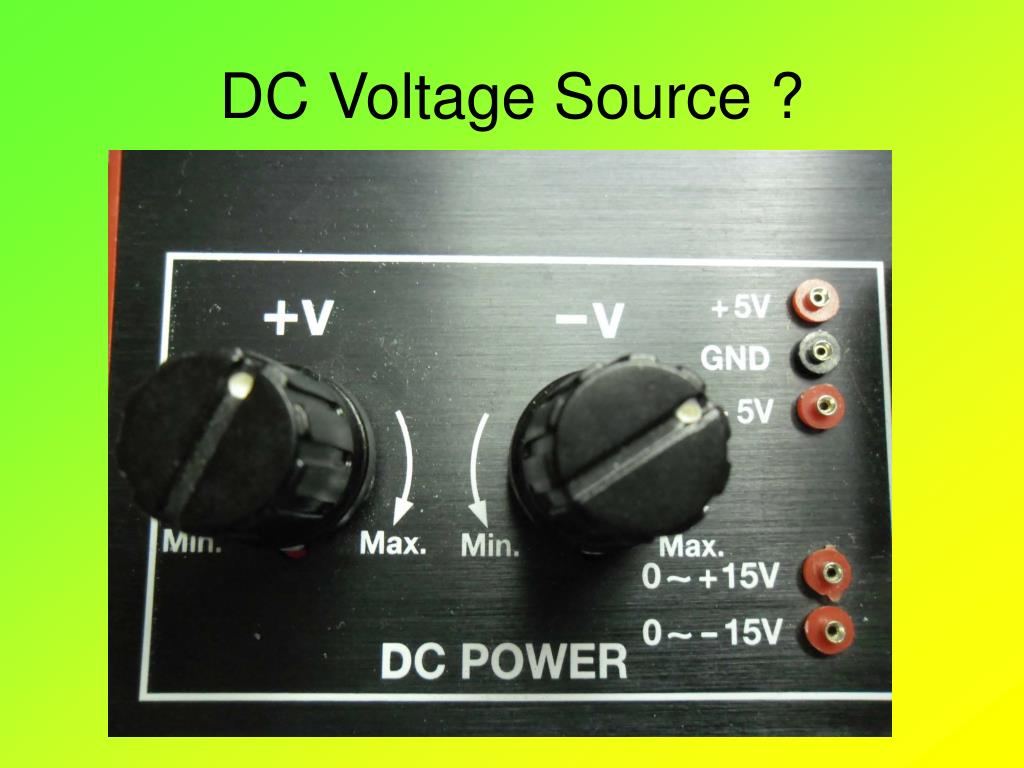

  19. DC Voltage Source ?

  20. Setup circuit-1 VA=.......... VB=.......... VBA=......... VAB=......... GND

  21. Setup circuit-2 10 k Ohm VA=.......... VB=.......... VBA=......... VAB=......... GND

  22. Setup circuit-3 10 k Ohm VA=.......... VB=.......... VBA=......... VAB=......... 1 k Ohm GND

  23. Simulation Software • Spice based programs • LTSpice • OrCAD • MultiSIM • EWB • Proteus
