Local alignment and BLAST

Local alignment and BLAST. Usman Roshan BNFO 601. Local alignment. Global alignment recursions: Local alignment recursions. Local alignment traceback. Let T(i,j) be the traceback matrices and m and n be length of input sequences. Global alignment traceback:

loyal
Télécharger la présentation

Local alignment and BLAST

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

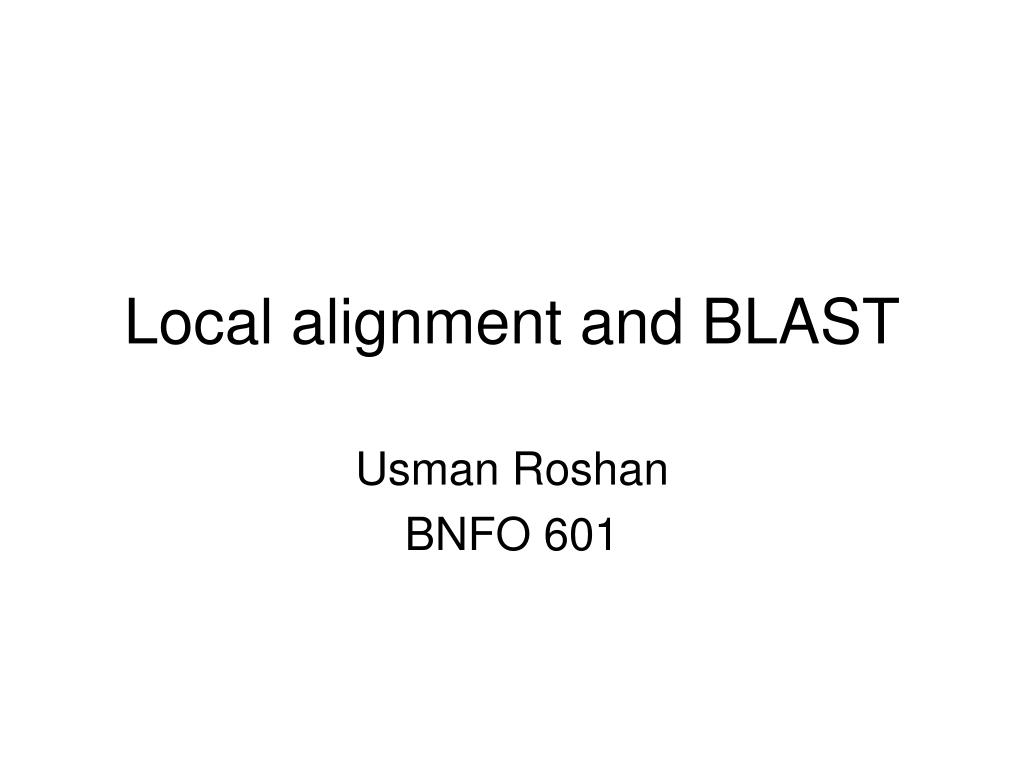

  1. Local alignment and BLAST Usman Roshan BNFO 601

  2. Local alignment • Global alignment recursions: • Local alignment recursions

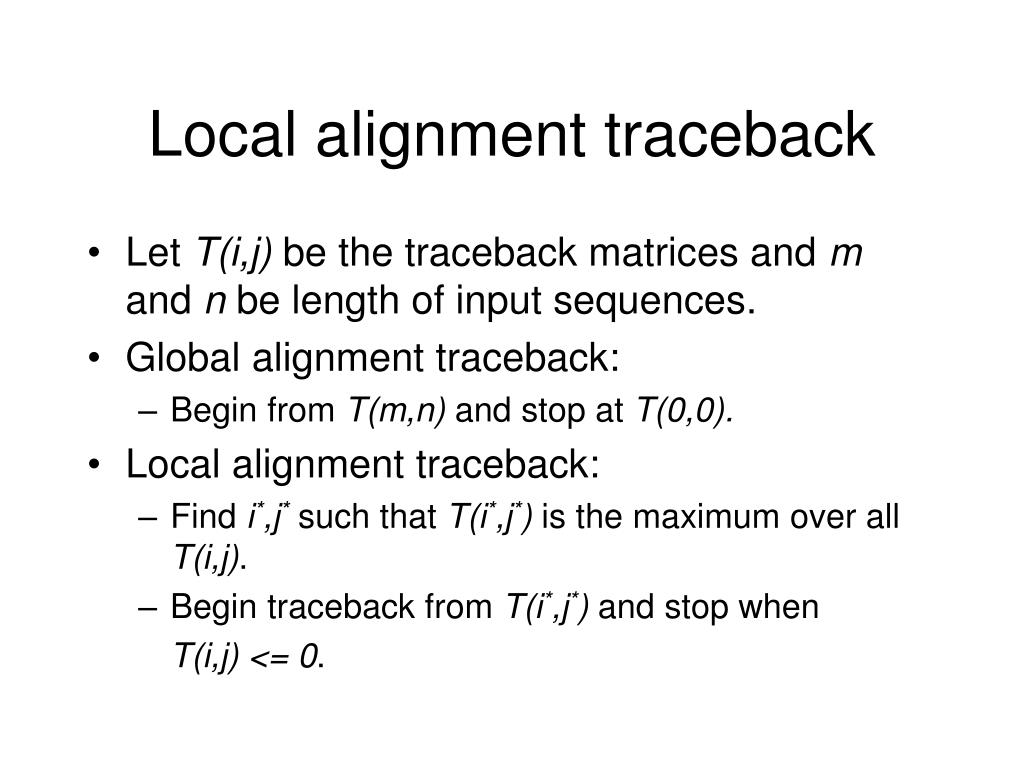

  3. Local alignment traceback • Let T(i,j) be the traceback matrices and m and n be length of input sequences. • Global alignment traceback: • Begin from T(m,n) and stop at T(0,0). • Local alignment traceback: • Find i*,j* such that T(i*,j*) is the maximum over all T(i,j). • Begin traceback from T(i*,j*) and stop when T(i,j) <= 0.

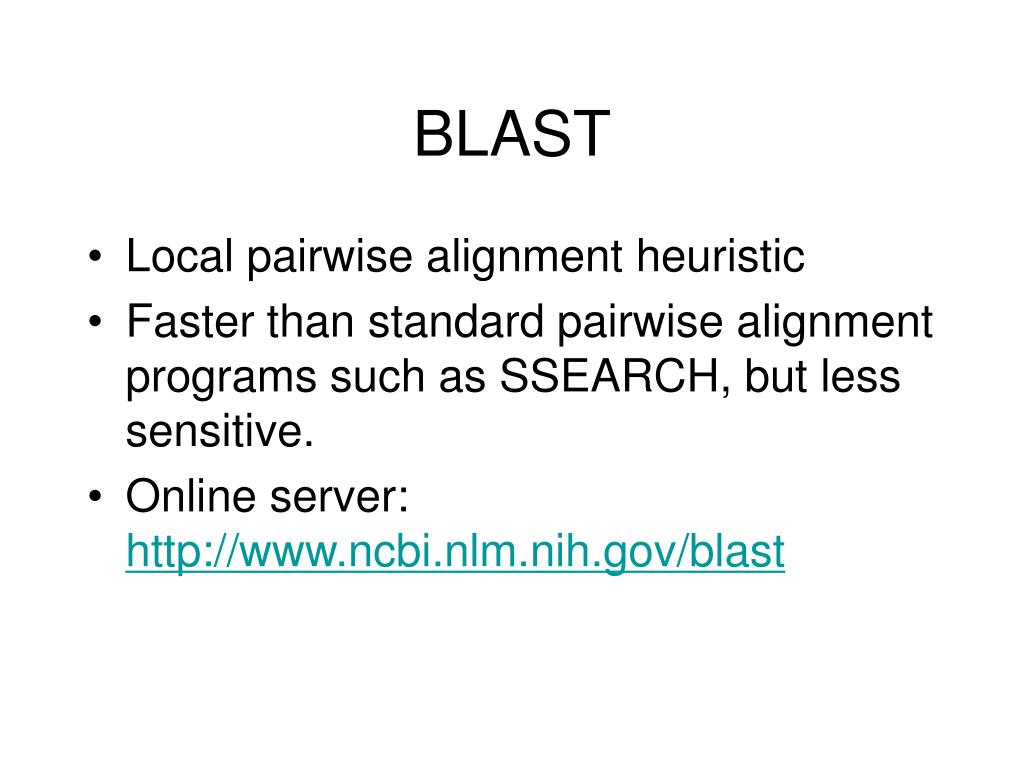

  4. BLAST • Local pairwise alignment heuristic • Faster than standard pairwise alignment programs such as SSEARCH, but less sensitive. • Online server: http://www.ncbi.nlm.nih.gov/blast

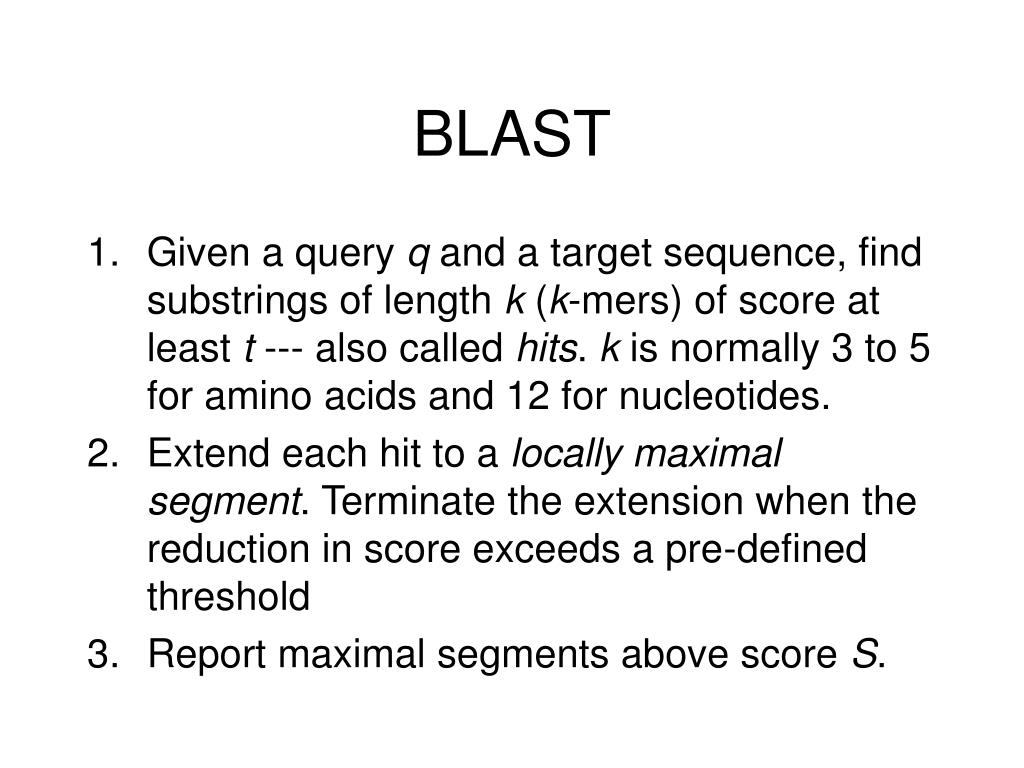

  5. BLAST • Given a query q and a target sequence, find substrings of length k (k-mers) of score at least t --- also called hits. k is normally 3 to 5 for amino acids and 12 for nucleotides. • Extend each hit to a locally maximal segment. Terminate the extension when the reduction in score exceeds a pre-defined threshold • Report maximal segments above score S.

  6. Finding k-mers quickly • Preprocess the database of sequences: • For each sequence in the database store all k-mers in hash-table. • This takes linear time • Query sequence: • For each k-mer in the query sequence look up the hash table of the target to see if it exists • Also takes linear time
