Bioinformatics Tutorial I BLAST and Sequence Alignment

1. Bioinformatics Tutorial I BLAST and Sequence Alignment

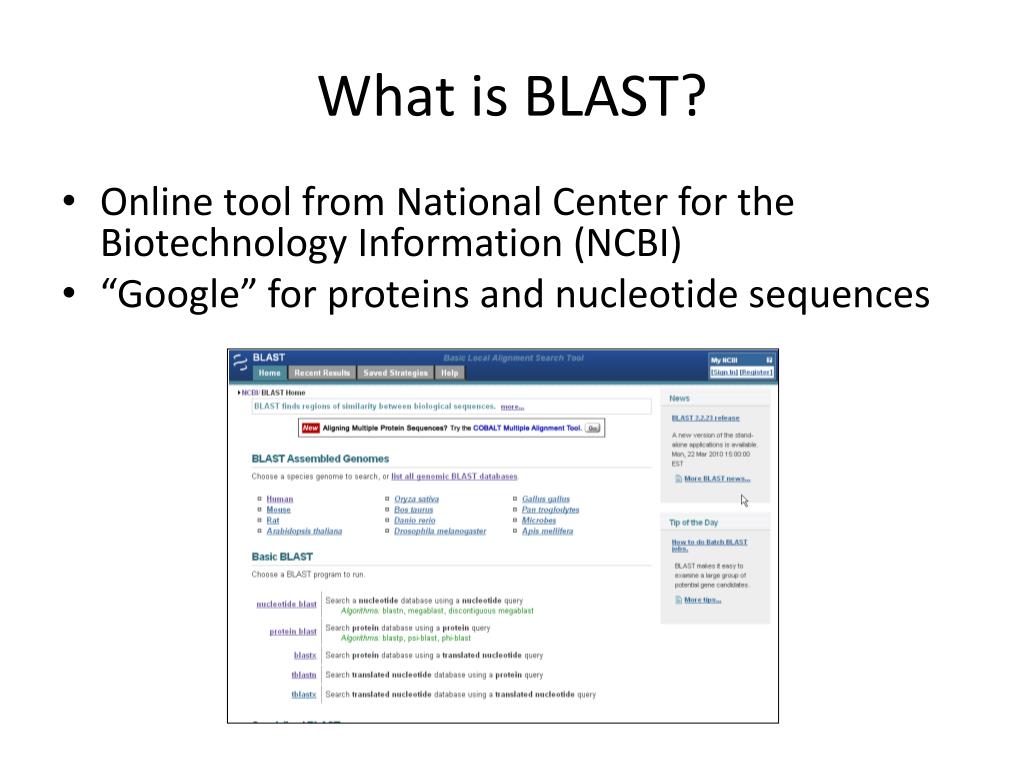

2. What is BLAST? • Online tool from National Center for the Biotechnology Information (NCBI) • “Google” for proteins and nucleotide sequences

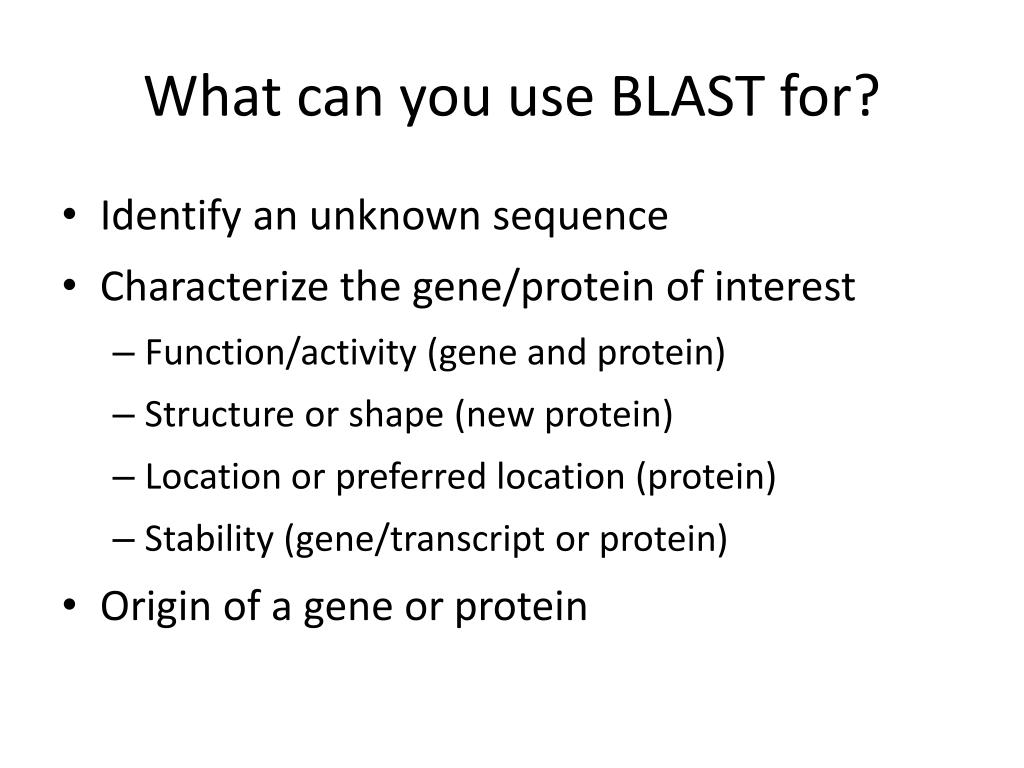

3. What can you use BLAST for? • Identify an unknown sequence • Characterize the gene/protein of interest • Function/activity (gene and protein) • Structure or shape (new protein) • Location or preferred location (protein) • Stability (gene/transcript or protein) • Origin of a gene or protein

4. Sequence alignment approaches • Global alignment • Needleman and Wunsch, 1970 • Local alignment (used in BLAST) • Smith and Waterman, 1980

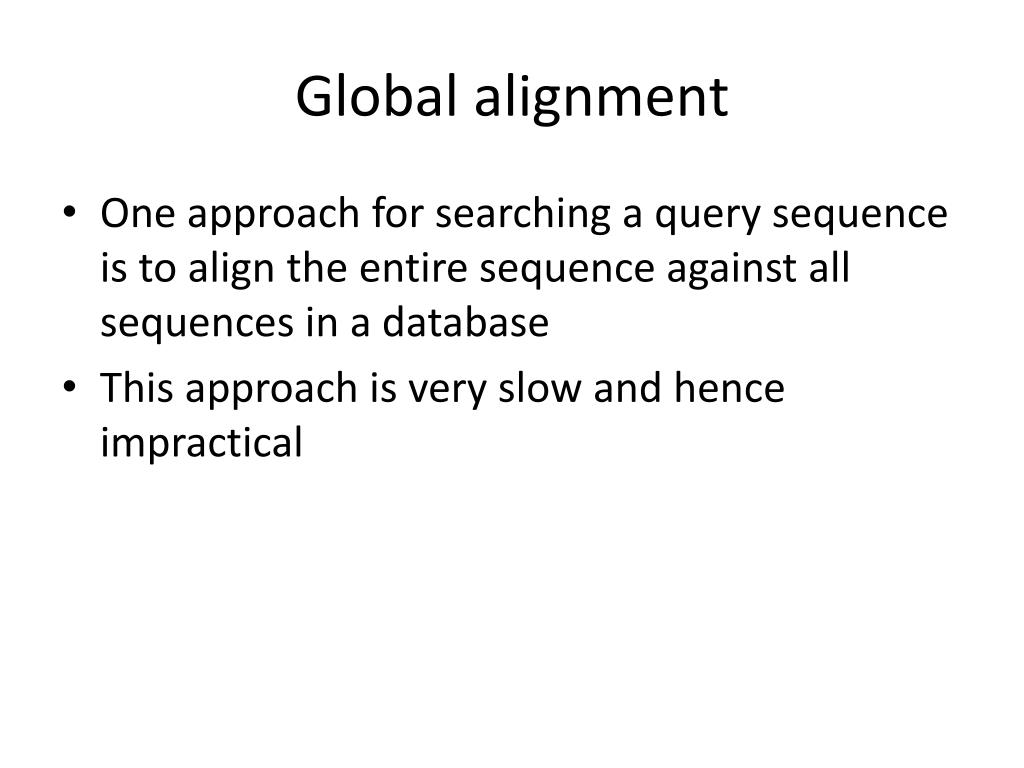

5. Global alignment • One approach for searching a query sequence is to align the entire sequence against all sequences in a database • This approach is very slow and hence impractical

6. BLAST • A much faster approach • Divides your search query into short sequences (“words”) and initially looks for exact matches. Once found, these words are then extended • i.e. Basic Local Alignment Search Tool • Altschul, S.F. et al. Basic local alignment search tool. J Mol Biol. 215(3):403-10(1990).

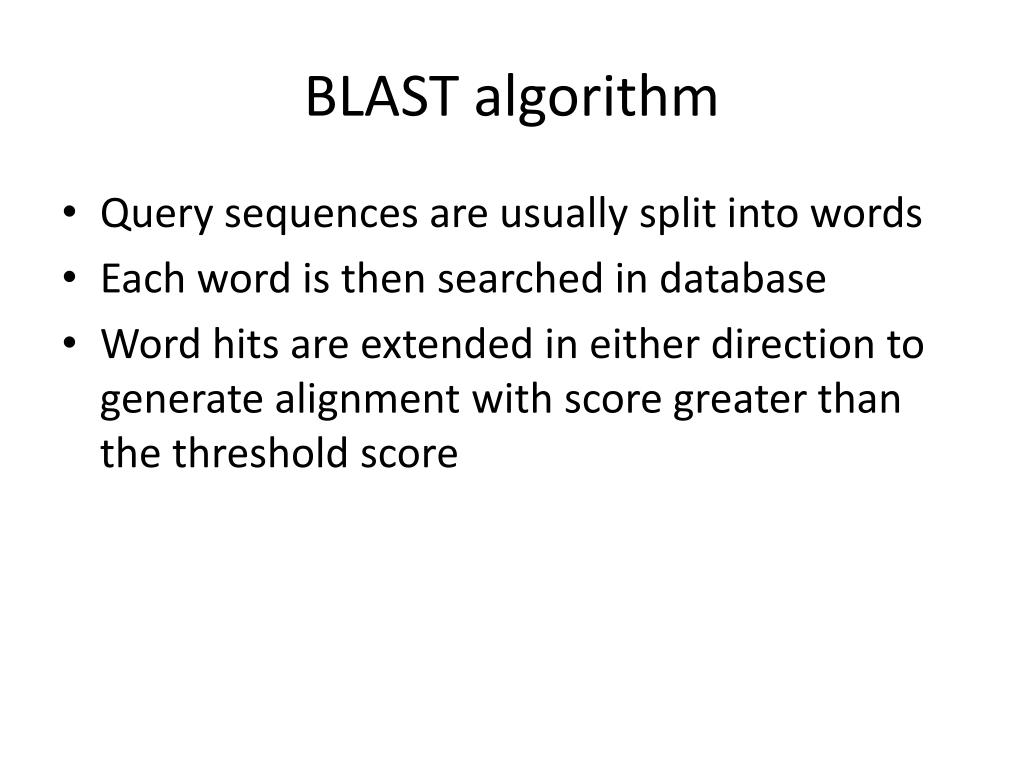

7. BLAST algorithm • Query sequences are usually split into words • Each word is then searched in database • Word hits are extended in either direction to generate alignment with score greater than the threshold score

8. BLAST “The central idea of the BLAST algorithm is to confine attention to segment pairs that contain a word pair of length w with a score of at least T” - Alschul et al, 1990

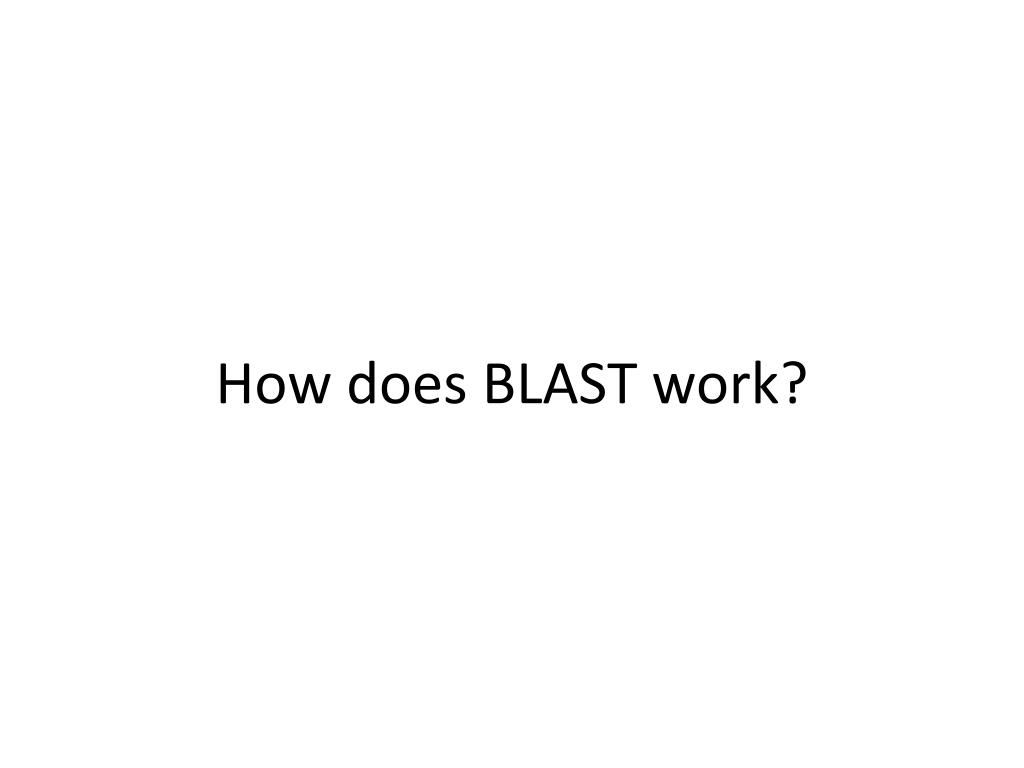

9. How does BLAST work?

10. Step 1: Get your sequence • NCBI, UCSC etc.. • Sequencing facility (unknown gene)

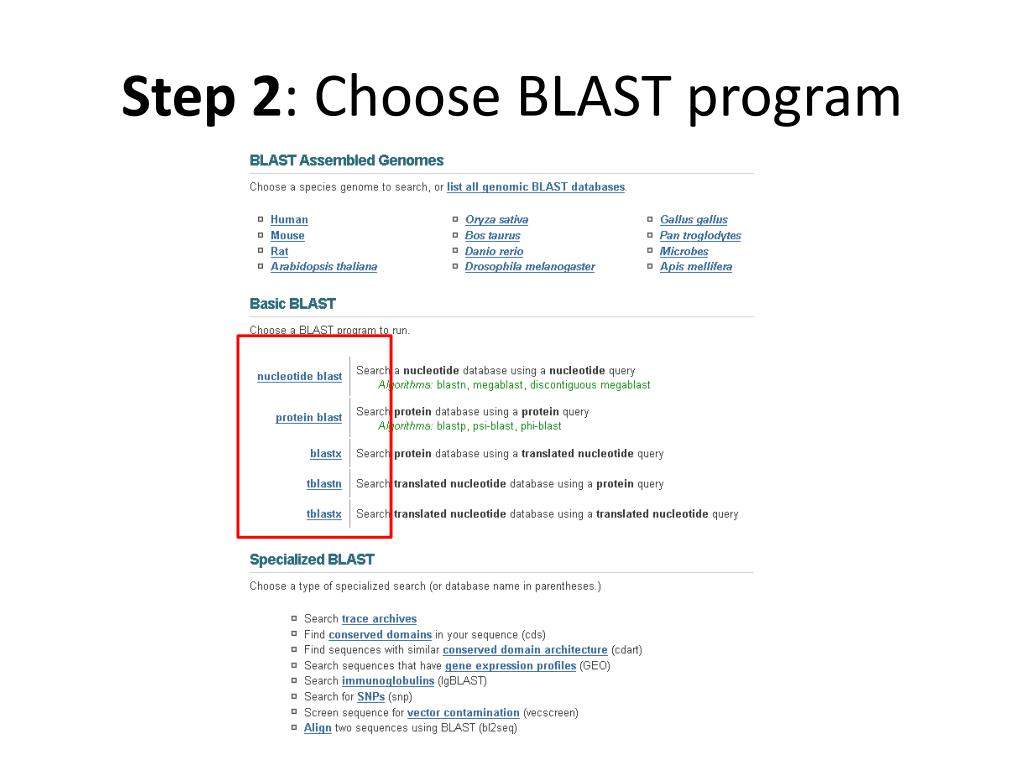

11. Step 2: Choose BLAST program

12. The different BLAST programs • blastn (nucleotide BLAST) • blastp (protein BLAST) • blastx (translated BLAST) • tblastn (translated BLAST) • tblastx (translated BLAST)

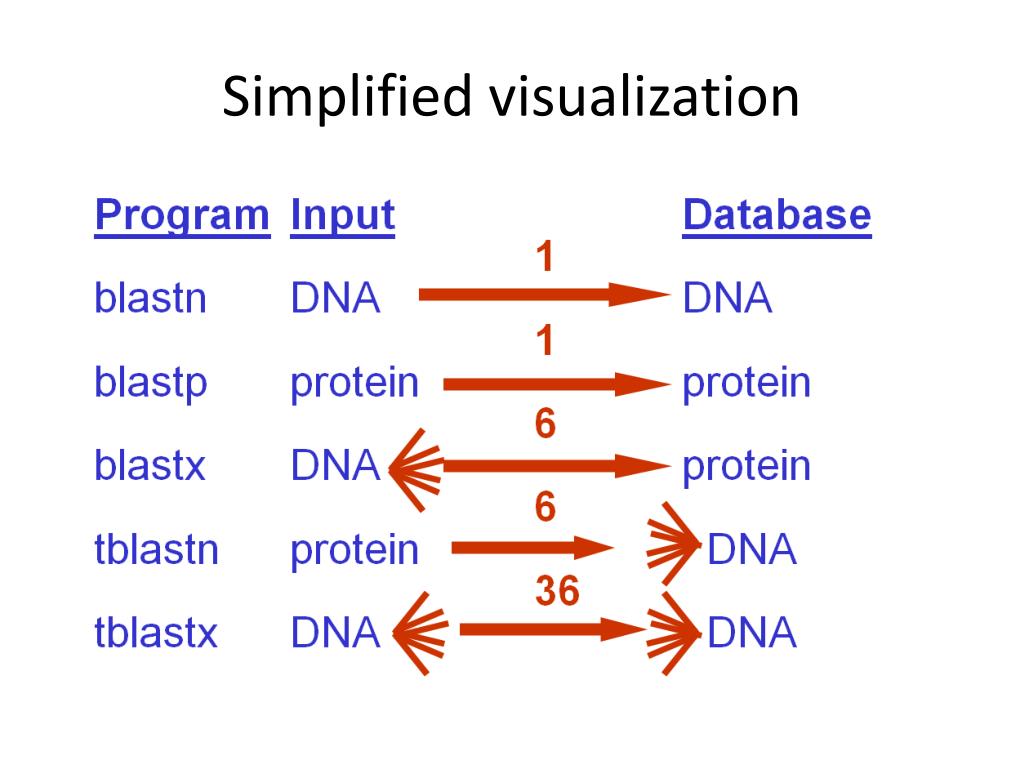

13. Simplified visualization

14. Why translate in 6 reading frames? • DNA sequence can code for six different proteins 5’ CAT CAA 5’ ATC AAC 5’ TCA ACT 5’ CATCAACTACAACTCCAAAGACACCCTTACACATCAACAAACCTACCCAC 3’ 3’ GTAGTTGATGTTGAGGTTTCTGTGGGAATGTGTAGTTGTTTGGATGGGTG 5’ 5’ GTG GGT 5’ TGG GTA 5’ GGG TAG

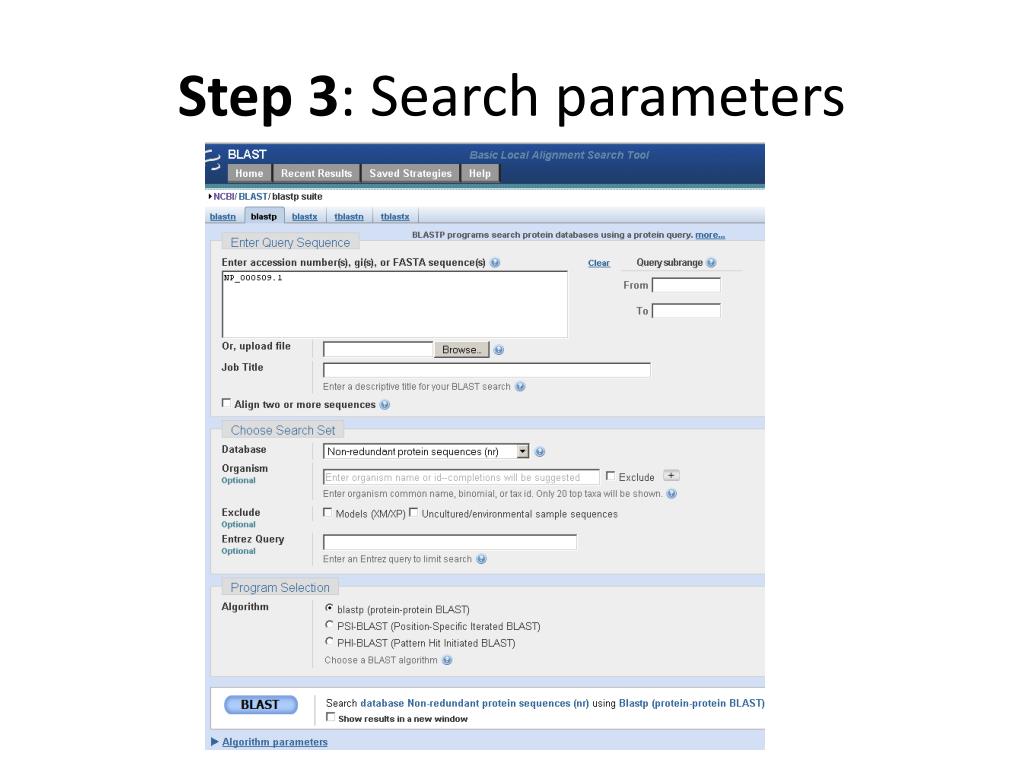

15. Step 3: Search parameters

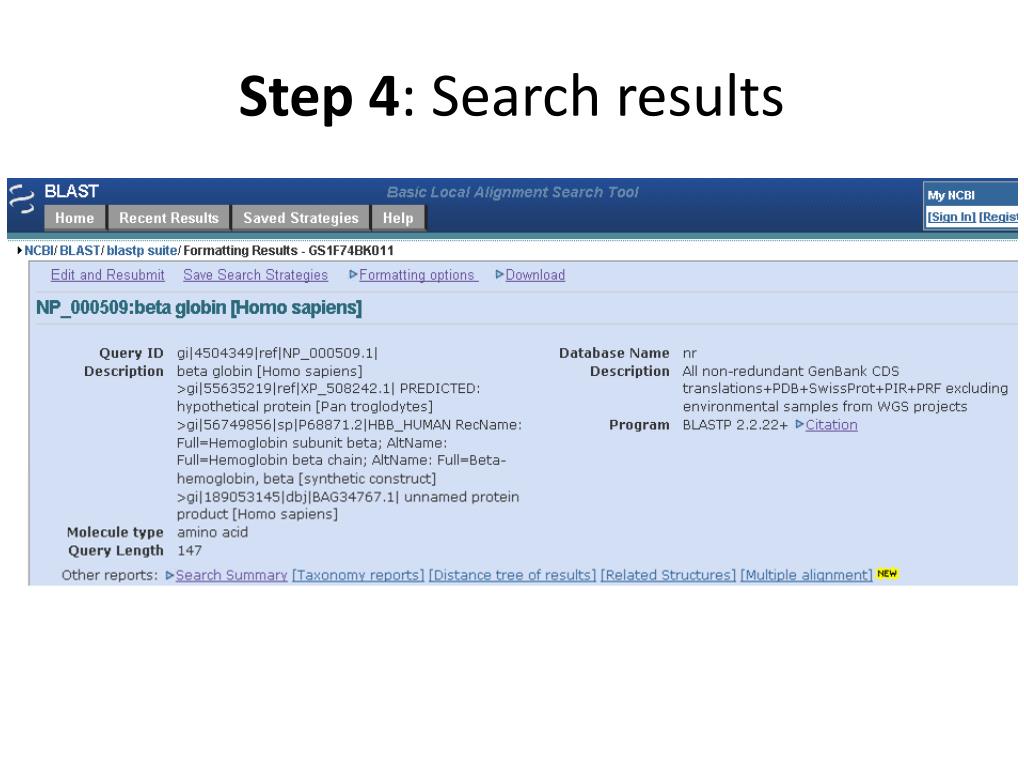

16. Step 4: Search results

17. Important: Tabular output

18. Score • Sequence similarity score is calculated based on the pair-wise alignment quality • Alignment score is the sum of scores for each position

19. Score • Nucleotides • +1 score for each match • -2 score for each mismatch • Peptides • Each amino acid substitution is given a score

20. Example David Fristrom, Introduction to BLAST AACGTTTCCAGTCCAAATAGCTAGGC ===--=== =-===-==-====== AACCGTTCTACAATTACCTAGGC Hits(+1): 18 Misses (-2): 5 Gaps (existence -2, extension -1): 1 Length: 3 Score = 18 * 1 + 5 * (-2) – 2 – 2 = 6

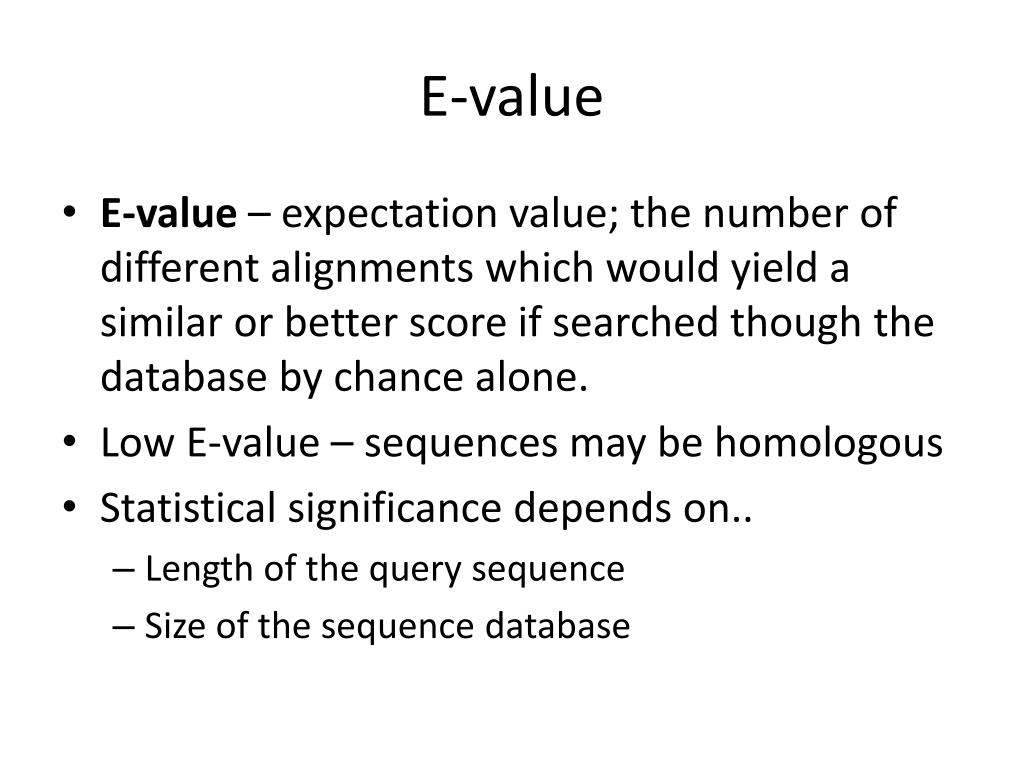

21. E-value • E-value – expectation value; the number of different alignments which would yield a similar or better score if searched though the database by chance alone. • Low E-value – sequences may be homologous • Statistical significance depends on.. • Length of the query sequence • Size of the sequence database

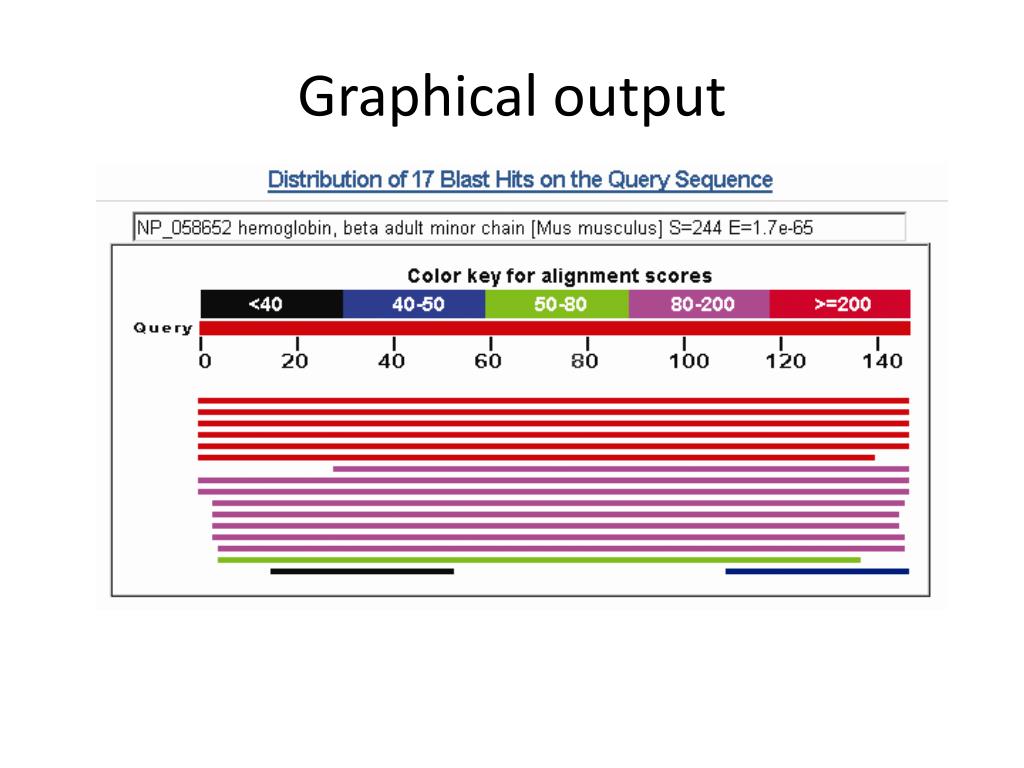

22. Graphical output

23. Taxonomy Results

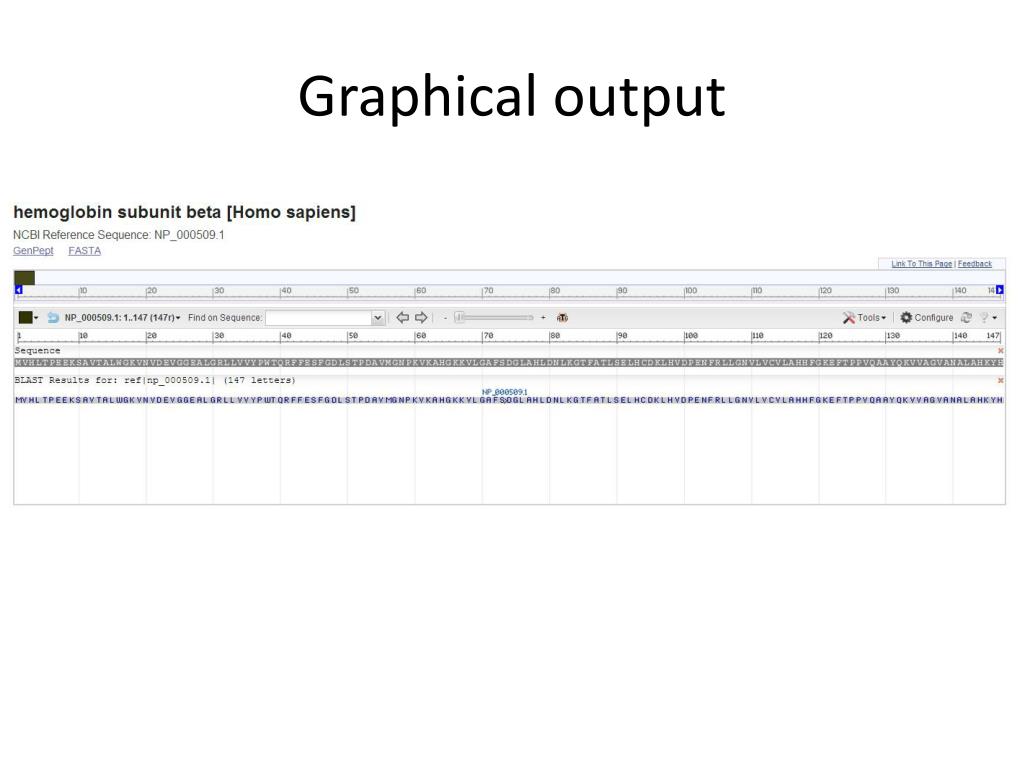

24. Graphical output

25. References • Figures and text adapted from the following sources: • David Fristrom, Introduction to BLAST • Jonathan Pevsner, BLAST: Basic local alignment search tool • Joanne Fox, BLAST: Finding function by sequence similarity
