  1. Mathematics IIITS 4353Class B Herlina Setiyaningsih Civil Engineering Department Petra Christian University

  2. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Operator Diferensial D(e3x) = 3e3x D2(e3x) = 9e3x D(sin 2x) = 2 cos 2x D(x2+1) = 2x D2(x2+1) = 2 D3(x2+1) = 0

  3. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Operator D Dy = y’ D2y = y” y” + py’ +qy = f(x) D2y + pDy + qy = f(x) (D2+pD+q)y = f(x) F(D)y = f(x)

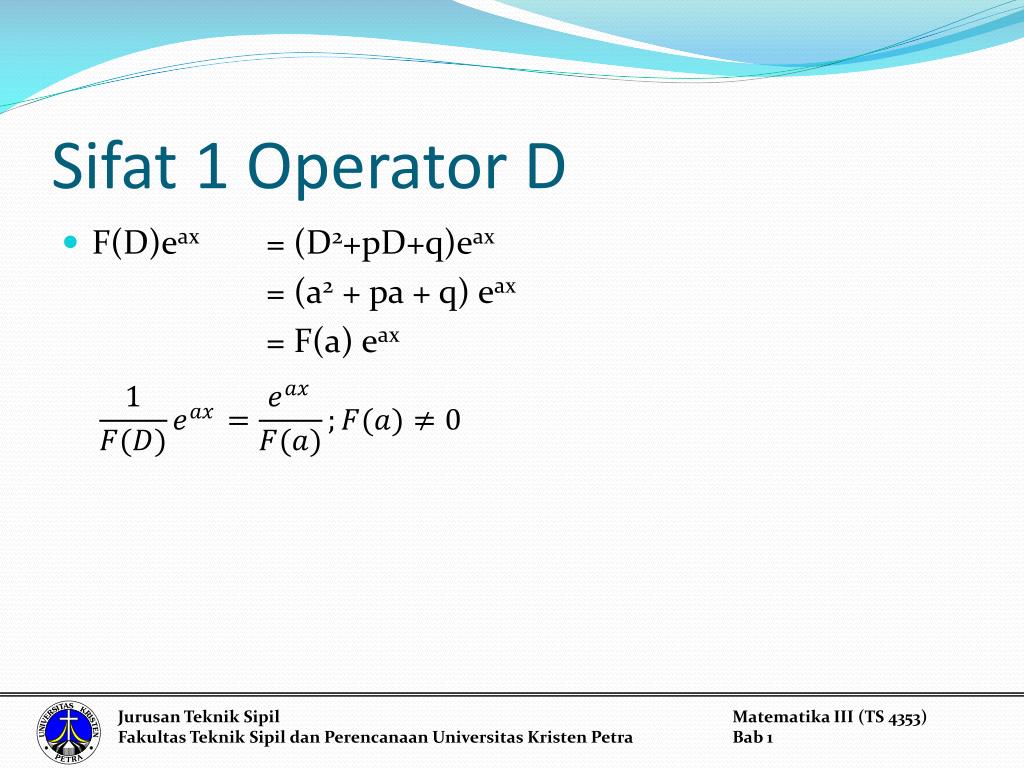

  4. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Sifat 1 Operator D • F(D)eax = (D2+pD+q)eax = (a2 + pa + q) eax = F(a) eax

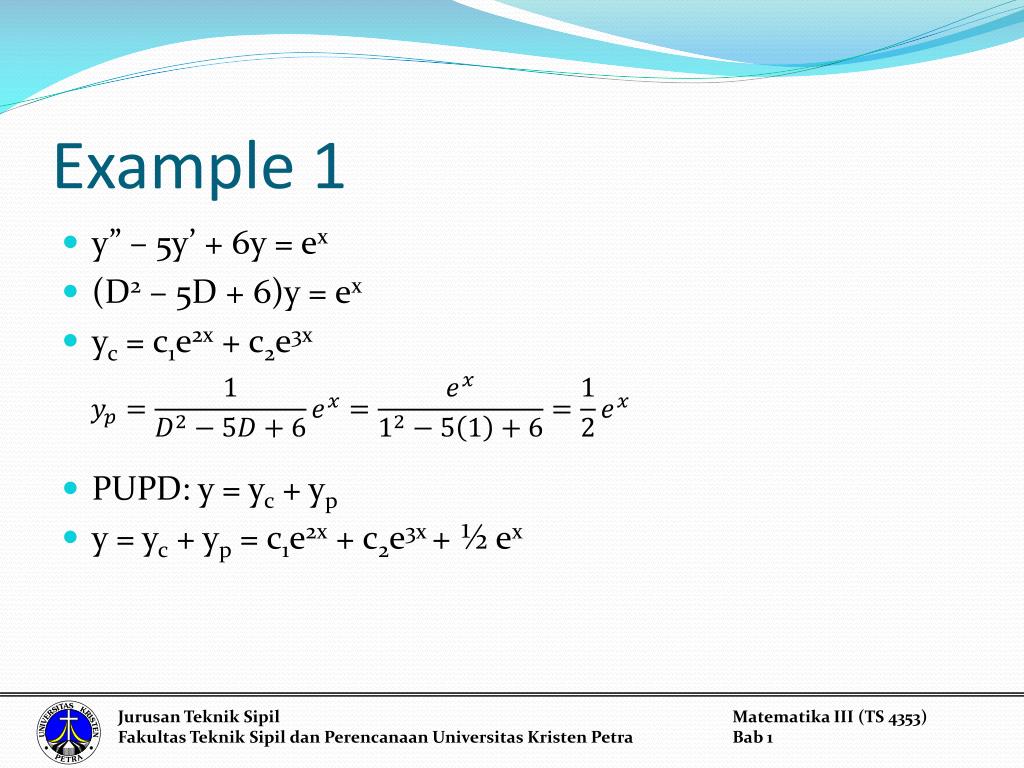

  5. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 1 • y” – 5y’ + 6y = ex • (D2 – 5D + 6)y = ex • yc = c1e2x + c2e3x • PUPD: y = yc + yp • y = yc + yp = c1e2x + c2e3x + ½ ex

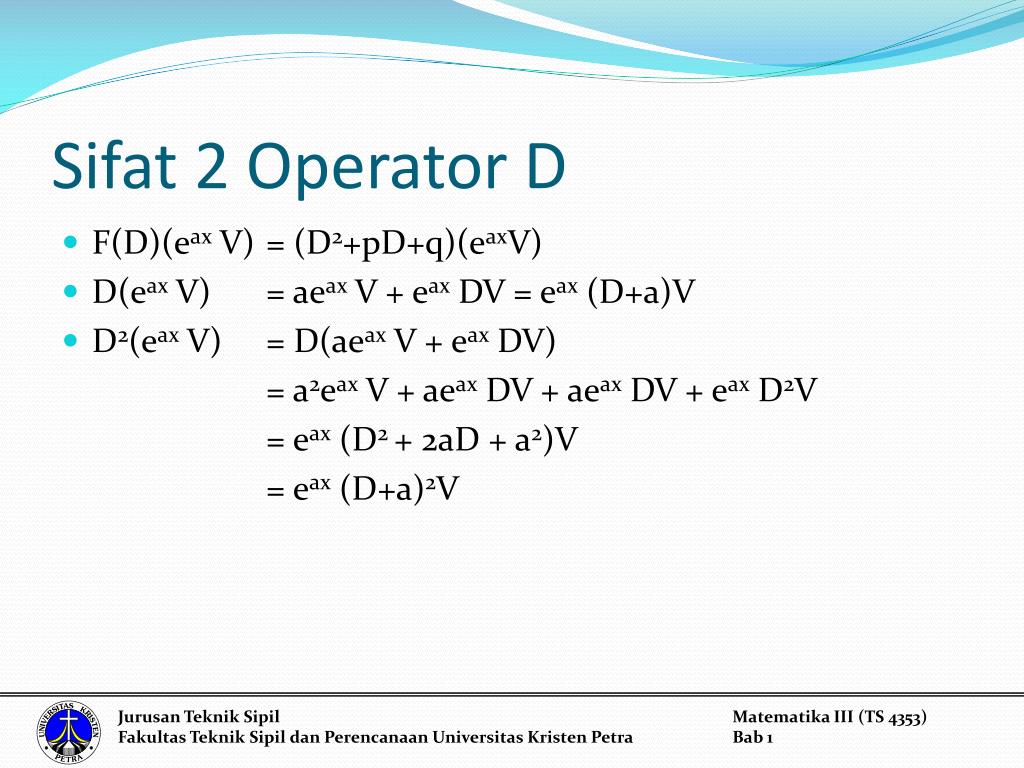

  6. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Sifat 2 Operator D • F(D)(eax V) = (D2+pD+q)(eaxV) • D(eax V) = aeax V + eax DV = eax (D+a)V • D2(eax V) = D(aeax V + eax DV) = a2eax V + aeax DV + aeax DV + eax D2V = eax (D2 + 2aD + a2)V = eax (D+a)2V

  7. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 • F(D)(eax V) = (D2+pD+q)(eaxV) = eax (D+a)2V + p eax (D+a)V + q eax V = eax [(D+a)2 + (D+a)p + q ] V = eax F(D+a) V

  8. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 2 • y” – 2y’ + y = xex • (D2 - 2D + 1)y = xex • PR : (D2 - 2D + 1)y = 0  subs: y=ekx • PK : (k2 – 2k + 1) = 0 • k1 = k2 = m =1 • yc= ex(c1 + c2x) • PUPD: y = ex(c1 + c2x + 1/6 x3)

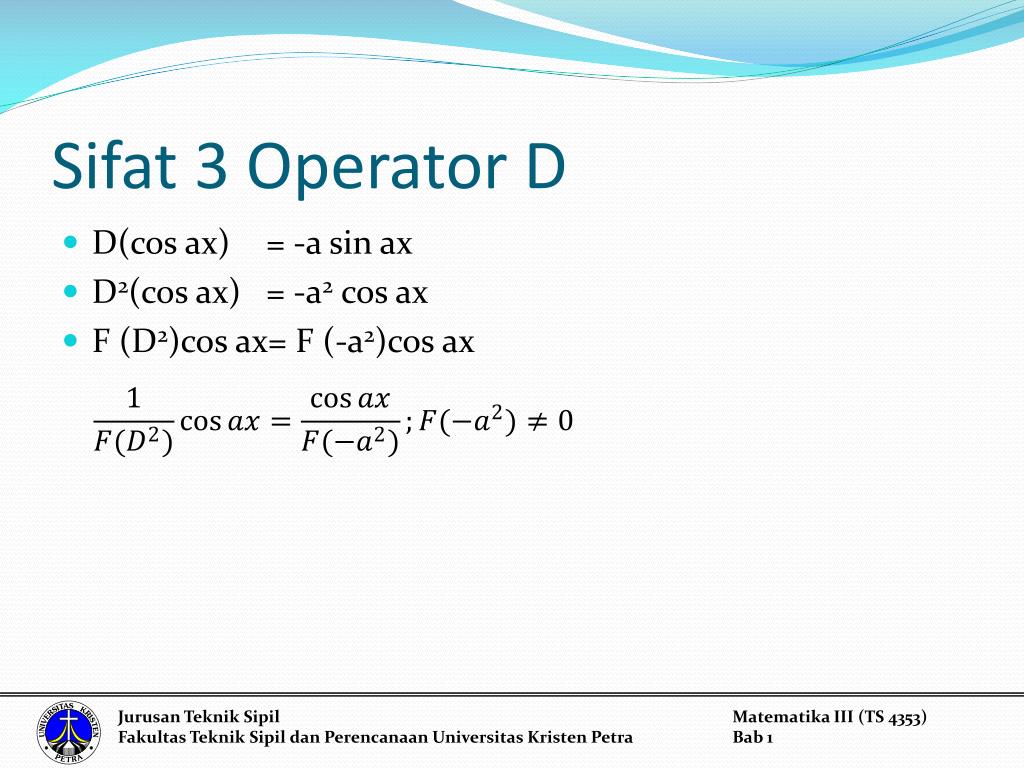

  9. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Sifat 3 Operator D • D(cos ax) = -a sin ax • D2(cos ax) = -a2 cos ax • F (D2)cos ax= F (-a2)cos ax

  10. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 3 • y” – 9 y = cos 2x • (D2 - 9)y = cos 2x • PR : (D2 - 9)y = 0  subs: y=ekx • PK : (k2 – 9) = 0 • (k+3)(k-3) = 0 • k1 = 3 dan k2 = -3 • yc= c1 e3x+ c2 e-3x • PUPD: y = c1 e3x+ c2 e-3x – 1/13 cos 2x

  11. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Sifat 4 Operator D • D(sin ax) = a cos ax • D2(sin ax) = -a2 sin ax • F (D2)sin ax= F (-a2)sin ax

  12. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 4 • y” + 9 y = sin 2x • (D2 + 9)y = sin 2x • PR : (D2+9)y = 0  subs: y=ekx • PK : (k2 + 9) = 0 • (k+3)(k-3) = 0 • k1,2 = ± 3i • yc= c1cos 3x + c2 sin 3x • PUPD: y = c1cos 3x + c2 sin 3x + 1/5 sin 2x

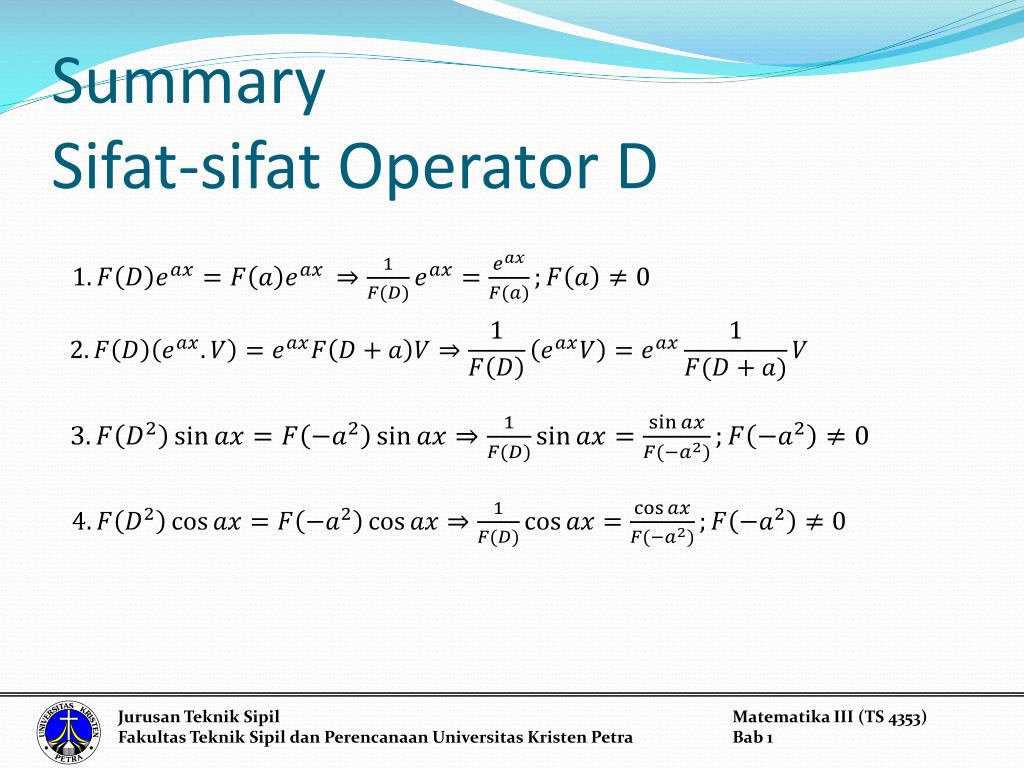

  13. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 SummarySifat-sifat Operator D

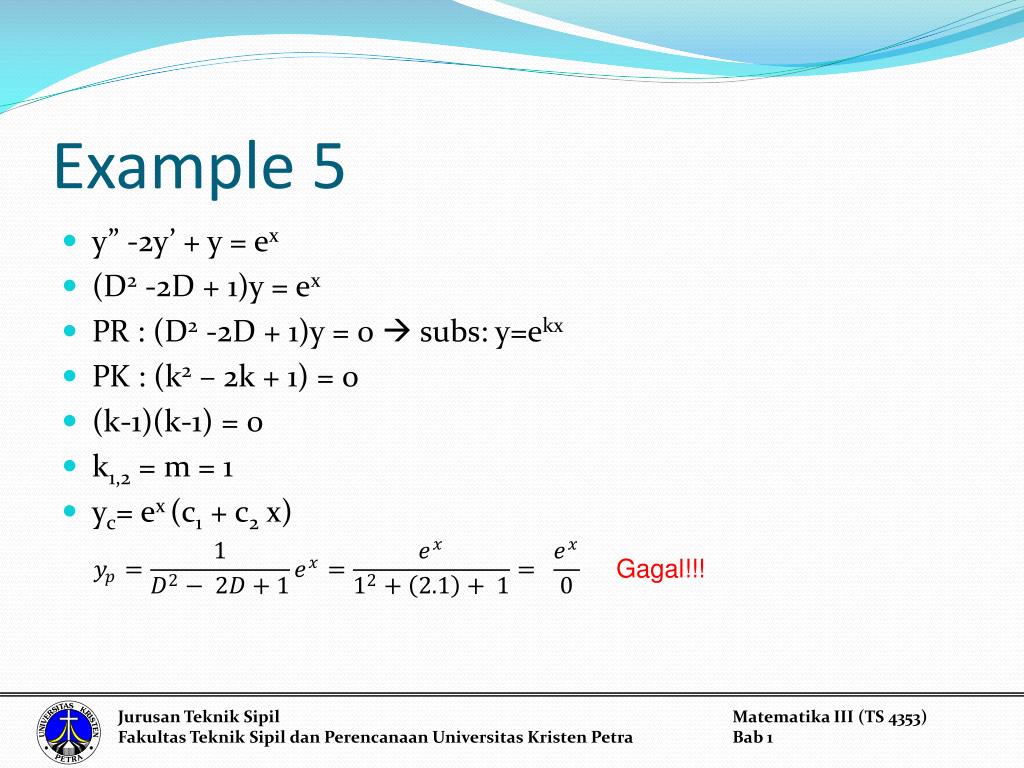

  14. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 5 • y” -2y’ + y = ex • (D2 -2D + 1)y = ex • PR : (D2 -2D + 1)y = 0  subs: y=ekx • PK : (k2 – 2k + 1) = 0 • (k-1)(k-1) = 0 • k1,2 = m = 1 • yc= ex (c1 + c2 x) Gagal!!!

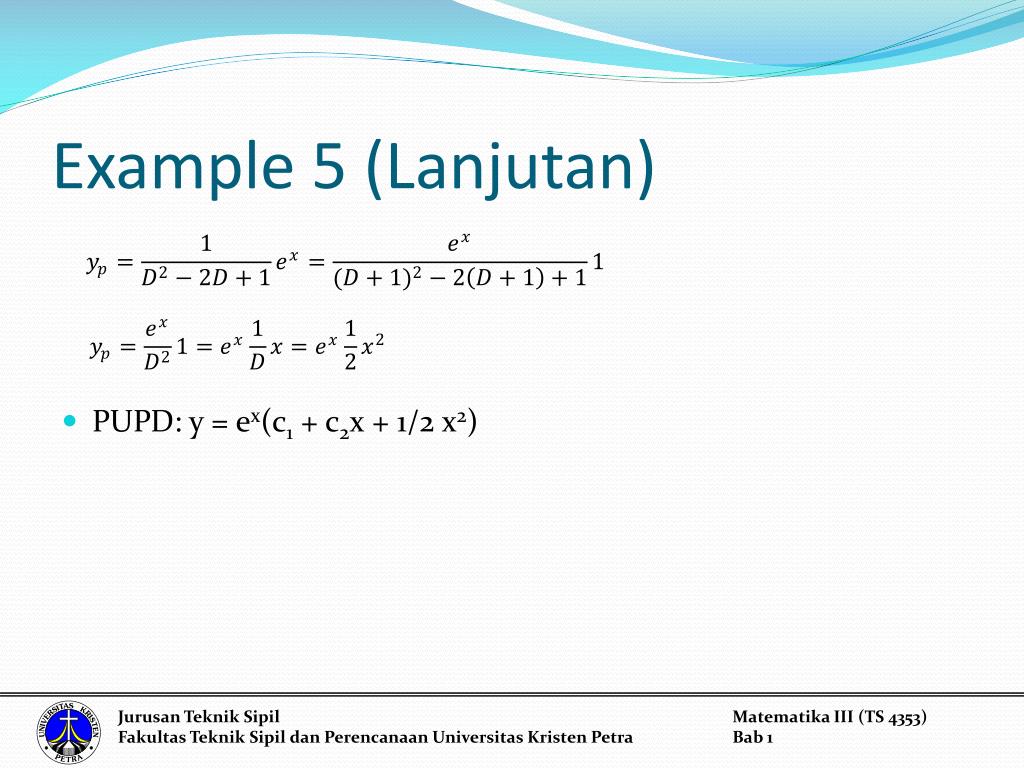

  15. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 5 (Lanjutan) • PUPD: y = ex(c1 + c2x + 1/2 x2)

  16. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 6 • y” -5y’ + 6y = sin 4x • (D2 -5D + 6)y = sin 4x • PR : (D2 -5D + 6)y = 0  subs: y=ekx • PK : (k2 – 5k + 6) = 0 • (k-2)(k-3) = 0 • k1 = 2 dan k2 = 3 • yc= c1 e2x + c2 e3x

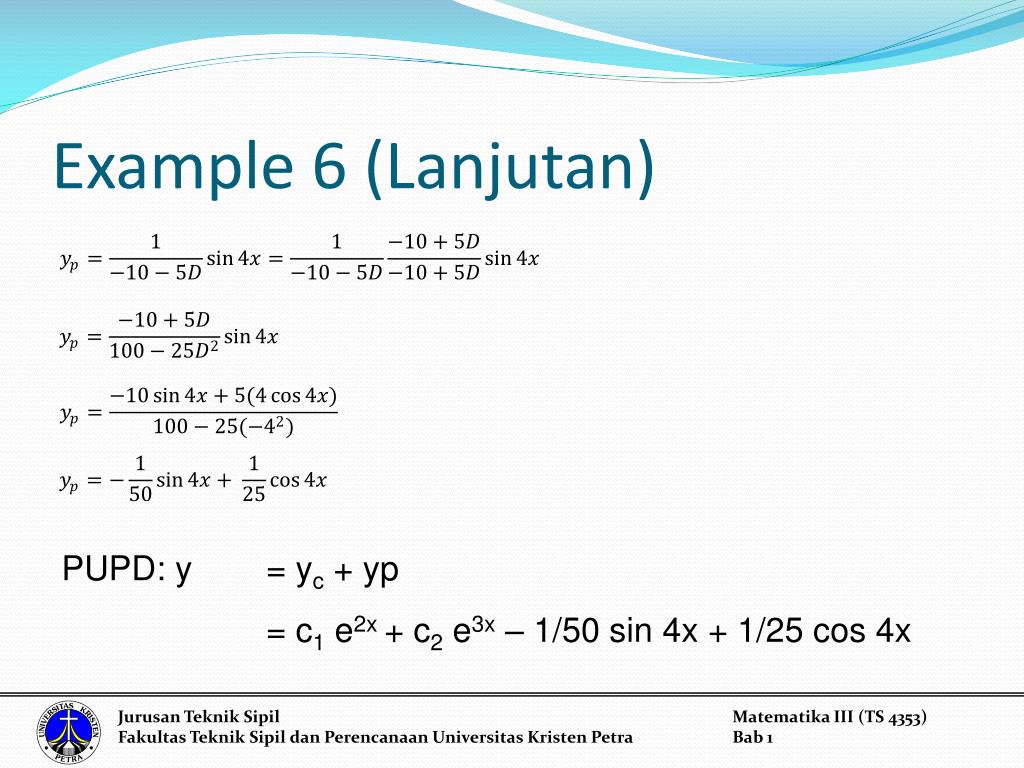

  17. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 6 (Lanjutan) PUPD: y = yc + yp = c1 e2x + c2 e3x – 1/50 sin 4x + 1/25 cos 4x

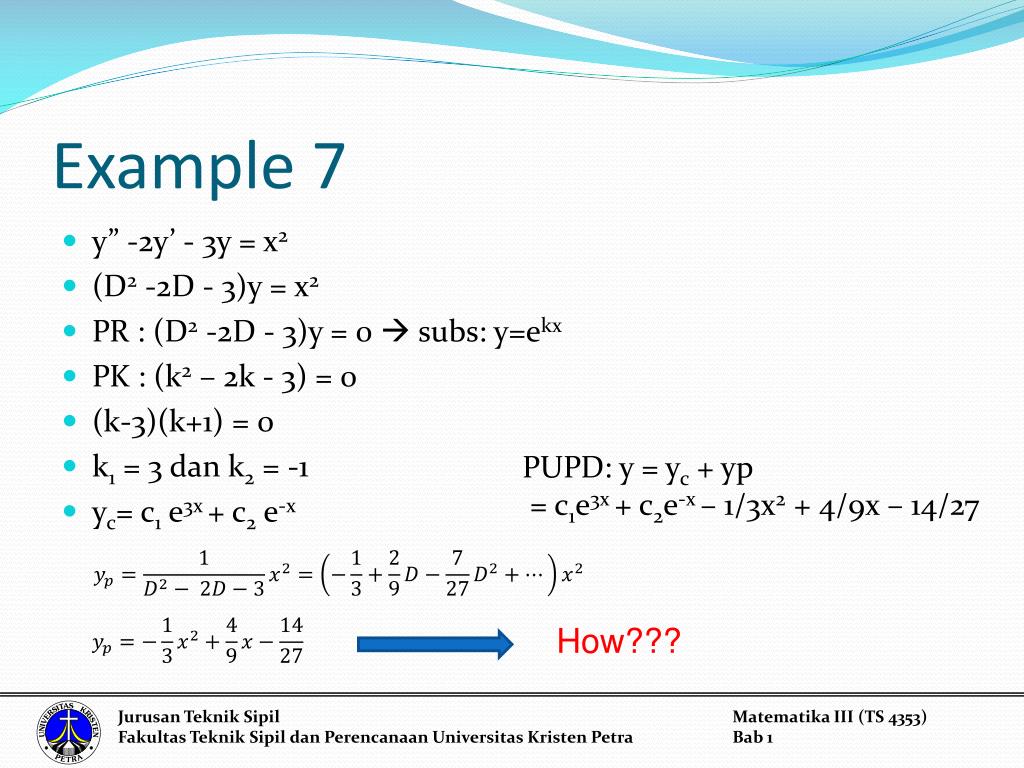

  18. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 7 • y” -2y’ - 3y = x2 • (D2 -2D - 3)y = x2 • PR : (D2 -2D - 3)y = 0  subs: y=ekx • PK : (k2 – 2k - 3) = 0 • (k-3)(k+1) = 0 • k1 = 3 dan k2 = -1 • yc= c1 e3x + c2 e-x PUPD: y = yc + yp = c1e3x + c2e-x – 1/3x2 + 4/9x – 14/27 How???

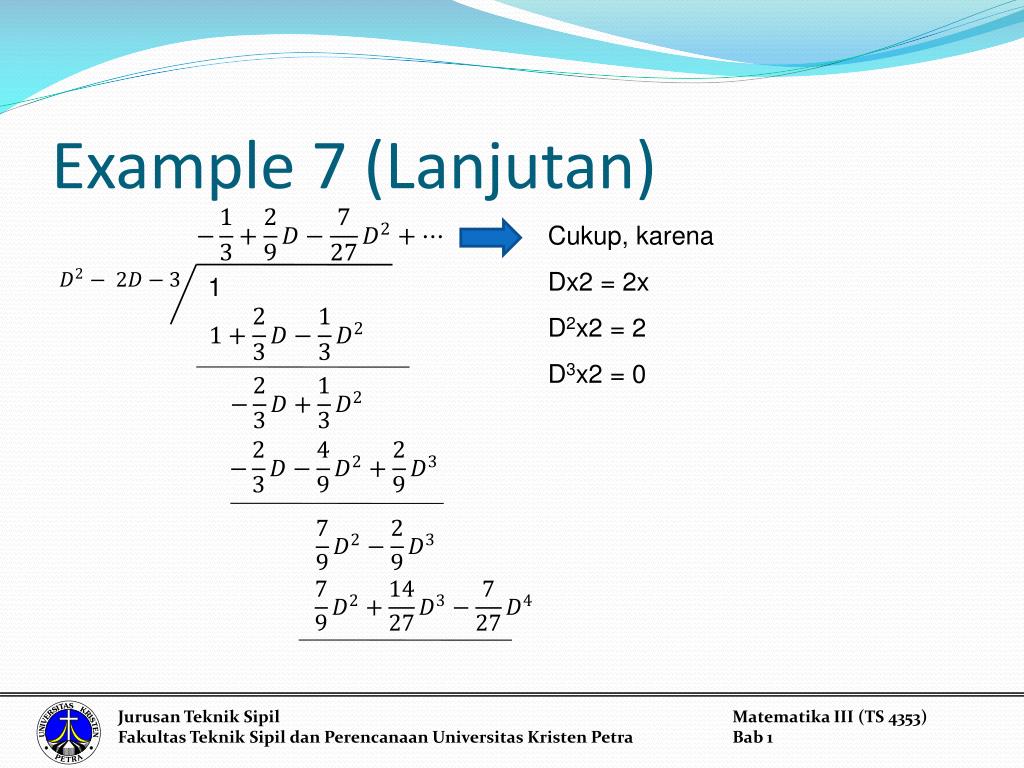

  19. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 7 (Lanjutan) Cukup, karena Dx2 = 2x D2x2 = 2 D3x2 = 0 1

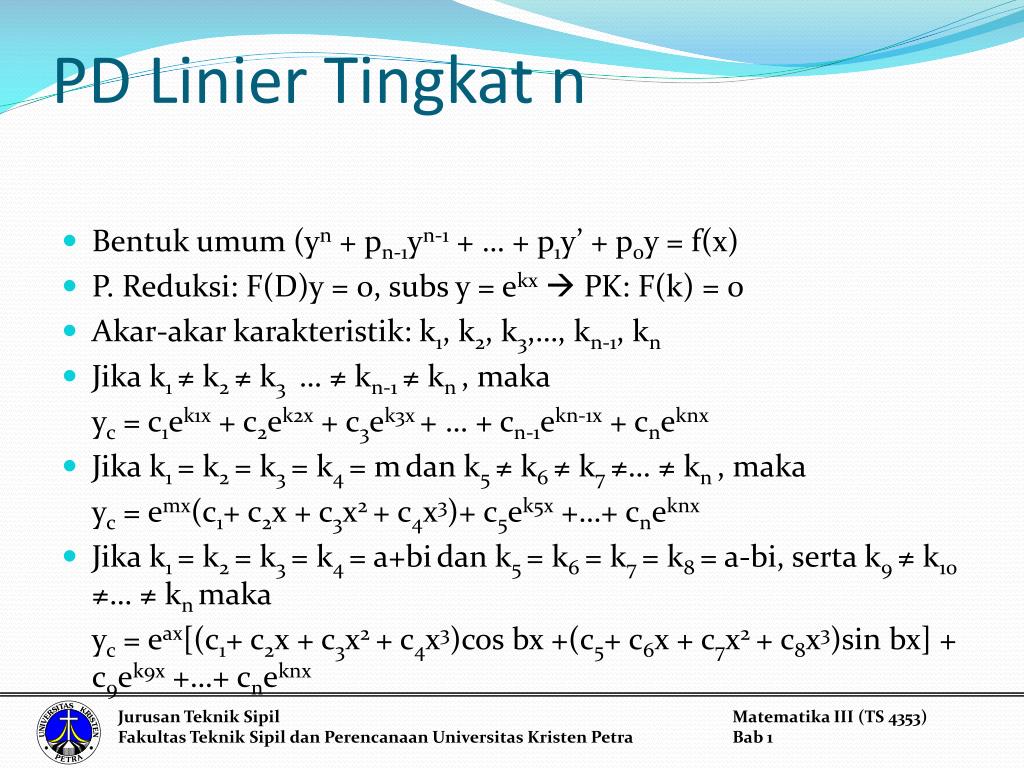

  20. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 PD Linier Tingkat n • Bentuk umum (yn + pn-1yn-1 + … + p1y’ + p0y = f(x) • P. Reduksi: F(D)y = 0, subs y = ekx PK: F(k) = 0 • Akar-akar karakteristik: k1, k2, k3,…, kn-1, kn • Jika k1 ≠ k2 ≠ k3 … ≠ kn-1 ≠ kn , maka yc = c1ek1x + c2ek2x + c3ek3x + … + cn-1ekn-1x + cneknx • Jika k1 = k2 = k3 = k4 = mdan k5 ≠ k6 ≠ k7 ≠… ≠ kn , maka yc = emx(c1+ c2x + c3x2 + c4x3)+ c5ek5x +…+ cneknx • Jika k1 = k2 = k3 = k4 = a+bidan k5 = k6 = k7 = k8 = a-bi, serta k9 ≠ k10 ≠… ≠ kn maka yc = eax[(c1+ c2x + c3x2 + c4x3)cos bx +(c5+ c6x + c7x2 + c8x3)sin bx] + c9ek9x +…+ cneknx

  21. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 1 • yiv – y = e2x • PD: (D4 – 1)y = e2x • PR: (D4 – 1)y = 0 subs y = ekx • PK: k4 – 1 = 0 (k2-1)(k2+1)=0 (k+1)(k-1)(k2+1)=0 k1 = -1, k2 = 1, k3,4 = ±i yc = c1e-x + c2ex + c3cosx + c4sinx

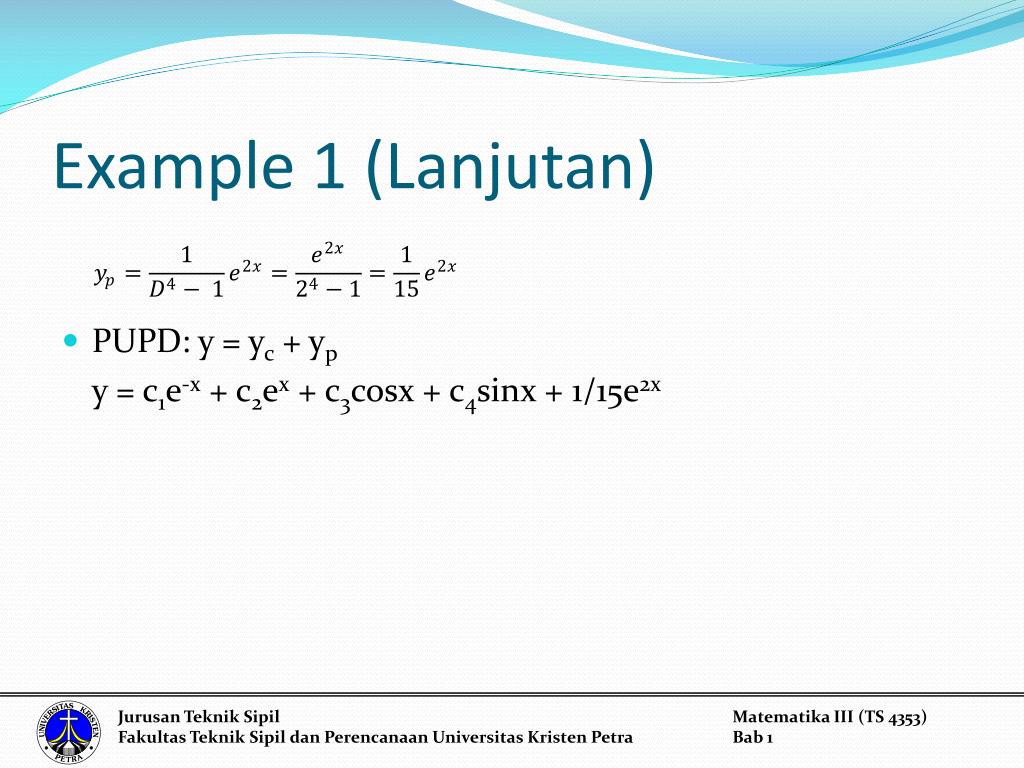

  22. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Example 1 (Lanjutan) • PUPD: y = yc + yp y = c1e-x + c2ex + c3cosx + c4sinx + 1/15e2x

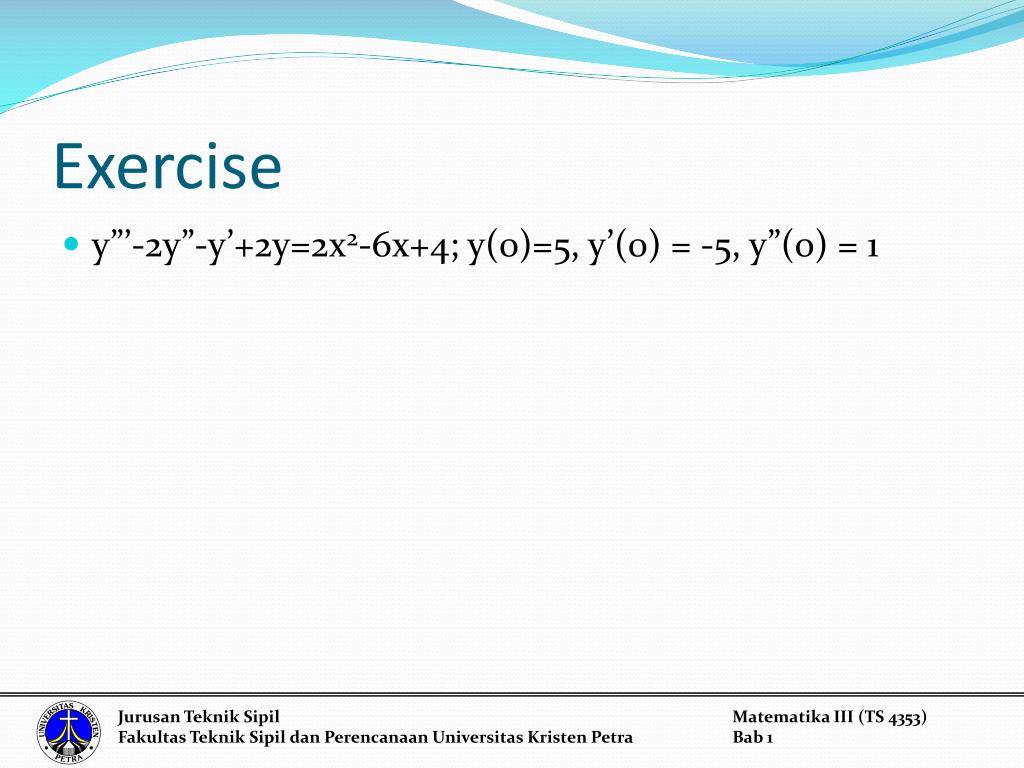

  23. Jurusan Teknik SipilMatematika III (TS 4353) Fakultas Teknik Sipil dan Perencanaan Universitas Kristen PetraBab 1 Exercise • y”’-2y”-y’+2y=2x2-6x+4; y(0)=5, y’(0) = -5, y”(0) = 1
