  1. Lecture # 23 Sound Synthesis & Sound Arithmetic

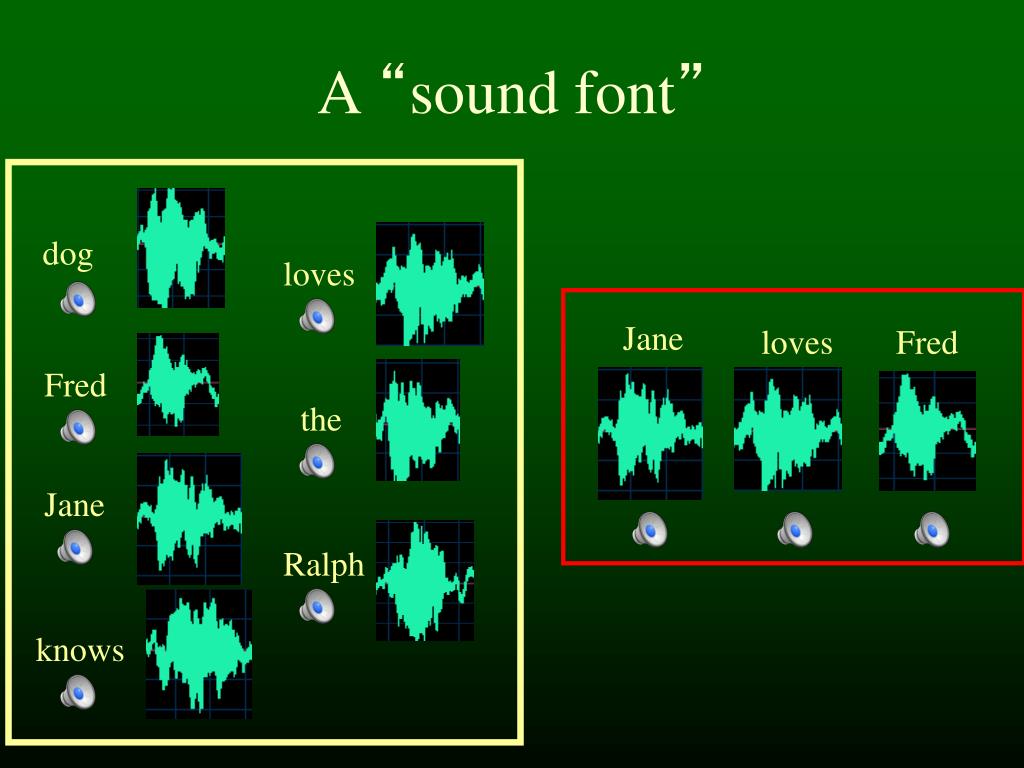

  2. Jane Fred loves A “sound font” dog loves Fred the Jane Ralph knows

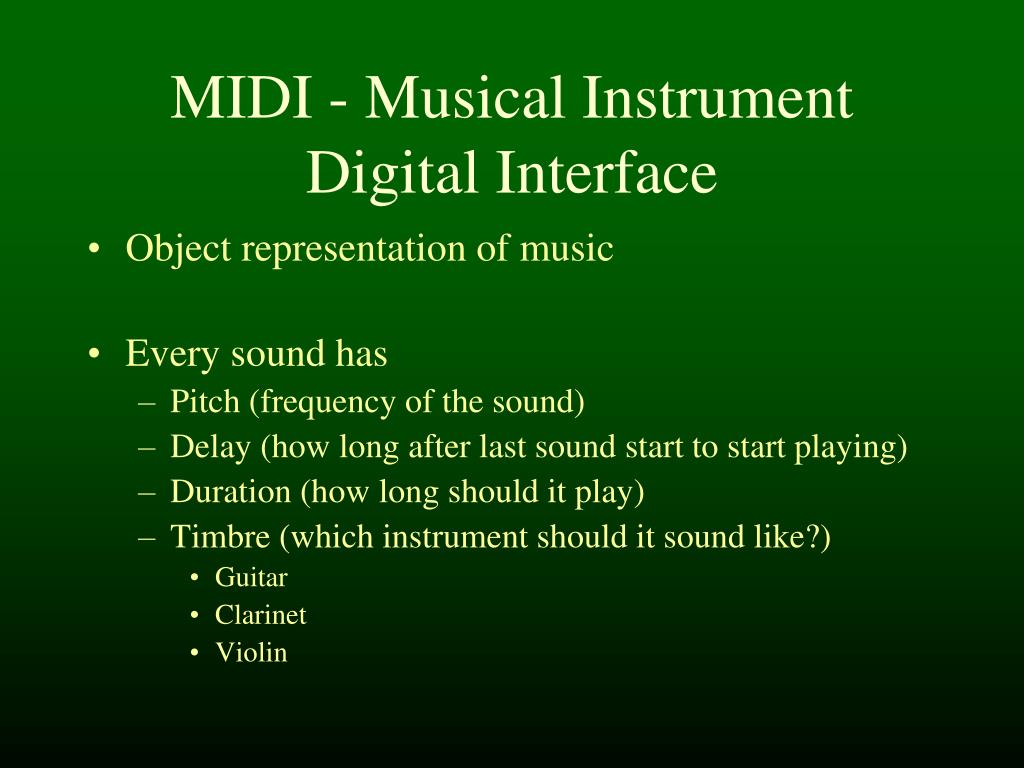

  3. MIDI - Musical Instrument Digital Interface • Object representation of music • Every sound has • Pitch (frequency of the sound) • Delay (how long after last sound start to start playing) • Duration (how long should it play) • Timbre (which instrument should it sound like?) • Guitar • Clarinet • Violin

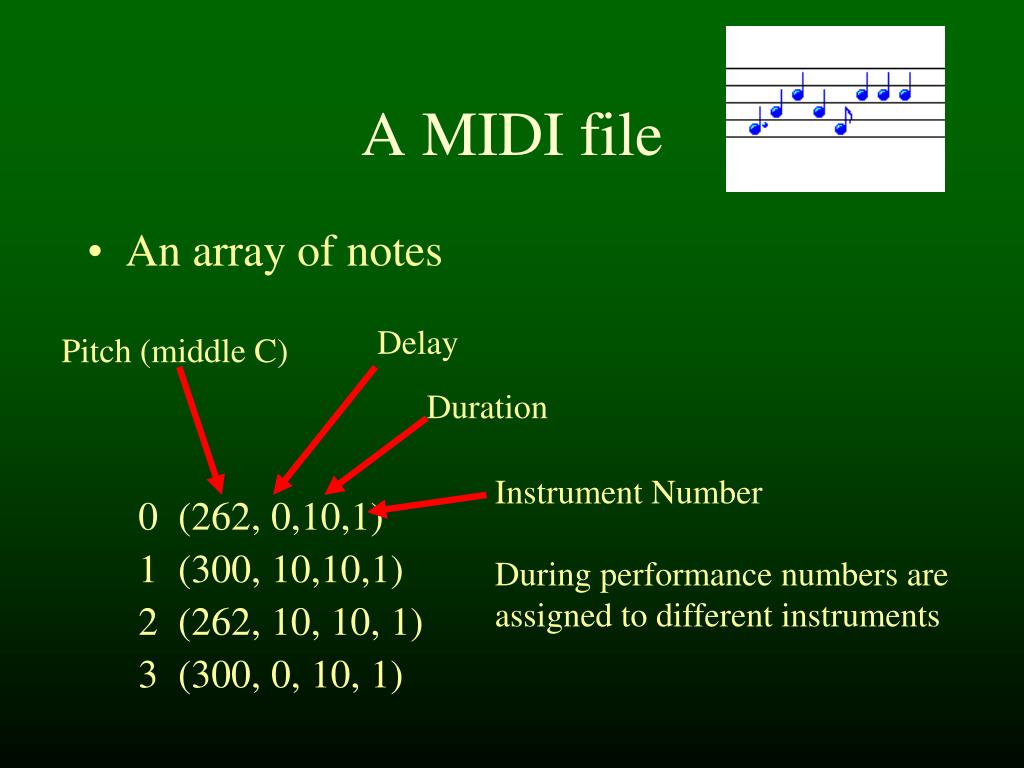

  4. A MIDI file • An array of notes 0 (262, 0,10,1) 1 (300, 10,10,1) 2 (262, 10, 10, 1) 3 (300, 0, 10, 1) Delay Pitch (middle C) Duration Instrument Number During performance numbers are assigned to different instruments

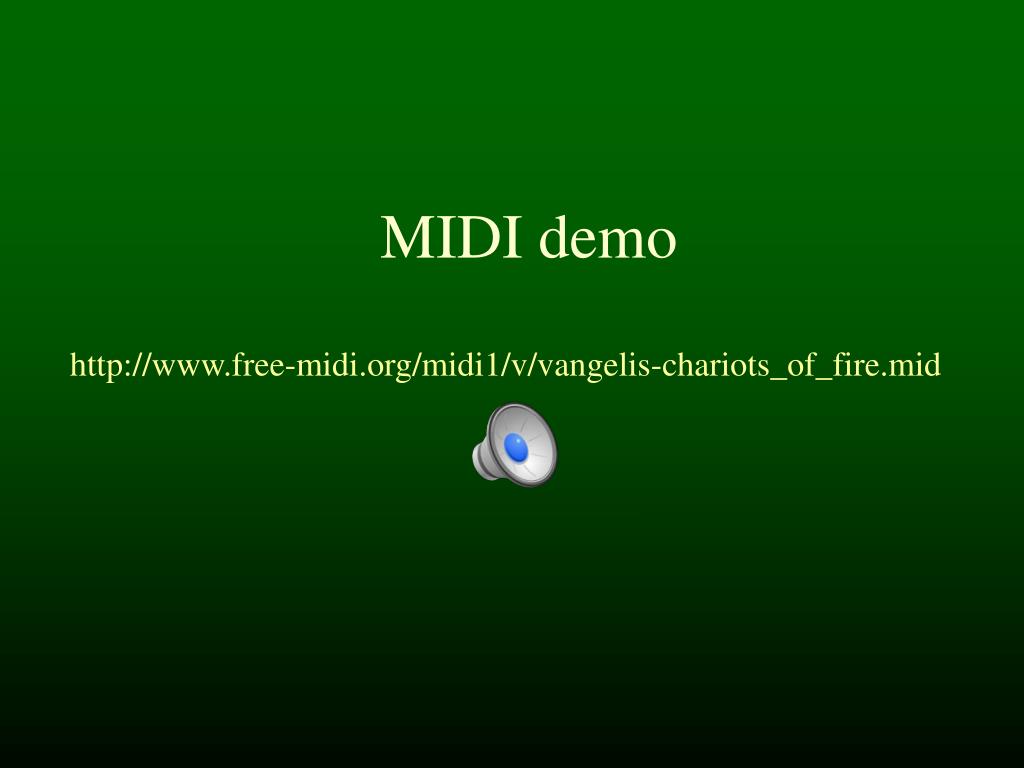

  5. MIDI demo http://www.free-midi.org/midi1/v/vangelis-chariots_of_fire.mid

  6. A MIDI file • An array of notes 0 (262, 0,10,1) 1 (300, 10,10,1) 2 (262, 10, 10, 1) 3 (300, 0, 10, 1) How do we transpose to a higher key? Increase pitch of each note

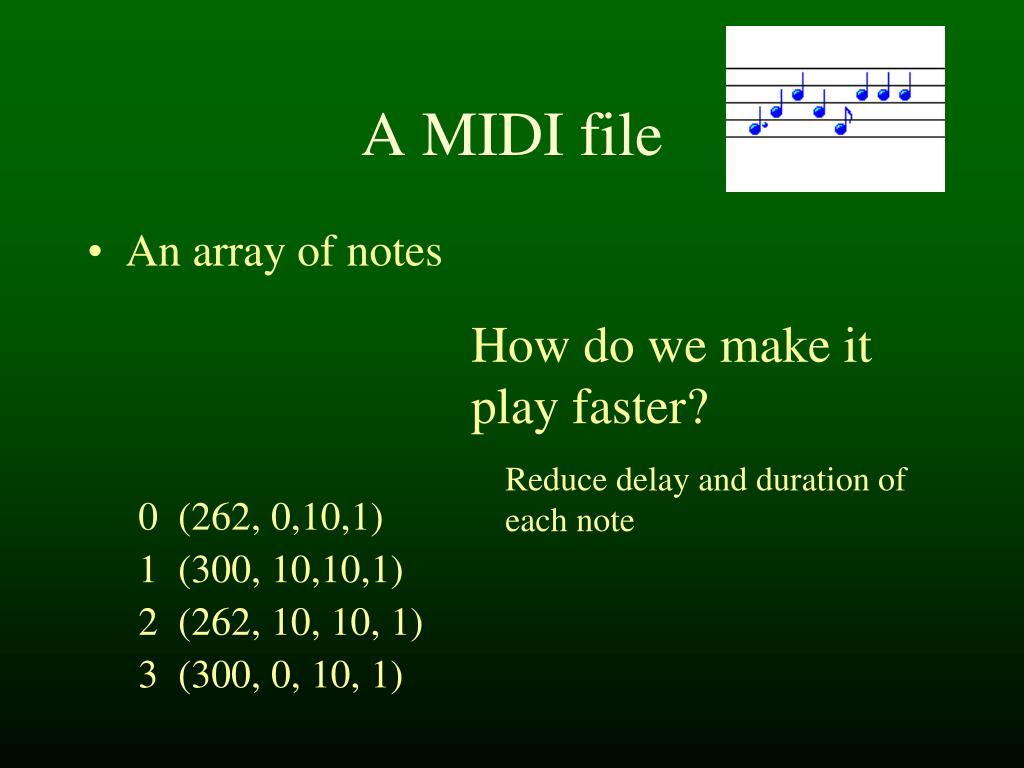

  7. A MIDI file • An array of notes 0 (262, 0,10,1) 1 (300, 10,10,1) 2 (262, 10, 10, 1) 3 (300, 0, 10, 1) How do we make it play faster? Reduce delay and duration of each note

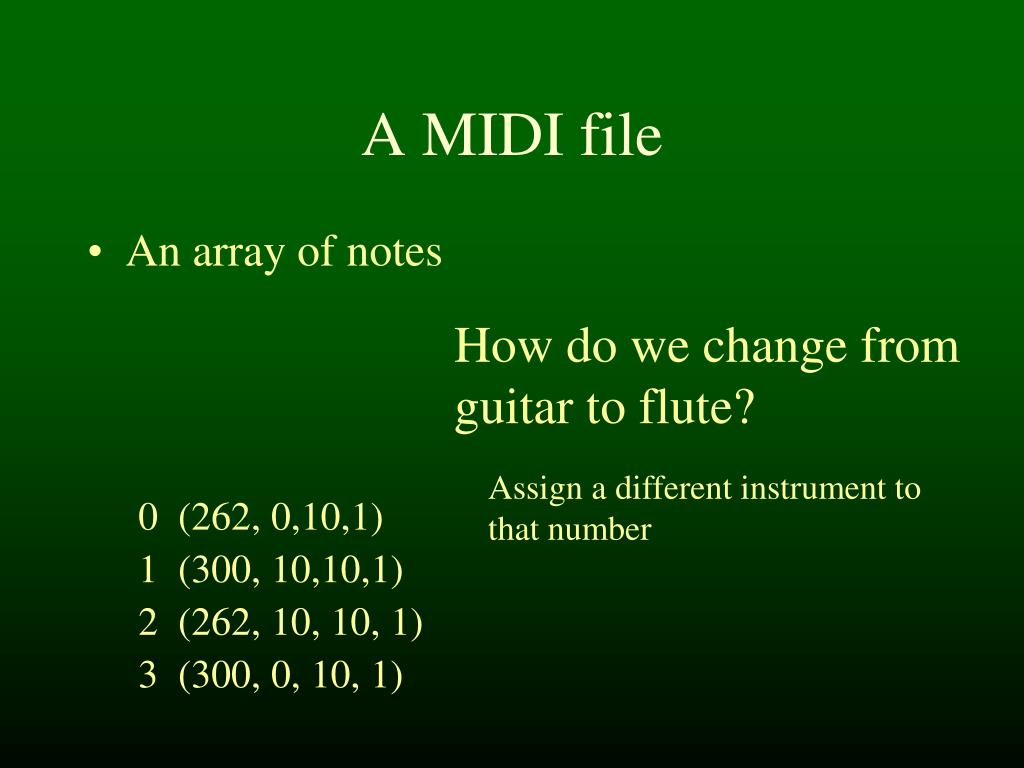

  8. A MIDI file • An array of notes 0 (262, 0,10,1) 1 (300, 10,10,1) 2 (262, 10, 10, 1) 3 (300, 0, 10, 1) How do we change from guitar to flute? Assign a different instrument to that number

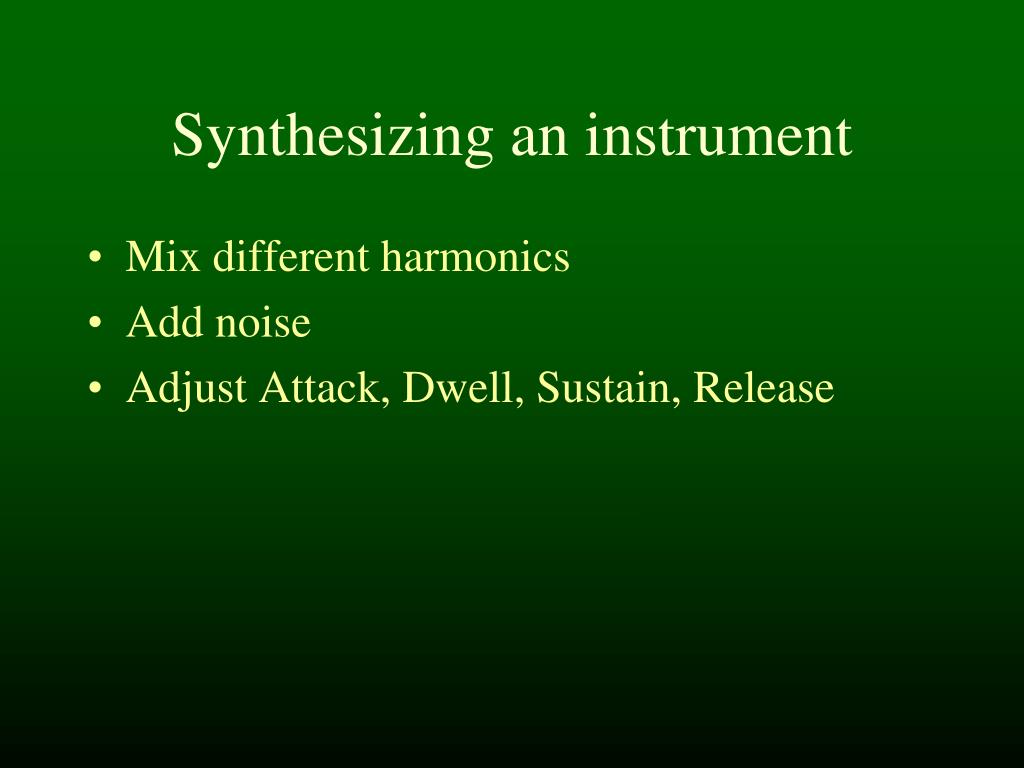

  9. Synthesizing an instrument • Mix different harmonics • Add noise • Adjust Attack, Dwell, Sustain, Release

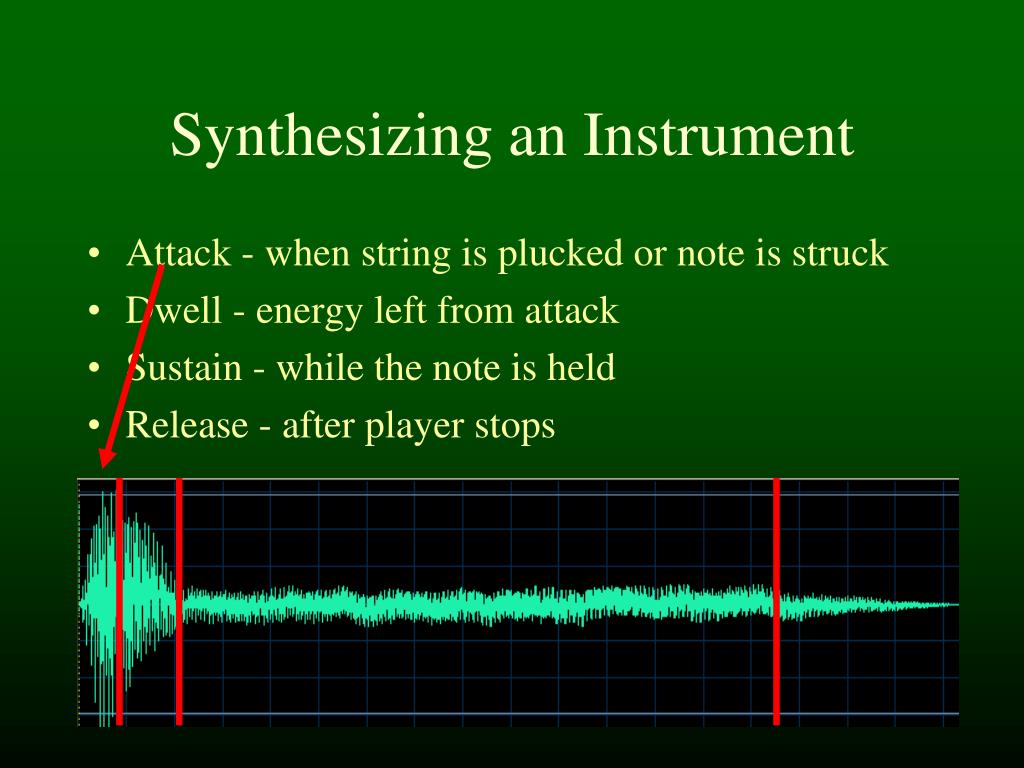

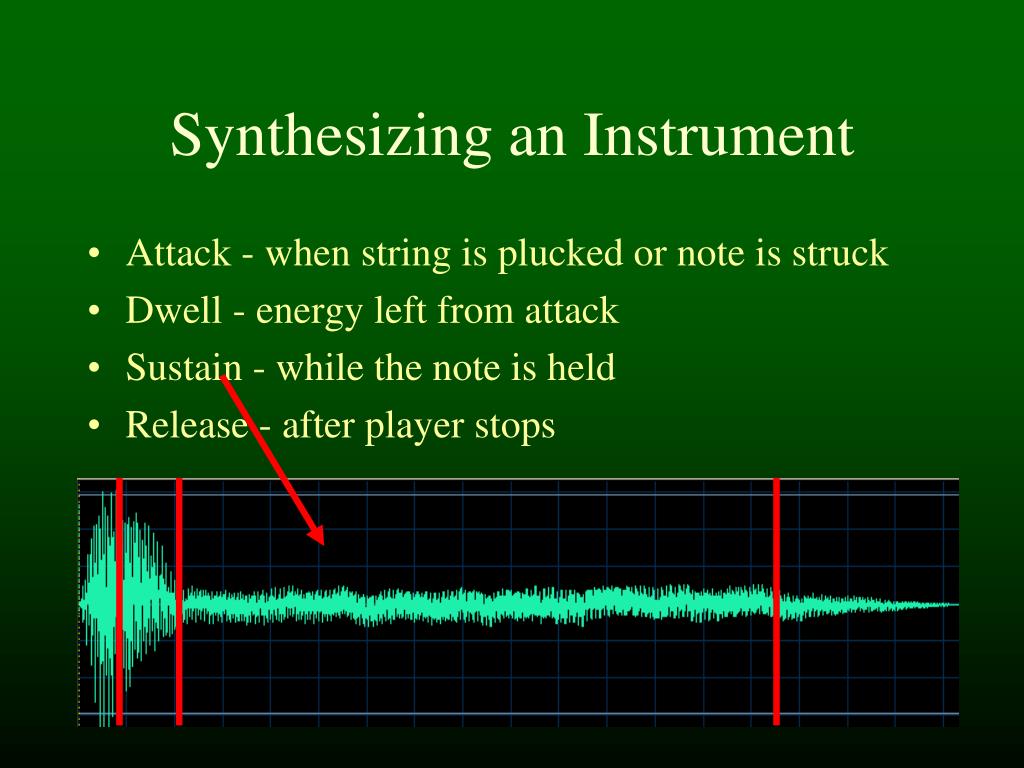

  10. Synthesizing an Instrument • Attack - when string is plucked or note is struck • Dwell - energy left from attack • Sustain - while the note is held • Release - after player stops

  11. Synthesizing an Instrument • Attack - when string is plucked or note is struck • Dwell - energy left from attack • Sustain - while the note is held • Release - after player stops

  12. Synthesizing an Instrument • Attack - when string is plucked or note is struck • Dwell - energy left from attack • Sustain - while the note is held • Release - after player stops

  13. Synthesizing an Instrument • Attack - when string is plucked or note is struck • Dwell - energy left from attack • Sustain - while the note is held • Release - after player stops

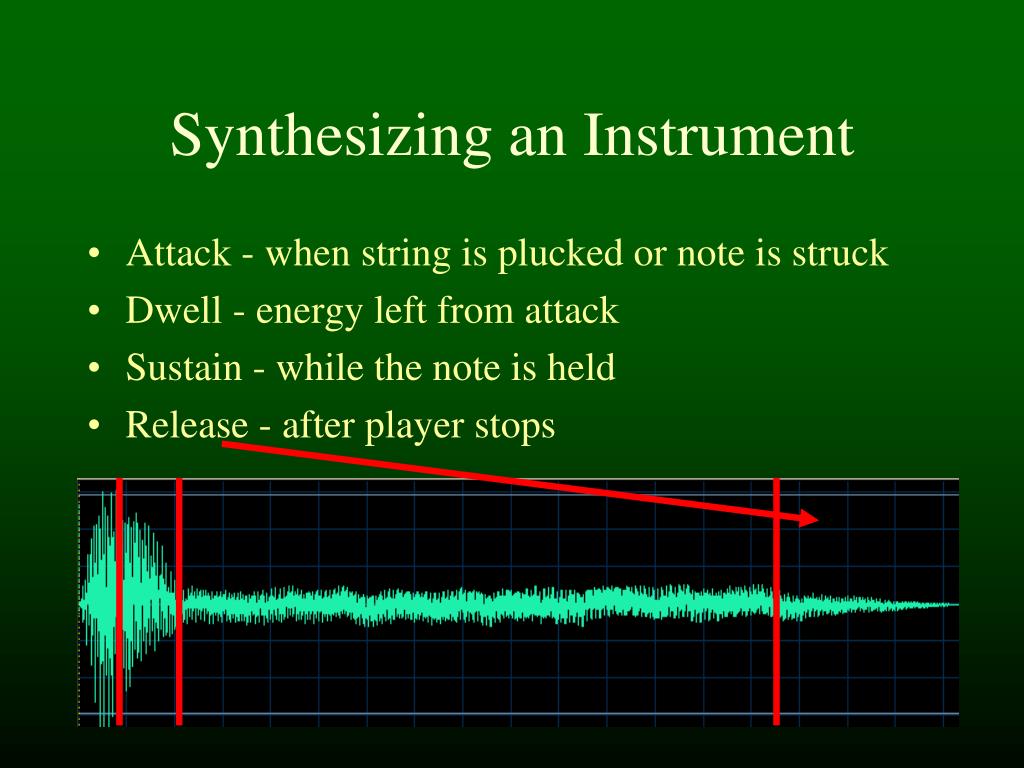

  14. Synthesizing an Instrument • Attack - when string is plucked or note is struck • Dwell - energy left from attack • Sustain - while the note is held • Release - after player stops

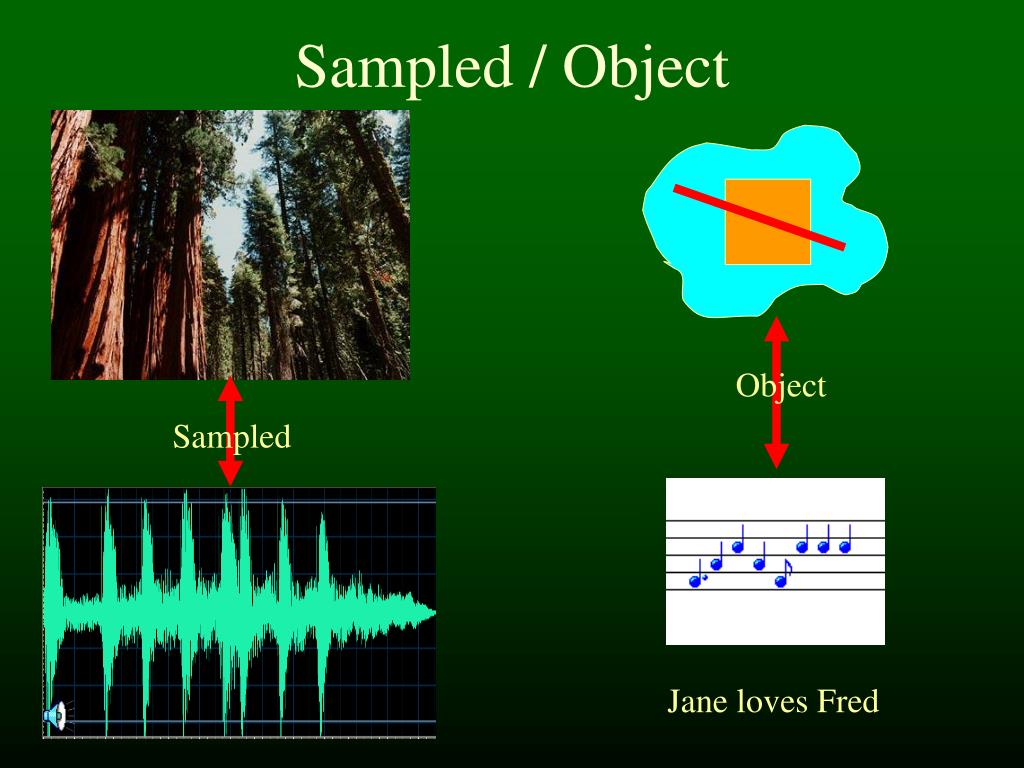

  15. Sampled / Object Sampled Object Jane loves Fred

  16. Sound Editing and Processingwith Audacity

  17. Edit Sound • Drag and Drop (universities-deep_thoughts.wav) • File >> Import >> Audio • Notice new track (two if it is stereo) • File >> Import >> Audio (theknack.wav) • Notice second track • Select Track • Select Time Shift action • Move Track • Mix and Render (“barnyard”: cow, horse, duck) • Play/Mute/Align • Undo (Cntrl-Z)

  18. Edit Sound • Split • Align • Select All • Import Dance Music • Trim • Shape • Record • Sing a round/Play around • Amplify/Distort • Blend • Arithmetic with Sounds

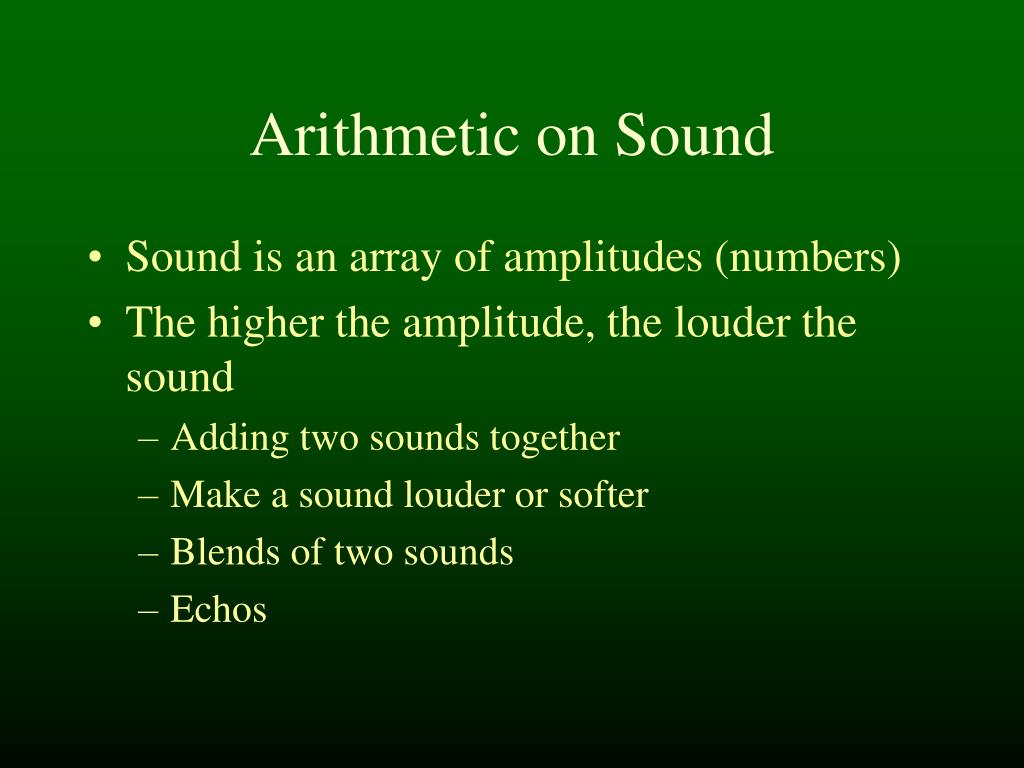

  19. Arithmetic on Sound • Sound is an array of amplitudes (numbers) • The higher the amplitude, the louder the sound • Adding two sounds together • Make a sound louder or softer • Blends of two sounds • Echos

  20. Adding two sounds Laser Guns + Distress = New Sound

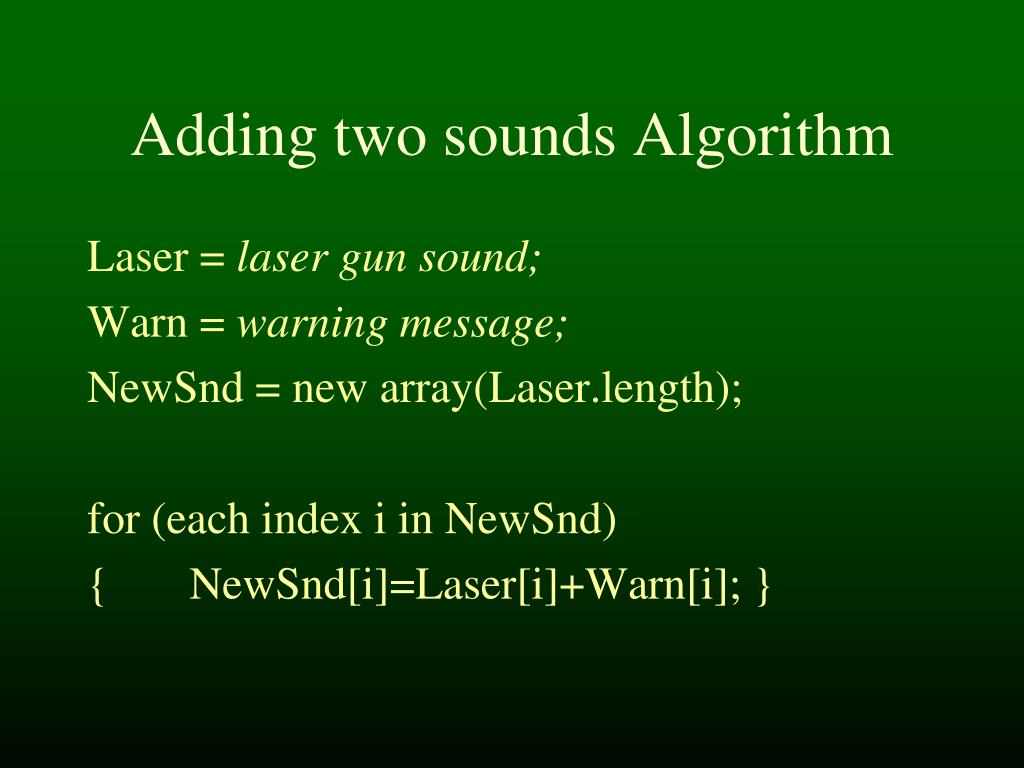

  21. Adding two sounds Algorithm Laser = laser gun sound; Warn = warning message; NewSnd = new array(Laser.length); for (each index i in NewSnd) { NewSnd[i]=Laser[i]+Warn[i]; }

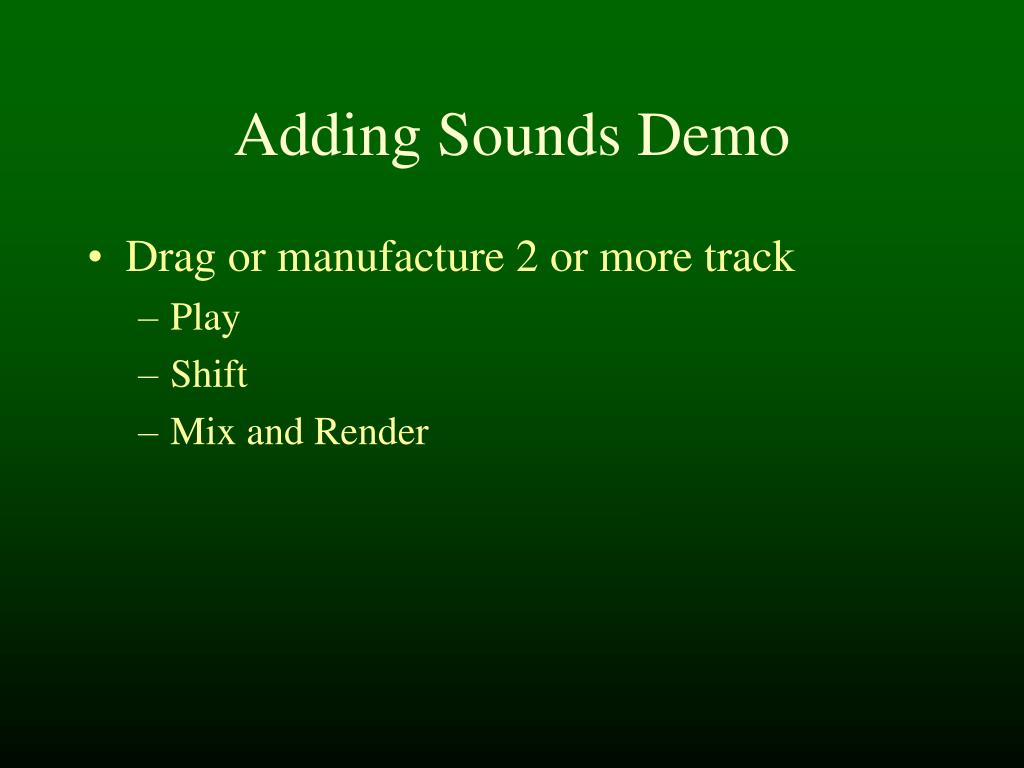

  22. Adding Sounds Demo • Drag or manufacture 2 or more track • Play • Shift • Mix and Render

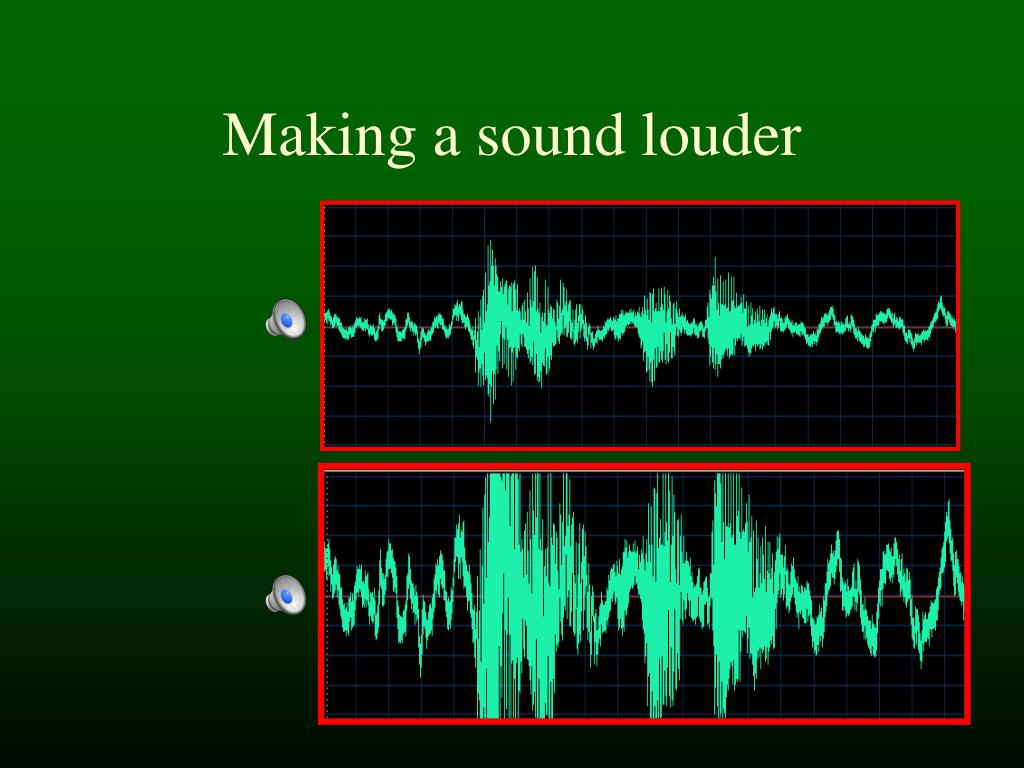

  23. Making a sound louder

  24. Amplify Sound Demo • Effects -> Amplify

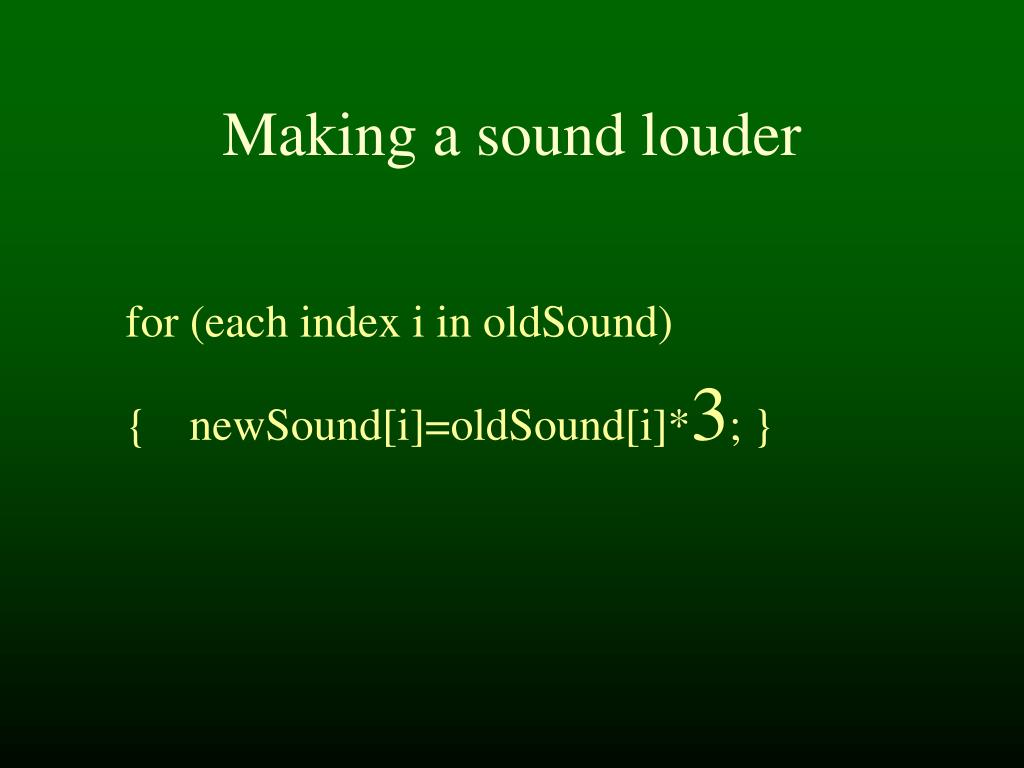

  25. Making a sound louder for (each index i in oldSound) { newSound[i]=oldSound[i]*3; }

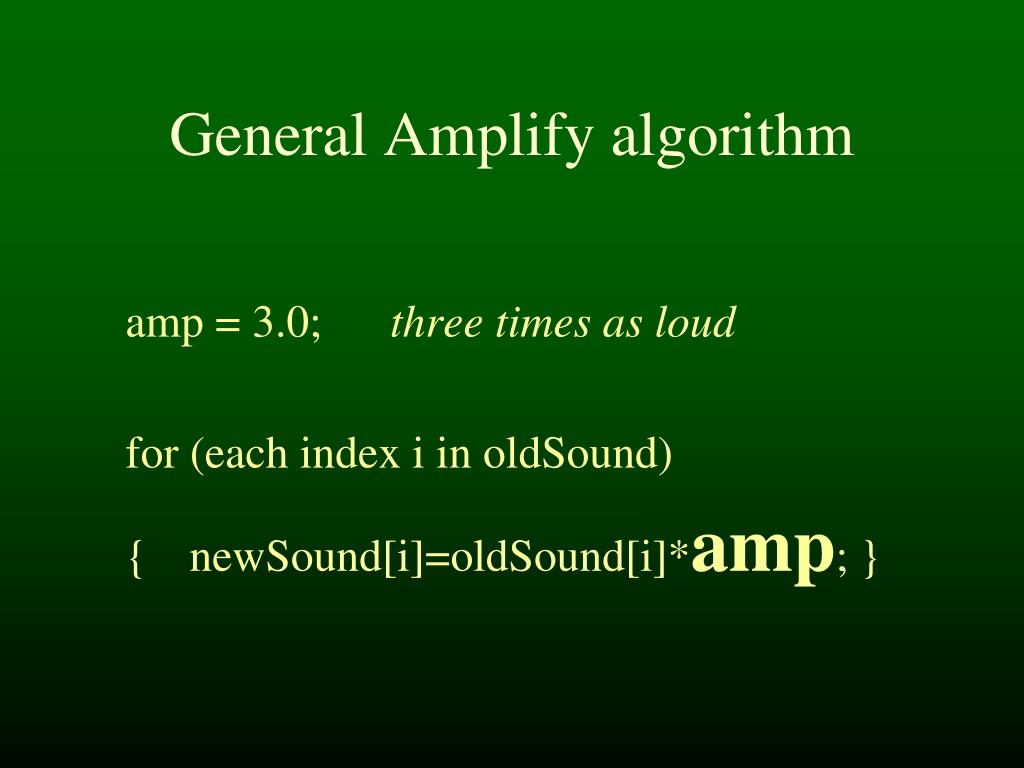

  26. General Amplify algorithm amp = 3.0; three times as loud for (each index i in oldSound) { newSound[i]=oldSound[i]*amp; }

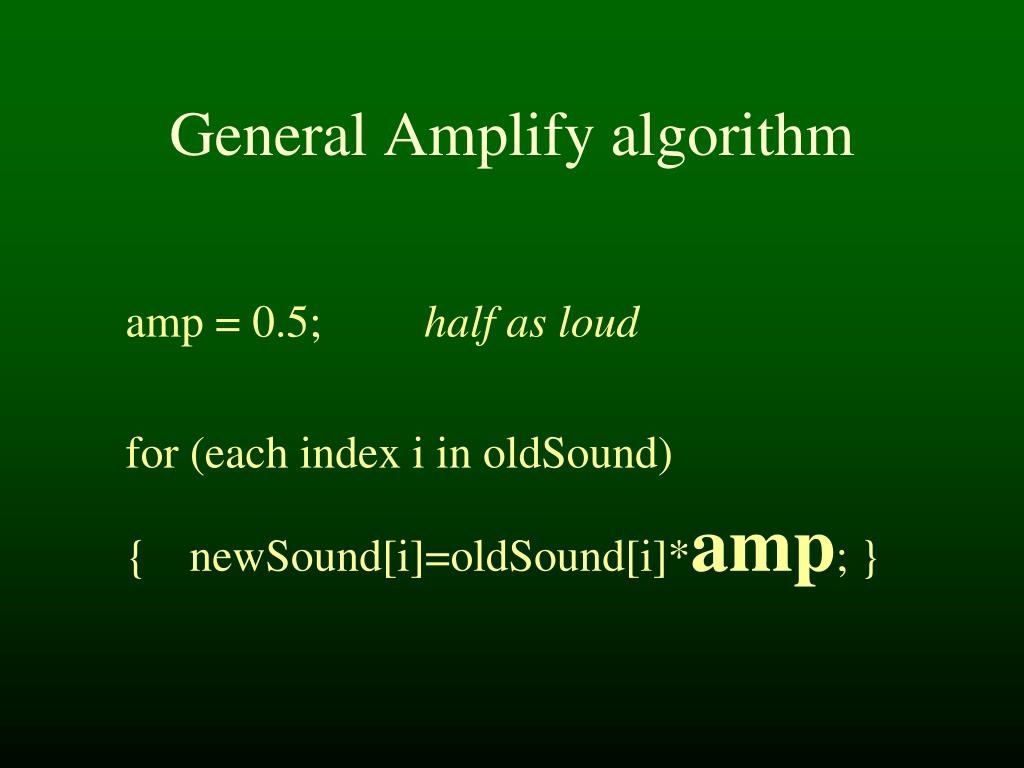

  27. General Amplify algorithm amp = 0.5; half as loud for (each index i in oldSound) { newSound[i]=oldSound[i]*amp; }

  28. Blending two sounds Music 50% music, 50% words Words

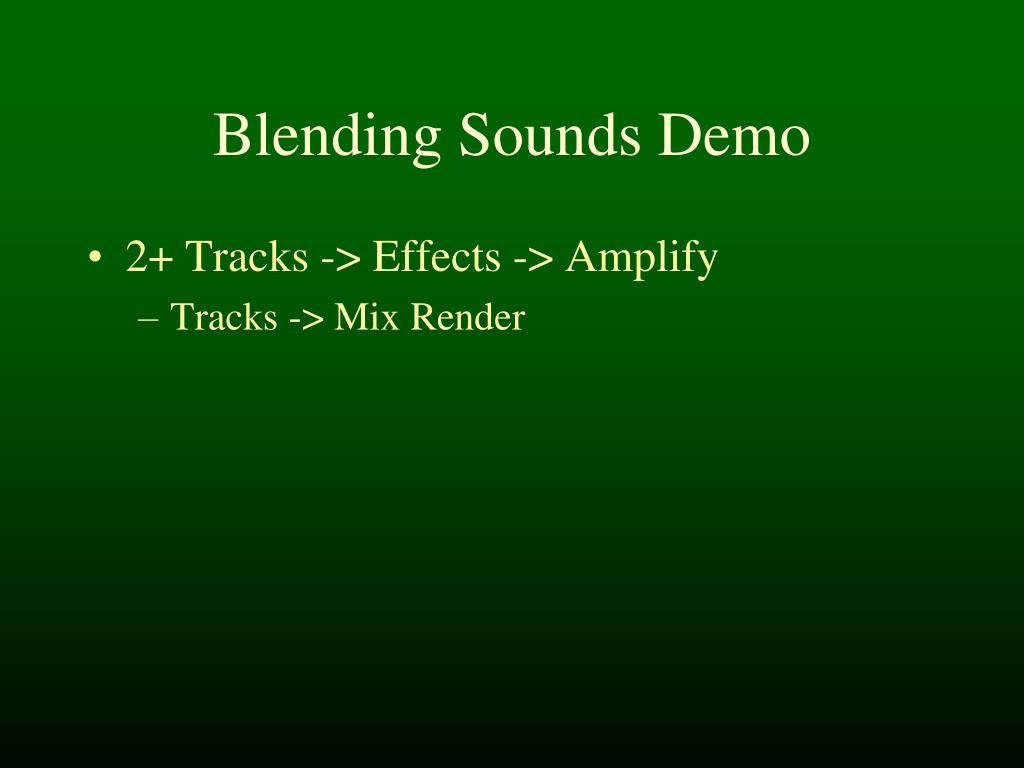

  29. Blending Sounds Demo • 2+ Tracks -> Effects -> Amplify • Tracks -> Mix Render

  30. Algorithm for Blending two sounds B = blend value between 0.0 and 1.0 for (each index i in Snd1) { newSnd[i]=(1.0-B)*Snd1[i]+ B*Snd2[i]; }

  31. Singing a Round by yourself • Row Row Row your boat • Sing in a round

  32. Singing a round by yourself + Time delay =

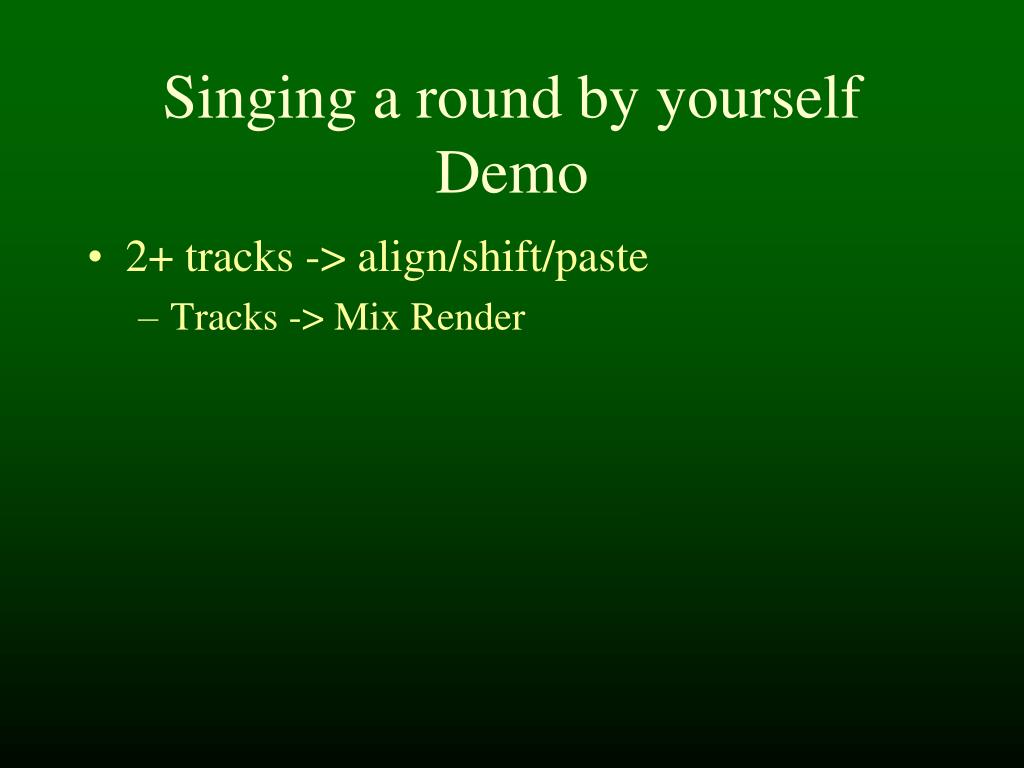

  33. Singing a round by yourself Demo • 2+ tracks -> align/shift/paste • Tracks -> Mix Render

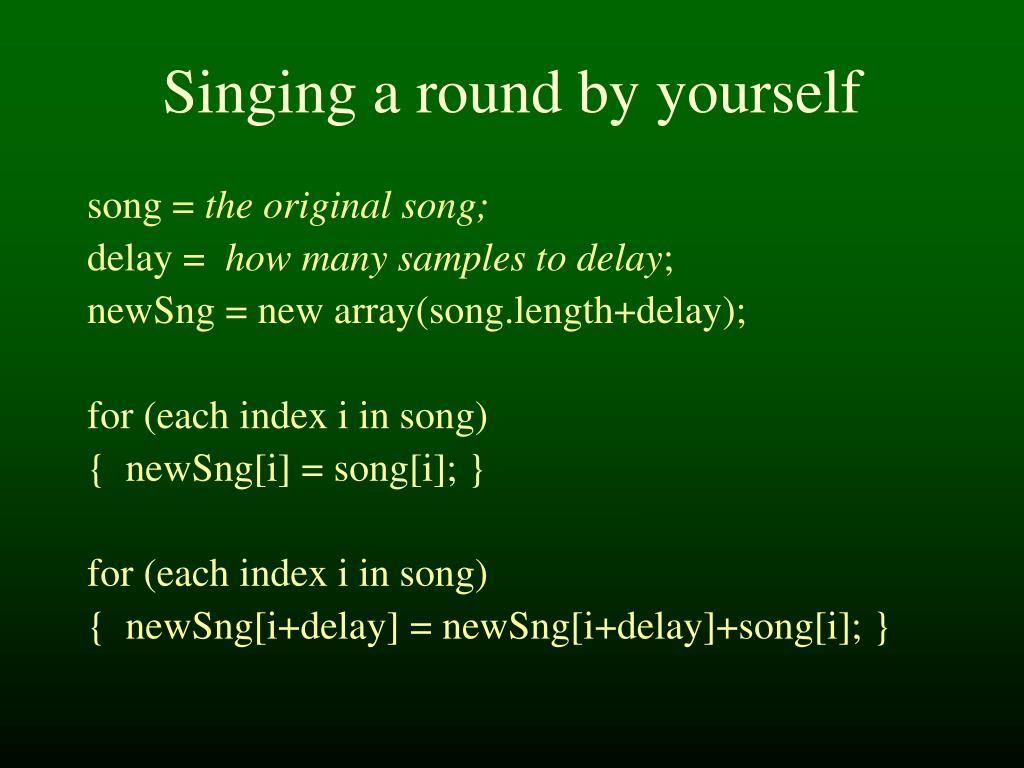

  34. Singing a round by yourself song = the original song; delay = how many samples to delay; newSng = new array(song.length+delay); for (each index i in song) { newSng[i] = song[i]; } for (each index i in song) { newSng[i+delay] = newSng[i+delay]+song[i]; }

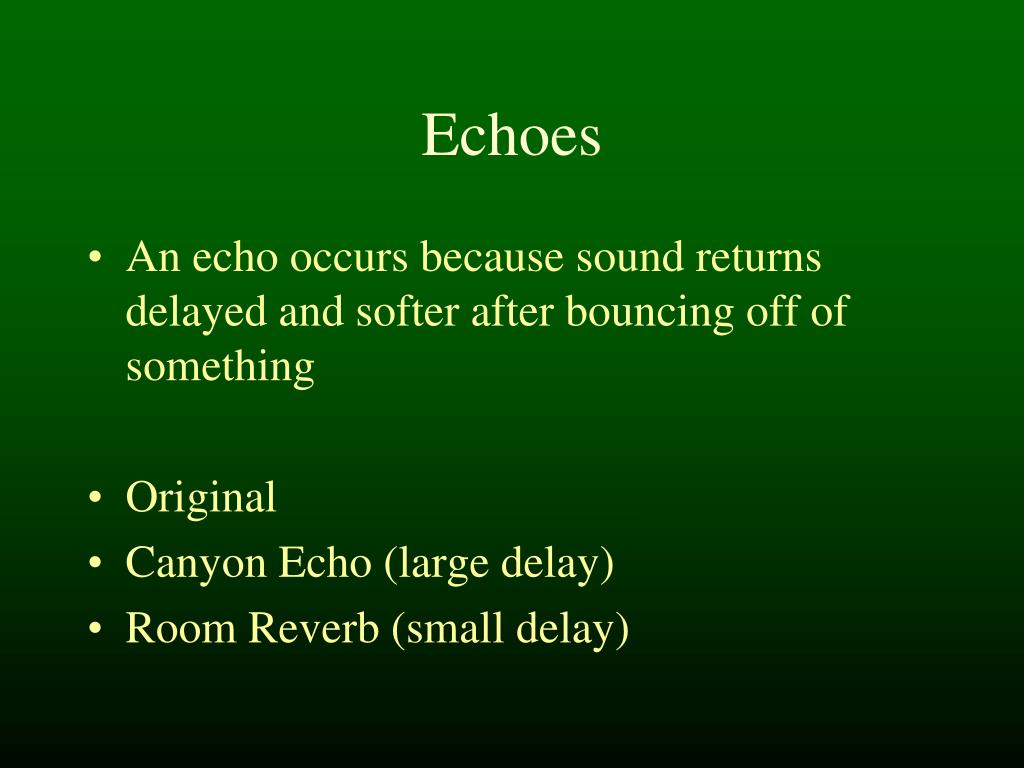

  35. Echoes • An echo occurs because sound returns delayed and softer after bouncing off of something • Original • Canyon Echo (large delay) • Room Reverb (small delay)

  36. Echoes Demo • Audacity • Effects -> Echo

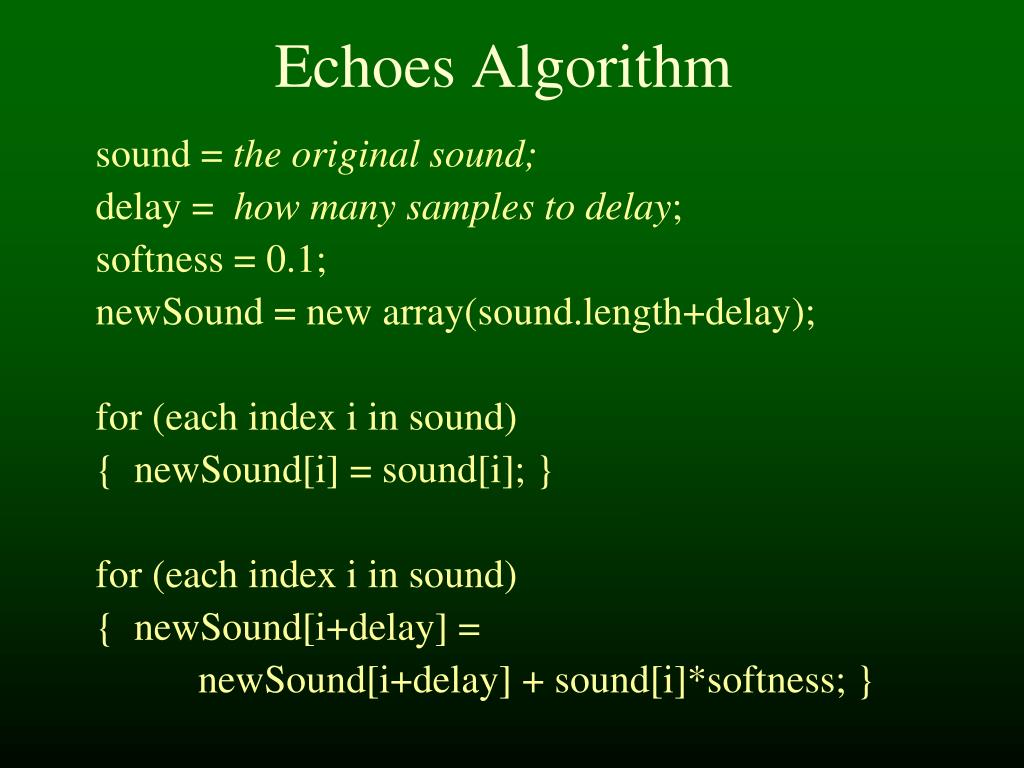

  37. Echoes Algorithm sound = the original sound; delay = how many samples to delay; softness = 0.1; newSound = new array(sound.length+delay); for (each index i in sound) { newSound[i] = sound[i]; } for (each index i in sound) { newSound[i+delay] = newSound[i+delay] + sound[i]*softness; }

  38. Review • Sound Synthesis (MIDI, timbre, pitch, etc) • Change Pitch • Change Tempo • Change Speed
