  1. Interrupts, Timer, and Interrupt Controller Prof. Taeweon Suh Computer Science Education Korea University

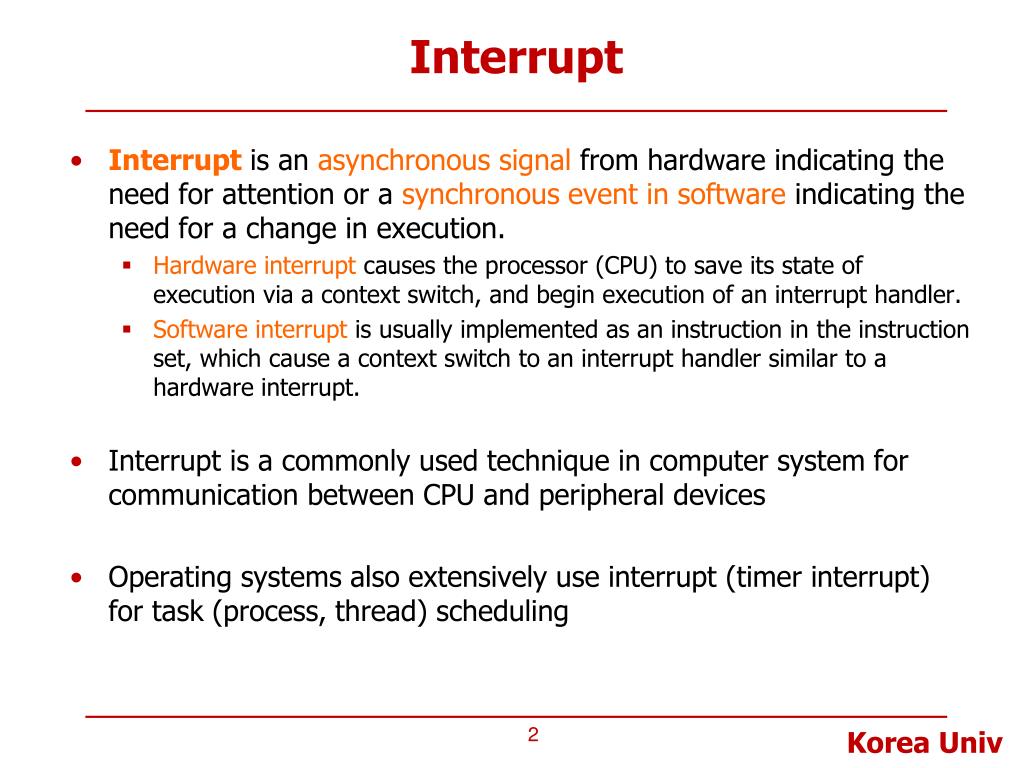

  2. Interrupt • Interrupt is an asynchronous signal from hardware indicating the need for attention or a synchronous event in software indicating the need for a change in execution. • Hardware interrupt causes the processor (CPU) to save its state of execution via a context switch, and begin execution of an interrupt handler. • Software interrupt is usually implemented as an instruction in the instruction set, which cause a context switch to an interrupt handler similar to a hardware interrupt. • Interrupt is a commonly used technique in computer system for communication between CPU and peripheral devices • Operating systems also extensively use interrupt (timer interrupt) for task (process, thread) scheduling

  3. Software Interrupt in ARM • There is an software interrupt instruction in ARM • SWI instruction • Software interrupt is commonly used by OS for system calls • Example: open(), close().. etc

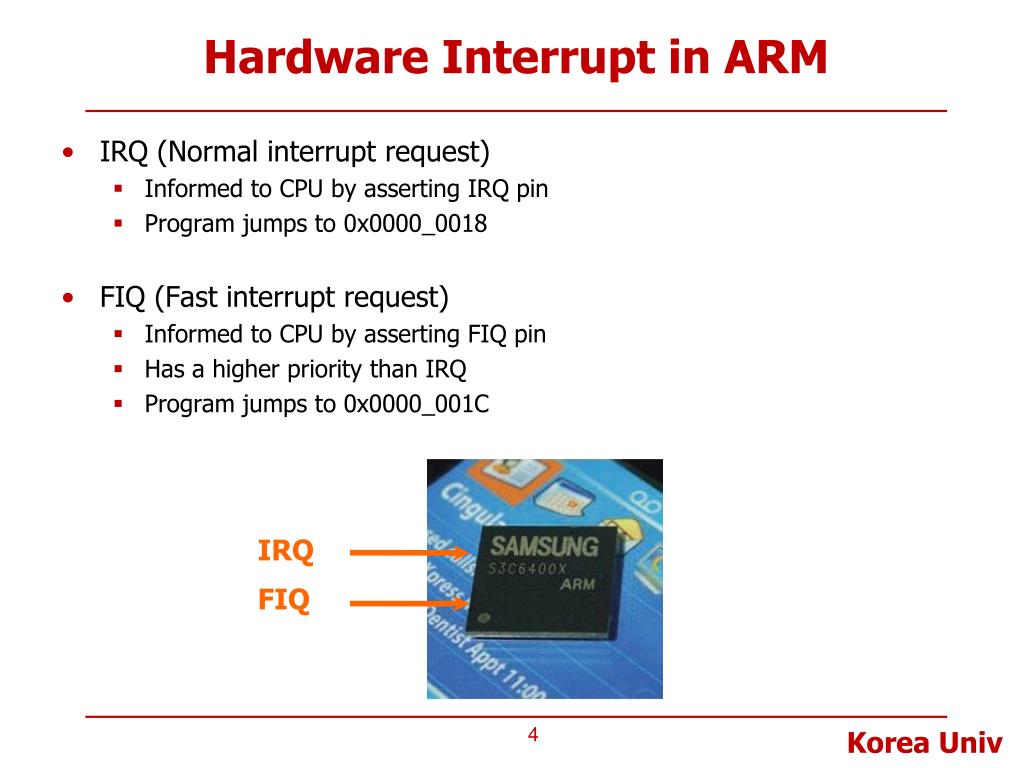

  4. Hardware Interrupt in ARM • IRQ (Normal interrupt request) • Informed to CPU by asserting IRQ pin • Program jumps to 0x0000_0018 • FIQ (Fast interrupt request) • Informed to CPU by asserting FIQ pin • Has a higher priority than IRQ • Program jumps to 0x0000_001C IRQ FIQ

  5. Exception Vectors in ARM RAZ: Read As Zero

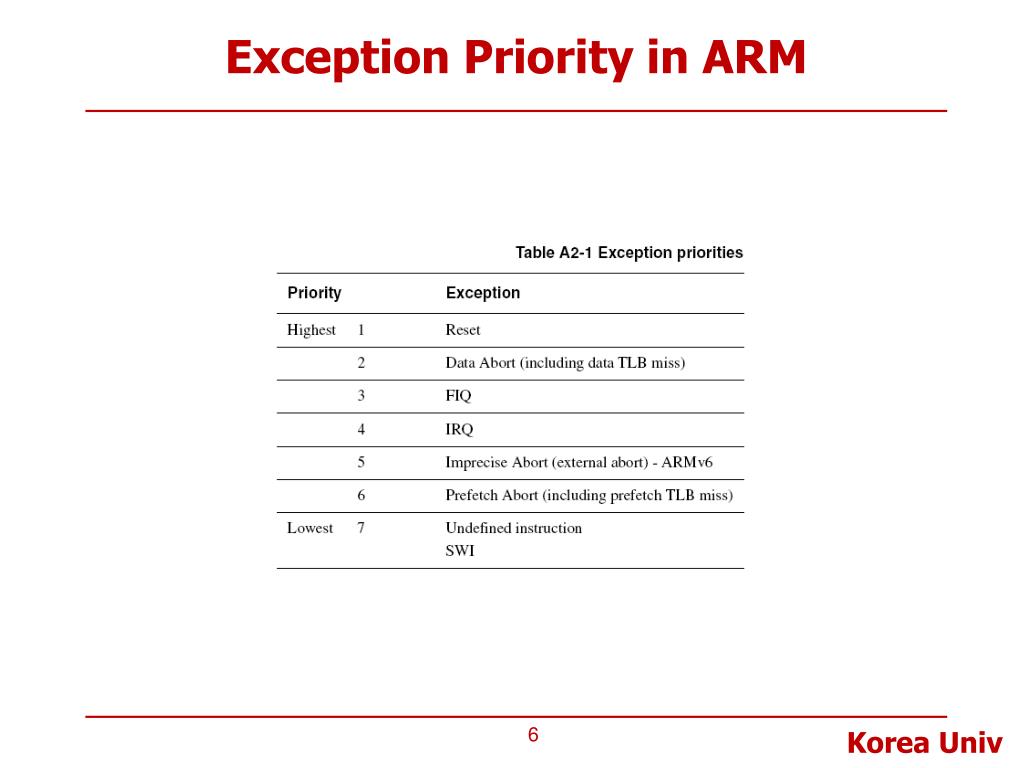

  6. Exception Priority in ARM

  7. S3C2440A Block Diagram

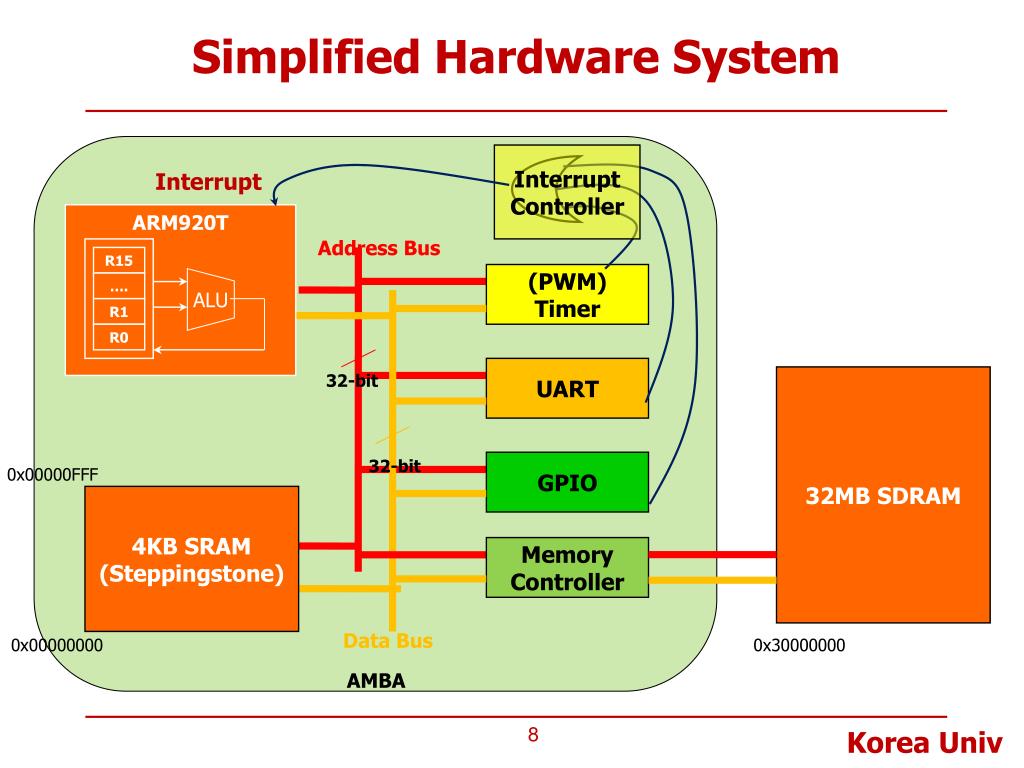

  8. Simplified Hardware System Interrupt Controller Interrupt ARM920T Address Bus EAX R15 (PWM) Timer …. ALU R1 R0 UART 32-bit 32MB SDRAM GPIO 32-bit 0x00000FFF 4KB SRAM (Steppingstone) Memory Controller Data Bus 0x00000000 0x30000000 AMBA

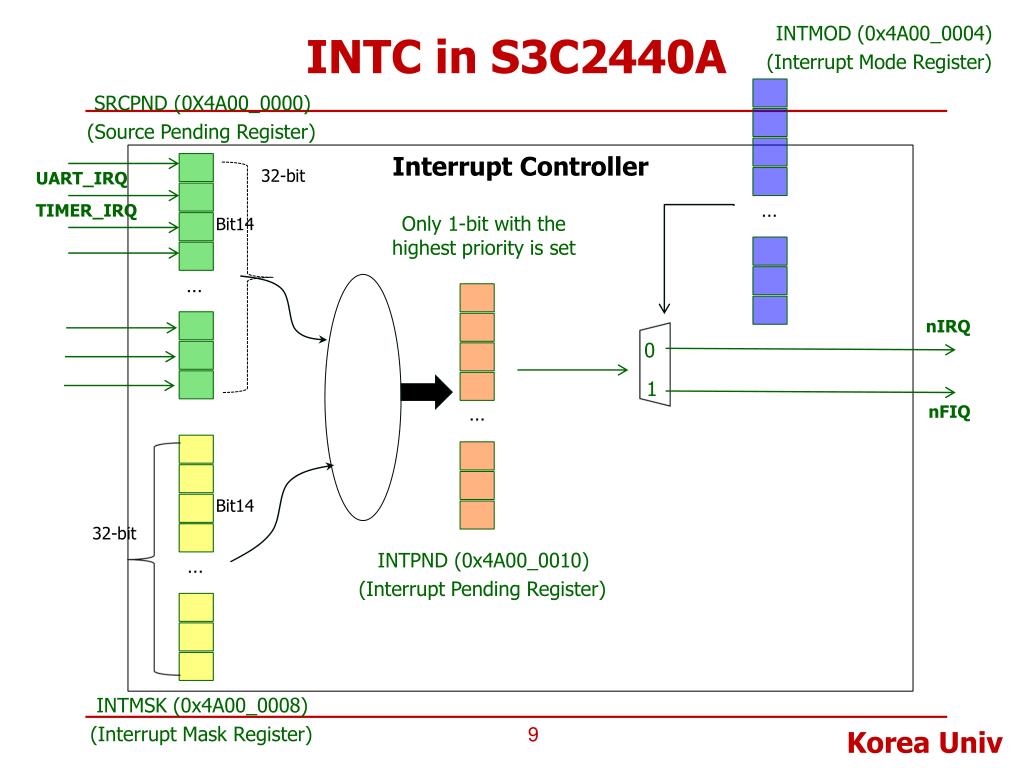

  9. INTC in S3C2440A INTMOD (0x4A00_0004) (Interrupt Mode Register) SRCPND (0X4A00_0000) (Source Pending Register) Interrupt Controller 32-bit UART_IRQ … TIMER_IRQ Only 1-bit with the highest priority is set Bit14 … nIRQ 0 1 nFIQ … Bit14 32-bit INTPND (0x4A00_0010) (Interrupt Pending Register) … INTMSK (0x4A00_0008) (Interrupt Mask Register)

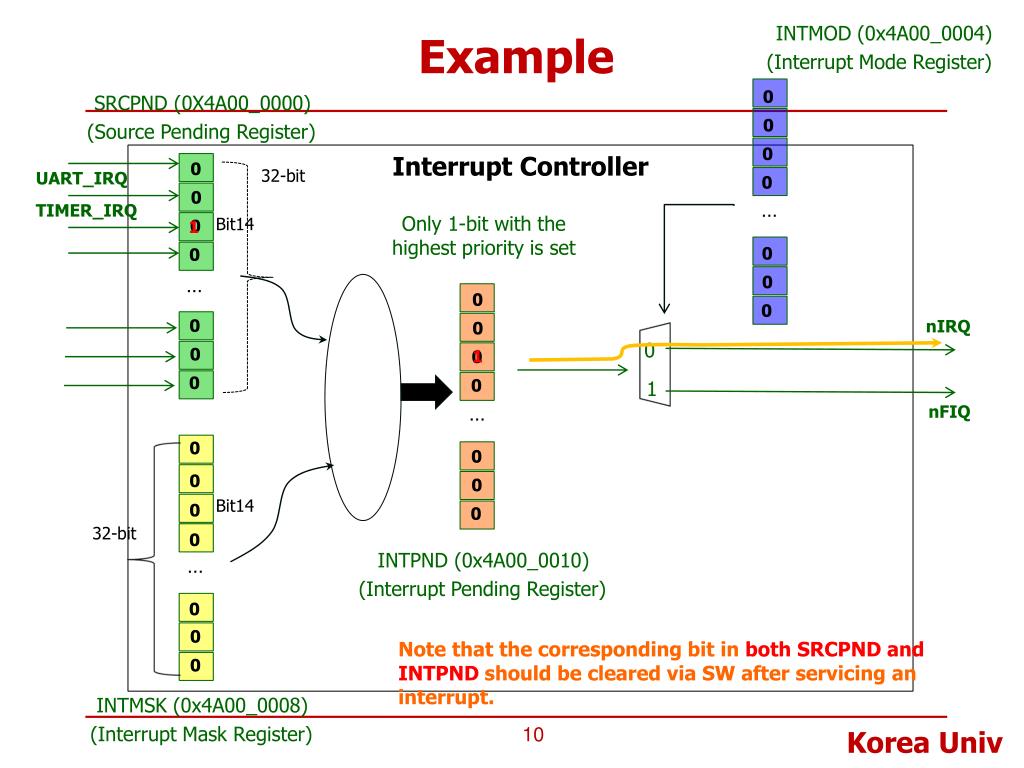

  10. Example INTMOD (0x4A00_0004) (Interrupt Mode Register) 0 SRCPND (0X4A00_0000) (Source Pending Register) 0 0 Interrupt Controller 0 32-bit UART_IRQ 0 0 … TIMER_IRQ Only 1-bit with the highest priority is set Bit14 0 1 0 0 … 0 0 0 nIRQ 0 0 0 0 1 0 0 1 0 nFIQ … 0 0 0 0 Bit14 0 0 32-bit 0 INTPND (0x4A00_0010) (Interrupt Pending Register) … 0 0 Note that the corresponding bit in both SRCPND and INTPND should be cleared via SW after servicing an interrupt. 0 INTMSK (0x4A00_0008) (Interrupt Mask Register)

  11. Timers http://a-towntales.blogspot.kr/2011/09/dreaded-alarm-clock.html http://www.ikea.com/us/en/catalog/products/50187566/

  12. Timer in S3C2440A • 5 Timers • Timer 0, 1, 2, 3 have PWM (Pulse Width Modulation) function • Timer 4 has no output • 16-bit counters

  13. Timer 4 in S3C2440A • Timer 4 has no output Interrupt generated Read TCNTO4 to get the current counter value 2 5 3 2 5 4 0 1 xx 3 5 4 0 1 TCNT4 5 Manual_update=1 TCNTB4 Start=1 Auto_reload=1 Manual_update=0 TCNTB4 write to “5” Program this register

  14. Timer 4 Registers

  15. Timer 4 Registers

  16. UART • Universal Asynchronous Receiver and Transmitter • Used for serial communication • Simply called serial port (or RS-232) • Has a long history (~1970) • Still widely used in embedded systems design for debugging purpose • Detected as a COM port in Windows • Its original shaped port has almost been disappeared in computers. Instead, the serial-to-USB is used whenever necessary http://sd.hancock.k12.mo.us/files/2010/11/Computer-Back-marked-in-red.jpg http://linuxologist.com/01general/back-to-basics-identify-your-computer-ports/ http://www.passmark.com/products/loopback.htm

  17. UART http://pcsbyjohn.wordpress.com/ http://tutorial.cytron.com.my/2012/02/16/uart-universal-asynchronous-receiver-and-transmitter/

  18. UART in S3C2440A • 3 Channels (UART0, UART1, and UART3) • We use UART0 for debugging • Transmission only to PC • Non-FIFO mode • No interrupt

  19. UART Registers

  20. UART Registers (Cont.)

  21. UART Registers (Cont.)

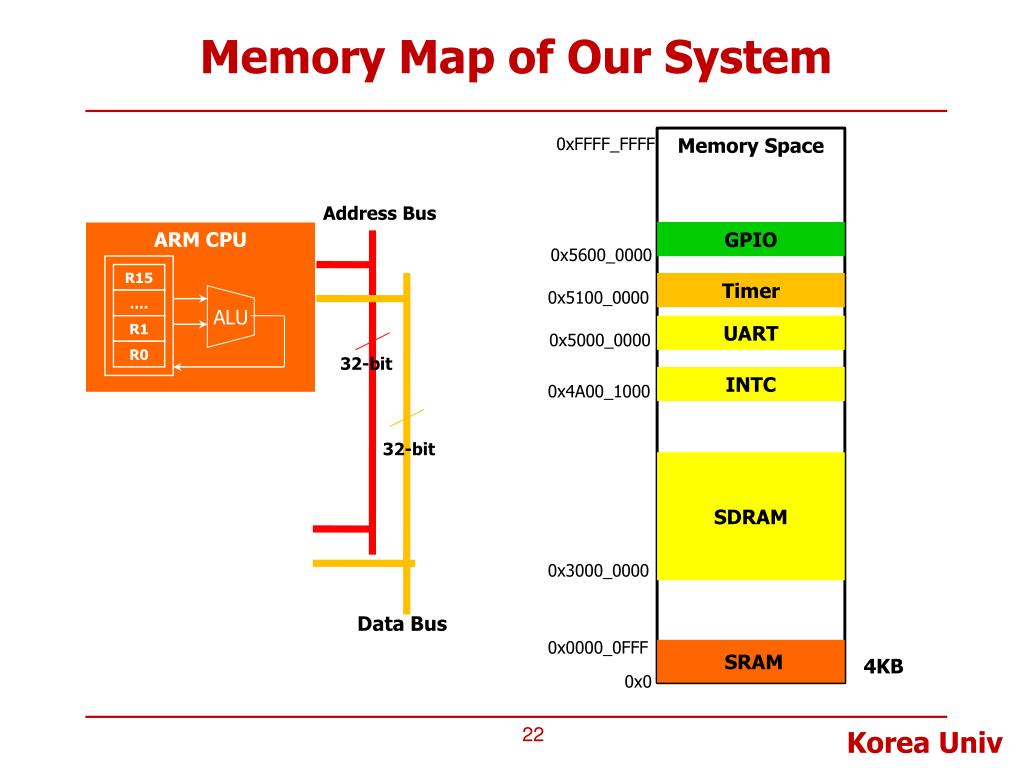

  22. Memory Map of Our System 0xFFFF_FFFF Memory Space Address Bus GPIO 0x5600_0000 Timer 0x5100_0000 ARM CPU UART EAX 0x5000_0000 R15 …. ALU 32-bit INTC 0x4A00_1000 R1 R0 32-bit SDRAM 0x3000_0000 Data Bus 0x0000_0FFF SRAM 4KB 0x0

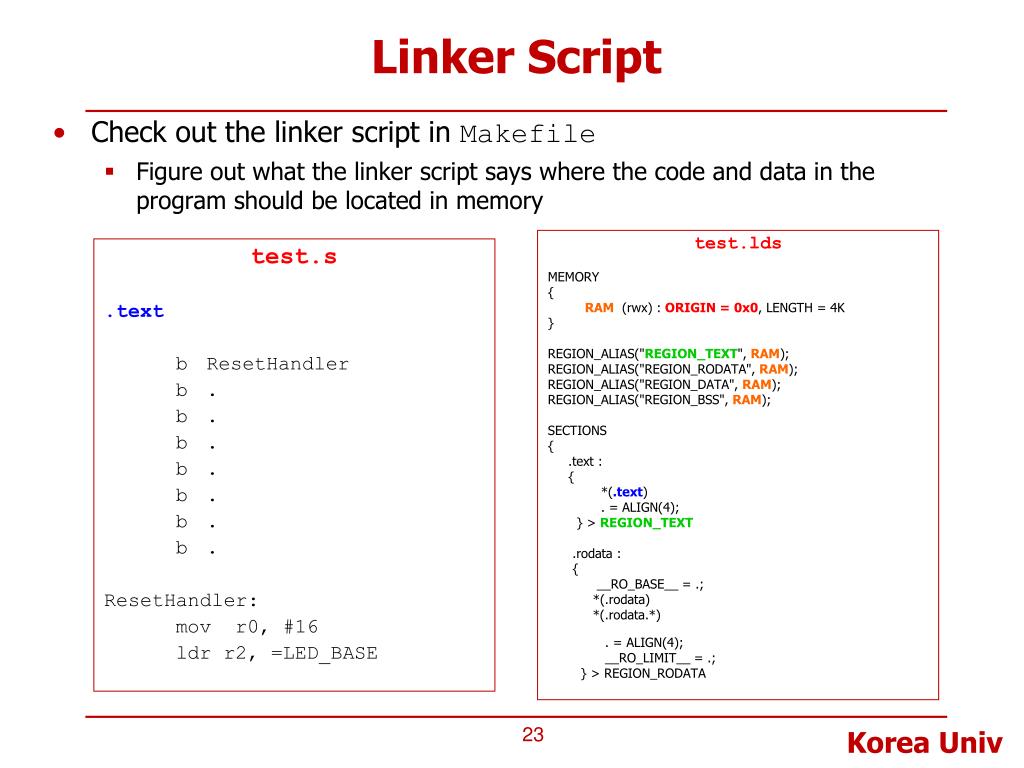

  23. Linker Script • Check out the linker script in Makefile • Figure out what the linker script says where the code and data in the program should be located in memory test.lds MEMORY { RAM (rwx) : ORIGIN = 0x0, LENGTH = 4K } REGION_ALIAS("REGION_TEXT", RAM); REGION_ALIAS("REGION_RODATA", RAM); REGION_ALIAS("REGION_DATA", RAM); REGION_ALIAS("REGION_BSS", RAM); SECTIONS { .text : { *(.text) . = ALIGN(4); } > REGION_TEXT .rodata : { __RO_BASE__ = .; *(.rodata) *(.rodata.*) . = ALIGN(4); __RO_LIMIT__ = .; } > REGION_RODATA test.s .text b ResetHandler b . b . b . b . b . b . b . ResetHandler: mov r0, #16 ldr r2, =LED_BASE

  24. Backup Slides

  25. AMBA • Advanced Microcontroller Bus Architecture • On-chip bus protocol from ARM • On-chip interconnect specification for the connection and management of functional blocks including processor and peripheral devices • Introduced in 1996 • AMBA is a registered trademark of ARM Limited. • AMBA is an open standard Wikipedia

  26. AMBA History • AMBA 3 (2003) • AXI3 (or AXI v1.0) • widely used on ARM Cortex-A processors including Cortex-A9 • AHB-Lite v1.0 • APB3 v1.0 • ATB v1.0 • AMBA 4 (2010) • ACE • widely used on the latest ARM Cortex-A processors including Cortex-A7 and Cortex-A15 • ACE-Lite • AXI4 • AXI4-Lite • AXI-Stream v1.0 • ATB v1.1 • APB4 v2.0 • AMBA • ASB • APB • AMBA 2 (1999) • AHB • widely used on ARM7, ARM9 and ARM Cortex-M based designs • ASB • APB2 (or APB) ACE: AXI Coherency Extensions AXI: Advanced eXtensible Interface AHB: Advanced High-performance Bus ASB: Advanced System Bus APB: Advanced Peripheral Bus ATB: Advanced Trace Bus Wikipedia

  27. ASB AMBA Specification V2.0

  28. ASB Hardware Device 0 Hardware Device 1 Hardware Device 2 ASB Hardware Device 3 Hardware Device 4 Hardware Device 5

  29. AHB AMBA Specification V2.0

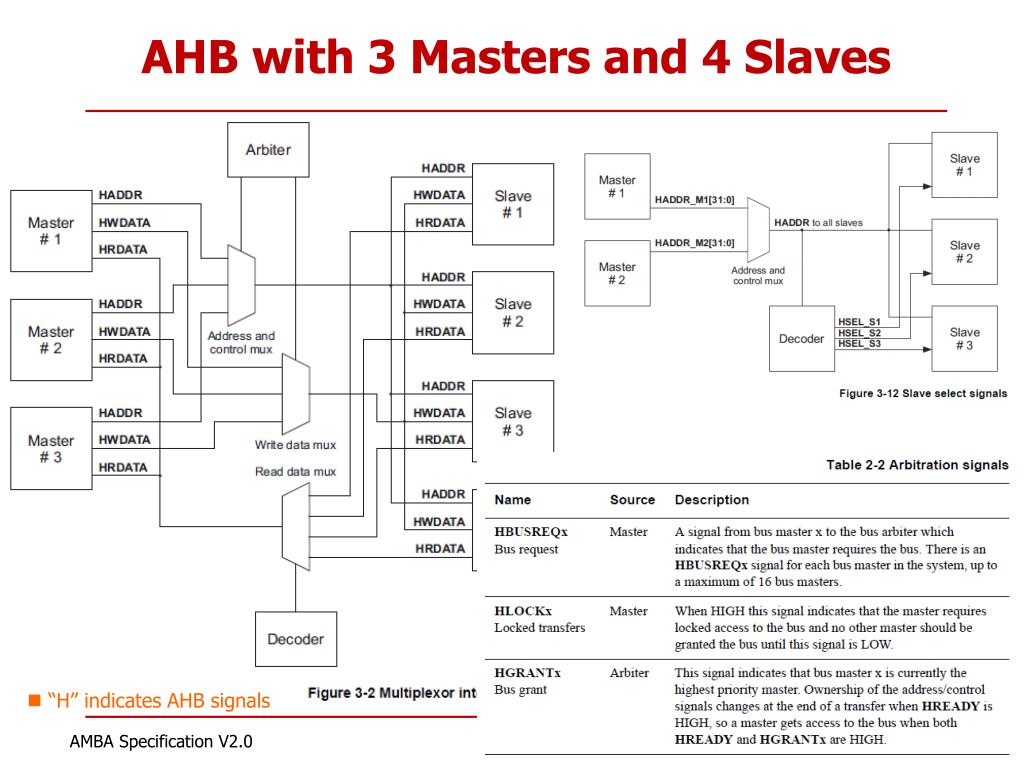

  30. AHB with 3 Masters and 4 Slaves AMBA Specification V2.0 “H” indicates AHB signals

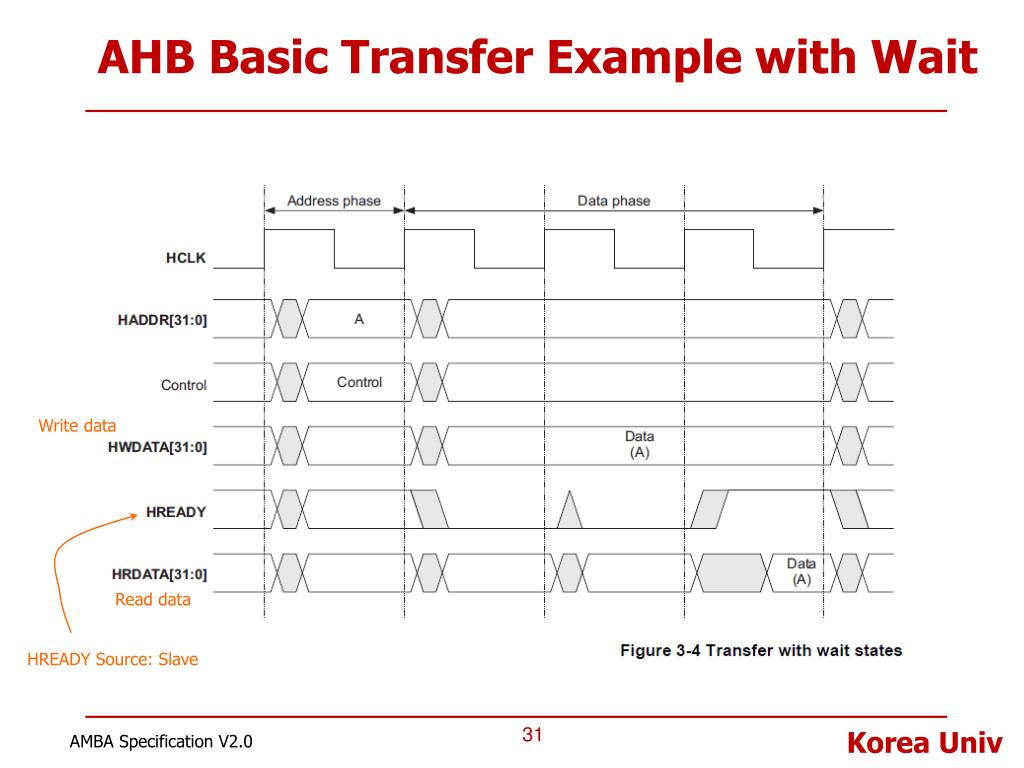

  31. AHB Basic Transfer Example with Wait AMBA Specification V2.0 Write data Read data HREADY Source: Slave

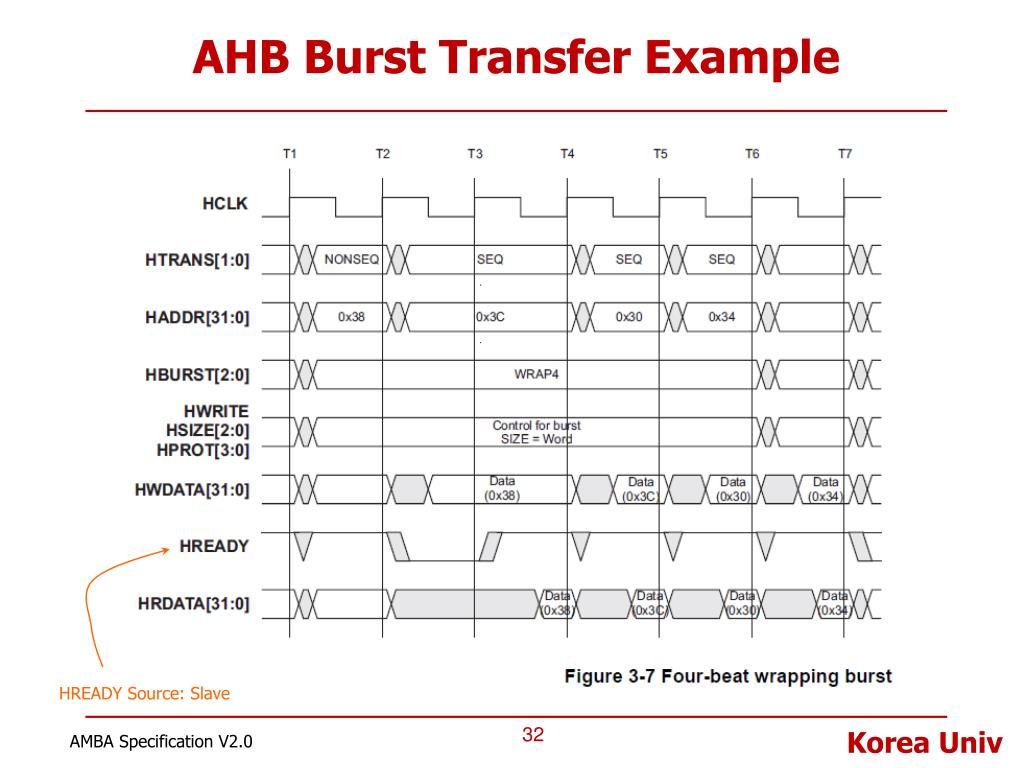

  32. AHB Burst Transfer Example AMBA Specification V2.0 HREADY Source: Slave

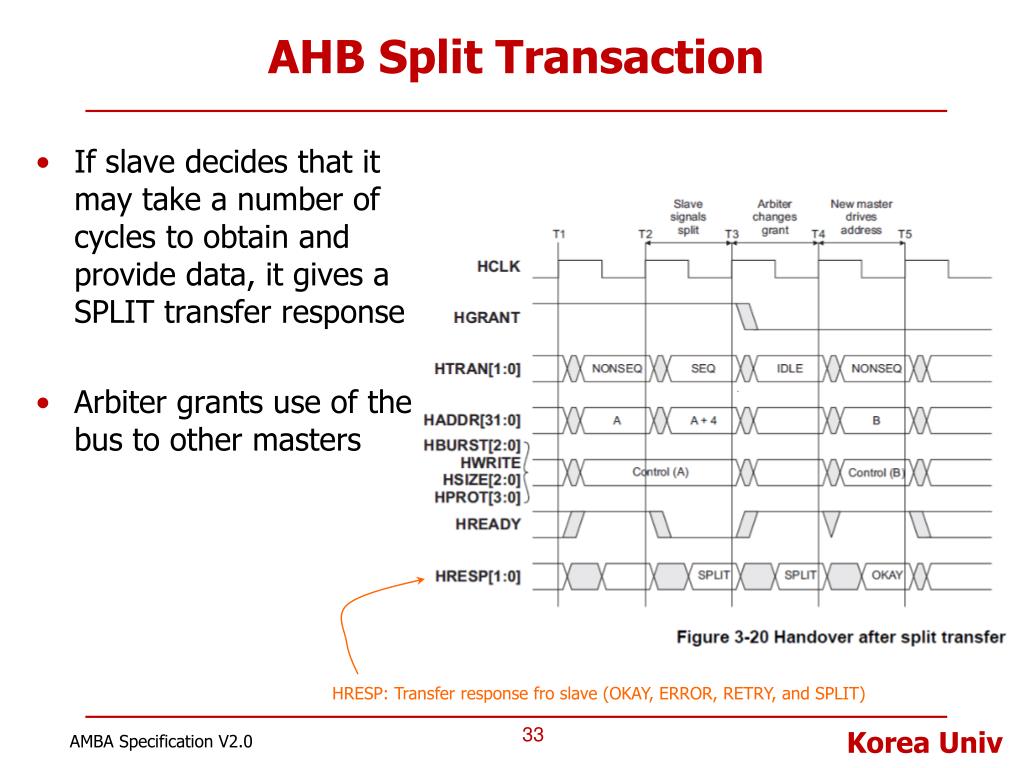

  33. AHB Split Transaction • If slave decides that it may take a number of cycles to obtain and provide data, it gives a SPLIT transfer response • Arbiter grants use of the bus to other masters AMBA Specification V2.0 HRESP: Transfer response fro slave (OKAY, ERROR, RETRY, and SPLIT)

  34. APB Write/Read AMBA Specification V2.0

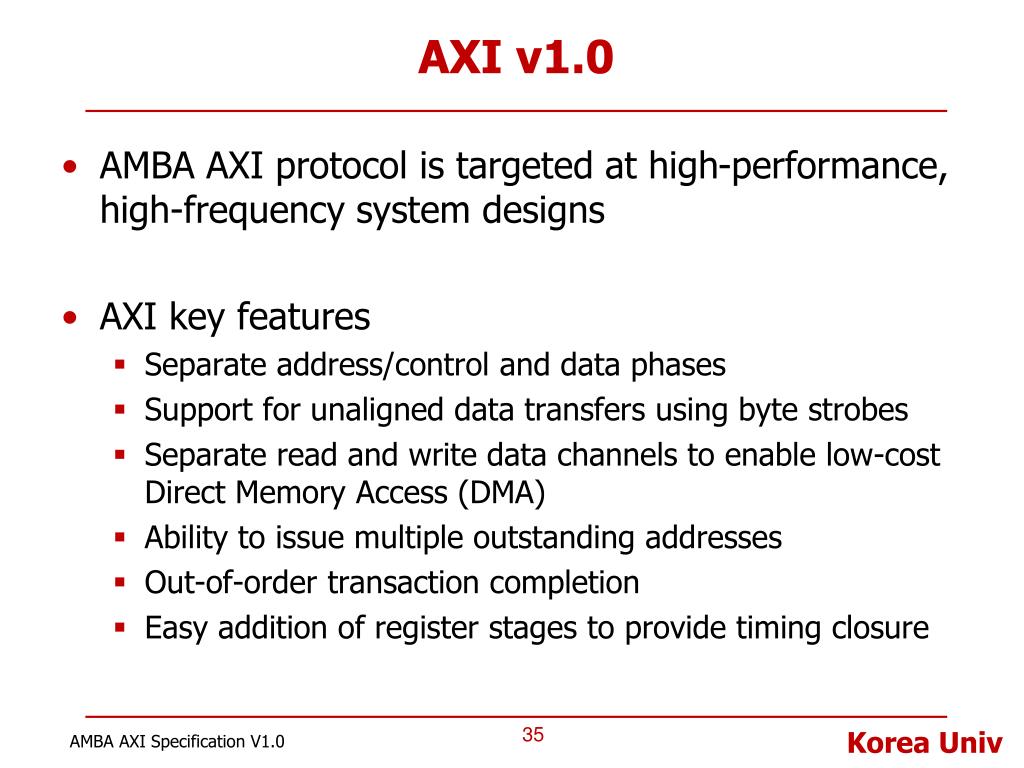

  35. AXI v1.0 • AMBA AXI protocol is targeted at high-performance, high-frequency system designs • AXI key features • Separate address/control and data phases • Support for unaligned data transfers using byte strobes • Separate read and write data channels to enable low-cost Direct Memory Access (DMA) • Ability to issue multiple outstanding addresses • Out-of-order transaction completion • Easy addition of register stages to provide timing closure AMBA AXI Specification V1.0

  36. 5 Independent Channels • Read address channel and Write address channel • Variable length burst: 1 ~ 16 data transfers • Burst with a transfer size of 8 ~ 1024 bits (1B ~ 256B) • Read data channel • Convey data and any read response info. • Data bus can be 8, 16, 32, 64, 128, 256, 512, or 1024 bits • Write data channel • Data bus can be 8, 16, 32, 64, 128, 256, 512, or 1024 bits • Write response channel • Write response info.

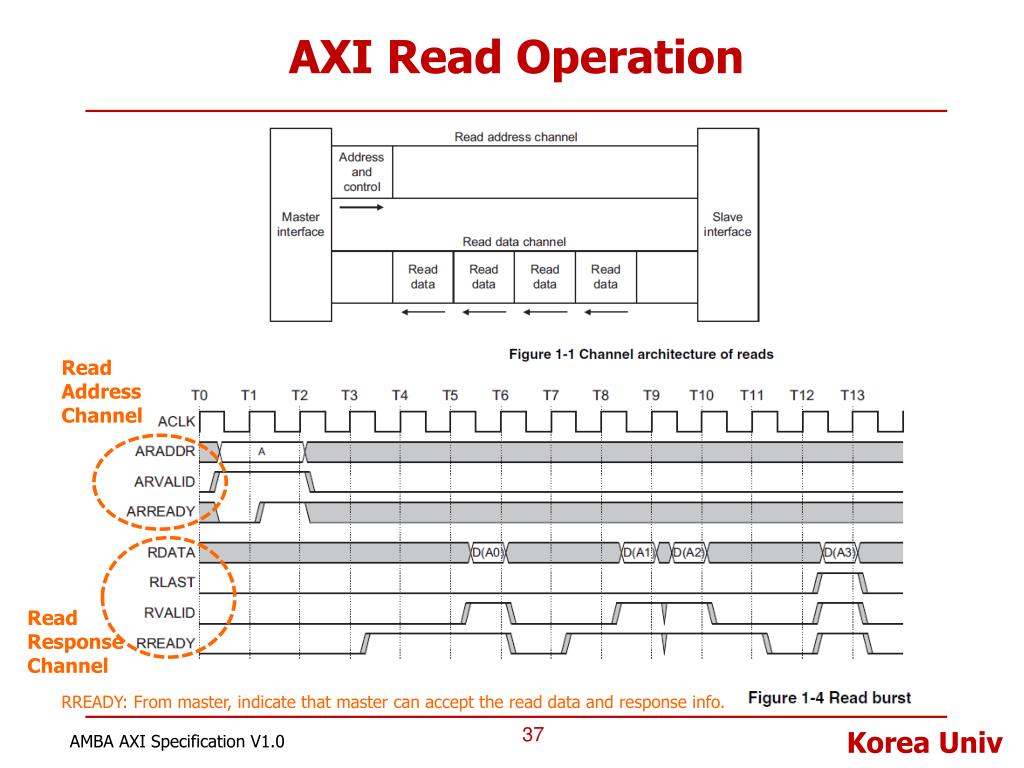

  37. AXI Read Operation Read Address Channel Read Response Channel RREADY: From master, indicate that master can accept the read data and response info. AMBA AXI Specification V1.0

  38. AXI Write Operation Write Address Channel Write Data Channel Write Response Channel WVALID Source: Master WREADY Source: Slave BVALID Source: Slave BREADY Source: Master AMBA AXI Specification V1.0

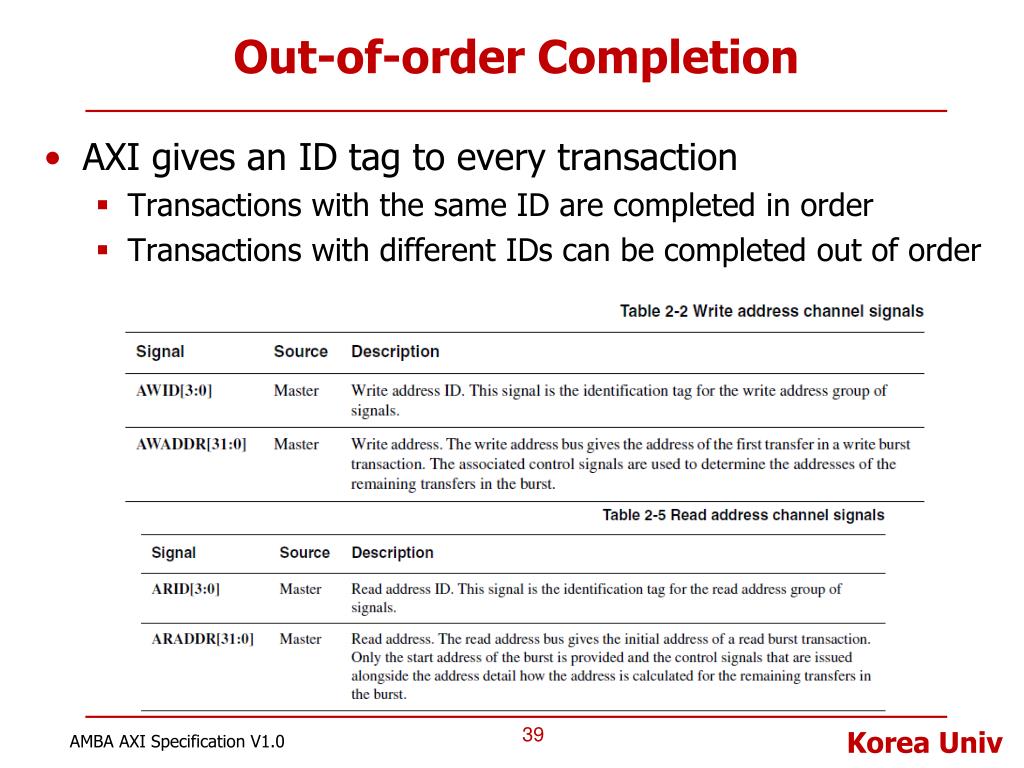

  39. Out-of-order Completion • AXI gives an ID tag to every transaction • Transactions with the same ID are completed in order • Transactions with different IDs can be completed out of order AMBA AXI Specification V1.0

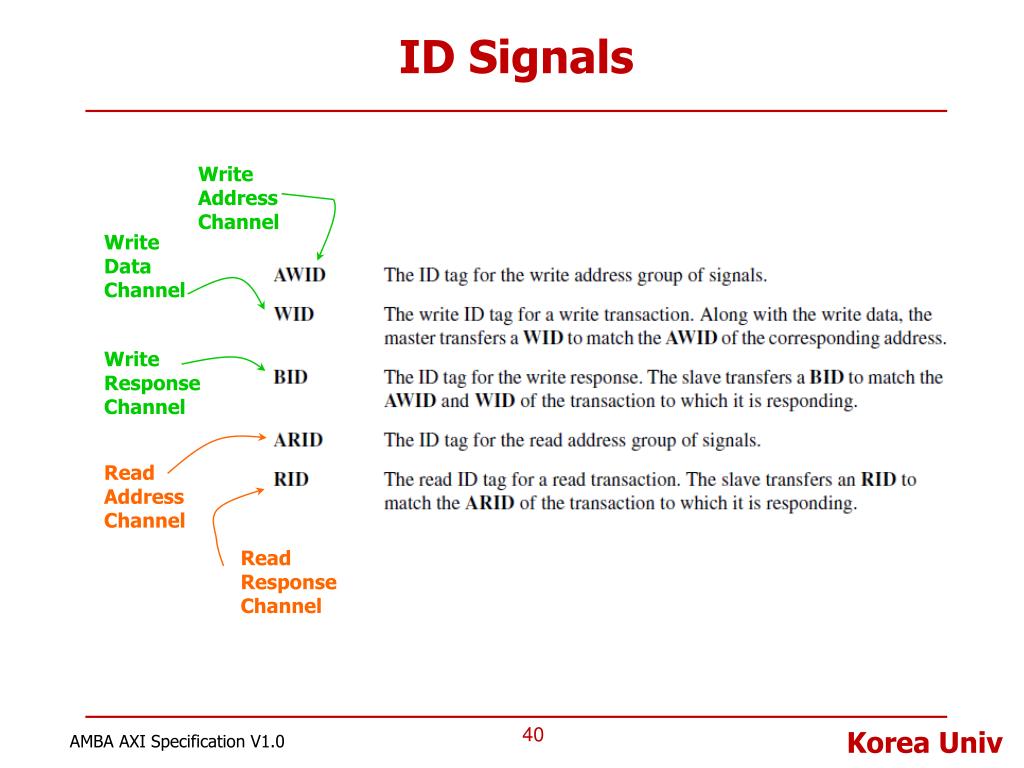

  40. ID Signals Write Address Channel Write Data Channel Write Response Channel Read Address Channel Read Response Channel AMBA AXI Specification V1.0

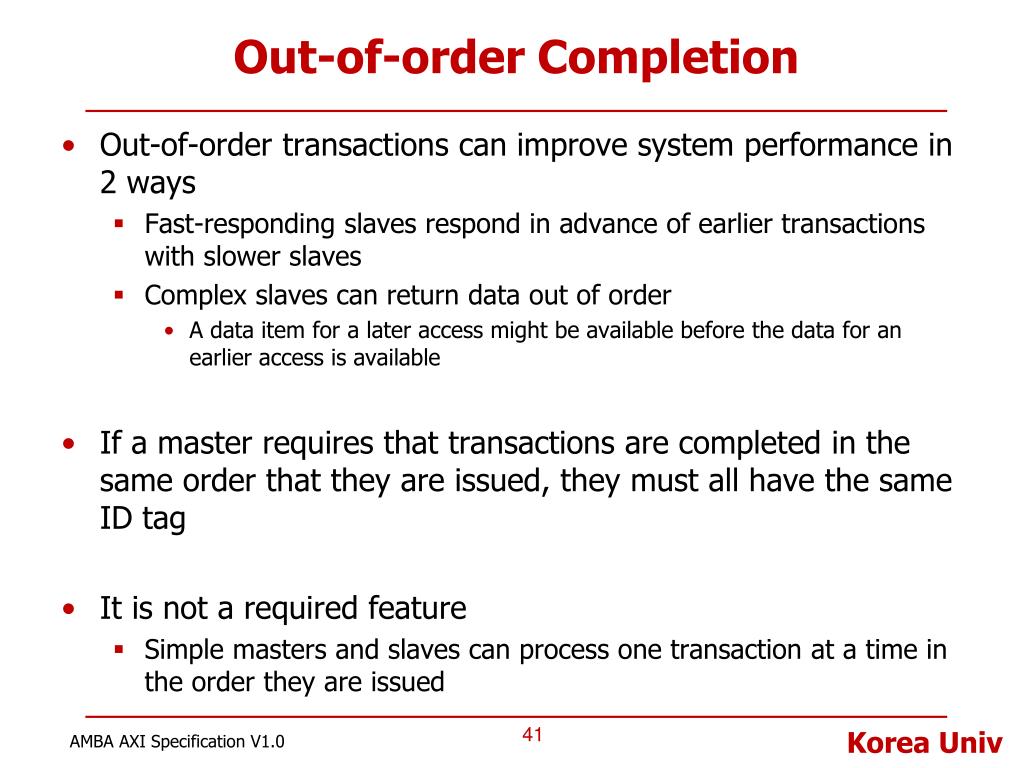

  41. Out-of-order Completion • Out-of-order transactions can improve system performance in 2 ways • Fast-responding slaves respond in advance of earlier transactions with slower slaves • Complex slaves can return data out of order • A data item for a later access might be available before the data for an earlier access is available • If a master requires that transactions are completed in the same order that they are issued, they must all have the same ID tag • It is not a required feature • Simple masters and slaves can process one transaction at a time in the order they are issued AMBA AXI Specification V1.0

  42. Addition of Register Slices • AXI enables the insertion of a register slice in any channel at the cost of an additional cycle latency • Trade-off between latency and maximum frequency • It can be advantageous to use • Direct and fast connection between a processor and high-performance memory • Simple register slices to isolate a longer path to less performance-critical peripherals AMBA AXI Specification V1.0
