  1. ENTC 4350BIOMEDICAL INSTRUMENTATION I BASIC DIFFERENTIAL AMPLIFIER

  2. Introduction • The differential amplifier can measure as well as amplify small signals that are buried in much larger signals.

  3. There are two input terminals, labeled () input, and (+) input.

  4. Superposition • If E1is replaced by a short circuit, E2sees an inverting amplifier with a gain of m. • Therefore, the output voltage due to E2is  mE2.  mE2

  5. Now let E2be short-circuited: • E1divides between R and mR to apply a voltage of E1m/ (1+ m) at the op amp’s (+) input.

  6. This divided voltage sees a noninverting amplifier with a gain of (m + 1). • The output voltage due to E1is the divided voltage: • E1m/(1 + m)times the noninverting amplifier gain, (1 + m),which yields mE1. mE1

  7. Therefore, E1is amplified at the output by the multiplier m to mE1. • When both E1and E2are present at the (+) and () inputs, respectively. • Vois mE1mE2.

  8. The output voltage of the differential amplifier, Vo, is proportional to the difference in voltage applied to the (+) and () inputs. • Multiplier m is called the differential gain and is set by the resistor ratios.

  9. When E1 = E2the output voltage is 0. • To put it another way, when a common (same) voltage is applied to the input terminals, Vo = 0.

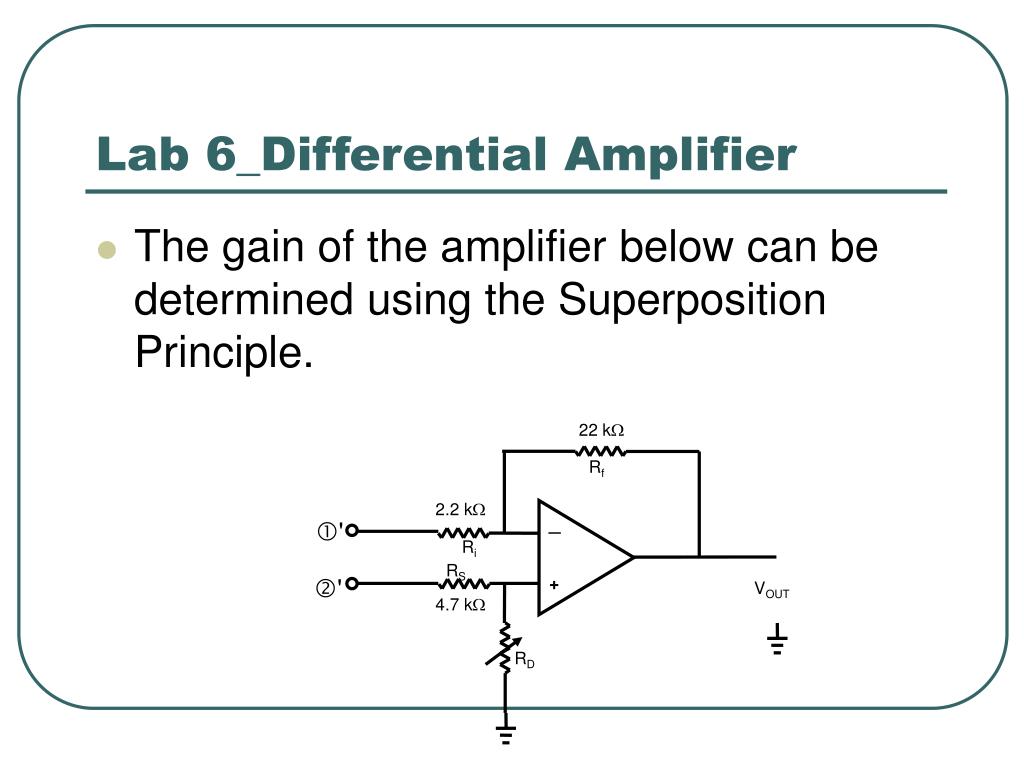

  10. 22 kW Rf 2.2 kW ' Ri RS ' VOUT 4.7 kW ─ RD + Lab 6_Differential Amplifier • The gain of the amplifier below can be determined using the Superposition Principle.

  11. Inverting Amplifier • Forcing V2 to 0 develops an inverting amplifier with an output, VOUT of: 22 kW Rf V1 2.2 kW ' ─ Ri RS ' + VOUT 4.7 kW RD

  12. 22 kW Rf 2.2 kW ' ─ Ri RS ' + VOUT 4.7 kW RD Non-inverting Amplifier • Forcing V1 to 0 develops a non-inverting amplifier. V2

  13. 22 kW Rf 2.2 kW ' ─ Ri RS ' + VOUT 4.7 kW V2 RD • Applying Thevenin’s Theorem:

  14. The output of the non-inverting amplifier is: 22 kW Rf 2.2 kW ' ─ Ri RTh ' + VOUT

  15. The total output is the sum: • To balance the circuit, we set the coefficients to add to zero.

  16. So the balanced condition yields • and the differential gain Ad is

  17. Common-mode rejection of 60 cycle power line interference in medical instrumentation which measures difference potentials on the body is a fundamental problem. • Power-line interference may exceed the level of the signal being measured. • This bad news is often cancelled by the fact that the interfacing signal appears equally intense at both input terminals of the diff amp, and is therefore called a common-mode signal.

  18. If the diff amp is not perfectly balanced, as is always the case in the real world, then the common-mode signal input will cause an output signal that then constitutes interference with the desired amplified signal. • Since one of the functions of the diff amp is to reject the common-mode signal, we define a figure of merit, the common-mode rejection ratio (CMRR), which measures how well the rejection occurs.

  19. The common-mode rejection ratio CMRR is defined as the magnitude of the ratio of the differential voltage gain Adto the common-mode voltage gain Ac.

  20. Adequals VOUTdivided by V1when node 2 is grounded, and V1is applied to node 1. • Also, ACequals VOUTdivided by V1when node 1 is connected to node 2, and V1is applied again.

  21. In practice the CMRR is measured in the following steps: • Ground V2, and apply a voltage V1 to the upper terminal. • Measure the resulting VOUT. • Lift V2from ground and short the two input leads, then apply the same value of V1. • Measure the resulting VOUT. • To compute CMRR, divide the results of step 2 by the result of step 4, and take the magnitude.

  22. The CMRR is a voltage ratio, and therefore in decibel units we may define CMRRdb as

  23. Common-Mode Voltage • The simplest way to apply equal voltages is to wire inputs together and connect them to the voltage source.

  24. For such a connection, the input voltage is called the common-mode input voltage, ECM.

  25. Now Vowill be 0 ifthe resistor ratios are equal (mR to R for the inverting amplifier gain equals mR to R of the voltage-divider network.)

  26. Practically, the resistor ratios are equalized by installing a potentiometer in series with one resistor.

  27. The potentiometer is trimmed until Vois reduced to a negligible value. • This causes the common-mode voltage gain, Vo/ECMto approach 0. • It is this characteristic of a differential amplifier that allows a small signal voltage to be picked out of a larger noise voltage.

  28. It may be possible to arrange the circuit so that the larger undesired signal is the common-mode input voltage and the small signal is the differential input voltage. • Then the differential amplifier’s output voltage will contain only an amplified version of the differential input voltage.
