  1. Platform-Independent Programs Sang Kil Cha, Brian Pak, David Brumley Carnegie Mellon University Richard J. Lipton Georgia Institute of Technology 17th ACM CCS (October, 2010)

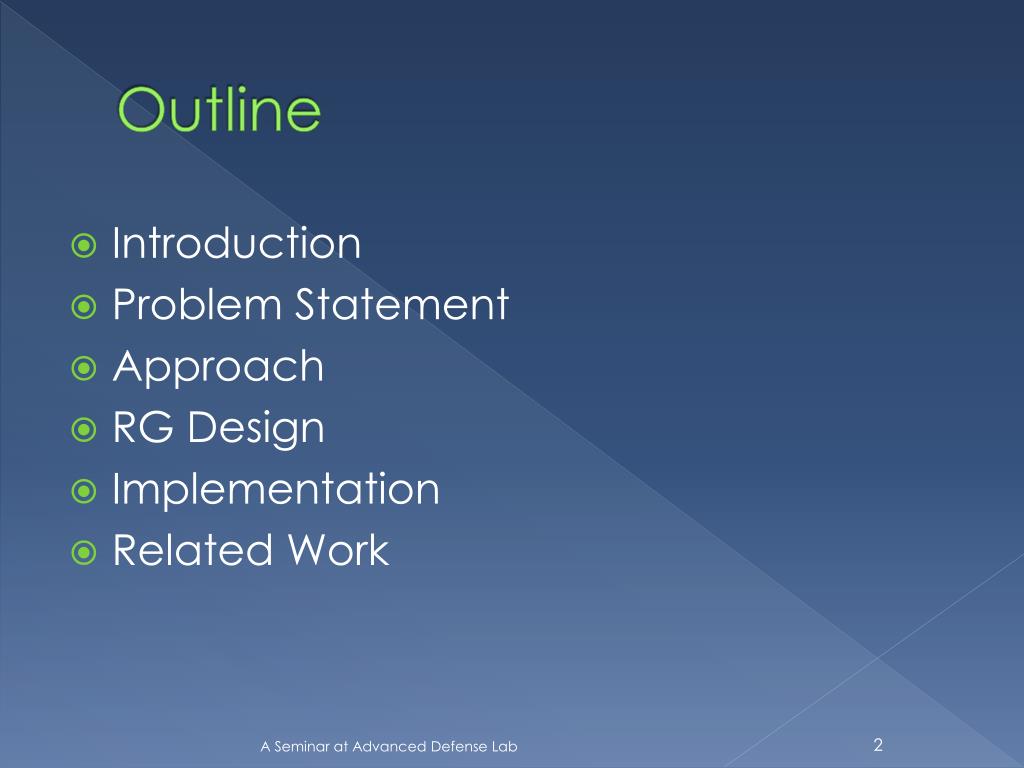

  2. Outline • Introduction • Problem Statement • Approach • RG Design • Implementation • Related Work A Seminar at Advanced Defense Lab

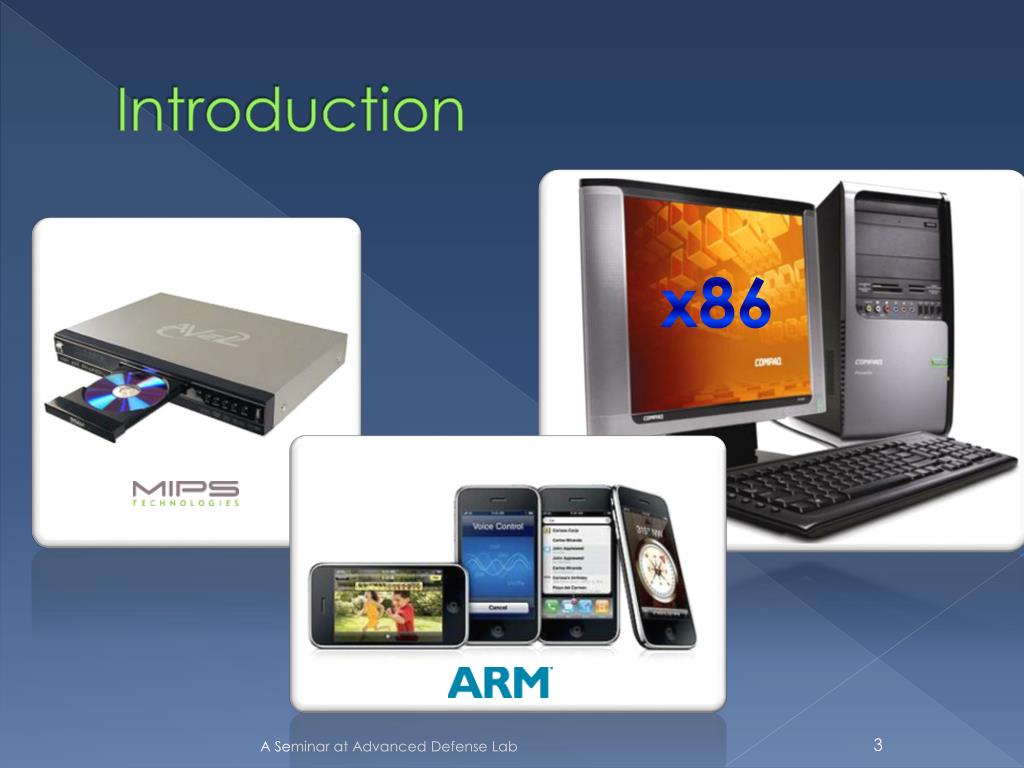

  3. Introduction x86 A Seminar at Advanced Defense Lab

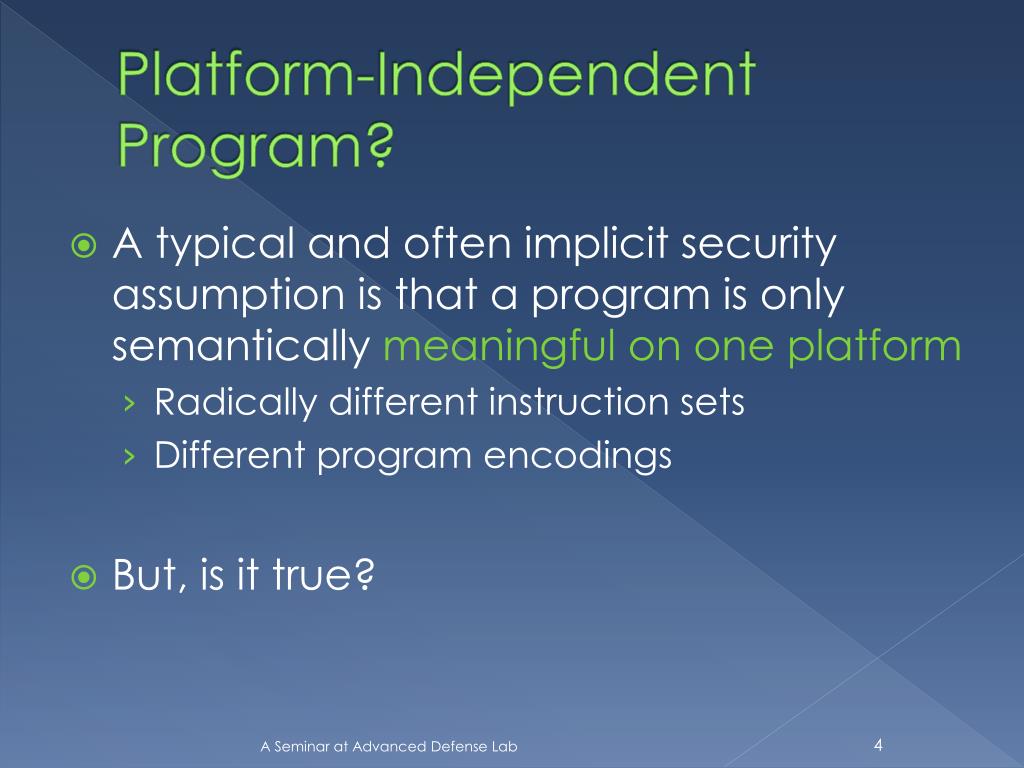

  4. Platform-Independent Program? • A typical and often implicit security assumption is that a program is only semantically meaningful on one platform • Radically different instruction sets • Different program encodings • But, is it true? A Seminar at Advanced Defense Lab

  5. In this paper • Automatically generate a single binary string that • is a valid program on some architectures • can have completely different desired runtime behaviors A Seminar at Advanced Defense Lab

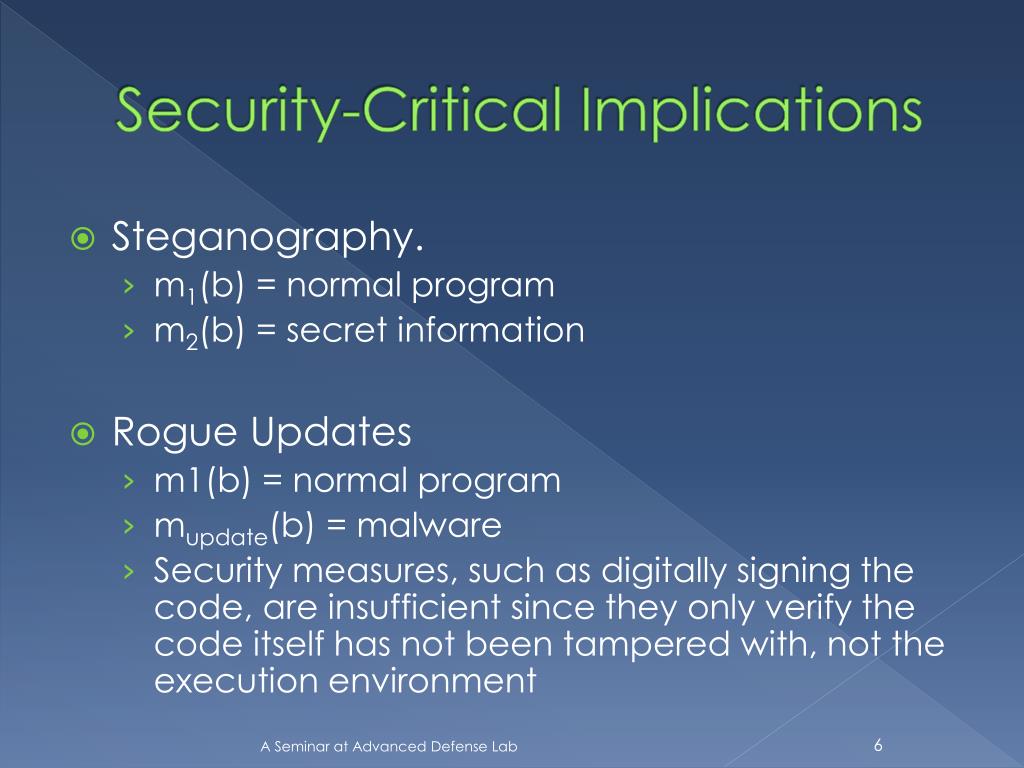

  6. Security-Critical Implications • Steganography. • m1(b) = normal program • m2(b) = secret information • Rogue Updates • m1(b) = normal program • mupdate(b) = malware • Security measures, such as digitally signing the code, are insufficient since they only verify the code itself has not been tampered with, not the execution environment A Seminar at Advanced Defense Lab

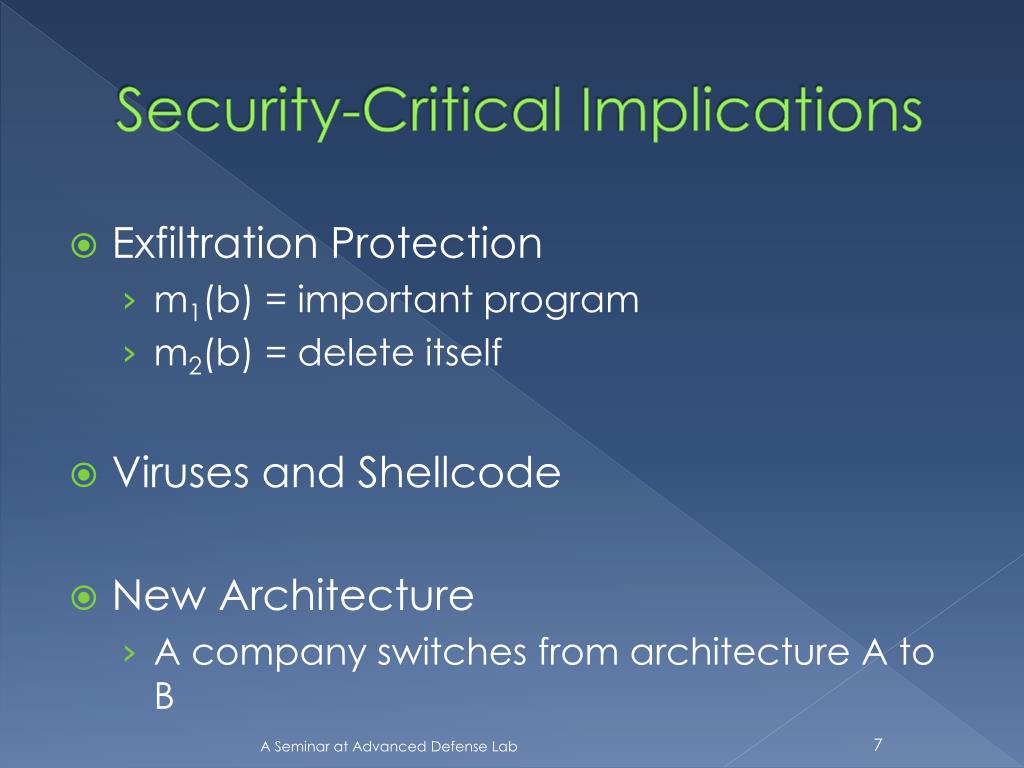

  7. Security-Critical Implications • Exfiltration Protection • m1(b) = important program • m2(b) = delete itself • Viruses and Shellcode • New Architecture • A company switches from architecture A to B A Seminar at Advanced Defense Lab

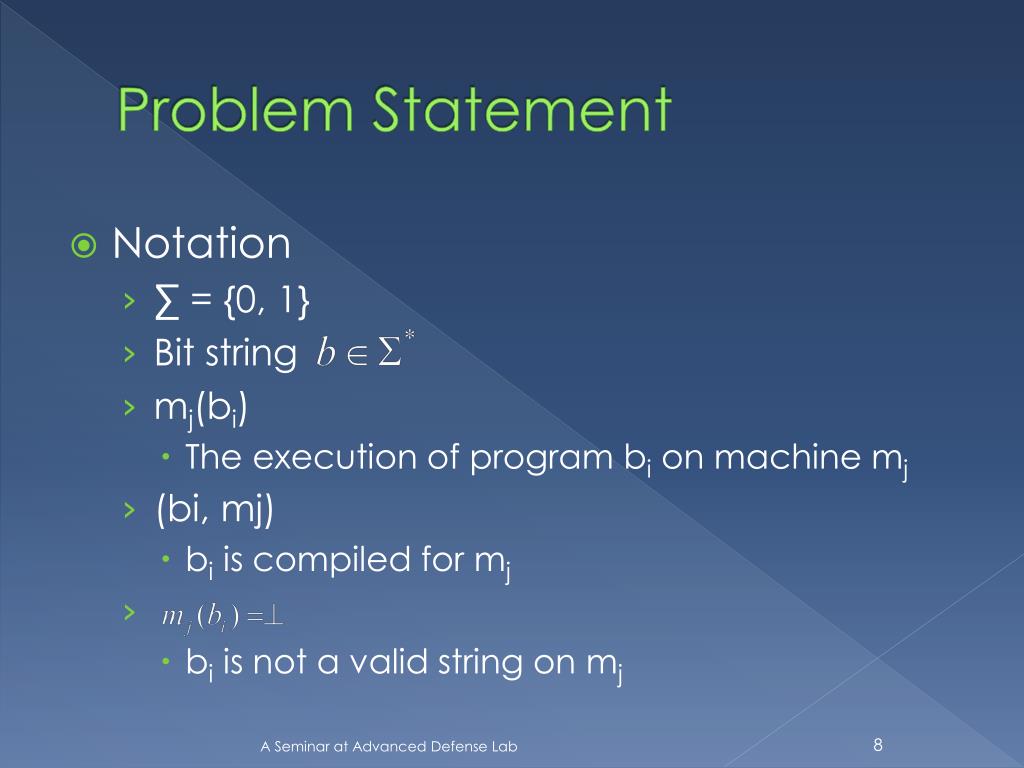

  8. Problem Statement • Notation • ∑ = {0, 1} • Bit string • mj(bi) • The execution of program bi on machine mj • (bi, mj) • bi is compiled for mj • bi is not a valid string on mj A Seminar at Advanced Defense Lab

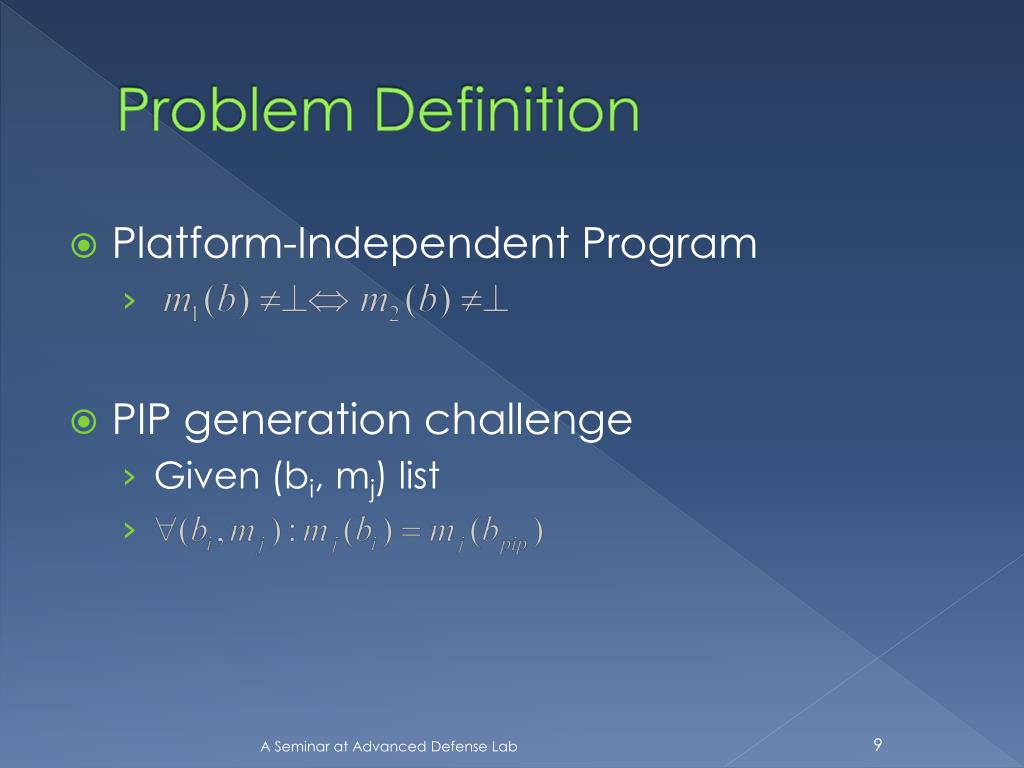

  9. Problem Definition • Platform-Independent Program • PIP generation challenge • Given (bi, mj) list A Seminar at Advanced Defense Lab

  10. Approach b1 b2 b3 bpip A Seminar at Advanced Defense Lab

  11. Gadgets b1 b2 b3 A Gadget A Seminar at Advanced Defense Lab

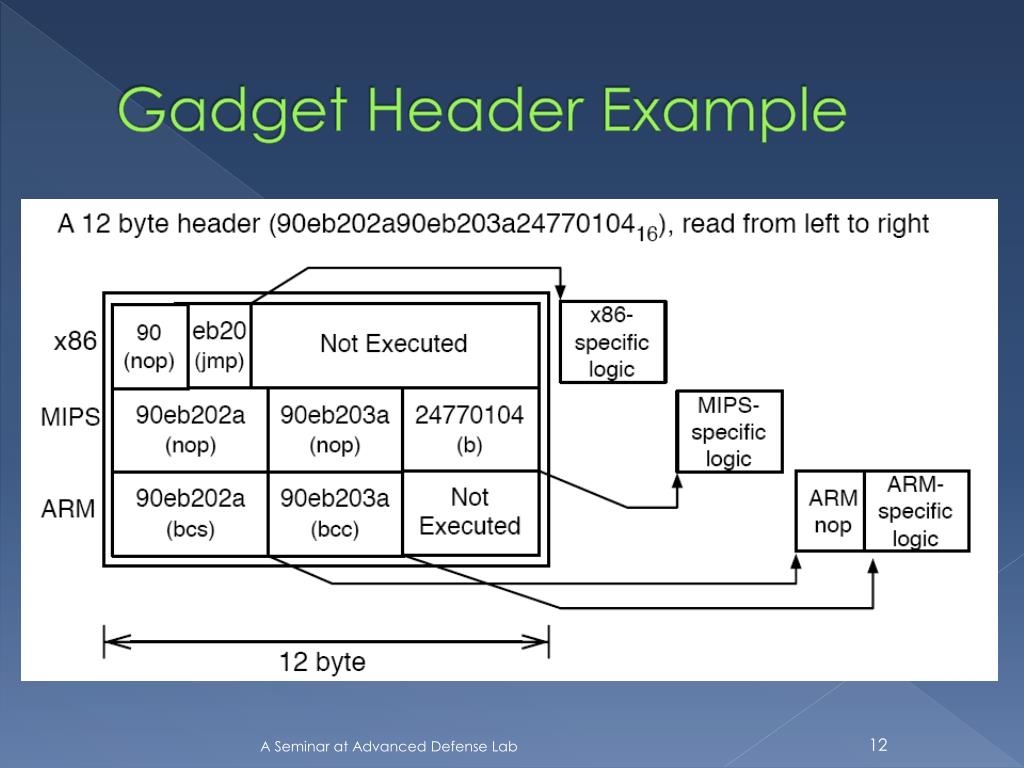

  12. Gadget Header Example A Seminar at Advanced Defense Lab

  13. Connecting Gadgets A Seminar at Advanced Defense Lab

  14. Generation Algorithm A Seminar at Advanced Defense Lab

  15. RG Design • Header-Init: Finding Gadget Headers • (nop)* (jmp) (.)* • Header generation algorithm • Enumeration all possible string X • several days for 4-byte header • Make header templates • Computing the intersection of templates A Seminar at Advanced Defense Lab

  16. RG Design • Disassemble, Gadget-Gen, and Merge A Seminar at Advanced Defense Lab

  17. RG Design – PI Translation A Seminar at Advanced Defense Lab

  18. PI Translation A Seminar at Advanced Defense Lab

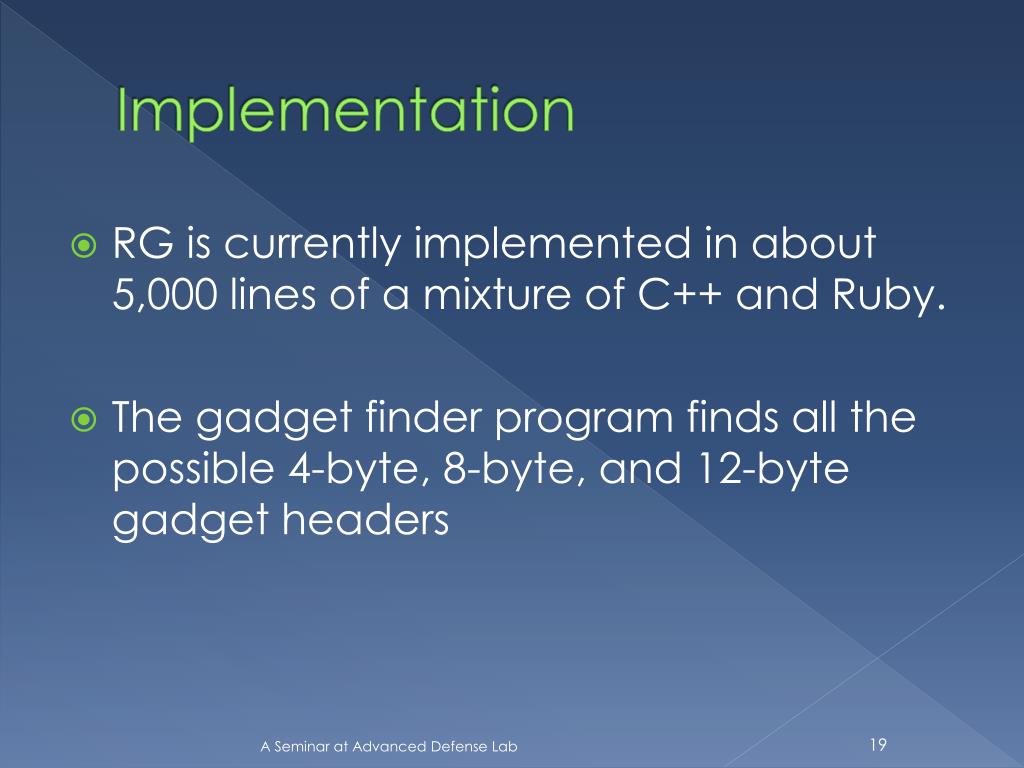

  19. Implementation • RG is currently implemented in about 5,000 lines of a mixture of C++ and Ruby. • The gadget finder program finds all the possible 4-byte, 8-byte, and 12-byte gadget headers A Seminar at Advanced Defense Lab

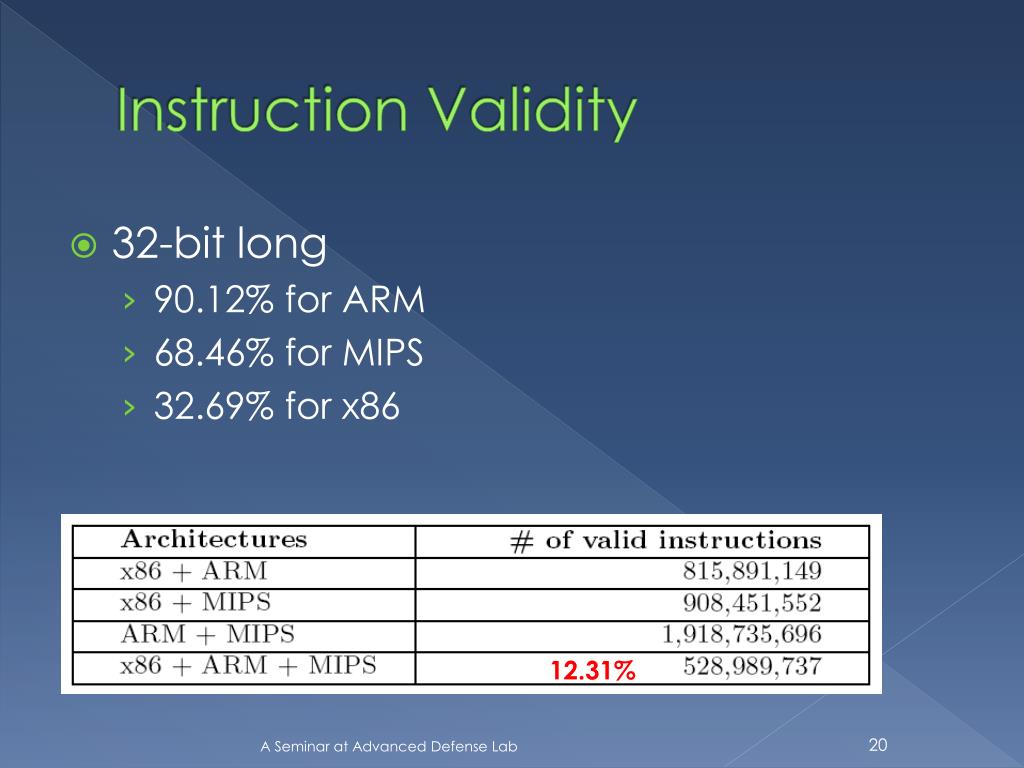

  20. Instruction Validity • 32-bit long • 90.12% for ARM • 68.46% for MIPS • 32.69% for x86 12.31% A Seminar at Advanced Defense Lab

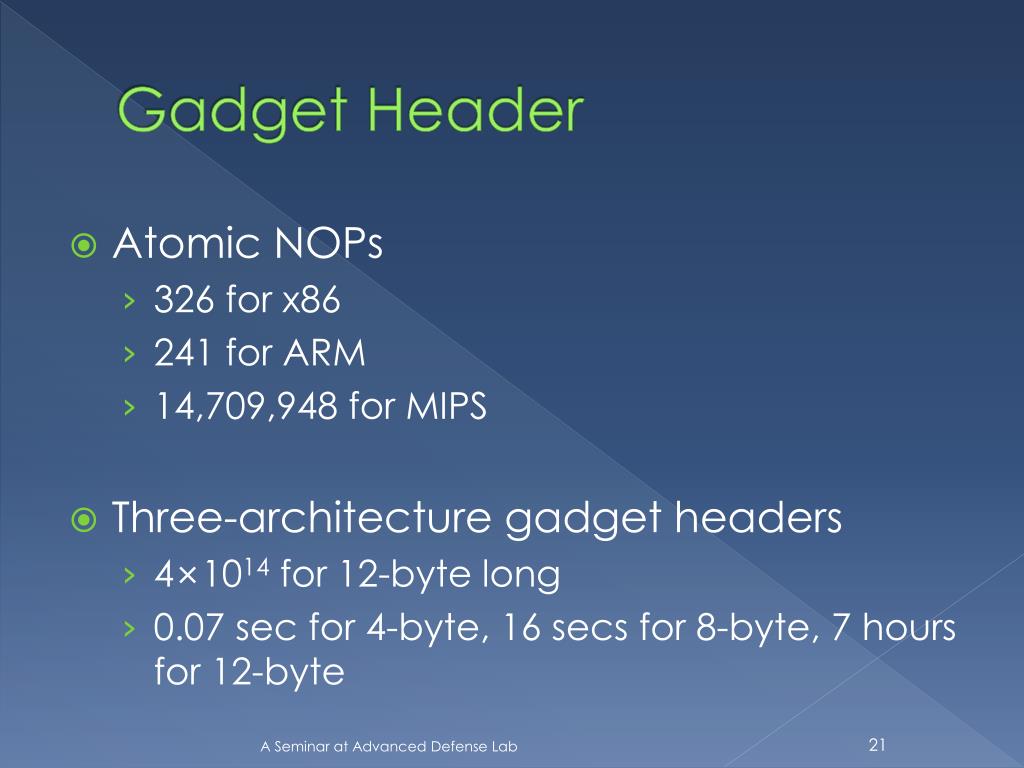

  21. Gadget Header • Atomic NOPs • 326 for x86 • 241 for ARM • 14,709,948 for MIPS • Three-architecture gadget headers • 4×1014 for 12-byte long • 0.07 sec for 4-byte, 16 secs for 8-byte, 7 hours for 12-byte A Seminar at Advanced Defense Lab

  22. Gadget Header A Seminar at Advanced Defense Lab

  23. Evaluation • Hello world • Prime Checker • Shellcode • Vulnerabilities • Snort 2.4 • iPhone’scoreaudio library A Seminar at Advanced Defense Lab

  24. Evaluation Using PI Translation A Seminar at Advanced Defense Lab

  25. Evaluation A Seminar at Advanced Defense Lab

  26. Related Work • Muti-Platform Execution • Fat binary • two independent program images are combined with special meta-data that is used at run-time to select the appropriate image • Drew Dean in 2003 • Nemo in 2005 [link] A Seminar at Advanced Defense Lab

  27. Related Work(cont.) • Steganography • Simmons in 1984 • The prisoner’s problem A Seminar at Advanced Defense Lab

  28. Discussion • PIP length • More Gadget Headers • Large Input Programs • Indirect Jumps and Self-Modifying Code • Generating Platform • m(b) = normal program • generate m’ • m’(b) = malware A Seminar at Advanced Defense Lab

  29. Thank You A Seminar at Advanced Defense Lab
