1. INFORMATIONFACILITY GLOBALBIODIVERSITY Informatics Infrastructure and Portal (IIP) David Remsen ECAT Program Officer August 2010 WWW.GBIF.ORG

2. Contents • Publishing • Current developments in DarwinCore, its extension, and publishing solutions (incl. the Integrated Publishing Toolkit) • Integration and discovery • Status of tools for the harvesting, interpretation through controlled vocabularies and plans for the Data Portal • Communications • Evaluation of the communication platforms, update on staffing changes and resources

3. Publishing • Objectives • Simplify the publication of primary biodiv. data • Support the publication of species-level data • Improve data quality & dataset documentation • Reduce the latency between publishing and discovery through portals • Support the capacity to extend the published content • Expand data publishing configuration options

4. Publishing What • Species Occurrence Data • Primary Biodiversity Data • Observations / Nat. Hist. Collections • Species-level Data • Taxonomic Catalogues • Annotated Species Checklists • Floral and Faunal lists • Thematically-defined lists (Red-List, Invasive, etc.) • Dataset (Resource) Metadata

5. Standards and Protocols Protocols impact harvesting latency – Schemas are complex and constrain data scope • Primary Biodiversity data • Darwin Core via DiGIR protocol • ABCD (Access to Biological Collections Data) via BioCase protocol • TAPIR protocol– multiple output formats • Taxonomic data • Taxon Concept Schema (TCS) • Few tools • Low uptake

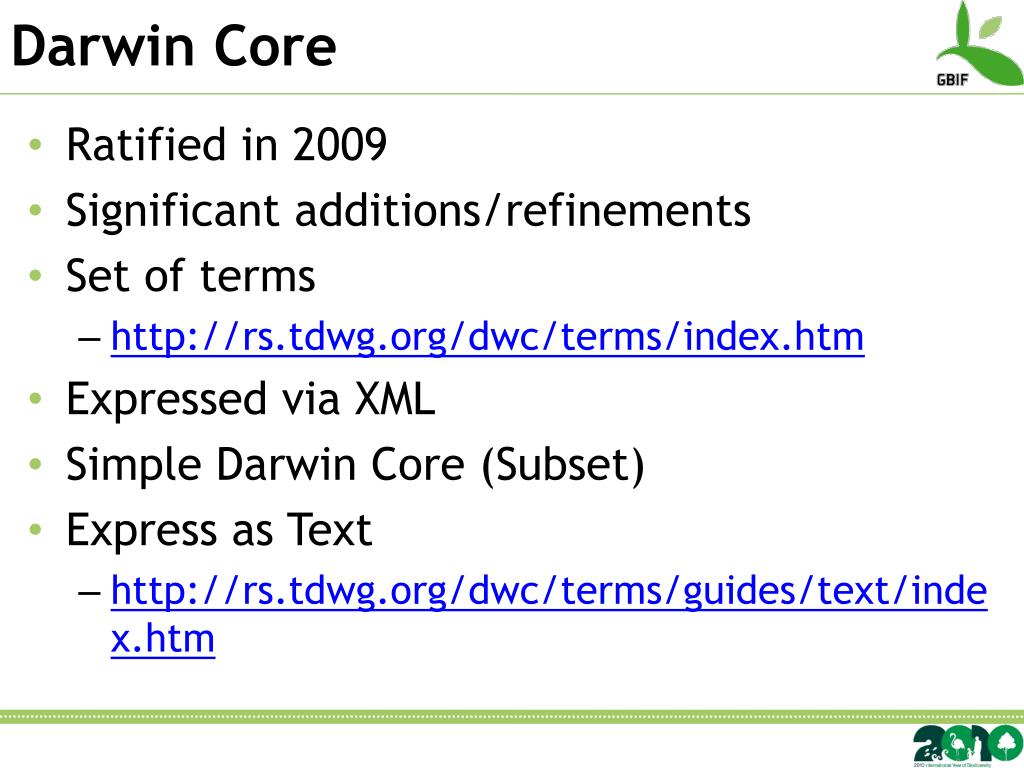

6. Darwin Core • Ratified in 2009 • Significant additions/refinements • Set of terms • http://rs.tdwg.org/dwc/terms/index.htm • Expressed via XML • Simple Darwin Core (Subset) • Express as Text • http://rs.tdwg.org/dwc/terms/guides/text/index.htm

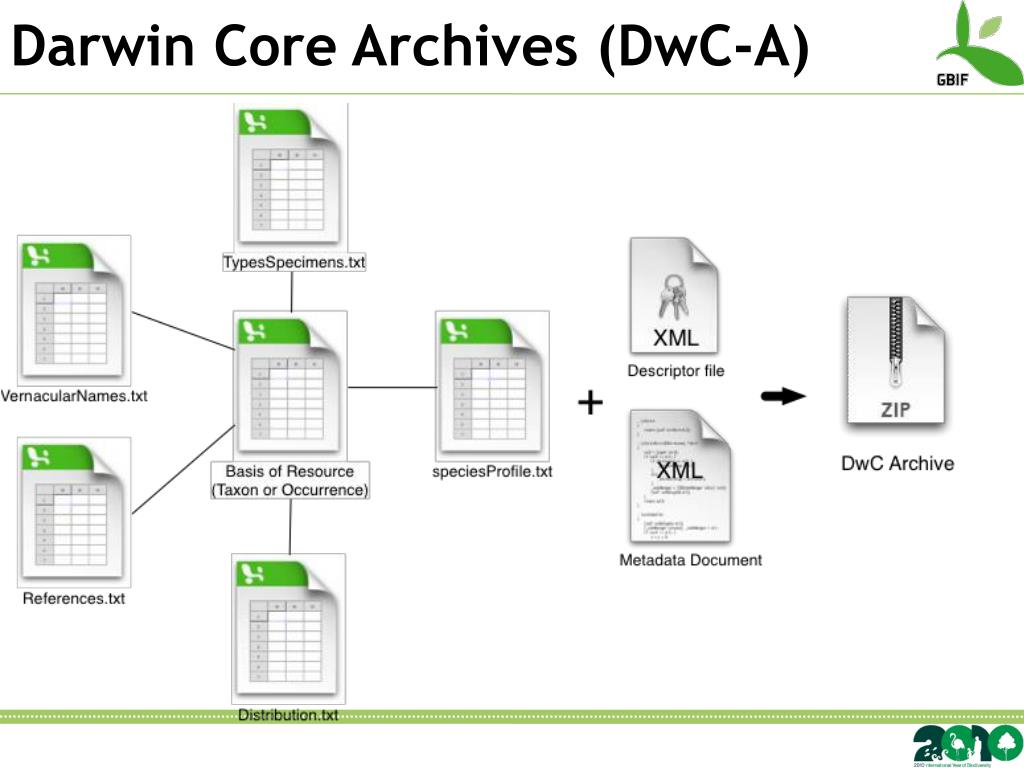

7. Darwin Core Archives (DwC-A)

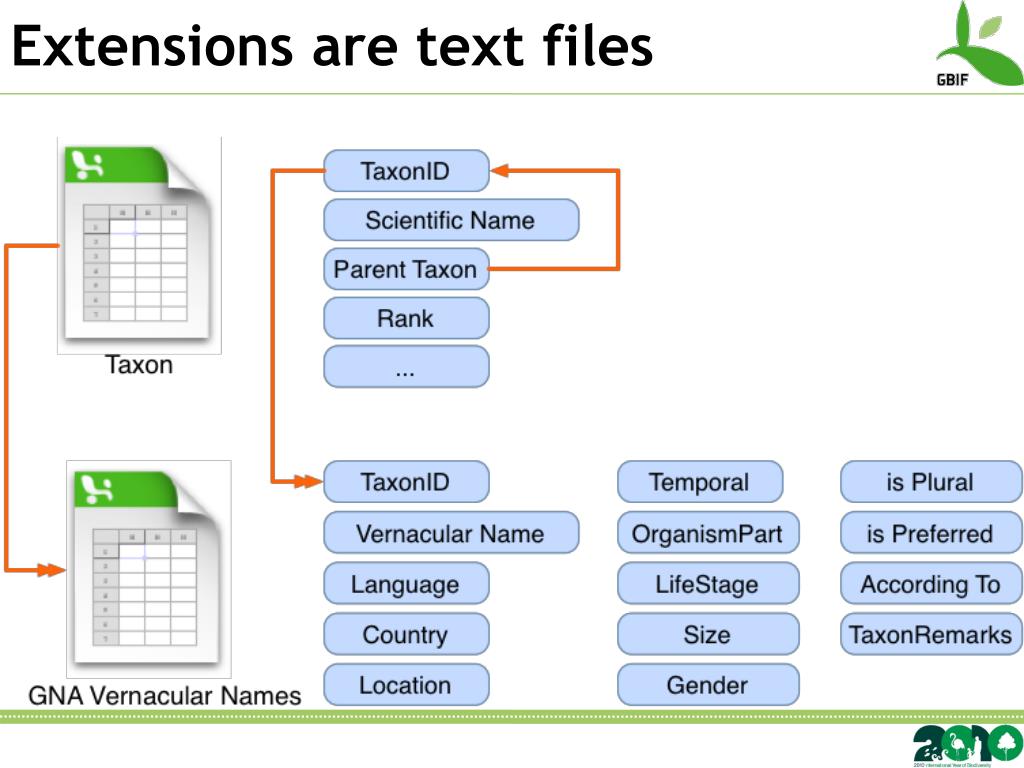

8. Extensions are text files

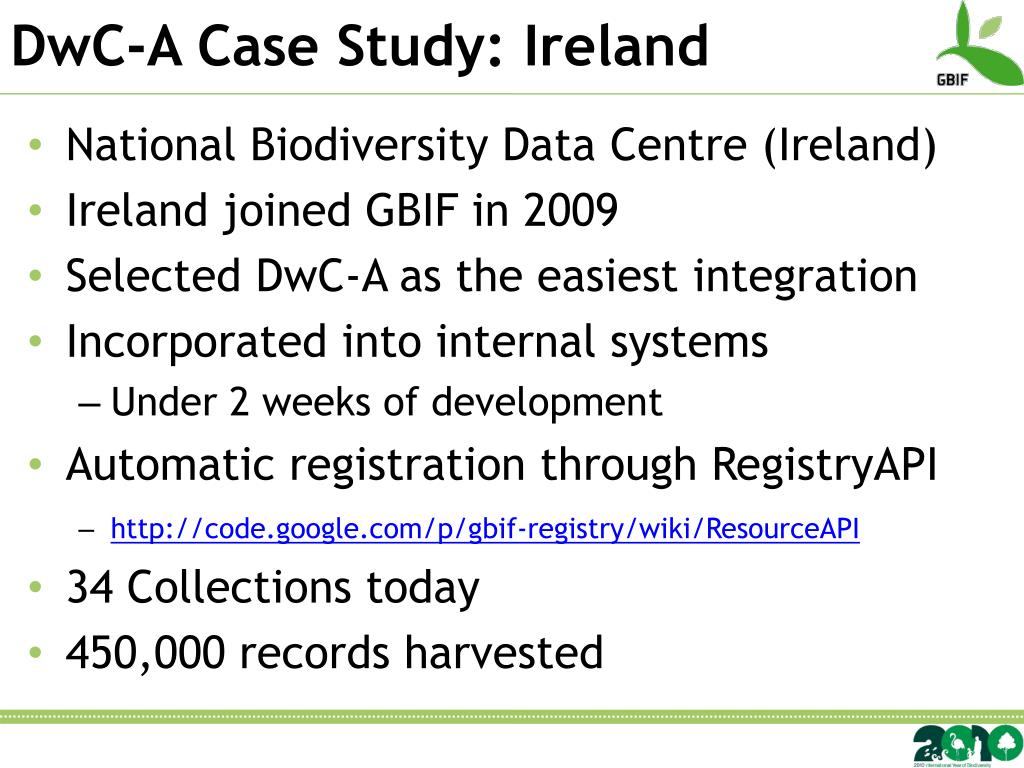

9. DwC-A Case Study: Ireland • National Biodiversity Data Centre (Ireland) • Ireland joined GBIF in 2009 • Selected DwC-A as the easiest integration • Incorporated into internal systems • Under 2 weeks of development • Automatic registration through RegistryAPI • http://code.google.com/p/gbif-registry/wiki/ResourceAPI • 34 Collections today • 450,000 records harvested

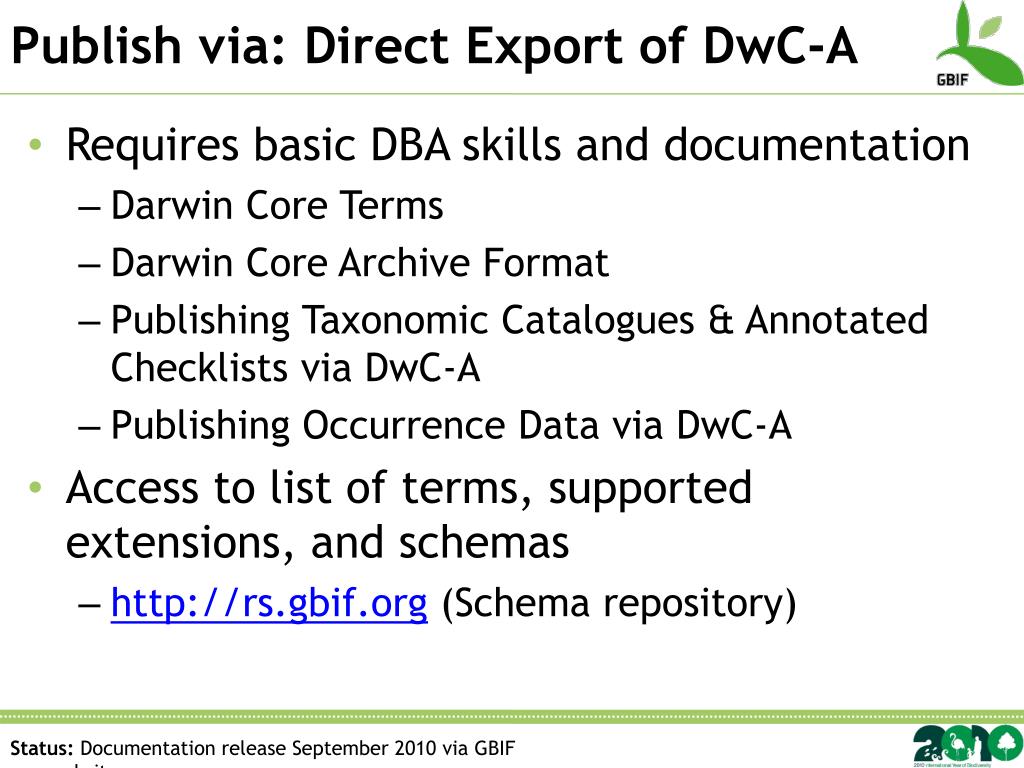

10. Publish via: Direct Export of DwC-A • Requires basic DBA skills and documentation • Darwin Core Terms • Darwin Core Archive Format • Publishing Taxonomic Catalogues & Annotated Checklists via DwC-A • Publishing Occurrence Data via DwC-A • Access to list of terms, supported extensions, and schemas • http://rs.gbif.org (Schema repository) Status: Documentation release September 2010 via GBIF website

11. XML Descriptor file • <archive xmlns="http://rs.tdwg.org/dwc/text/" • xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" • xsi:schemaLocation=http://rs.tdwg.org/dwc/text/   http://rs.tdwg.org/dwc/text/tdwg_dwc_text.xsd • metadata=”http://www.biodiv.org/docs/metadata/whale_catalogue.eml”> •   <core encoding="UTF-8" fieldsTerminatedBy="\t" linesTerminatedBy="\n" fieldsEnclosedBy='' ignoreHeaderLines="0" rowType="http://rs.tdwg.org/dwc/terms/Taxon"> •     <files> •       <location>taxa.txt</location> •     </files> •     <id index="0" /> •     <field index="1" term="http://rs.tdwg.org/dwc/terms/kingdom"/> •     <field index="2" term="http://rs.tdwg.org/dwc/terms/phylum"/> •     <field index="3" term="http://rs.tdwg.org/dwc/terms/class"/> •     <field index="4" term="http://rs.tdwg.org/dwc/terms/order"/> •     <field index="5" term="http://rs.tdwg.org/dwc/terms/family"/> •     <field index="6" term="http://rs.tdwg.org/dwc/terms/genus"/> •     <field index="7" term="http://rs.tdwg.org/dwc/terms/species"/> • <field index="8" term="http://rs.tdwg.org/dwc/terms/infraspecies"/> • <field index="9" term="http://rs.tdwg.org/dwc/terms/infraspeciesRank"/> • <field index="10" term="http://rs.tdwg.org/dwc/terms/scientificNameAuthorship"/> •     <field default="ICZN" term="http://rs.tdwg.org/dwc/terms/nomenclaturalCode"/> •   </core> •   <extension encoding="UTF-8" fieldsTerminatedBy="\t" linesTerminatedBy="\n" fieldsEnclosedBy='' ignoreHeaderLines="0" rowType="http://rs.gbif.org/terms/1.0/VernacularName"> •     <files> •       <location>vernacular.txt</location> •     </files> •     <coreid index="0" /> •     <field index="1" term="http://rs.tdwg.org/dwc/terms/vernacularName"/> •     <field index="2" term="http://purl.org/dc/terms/language"/> •     <field index="3" term="http://rs.tdwg.org/dwc/terms/countryCode"/> •   </extension> • </archive>

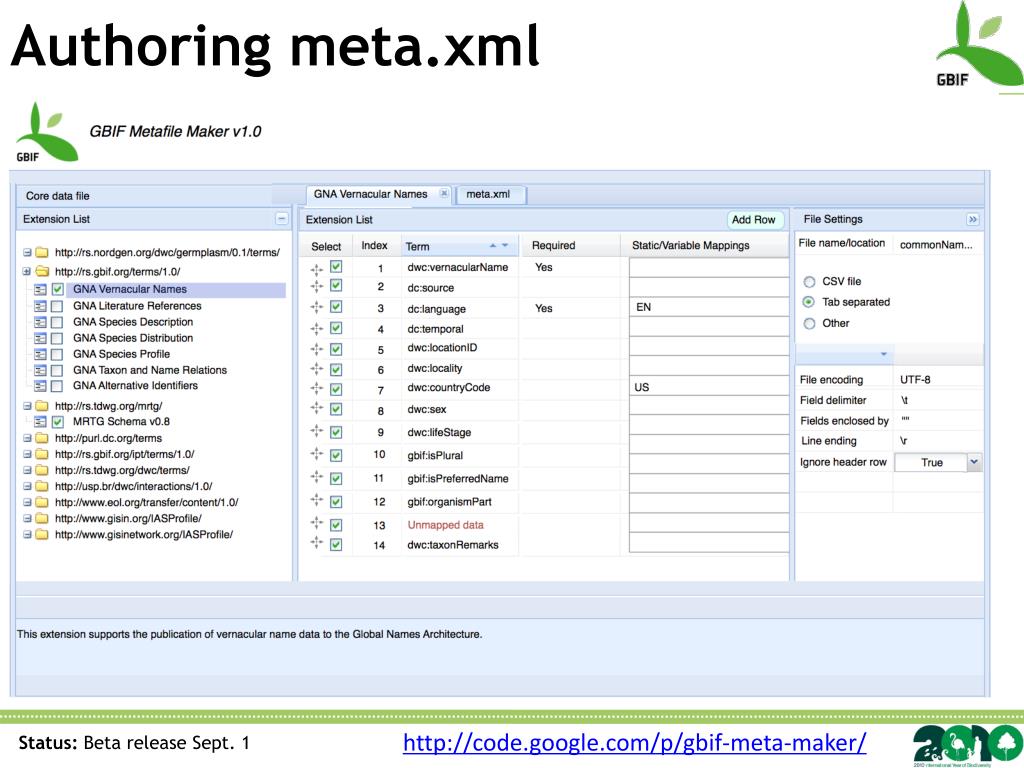

12. Authoring meta.xml Status: Beta release Sept. 1 http://code.google.com/p/gbif-meta-maker/

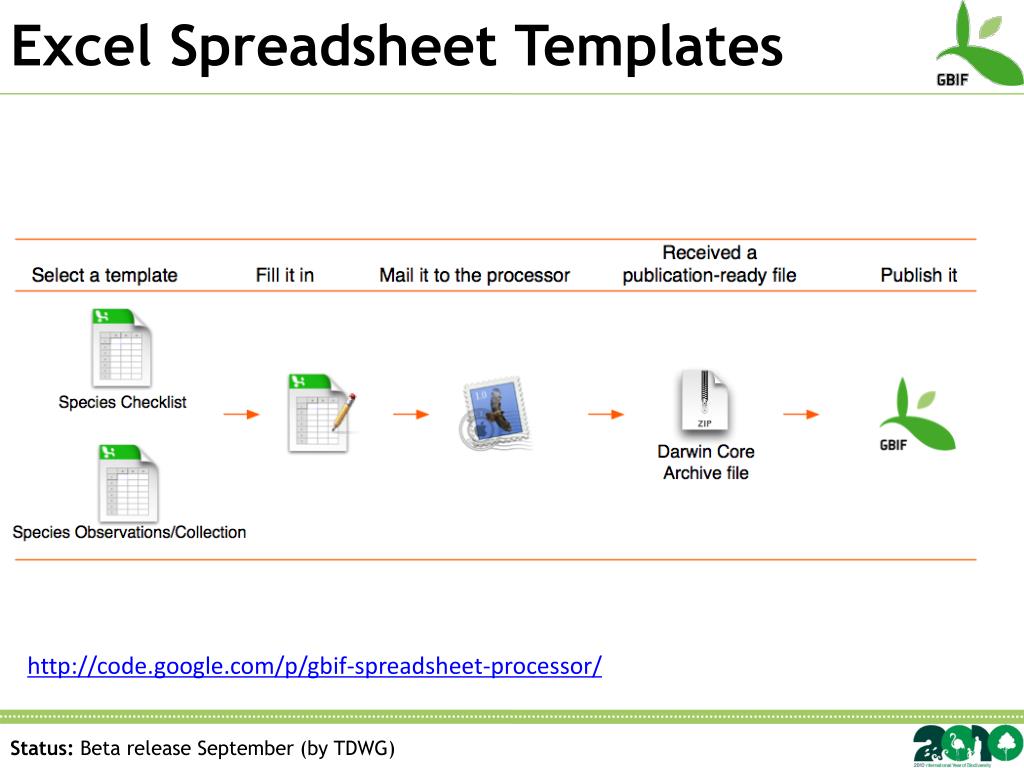

13. Excel Spreadsheet Templates http://code.google.com/p/gbif-spreadsheet-processor/ Status: Beta release September (by TDWG)

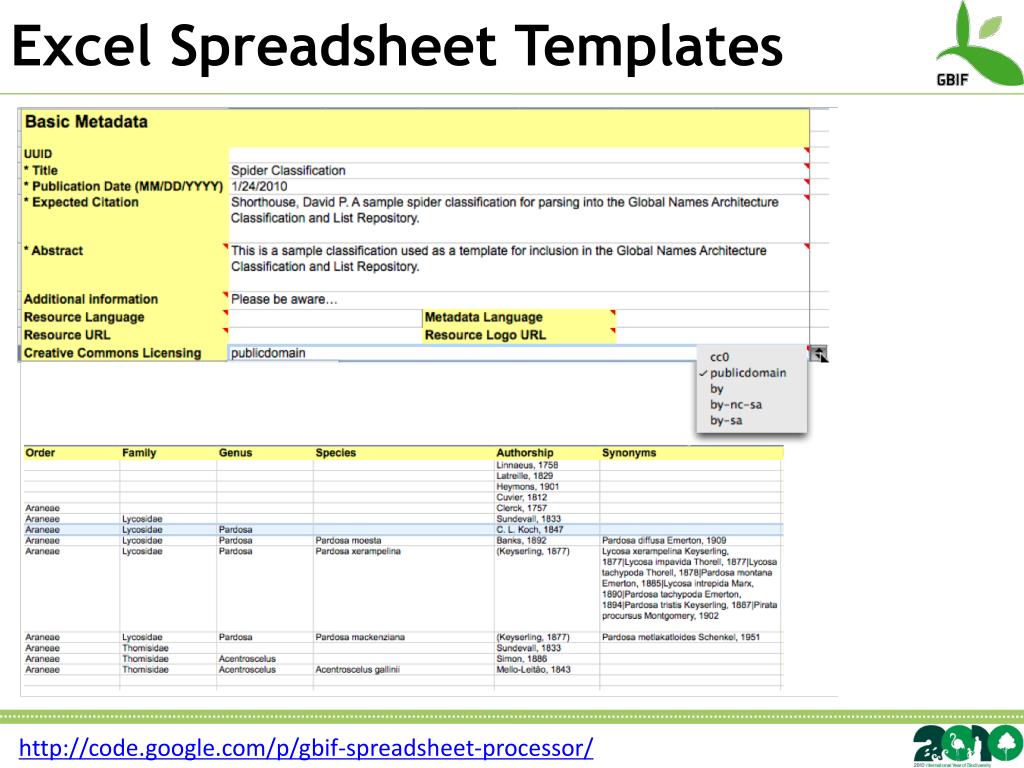

14. Excel Spreadsheet Templates http://code.google.com/p/gbif-spreadsheet-processor/

15. Integrated Publishing Toolkit • Asupported platform for publication of: • Occurrence-level content • Species checklist content • Dataset metadata • Sampling methods • Bibliographic citations • Temporal coverage • DwC-A compatible • Reduced latency between publishing and discovery

16. Integrated Publishing Toolkit • GBIF Review 2009 • “…with regards to software and tool development…: • Lack of rigorous technical documentation; open source software must be documented and annotated meticulously in order to take advantage of improvements made by users. • Release of unstable code that is being worked on still by its initiators to a community who are not made aware that it is not finalised.”

17. Integrated Publishing Toolkit • Received good feedback in first year of use • Primary request: Simplify and “lighten” up the product • RC4 testing initiating now • Enhanced metadata (still EML) • Darwin Core Archive import • Multiple organisation association (for hosting centres) • Bug fixing

18. Integrated Publishing Toolkit • RC4 will not address feedback, but will be a more stable version for new users • RC5 development underway to address feedback • Simplification all around (intuitiveness) • Performance improvements • Enriched documentation/examples/webcasts • Server requirements dropping significantly (target of 256MB of memory)

19. Integrated Publishing Toolkit Following RC5, we will initiate user testing and bug fixing, with no unnecessary functionality changes to move to the target of a stable robust platform by end 2010 http://code.google.com/p/gbif-providertoolkit/

20. Vocabulary server • Drupal implementation developed as a proof of concept • http://vocabularies.gbif.org/ • IPT uses extensions, vocabularies and schemas for the operation • http://vocabularies.gbif.org/ • No well defined workflows yet for community ownership of vocabularies • Discuss at TDWG ’10 • ViBRANT Funding to operationalise

21. Vocabulary server Draft New Extensions Draft New Vocabularies Publish them Internationalise them

22. Indexing and Discovery • Objectives • Extend the classes of content that can be discovered • Improve the means to discover (flexible indexes) • Better determination of fitness for use • Through dataset metadata • Annotation / Feedback brokerage • Accurate citation • Reduce the latency between publishing and discovery through portals

23. GBIF Registry (GBRDS) • Index of the technical access points of the datasets comprising the GBIF network • Captures basic metadata about institutions, datasets, nodes and their relationships • Enhanced features under development • Improved attribution • Better data provenance declaration • More accurate reporting on the total participation within the GBIF network • Dynamic definitions of thematic networks • API / Web app for automating registration http://gbrds.gbif.org/index

24. GBIF Registry (GBRDS) http://gbrds.gbif.org/index

25. Registry: GBIF is complex…

26. Metadata catalogue • Collection of XML-based dataset metadata documents (ISO, FGDC, EML, DIV formats) • Associated with entities known to the GBIF Registry • Common search across content • Currently using Metacat • Will review this following prototyping Goal: Enriched documentation, discovery of unpublished datasets Status: Under development, promoting publication of data documents through “small grant awards”

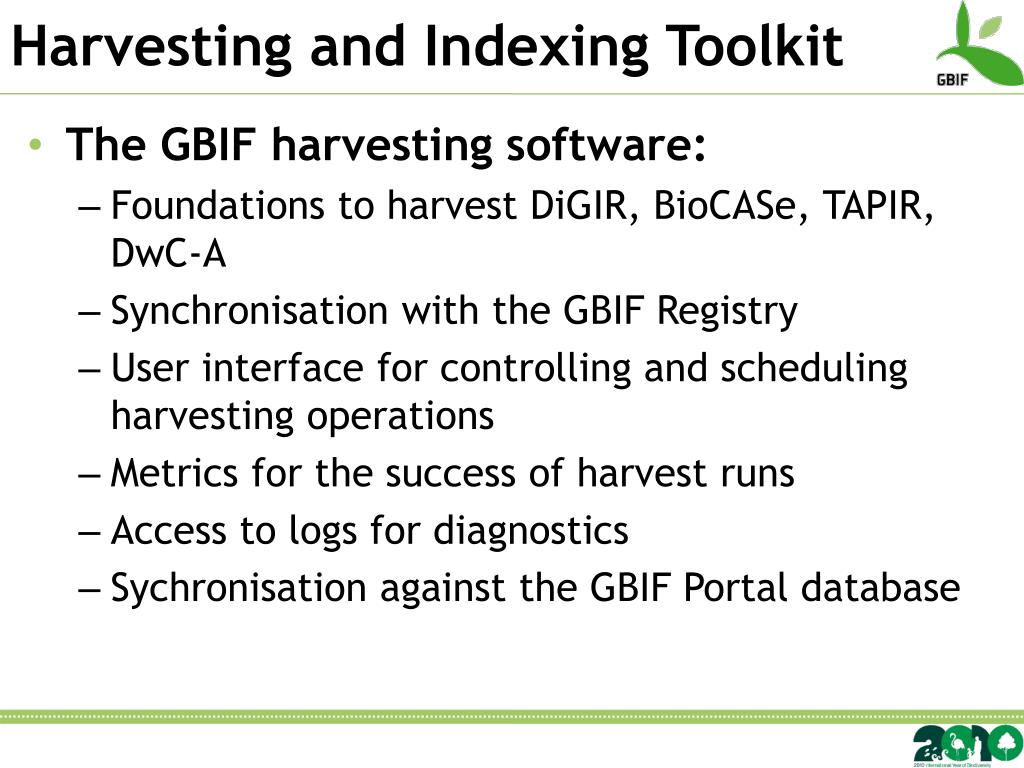

27. Harvesting and Indexing Toolkit • The GBIF harvesting software: • Foundations to harvest DiGIR, BioCASe, TAPIR, DwC-A • Synchronisation with the GBIF Registry • User interface for controlling and scheduling harvesting operations • Metrics for the success of harvest runs • Access to logs for diagnostics • Sychronisation against the GBIF Portal database

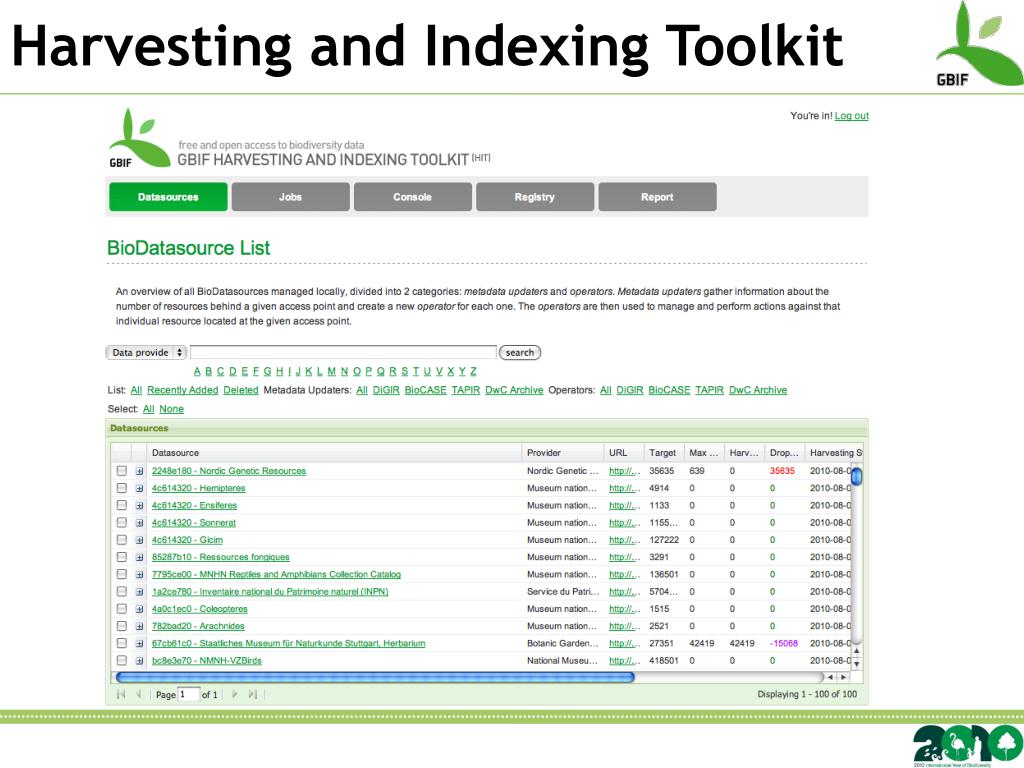

28. Harvesting and Indexing Toolkit

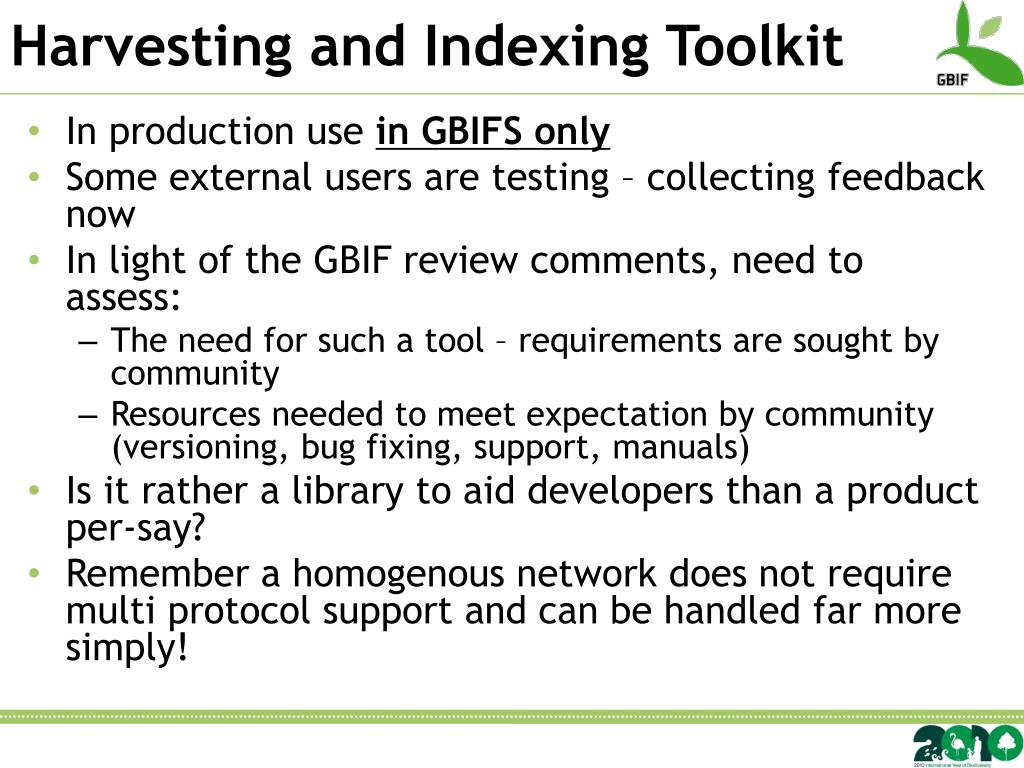

29. Harvesting and Indexing Toolkit • In production use in GBIFS only • Some external users are testing – collecting feedback now • In light of the GBIF review comments, need to assess: • The need for such a tool – requirements are sought by community • Resources needed to meet expectation by community (versioning, bug fixing, support, manuals) • Is it rather a library to aid developers than a product per-say? • Remember a homogenous network does not require multi protocol support and can be handled far more simply!

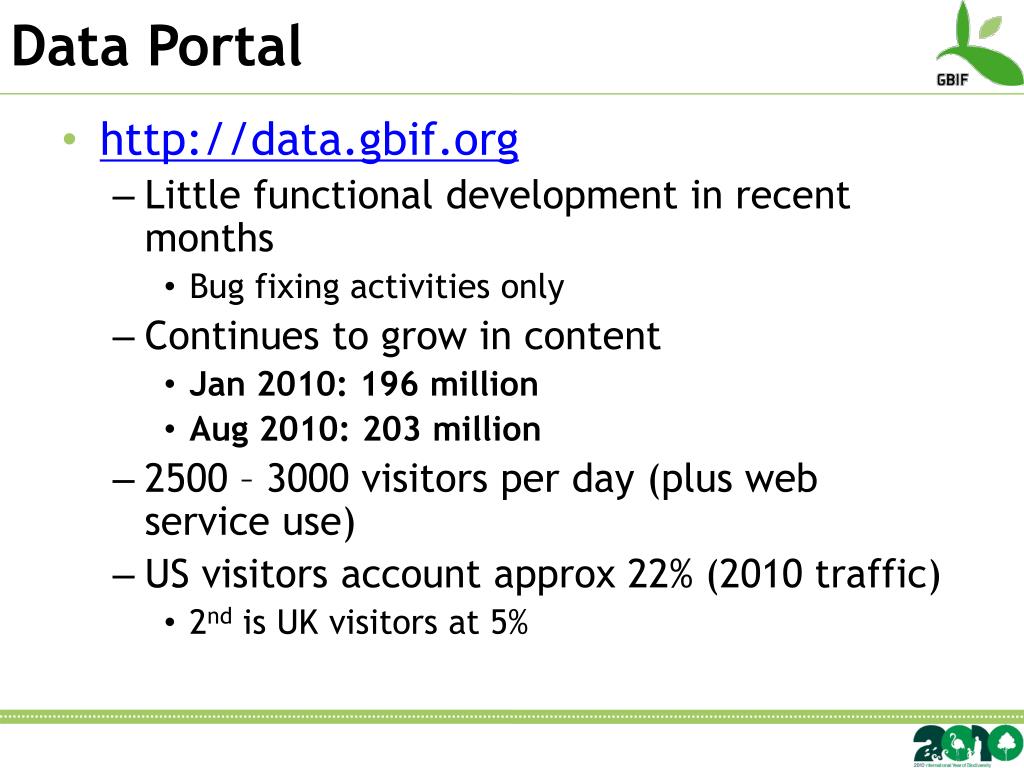

30. Data Portal • http://data.gbif.org • Little functional development in recent months • Bug fixing activities only • Continues to grow in content • Jan 2010: 196 million • Aug 2010: 203 million • 2500 – 3000 visitors per day (plus web service use) • US visitors account approx 22% (2010 traffic) • 2nd is UK visitors at 5%

31. Data Portal Evolutions • Portal will evolve by end 2011 • Improved taxonomic services and content • Achieved through the Global Names Architecture • Improved attribution and provenance • Achieve by enhancing the Registry • Improved occurrence indexing • Scalable solution, richer fields, reduced latency… etc • Improved map visualisations • Custom information feeds • Abstracts, repatriation, records modified • Improved dataset metadata • Determining fitness for use

32. Portal evolution Occurrence content

33. Portal evolution Taxonomic content and organisation

34. Portal evolution Metadata, attribution and feedback

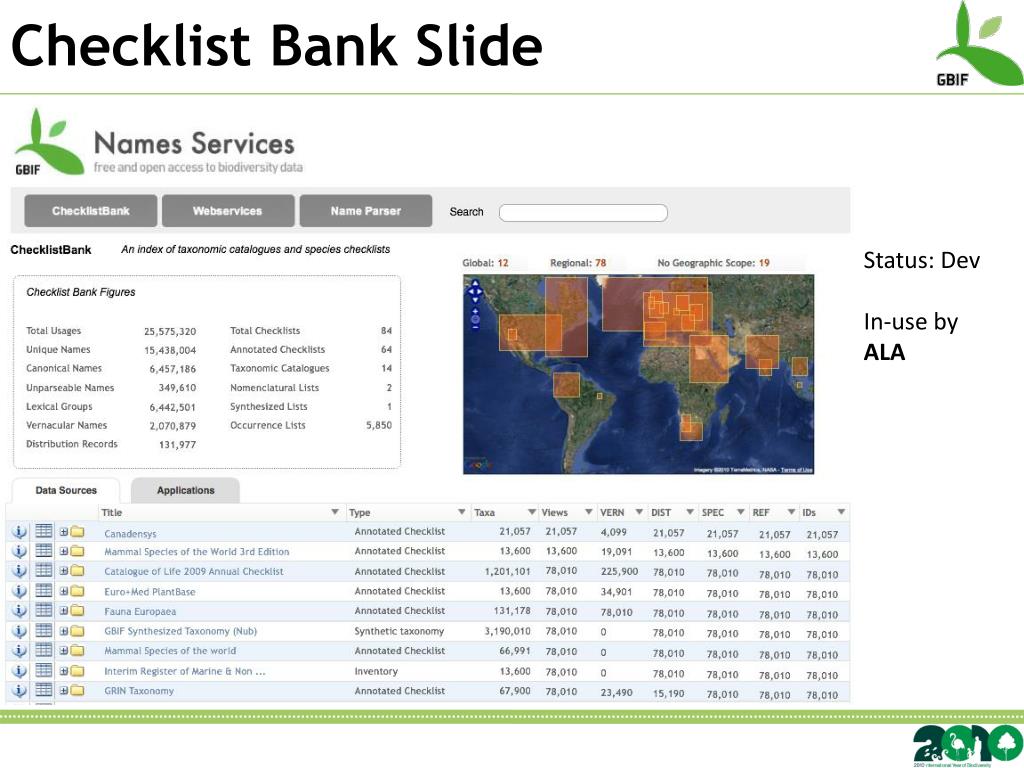

35. Checklist Bank Slide Status: Dev In-use by ALA

36. Data Portal Evolution The Portal is more than just a discovery system. The Portal will be a hub that allows: • Data custodians to • Register the existence of biodiversity data sources • Publish their content and in addition, rich information about the content (e.g. metadata documenting assembly methods) • Subscribe to annotations made against their content • Subscribe to information about the usage of their content • Access services of interest to them (e.g. quality control)

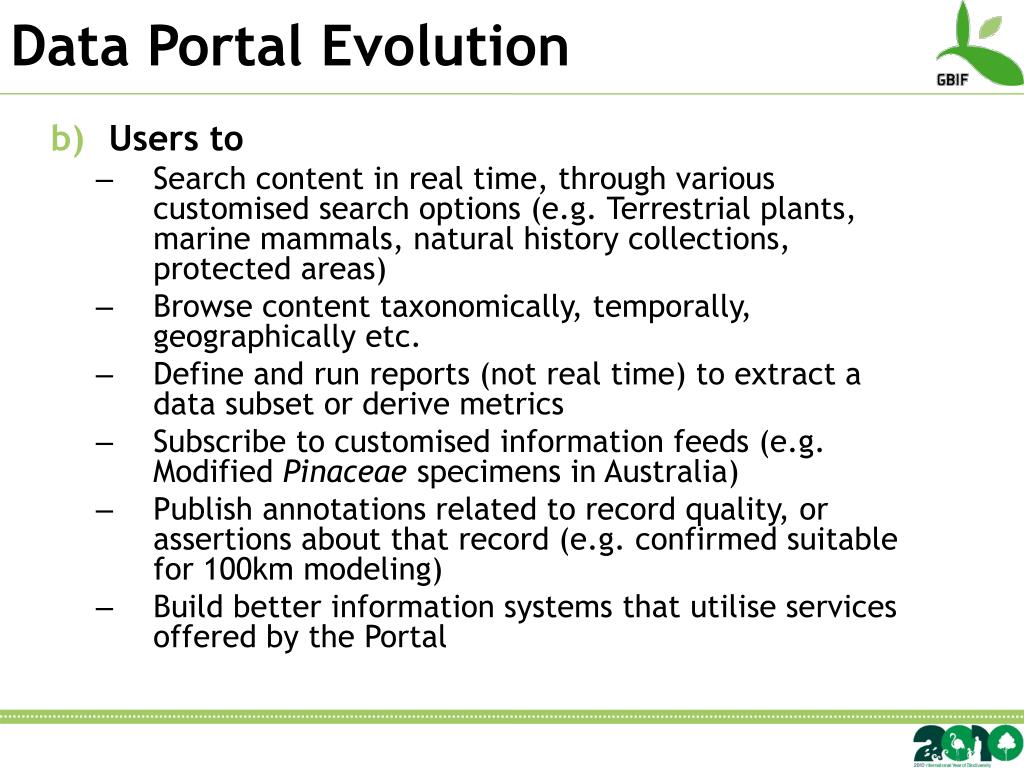

37. Data Portal Evolution • Users to • Search content in real time, through various customised search options (e.g. Terrestrial plants, marine mammals, natural history collections, protected areas) • Browse content taxonomically, temporally, geographically etc. • Define and run reports (not real time) to extract a data subset or derive metrics • Subscribe to customised information feeds (e.g. Modified Pinaceae specimens in Australia) • Publish annotations related to record quality, or assertions about that record (e.g. confirmed suitable for 100km modeling) • Build better information systems that utilise services offered by the Portal

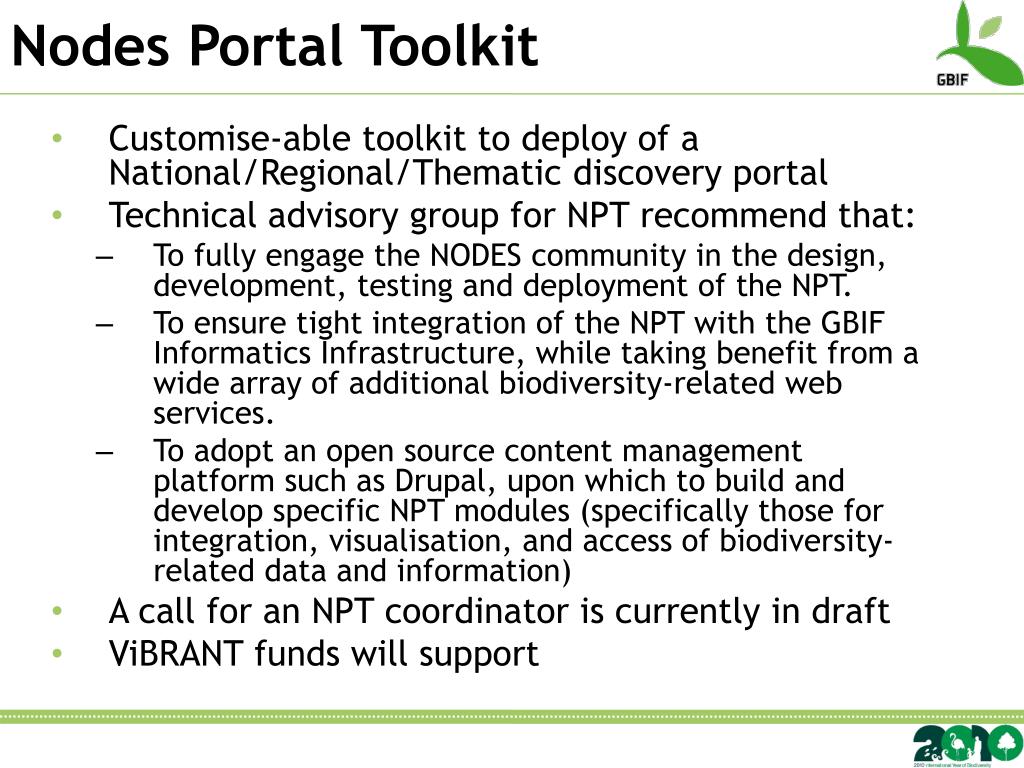

38. Nodes Portal Toolkit • Customise-able toolkit to deploy of a National/Regional/Thematic discovery portal • Technical advisory group for NPT recommend that: • To fully engage the NODES community in the design, development, testing and deployment of the NPT. • To ensure tight integration of the NPT with the GBIF Informatics Infrastructure, while taking benefit from a wide array of additional biodiversity-related web services. • To adopt an open source content management platform such as Drupal, upon which to build and develop specific NPT modules (specifically those for integration, visualisation, and access of biodiversity-related data and information) • A call for an NPT coordinator is currently in draft • ViBRANT funds will support

39. Communications Participant forums 13 August Launch http://community.gbif.org/

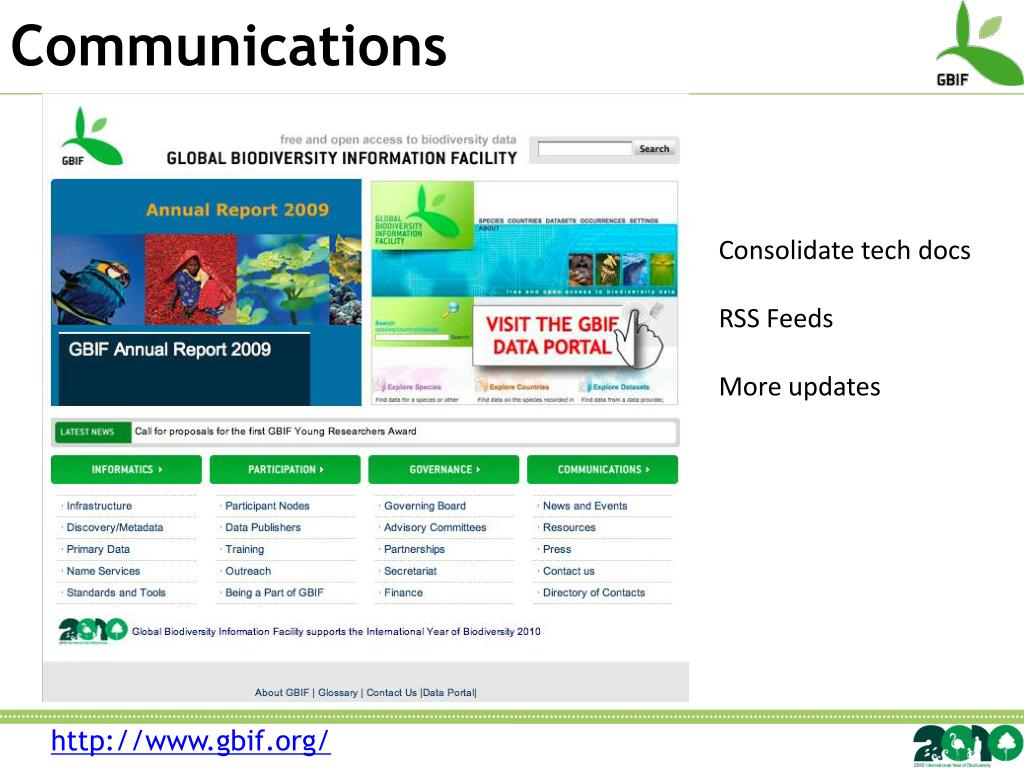

40. Communications Consolidate tech docs RSS Feeds More updates http://www.gbif.org/

41. Secretariat Tech Capacity • Resources • 3 current openings Java Developers • Vocabularies/Ontology Developer (30 months) –ViBRANT • Taxonomic Publishing Developer (18 months) – i4Life / Catalogue of Life

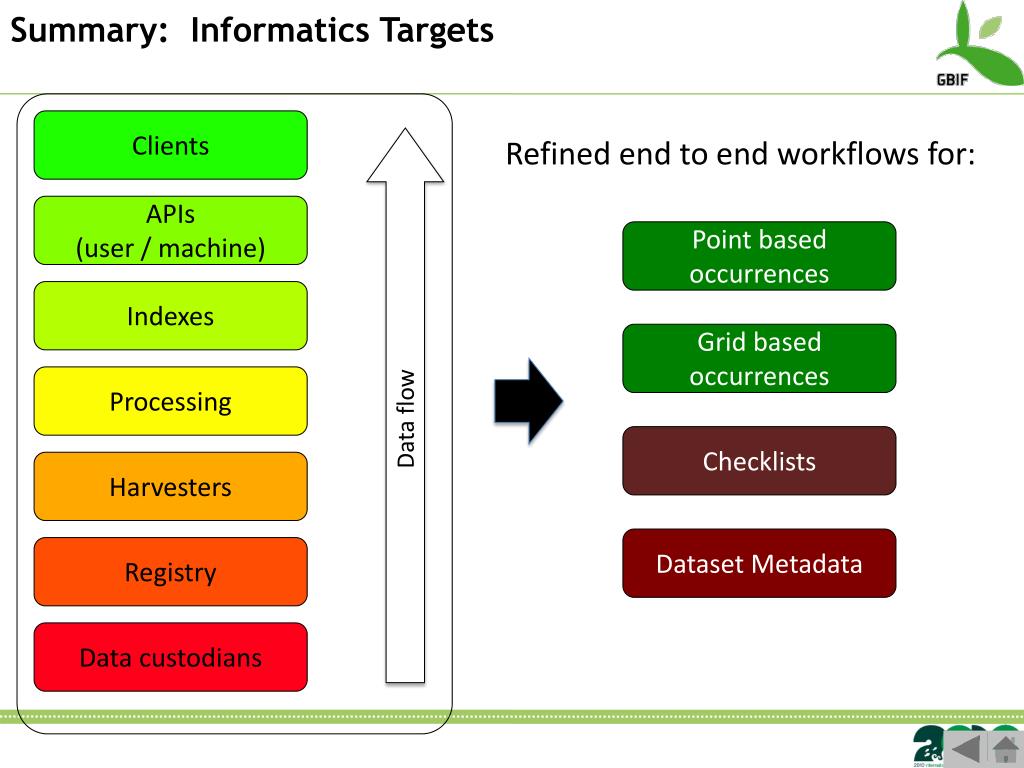

42. Summary: Informatics Targets Clients Refined end to end workflows for: APIs (user / machine) Point based occurrences Indexes Grid based occurrences Processing Data flow Checklists Harvesters Dataset Metadata Registry Data custodians
