Molecular Surface Abstraction

Explore how scientists use surface abstraction for quick analysis of complex protein surfaces, complementing existing visualizations. This method preserves large-scale structure and aids in computational analysis.

lucky
Télécharger la présentation

Molecular Surface Abstraction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Greg Cipriano Advised by Michael Gleicher and George N. Phillips Jr. Molecular Surface Abstraction

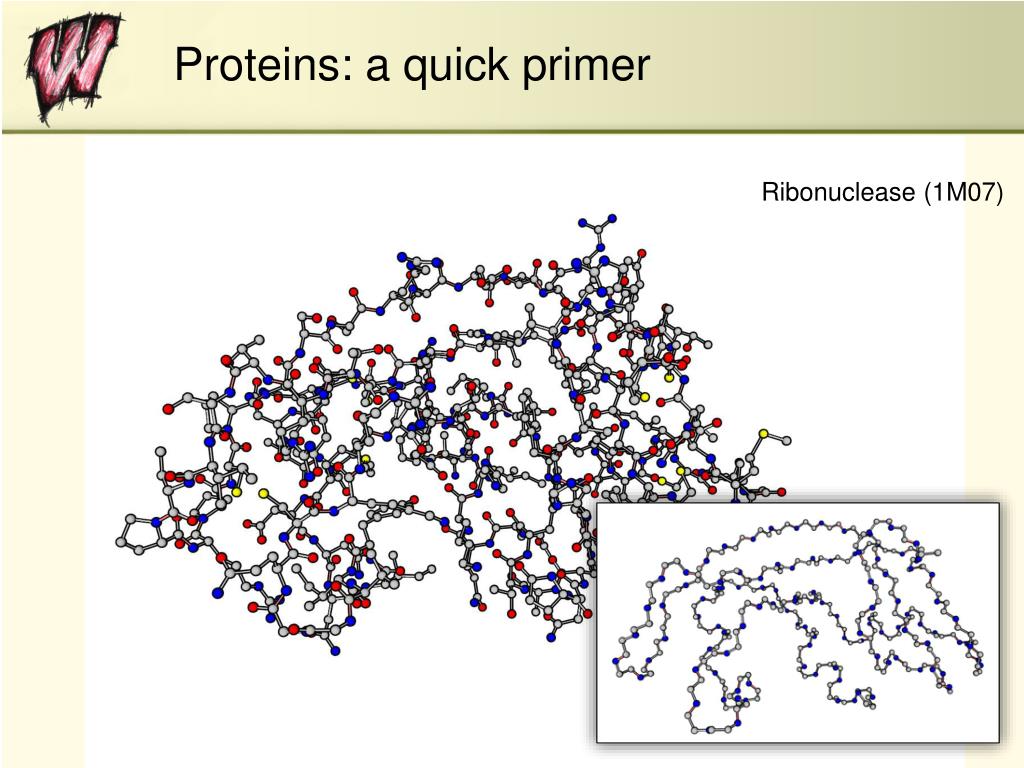

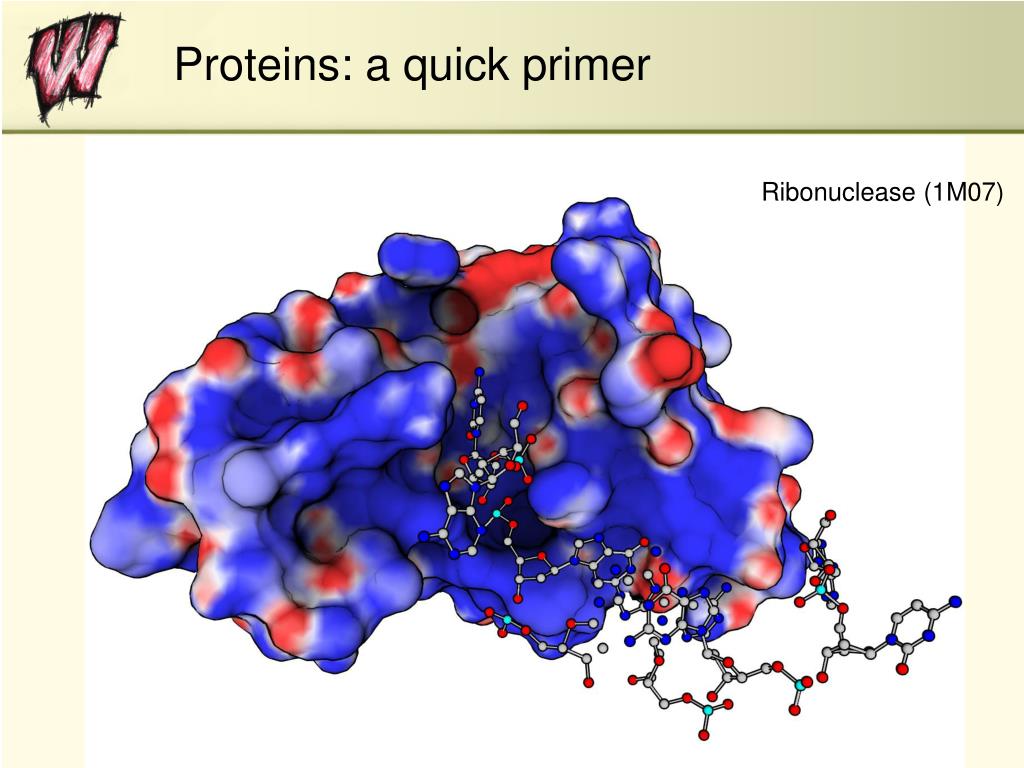

  2. Proteins: a quick primer Ribonuclease (1M07)

  3. Proteins: a quick primer Ribonuclease (1M07)

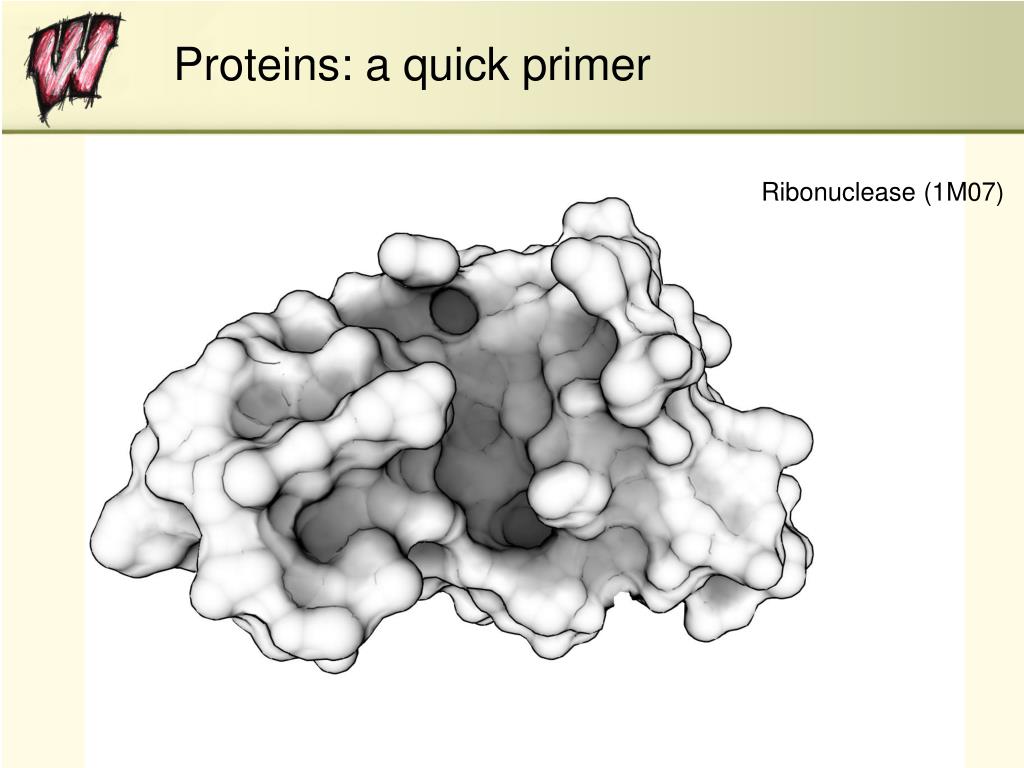

  4. Proteins: a quick primer Ribonuclease (1M07)

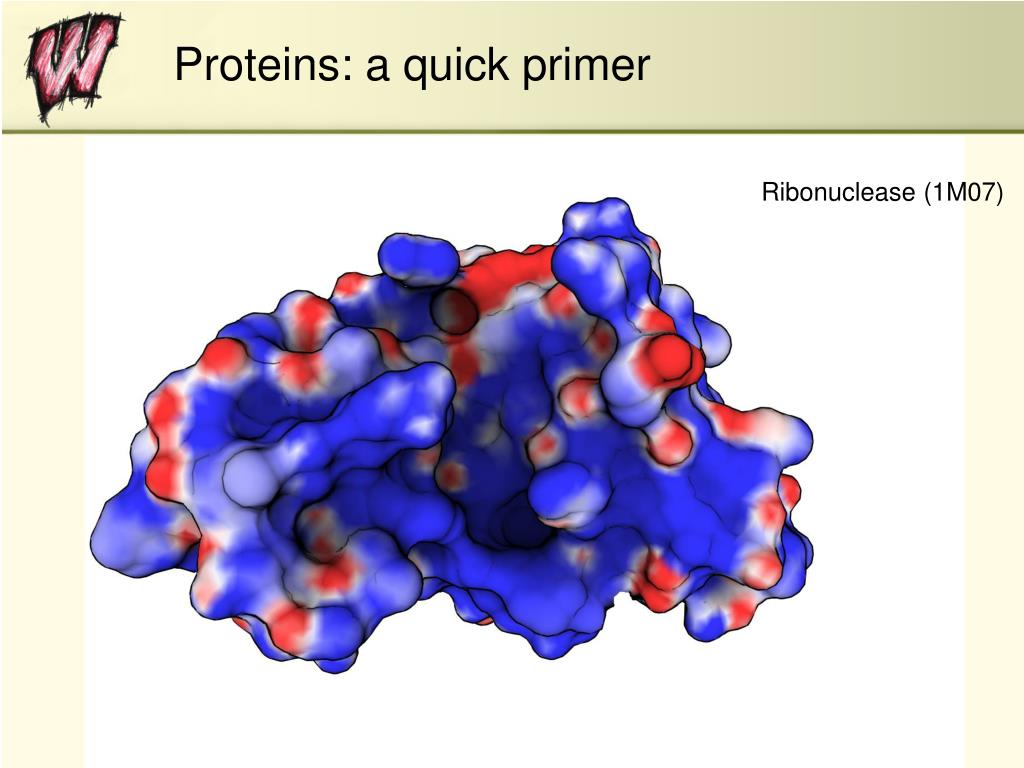

  5. Proteins: a quick primer Ribonuclease (1M07)

  6. Proteins: a quick primer Ribonuclease (1M07)

  7. Proteins: a quick primer Ribonuclease (1M07)

  8. Lock and Key Metaphor Proteins and their ligands have complementary • Shape • Charge • ...

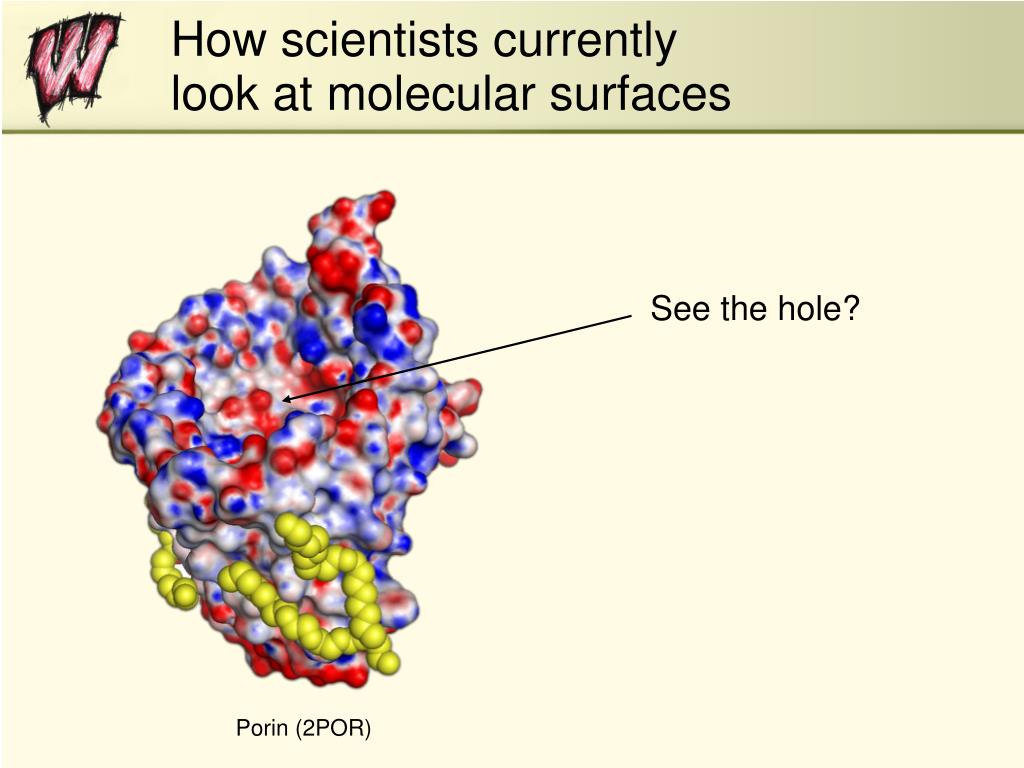

  9. How scientists currently look at molecular surfaces See the hole? Porin(2POR)

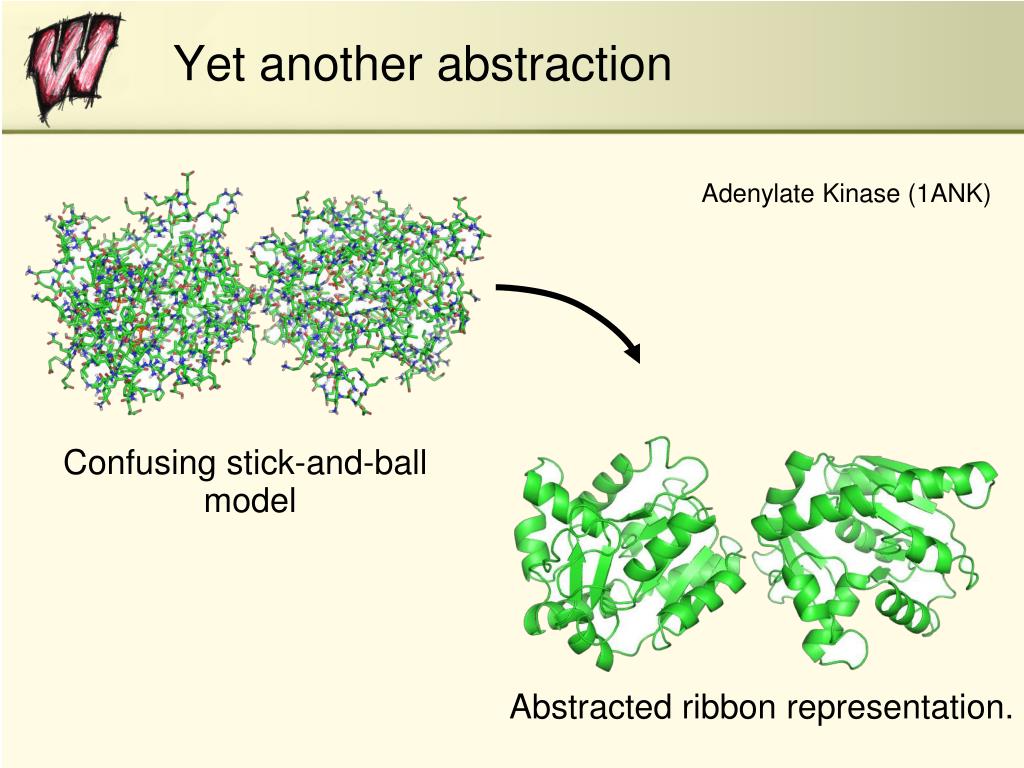

  10. Yet another abstraction AdenylateKinase (1ANK) Confusing stick-and-ball model Abstracted ribbon representation.

  11. Our surface abstraction Porin(2POR)

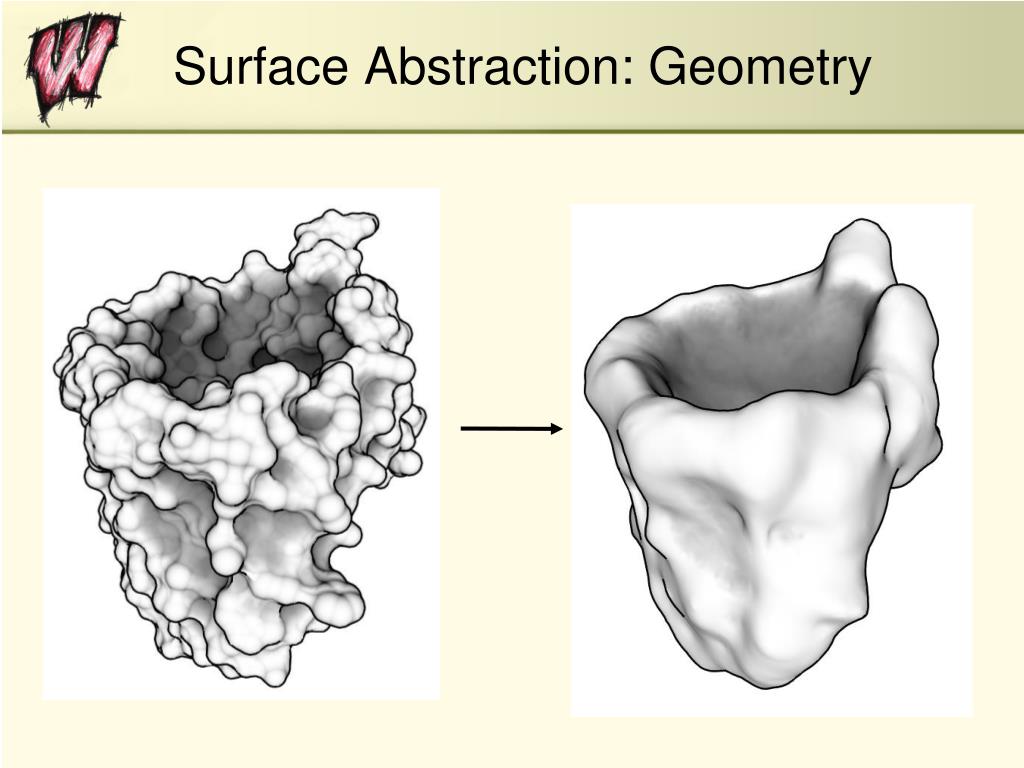

  12. Surface Abstraction:Geometry

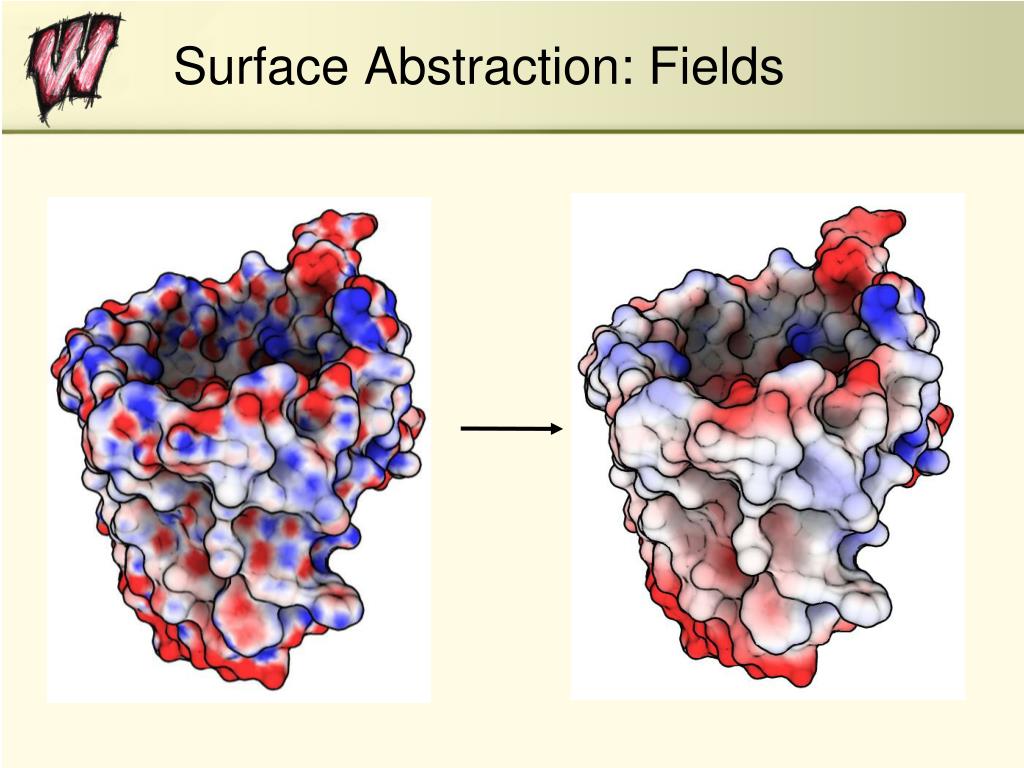

  13. Surface Abstraction: Fields

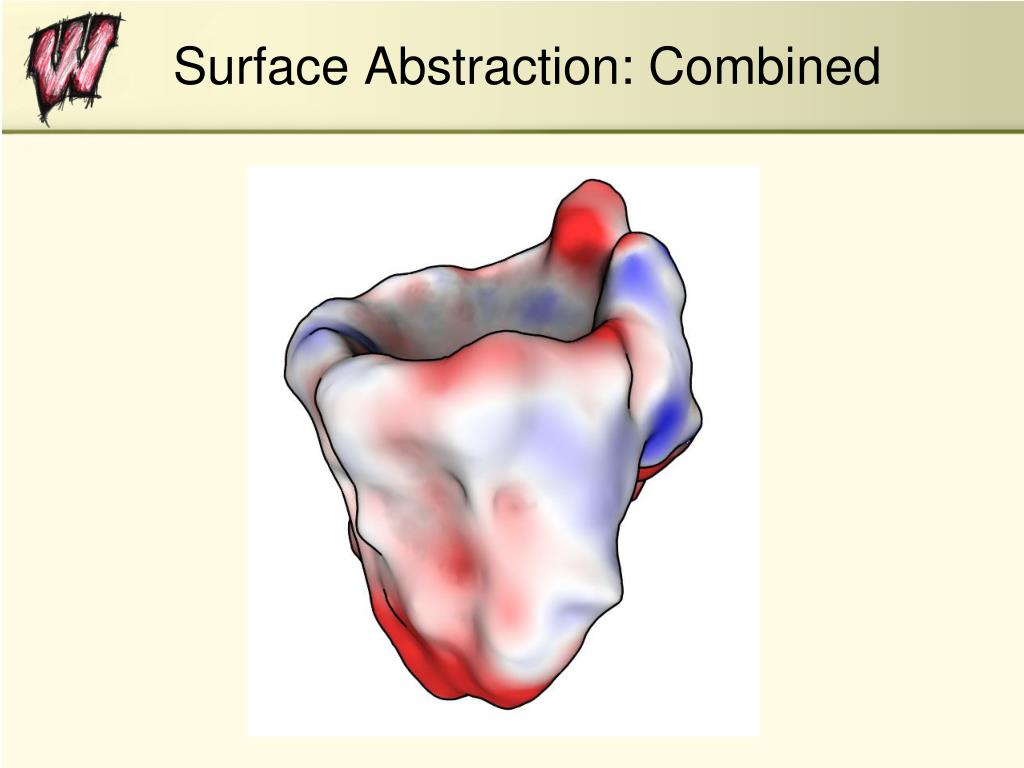

  14. Surface Abstraction: Combined

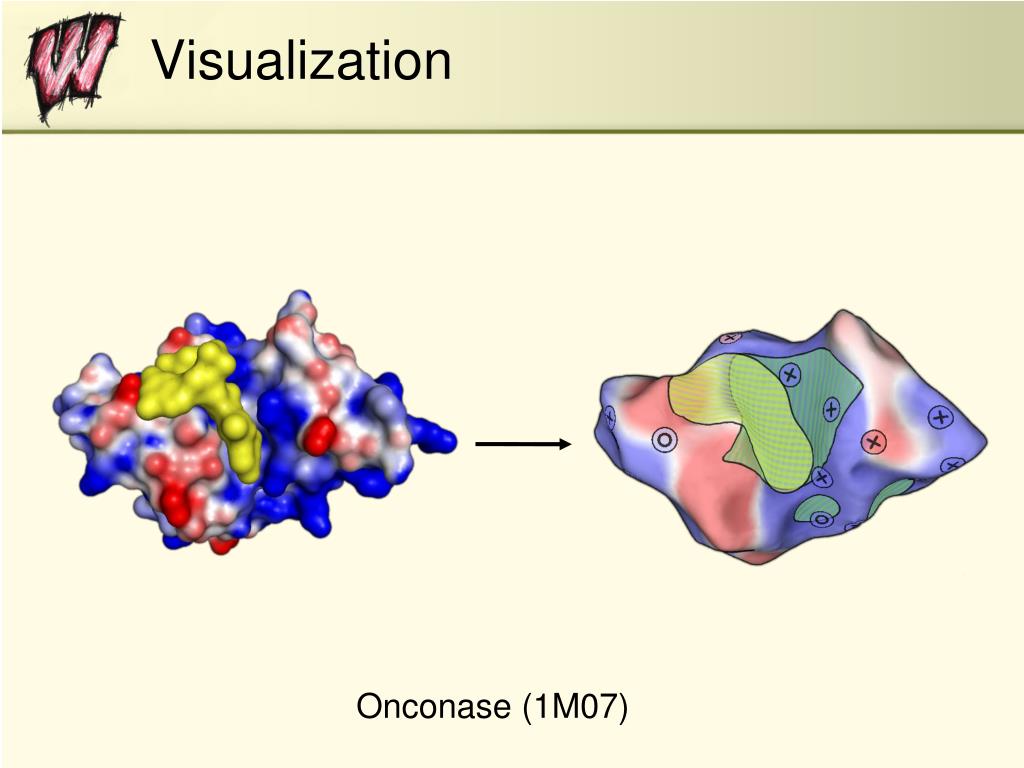

  15. Visualization Onconase (1M07)‏

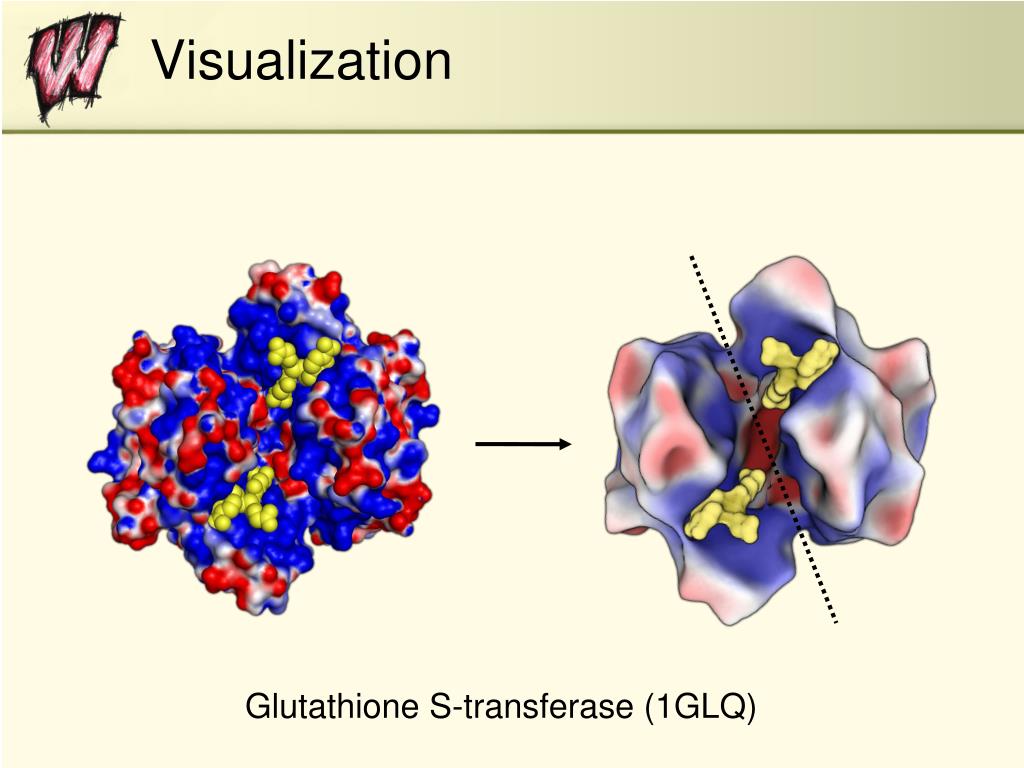

  16. Visualization Glutathione S-transferase(1GLQ)‏

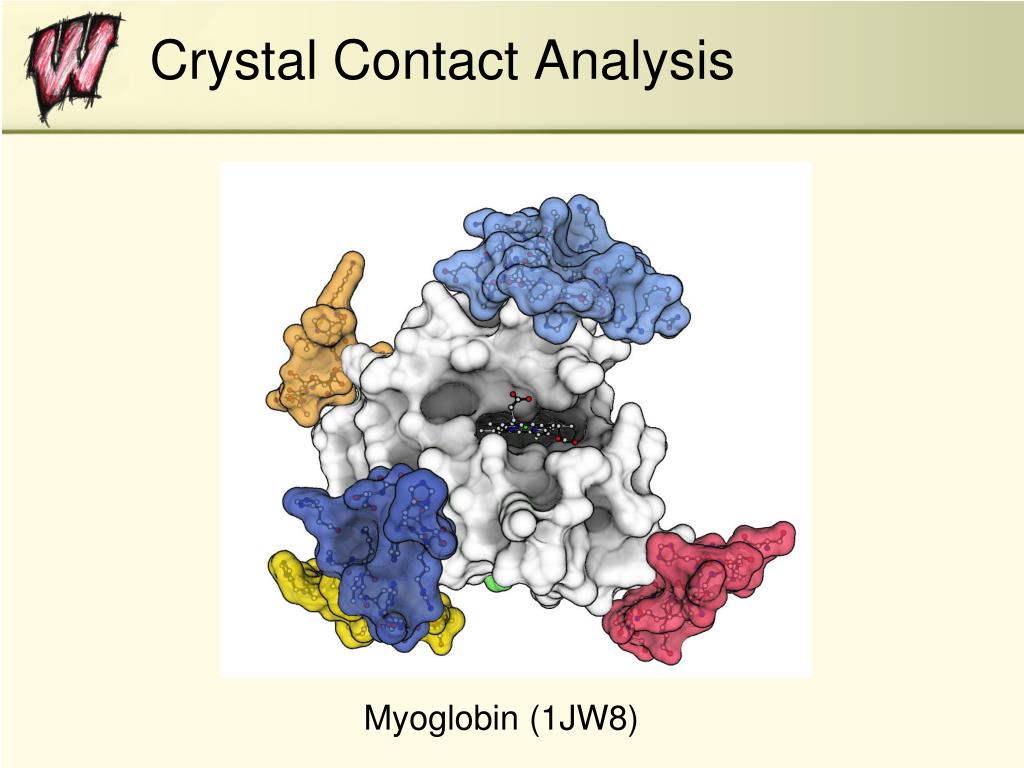

  17. Crystal Contact Analysis Myoglobin(1JW8)‏

  18. Crystal Contact Analysis

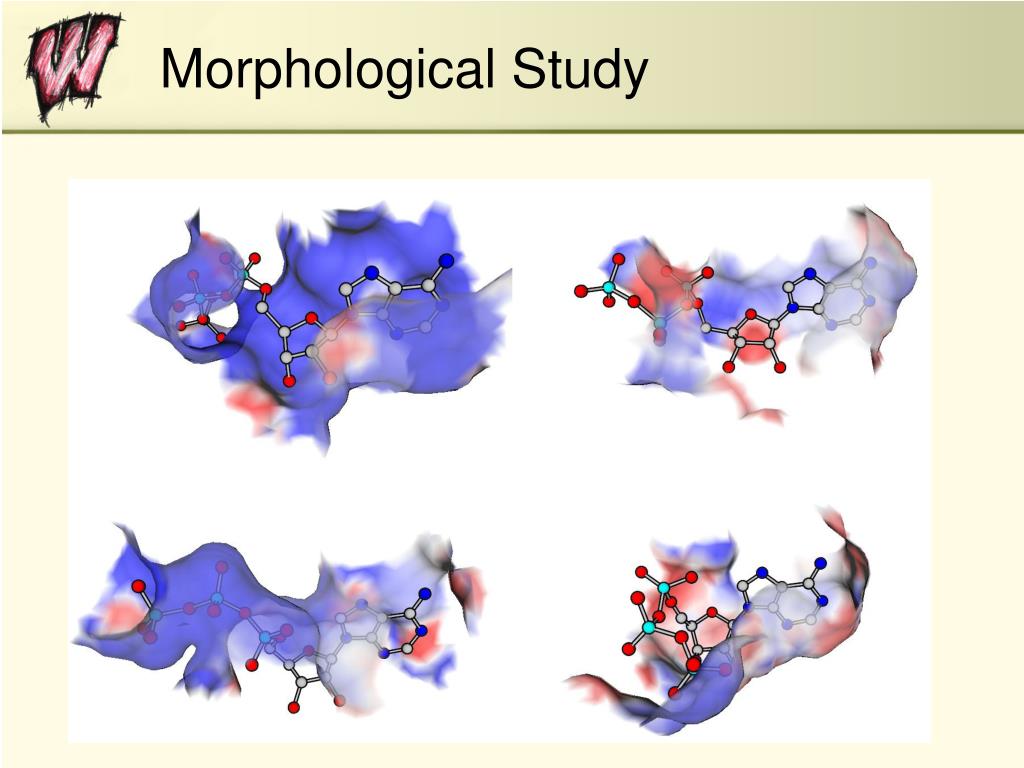

  19. Morphological Study

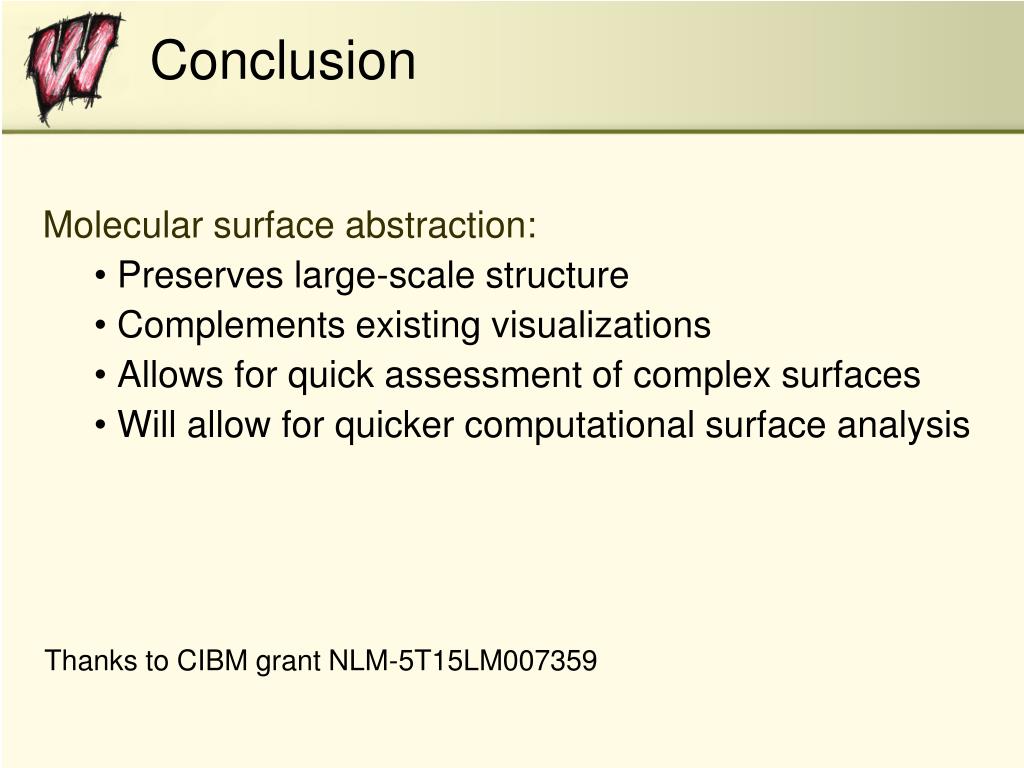

  20. Conclusion Molecular surface abstraction: Preserves large-scale structure Complements existing visualizations Allows for quick assessment of complex surfaces Will allow for quicker computational surface analysis Thanks to CIBM grant NLM-5T15LM007359

  21. Thank You!
