  1. Lesson 18Wireshark Capture AnalysisWho Shot My Computer?

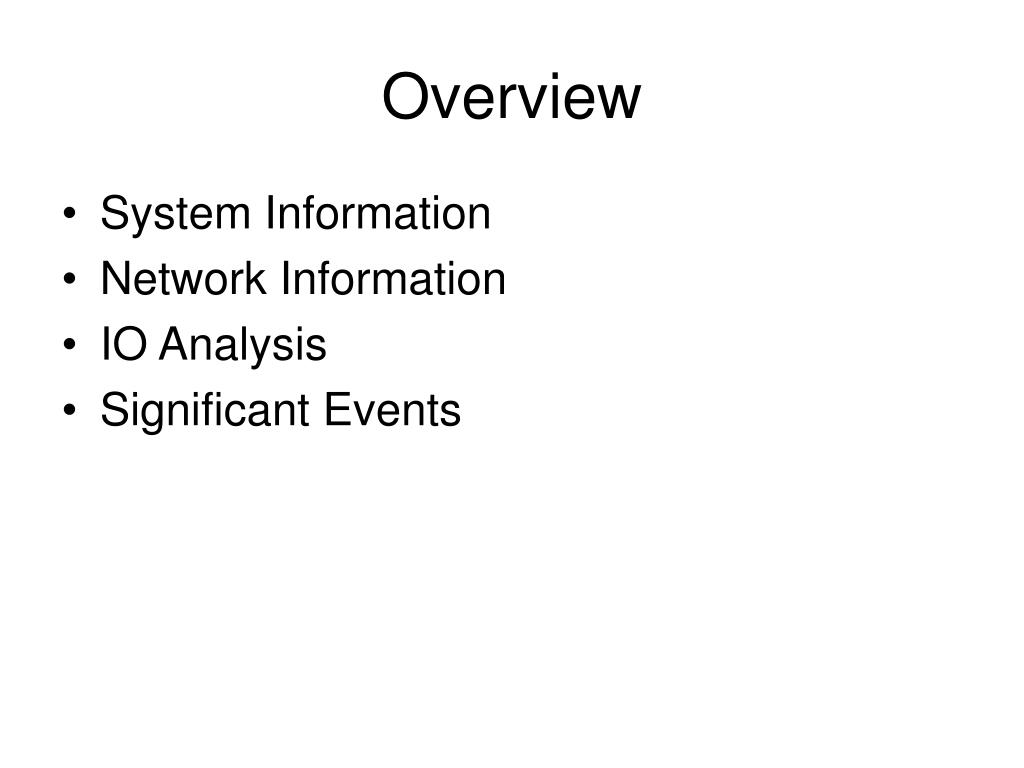

  2. Overview • System Information • Network Information • IO Analysis • Significant Events

  3. Tools Used • WireShark • EtherApe • SNORT • Grey Matter

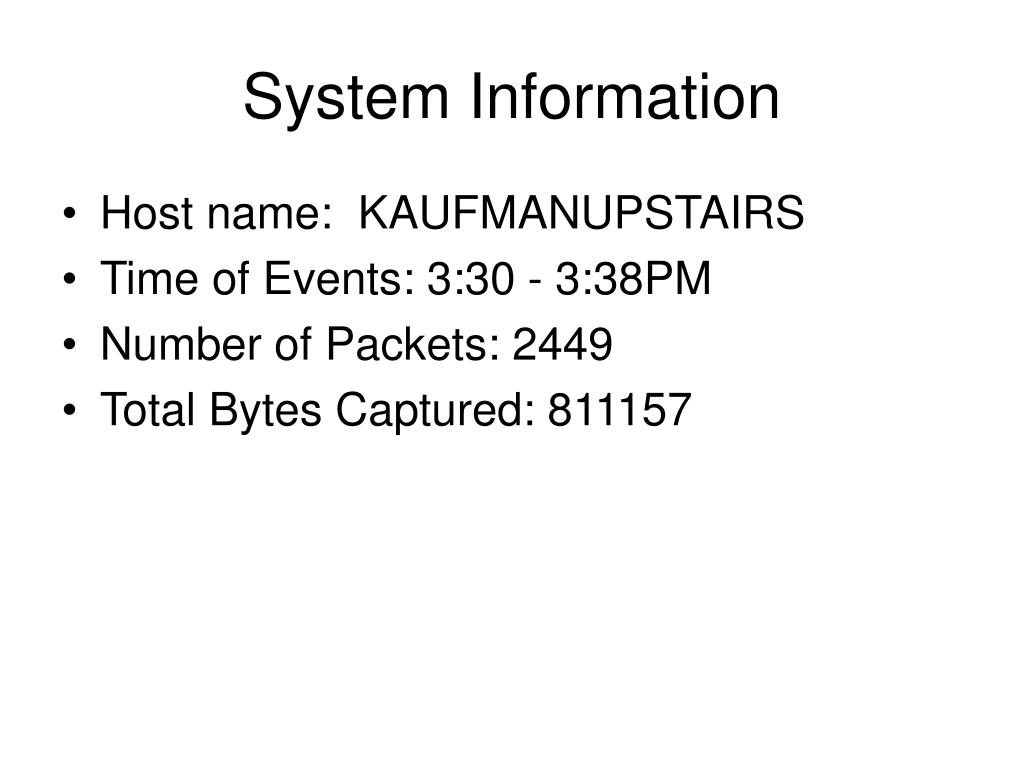

  4. System Information • Host name: KAUFMANUPSTAIRS • Time of Events: 3:30 - 3:38PM • Number of Packets: 2449 • Total Bytes Captured: 811157

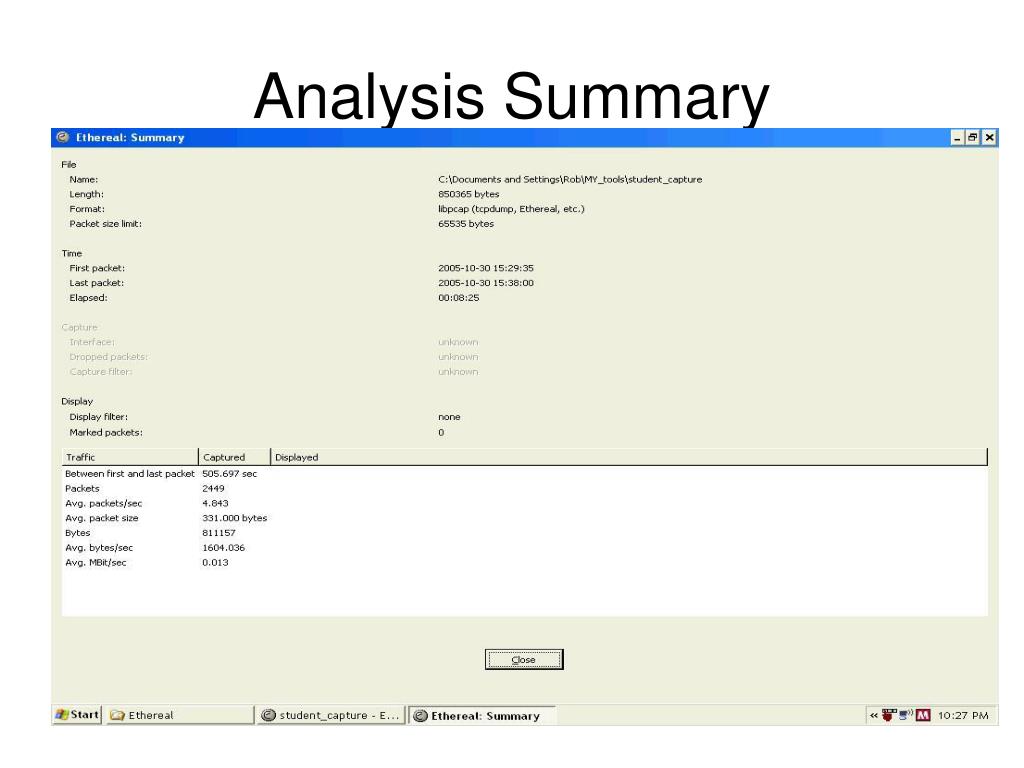

  5. Analysis Summary

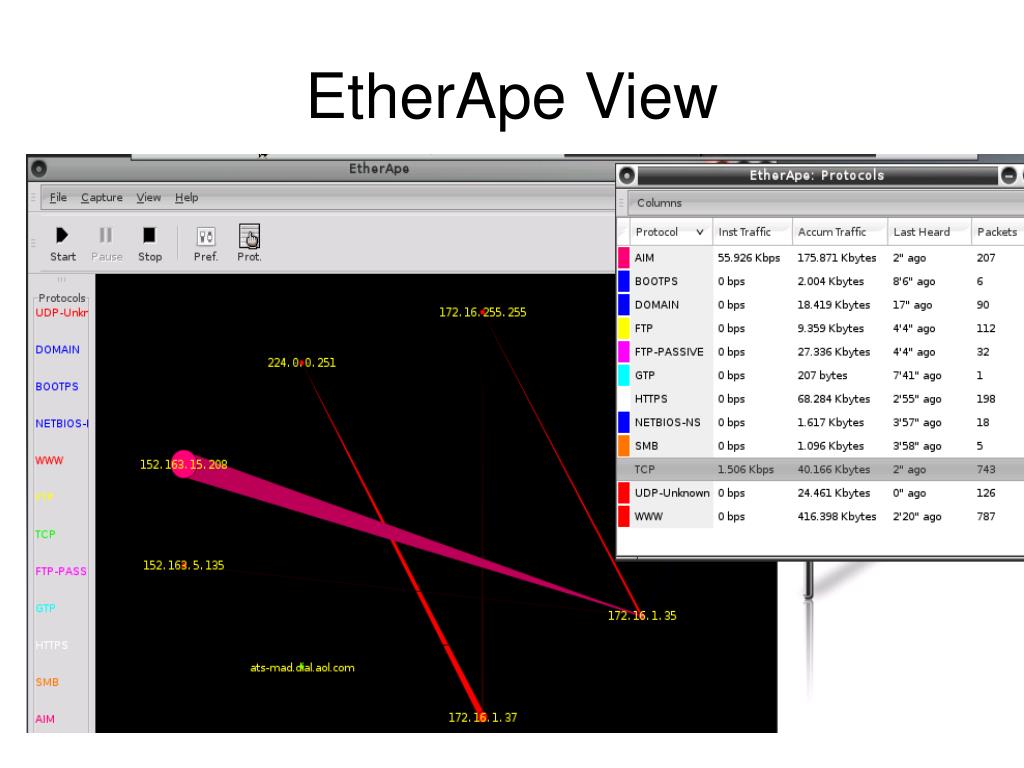

  6. EtherApe View

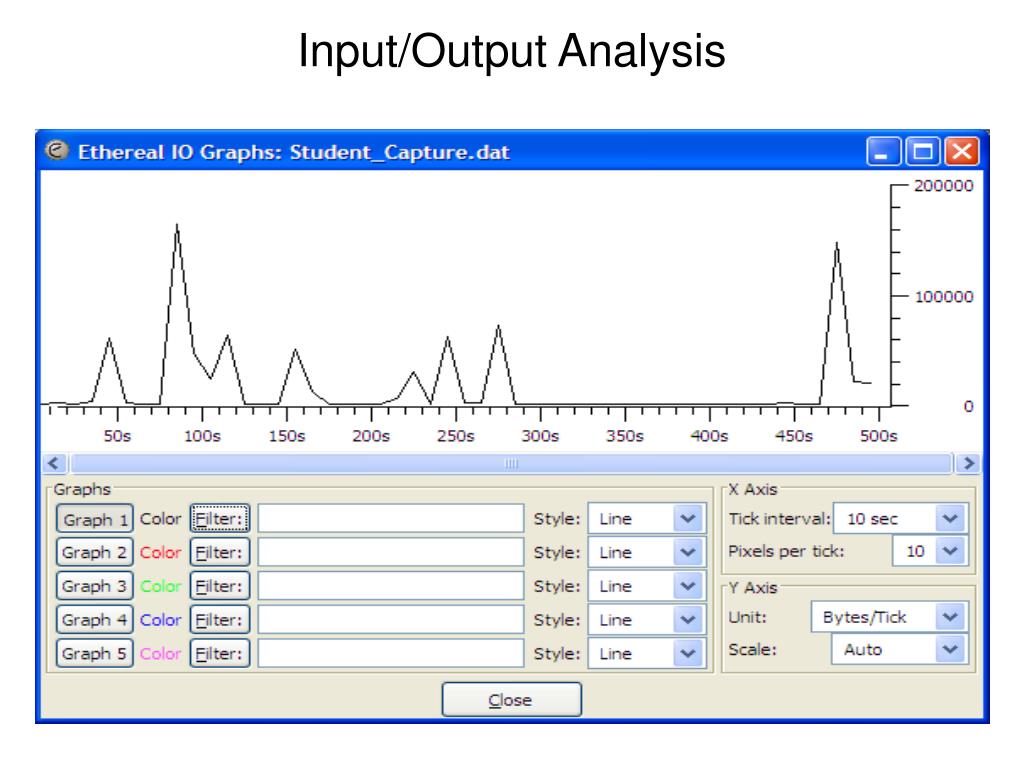

  7. Input/Output Analysis

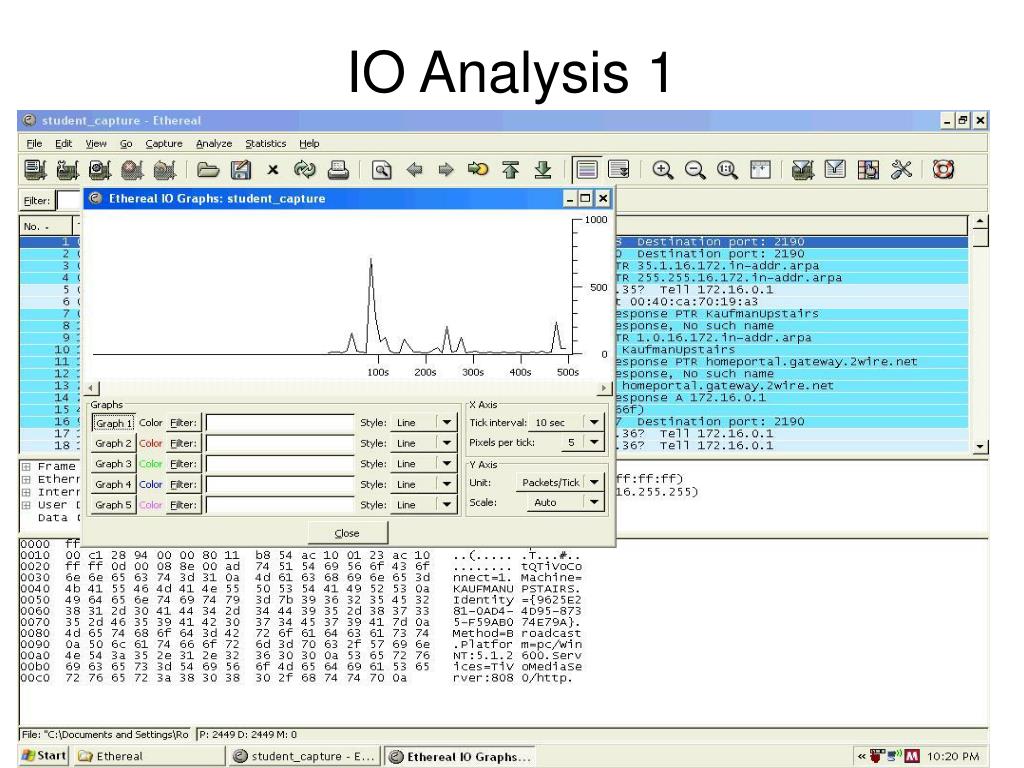

  8. IO Analysis 1

  9. IO Analysis 2

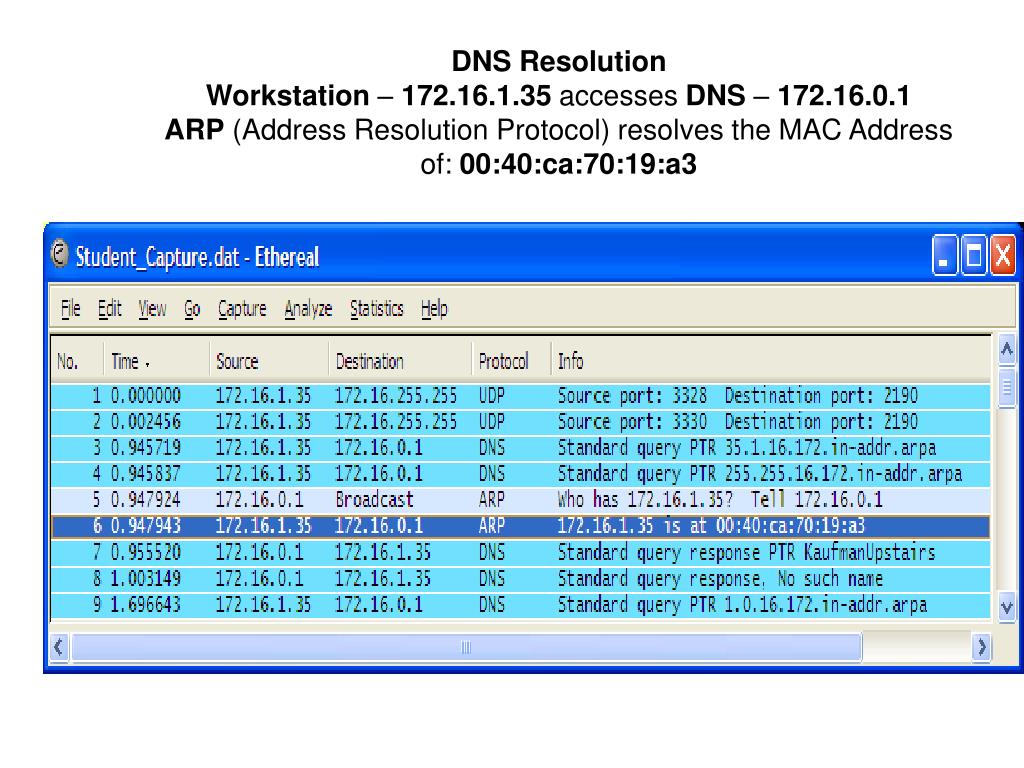

  10. DNS ResolutionWorkstation – 172.16.1.35 accesses DNS – 172.16.0.1ARP (Address Resolution Protocol) resolves the MAC Address of: 00:40:ca:70:19:a3

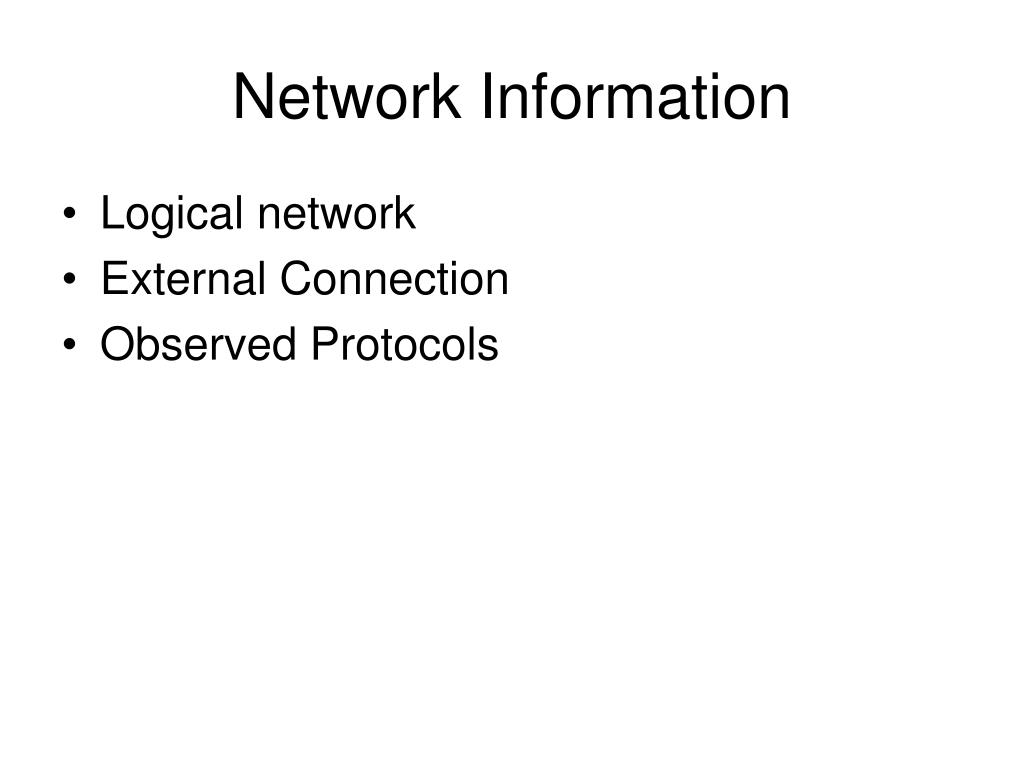

  11. Network Information • Logical network • External Connection • Observed Protocols

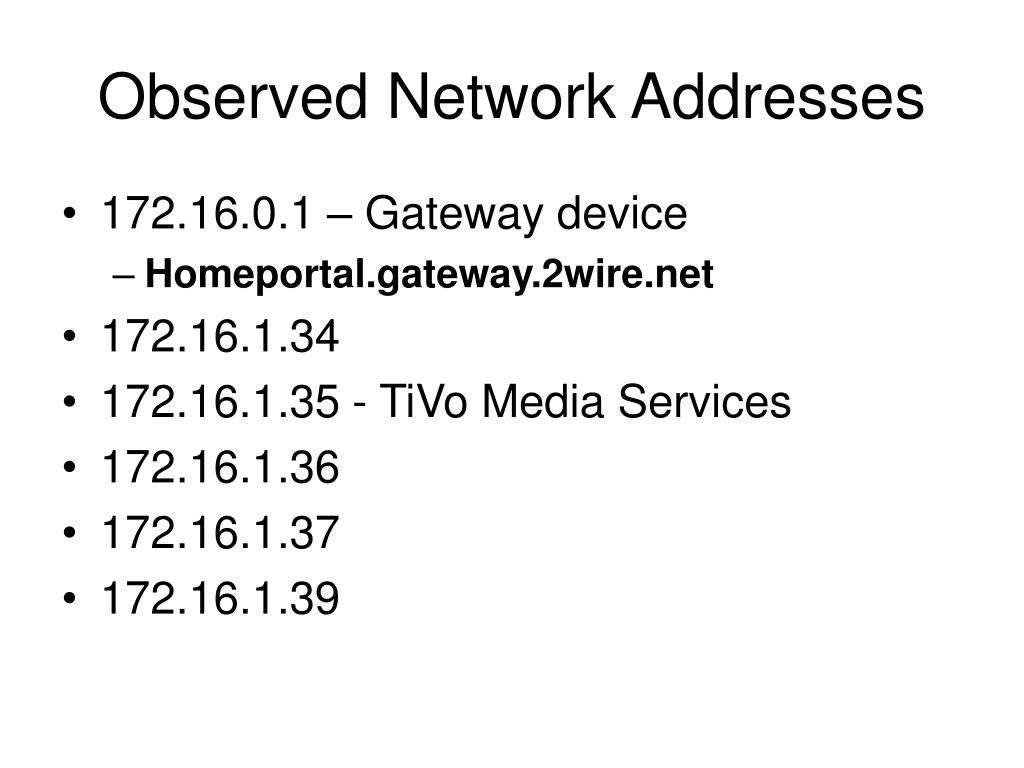

  12. Observed Network Addresses • 172.16.0.1 – Gateway device • Homeportal.gateway.2wire.net • 172.16.1.34 • 172.16.1.35 - TiVo Media Services • 172.16.1.36 • 172.16.1.37 • 172.16.1.39

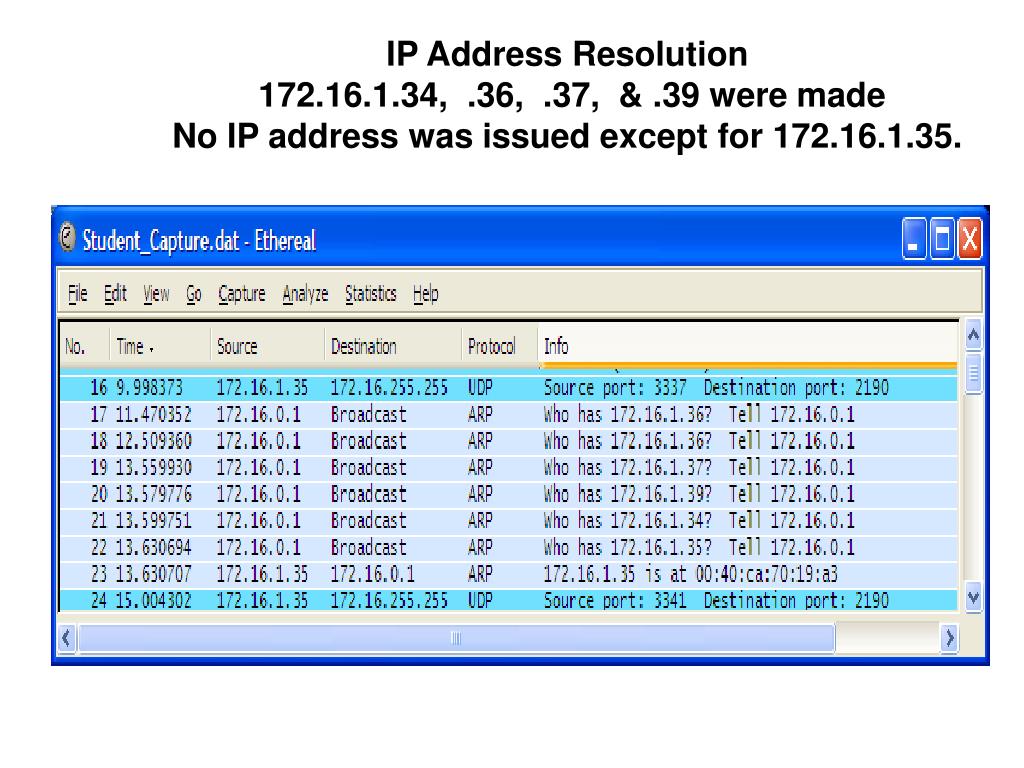

  13. IP Address Resolution 172.16.1.34, .36, .37, & .39 were made No IP address was issued except for 172.16.1.35.

  14. Gateway wpad.gateway.2wire.net

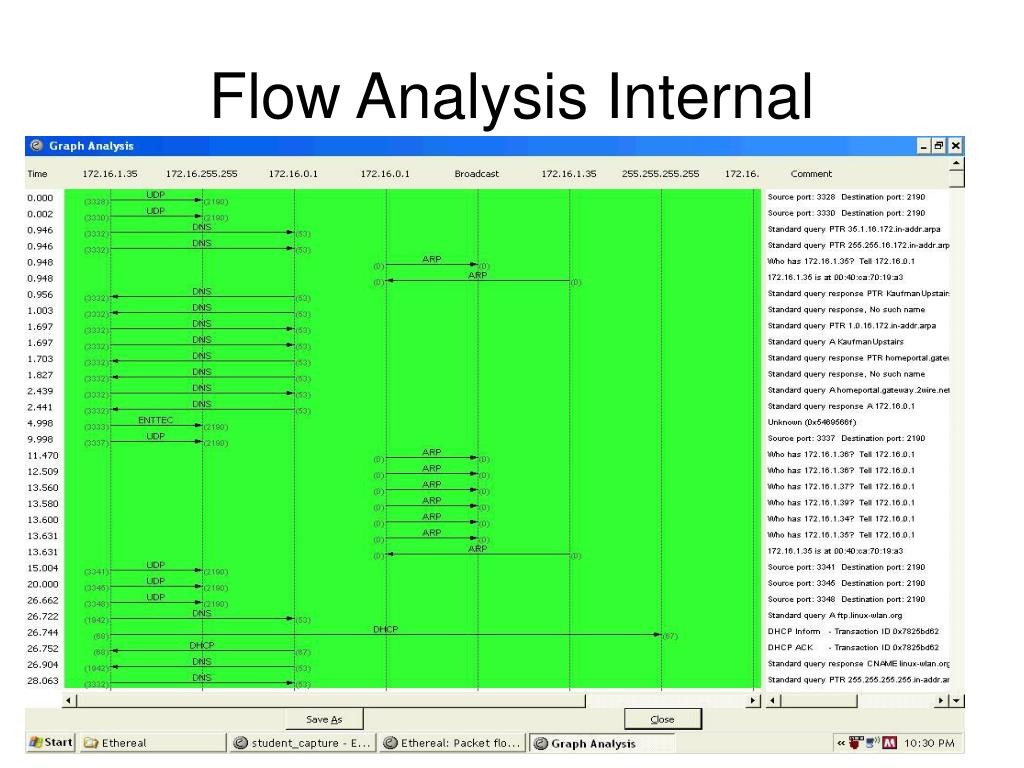

  15. Flow Analysis Internal

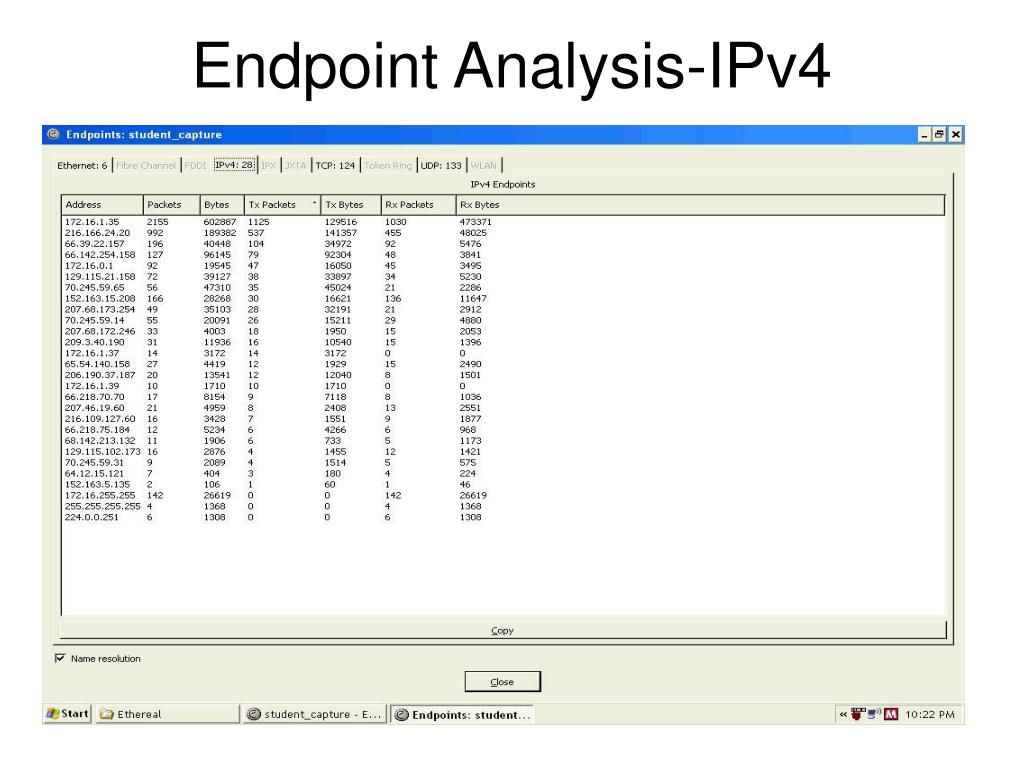

  16. Endpoint Analysis-IPv4

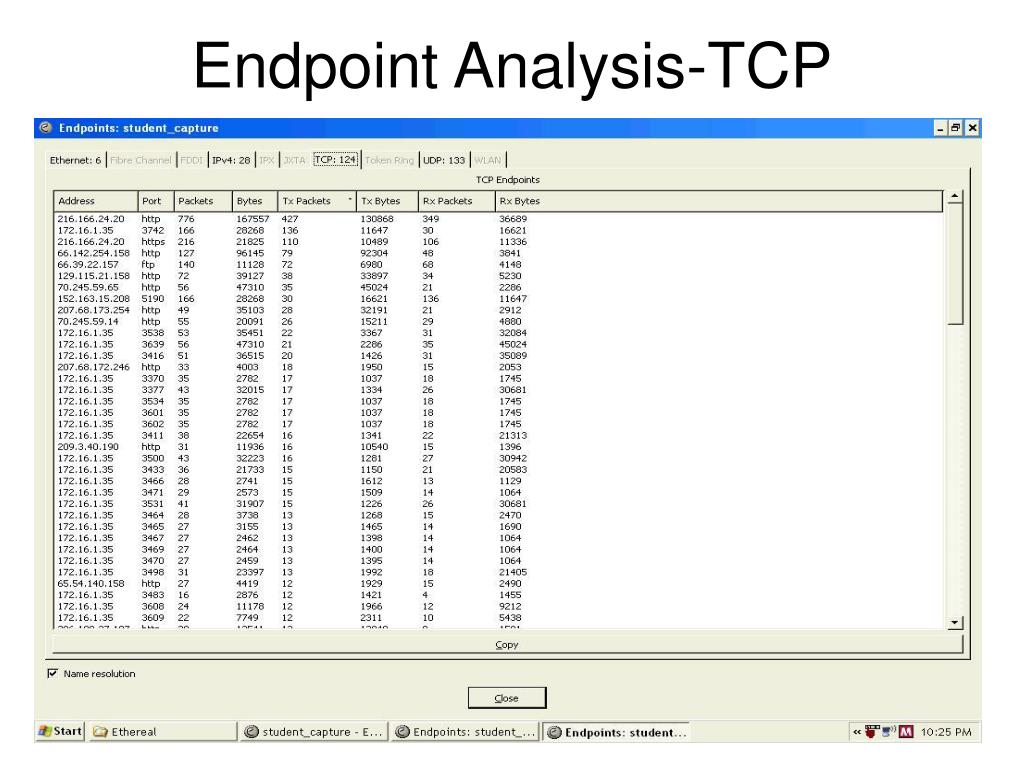

  17. Endpoint Analysis-TCP

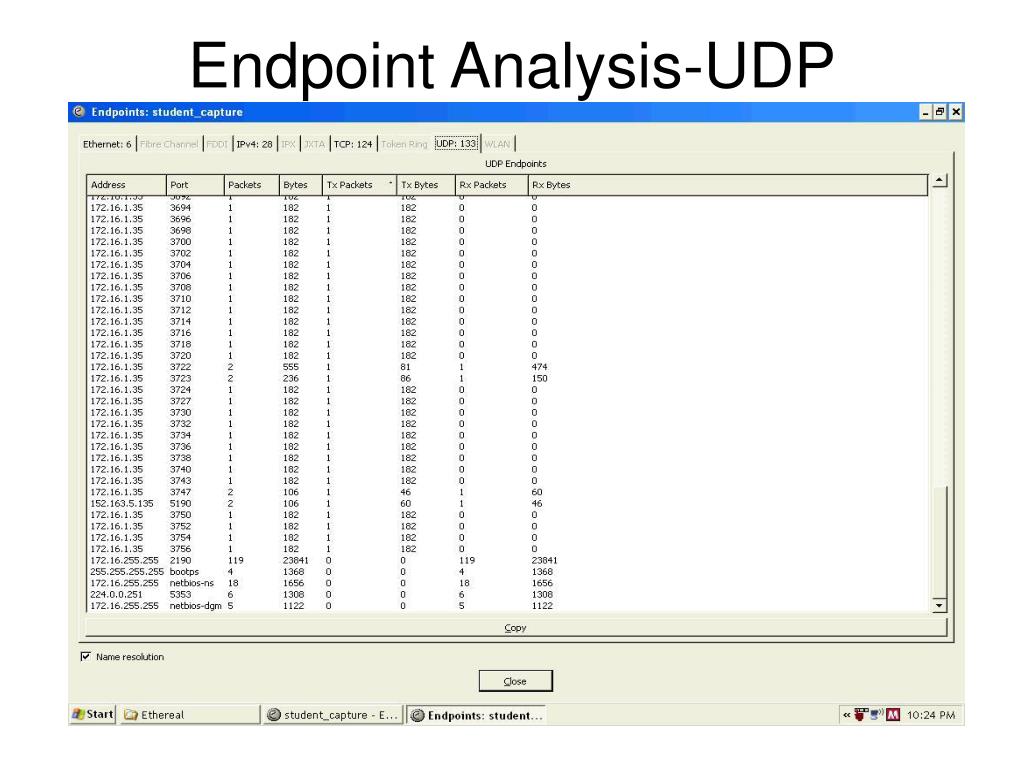

  18. Endpoint Analysis-UDP

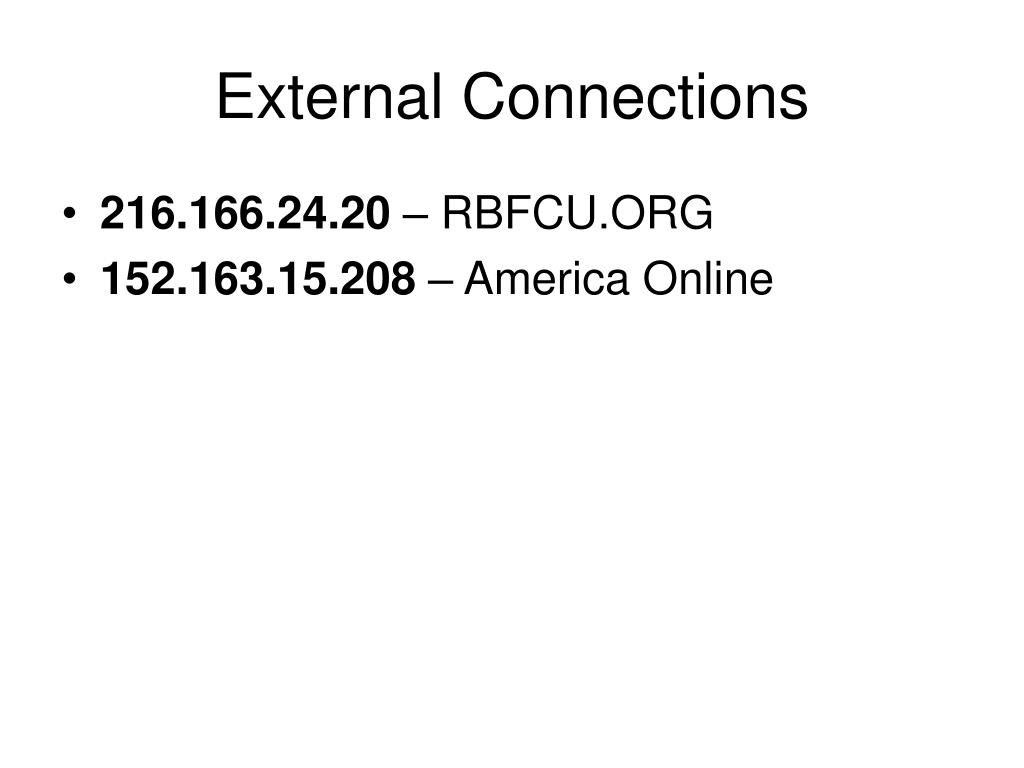

  19. External Connections • 216.166.24.20 – RBFCU.ORG • 152.163.15.208 – America Online

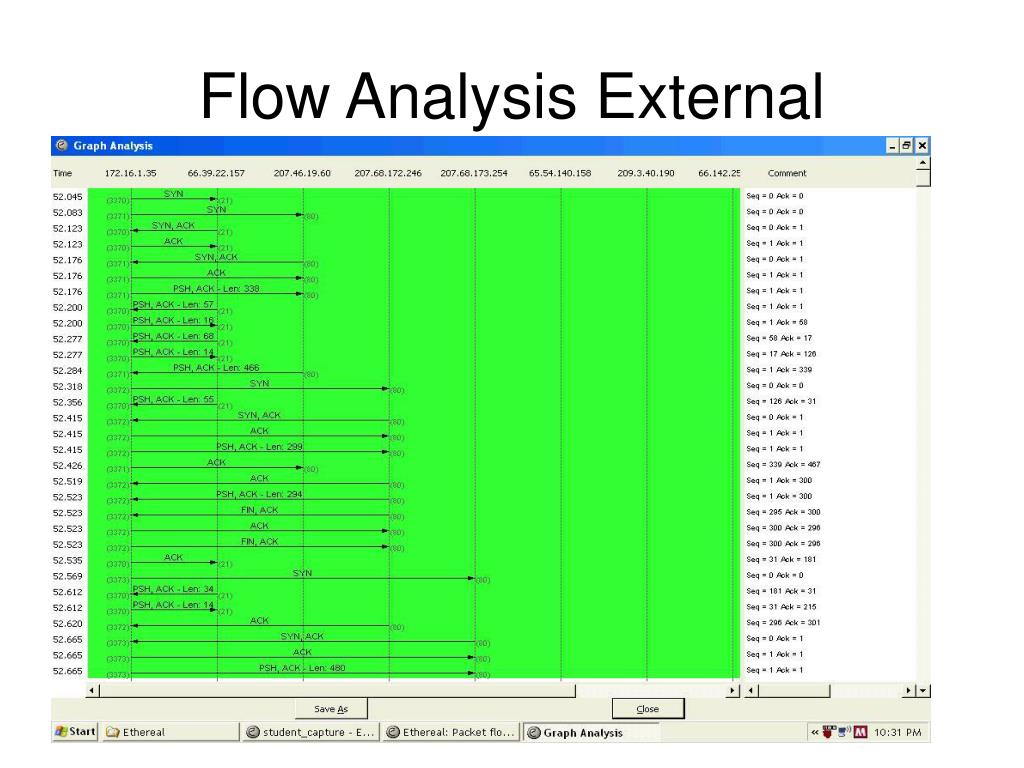

  20. Flow Analysis External

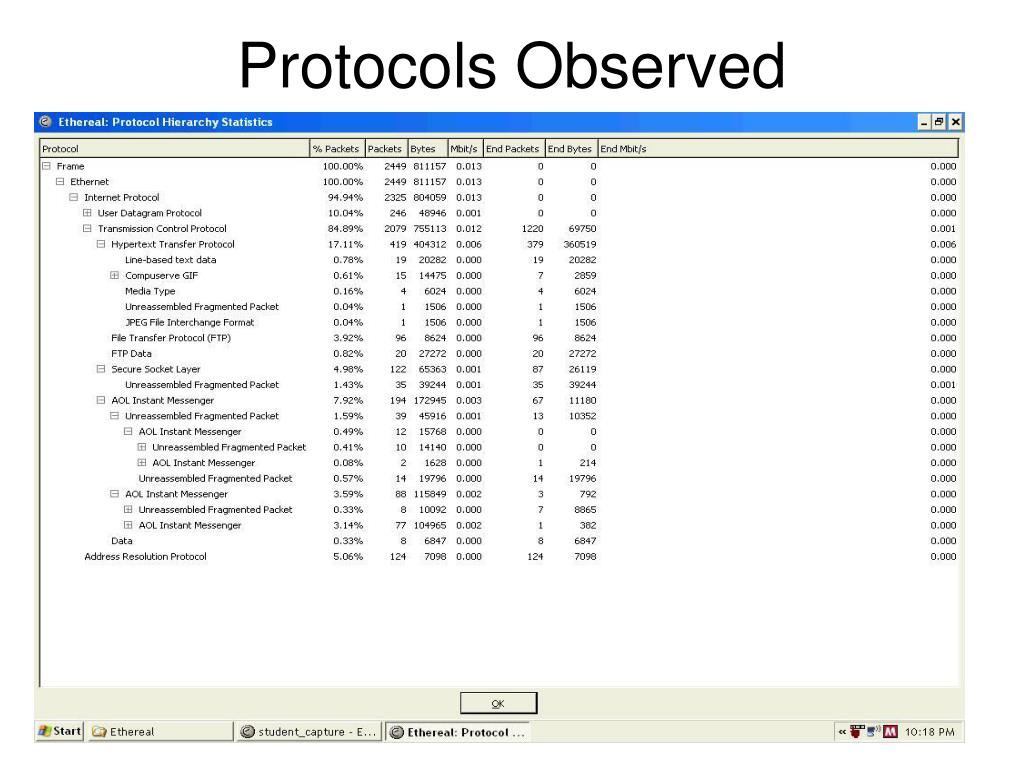

  21. Protocols Observed

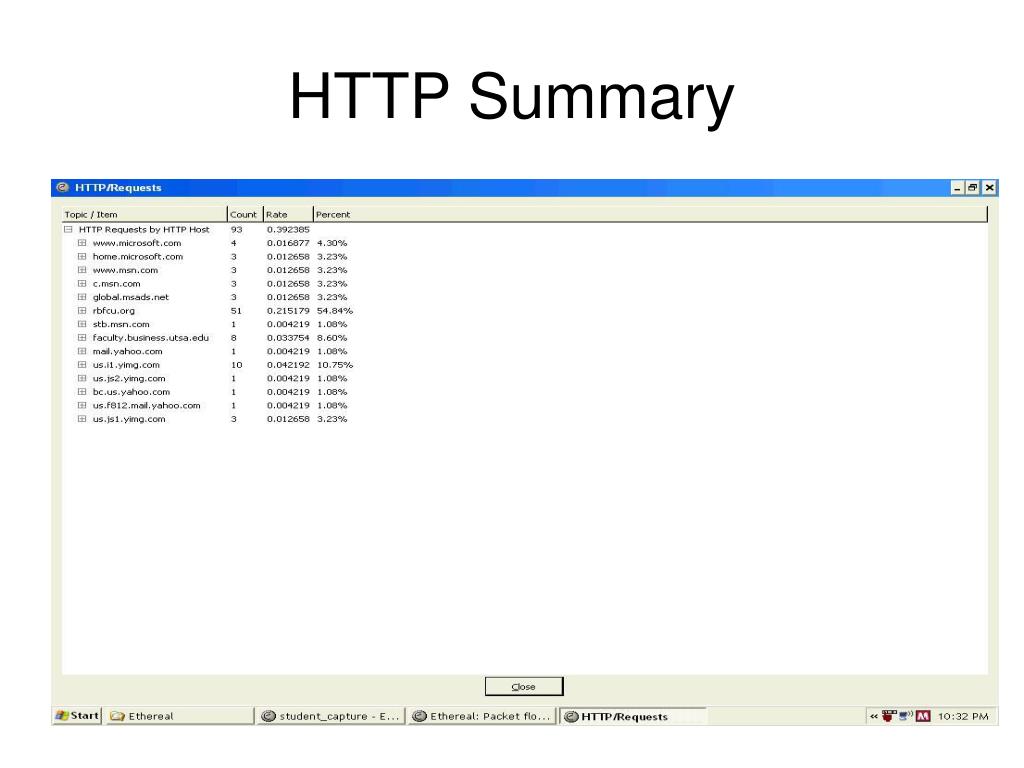

  22. HTTP Summary

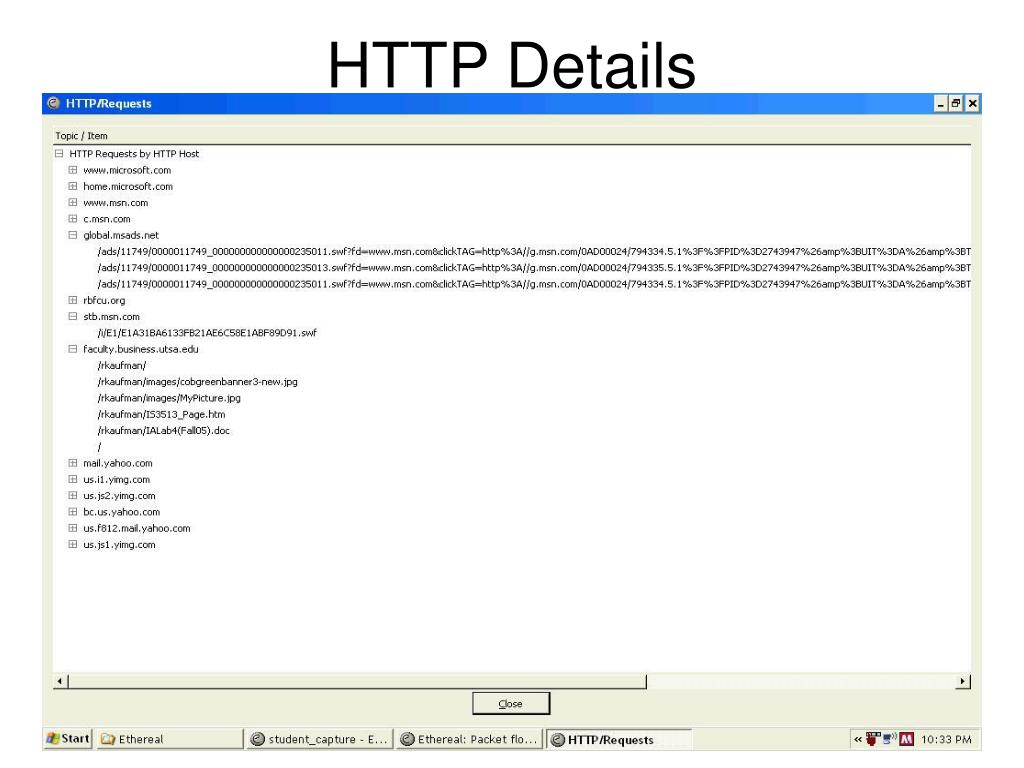

  23. HTTP Details

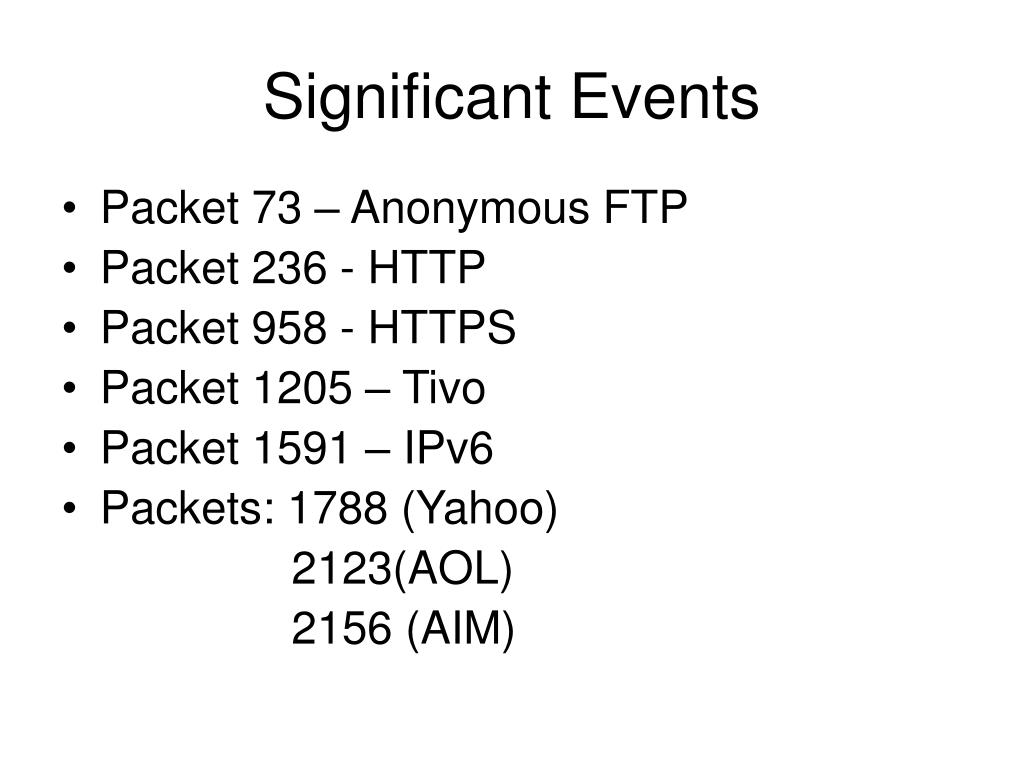

  24. Significant Events • Packet 73 – Anonymous FTP • Packet 236 - HTTP • Packet 958 - HTTPS • Packet 1205 – Tivo • Packet 1591 – IPv6 • Packets: 1788 (Yahoo) 2123(AOL) 2156 (AIM)

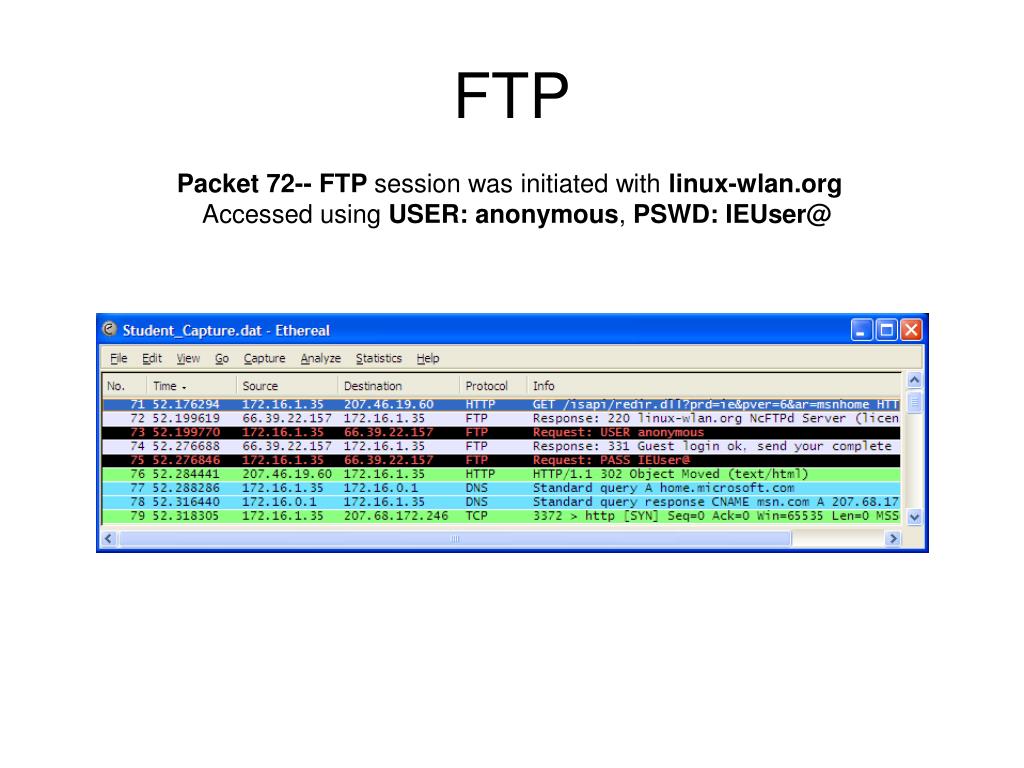

  25. FTP Packet 72-- FTP session was initiated with linux-wlan.org Accessed using USER: anonymous, PSWD: IEUser@

  26. HTTP • Packet 236: HTTP session initiated with www.rbfcu.org

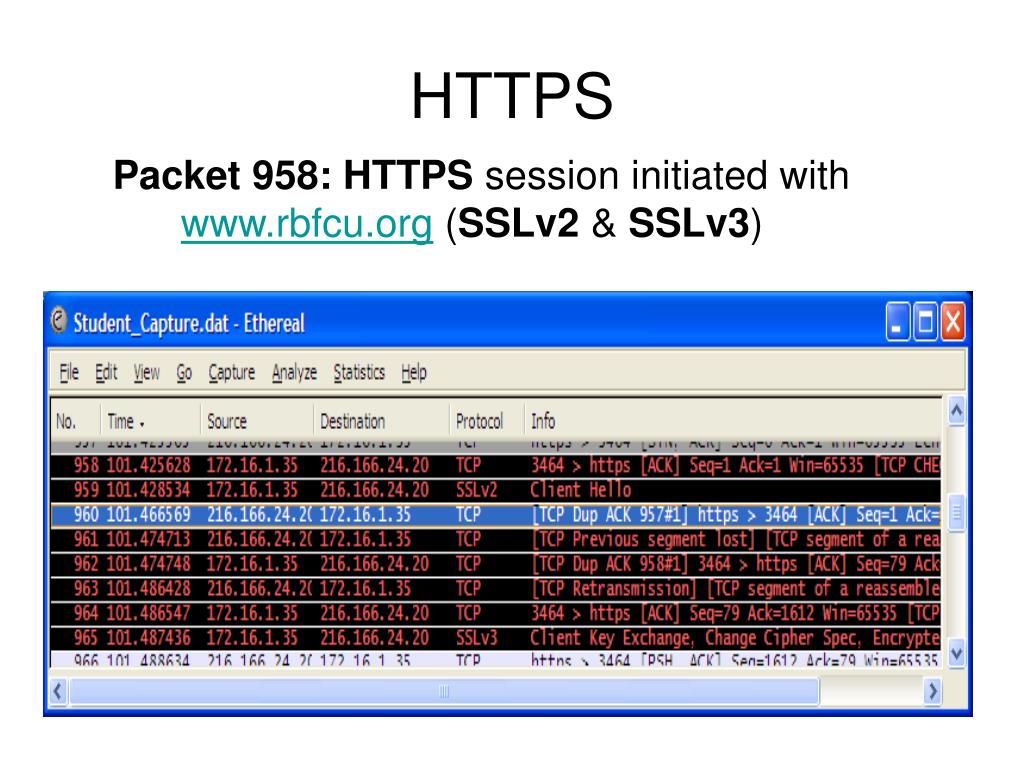

  27. HTTPS Packet 958: HTTPS session initiated with www.rbfcu.org (SSLv2 & SSLv3)

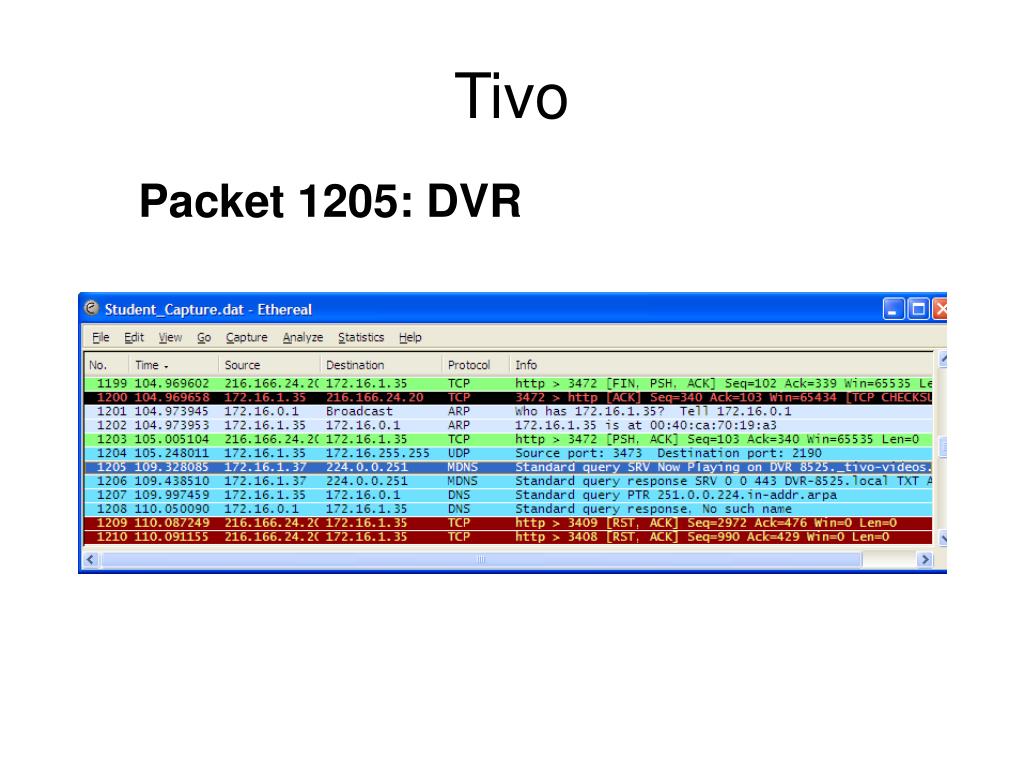

  28. Tivo Packet 1205: DVR

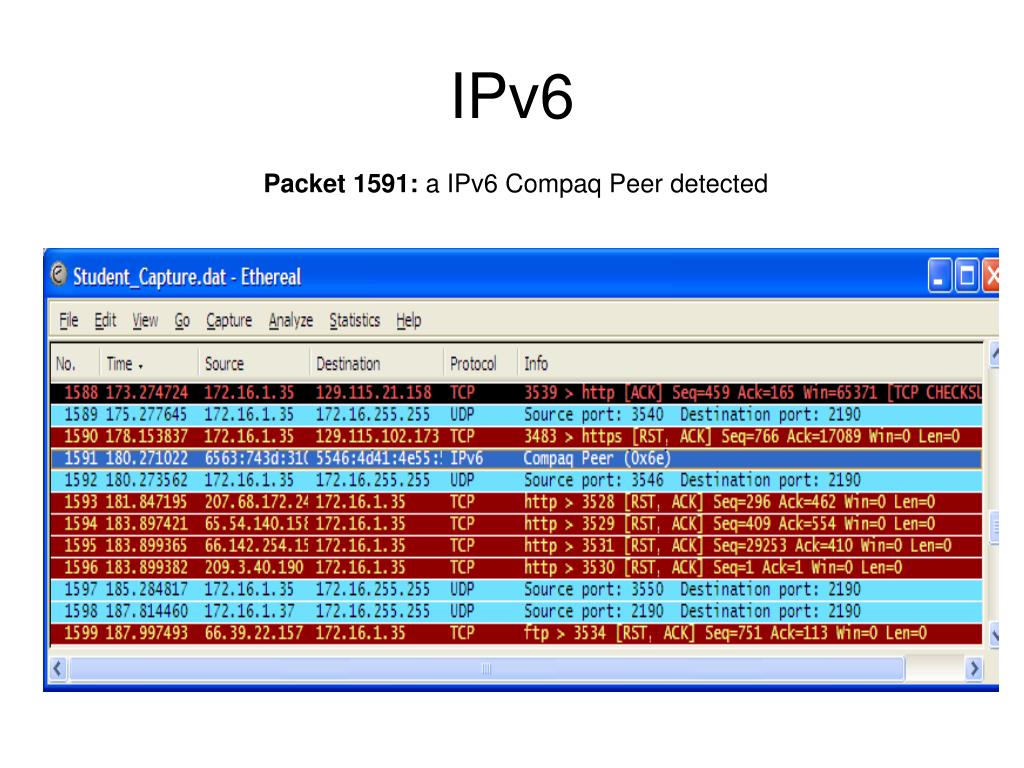

  29. IPv6 Packet 1591: a IPv6 Compaq Peer detected

  30. SNORT Analysis Just Port Scans?

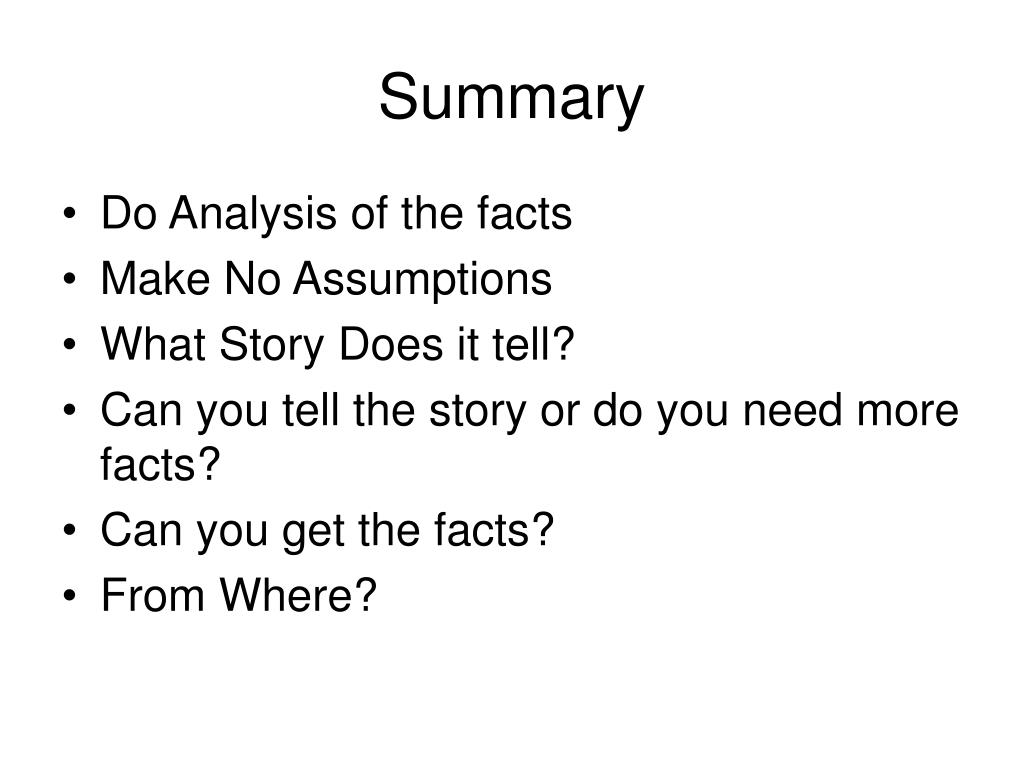

  31. Summary • Do Analysis of the facts • Make No Assumptions • What Story Does it tell? • Can you tell the story or do you need more facts? • Can you get the facts? • From Where?
