  1. Networking Kihong ParkAssistant ProfessorDepartment of Computer SciencesPurdue University

  2. Team • K. Park (CS) • D. Yau (CS) • W. Szpankowski (CS) • N. Shroff (ECE) • S. Fahmy (CS)

  3. Related Faculty • B. Bhargava (CS) • D. Comer (CS) • E. Houstis (CS) • D. Marinescu (CS) • V. Rego (CS)

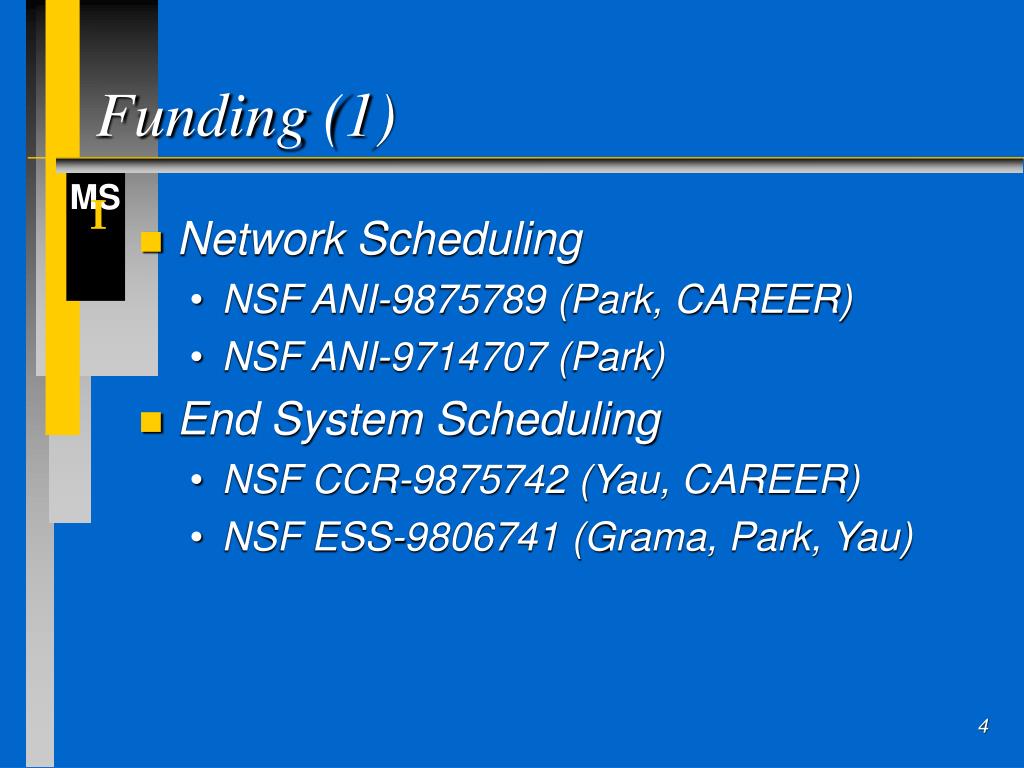

  4. Funding (1) • Network Scheduling • NSF ANI-9875789 (Park, CAREER) • NSF ANI-9714707 (Park) • End System Scheduling • NSF CCR-9875742 (Yau, CAREER) • NSF ESS-9806741 (Grama, Park, Yau)

  5. Funding (2) • Related • NSF ANI-9729721 (vBNS, Purdue-wide) • NSF NCR-9415491 (Szpankowski) • NSF CCR-9804760 (Szpankowski) • NSF NCR-9624525 (Shroff, CAREER) • NSF ANI-9805441 (Shroff, Schwartz) • Sprint (Park, Spafford)

  6. Labs • Network Systems Lab (Park) • Systems Software & Arch. Lab (Yau) • NEWS (Shroff) • Multimedia Compression (Szpankowski) • BOND, COAST, Internetworking Lab, Multimedia DB, RAID

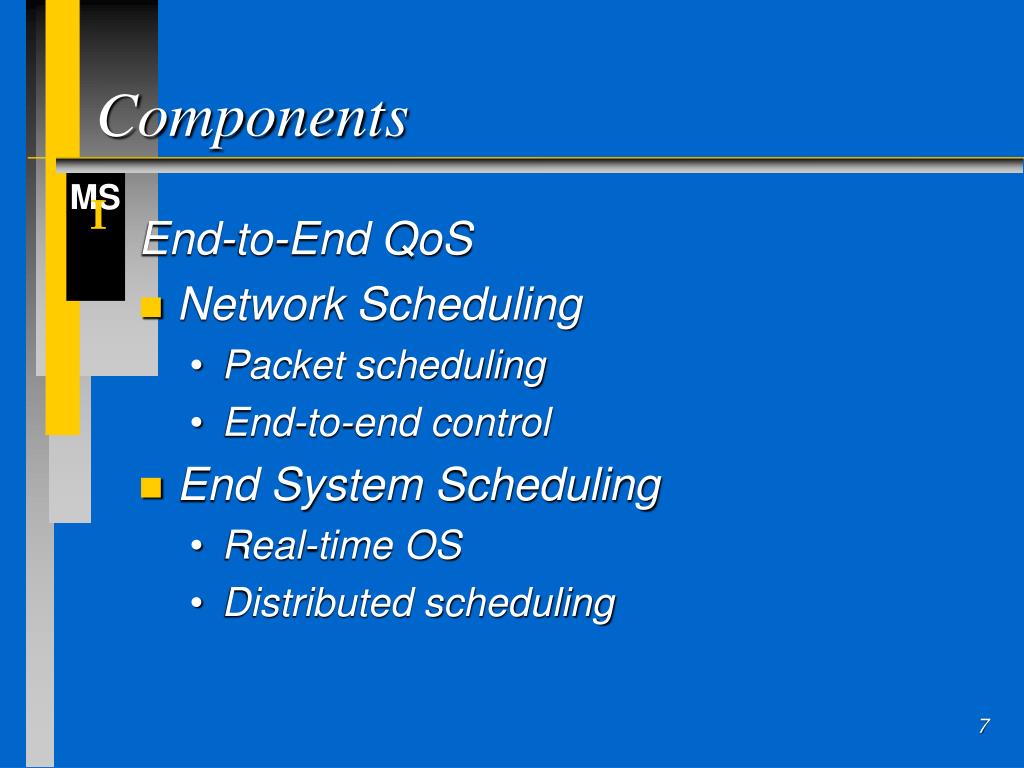

  7. Components End-to-End QoS • Network Scheduling • Packet scheduling • End-to-end control • End System Scheduling • Real-time OS • Distributed scheduling

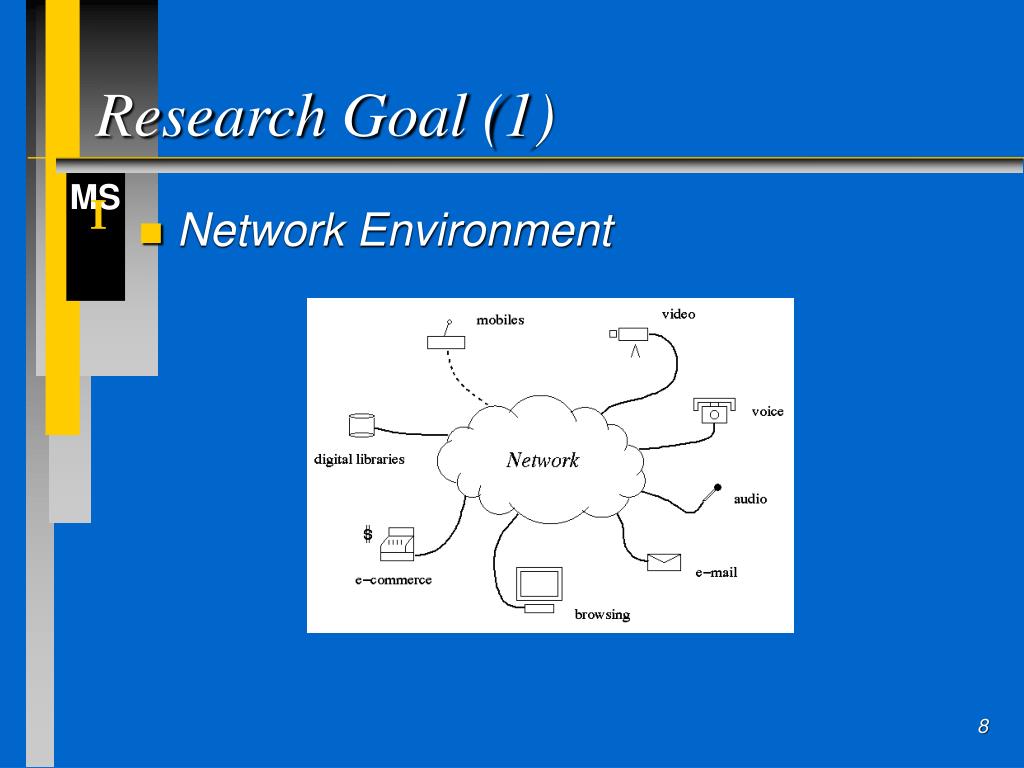

  8. Research Goal (1) • Network Environment

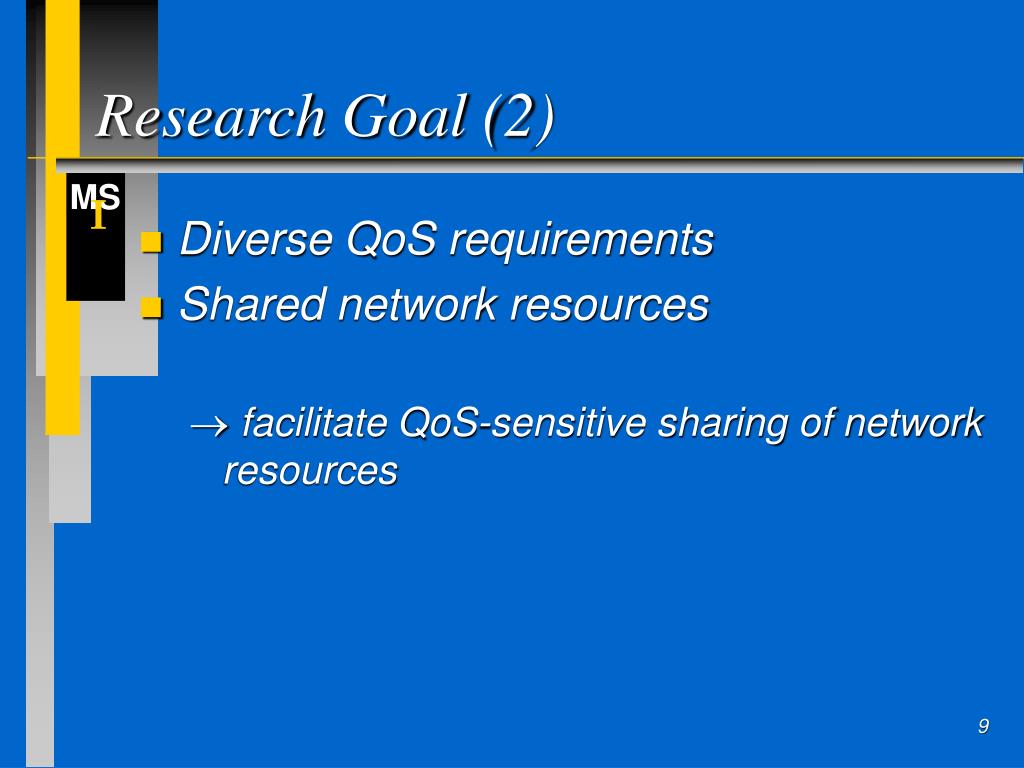

  9. Research Goal (2) • Diverse QoS requirements • Shared network resources • facilitate QoS-sensitive sharing of network resources

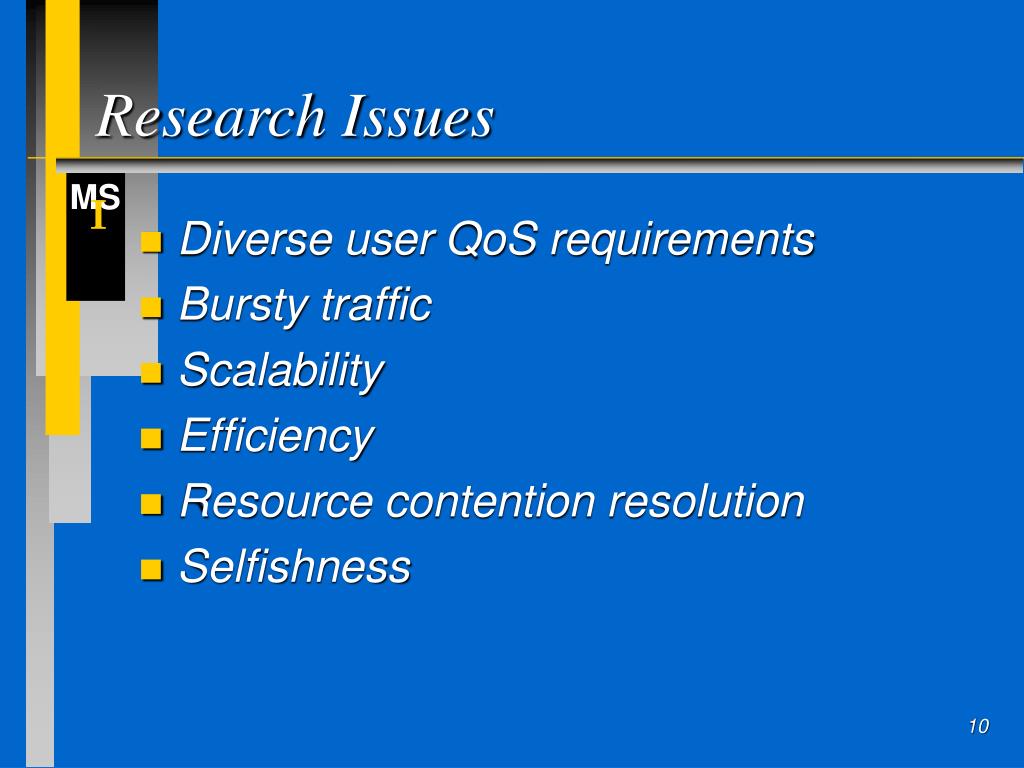

  10. Research Issues • Diverse user QoS requirements • Bursty traffic • Scalability • Efficiency • Resource contention resolution • Selfishness

  11. State-of-the-Art (1) • Resource Reservation & Admission Control • On-demand leasing of bandwidth • QoS guarantees • GPS routers • IETF Int-Serv (e.g., RSVP)

  12. State-of-the-Art (2) • Drawbacks • Wasteful • self-similar bursty traffic • overprovisioning • Scales poorly with system size • per-flow control • admission control & policing

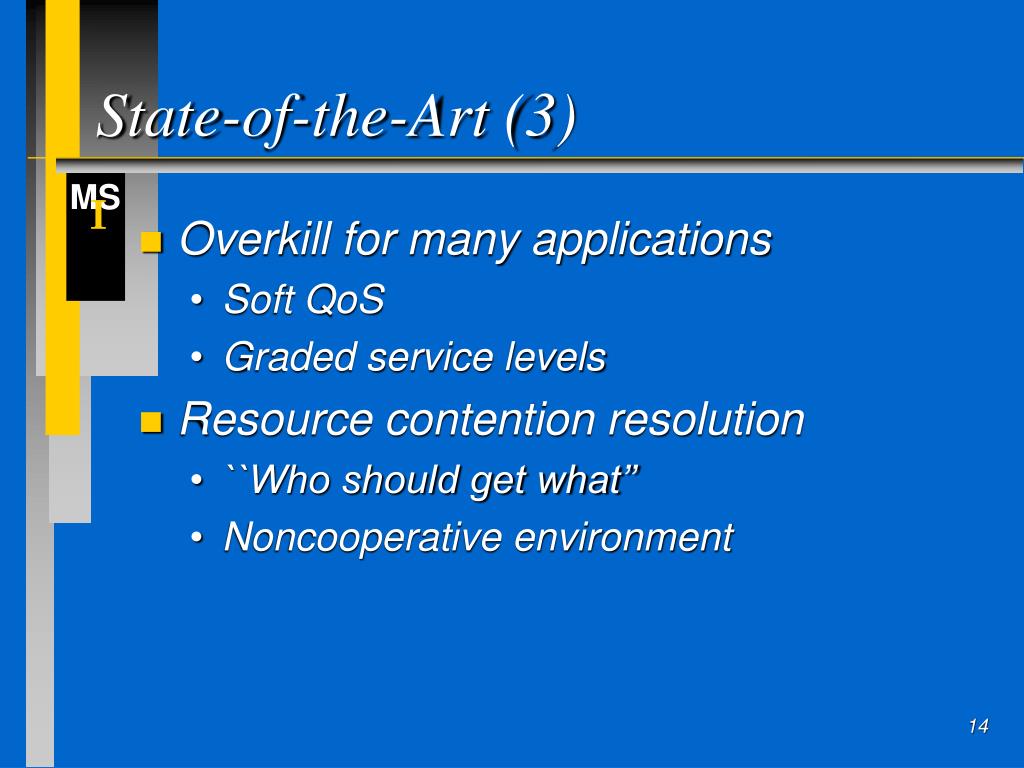

  13. State-of-the-Art (3) • Overkill for many applications • Soft QoS • Graded service levels • Resource contention resolution • ``Who should get what’’ • Noncooperative environment

  14. State-of-the-Art (4) • IETF Diff-Serv • Assured service (Clark) • 2-bit marking bit RIO gateways • Premium service (Jacobson) • Leaky-bucket with priority gateways • aggregate flow control with weak protection

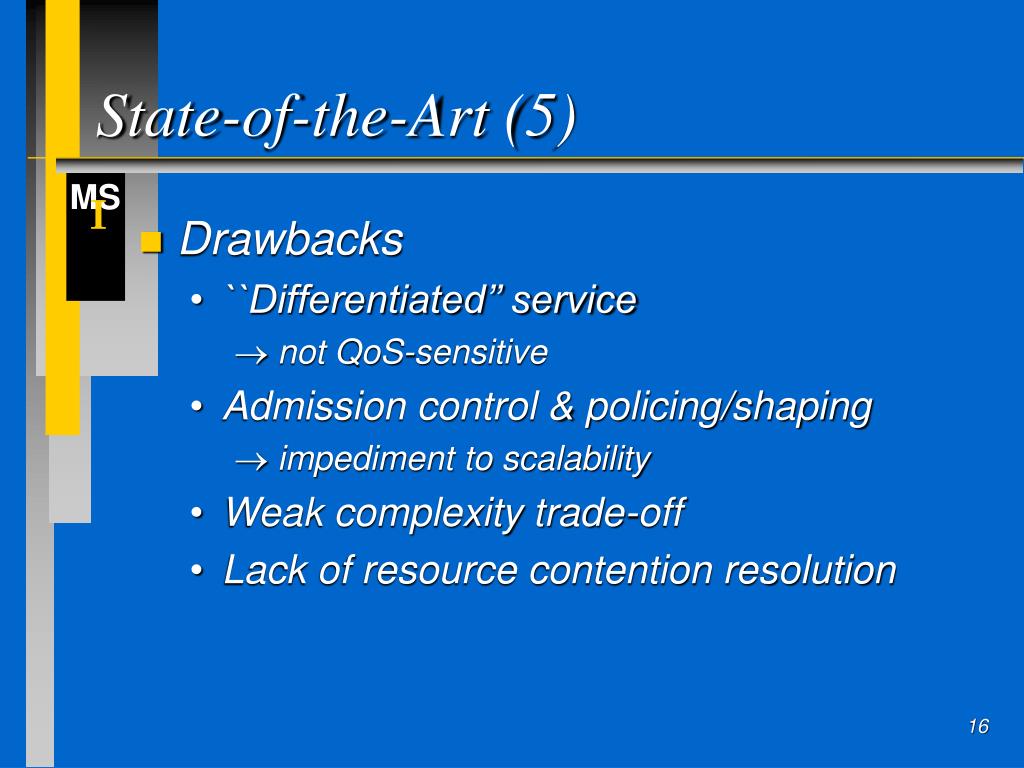

  15. State-of-the-Art (5) • Drawbacks • ``Differentiated’’ service • not QoS-sensitive • Admission control & policing/shaping • impediment to scalability • Weak complexity trade-off • Lack of resource contention resolution

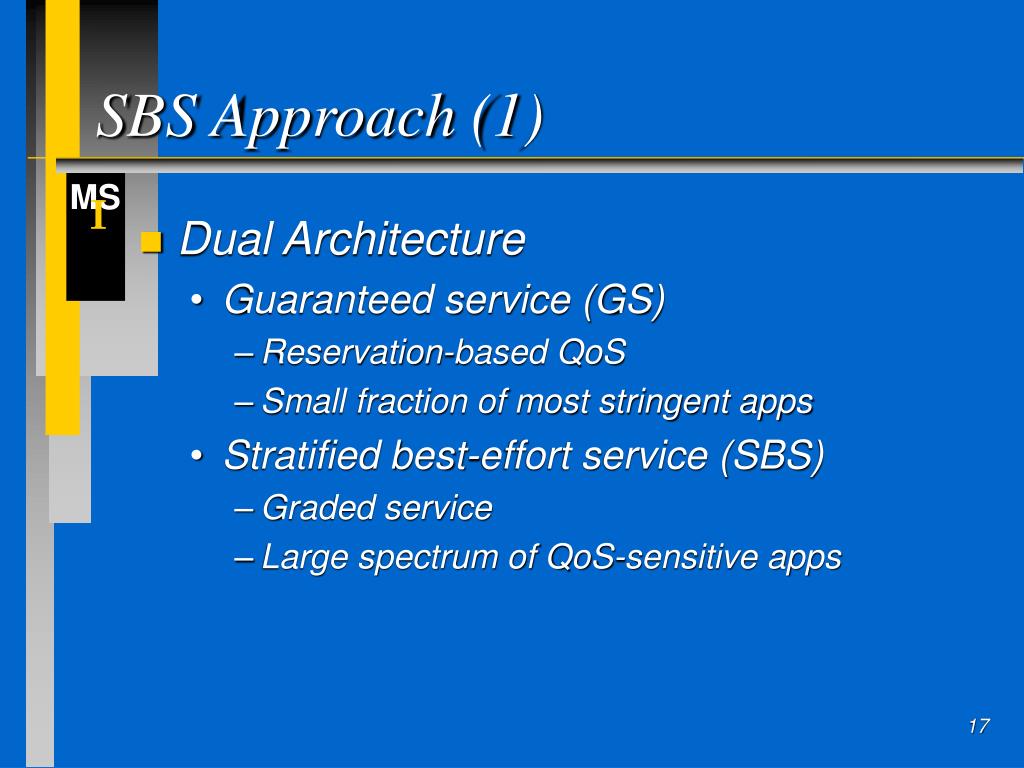

  16. SBS Approach (1) • Dual Architecture • Guaranteed service (GS) • Reservation-based QoS • Small fraction of most stringent apps • Stratified best-effort service (SBS) • Graded service • Large spectrum of QoS-sensitive apps

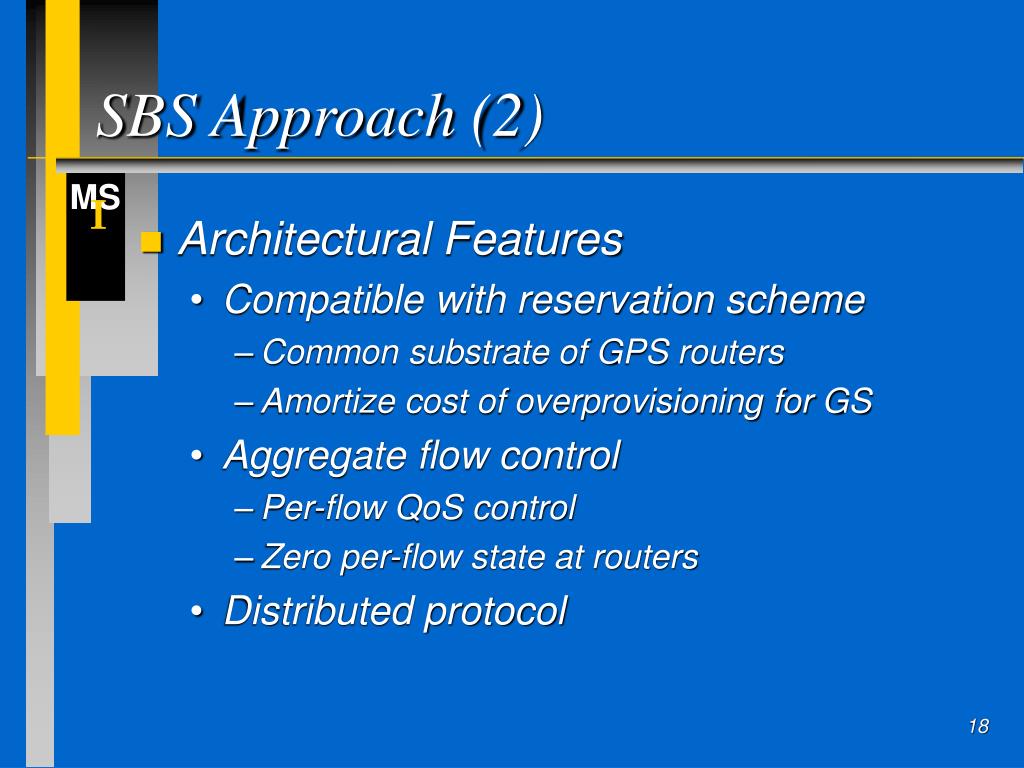

  17. SBS Approach (2) • Architectural Features • Compatible with reservation scheme • Common substrate of GPS routers • Amortize cost of overprovisioning for GS • Aggregate flow control • Per-flow QoS control • Zero per-flow state at routers • Distributed protocol

  18. SBS Approach (3) • SBS Router

  19. SBS Approach (4) • SBS Control Path

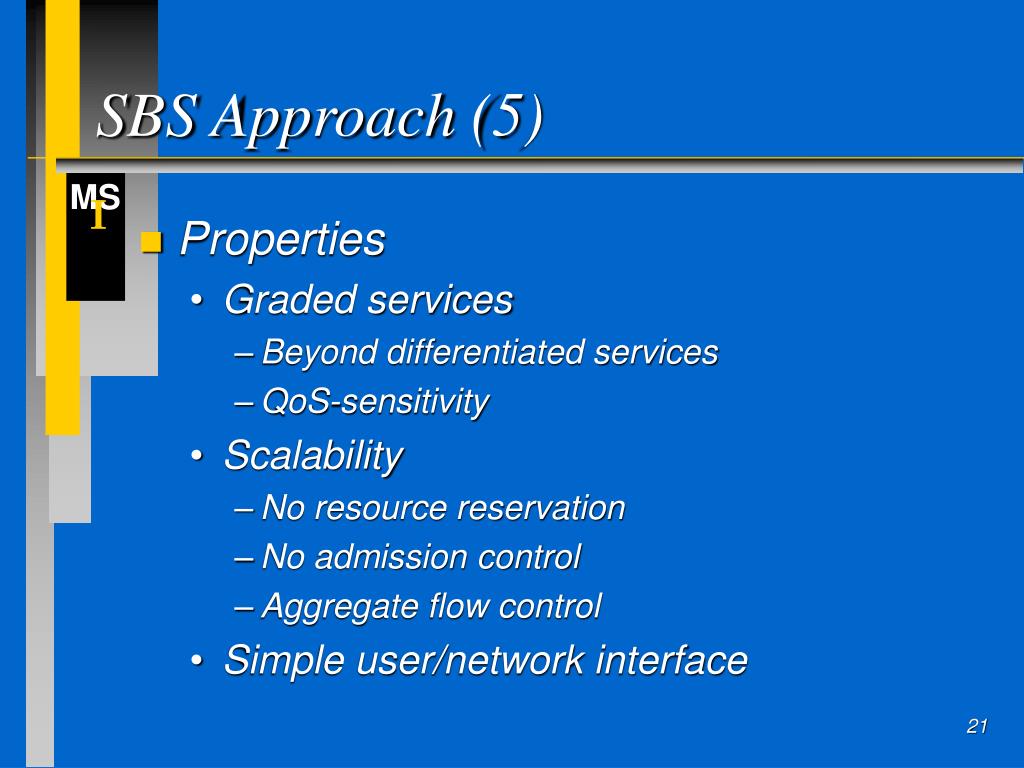

  20. SBS Approach (5) • Properties • Graded services • Beyond differentiated services • QoS-sensitivity • Scalability • No resource reservation • No admission control • Aggregate flow control • Simple user/network interface

  21. SBS Approach (6) • Resource contention resolution • Selfish user behavior • Stability, optimality, efficiency • Pricing • WAN implementation • User-centric  networking-centric mechanism • Simple user/simple network realization • Distributed QoS Control

  22. Distributed QoS Control (1) • Component Services • Guaranteed service (GS) • Stratified best-effort service (SBS) • SBS Protocol • Packet scheduling at routers • End-to-end control

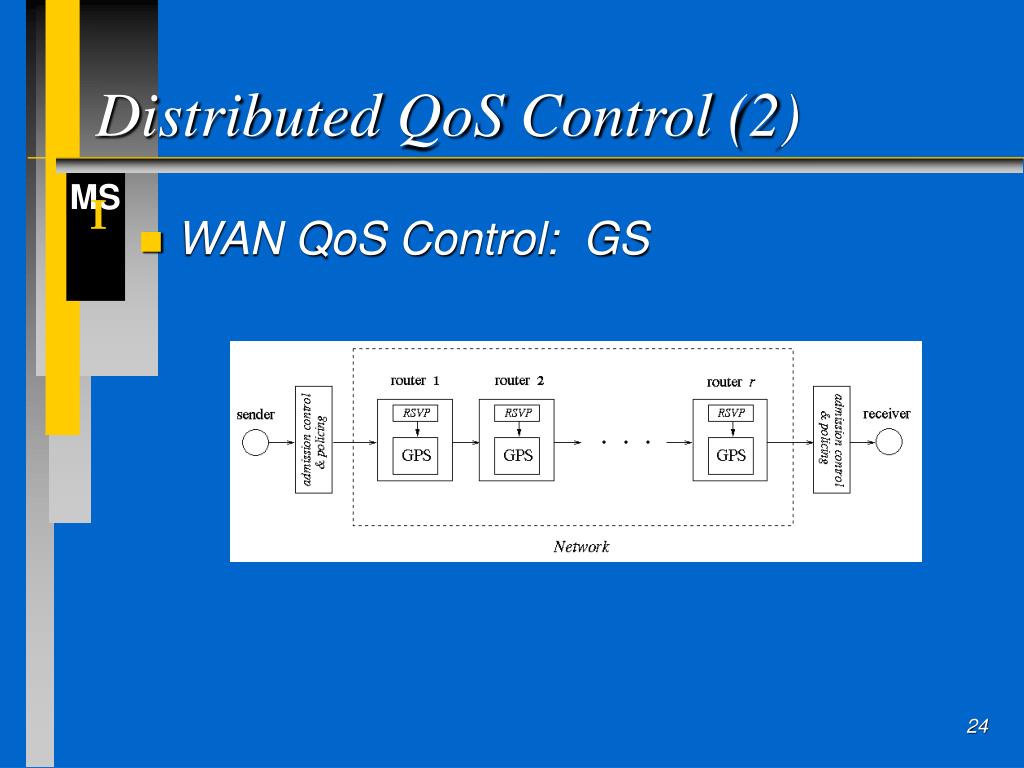

  23. Distributed QoS Control (2) • WAN QoS Control: GS

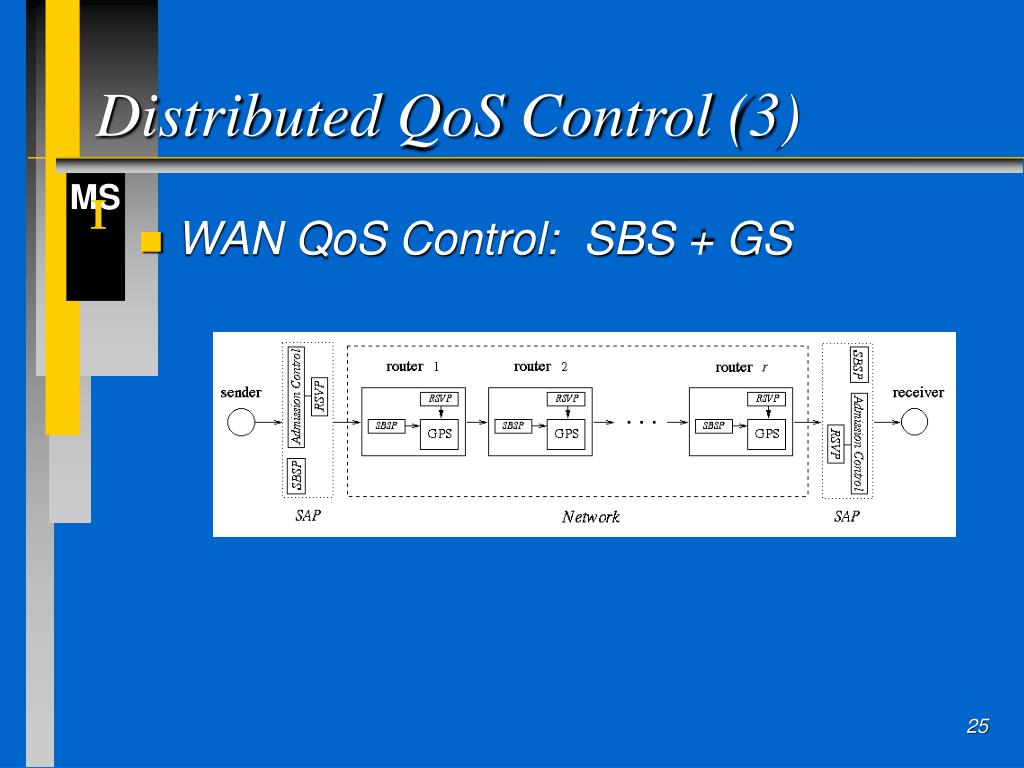

  24. Distributed QoS Control (3) • WAN QoS Control: SBS + GS

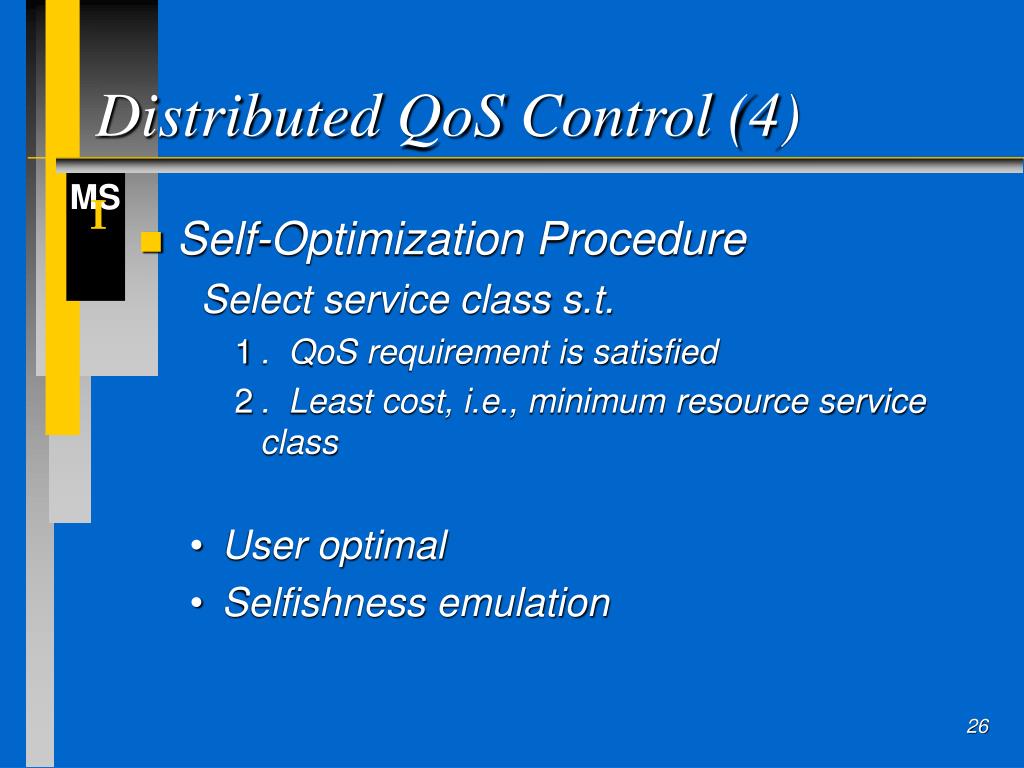

  25. Distributed QoS Control (4) • Self-Optimization Procedure Select service class s.t. • . QoS requirement is satisfied • . Least cost, i.e., minimum resource service class • User optimal • Selfishness emulation

  26. Distributed QoS Control (5) • GPS Switch & Multi-Class QoS

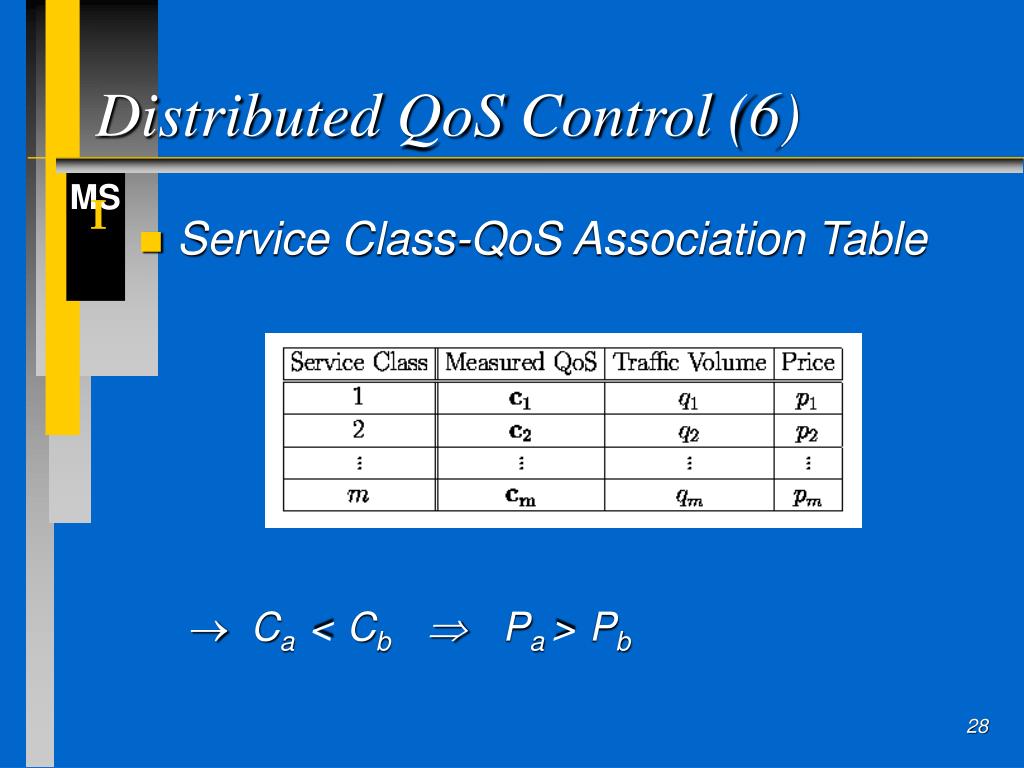

  27. Distributed QoS Control (6) • Service Class-QoS Association Table • Ca <Cb Pa >Pb

  28. System Operation (1) • Service Access Point • Direct user access • Access by DB & Security modules • Export API • (GS/SBS, QoS Requirement Vector)

  29. System Operation (2) • Interface with DB & Security Modules

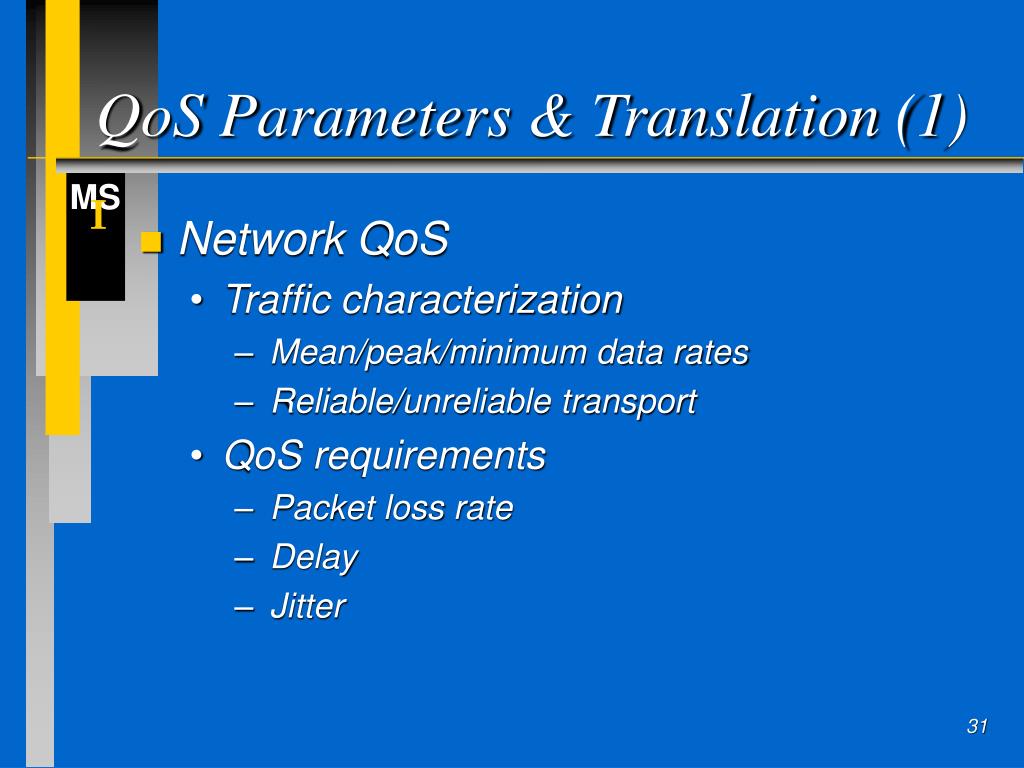

  30. QoS Parameters & Translation (1) • Network QoS • Traffic characterization • Mean/peak/minimum data rates • Reliable/unreliable transport • QoS requirements • Packet loss rate • Delay • Jitter

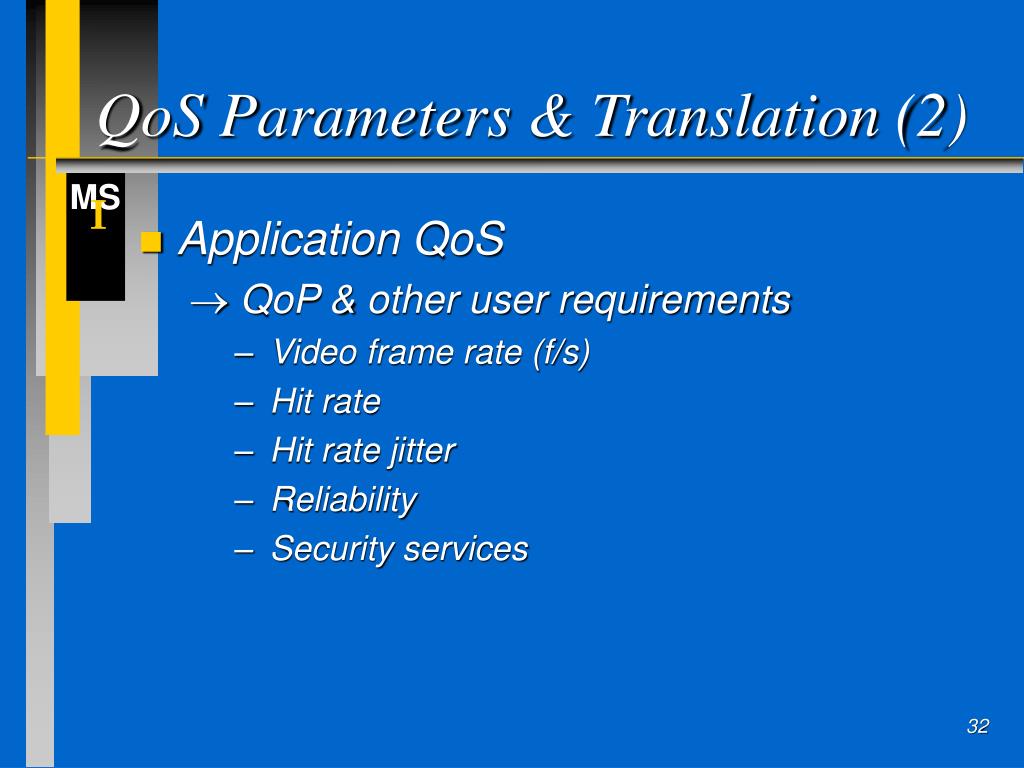

  31. QoS Parameters & Translation (2) • Application QoS • QoP & other user requirements • Video frame rate (f/s) • Hit rate • Hit rate jitter • Reliability • Security services

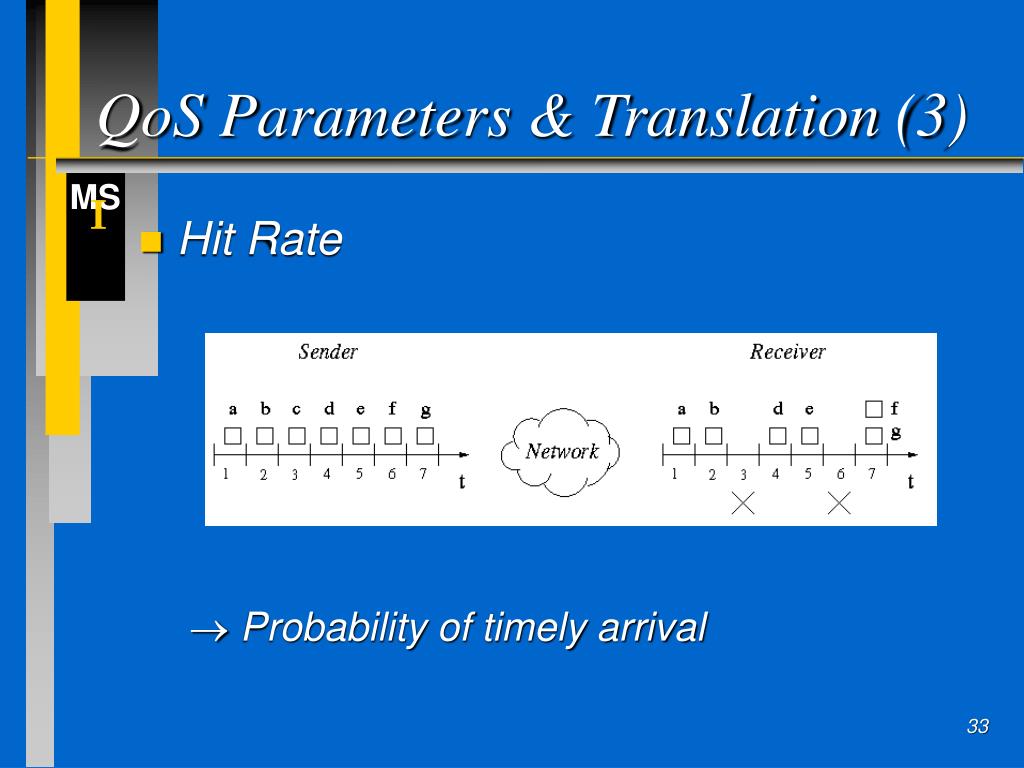

  32. QoS Parameters & Translation (3) • Hit Rate • Probability of timely arrival

  33. QoS Parameters & Translation (4) • QoS Translation

  34. QoS Parameters & Translation (5) • Example (hit rate) if Measured Hit Rate < Target Hit Rate then increase allocated resources else decrease resources • QoS translation & control loop

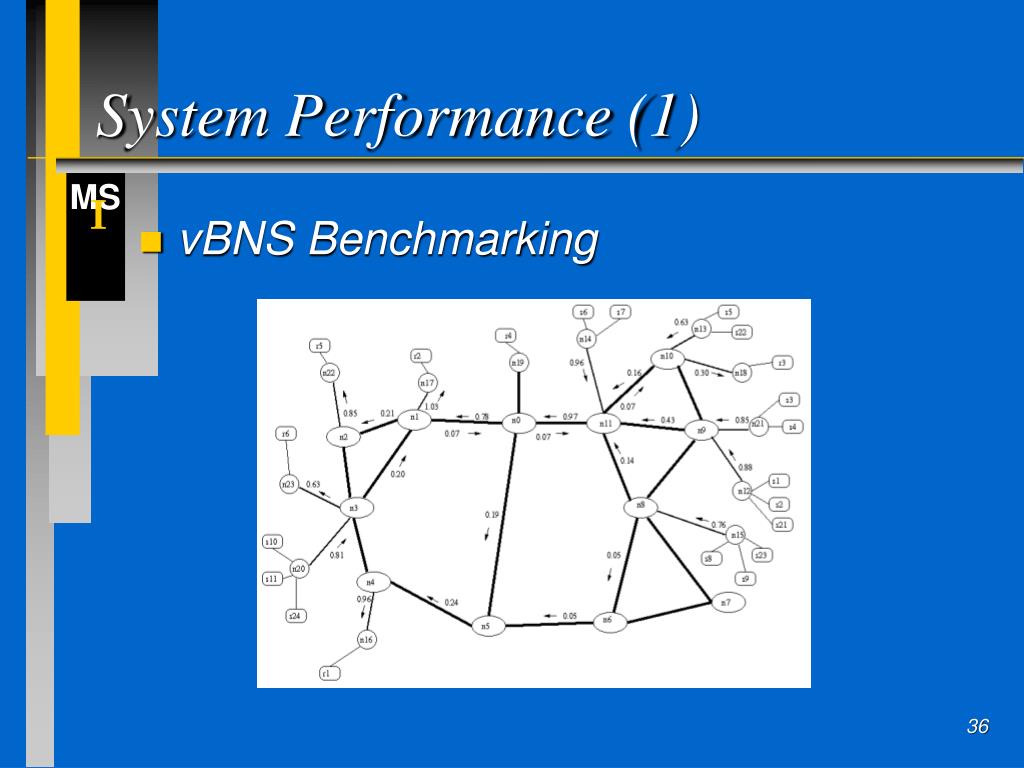

  35. System Performance (1) • vBNS Benchmarking

  36. System Performance (2) • Traffic Configuration

  37. System Performance (3) • SBS Performance

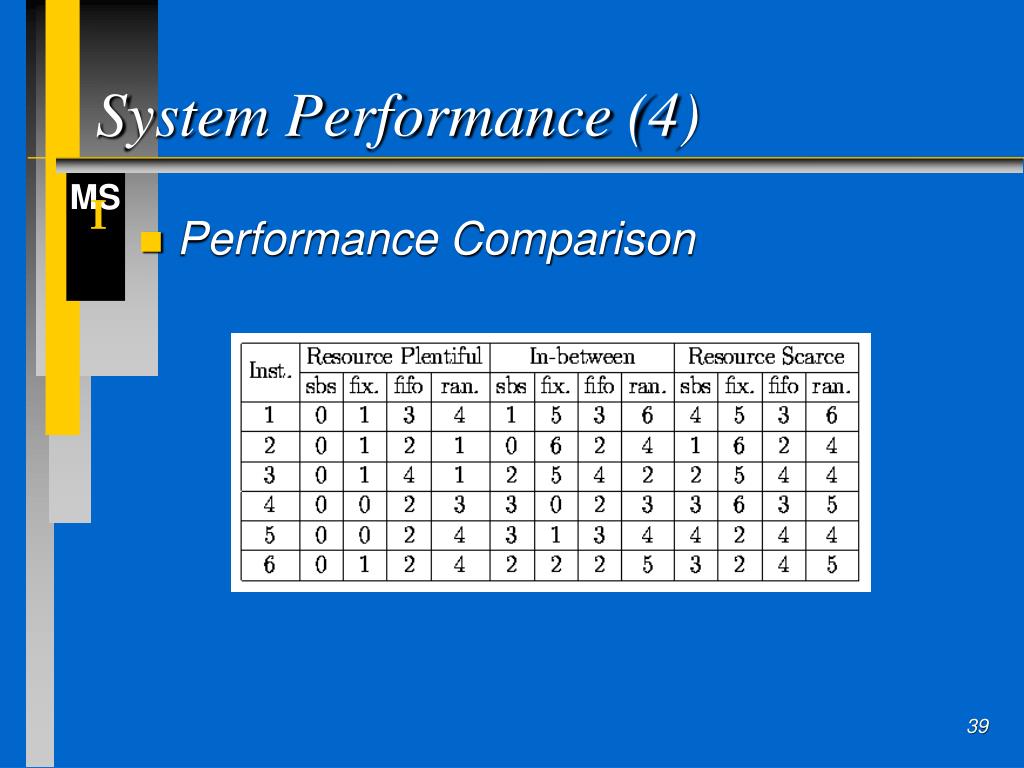

  38. System Performance (4) • Performance Comparison

  39. End-to-End QoS Control (1) • SBS Exports Graded Services • QoS amplification using end-to-end control

  40. End-to-End QoS Control (2) • Real-Time Traffic • Adaptive forward error-correction • Inject redundancy adaptively (network state) • Maintain invariant target QoS • Optimal control problem • AFEC protocol

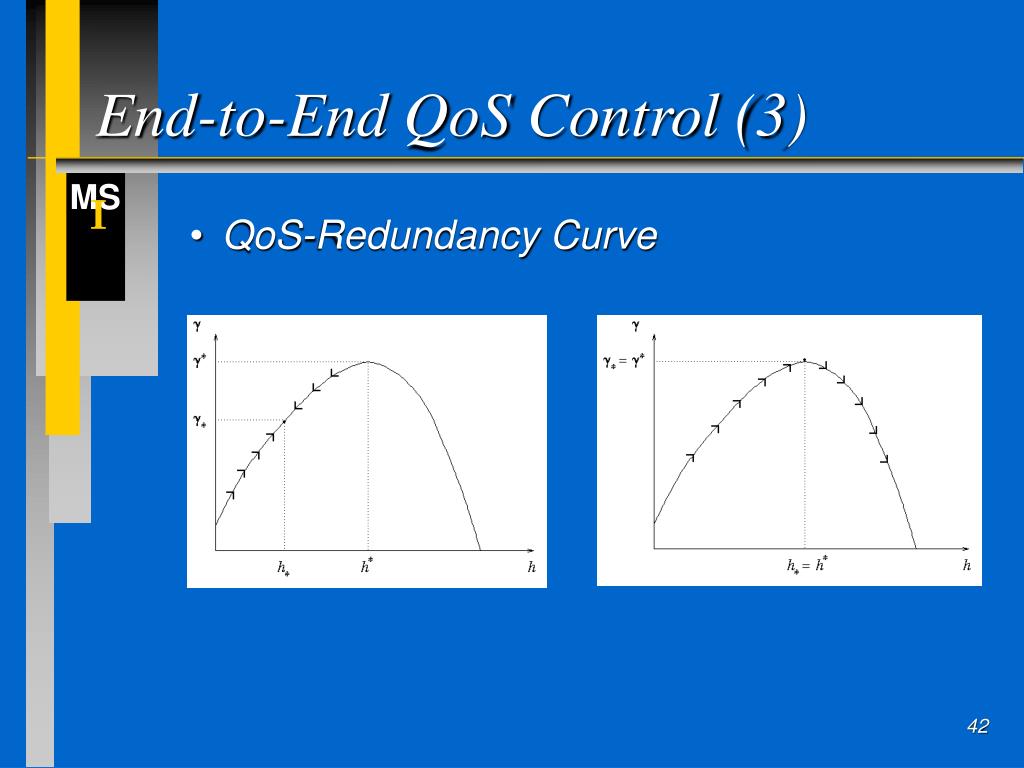

  41. End-to-End QoS Control (3) • QoS-Redundancy Curve

  42. End-to-End QoS Control (4) • Real-Time MPEG Video Transport

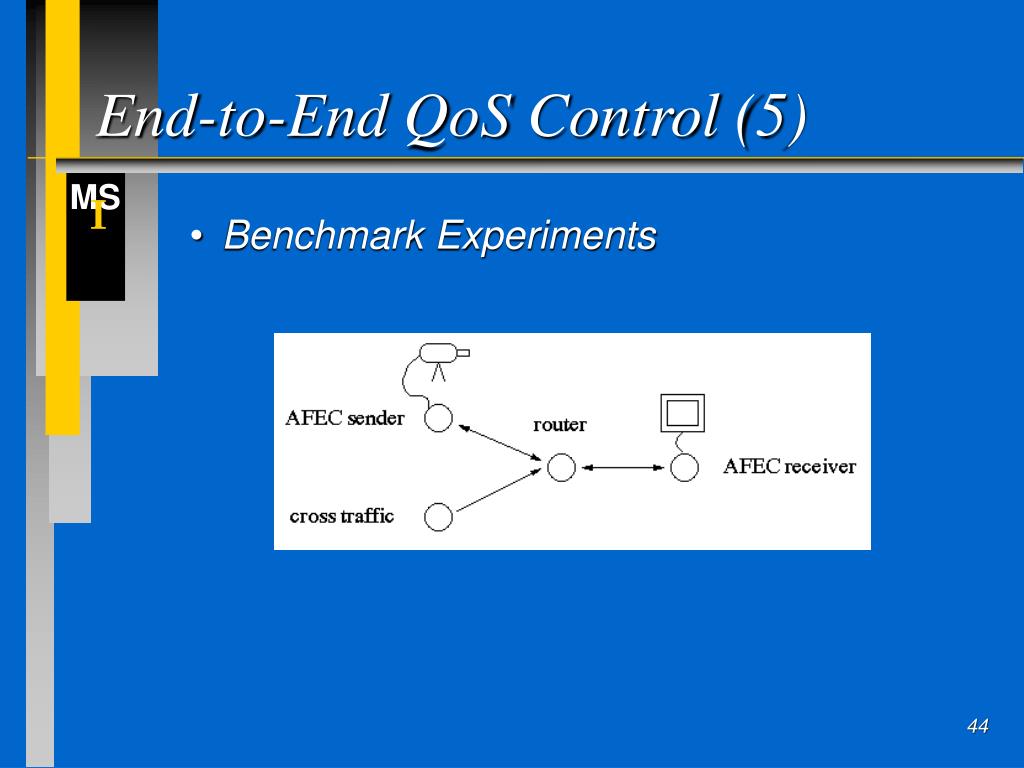

  43. End-to-End QoS Control (5) • Benchmark Experiments

  44. End-to-End QoS Control (6) • Benchmark Data

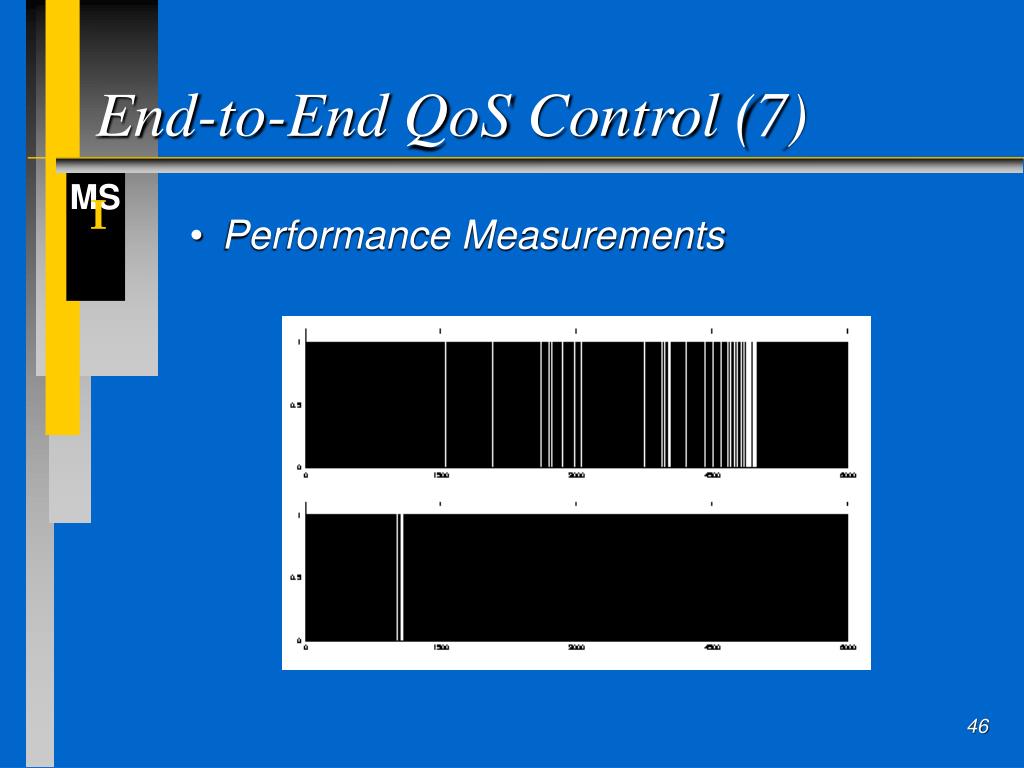

  45. End-to-End QoS Control (7) • Performance Measurements

  46. End-to-End QoS Control (8) • Redundancy Trace

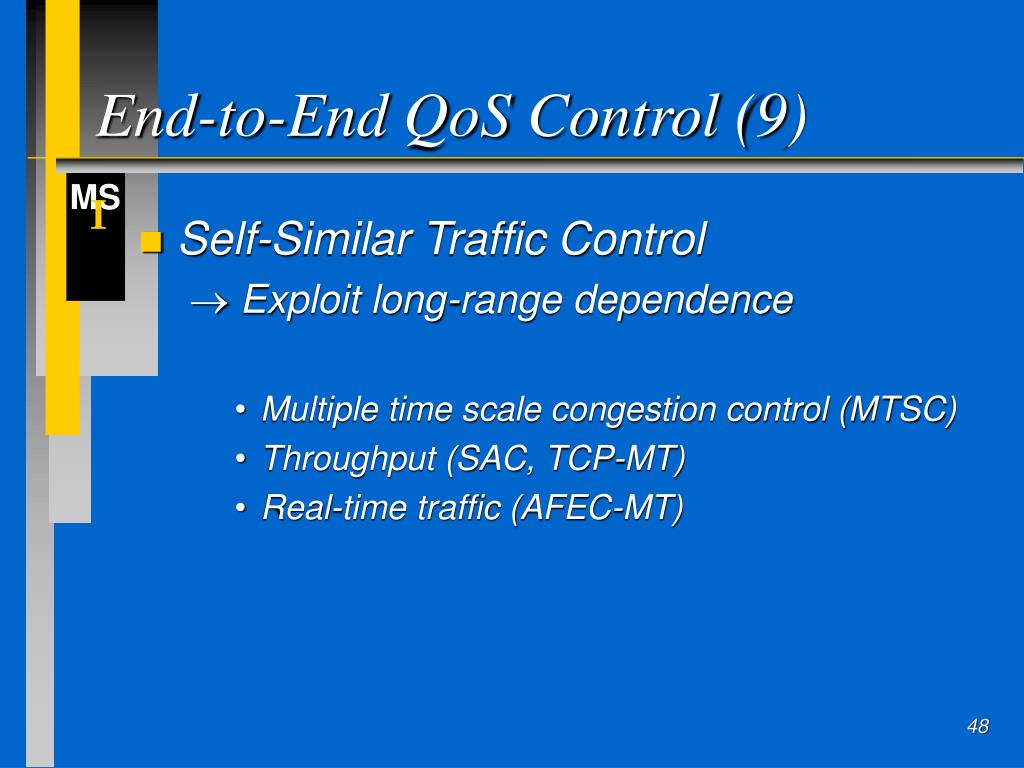

  47. End-to-End QoS Control (9) • Self-Similar Traffic Control • Exploit long-range dependence • Multiple time scale congestion control (MTSC) • Throughput (SAC, TCP-MT) • Real-time traffic (AFEC-MT)

  48. End-to-End QoS Control (10) • Multiple time scale congestion control

  49. Proposed Research (1) • Implementation of GS/SBS Architecture • Experimental network • ``Purdue Infobahn’’ • Testbed & substrate for MSI • User/network API • 2-Tier network • Backbone: Cisco 72xx routers • LANs: ATM & Gigabit Ethernet
