  1. AGATA2nd Prototype Detector Initial Measurements & Evaluation Andrew Boston, Matthew Dimmock, Laura Nelson, Sarah Rigby

  2. Overview • Resolutions – Cologne , Liverpool • - Values quoted are for single LVDS cable & single channel • Singles scan results • Initial coincidence scan results • Summary

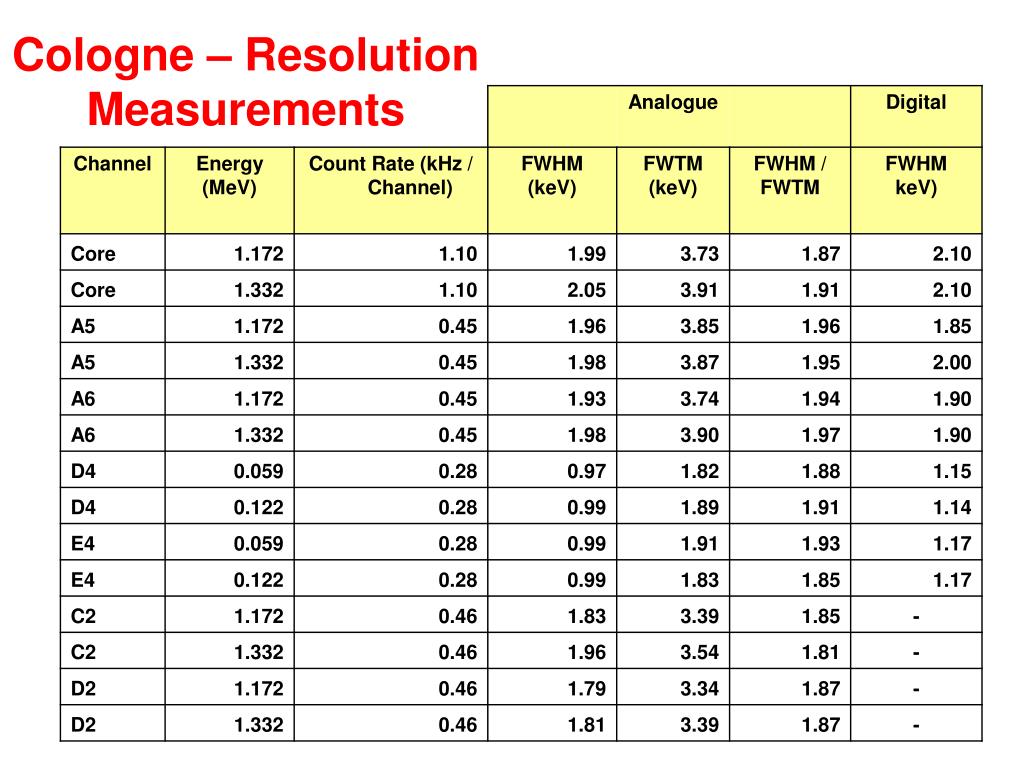

  3. Cologne – Resolution Measurements

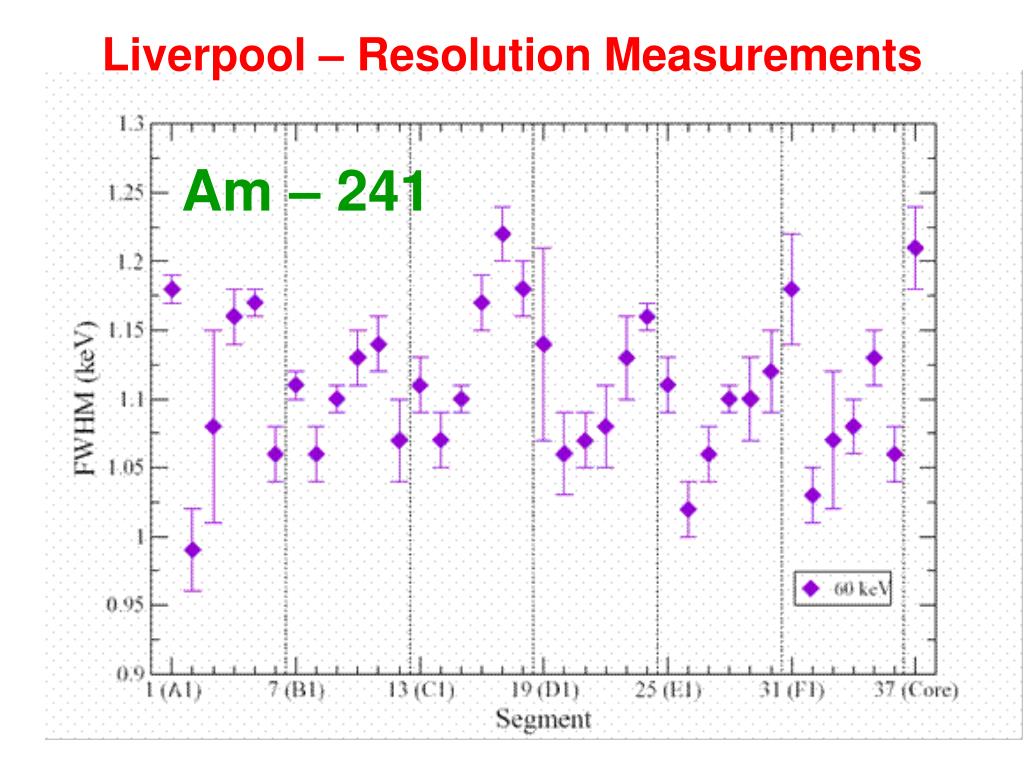

  4. Liverpool – Resolution Measurements Am – 241

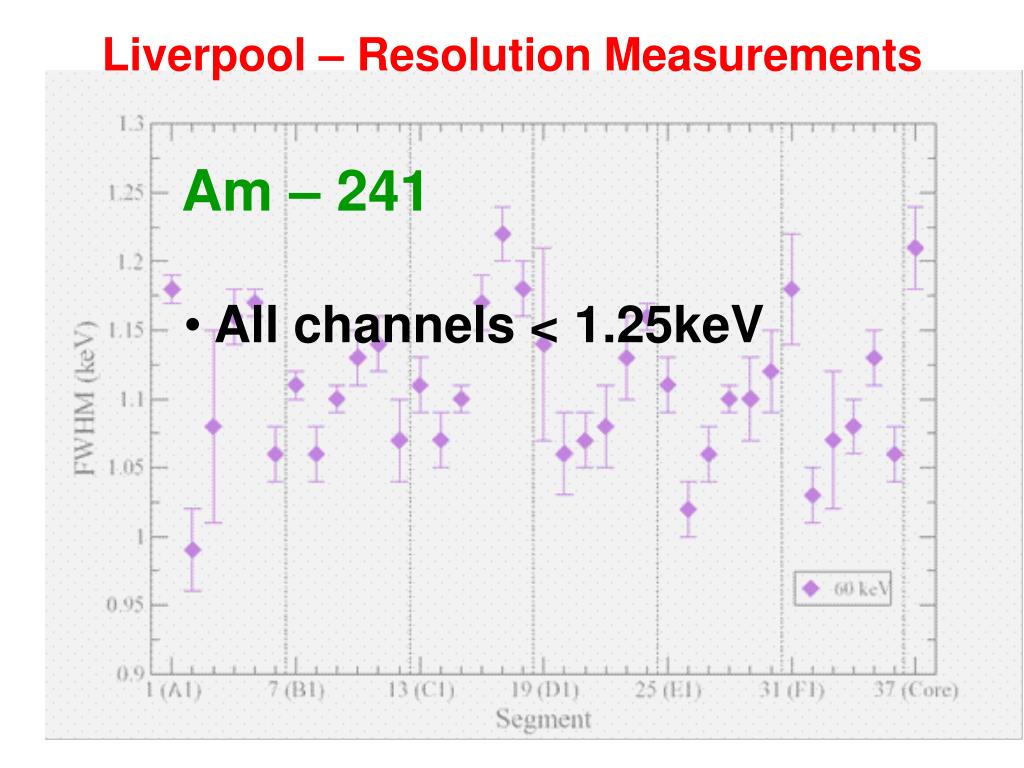

  5. Liverpool – Resolution Measurements Am – 241 • All channels < 1.25keV

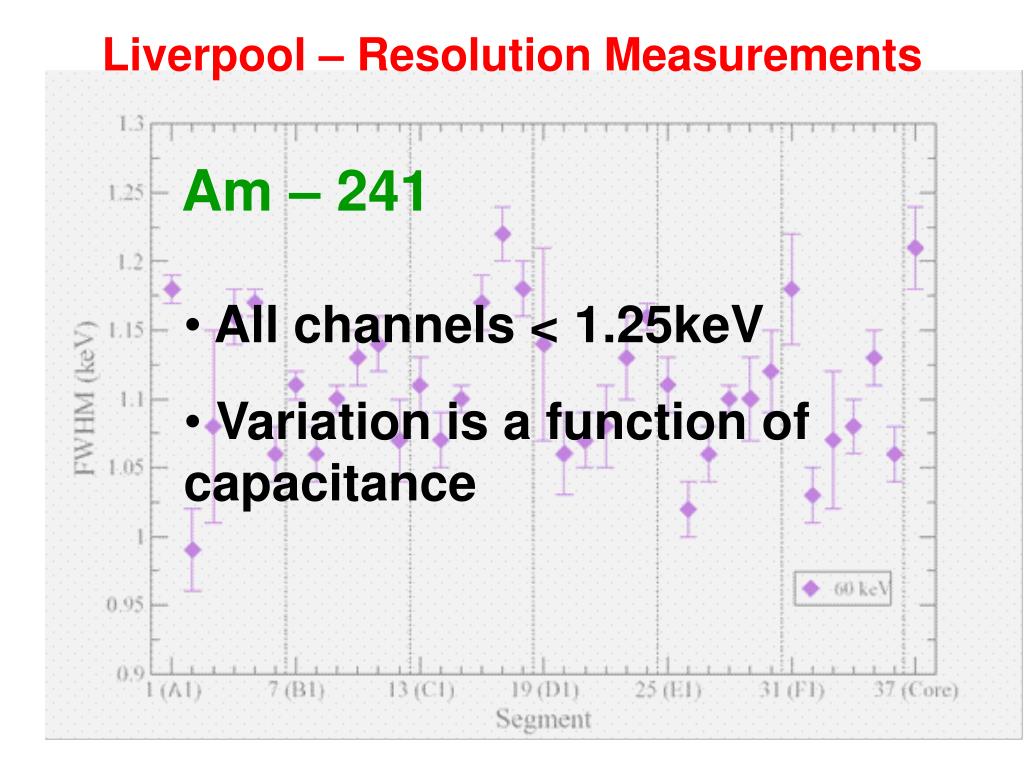

  6. Liverpool – Resolution Measurements Am – 241 • All channels < 1.25keV • Variation is a function of capacitance

  7. Liverpool – Resolution Measurements Co – 60

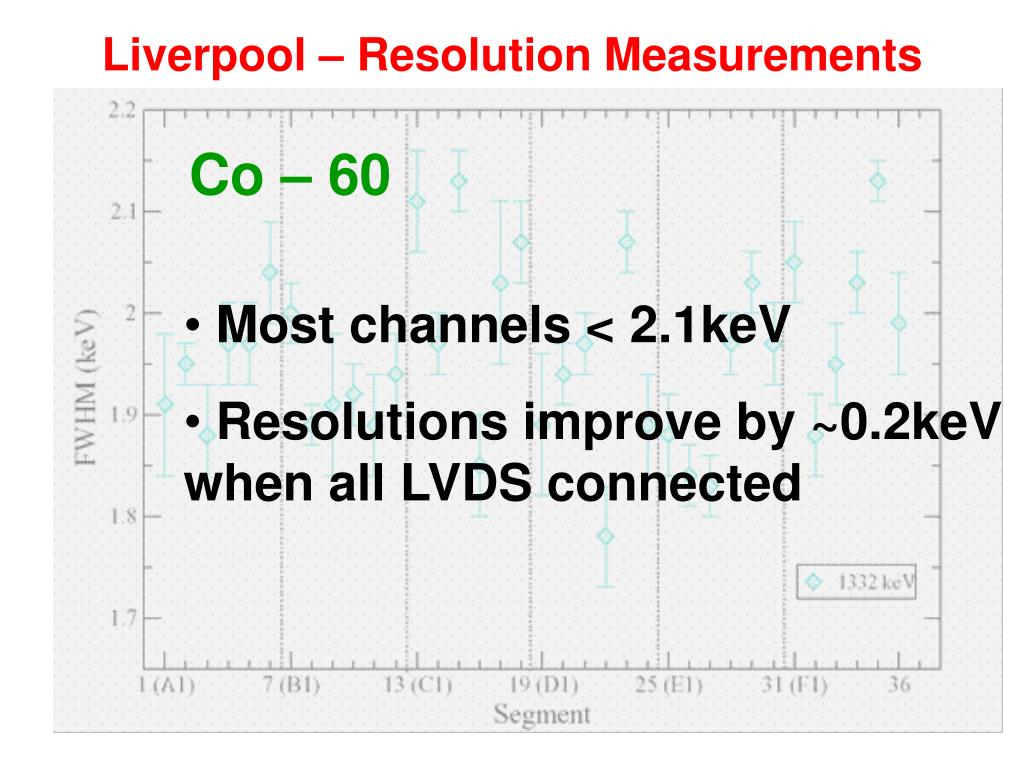

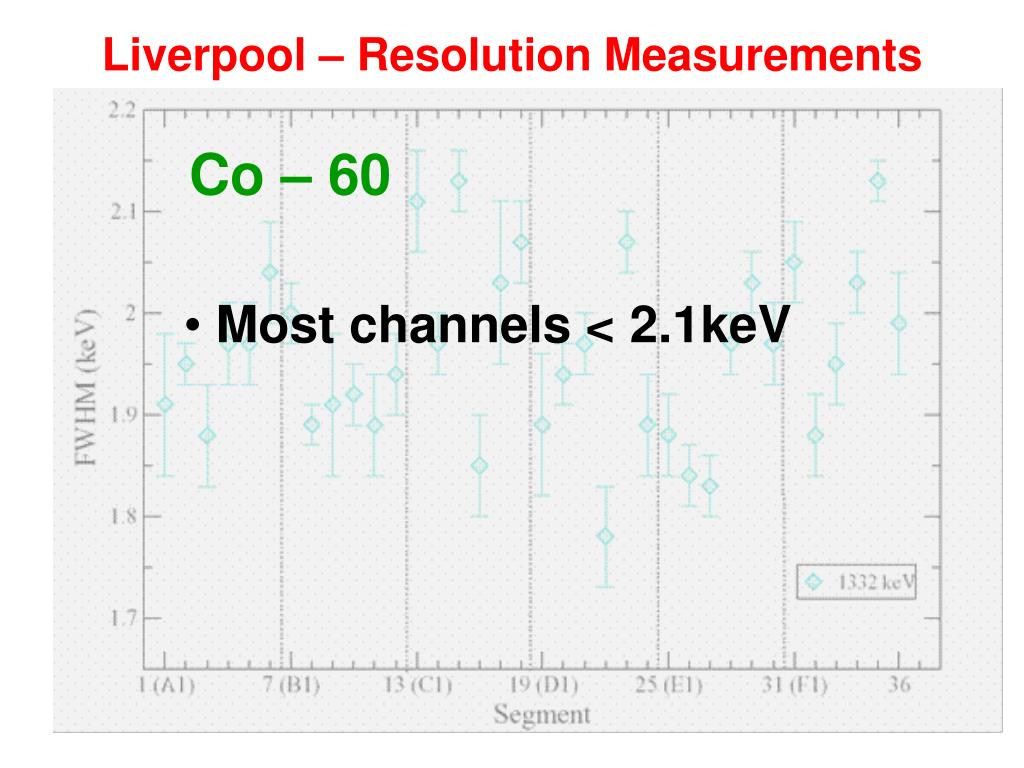

  8. Liverpool – Resolution Measurements Co – 60 • Most channels < 2.1keV

  9. Liverpool – Resolution Measurements Co – 60 • Most channels < 2.1keV • Resolutions improve by ~0.2keV when all LVDS connected

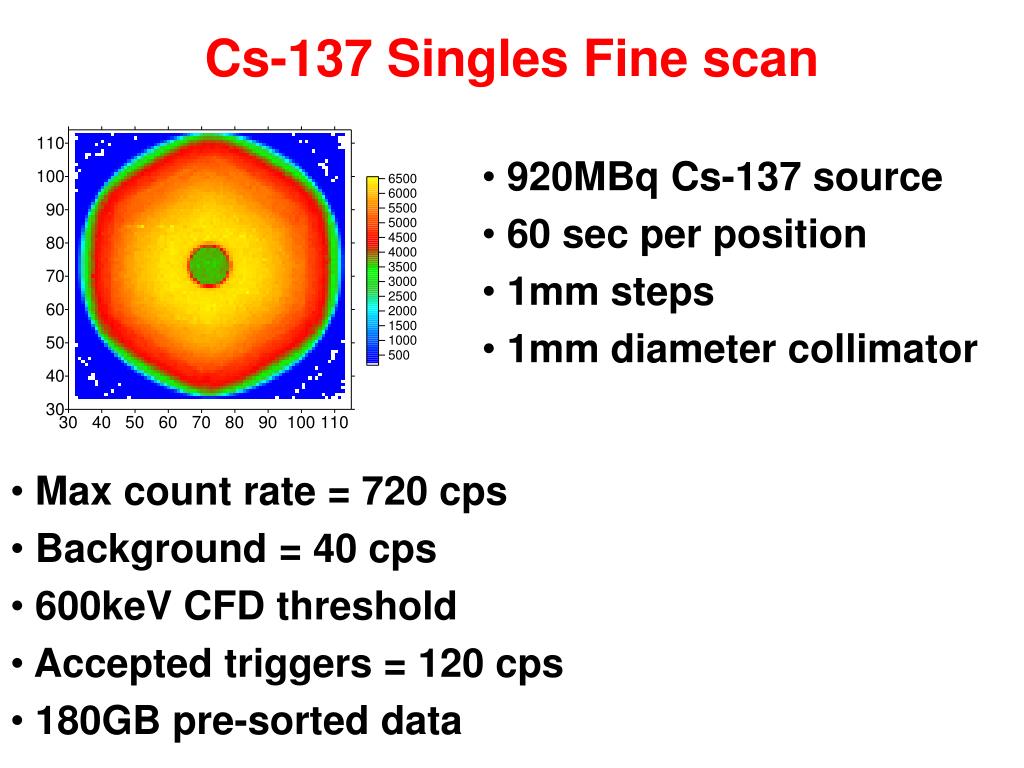

  10. Cs-137 Singles Fine scan • 920MBq Cs-137 source • 60 sec per position • 1mm steps • 1mm diameter collimator • Max count rate = 720 cps • Background = 40 cps • 600keV CFD threshold • Accepted triggers = 120 cps • 180GB pre-sorted data

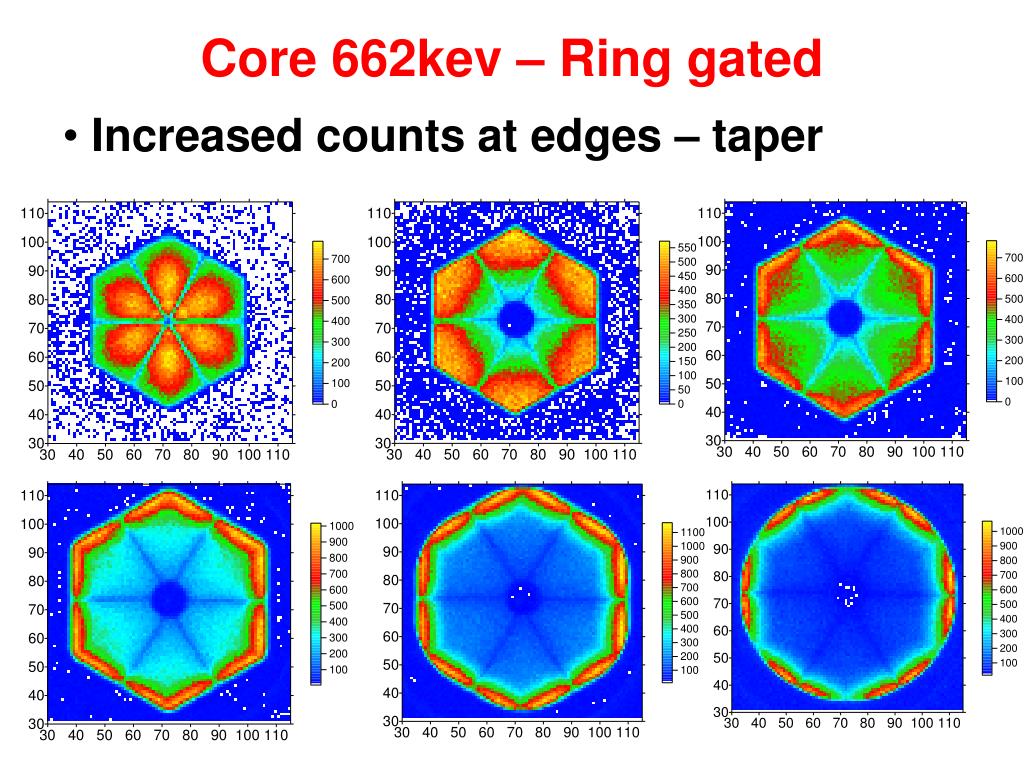

  11. Core 662kev – Ring gated • Increased counts at edges – taper

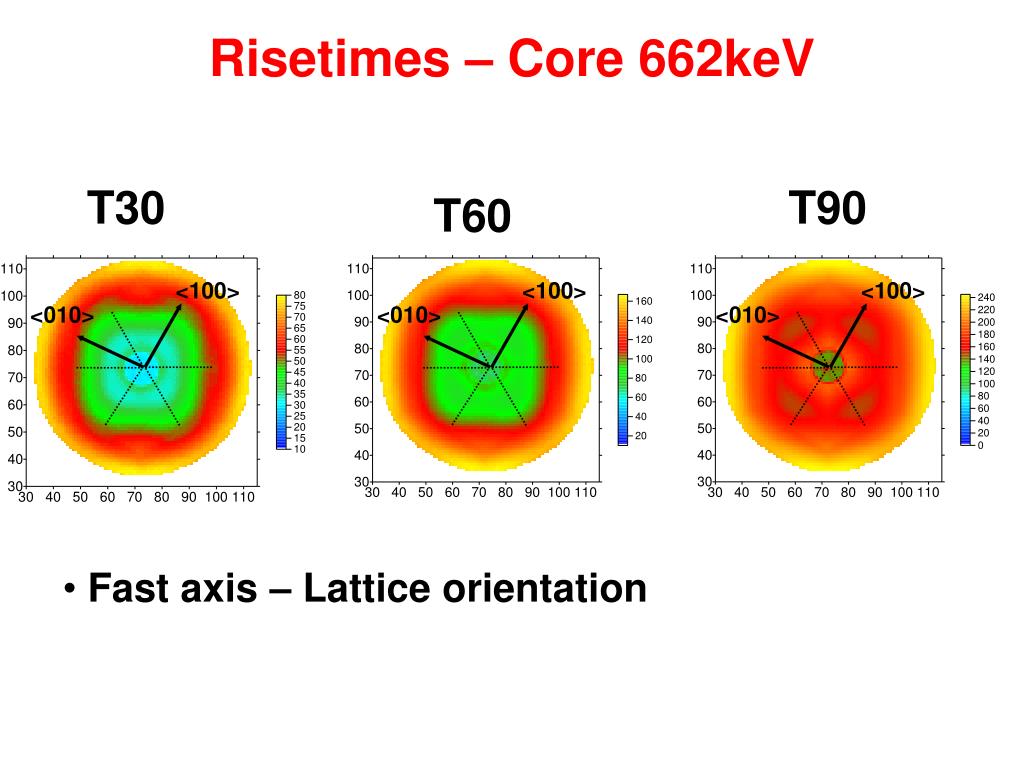

  12. Risetimes – Core 662keV T30 T90 T60 • Fast axis – Lattice orientation

  13. Risetimes – Core 662keV T30 T90 T60 <100> <100> <100> <010> <010> <010> • Fast axis – Lattice orientation

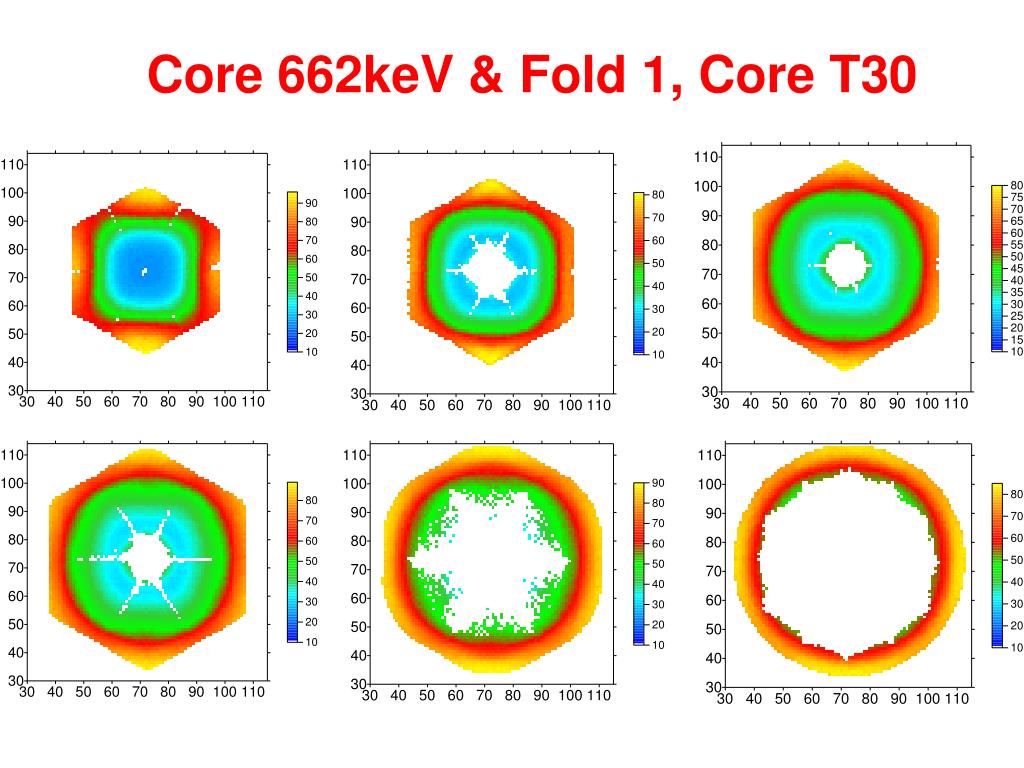

  14. Core 662keV & Fold 1, Core T30

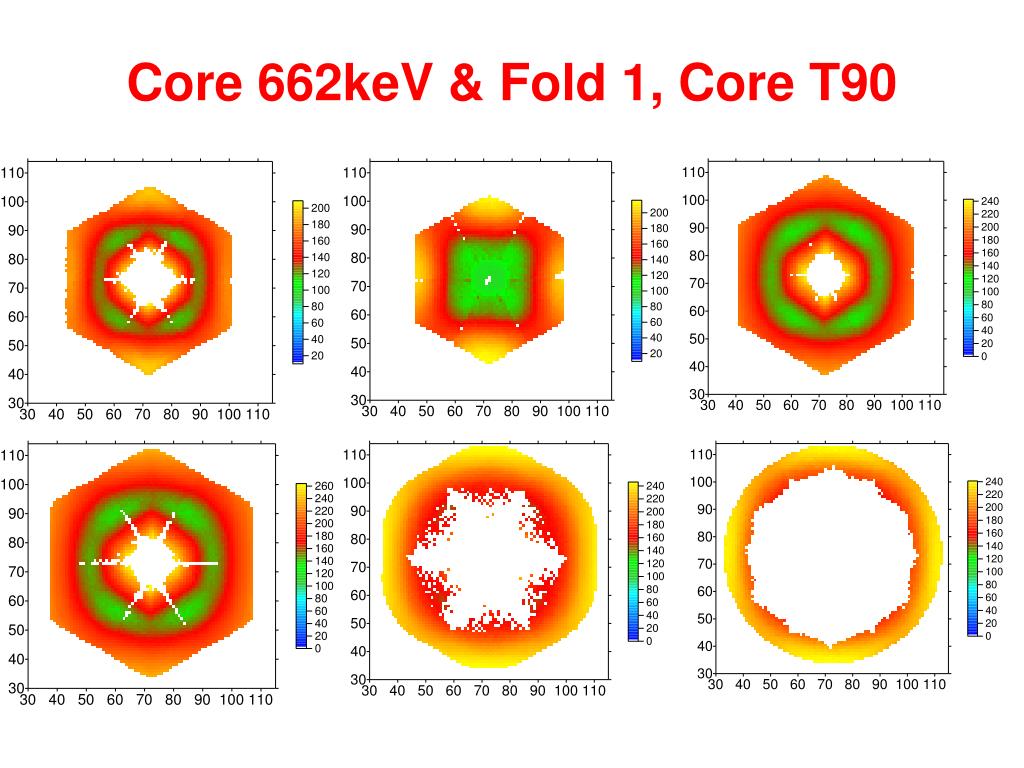

  15. Core 662keV & Fold 1, Core T90

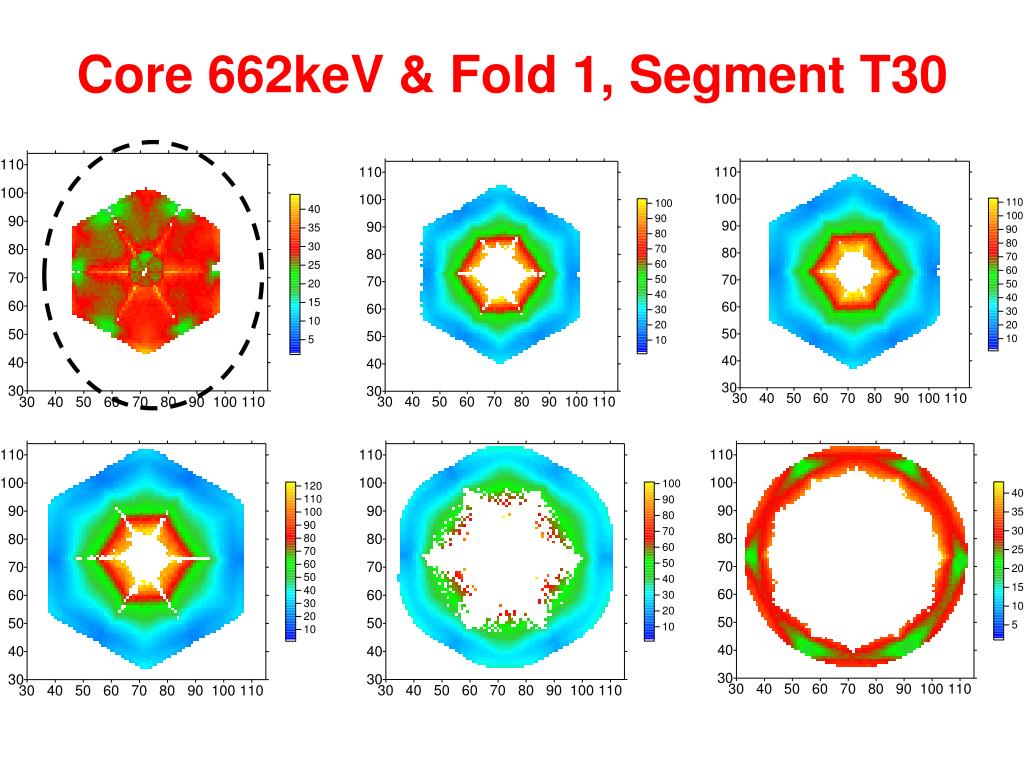

  16. Core 662keV & Fold 1, Segment T30

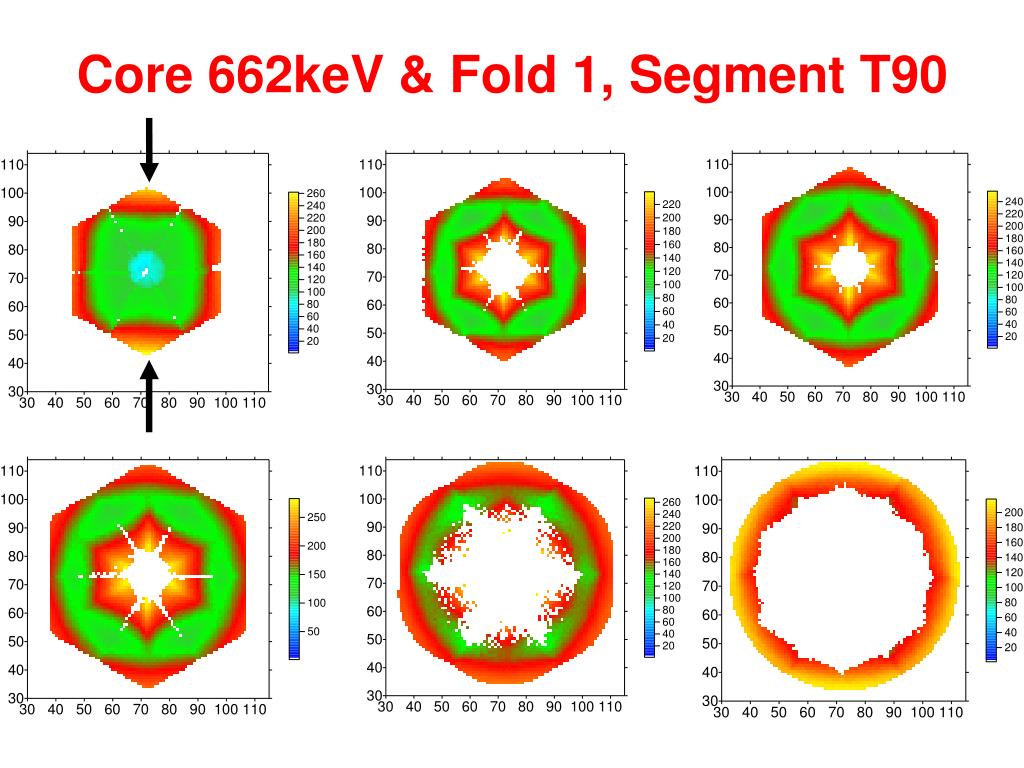

  17. Core 662keV & Fold 1, Segment T90

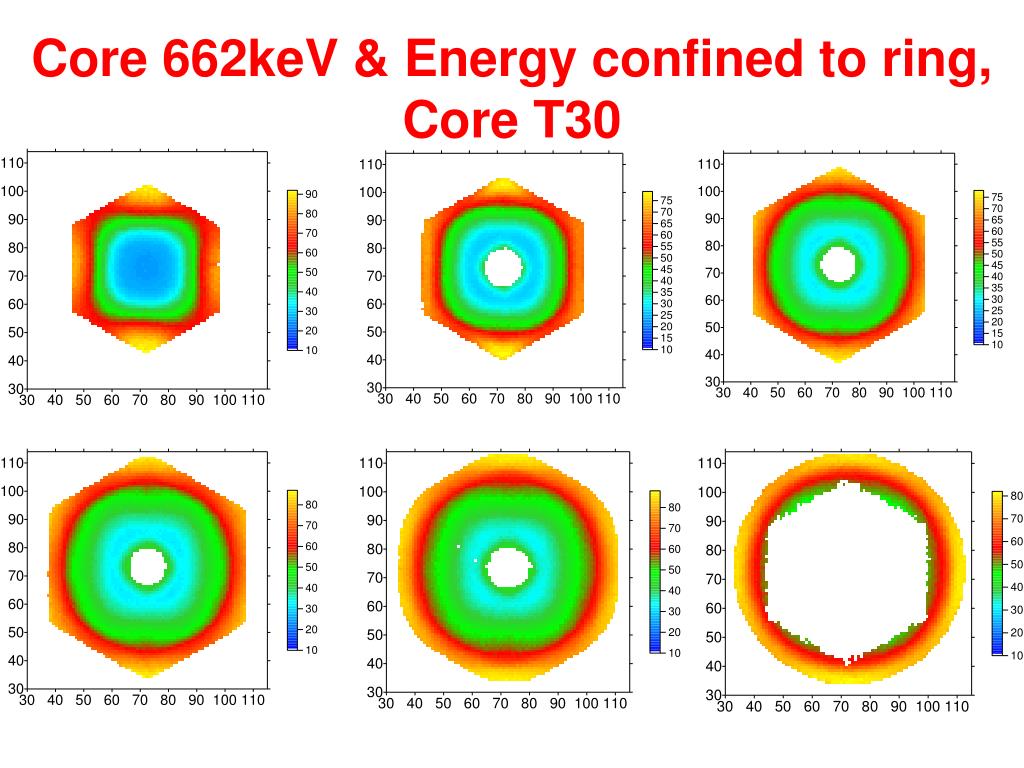

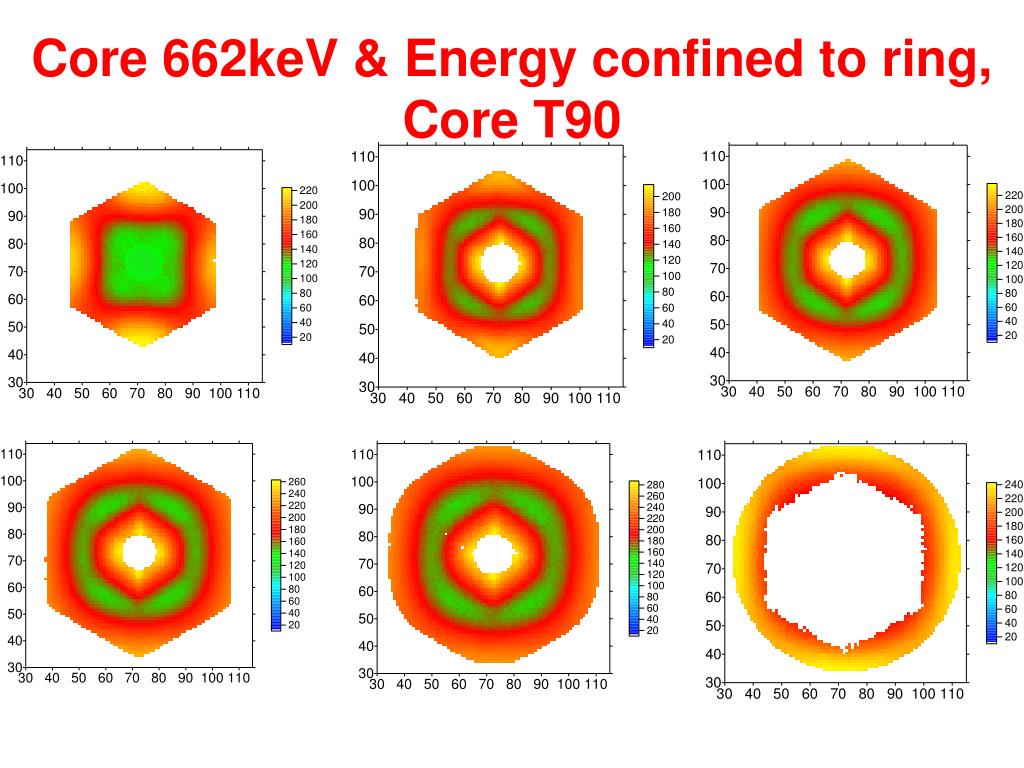

  18. Core 662keV & Energy confined to ring, Core T30

  19. Core 662keV & Energy confined to ring, Core T90

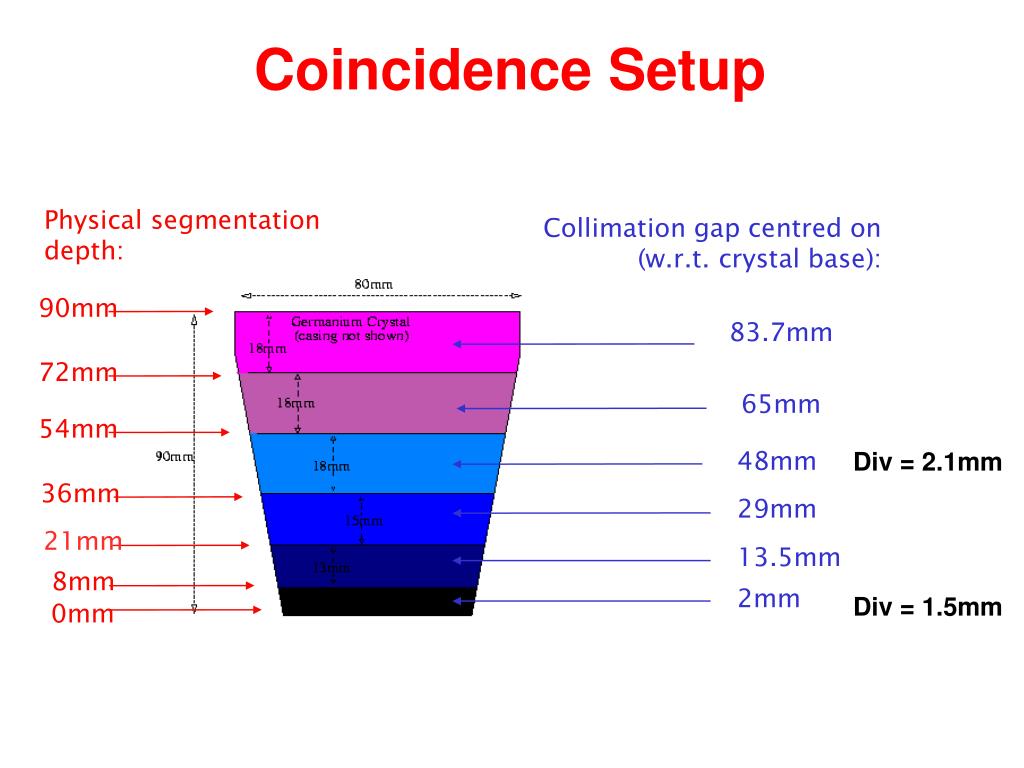

  20. Physical segmentation depth: Collimation gap centred on (w.r.t. crystal base): 90mm 72mm 54mm 83.7mm 36mm 21mm 8mm 65mm 48mm 29mm 13.5mm 2mm 0mm Coincidence Setup Div = 2.1mm Div = 1.5mm

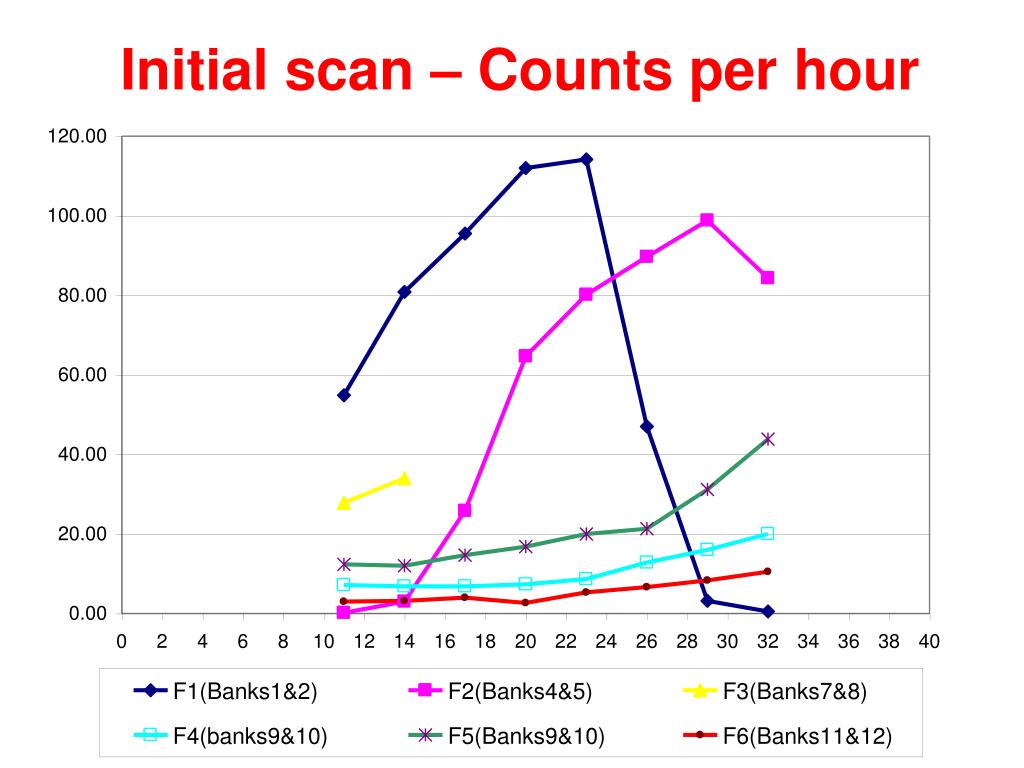

  21. Initial scan – Counts per hour

  22. Initial scan – Counts per hour 1.4mm 2.8mm

  23. Initial scan – Counts per hour 1.4mm 2.8mm

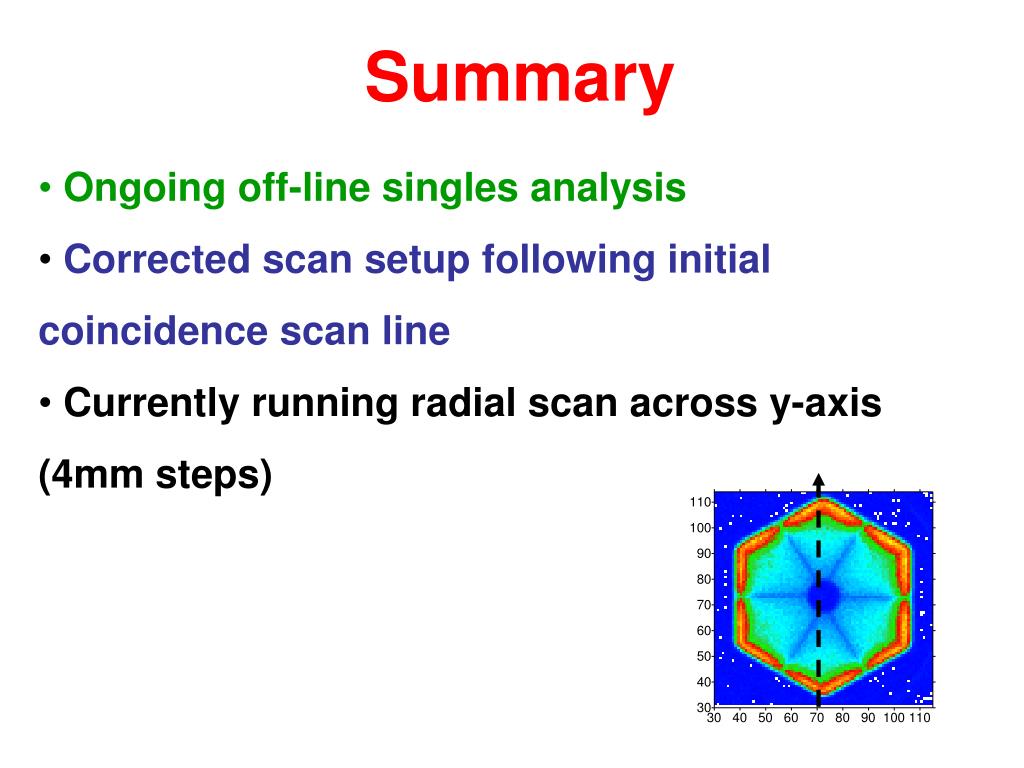

  24. Summary • Ongoing off-line singles analysis • Corrected scan setup following initial coincidence scan line • Currently running radial scan across y-axis (4mm steps)

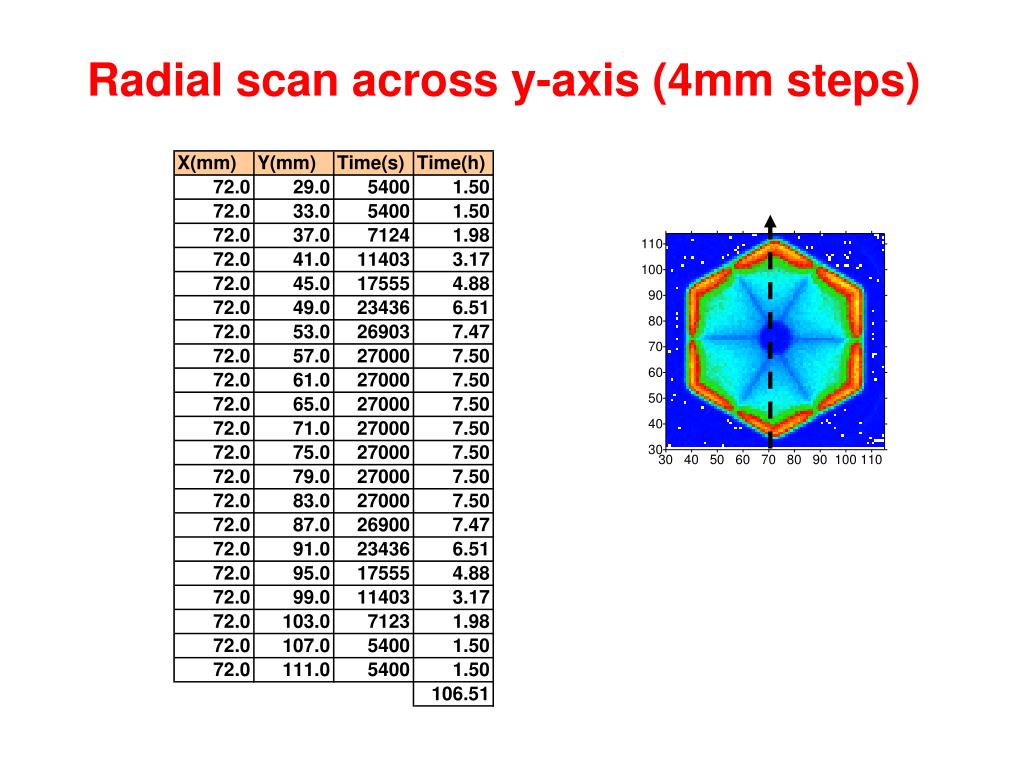

  25. Radial scan across y-axis (4mm steps)

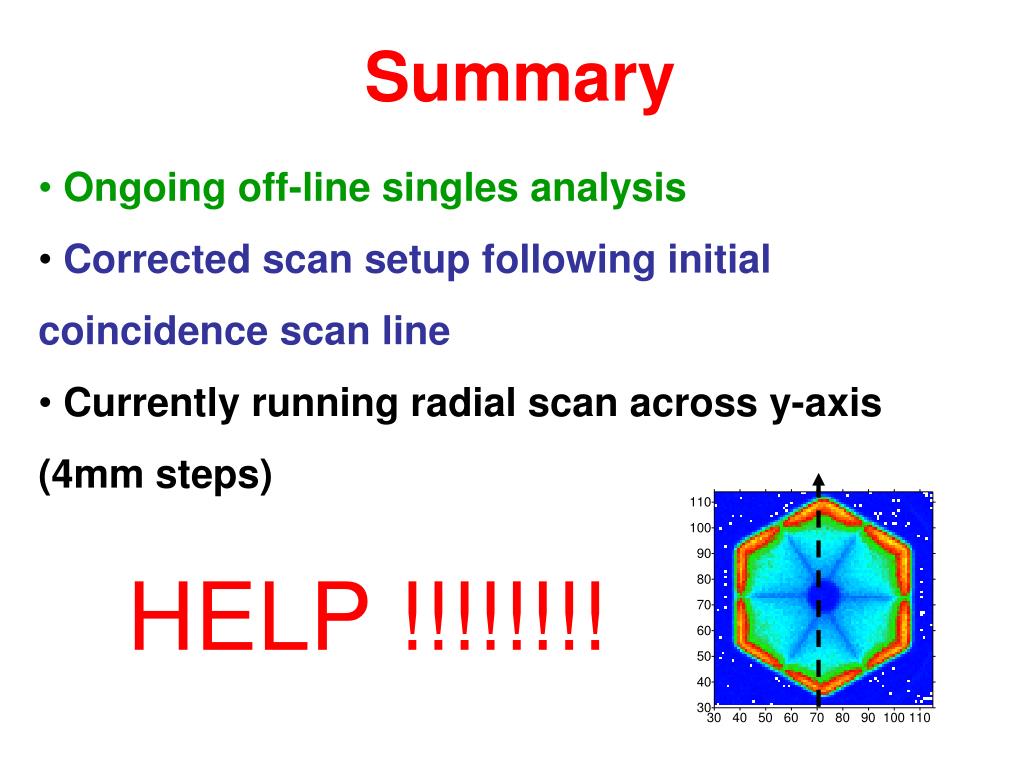

  26. Summary • Ongoing off-line singles analysis • Corrected scan setup following initial coincidence scan line • Currently running radial scan across y-axis (4mm steps) HELP !!!!!!!!

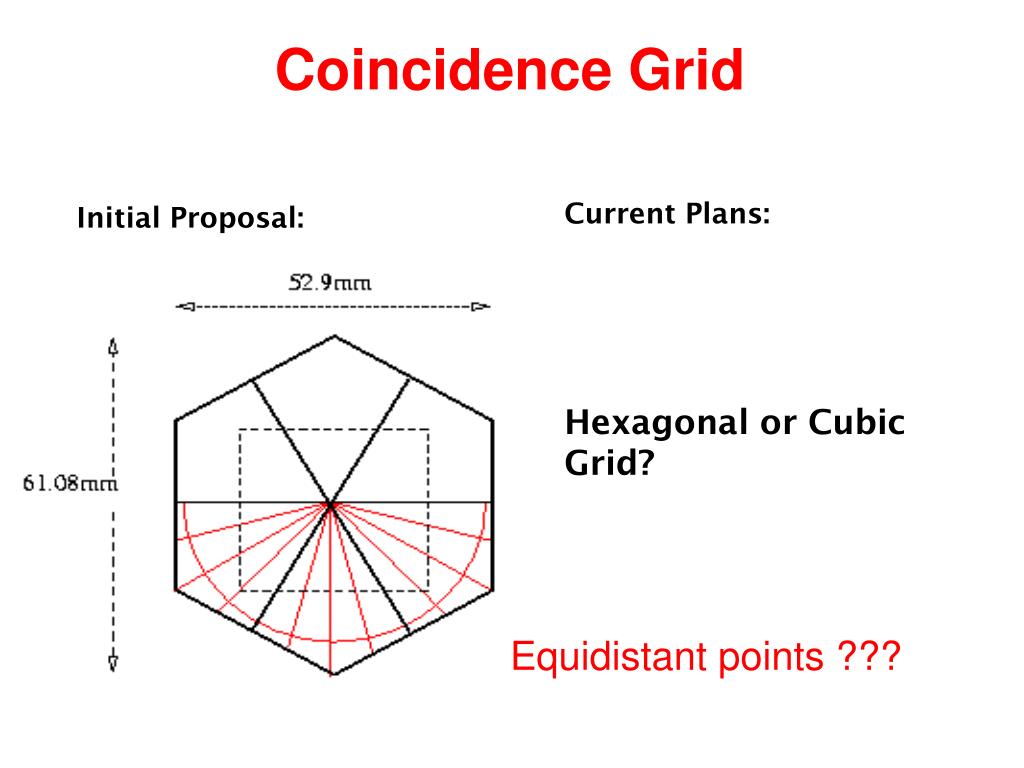

  27. Coincidence Grid Current Plans: Hexagonal or Cubic Grid? Initial Proposal:

  28. Coincidence Grid Current Plans: Hexagonal or Cubic Grid? Initial Proposal: Equidistant points ???
