Enhancing Ontology Management with GATE: Training Insights and Tools

This course provides an in-depth understanding of using GATE's ontology tools, including OWLIM for ontology storage and reasoning, Jena as a backend, and key features for ontology editing. Participants will learn how to load, view, and manipulate ontologies, add and delete classes, instances, and properties, and interact with the ontology API. Real-world applications in knowledge management, business intelligence, and media analysis demonstrate the practical use of these tools in various domains. Join us to unlock the potential of ontologies with GATE!

lundy
Télécharger la présentation

Enhancing Ontology Management with GATE: Training Insights and Tools

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

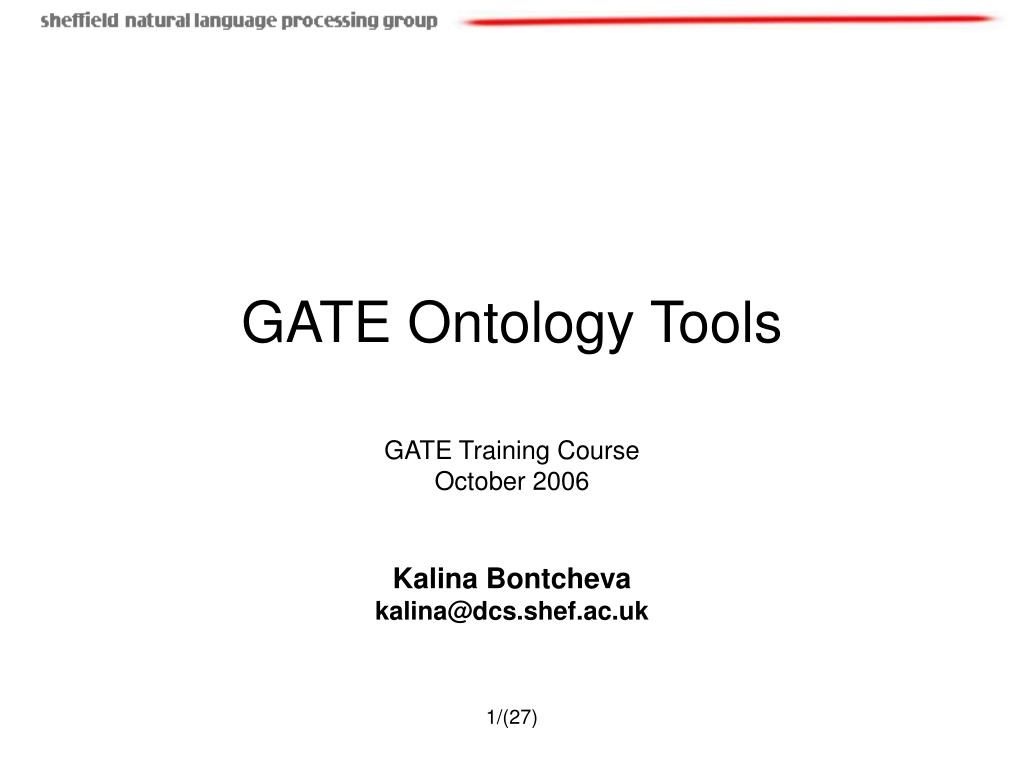

  1. GATE Ontology Tools GATE Training Course October 2006 Kalina Bontcheva kalina@dcs.shef.ac.uk 1/(27)

  2. Ontology Plugins (gate 3.1) 2/(27)

  3. OWLIM support (v. 4.0) • Loading and viewing ontologies is the same from the GATE GUI • Storage and reasoning performed by OWLIM • Access is via a web service 3/(27)

  4. Create New Ontology LR • Example uses Jena as a backend • Loads an ontology over the Web, in this case Proton (http://proton.semanticweb.org/) • Supports OWL (Lite, DL, Full) & RDF – as this is what Jena supports 4/(27)

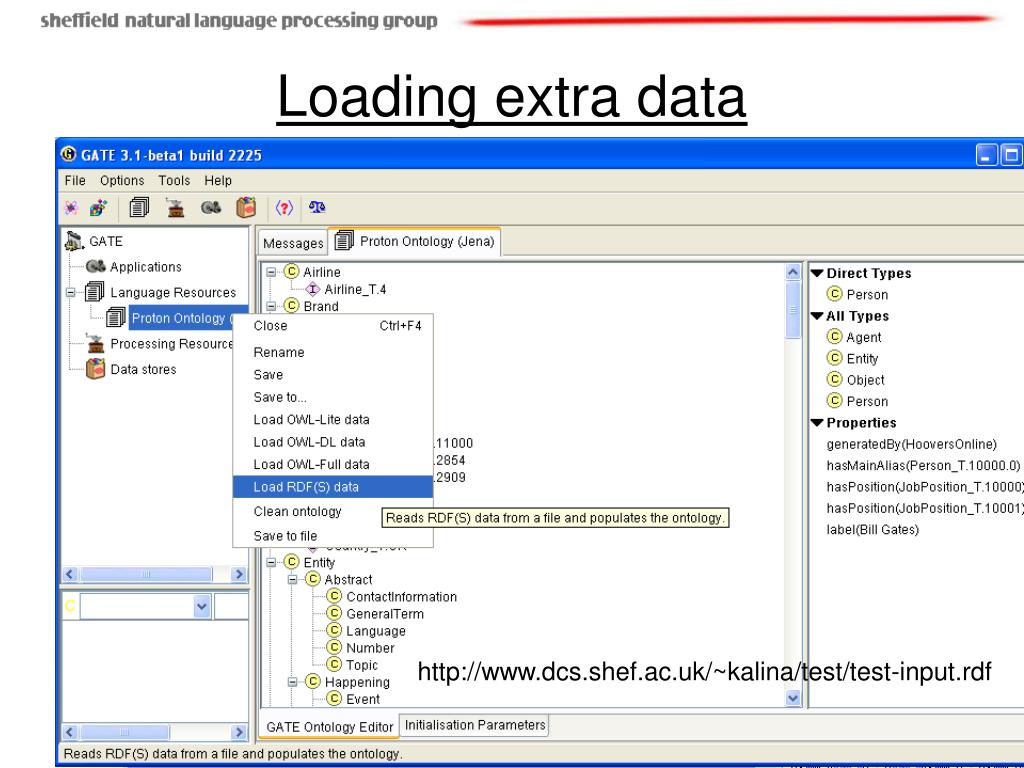

  5. Loading extra data http://www.dcs.shef.ac.uk/~kalina/test/test-input.rdf 5/(27)

  6. View classes 6/(27)

  7. View instances 7/(27)

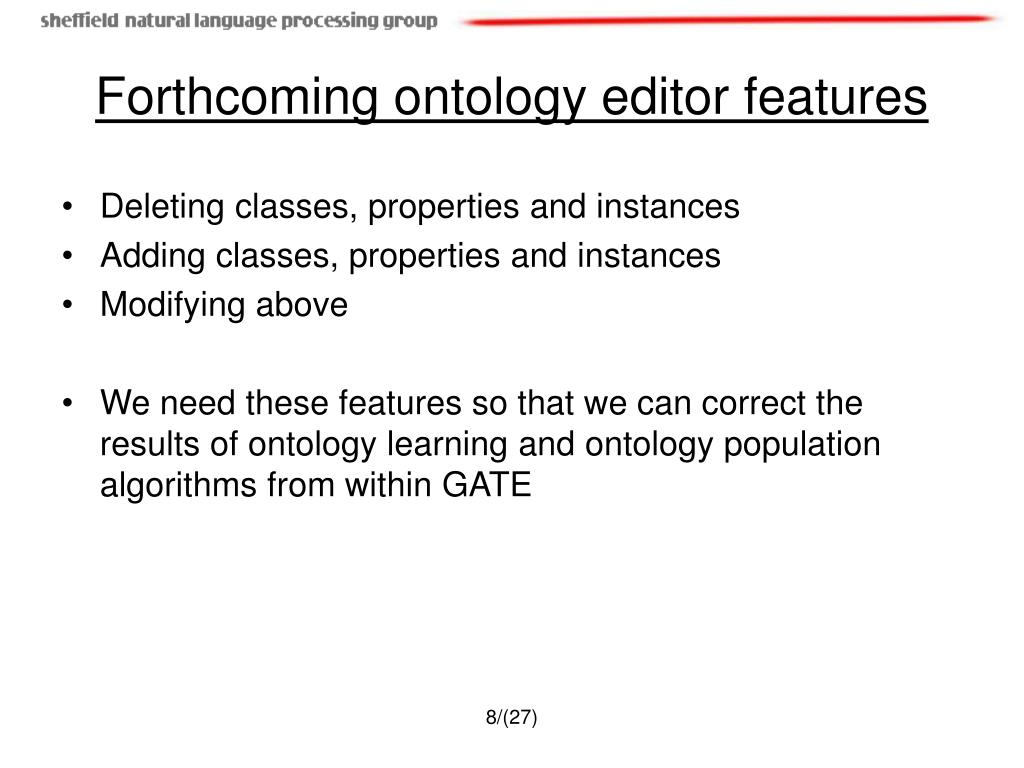

  8. Forthcoming ontology editor features • Deleting classes, properties and instances • Adding classes, properties and instances • Modifying above • We need these features so that we can correct the results of ontology learning and ontology population algorithms from within GATE 8/(27)

  9. Ontology API FeatureMap features = Factory.newFeatureMap(); features.put("ontologyURL", ontologyURL); JenaOntologyImpl ontology = (JenaOntologyImpl) Factory.createResource("gate.creole.ontology.jena.JenaOntologyImpl",features); Interface gate.creole.ontology.Ontology • add/get/delete concepts/instances/properties 9/(27)

  10. Ontology API (2) // adding a new class Person – class name and comment OClass person = ontology.createClass("Person","All humans"); // adding a new class Man OClass man = ontology.createClass("Man", "Male Person"); // adding a new class Liquid OClass liquid = ontology.createClass("Liquid","anything that is in liquid form"); // John is a person OInstance john = ontology.addInstance("John", person); // water is liquid OInstance water = ontology.addInstance("Water", liquid); // Man is a subclassof Person person.addSubClass(man); // Man drinks liquid ontology.addObjectProperty("drinks","man drinks liquid", man, liquid); // john drinks liquid john.addPropertyValue("drinks", water); 10/(27)

  11. Onto gazetteer 11/(27)

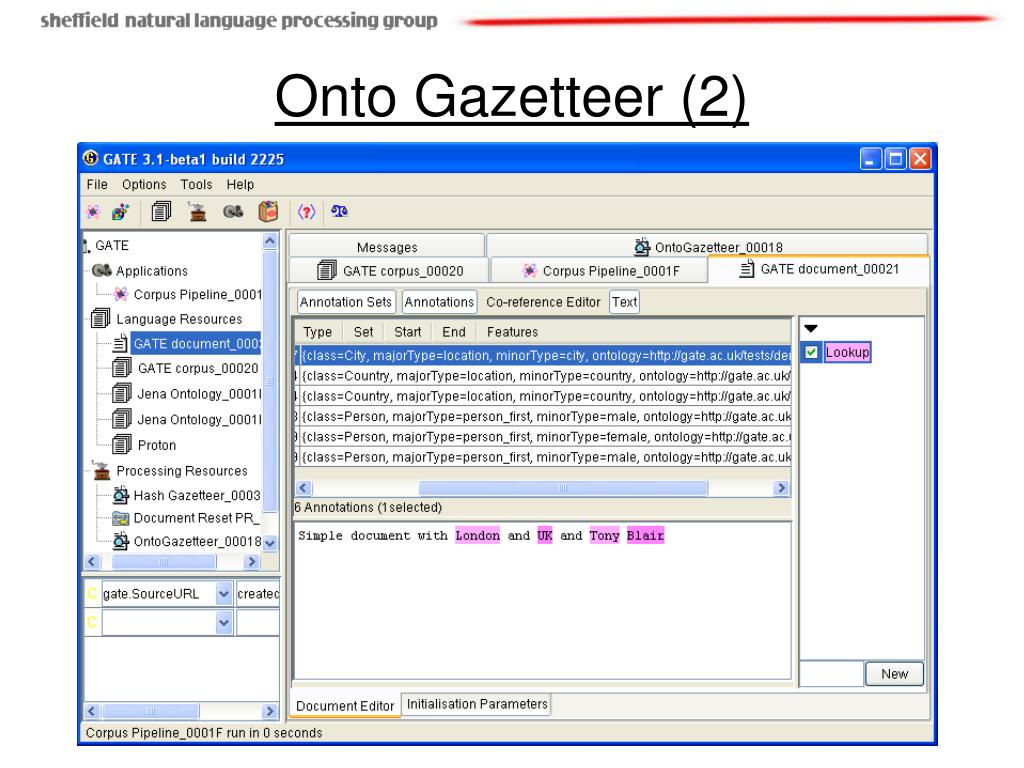

  12. Onto Gazetteer (2) 12/(27)

  13. JAPE and Ontologies 13/(27)

  14. Results Results of sample rule without ontology as a parameter Results of sample rule with ontology as a parameter 14/(27)

  15. Sample use • Knowledge Management and business intelligent • gate.ac.uk/projects/sekt/ • Media analysis • gate.ac.uk/projects/media-campaign/ • Multi-media semantic annotation • gate.ac.uk/projects/prestospace/ • Software Engineering • gate.ac.uk/projects/tao/ • Also used in an increasing number of commercial products, esp. for business intelligence 15/(27)
