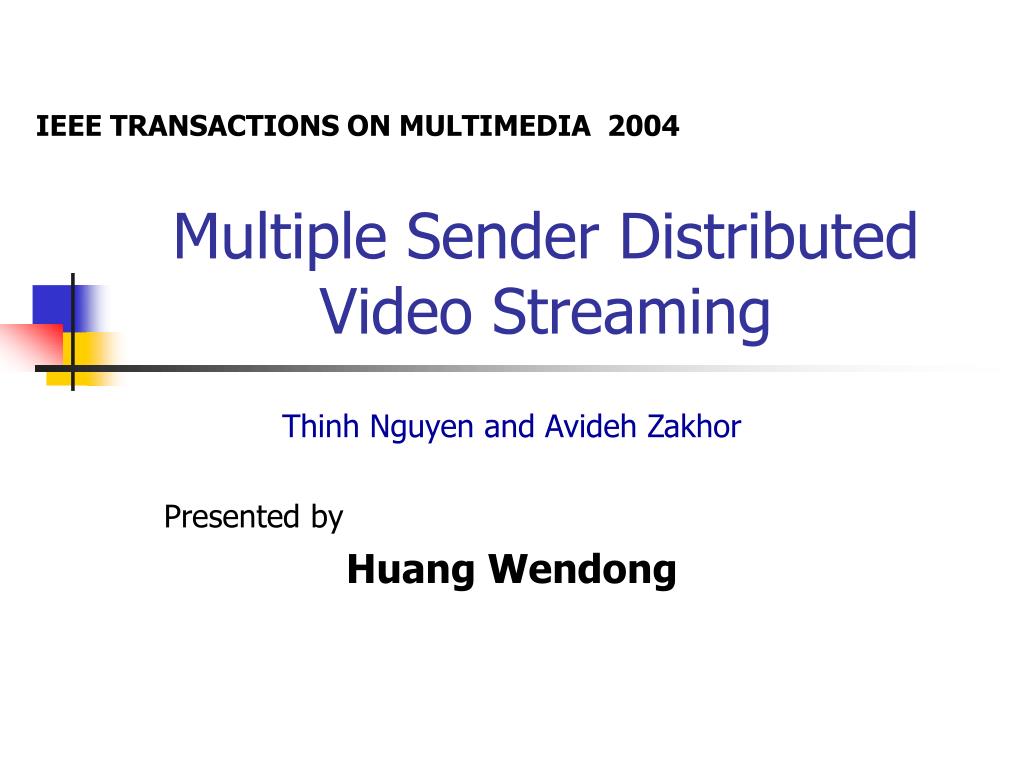

  1. IEEE TRANSACTIONS ON MULTIMEDIA 2004 Multiple Sender Distributed Video Streaming Thinh Nguyen and Avideh Zakhor Presented by Huang Wendong

  2. Introduction • Multiple sender distributed video streaming • Multiple senders and single receiver • Independent routes from senders to the receiver • Achieve higher throughput, increase tolerance to packet loss and delay due to network congestion • Three main components in the proposed work • Rate allocation algorithm • Packet partition algorithm • Receiver-driven transport control

  3. System Overview Packet Partition algorithm Estimate available bandwidth Control ACK Sender 1 Data Estimate RTT Rate Allocation algorithm Receiver Estimate RTT Data Sender 2 Estimate loss rate Packet Partition algorithm Control ACK

  4. Receiver-driven Transport Control • Receiver • Calculate the optimal sending rate using RAAbased on the RTTs and estimated loss rates • Monitor variations of each sender and readjust rate distributions among senders accordingly • Sender • Estimate and send its round-trip time to the receiver • Run distributed PPA upon receiving the control packets • Control packet format • Synchronization sequence number + RTT+ sending rates

  5. Rate Allocation Algorithm • Objective • Minimize the irrecoverable lossunder fixed FEC • Be fair to existing TCP traffic • Setup of RAA • Packet loss model: Two-state discrete Markov chain • FEC scheme: RS(n, k), n and k are fixed for the entire streaming process • Bitstream model: single description and single layer bitstream

  6. Rate Allocation Algorithm(2) • Mathematical model Subject to • P(m,i,N) denotes the probability that i packets are lost out of N packets sent by m • istheinterval between the successive transmitted FEC blocks in seconds

  7. Rate Allocation Algorithm(3) • Implementation • Search over all possible values of and • For M senders, the exhaustive search has complexity of

  8. Packet Partition Algorithm • Objectives • Run in distributed fashion • All packets are sent by one and only one sender • To minimize the startup delay • Mathematical model • Where the playback time of k-th packet with respect to the estimated arrival time of the k-th packet sent by j • To maximize the time difference between arrival and playback time of the k-th packet

  9. Packet Partition Algorithm(2) • Distributed calculation • Each sender effectively keeps track of all the values of for all senders • No need to synchronize all the sender’s clocks to a global time

  10. Packet Partition Algorithm(3) • The choice of the synchronization sequence number in the control packet • The lag among the senders needs to be as little as possible • The aggregate bit rate for all senders remains constant where is the estimated sequence number for the latest packet sender j has just sent, before receiving the control packet.

  11. Experiments Results • Numerical Characteristics • Two common scenarios X and Y are considered • FEC configuration: RS(30,27), RS(30,25), RS(30,23) irrecoverable loss probability change significantly among various schemes • Optimal packet partition scheme As the average bad time of route B increases, more packets are sent by route A for all three levels of FEC protection; At the same average bad time of route B, the number of packets sent on route A decreases with increased FEC level

  12. Experiments Results(2) • Single sender vs. multiple senders Irrecoverable packet loss is significantly reduced in multiple sender scheme; Optimal RAA is more effective with stronger FEC schemes • Sensitivity Analysis of Optimal Sending Rate • Sensitivity of loss probability to deviations form optimal sending rates • In case of strong FEC protection,a slight variation in the sending rate around the optimal value results in a smaller change in irrecoverable probability

  13. Experiments Results(3) • Internet Experimental Results Show • Multiple sender scheme can effectively combat burst packet loss • In most cases, PPA provides interleaved packets with small lags

  14. Conclusions • The proposed work can effectively reduce overall packet loss rate • Further work • Adopt adaptive FEC schemes • Employ scalable bitstream to accommodate the additional data

  15. Thank You !
