  1. ISO 9001:2000Documentation Requirements Based on ISO/TC 176/SC 2 March 2001 ISO 9001:2000

  2. Two of the Most Important Objectives in the Revision of the ISO 9000- Standard • To develop a simplified set of standards that will be equally applicable to small as well as medium and large organizations • For the amount and detail of documentation required to be more relevant to the desired results of the organization’s process activities

  3. ISO 9001:2000 • Significantly reduces documentation requirements • Is much less prescriptive • Allows more flexibility in choice of documentation system

  4. ISO 9001:2000 • Enables each organization to develop the minimum amount of documentation needed in order to demonstrate the effective planning, operation and control of its processes and the implementation and continual improvement of the effectiveness of its quality management system

  5. What Is a Document? • Communication of information • Evidence of conformity • Knowledge sharing

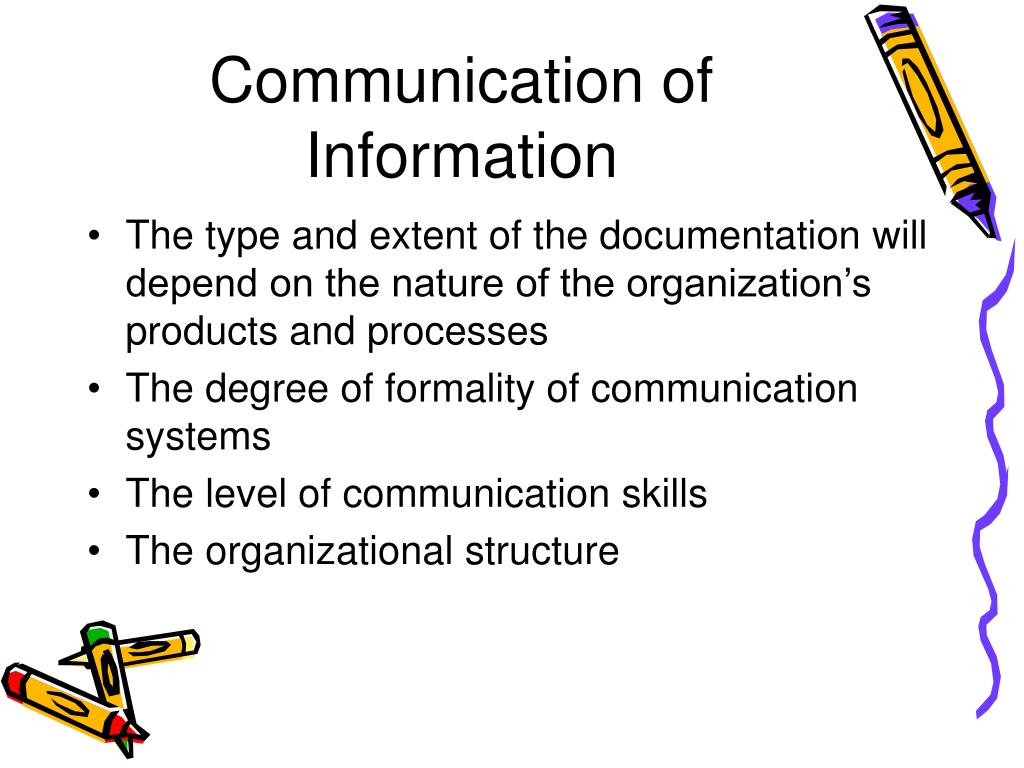

  6. Communication of Information • The type and extent of the documentation will depend on the nature of the organization’s products and processes • The degree of formality of communication systems • The level of communication skills • The organizational structure

  7. Evidence of Conformity • Provision of evidence that what was planned has actually been done. • Say what you do, do what you say and prove it.

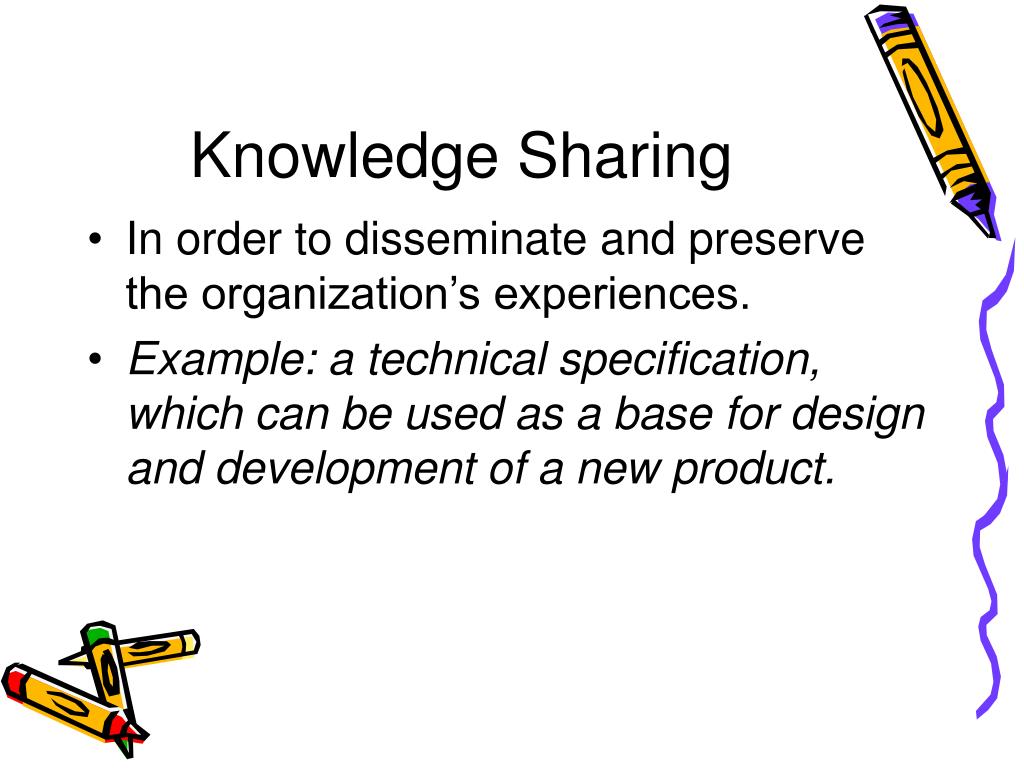

  8. Knowledge Sharing • In order to disseminate and preserve the organization’s experiences. • Example: a technical specification, which can be used as a base for design and development of a new product.

  9. Document Mediums • Paper • Magnetic • Electronic • Photographic • Master Sample • Other

  10. Clause 4.1, General Requirements • Documented statements of quality policy and quality objectives • A quality manual • Documented procedures required by the international standard • Documents needed by the organization to ensure effective planning, operation and control of its processes • Records required by the international standard

  11. Documented Statements of Quality Policy (1 of 2) Defined in Clause 5.3 • Appropriate to the purpose of the organization • Includes a commitment to comply with requirements and continually improve the effectiveness of the Quality Management System • A framework for establishing and quality objectives

  12. Documented Statements of Quality Policy (2 of 2) Defined in Clause 5.3 • Is communicated and understood within the organization • Is reviewed for continuing suitability

  13. Documented Statements of Quality Objectives Defined in Clause 5.4.1 • Includes those needed to meet requirements for product [Clause 7.1] • Are established at relevant functions and levels within the organization • Are measurable and consistent with Quality Policy

  14. Quality Manual Minimum content specified in Clause 4.2.2 • Scope of the Quality Management System, including details of and justification for any exclusions • Documented procedures established for the QMS, or references to them • Description of the interaction between processes of the QMS

  15. Quality Manual-Structure Structure of the manual is a decision for the organization based on: • Organization’s size • Organization’s complexity • Organization’s culture Controlled in accordance with the requirements of Clause 4.2.3

  16. Documented Procedures Required by ISO 9001:2000 • Control of documents (Clause 4.2.3) • Control of records (Clause 4.2.4) • Internal Audit (Clause 8.2.2) • Control of nonconforming product (Clause 8.3) • Corrective action (Clause 8.5.2) • Preventive Action (Clause 8.5.3)

  17. Documents Needed by the Organization Specifically referenced in ISO 9001:2000 • Quality policy (Clause 4.2.1a) • Quality objectives (Clause 4.2.1a) • Quality Manual (Clause 4.2.1b)

  18. Additional Documentation There are several requirements of ISO 9001:2000 where an organization could add value to its Quality Management System and demonstrate conformity by the preparation of other documents

  19. Additional Documentation • Process maps, process flow charts,and/or process descriptions • Organization charts • Specifications • Work and/or test instructions • Production schedules • Approved suppliers lists • Test and inspection plans • Quality plans

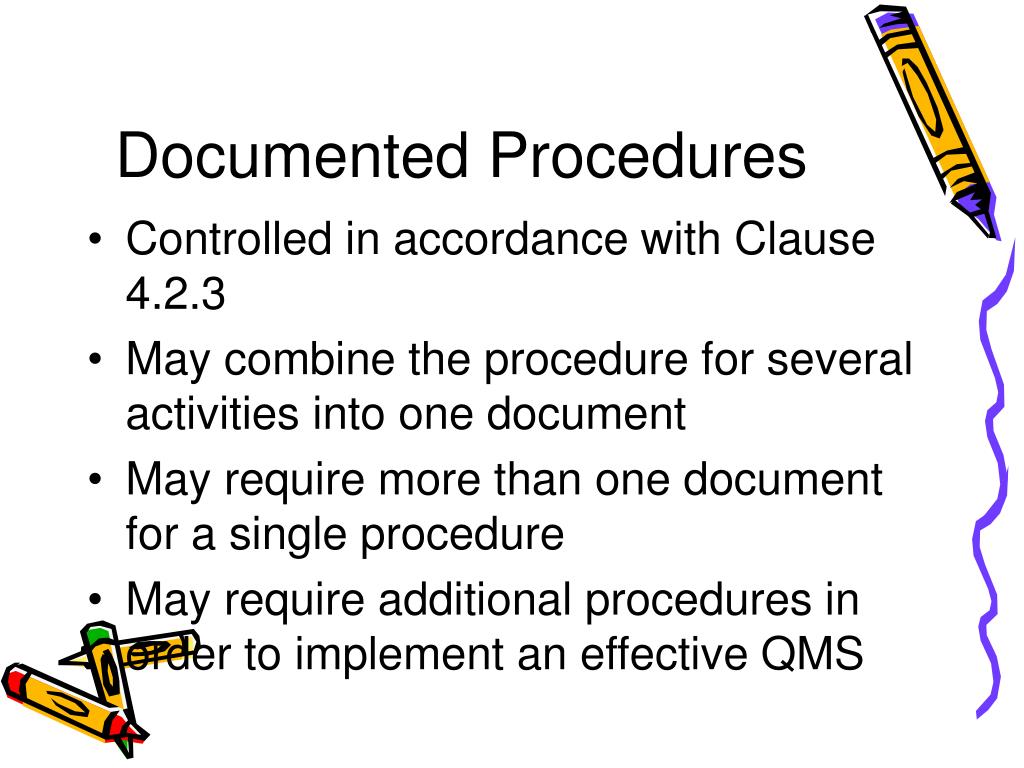

  20. Documented Procedures • Controlled in accordance with Clause 4.2.3 • May combine the procedure for several activities into one document • May require more than one document for a single procedure • May require additional procedures in order to implement an effective QMS

  21. Records • Requirements for control of records are different from those for other documents • All records have to be controlled in accordance with the requirements of Clause 4.2.4 • Organization are free to develop records that may be needed to demonstrate conformity of their processes, products, and QMS

  22. Management reviews (5.6.1) Education, training, skills and experience (6.2.2e) Evidence that the realization processes and resulting product fulfill requirements (7.1d) Design and development inputs (7.3.2) Results of design and development reviews (7.3.4) Results of design and development verification Results of design and development validation Results of review of design and development changes (7.3.7) Required Records (1 0f 2)

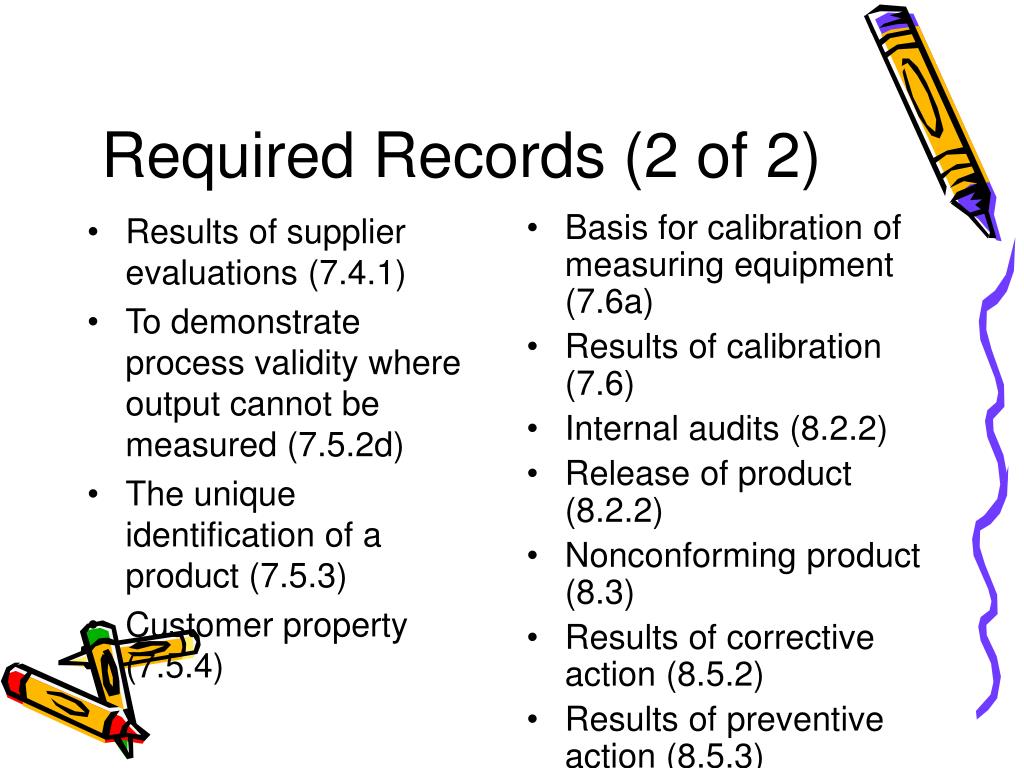

  23. Results of supplier evaluations (7.4.1) To demonstrate process validity where output cannot be measured (7.5.2d) The unique identification of a product (7.5.3) Customer property (7.5.4) Basis for calibration of measuring equipment (7.6a) Results of calibration (7.6) Internal audits (8.2.2) Release of product (8.2.2) Nonconforming product (8.3) Results of corrective action (8.5.2) Results of preventive action (8.5.3) Required Records (2 of 2)

  24. Preparing to Implement a QMS Process approach • Identify the processes necessary for effective implementation • Understand interactions between these processes • Document the processes to assure effective operation and control

  25. Processes Include • Management • Resources • Product realization • Measurement

  26. Process Analysis • Should be driving force for defining amount of documentation, taking into account the requirements of ISO 9001:2000 • Should not be the documentation that drives the processes

  27. Demonstrating Conformity With ISO 9001:2000 • May not need extensive documentation • Must be able to provide objective evidence of effectiveness of processes and quality management system

  28. Objective Evidence • Data supporting the existence or verity of something (Clause 3.8.1 of ISO 9000:2000) • May be obtained through observation, measurement, test or other means • Does not necessarily depend on documented procedures, records or other documents except where specifically required by ISO 9001:2000

  29. Objective Evidence • Where the organization has no specific procedure for a particular activity, and this is not required by specification, it is acceptable for this activity to be conducted using as a basis the relevant clause of ISO 9001:2000 • Example: Internal and external audits

  30. Terms and Definitions • Document - information and its supporting medium (ISO 9000:2000 Clause 3.7.2) • Procedure – Specified way to carry out an activity (3.7.4) • Quality Manual – Document specifying the quality management system of an organization • Quality Plan – document specifying which procedures and associated resources shall be applied, by whom and when to a specific project (3.7.5) • Record – document stating results achieved or providing evidence of activities performed (3.7.6) • Specification – document stating requirements

  31. Bibliography • Guidance on the Documentation Requirements of ISO 9001:2000 ISO/TC 176/SC 2/N525R March 2001 • Quality Management Systems – Requirements ISO/FDIS 9001
