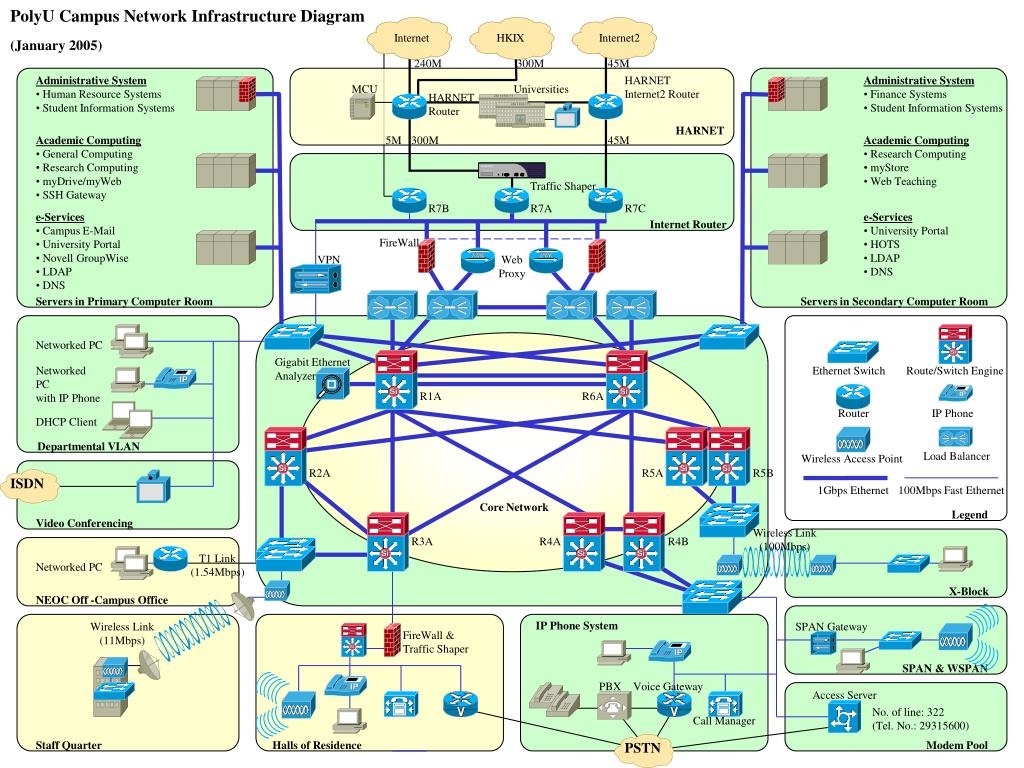

PolyU Campus Network Infrastructure Diagram. Internet. HKIX. Internet2. (January 2005). 240M. 300M. 45M. Administrative System Human Resource Systems Student Information Systems. HARNET Internet2 Router. Administrative System Finance Systems Student Information Systems. MCU.
