  1. SCHEMATIC REPRESENTATIONS OF THE DIFFERENT ASPECTS OF METAL IN DIFFERENT STEPS

  2. Step1 • First differences in metal appear as shape, colour and weight

  3. Step 2- after proper preparation • A group of cells called crystals appear in random shapes and sizes

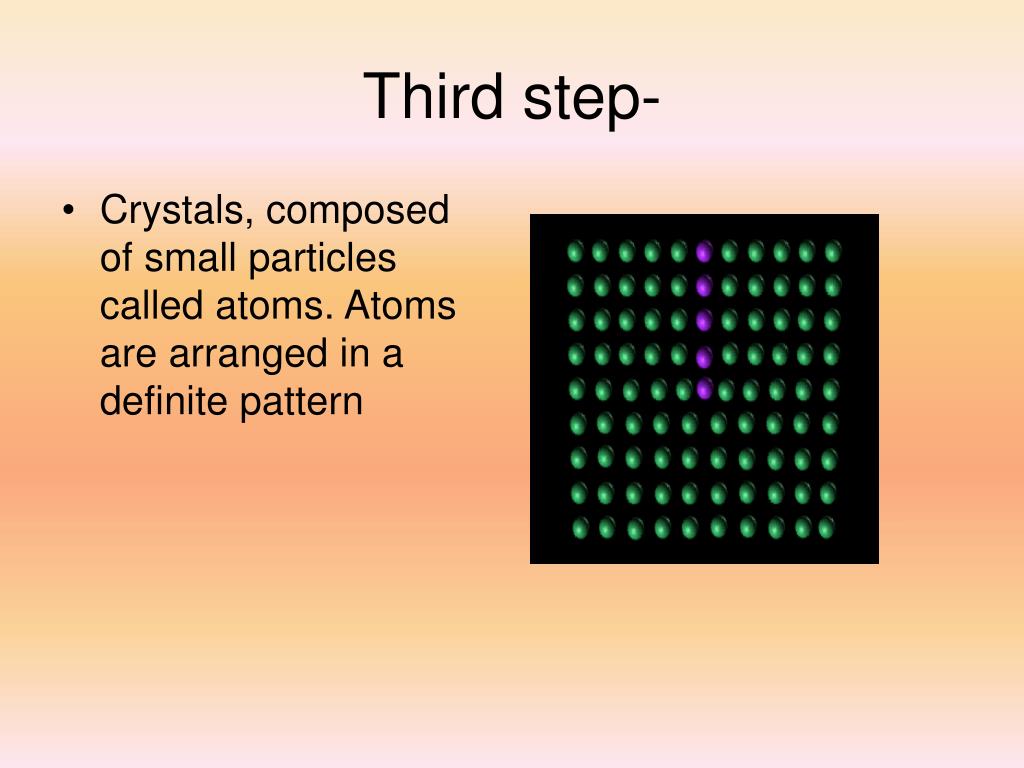

  4. Third step- • Crystals, composed of small particles called atoms. Atoms are arranged in a definite pattern

  5. Fourth step • Orderly arrangement of atoms form crystallographic planes which are alligned along the three dimensions

  6. Fifth step • Particles within a crystal are called atoms

  7. Sixth step • Atoms are positioned in solids in an orderly arrangement. Imaginary lines drawn through the centre of adjacent atoms form geometric shapes HCP BCC FCC

  8. Seventh step • Atoms are composed of the same particles. Difference in atoms is in the number of particles and arrangement.

  9. ATOMS AVERAGE SIZE 1 X 10 -7 mm CONSISTS OF A MASSIVE CORE- NUCLEUS SURROUNDED BY NEGATIVE ELECTRIC CHARGES- ELECTRONS NUCLEUS WITH PROTONS & NEUTRONS ATOMS ELECTRICALLY NEUTRAL ELECTRONS REVOLVE IN DEFINITE ORBITS (PAULI EXCLUSION PRINCIPLE- 2 electrons in 1 orbit)

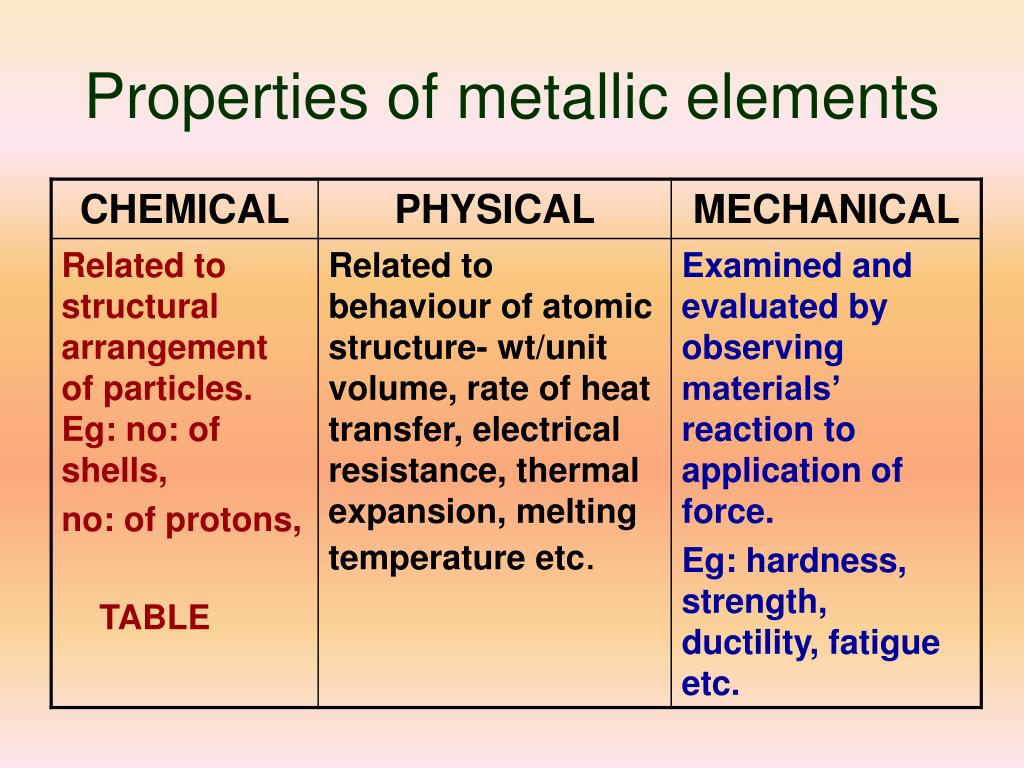

  10. Properties of metallic elements

  11. STRUCTURE OF METALS- The important aspect of any material Relationship between structure and properties to be studied Metallic objects -an aggregate of many small crystals -POLYCRYSTALLINE Crystals in these materials referred to asGRAINS Examination of structure with microscopes of 100X to 1000X and above This study calledMICROSTRUCTURE study - This study is of great use to a metallurgist
