  1. Double Pendulum

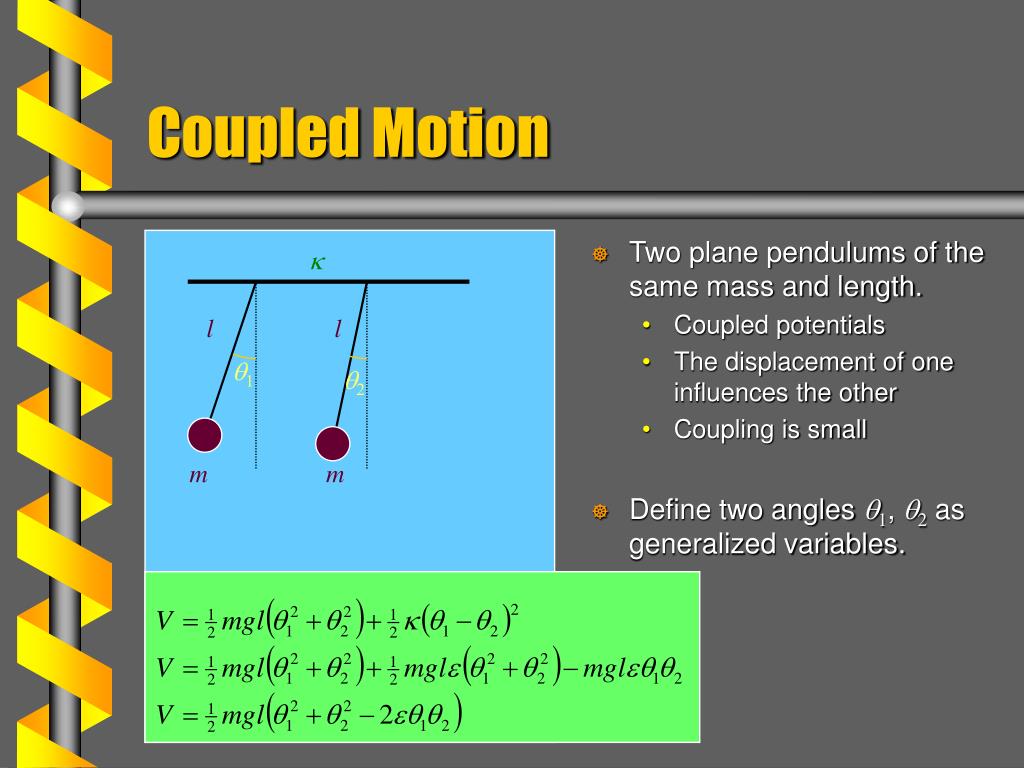

  2. Coupled Motion • Two plane pendulums of the same mass and length. • Coupled potentials • The displacement of one influences the other • Coupling is small • Define two angles q1, q2 as generalized variables. k l l q1 q2 m m

  3. Coupled Equations • The Lagrangian has two variables. • Two EL equations • The equations are coupled in the generalized coordinates.

  4. Uncoupled Variables • Add and subtract the two equations to get a different pair of equations. • Define two new generalized variables. • c1, c2 • There are two characteristic frequencies. • One from each equation

  5. A simple pendulum can move in a circle. 1-dimensional configuration space Represented by a circle S1 The double pendulum moves in two circles. 2-dimensional space Circles are independent Represented by a torus S1S1 Configuration Space

  6. Local Configuration • Motion near equilibrium takes place in a small region of configuration space. • Eg. 2-D patch of the torus • Synchronized oscillations would be a line or ellipse. • Lissajous figures Torus: S1 S1 q1 q2 q2 q1

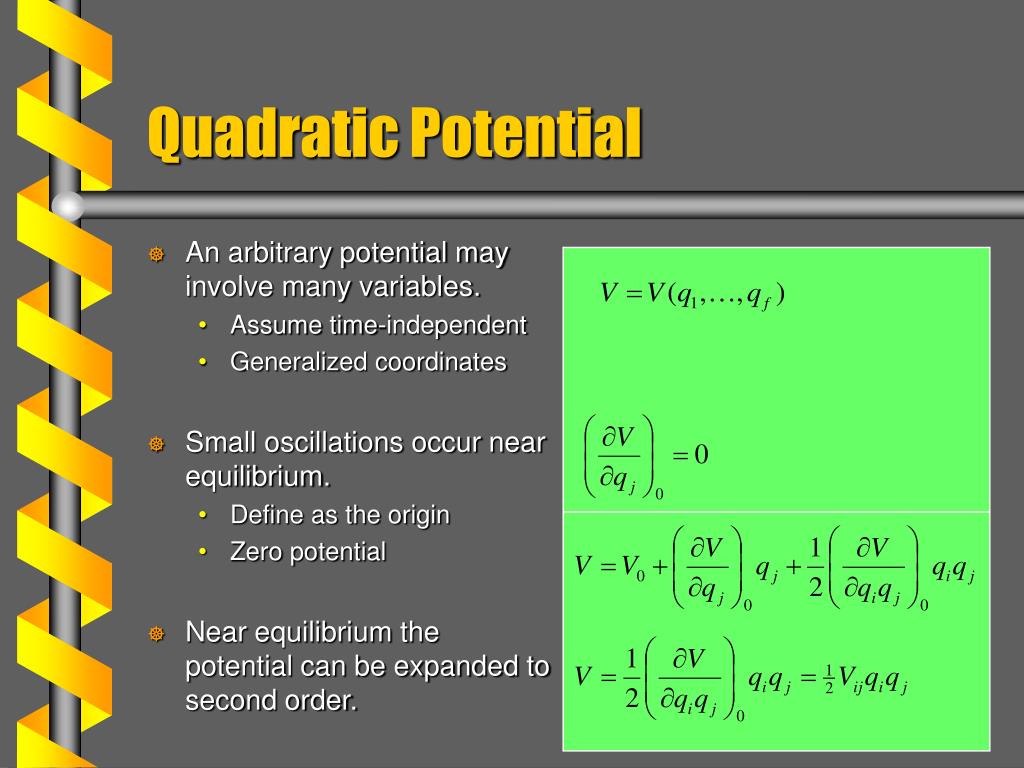

  7. Quadratic Potential • An arbitrary potential may involve many variables. • Assume time-independent • Generalized coordinates • Small oscillations occur near equilibrium. • Define as the origin • Zero potential • Near equilibrium the potential can be expanded to second order.

  8. The potential and kinetic energies can be expressed with matrix terms. Symmetric matrices Matrices G and V imply the form of equations of motion. Matrix G-1V not generally diagonal Small Oscillation Lagrangian next
