  1. SSHSecure Login Connectionsover the Internet Tatu Yloenen SSH Communications Security

  2. MOTIVATION • Connecting through the Internet • Cheap and convenient • Risky • Internet does not protect transmitted data

  3. Threats from the Internet • Network monitoring • Connection hijacking:connections can be hijacked without either party noticing • Routing spoofing • DNS (domain name server) spoofing • Denial of service attacks

  4. How to protect ourselves • An acceptable solution must guarantee • Authentication of both ends of the connection • Secrecy of transmitted information • Integrity of transmitted data • Secrecy of transmitted information is crucial

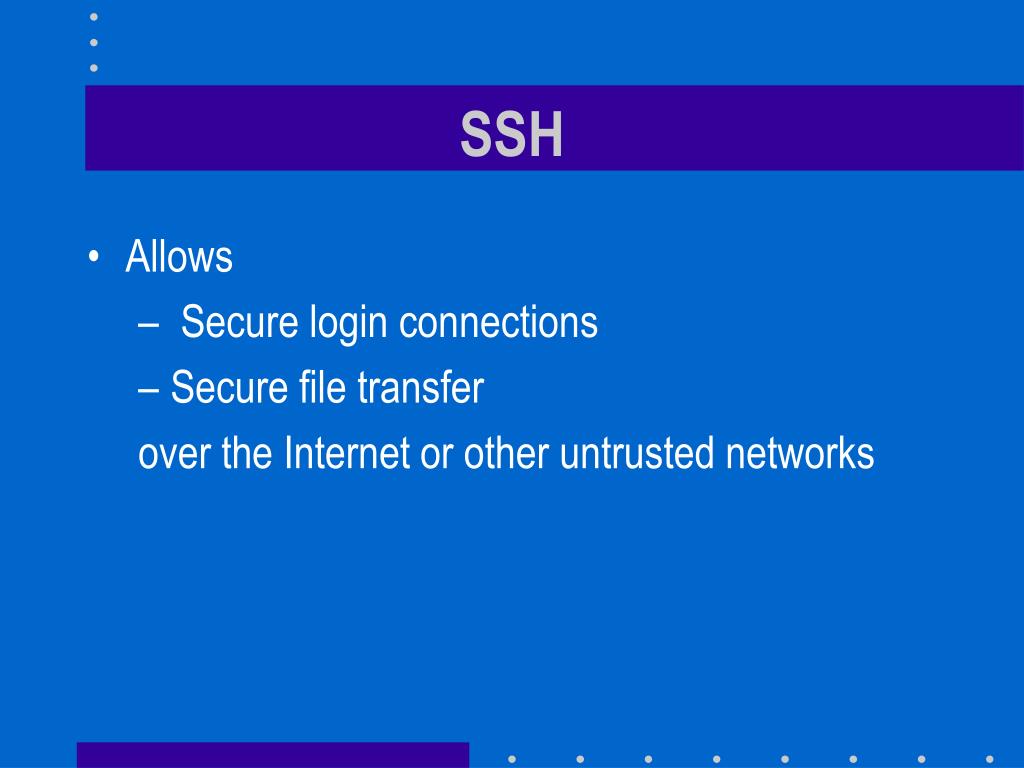

  5. SSH • Allows • Secure login connections • Secure file transfer over the Internet or other untrusted networks

  6. SSH • Uses cryptographic algorithms to • Authenticate both ends of the connection • Encrypt all transmitted data • Protect data integrity • Validate values returned by services such as DNS or network protocols (such as TCP)

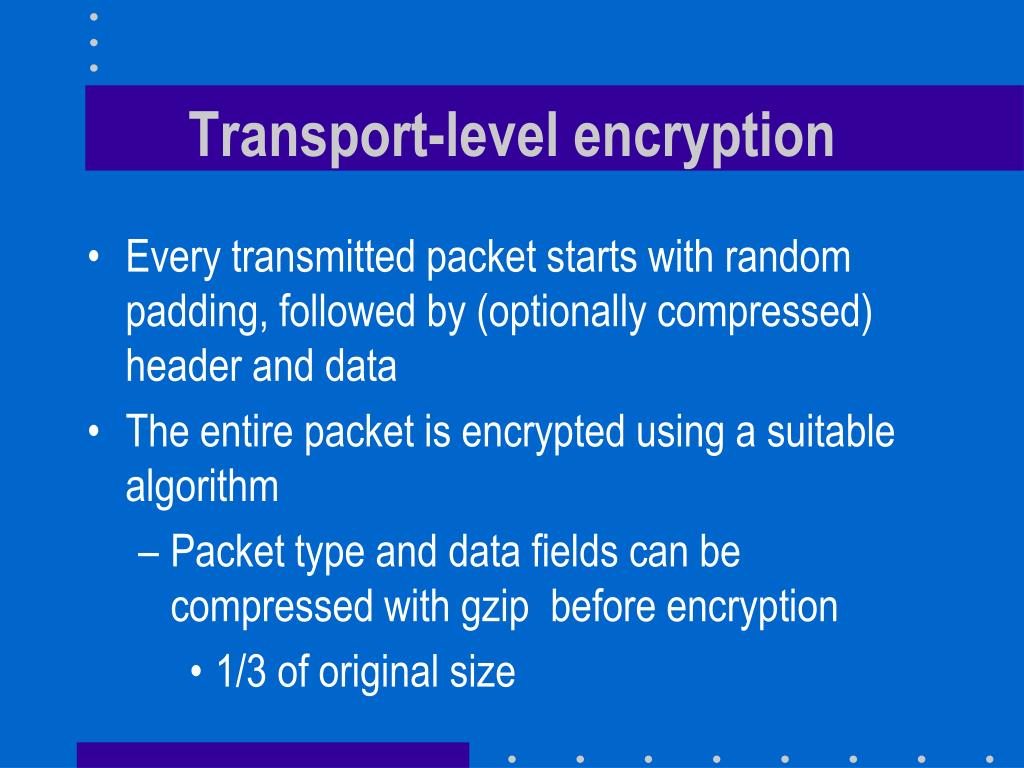

  7. Transport-level encryption • Every transmitted packet starts with random padding, followed by (optionally compressed) header and data • The entire packet is encrypted using a suitable algorithm • Packet type and data fields can be compressed with gzip before encryption • 1/3 of original size

  8. Integrity protection • Originally provided by including CRC32 of the packet under encryption • Found to be insufficient • Was replaced by HMAC-SHA

  9. What is HMAC-SHA? (I) • HMAC: • Hash-based Message Authentication Code • Uses a cryptographic hash function • Any change to the hashed data will (with very high probability) change the hash value

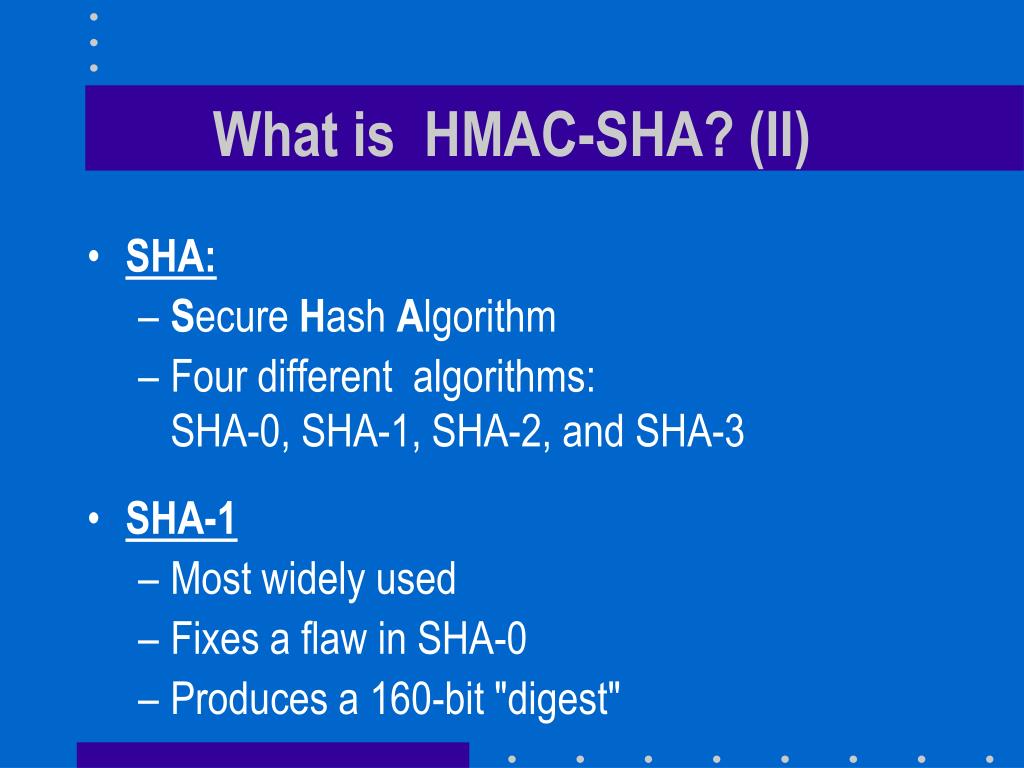

  10. What is HMAC-SHA? (II) • SHA: • Secure Hash Algorithm • Four different algorithms:SHA-0, SHA-1, SHA-2, and SHA-3 • SHA-1 • Most widely used • Fixes a flaw in SHA-0 • Produces a 160-bit "digest"

  11. SSH login protocol • Works on top of the packet-level protocol • Step 1:The client opens a connection to the server

  12. SSH login protocol • Step 2:Server sends • Its public RSA host key • Another public RSA key (``server key'') that changes every hour

  13. SSH login protocol The client compares the received host key against its own database of known host keys, Can decide to • Reject keys coming from unknown hosts • Accept them and store them in its database

  14. SSH login protocol • Step 3:The client • Generates a 256 bit random number using a cryptographically strong RNG (session key) • Picks an encryption algorithm among those supported by the server • Encrypts the session key with RSA using both the host key and the server key • Sends the encrypted key to the server

  15. The server key • Changed every hour • Used to make decrypting recorded historic traffic impossible after the server key has been changed when the host key becomes compromised • Normally a 768 bit RSA key • Host key is 1024 bits

  16. SSH login protocol • Step 4:Server • Recovers the session key • Sends an encrypted confirmation to the client • Shows client that it holds the proper private keys Client and server can start using transport-level encryption and integrity protection

  17. SSH login protocol • Step 5:User starts authentication procedure • First request includes the user login name • Server replies with either • successno further authentication is needed • failurefurther authentication is required

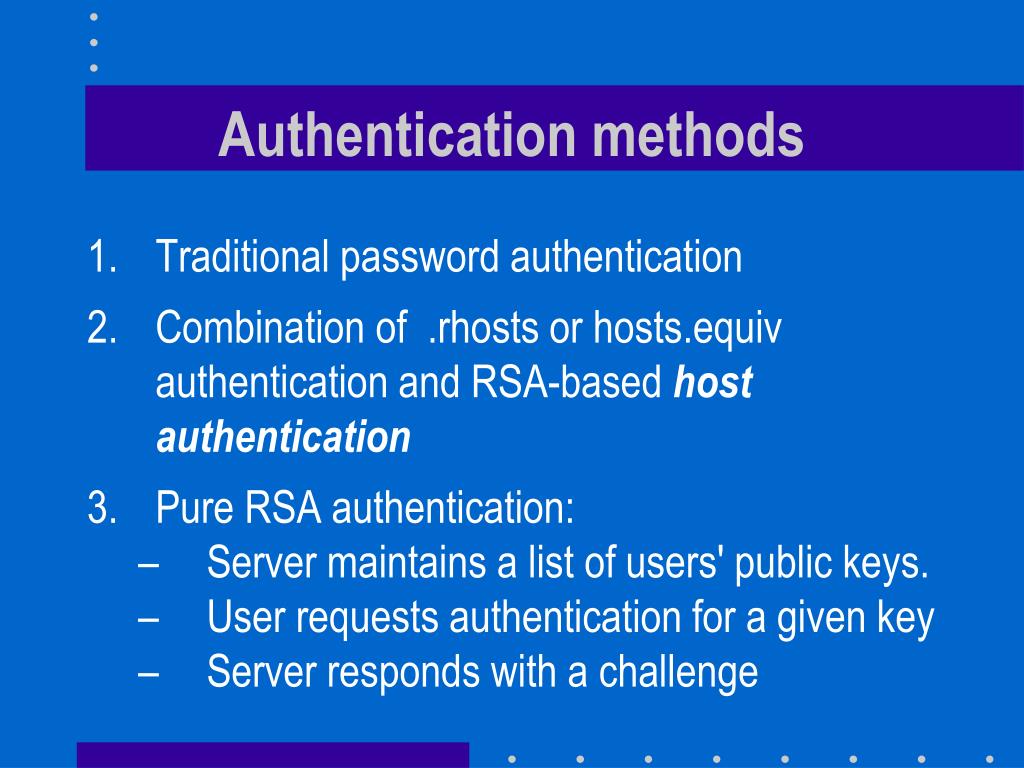

  18. Authentication methods • Traditional password authentication • Combination of .rhosts or hosts.equiv authentication and RSA-based host authentication • Pure RSA authentication: • Server maintains a list of users' public keys. • User requests authentication for a given key • Server responds with a challenge

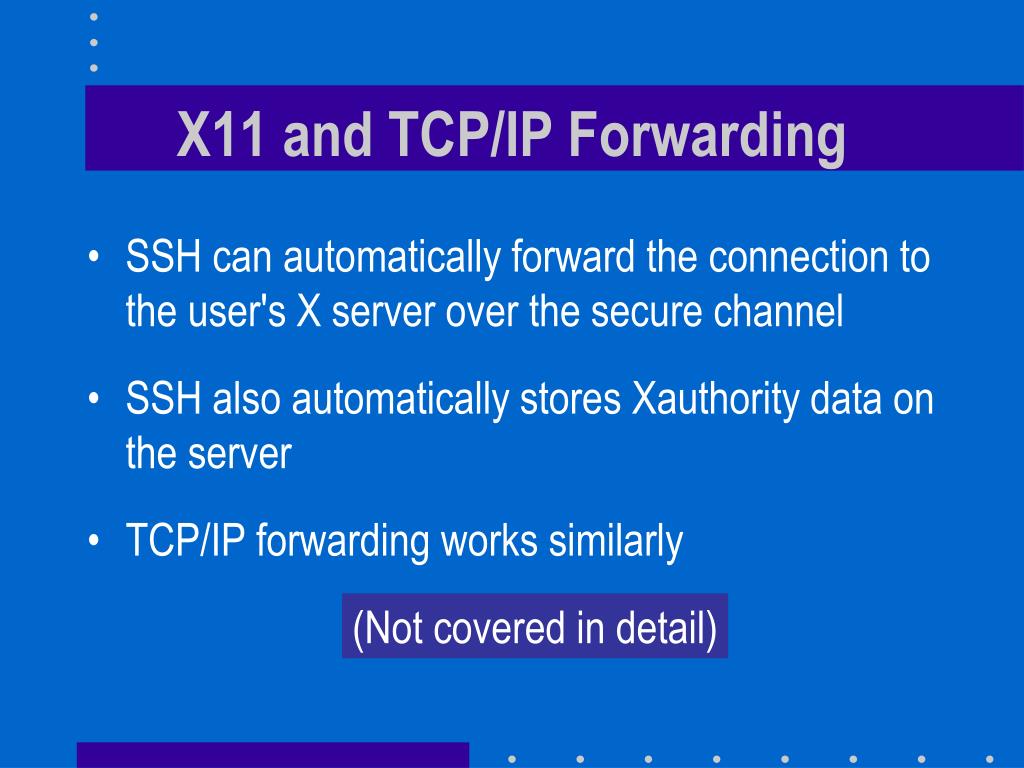

  19. X11 and TCP/IP Forwarding • SSH can automatically forward the connection to the user's X server over the secure channel • SSH also automatically stores Xauthority data on the server • TCP/IP forwarding works similarly (Not covered in detail)

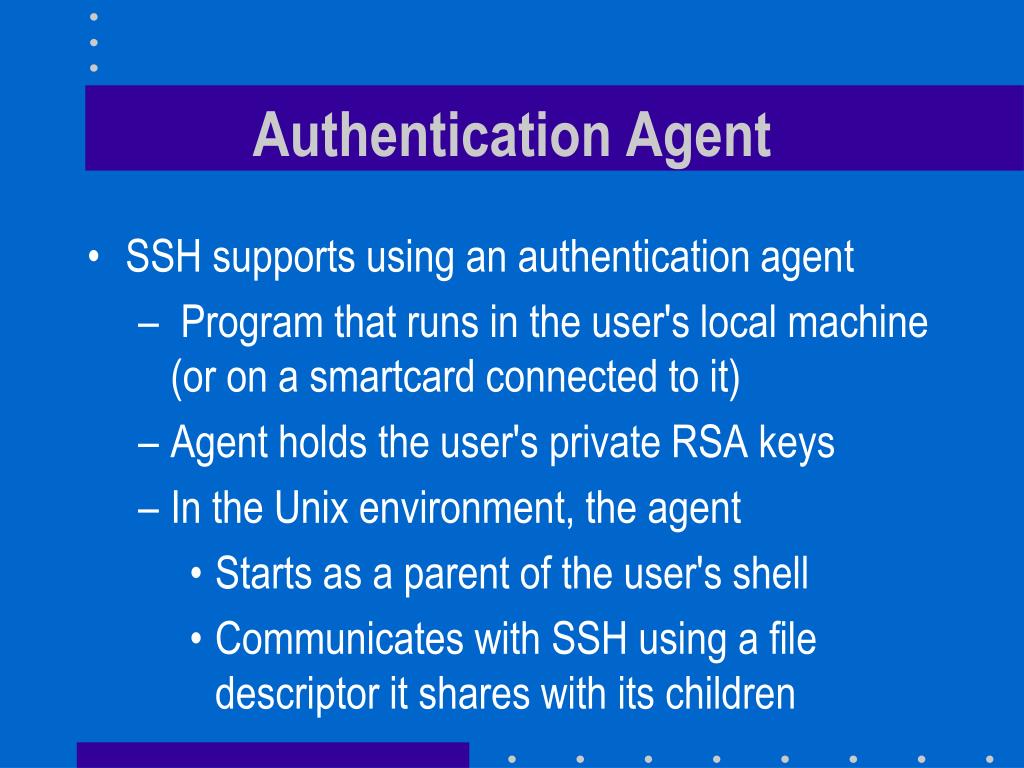

  20. Authentication Agent • SSH supports using an authentication agent • Program that runs in the user's local machine (or on a smartcard connected to it) • Agent holds the user's private RSA keys • In the Unix environment, the agent • Starts as a parent of the user's shell • Communicates with SSH using a file descriptor it shares with its children

  21. 1996 Changes • New transport layer protocol: • Better integrity checks • HMAC-MD5 and HMAC-SHA • More complete encryption of packet contents • New authentication protocol (Not covered)

  22. CONCLUSION • Strong cryptography • Solves Internet security issues • At negligible cost

  23. OPEN DISCUSSION • How does SSH compares with Kerberos?

  24. Performance • Startup time: • a few seconds • Data encryption rate: • Quite good on 1995 Pentium computers
