Dynamics and Control of Mechanical Systems: Exercises on Mass-Spring-Damper and Electromagnets

lyneth avatar
lyneth
8 diapositives · 238 Views · Jul 28, 2014

This document covers a series of exercises focused on dynamic systems in mechanical engineering. It includes problems related to a mass rolling on a frictionless cart connected by a spring and damper, exploring inputs and outputs, and analyzing forces in an electromagnet-driven loudspeaker. Additionally, the document explores Keynesian Economics, deriving a state-space model from GNP, consumption, investment, and government expenditures. Tools such as Nyquist, Bode, and Root locus methods are reviewed in preparation for the final exam.

Dynamics and Control of Mechanical Systems: Exercises on Mass-Spring-Damper and Electromagnets - slide 1
01 / 8Dynamics and Control of Mechanical Systems: Exercises on Mass-Spring-Damper and Electromagnets
1 / 17

Télécharger la présentation

Dynamics and Control of Mechanical Systems: Exercises on Mass-Spring-Damper and Electromagnets
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

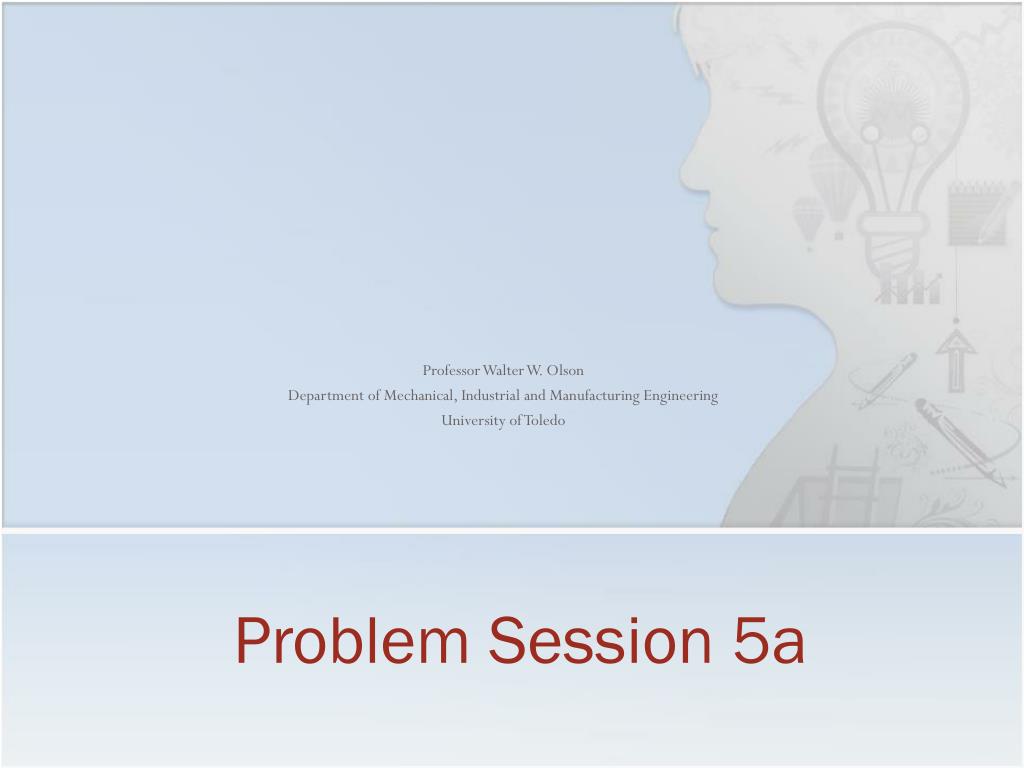

  1. Problem Session 5a Professor Walter W. Olson Department of Mechanical, Industrial and Manufacturing Engineering University of Toledo

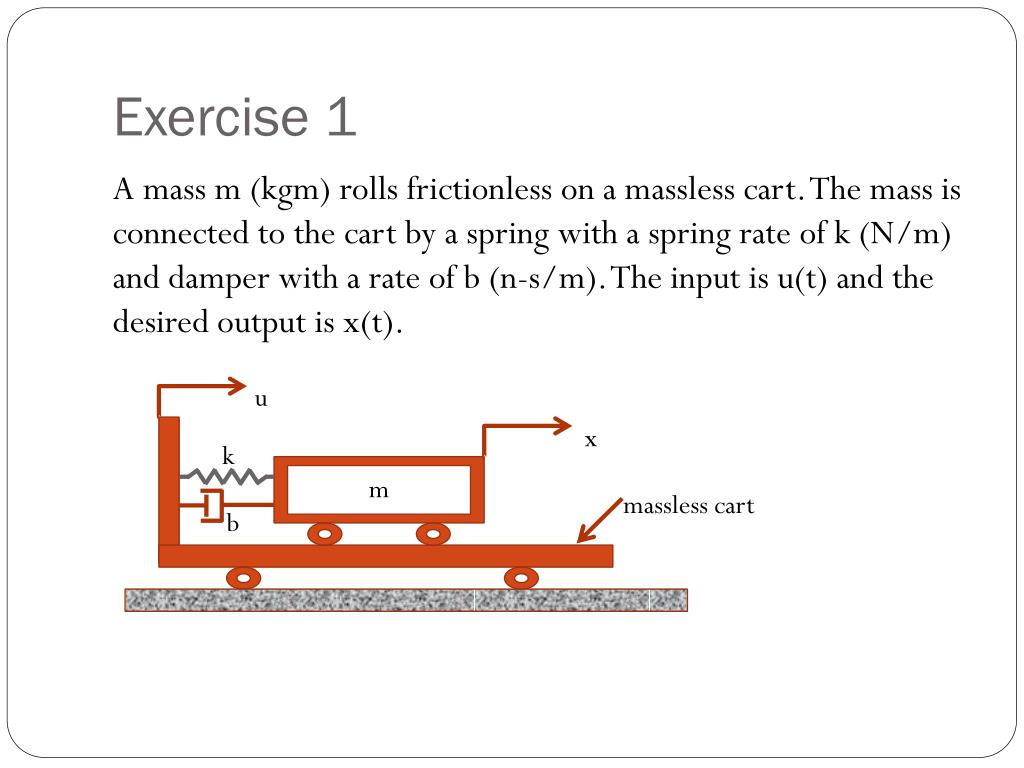

  2. Exercise 1 u x A mass m (kgm) rolls frictionless on a massless cart. The mass is connected to the cart by a spring with a spring rate of k (N/m) and damper with a rate of b (n-s/m). The input is u(t) and the desired output is x(t). k m massless cart b

  3. Exercise 1 Solution u x k m massless cart b

  4. Exercise 2 Electromagnet A loudspeaker works on the law of motors: where F is the force, i is the current, and l is the length of the coil wires. Assume that the cone can be represented by a mass, m, which is resisted by viscous damping with rate b and is driven by the force, F, produced by the current above. Cone Bobbin Coil

  5. Exercise 2 Electromagnet Cone Bobbin Coil

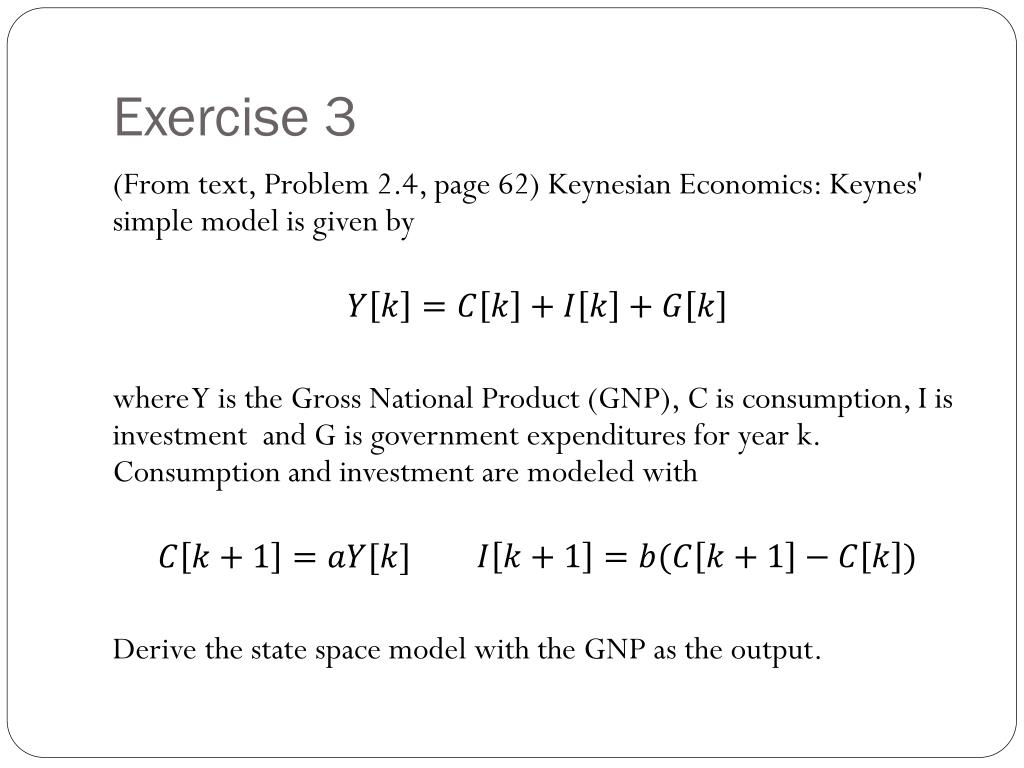

  6. Exercise 3 (From text, Problem 2.4, page 62) Keynesian Economics: Keynes' simple model is given by where Y is the Gross National Product (GNP), C is consumption, I is investment and G is government expenditures for year k. Consumption and investment are modeled with Derive the state space model with the GNP as the output.

  7. Exercise 3

  8. Summary • Robustness • Unmodeled dynamics • Tools: • Nyquist • Bode • Root locus • Course Review Next: Final Exam
